For Technical Support: www.panduit.com/resources/install_maintain.asp

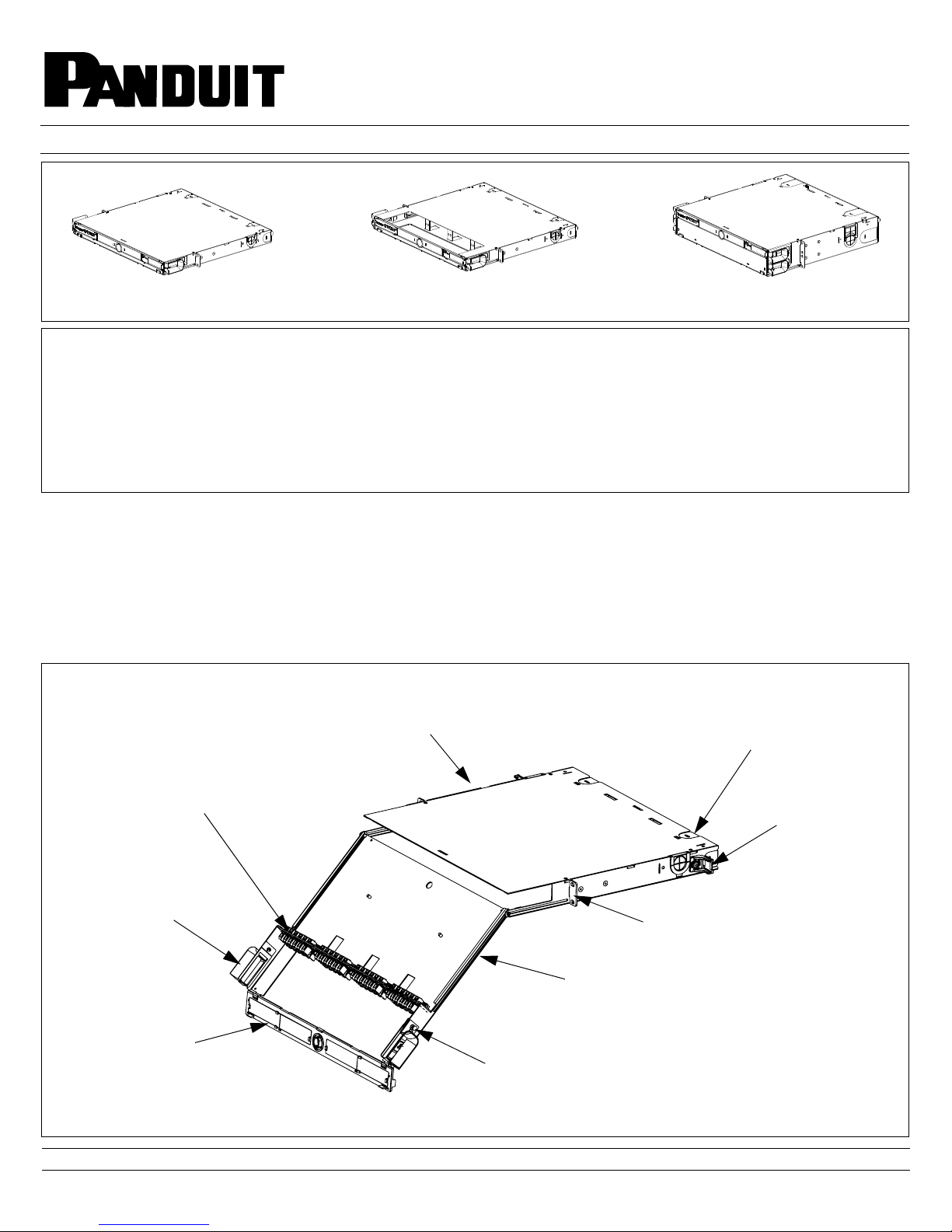

INSTALLATION INSTRUCTIONS

Page 1 of 11

Opticom QuickNet Rack Mount

Fiber Cassette Enclosures

Part Numbers: FCE1U, FCE1UA, FCE2U

1 - ENCLOSURE

2 (3) - Tak-Tys, 6"pcs.

2 (3) - ADHESIVE MOUNTS

2 - SLACK SPOOLS

1 (2) - #10-32 x 3/8"SCREW

3 (4) - #10-32 HEX NUTS

WARNING: UNMATED CONNECTORS MAY EMIT INVISIBLE LASER RADIATION. DO NOT LOOK DIRECTLY INTO THE END OF THE

CONNECTOR. DO NOT INSPECT WITH MAGNIFYING DEVICES. MAINTAIN DUST CAPS ON UNMATED CONNECTORS.

CAUTION:

Fiber optic cable is sensitive to excessive pulling, bending, and crushing forces. Consult the manufacturer’s cable specification sheet for the

specific cable in use.

Follow TIA/EIA-568-A, 569, 606, and 607 installation guidelines where applicable.

Care should be taken when opening or closing a fully loaded drawer in order to protect the fiber components.

CONTENTS: (#) indicates FCE2U quantity

3 (4) - CABLE ENTRY GROMMETS

4 - #M6 x 1 SCREWS

1 (2) - STRAIN RELIEF BRACKET

4 - CABLE TIES, PLT2S-M0

2 (4) - PLUNGER AND GROMMETS

2 (4) - BEND RADIUS CONTROL CLIPS

4 - #12-24 x 1/2"SCREWS

1 - CAUTION LABEL

1 - LASER WARNING LABEL

3 - ADHESIVE BEVEL ENTRY CLIPS

Mounting bracket

Trunk or interconnect

cable entry location

ASSEMBLY VIEW

Strain relief

bracket

Bend radius

control clip

Door assembly

(shown in the

open position)

FCE2U

Figure 1

Plunger and

grommet

Enclosure

sliding drawer

Fiber Adapter Panels (FAPs):

Up to 4 for FCE1U & FCE1UA

Up to 8 for FCE2U

(sold separately)

FCE1UAFCE1U

Enclosure

For Technical Support: www.panduit.com/resources/install_maintain.asp

INSTALLATION INSTRUCTIONS

Page 2 of 11

Figure 2

Mounting brackets

Figure 3

Determine where the cable will enter the enclosure.

Carefully remove the knock-out so as not to damage the

surrounding sheet metal.

DO NOT Install grommet at this stage. Grommet will be

installed after the enclosure is mounted to the rack.

Use (2) #12-24 X 1/2"

screws (provided).

Repeat for other side.

Mount the enclosure to the rack using

(4) #12-24 x 12"screws.

Use (4) M6 x 1 screws if mounting to a metric rack.

Preparation and Rack Mounting

Place the mounting brackets at the desired position

on the rack.

Figure 4

For Technical Support: www.panduit.com/resources/install_maintain.asp

INSTALLATION INSTRUCTIONS

Page 3 of 11

Figure 5A

After the enclosure is mounted to the rack, determine

the size of the innerduct that will be used to bring the

cable into the enclosure. Prepare grommet(s)

according to the proper cutting diagram to the left.

Install the strain relief bracket near where the cable will

enter the enclosure. Secure with #10-32 x 3/8"screw

and #10-32 hex nut.

Strain relief

bracket

#10-32 x 3/8"

screw

#10-32 hex

nut

Note: Cover not shown for clarity.

Figure 5

Figure 6

Install grommets as desired.

Cut out the small

circle for 1-1/4" dia.

innerduct

Cut out the large circle

for 1-1/2" dia.

innerduct

Cut the straight lines

when not using any

innerduct

Cut out the small

circle for 1" dia.

innerduct

Cut the straight

lines for smaller

bundle sizes

Grommet Cutting Diagram

For Technical Support: www.panduit.com/resources/install_maintain.asp

INSTALLATION INSTRUCTIONS

Page 4 of 11

Figure 7

Spring latch

Insert QuickNet Pre-Terminated Fiber Optic

Cassettes into the enclosure as shown. Once

mounted, fully seat NyLatch fasteners to

secure the cassettes.

QuickNet Cassettes:

Up to 4 for FEC1U & FCE1UA

Up to 8 for FCE2U

Fully extend drawer to ensure proper amount of

slack is used.

Drawer shown fully extended

and tilted downward

(cables omitted for clarity)

QuickNet Cassette Installation (cassettes not included)

Figure 7A

Figure 7B

Depress spring latch and pull sliding tray out to

the extended position.

For Technical Support: www.panduit.com/resources/install_maintain.asp

INSTALLATION INSTRUCTIONS

Page 5 of 11

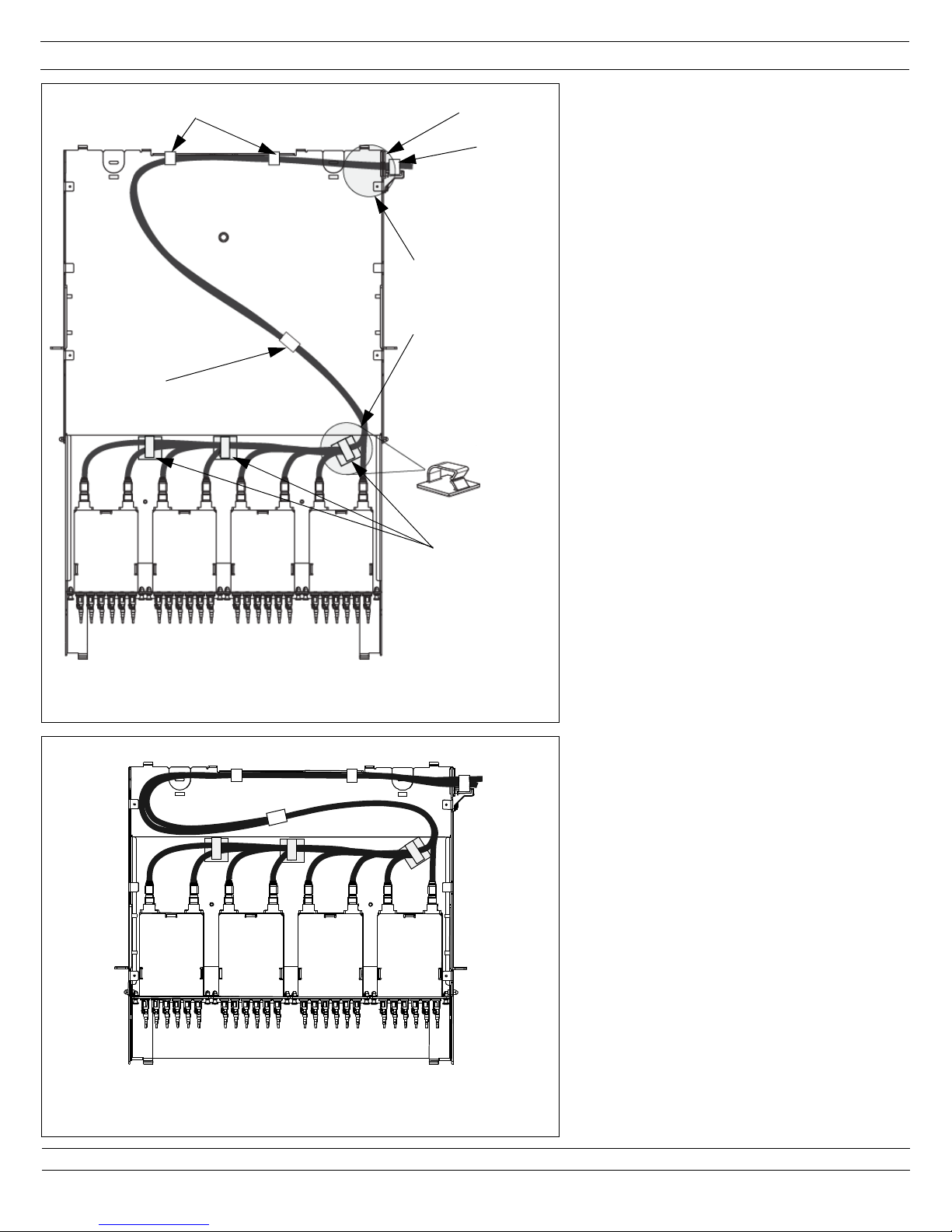

Route fiber through grommet to fiber cassettes as

shown. Leave enough slack so when the drawer is

fully extended the cables are not put under tension.

DO NOT use so much slack that the drawer cannot

be returned to its home position. (See Figure 7D)

Use Tak-Tys to secure fiber cords at cable entry

location and other points as shown.

Drawer in extended position

Free floating

Tak-Ty

Adhesive bevel

entry clips

(Note location

and position of

clips)

Drawer in home position

Grommet

Fixed

Tak-Ty

Tak-Ty cables to fence

Cable length

between point “A”

and point “B” is

approx. 34"

[.864m].

“A”

“B”

Figure 7C

Figure 7D

Note: Cover not shown for clarity.

For Technical Support: www.panduit.com/resources/install_maintain.asp

INSTALLATION INSTRUCTIONS

Page 6 of 11

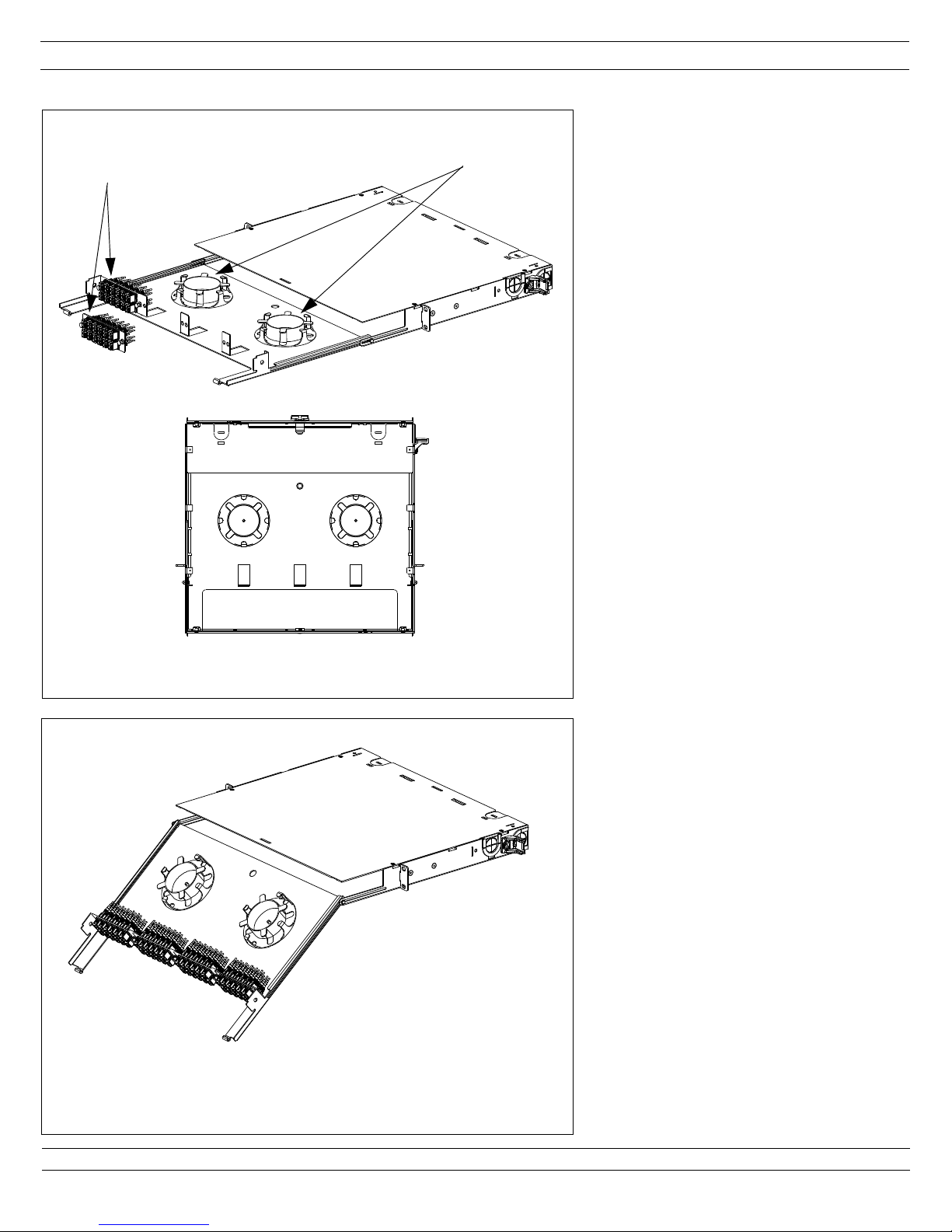

Place slack spools over #10-32 studs on sliding

tray. Secure with #10-32 hex nuts and/or adhesive

mounts (make sure to punch hole into adhesive

mounts). Note spool orientation.

Position FAPs between upright flanges as shown.

Once mounted, fully seat NyLatch fasteners to

secure FAPs.

Slack spools

Field Termination or Pre-Terminated Trunk Installation

Fully extend drawer to ensure proper amount of

slack is used.

Top view, cover not shown for clarity.

Please note orientation of spools.

Fiber Adapter Panels (FAPs):

Up to 4 for FEC1U & FCE1UA

Up to 8 for FCE2U

Figure 8

Figure 8A

Drawer shown fully extended

and tilted downward

(cables omitted for clarity)

For Technical Support: www.panduit.com/resources/install_maintain.asp

INSTALLATION INSTRUCTIONS

Page 7 of 11

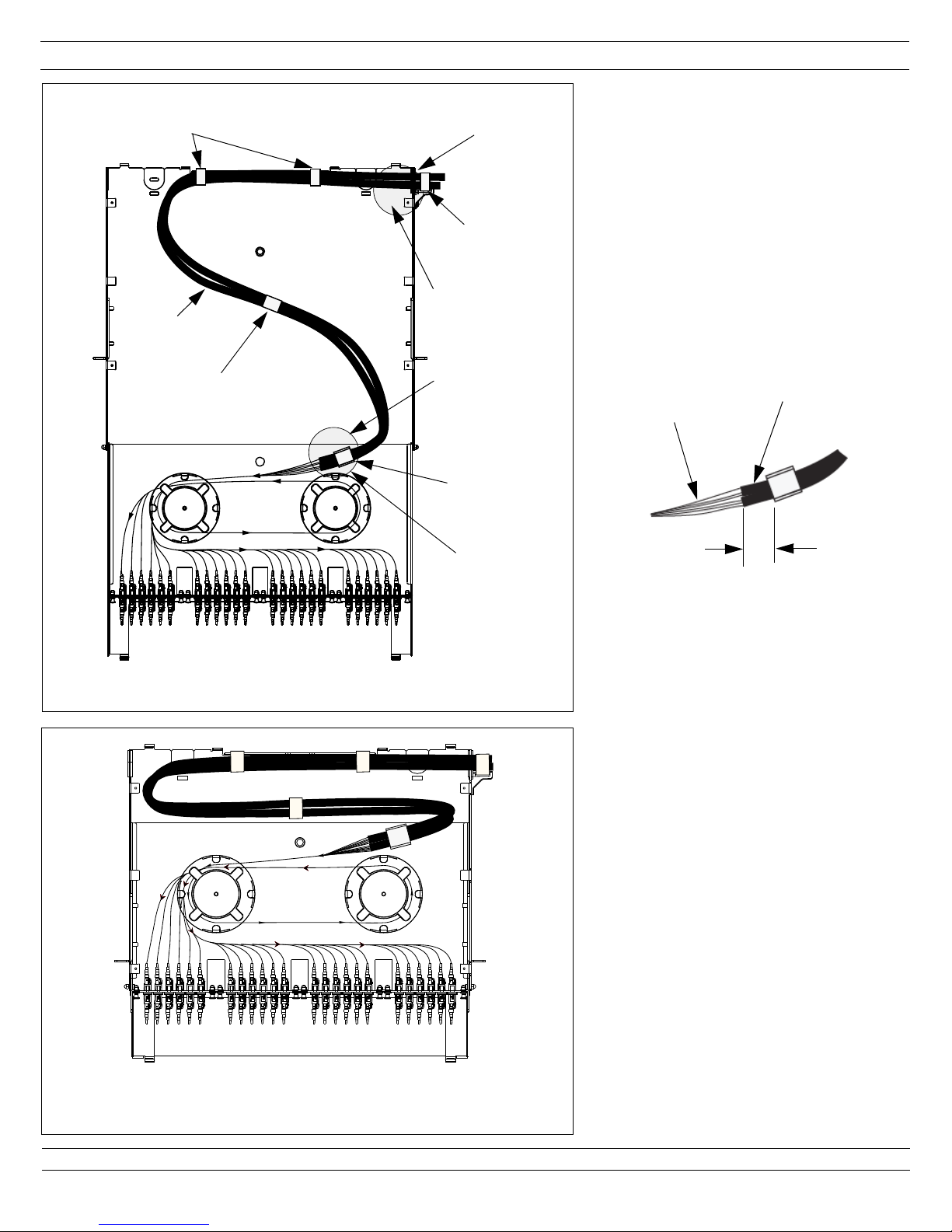

Tak-Ty cables to

fence as needed.

Drawer in home position

Figure 8C

Drawer in extended position.

Free floating

Tak-Ty

Grommet

Fixed Tak-Ty

Individual

fiber breakout

point.

(See detail at

right)

Route fiber through grommet as shown. Use

enough cable length to ensure one complete

loop (approx. 52" [1.32m]) of individual fibers

around slack spools. Leave enough jacketed

slack so when the drawer is fully extended the

cables are not put under tension. DO NOT use

so much slack that the drawer cannot be

returned to its home position (See Figure 8C).

Use Tak-Tys to secure fiber cords at cable entry

location and other points as shown.

Adhesive

mount with

Tak-Ty

Cable Jacket

Individual Fiber

Fiber Breakout Detail

Be sure adhesive mount secures

jacketed trunk cable. DO NOT clip

individual 900µm buffered fibers.

Sub-unit

tubes

1.0"

“A”

“B”

Cable length

between point “A”

and point “B” is

approx. 36"

[.914m].

[25.4m]

Figure 8B

Note: Cover not shown for clarity.

For Technical Support: www.panduit.com/resources/install_maintain.asp

INSTALLATION INSTRUCTIONS

Page 8 of 11

Fiber Adapter Panels (FAPs):

Up to 4 for FEC1U & FCE1UA

Up to 8 for FCE2U

FOSM Fiber Optic Splice Module Installation (FOSMs not included)

Place “L”shape support brackets over

#10-32 studs on sliding tray, note orientation.

Place first FOSM on top of “L”shape support

brackets and secure with #10-32 hex nuts.

Remaining FOSMs are stacked on top of

each other and snap in place.

If 4 FOSMs are to be installed in the FCE1U

or FCE1UA, side latches on top module must

be broken off to close the enclosure drawer.

Position FAPs between upright flanges as

shown. Once mounted, fully seat NyLatch

fasteners to secure.

Break off FOSM latch

on top module only

Drawer shown fully extended

and tilted down

(cables omitted for clarity)

Fully extend drawer to ensure proper amount

of slack is used.

Finish splicing in each FOSM before

adding/stacking subsequent FOSMs.

FOSM:

Up to 4 for FEC1U & FCE1UA

Up to 8 for FCE2U

"L" shape

support

brackets

Figure 9

Figure 9A

For Technical Support: www.panduit.com/resources/install_maintain.asp

INSTALLATION INSTRUCTIONS

Page 9 of 11

Drawer in home position

Figure 9C

Drawer in extended position

Figure 9B

Fixed Tak-Ty

Grommet

Route fiber through grommet as shown. Use

enough cable length to ensure one complete

loop (approx. 45" [1.15m]) of individual fibers

around FOSM slack spools.

Route 900µm buffered fiber from the trunk

cable and splice to pigtail per instructions in

FS001*, “Opticom Fiber Optic Splice Module

Installation Instructions.”

Leave enough jacketed slack so when the

drawer is fully extended the cables are not put

under tension. DO NOT use so much slack

that the drawer cannot be returned to its home

position (See Figure 9C).

Use Tak-Tys to secure fiber cords at cable

entry location and other points as shown.

Individual fiber

breakout point

(See fiber

breakout detail

on page 7)

Free-floating

Tak-Ty

Tak-Ty cables

to fence

Sub-unit

tubes

“A”

“B”

Cable length

between point

“A” and point

“B” is approx.

36" [.914m].

* Denotes instruction sheet revision letter.

Note: Cover not shown for clarity.

For Technical Support: www.panduit.com/resources/install_maintain.asp

INSTALLATION INSTRUCTIONS

Page 10 of 11

Bend radius

control clip

Plunger and

grommet

Figure 10A

Sliding tray

flange

Plunger and

grommet

Slide bend radius control clip over sliding tray

flange as shown. Push plunger/grommets

through bend radius control clip and sliding

tray flange hole. Fully seat plunger into

grommet to secure the clip. Repeat for the

other side.

Bend radius

control clips

Plunger and

grommet

Figure 10

Figure 11

Patch Cord Bend Radius Control Clip Installation

Install patch cords into FAPs/cassettes routing

through bend radius control clips and

maintaining proper patch cord bend radius.

Andere Handbücher für FCE1U

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Panduit Gehäuse Handbücher

Panduit

Panduit FRME2 Bedienungsanleitung

Panduit

Panduit PANZONE PZC12S Bedienungsanleitung

Panduit

Panduit PANZONE PZWC35 Bedienungsanleitung

Panduit

Panduit N2RCFR Bedienungsanleitung

Panduit

Panduit FMT1J Bedienungsanleitung

Panduit

Panduit PZWRKA Bedienungsanleitung

Panduit

Panduit PANZONE PZWIFIEW Bedienungsanleitung

Panduit

Panduit PANZONE PZC12S Bedienungsanleitung

Panduit

Panduit NET-ACCESS N21SPH Bedienungsanleitung

Panduit

Panduit FLEX-ZRFEG Bedienungsanleitung

Panduit

Panduit PanZone Series Bedienungsanleitung

Panduit

Panduit PANZONE PZBASE3 Bedienungsanleitung

Panduit

Panduit IAEIP66 Bedienungsanleitung

Panduit

Panduit PANZONE PZWIFIENA Bedienungsanleitung

Panduit

Panduit UICFPR4 Series Bedienungsanleitung

Panduit

Panduit PANZONE PZRFE4U Bedienungsanleitung

Panduit

Panduit ZDF48-RA Bedienungsanleitung

Panduit

Panduit FCE1U Bedienungsanleitung

Panduit

Panduit PANZONE PZAEWM6E Bedienungsanleitung

Panduit

Panduit PZWIFIEN Bedienungsanleitung

Panduit

Panduit FCE4U Bedienungsanleitung

Panduit

Panduit PANZONE PZWMC Bedienungsanleitung

Panduit

Panduit FRME1 Bedienungsanleitung

Panduit

Panduit E6212B1FP Bedienungsanleitung

Beliebte Gehäuse Handbücher anderer Marken

SilentiumPC

SilentiumPC Armis AR5 Handbuch

Pulsar

Pulsar 17/TRP80/DSPR Bedienungsanleitung

Thermaltake

Thermaltake V150 TG Bedienungsanleitung

MSI

MSI MPG SEKIRA 500X Bedienungsanleitung

Antec

Antec Dark fleet DF-10 Bedienungsanleitung

Nexans

Nexans WTC05 Bedienungsanleitung

Peavey

Peavey DS 1502 Bedienungsanleitung

D-Link

D-Link ShareCenter Pro DNS-1550-04 Bedienungsanleitung

Rosewill

Rosewill RX82-U(JBOD) Bedienungsanleitung

QNAP

QNAP SAS JBOD CLI 1.0 Bedienungsanleitung

GAMDIAS

GAMDIAS Talos P1 Bedienungsanleitung

Auvs

Auvs KR615 Bedienungsanleitung

Digitus

Digitus DA-71114 Bedienungsanleitung

CommScope

CommScope FDH 3000 Bedienungsanleitung

FS FHD-FWME4 Bedienungsanleitung

JBL

JBL CS1215T Bedienungsanleitung

Pulsar

Pulsar ARAD-S4 Bedienungsanleitung

Pulsar

Pulsar AWO454 Bedienungsanleitung
