Panduit FCE4U Bedienungsanleitung
For Technical Support: www.panduit.com/resources/install_maintain.asp
INSTALLATION INSTRUCTIONS
© Panduit Corp. 2010 FS012
Opticom Rack Mount Fiber Cassette Enclosure
Part Number: FCE4U
1 - ENCLOSURE
4 - #12-24 X 1/2" SCREWS
4 - M6X1 SCREWS
2 - #10-32 X 3/8" SCREWS
4 - #10-32 HEX NUTS
CAUTION:
Fiber optic cable is sensitive to excessive pulling, bending and crushing forces. Consult the manufacturer’s cable specification sheet for the
specific cable in use.
Follow TIA/EIA-568A, 569, 606, and 607 installation guidelines where applicable.
WARNING: UNMATED CONNECTORS MAY EMIT INVISIBLE LASER RADIATION. DO NOT LOOK DIRECTLY INTO THE END OF
THE CONNECTOR. DO NOT INSPECT WITH MAGNIFYING DEVICES. MAINTAIN CAP ON UNMATED CONNECTORS.
Care should be taken when opening and closing fully loaded enclosure in order to protect fiber components.
Contents:
2 - GROMMETS
2 - STRAIN RELIEF BRACKETS
3 - TAK-TYS (6" pcs.)
4 - CABLE TIES (PLT2S-M0)
2 - SLACK SPOOLS
3 - ADHESIVE BEVEL ENTRY CLIPS
3 - ADHESIVE MOUNTS
1 - CAUTION LABEL
1 - LASER WARNING LABEL
2 - BEND RADIUS POSTS
Enclosure
Trunk or
Interconnect
Cable Entry
Grommet
ASSEMBLY VIEW
FCE4U
Strain Relief Bracket
Bend Radius
Post
Door Assembly
(shown in open
position)
Figure 1
Enclosure
Sliding Drawer
Lid (not removable)
Page 1 of 10
Blank
(removable)
For Technical Support: www.panduit.com/resources/install_maintain.asp
INSTALLATION INSTRUCTIONS
© Panduit Corp. 2010 FS012
Use (2) #12-24 x 1/2" or (2)
M6x1 screws (provided).
Repeat for other side.
Install the bend radius posts on each side as shown.
Determine where the cable will enter the enclosure.
Carefully remove the knock-out at that entry location
of the fiber tray making sure not to damage the
surrounding sheet metal. DO NOT install grommet at
this stage, grommet will be installed after enclosure
is mounted to rack.
Place enclosure mounting brackets at desired
position on the rack. Mount the enclosure to the rack
using (4) #12-24 x 1/2" screws. Use the (4) M6x1
screws if mounting to a metric rack.
Figure 2
PREPARATION AND RACK MOUNTING
Fastening tabs can be
used to secure slide out
tray using two additional
#12-24 x 1/2" or M6x1
screws (not provided).
Align notches with
RU markings.
Page 2 of 10
Figure 3B
Figure 3C
Enclosure Mounting
Bracket
(typical opposite side)
Figure 3A
Bend Radius
Post
For Technical Support: www.panduit.com/resources/install_maintain.asp
INSTALLATION INSTRUCTIONS
© Panduit Corp. 2010 FS012

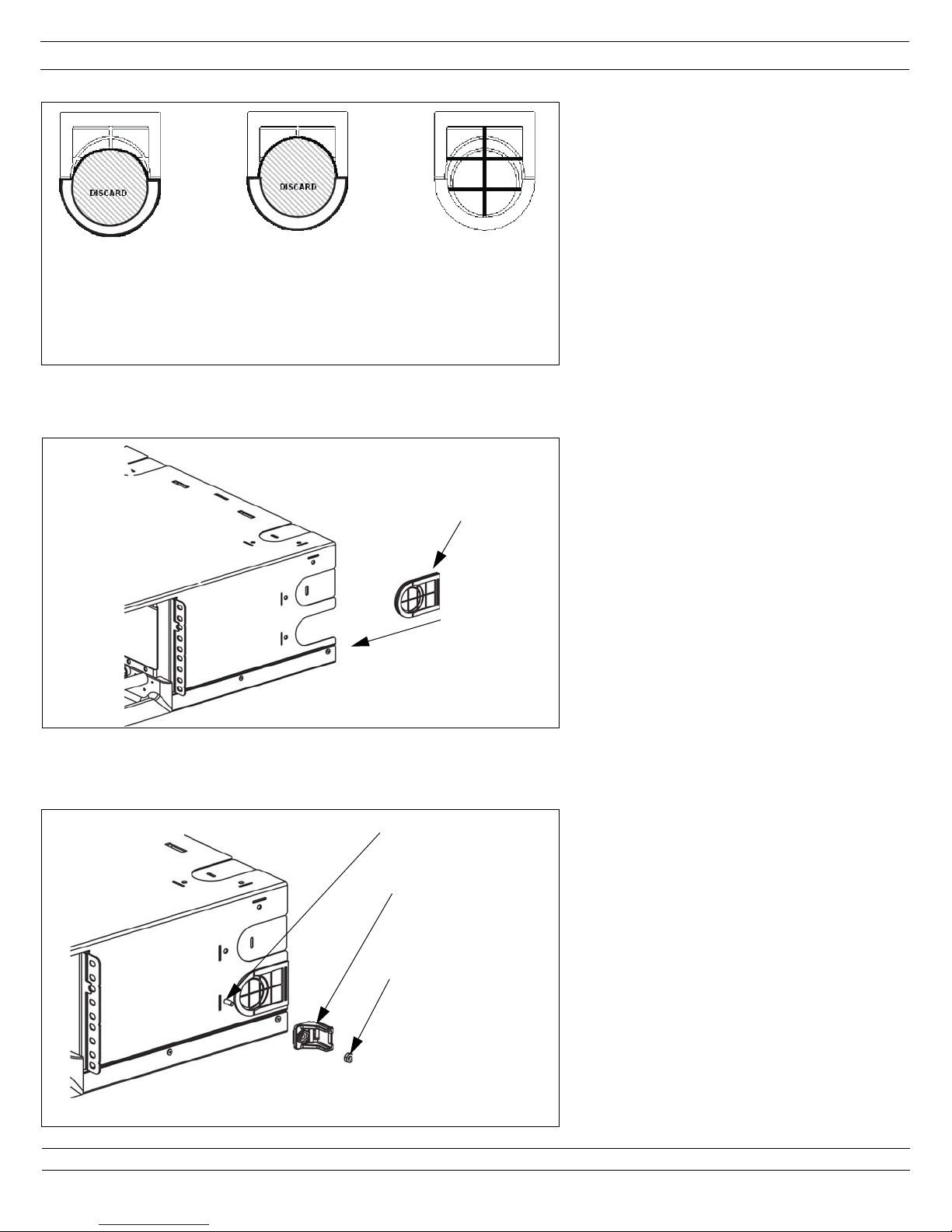

After the enclosure is mounted in the rack, determine
the size of the innerduct that will be used to bring the
cable into the enclosure. Install grommet following
the proper cutting diagram (See Figure 4A).
Cut the small circle
for 1" diameter
innerduct
Cut the large circle
for 1-1/2" diameter
innerduct
Cut the straight
lines when not
using any
innerduct
Install the strain relief bracket near where the
cable will enter the enclosure. Secure with a
#10-32 x 3/8" screw and #10-32 hex nut.
Strain Relief Bracket
#10-32 x 3/8" Screw
#10-32 Hex Nut
Figure 4A
Figure 4B
Figure 5
Page 3 of 10
Grommet
For Technical Support: www.panduit.com/resources/install_maintain.asp
INSTALLATION INSTRUCTIONS
© Panduit Corp. 2010 FS012
Tak-Ty cables to fence
Insert Opticom QuickNet Pre-Terminated Fiber Optic
Cassettes into the enclosure as shown. Once
mounted, fully seat NyLatches to secure the
cassette.
Fully extend tray to ensure proper amount of slack is
used.
Cassette Installation Option
Figure 6A
Isometric view showing tray fully
extended and tilted down.
(cables omitted for clarity)
Opticom QuickNet Cassette Installation
Route fiber through grommet to fiber cassettes as
shown. Leave enough slack so when the drawer is
fully extended the cables are not put under tension.
DO NOT use so much slack that the drawer cannot
be returned to its home position (See Figure 6C).
Use Tak-Tys to secure fiber cords at cable entry
location and other points as shown.
Drawer in extended position.
(cover omitted for clarity) Figure 6B
Free floating
Tak-Ty
Adhesive
Bevel Entry
Clips
Grommet
Fixed
Tak-Ty
Cable length
between point
“A” and point
“B” is approx.
31" [.787m]
“A”
“B”
Cassettes
(12 capacity)
Page 4 of 10
For Technical Support: www.panduit.com/resources/install_maintain.asp
INSTALLATION INSTRUCTIONS
© Panduit Corp. 2010 FS012
Figure 6C
Tray in home position.
(cover omitted for clarity)
Page 5 of 10
For Technical Support: www.panduit.com/resources/install_maintain.asp
INSTALLATION INSTRUCTIONS
© Panduit Corp. 2010 FS012
Place slack spools over #10-32 studs on sliding
tray. Secure with #10-32 hex nuts or adhesive
mounts (make sure to punch hole into adhesive
mounts). Note spool orientation.
Position FAPs between upright flanges as shown.
Once mounted, fully seat NyLatches to secure
FAPs.
Fully extend tray to ensure proper amount of slack
is used.
FAPs (12 capacity)
Slack
Field-Terminated Trunk Option
Figure 7A
Isometric view showing tray fully open
and tilted down.
(cables omitted for clarity)
Top view with cover removed.
Note orientation of spools.
Page 6 of 10
Spools
For Technical Support: www.panduit.com/resources/install_maintain.asp
INSTALLATION INSTRUCTIONS
© Panduit Corp. 2010 FS012
Tray in home position.
(cover omitted for clarity)
Figure 7B
Figure 7C
Drawer in extended position.
(cover omitted for clarity)
Route fiber through grommet as shown.
Use enough cable length to ensure one
complete loop of individual fibers around
slack spools. Leave enough jacketed slack
so when the drawer is fully extended the
cables are not put under tension. DO NOT
use so much slack that the drawer cannot
be returned to its home position (See
Figure 7C).
Use Tak-Tys to secure fiber cords at cable
entry location and other points as shown.
Grommet
“A”
“B”
Fixed Tak-Ty
Cable length
between point
“A” and point
“B” is approx.
36" [.914m]
Adhesive mount
with Tak-Ty
Individual fiber
breakout point.
(see detail at
right)
Tak-Ty
cables to
fence or
cover as
needed.
Sub-unit
tubes
Free floating
Tak-Ty
1.0"
Cable Jacket
Individual Fiber
Fiber Breakout Detail
Be sure adhesive mount secures
jacketed trunk cable. DO NOT clip
individual 900µm buffered fibers.
Page 7 of 10
For Technical Support: www.panduit.com/resources/install_maintain.asp
INSTALLATION INSTRUCTIONS
© Panduit Corp. 2010 FS012
FAPs
(12) capacity
FOSM Fiber Optic Splice Module Installation
Place FOSM Holder over #10-32 studs on
sliding tray (note orientation). Secure with
#10-32 hex nut. Place first FOSM on top of
FOSM Holder (note orientation). The
remaining FOSMs are stacked on top of each
other and snap in place after termination of
lower tray.
Position FAPs between upright flanges as
shown. Once mounted, fully seat NyLatches
to secure FAPs.
Fully extend tray to ensure proper amount of
slack is used.
Finish splicing in each FOSM before adding or
stacking subsequent FOSMs.
Isometric view showing tray fully
open and tilted down.
(cables omitted for clarity) Figure 8A
FOSM (12)
capacity
FOSM Holder
(Panduit Part No.
FOSMH4U)
Page 8 of 10
For Technical Support: www.panduit.com/resources/install_maintain.asp
INSTALLATION INSTRUCTIONS
© Panduit Corp. 2010 FS012
Drawer in home position.
(cover omitted for clarity) Figure 8C
Drawer in extended position.
(cover omitted for clarity) Figure 8B
Fixed Tak-Ty
Grommet Route fiber through grommet as shown. Use
enough cable length to ensure one complete
loop of individual fibers around splice tray
slack spools. (See instruction sheet for splice
trays). Leave enough jacketed slack so when
the drawer is fully extended the cables are not
put under tension. DO NOT use so much slack
that the drawer cannot be returned to its home
position (See Figure 8C).
Use Tak-Tys to secure fiber cords at cable
entry location and other points as shown.
Individual
fiber break
out point.
Free
floating
Tak-Ty
Tak-Ty cable to
fence or cover
Cable Length
between point
“A” and point
“B” is approx.
31" [.787m]
“A”
“B”
Page 9 of 10
E-mail:
Fax:
(708) 444-6448
For Instructions in Local Languages
and Technical Support:
www.panduit.com/resources/install_maintain.asp
INSTALLATION INSTRUCTIONS
© Panduit Corp. 2010 FS012
www.panduit.com
Re-install front and rear door assemblies if
removed during fiber installation.
Attach Laser Warning Label and Caution Label
where they are clearly visible.
Figure 9
Rotate the Bend Radius Posts to the open
position on each end of the patch field to allow
room to route patch cords under the tabs to the
cable manager.
Plug fiber connector into FAP adapter. Route
patch cords down to fiber manager base, under
fiber manager fingers and Bend Radius Posts to
cable manager.
After all patch cords have been routed to the cable
manager, rotate Bend Radius Posts back to the
closed position to contain the patch cords within
the fiber manager. Tighten the connection of the
Bend Radius Posts to the enclosure by securing
the hex nut at the rear of the fiber manager and
tightening the Bend Radius bolt with a Phillips
head screwdriver.
Page 10 of 10
Figure 10A
Figure 10
Bend Radius Posts
in open position
