Paradox 1640 Bedienungsanleitung
Icon LCD Keypad
(1640)
User Guide
1640-EU02.fm Page -3 Wednesday, May 18, 2005 3:10 PM
1640-EU02.fm Page -2 Wednesday, May 18, 2005 3:10 PM
Table of Contents
Introduction........................................................1
Legend................................................................... 1
Basic Operation.................................................2
Action Keys............................................................ 2
Keypad Indicator Lights......................................... 3
On-screen Icons .................................................... 4
Auditory Feedback................................................. 6
Arming & Disarming..........................................7
Exit Delay .............................................................. 7
Disarming & Deactivating an Alarm....................... 7
Alarm Memory Display .......................................... 8
Regular Arming...................................................... 8
Stay Arming........................................................... 9
Instant Arming ....................................................... 9
Force Arming....................................................... 10
Manual Bypass Programming ............................. 11
One-Touch Arming.............................................. 12
Keyswitch Arming................................................ 14
Timed Auto-Arming.............................................. 14
“No Movement” Auto Arming............................... 15
Fire Alarms.......................................................... 15
Additional Features.........................................19
Programming Chime Zones................................. 19
1640-EU02.fm Page -1 Wednesday, May 18, 2005 3:10 PM
Keypad Muting .....................................................19
Panic Alarms........................................................20
Program Time ......................................................21
Quick Function Keys ............................................21
Keypad Settings...................................................22
Partitioning ...........................................................22
Testing & Maintenance.........................................23
Programming Access Codes......................... 24
System Master Code (Default: 123456)...............24
Master Codes.......................................................24
Duress Code ........................................................25
Programming Access Codes................................25
Trouble List..................................................... 27
System Checklist............................................ 31
1640-EU02.fm Page 0 Wednesday, May 18, 2005 3:10 PM
1640 Icon LCD Keypad 1
1.0 Introduction
The 1640 Icon LCD Keypad allows you to easily access your
security system's functions and provide you with an easy-to-
understand display of your security system's alarm and
operational status.
All the actions performed in your security system will be
executed and displayed through the keypad. Your security
system uses advanced technology which will provide you
with reliable security protection and powerful features that are
easy to use.
Since you will communicate your instructions to the system
through your keypad, please read this manual carefully and
have your installer explain basic system operation.
1.1 Legend
= Indicates a warning.
= Indicates a note or reminder.
[Number] =
Indicates information that must be entered on
the keypad.
1640-EU02.fm Page 1 Wednesday, May 18, 2005 3:10 PM
2 User Guide
2.0 Basic Operation
This section will provide an overview of the 1640’s
functionality. This includes the use of action keys, indicator
lights and visual feedback.
Many of the features in your system must be enabled by
the installer. If the feature is not programmed, the keypad
will emit a rejection beep and the action will be cancelled.
2.1 Action Keys
The 1640 has action keys with which you can access its
various functions as shown in Table 1.

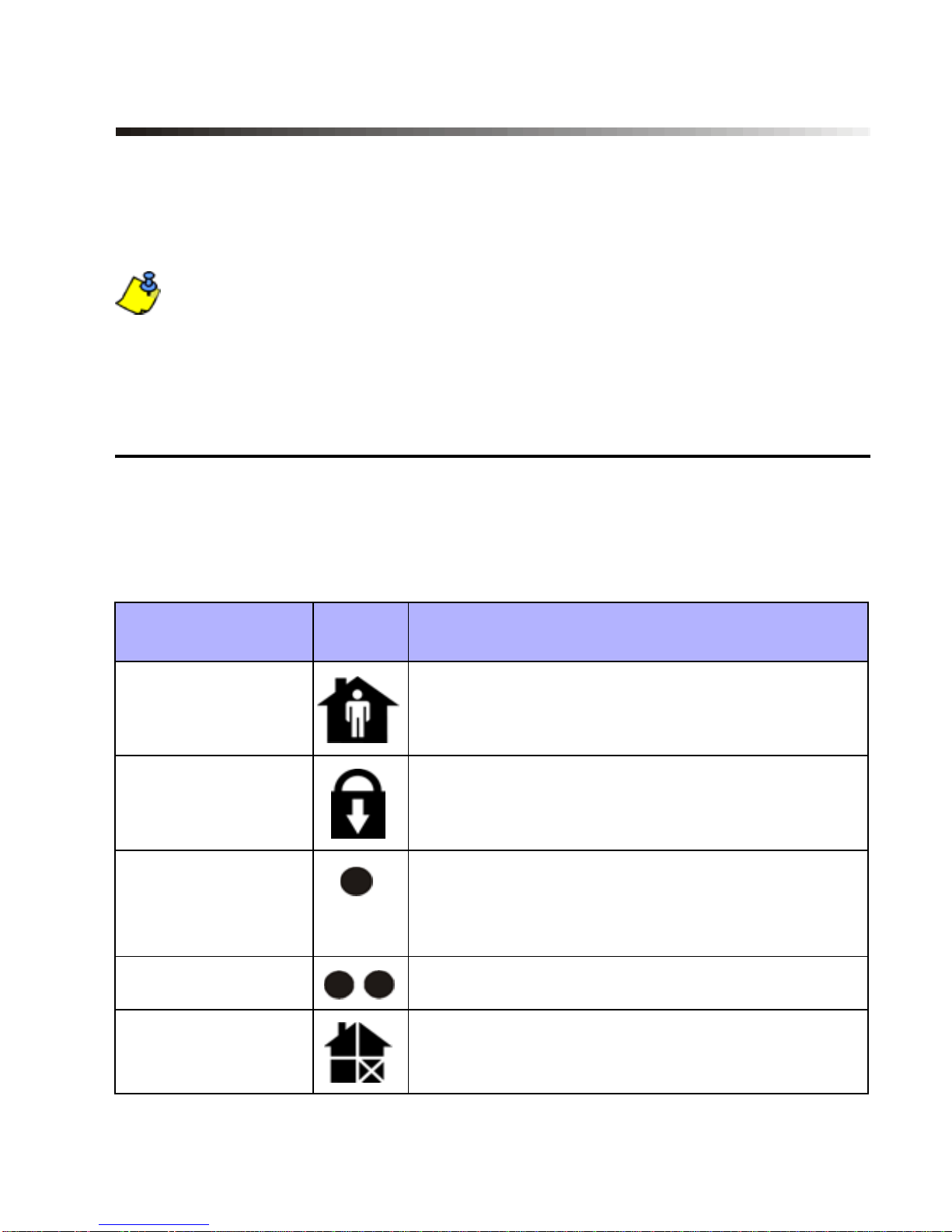

Table 1: Action Keys
Name Key Description
Stay Arm Refer to Stay Arming on page 9 and
Instant Arming on page 9.
Force Arm Refer to Force Arming on page 10.
Function Key 1 Press and hold to activate devices (i.e.
garage door) or reset smoke detectors.
Speak to your installer for more details.
Function Key 2 Reserved for future use.
Zone Bypass Refer to Manual Bypass Programming
on page 11.
1640-EU02.fm Page 2 Wednesday, May 18, 2005 3:10 PM
1640 Icon LCD Keypad 3
2.2 Keypad Indicator Lights
The state of each light on the 1640 keypad represents a
specific condition in your system as shown in Table 2.
Table 2: Indicator Lights
Events in
Memory Refer to Alarm Memory Display on
page 8.
System
Trouble Refer to Trouble List on page 27.
N/A Reserved for future use.
LED Name Status Description
AC Light ON
OFF Power on
Power off
Status Light Green ON All zones closed
Green OFF Zone(s) open or in
tamper
Green flash Exit delay
Name Key Description
1640-EU02.fm Page 3 Wednesday, May 18, 2005 3:10 PM
4 User Guide
2.3 On-screen Icons
The icons on the keypad’s screen communicate your
system’s status as outlined in Table 3.
Table 3: Icon Display
Status Light Red ON Area(s) armed
Red OFF Area(s) disarmed
Red slow flash Stay or instant armed
Red fast flash System in alarm
Red and yellow
flash alternately Communication bus
fault
Icon(s) Description
Indicates numbers corresponding to zones
or option numbers. Numbers will illuminate
to indicate that a zone is opened or when in
trouble view mode will indicate the trouble.
Indicates which areas are Force Armed.
Refer to Force Arming on page 10.
Indicates which areas are Regular Armed.
Refer to Arming & Disarming on page 7.
LED Name Status Description
1640-EU02.fm Page 4 Wednesday, May 18, 2005 3:10 PM
1640 Icon LCD Keypad 5
Indicates which areas are Instant Armed.
Refer to Instant Arming on page 9.
Indicates which areas are Stay Armed.
Refer to Stay Arming on page 9.
Indicates the numerical values for the time,
sections, section data, options and codes.
Indicates which zone is in Chime Mode.
Refer to Programming Chime Zones on
page 19.
Indicates zones in tamper. Refer to Arming
& Disarming on page 7.
Indicates zones that are in Fire Alarm.
Refer to Fire Alarms on page 15
Indicates system troubles. Refer to Trouble
List on page 27.
Indicates bypassed zones. Refer to Manual
Bypass Programming on page 11.
Indicates alarms stored in memory. Refer to
Alarm Memory Display on page 8.
Icon(s) Description
1640-EU02.fm Page 5 Wednesday, May 18, 2005 3:10 PM
6 User Guide
2.4 Auditory Feedback
When you enter information on the keypad, it will guide you
with beep tones. You should be familiar with these:
Confirmation Beep: When an operation (i.e. arming/
disarming) is successfully entered on the keypad or when the
system switches to a new status/mode, the keypad produces
an intermittent beep tone (“BEEP-BEEP-BEEP-BEEP”).
Rejection Beep: When the system reverts to previous status
or when an operation is incorrectly entered on the keypad, it
will emit a continuous beep tone (“BEEEEEEEEP”).
