Paradyne 9261 Bedienungsanleitung

9261 Dual T1 Network Access Module (NAM)

Installation Instructions

Document Number 9261-A2-GN10-00

September 1997

Before You Begin

Make sure you have:

An operable T1 network connection

An async (VT100-compatible) terminal emulation

Housing and other associated hardware

Applicable cables

Package Checklist

Verify that your package contains the following:

T1 NAM and associated I/O card

Affidavit Requirements for Connection to Digital Service

Warranty



Safety, Regulatory, Warranty and Service Information

(Document No. 9000-A2-GX41)

Available Option

The following option is separately orderable:

RJ48C modular cable for network access (14)

What Does a T1 NAM Do?

The T1 NAM acts as an interface between the T1 digital network and the customer

premises equipment, converting signals received from the DTE to bipolar signals that

can be transmitted over T1 and Fractional T1 lines. The 9261 T1 NAM also provides an

additional T1 network interface connector. Typical applications include:

HWide Area Networks (WANs)

HChannel extension

HVideo teleconferencing

Cables You May Need to Order

The following cables are specifically for this product. See page A of either the

Model 916x/926x T1 Access Mux User’s Guide

(Document No. 9161-A2-GB20) or the

Model 916x/926x T1 Access Mux Technical Reference

(Document No. 9161-A2-GH30)

for ordering information. You can also see the

Technical Reference

for cable pin-out

information.

If connecting to a . . . Order a . . .

Terminal or printer (DB25

interface/connector) COM Port-to-Terminal/Printer cable (14)

PC (DB9 interface/connector –

EIA-232 connection) COM Port-to-PC cable (14)

DTE with a V.35

interface/connector MS34 to DB25 adapter cable for each port: Port 1

and/or Port 2 (1′)

DTE with a RS-449

interface/connector DB37 to DB25 DTE adapter cable for each port:

Port 1 and/or Port 2 (1′)

DTE with a V.11/X.21

interface/connector DB15 to DB25 adapter cable for each port: Port 1

and/or Port 2 (1′)

LAN Adapter COM Port-to-LAN Adapter cable (14)

Recommended Order of Installation

1. First, install the I/O card.

2. Connect all cables into the I/O card.

3. Install the NAM.

4. Go to the

2-Slot Housing Installation Instructions

(Document No. 9000-A2-GN15),

5-Slot Housing with AC Power Supply Installation Instructions

(Document

No. 9000-A2-GN16), or

5-Slot Housing with DC Power Supply Installation

Instructions

(Document No. 9000-A2-GN1C) for power-up verification procedures.

Tools Required

HA small Phillips screwdriver (#1 or #2) to install the T1 NAM

HA small, flat-blade screwdriver to install the:

— I/O card

— Cable connections

NAM

Rear Panel

PORT 2

9261

NET 1

DBM

PORT 1

COM

NET 1

DBM

(For

Future

Use)

NET 2

Port 1

Port 2

COM

97-15637

NET 2

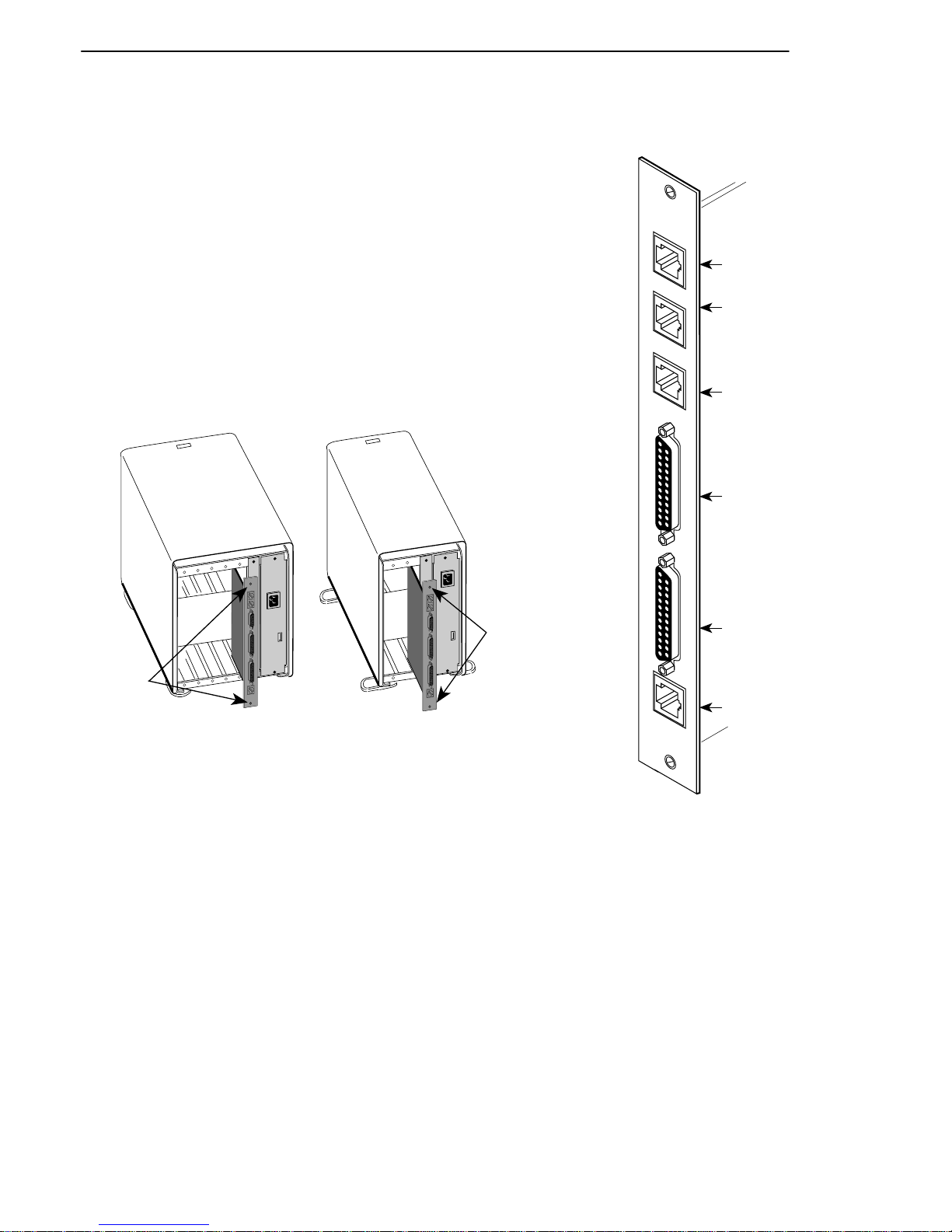

Installing the I/O Card

The NAM’s I/O card provides the COM port, network, and

DTE connections. The I/O card inserts directly behind the NAM

that it supports. Slot numbers are identical (in this case, Slot 01)

to facilitate correct installation.

1. Remove the I/O card from the shipping box. Handle only

by the top and bottom edges to avoid damaging the card.

2. At the rear of the housing, align the I/O card with the

upper and lower tracks of the slot. Push gently towards

the midplane until it stops and you cannot push the card

any further.

496-15155

Screws

Rear View

Screws

5-Slot 2-Slot

3. There are two captive screws on the I/O card. Using a

screwdriver, alternately tighten each screw until the

screws are all the way in.

COM

9261

NET 1

Port 1

PORT 2

Port 1

DBM

NET 2

97 -15639

DTE

Cable

DTE

Cable

V.35, RS-449,

V.11/X.21

Adapter Cable

DTE

DTE Port 2

Connecting to the Network

1. Insert the 8-pin connector on the

RJ48C network cable into the NET 1

and/or NET 2 interface.

2. Insert the other end of the cable into

the RJ48C modular jack.

Connecting to a DTE

If the DTE cable type is

V.35, RS449, or V.11/X.21

(separately orderable):

1. Connect the plug to the

V.35, RS449, or V.11/X.21

end of the adapter

cable (as appropriate).

2. Connect the EIA 530A

end of the adapter cable

to PORT 1 or PORT 2.

If the DTE cable type is

EIA 530A:

1. Connect the EIA-530A

end of the DTE cable to

PORT 1 or PORT 2.

RJ48C

Jack

9261

NET

NET 1

97-15638

DBM

NET 2

Connecting the COM Port to a User Interface

1. Insert the 8-pin end of the cable into the COM port.

2. Insert the other end of the cable into the user interface (VT100-compatible terminal

emulation) connector.

3. Press Return on the keyboard to display the Main Menu. If you need to configure

for other than a direct link, see the

Technical Reference

Set the speed of the async (VT100-compatible) terminal so

it matches the NAM's factory-loaded data rate of 19.2 kbps,

character length set to 8, parity set to None, and stop bits

set to 1.The flow control should be set to None or

Hardware.

PORT 2

COM

496-15052-01

COM Port-to-Terminal/Printer

Cable or

COM Port-to-PC Cable

496-15149

Installing the T1 NAM

!WARNING:

Do NOT remove any jumpers located on the battery. To do so can cause

non-volatile memory loss. Should a jumper become separated from the

battery, contact your service representative immediately.

!HANDLING PRECAUTIONS FOR STATIC-SENSITIVE DEVICES

This product is designed to protect sensitive

components from damage due to electrostatic

discharge (ESD) during normal operation. When

performing installation procedures, however,

take proper static control precautions to prevent

damage to equipment. If you are not sure of the

proper static control precautions, contact your

nearest sales or service representative.

The NAM is always installed in Slot 01.

CAUTION:

Be sure that you install the NAM in the correct slot so that it mates with its

matching I/O card. Otherwise, you could damage your card.

1. Remove the housing’s bezel, if applicable. See the housing installation instructions

for information.

2. Remove the NAM from the shipping box. Handle only by the top and bottom edges

to avoid damaging the card.

3. At the front of the housing, align the NAM with the upper and lower tracks of

Slot 01.

97-15156-01

Ejector

Latches

FrontView

2-Slot

5-Slot

Ejector

Latches

4. Slide into the tracks until the NAM seats with the midplane connectors. Be careful

not to force the card or bend any pins.

5. Close both the upper and lower ejector latches on the housing to lock in place,

then tighten the captive screws on the ejector latches.

6. Replace the housing’s bezel, if applicable.

Removing/Replacing a Card

Card removal procedures differ, depending on whether you are removing the card from

the front or rear of the housing.

If you are removing the . . . Then go to . . .

NAM

Removing/Replacing the NAM

I/O card

Removing/Replacing the I/O Card

Removing/Replacing the NAM

1. Remove the housing’s bezel, if applicable. See the housing installation instructions

for information.

2. Remove the captive screws from the ejector latches on front of the housing.

3. Press open the ejector latches to disengage the card.

4. Supporting the card by its edges, pull straight out until the card clears the housing.

5. Align the replacement card with the upper and lower tracks of the slot. Slide

forward until the NAM seats. Be careful not to force or bend any pins.

6. Close both the upper and lower ejector latches on the housing to lock in place,

then tighten the captive screws.

7. Replace the housing’s bezel, if applicable.

Removing/Replacing the I/O Card

1. Remove the NAM from the housing (see

Removing/Replacing the NAM

2. Remove the network, DTE, and COM port cables from the I/O card (if applicable).

3. Using a screwdriver, loosen the upper and lower screws fastening the card to the

housing’s frame.

4. Gently pull the I/O card away from the midplane until it clears the housing.

5. Align the replacement card with the upper and lower tracks of the slot. Push gently

towards the midplane until it stops and you cannot push the card any further.

6. Alternately tighten each captive screw until the screws are all the way in.

7. Reattach the cables as appropriate.

Power-Up

Go to your housing instructions to perform power-up, if needed. The housing

instructions also contain troubleshooting information.

2–OK

ALM

TST

BKP

SIG

OOF

ALM

SIG

OOF

ALM

1–OK

9261

OUT

NET1 NET2 NET1 MON NET2 MON NET 1 NET 2 PORT

97-15647

Test

Jacks

LEDs

Front Panel LEDs and Test Jacks

The T1 NAM has 12 LED (light-emitting diode) status indicators and four sets of test

jacks.

Test Jacks

The NAM contains four sets of test jacks. Use these for:

HAccessing and testing towards the Network 1 interface

HAccessing and testing towards the Network 2 interface

Refer to

Troubleshooting and Maintenance

in the

Technical

Reference

for more information on the test jacks.

General Status LEDs

Label Indication Color What It Means

OK Power and

Operational

Status

Green ON – NAM has power

and is

operational.

OFF – NAM is in a

power-up

self-test, or there

is a failure.

CYCLING – The unit is in

Minimum mode.

Requires an FTP

download.

ALM System

Failure/

Self-Test

Red ON – NAM has just

been reset, or an

error or fault has

been detected.

OFF – No failures have

been detected.

TST Test Mode Yellow ON – Loopback or test

pattern in

progress,

initiated locally,

remotely, or from

the network.

OFF – No tests are

active.

BKP Backup Yellow Not supported. Remains

off except during a Lamp

Test.

Andere Handbücher für 9261

Inhaltsverzeichnis

Andere Paradyne Andere Handbücher

Paradyne

Paradyne BitStorm 6200 Bedienungsanleitung

Paradyne

Paradyne 9161 Single T1 Kurzanleitung

Paradyne

Paradyne 9161 Single T1 Bedienungsanleitung

Paradyne

Paradyne 3162 Bedienungsanleitung

Paradyne

Paradyne 3165 Bedienungsanleitung

Paradyne

Paradyne ACCULINK 3360 Bedienungsanleitung

Paradyne

Paradyne 9161 Single T1 Bedienungsanleitung

Paradyne

Paradyne 3166 DSU Bedienungsanleitung

Paradyne

Paradyne 3162 Bedienungsanleitung

Paradyne

Paradyne 7520 Bedienungsanleitung

Paradyne

Paradyne 9109 Bedienungsanleitung

Paradyne

Paradyne ACCULINK 3161 Bedienungsanleitung

Paradyne

Paradyne 3165 Bedienungsanleitung

Paradyne

Paradyne FrameSaver SLV 9626 Bedienungsanleitung

Paradyne

Paradyne 9161 Single T1 Bedienungsanleitung

Paradyne

Paradyne 9161 Single T1 Bedienungsanleitung

Paradyne

Paradyne 3170 Bedienungsanleitung

Paradyne

Paradyne 9161 Single T1 Bedienungsanleitung

Paradyne

Paradyne 9161 Single T1 Bedienungsanleitung

Paradyne

Paradyne 9109 Bedienungsanleitung

Paradyne

Paradyne 3350 Bedienungsanleitung

Paradyne

Paradyne 7520 Bedienungsanleitung

Paradyne

Paradyne ACCULINK 3164 Bedienungsanleitung

Paradyne

Paradyne 9109 Bedienungsanleitung

Beliebte Andere Handbücher anderer Marken

GO Industries

GO Industries 38017 Bedienungsanleitung

Cissell

Cissell 30LBCMAN2 Bedienungsanleitung

RIDGID

RIDGID K-60SP Bedienungsanleitung

Gage Bilt

Gage Bilt GB751SH-5 Bedienungsanleitung

OVE

OVE SIERRA 60 Bedienungsanleitung

ReelCraft

ReelCraft 7800 OLB21 Bedienungsanleitung

Body Armor 4x4

Body Armor 4x4 ECO-SERIES Bedienungsanleitung

ROBLIN

ROBLIN DROP Benutzerhandbuch

EMG

EMG EMG-ACB BARREL Service-Handbuch

MiniSolar

MiniSolar MT-150 Bedienungsanleitung

Parkside

Parkside PSZ 250 B2 Bedienungsanleitung

ABB

ABB REM 610 Produkthandbuch

Parkside

Parkside 55992 Betriebsanleitung

Skyjacker

Skyjacker F250 Bedienungsanleitung

IBM

IBM IBM SYSTEM Z Installationsanleitung

Grech Motors

Grech Motors G28 Bedienungsanleitung

NOVAK

NOVAK BATTERY CARE SHEET Leitfaden

Telemotive

Telemotive blue PiraT Mini Benutzerhandbuch
