Parrot CK3100 LCD Bedienungsanleitung

GOLF VI

This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in

compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible

authorisation of Parrot SA. Pictures for information only.

GOLF 6

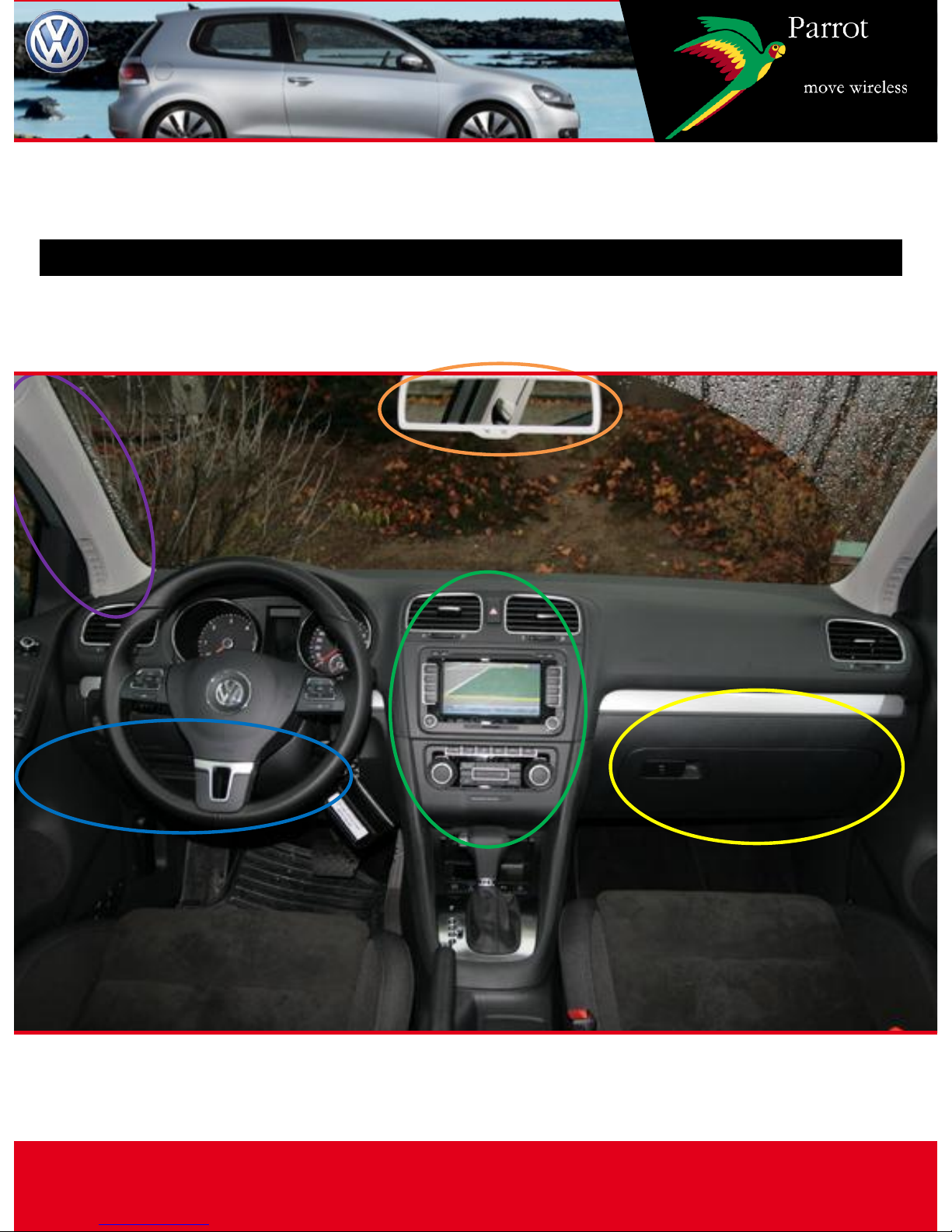

Schéma d’installation :

Gamme Parrot MKi +

Parrot CK3100

The VOLKSWAGEN GOLF marque and VOLKSWAGEN logo are the property of the VOLKSWAGEN France Group s.a or VOLKSWAGEN AG.

This document is only valid for the vehicle model GOLF® 6 year 2008 –2012, excluding all other models in the same range and excluding later

modifications made to the vehicle by the manufacturer.

The Parrot brand name and logos are the exclusive property of Parrot SA.

GOLF VI

This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in

compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible

authorisation of Parrot SA. Pictures for information only.

Disassembly

30 min

Kit installation

30 min

Refitting

30 min

Testing

15 min

Total

1 hour 45 minutes

ACC wire

ISO

YES

UNIKA

FRONT SPEAKER

TEL mode

ALL

MUSIC mode

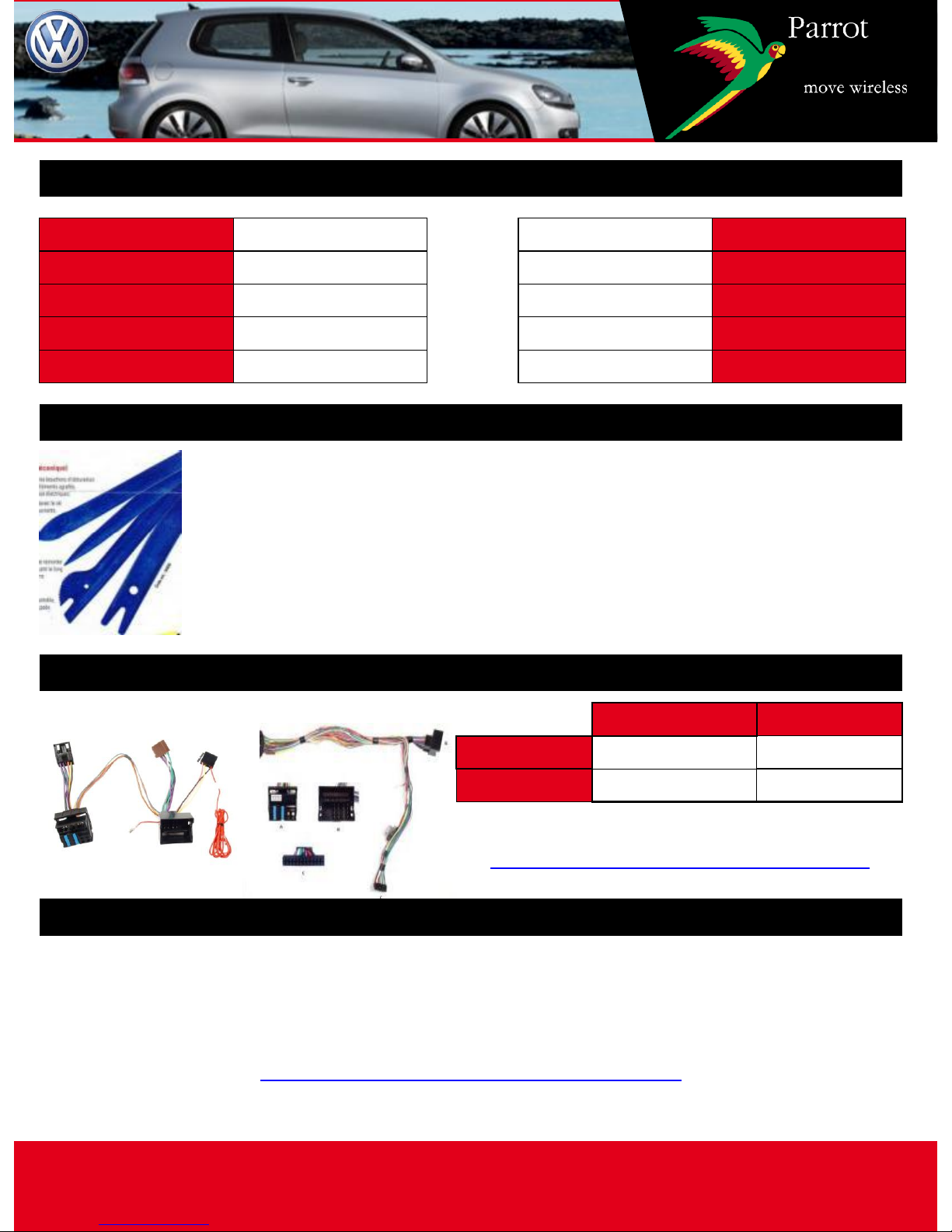

Fitting time / Main features

Tools

-TORX screwdriver

- Cutting pliers

- Crimping pliers

- Multimeter or Test lamp

- Pull through cord

- Electrical/amalgamation tape

- Soldering Iron

Plastic Trim Removal tools

FACOM / BOJO

Accessories required

Updating

Kram ref.

Dealer ref.

CK range

86 200

YY 138 CABL 1

MKi range

84 942

YY 138 CABL 2

Photos for illustration purposes

CK range MKi range

To get the most out of your hands-free kit we recommend that you update your

software regularly. The update procedure can be found at

www.parrot.com/usa/support/downloads

“Quick Connect harness references available at

http://certified.parrot.com/faisceaux_US.php"

GOLF VI

This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in

compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible

authorisation of Parrot SA. Pictures for information only.

Disassembly

GOLF VI

This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in

compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible

authorisation of Parrot SA. Pictures for information only.

5 6

Using the plastic trim tools,

unclip the car stereo and air

conditioning surround.

Unplug the connector for the

airbag warning light.

1 2

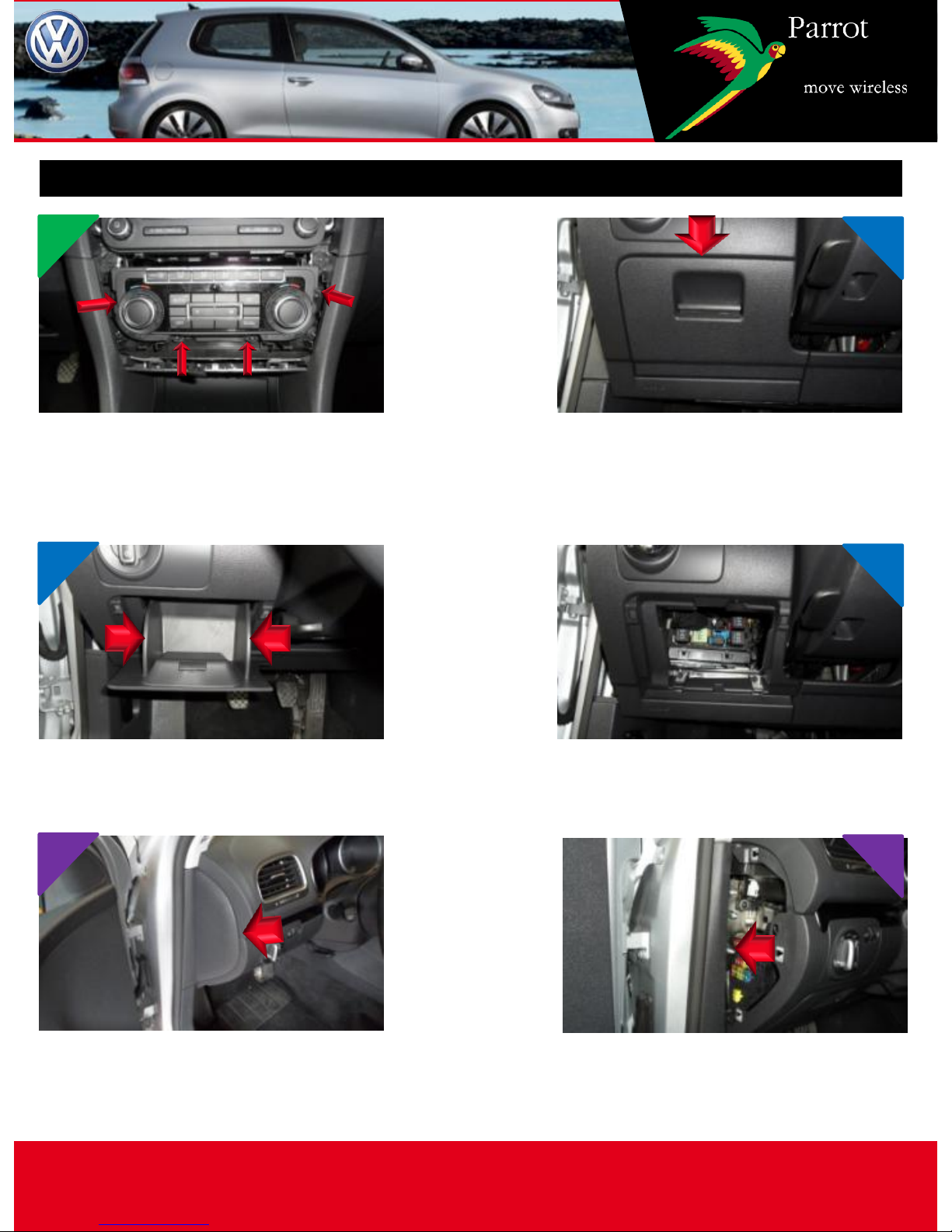

Disassembly 1 / 3

Release the panel by inserting the

plastic trim tools underneath. Remove screws 1 and 2.

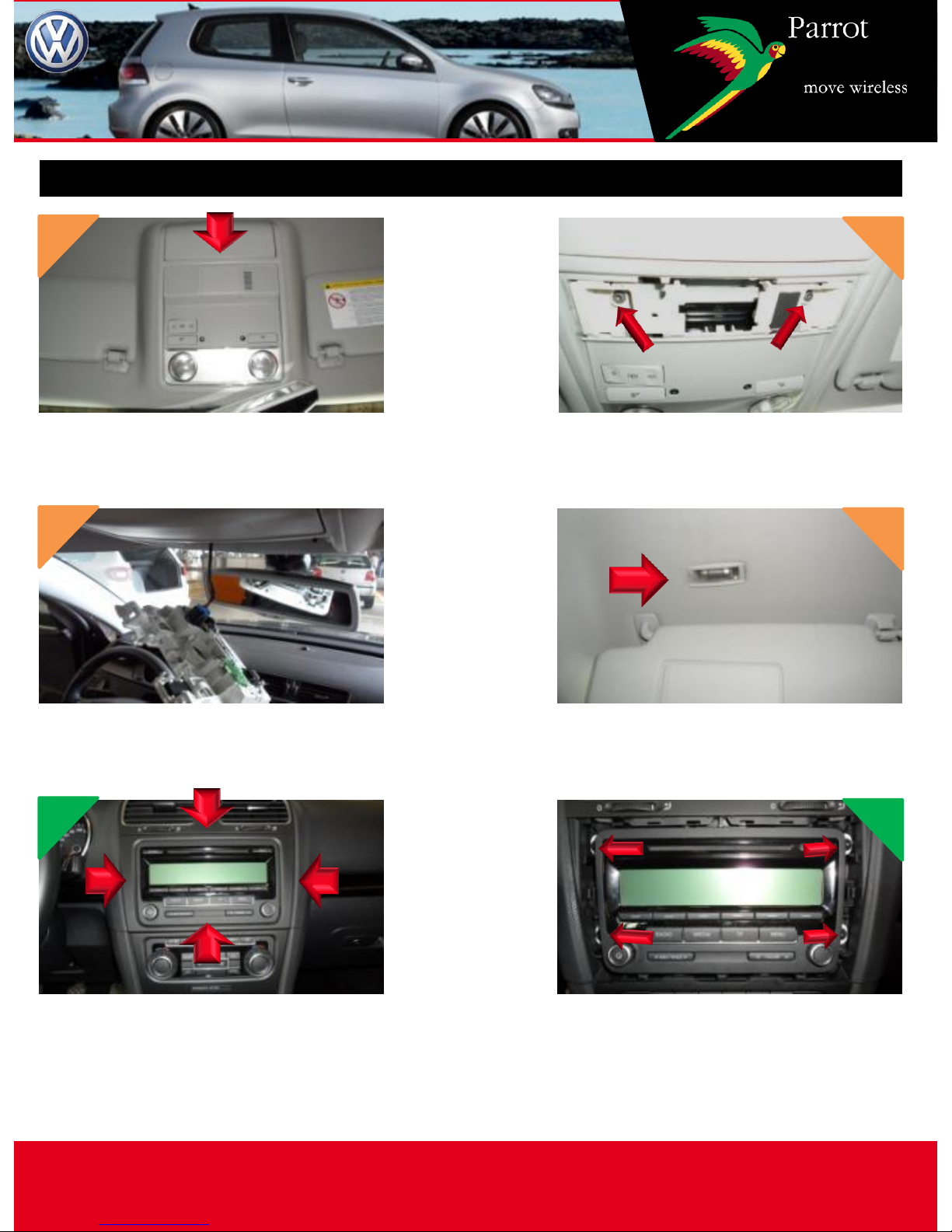

Unclip the cabin light and

disconnect it.

Using the plastic trim tools,

unclip the vanity light from the

left-hand side.

Remove screws 3, 4, 5 and 6

around the car stereo.

Disconnect the connector and

the aerial cables.

GOLF VI

This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in

compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible

authorisation of Parrot SA. Pictures for information only.

11 12

7 8

109

Disassembly 2 / 3

Remove screws 7, 8, 9 and 10

around the air conditioning

control unit, then remove it

without disconnecting it.

Open the storage compartment

under the steering wheel.

Press down on the tabs inside to

release the box. Pull up to unclip it.

Using the plastic trim tools,

unclip the side panel of the

dashboard on the driver's side.

Unclip the cover plate running

up on the side of the door.

GOLF VI

This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in

compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible

authorisation of Parrot SA. Pictures for information only.

Démontage 3 / 3

9 10

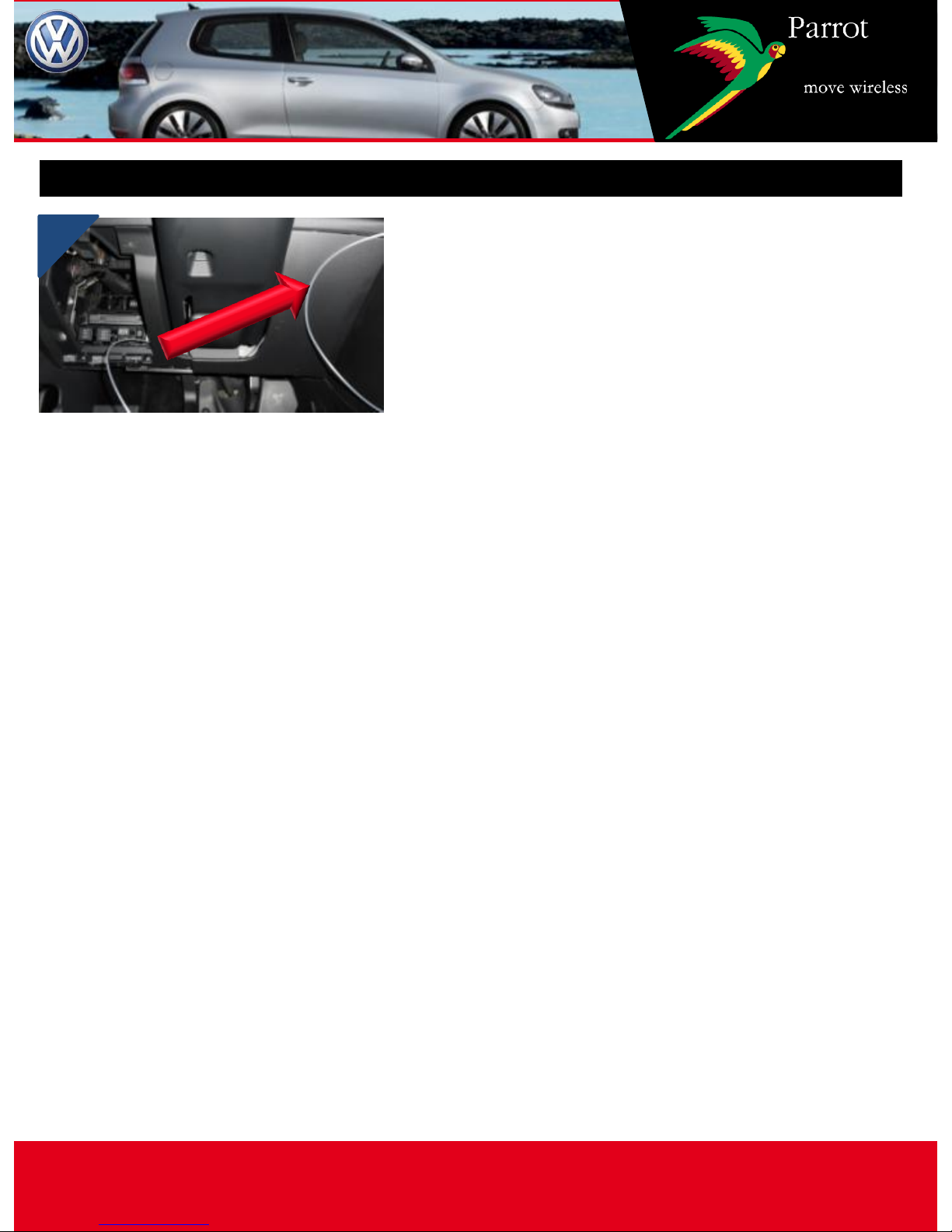

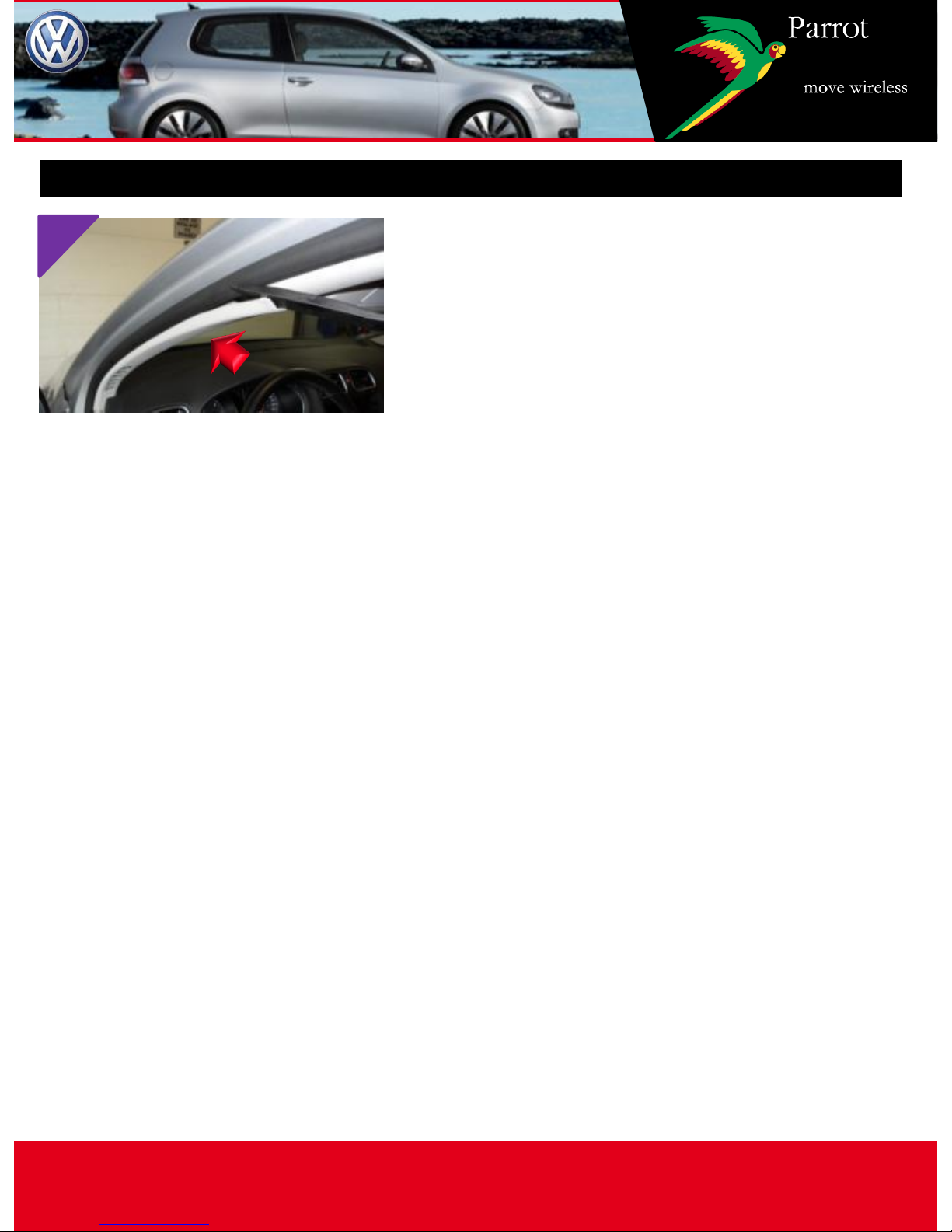

Remove the ‘A’ Pillar trim.

GOLF VI

This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in

compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible

authorisation of Parrot SA. Pictures for information only.

Using the pull-through cord,

thread a blue wire under the

steering wheel and towards the

the air conditioning control unit.

Feed the wire to the left into the

fuse box housing.

Attach a 1.5-mm lug and insert it

into one of the slots at the top of

the fuse box. (Using the

multimeter, check that the +12 v is

connected to the ignition.)

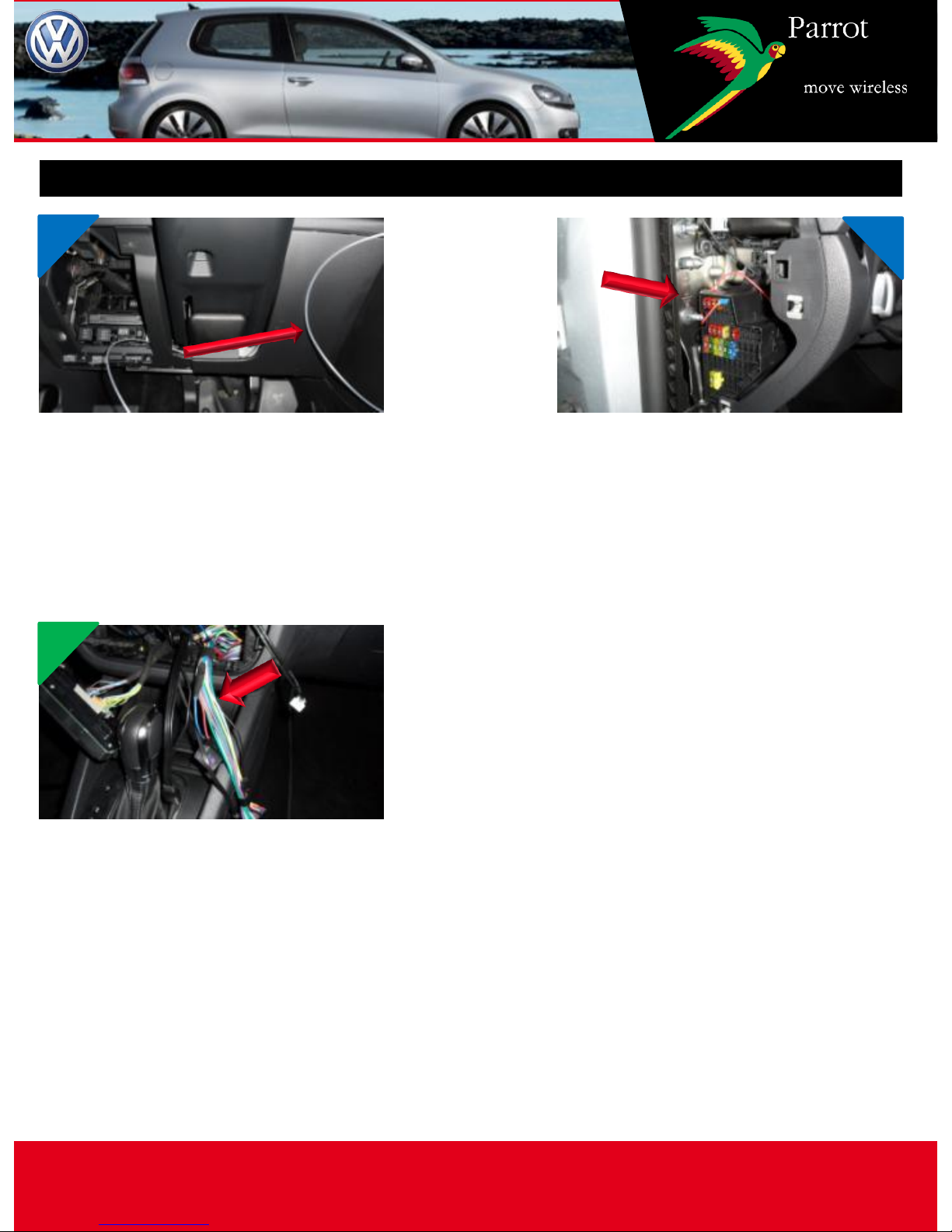

Finding an ACC wire

Route the 12volt ignition supply

to the adaptor loom which links

to the Parrot fused (orange)

ignition wire, Solder and heat

shrink. Note this wire should not

be linked to the vehicle stereo.

GOLF VI

This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in

compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible

authorisation of Parrot SA. Pictures for information only.

5 6

Microphone feeding 1 / 2

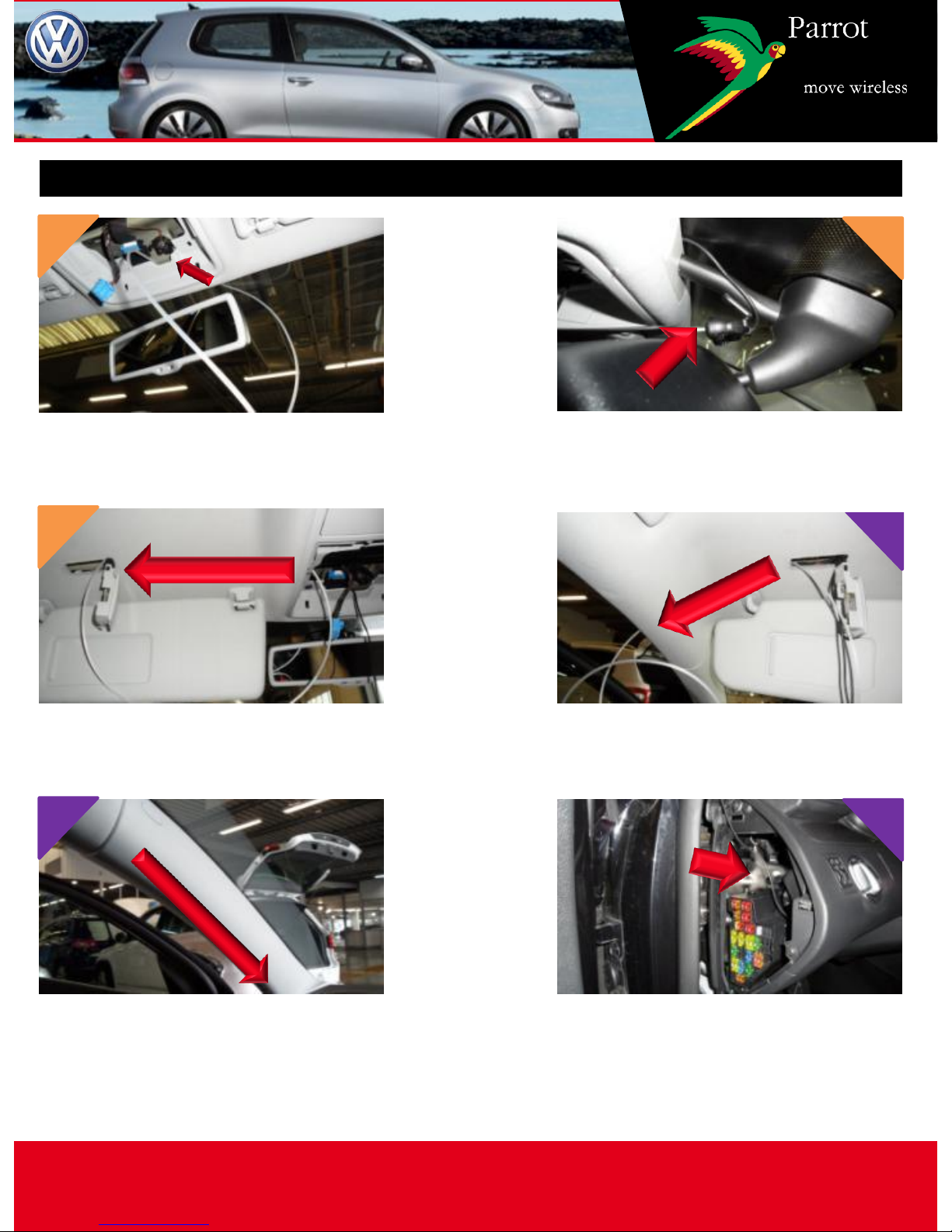

Using a guide, feed the cable from

the windscreen to the cabin light.

Using a guide, feed the cable

from the cabin light to the vanity

light.

Using a guide, feed the cable

from the vanity light to the

driver's side door.

Pass the cable through the fuse

box.

After cleaning the centre of the panel

where the rain sensor is connected,

attach the cradle supplied.

Slide the cable along the driver's

side door whilst re-fitting the

door seal.

GOLF VI

This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in

compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible

authorisation of Parrot SA. Pictures for information only.

Passage micro 2 / 2

Using a guide, feed the cable under

the steering wheel towards the car

stereo housing.

GOLF VI

This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in

compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible

authorisation of Parrot SA. Pictures for information only.

Passage du câble accessoire

1 2

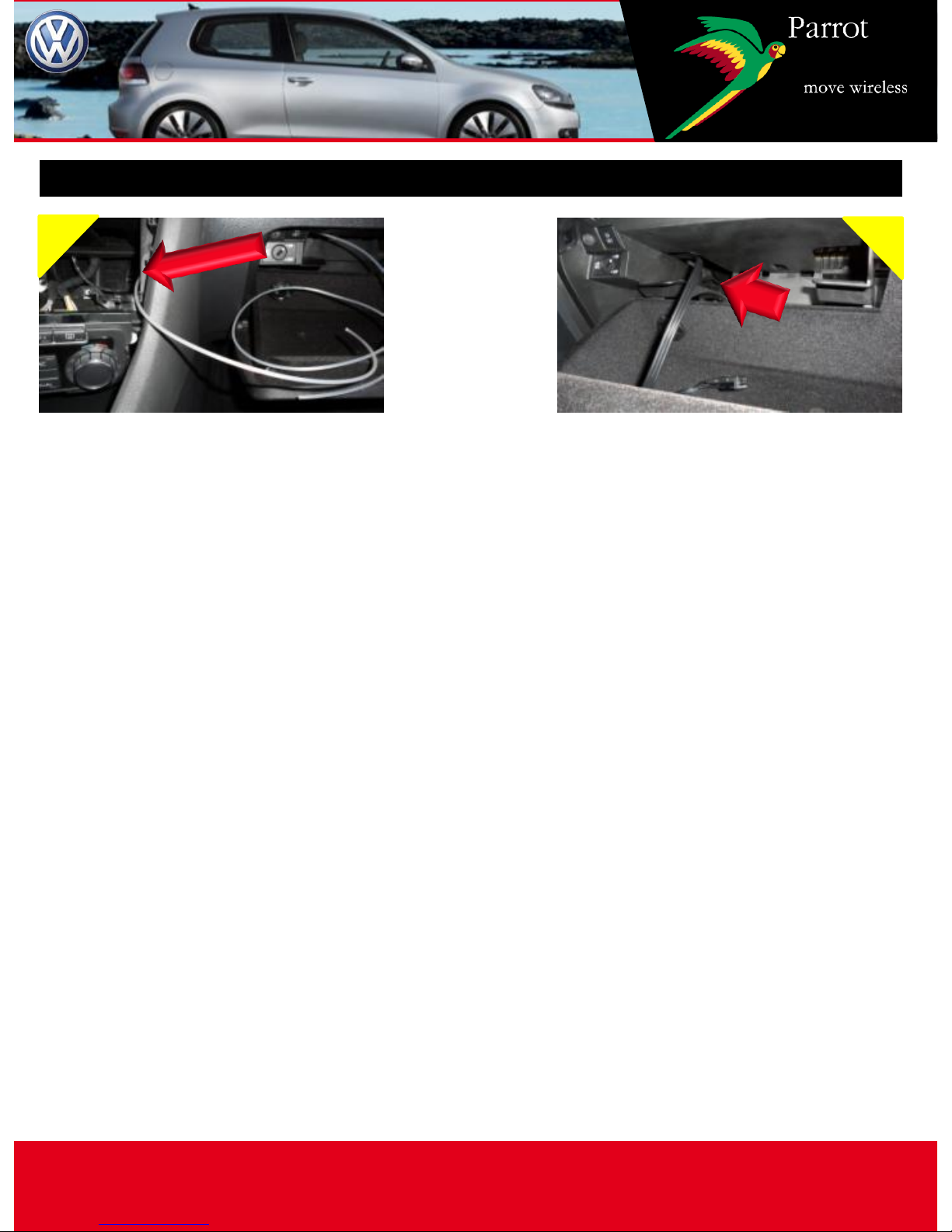

Using a guide, feed the cable in

the top part of the glove

compartment through to the air

conditioning control unit housing.

Make sure that the cable is long

enough.
