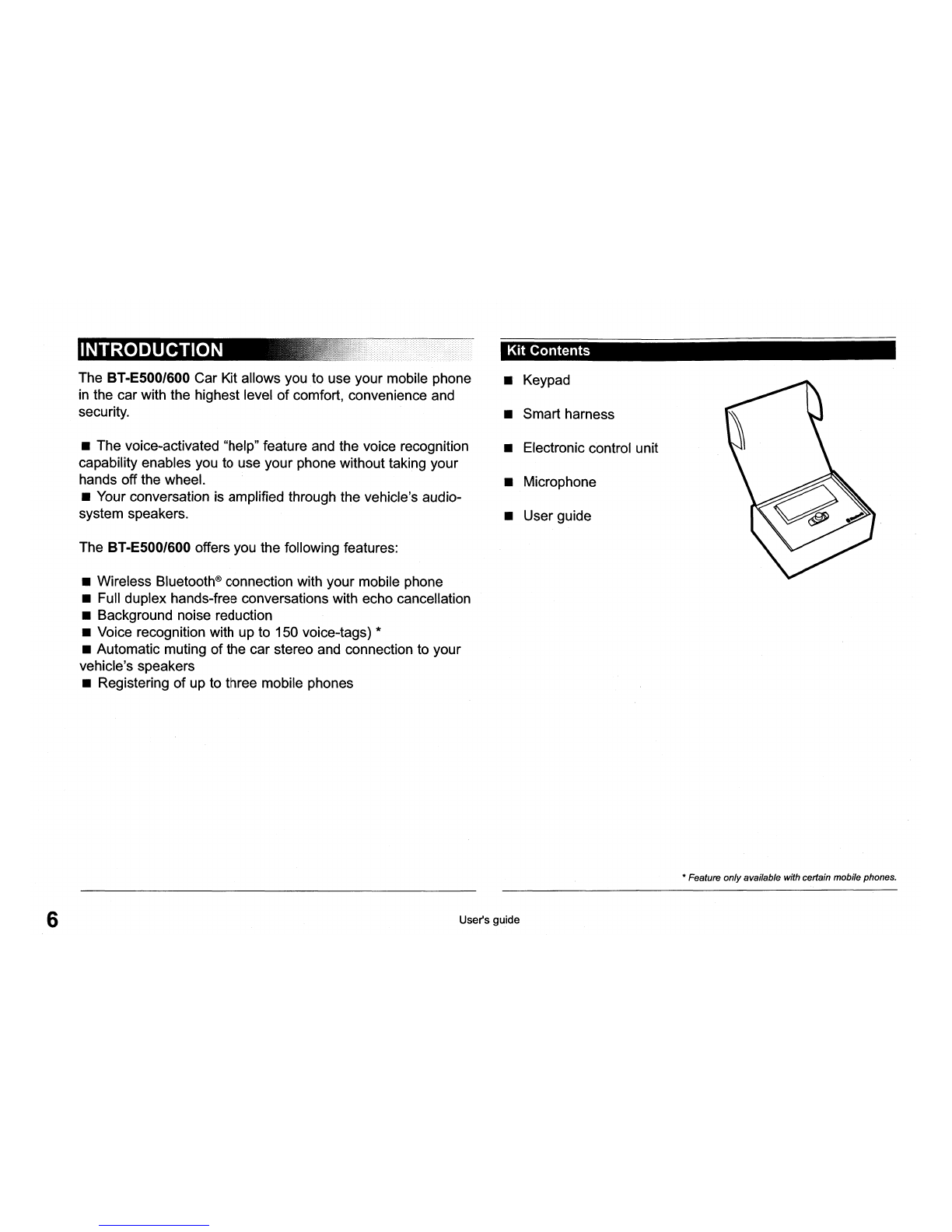

The BT-E500/600 Car Kit allows you

use your mobile phone

the car with the highest level

comfort, convenience and

security.

•The voice-activated "help" feature and the voice recognition

capability enables you to use your phone without taking your

hands off the wheel.

•Your conversation is amplified through the vehicle's audio-

system speakers.

The BT-E500/600 offers you the following features:

•Wireless Bluetooth® connection with your mobile phone

•Full duplex hands-free conversations with echo cancellation

•Background noise reduction

•Voice recognition with up to 150 voice-tags) *

•Automatic muting ofthe car stereo and connection to your

vehicle's speakers

•Registering of up to three mobile phones

Kit

Contents

•Keypad

•Smart harness

•Electronic control unit

•Microphone

•User guide

*Feature onlyavailable with certain mobile phones.

Use~s

guide

If your BT-E500/600

installed by aprofessional, skip directly

to the next chapter, entitled "Getting Started".

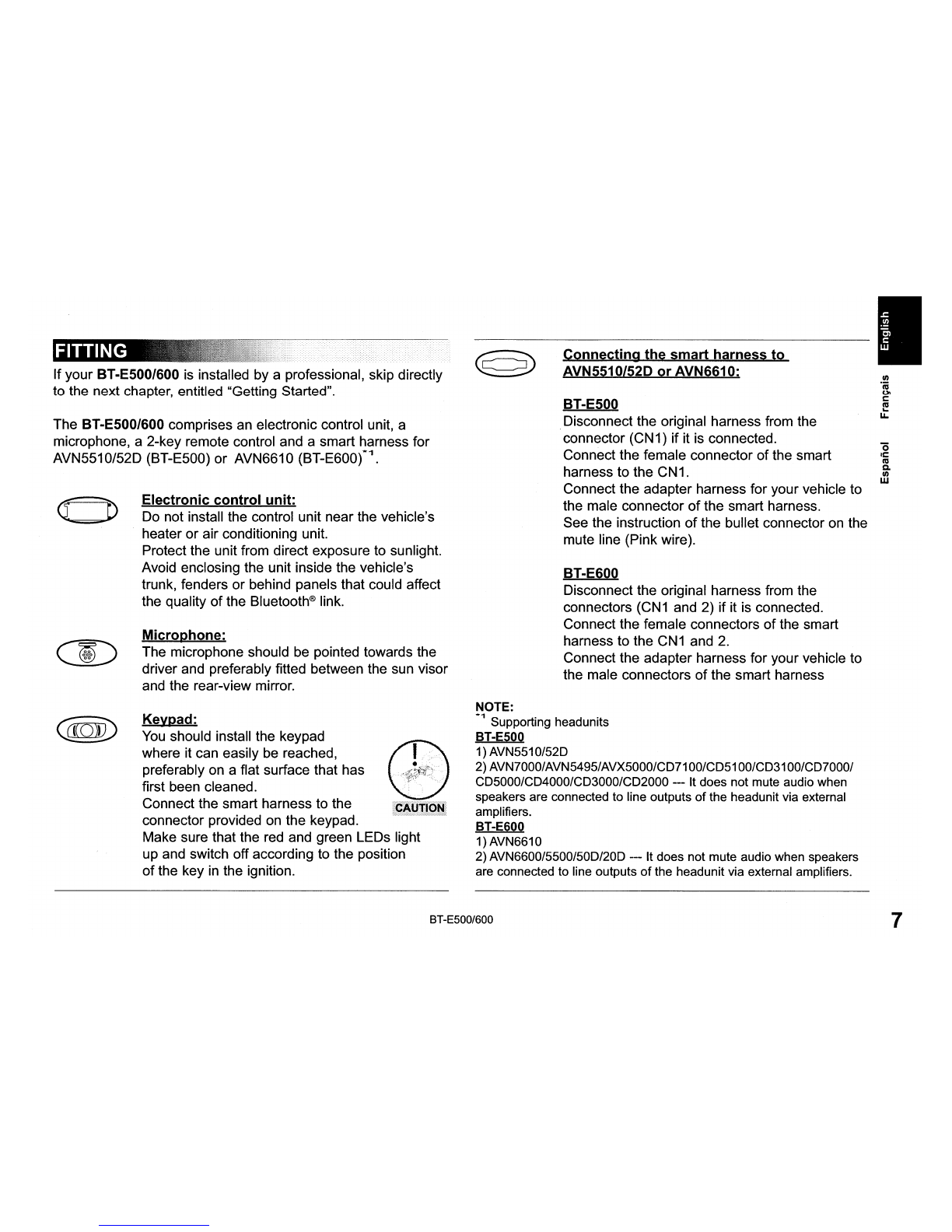

The BT-E500/600 comprises

electronic control unit, a

microphone, a2-key remote control and asmart harness for

AVN551 0/520 (BT-E500) or AVN6610 (BT-E600)*1.

BT-E600

Disconnect the original harness from the

connectors (CN1and 2) if it is connected.

Connect the female connectors ofthe smart

harness to the

CN1

and

Connect the adapter harness for your vehicle to

the male connectors of the smart harness

BT-E500

.Disconnect the original harness from the

connector (CN1) if it is connected.

Connect the female connector of the smart

harness to the

Connect the adapter harness for your vehicle to

the male connector ofthe smart harness.

See the instruction

the bullet connector

the

mute line (Pink wire).

~--I

Connecting

the

smart

harness

AVN5510/520

AVN6610:

Microphone:

The microphone should be pointed towards the

driver and preferably fitted between the sun visor

and the rear-view mirror.

Electronic

control

unit:

Do not install the control unit near the vehicle's

heater or air conditioning unit.

Protect the unit from direct exposure to sunlight.

Avoid enclosing the unit inside the vehicle's

trunk, fenders or behind panels that could affect

the quality of the Bluetooth® link.

Keypad:

You

should install the keypad

~~::~::f:f~:~!~

~~~:~~~~~t

has ®

Connect the smart harness to the

connector provided

the keypad.

Make sure that the red and green LEOs light

up and switch off according to the position

the key

the ignition.

NOTE:

Supporting headunits

BT-E500

1) AVN5510/52D

2) AVN7000/AVN5495/AVX5000/CD71

OO/CD51

OO/CD31

OO/CDlOOO/

CD5000/CD4000/CD3000/CD2000 --- It does not mute audio when

speakers are connected to line outputs

the headunit via external

amplifiers.

BT-E600

1)AVN6610

2) AVN6600/5500/50D/20D --- It does not mute audio when speakers

are connected to line outputs

the headunit via external amplifiers.

BT-E500/600 7

•

BT-E500:

8User's guide

BT-E600:

BT·E500/600

•I

IS::

ftS

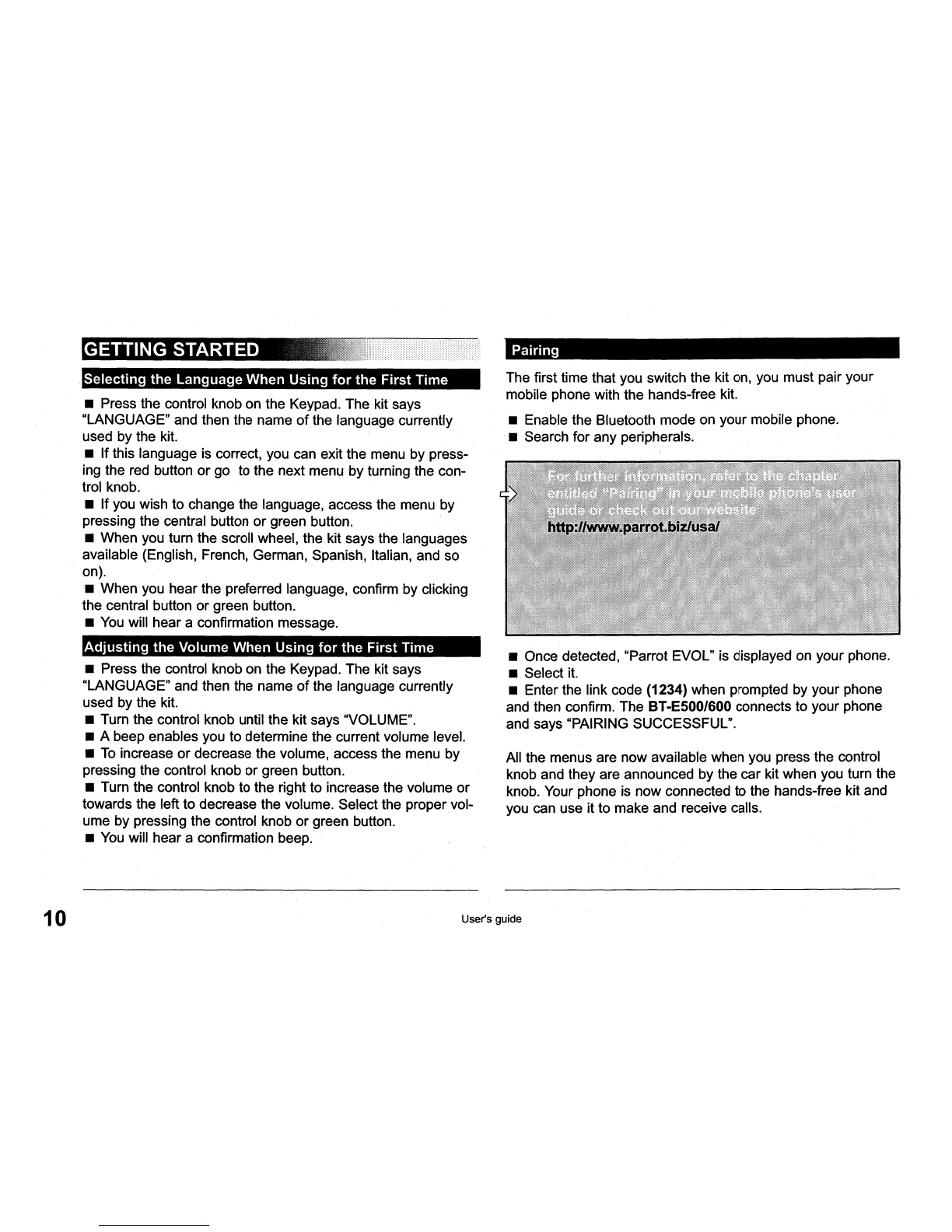

Selecting

the

Language When

Using

for

the

First

Time

•Press the control knob on the Keypad. The kit says

"LANGUAGE" and then the name

the language currently

used by the kit.

•Ifthis language is correct, you can exit the menu by press-

ing the red button

go to the next menu by turning the con-

trol knob.

•If you wish to change the language, access the menu by

pressing the central button

green button.

•When you turn the scroll wheel, the kit says the languages

available (English, French, German, Spanish, Italian, and so

on).

•When you hear the preferred language, confirm by clicking

the central button or green button.

•

You

will hear aconfirmation message.

Adjusting

the

Volume When

Using

for

the

First

Time

•Press the control knob on the Keypad. The kit says

"LANGUAGE" and then the name

the language currently

used by the kit.

•Turn the control knob until the kit says "VOLUME".

• A beep enables you to determine the current volume level.

•

increase

decrease the volume, access the menu by

pressing the control knob

green button.

•Turn the control knob to the right to increase the volume

towards the left to decrease the volume. Select the propervol-

ume by pressing the control knob

green button.

•

You

will hear aconfirmation beep.

Pairing

The first time

that

you switch the kit on, you must pair your

mobile phone with the hands-free kit.

•Enable the Bluetooth mode on your mobile phone.

•Search for any peripherals.

•Once detected, "Parrot EVOL" is displayed on your phone.

•Select it.

•Enter the link code (1234) when prompted by your phone

and then confirm. The BT-E500/600 connects to your phone

and says "PAIRING SUCCESSFUL".

All the menus are now available when you press the control

knob and they are announced by the car kit when you turn the

knob. Your phone is now connected to the hands-free kit and

you can use it to make and receive calls.
