PCB Piezotronics M101A04 Bedienungsanleitung

Model M101A04

General purpose ICP® pressure sensor, 1000 psi, 5 mV/psi, 3/8-24 mtg thd,

Installation and Operating Manual

For assistance with the operation of this product,

contact PCB Piezotronics, Inc.

Toll-free: 800-828-8840

24-hour SensorLine: 716-684-0001

Fax: 716-684-0987

E-mail: [email protected]

Web: www.pcb.com

The information contained in this document supersedes all similar information that

may be found elsewhere in this manual.

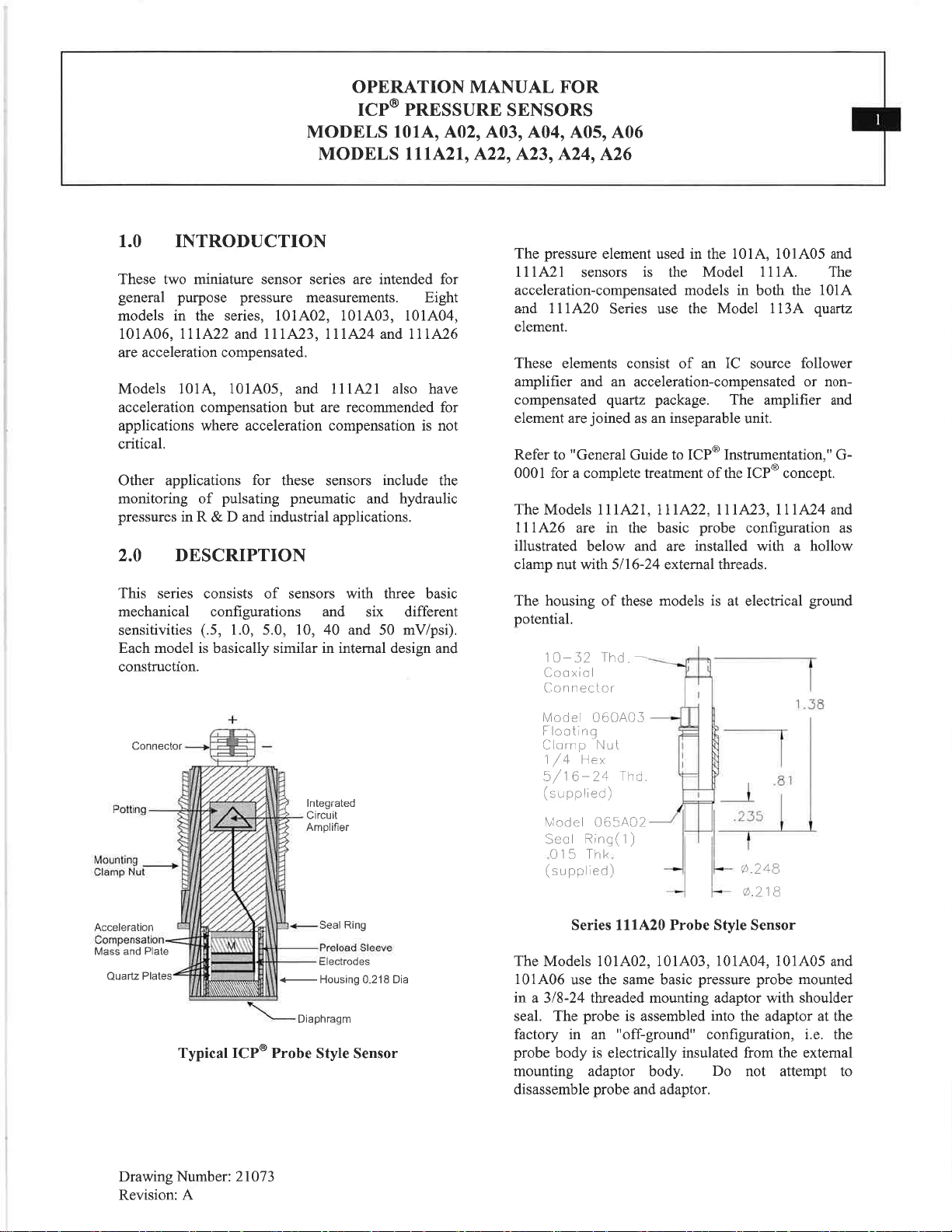

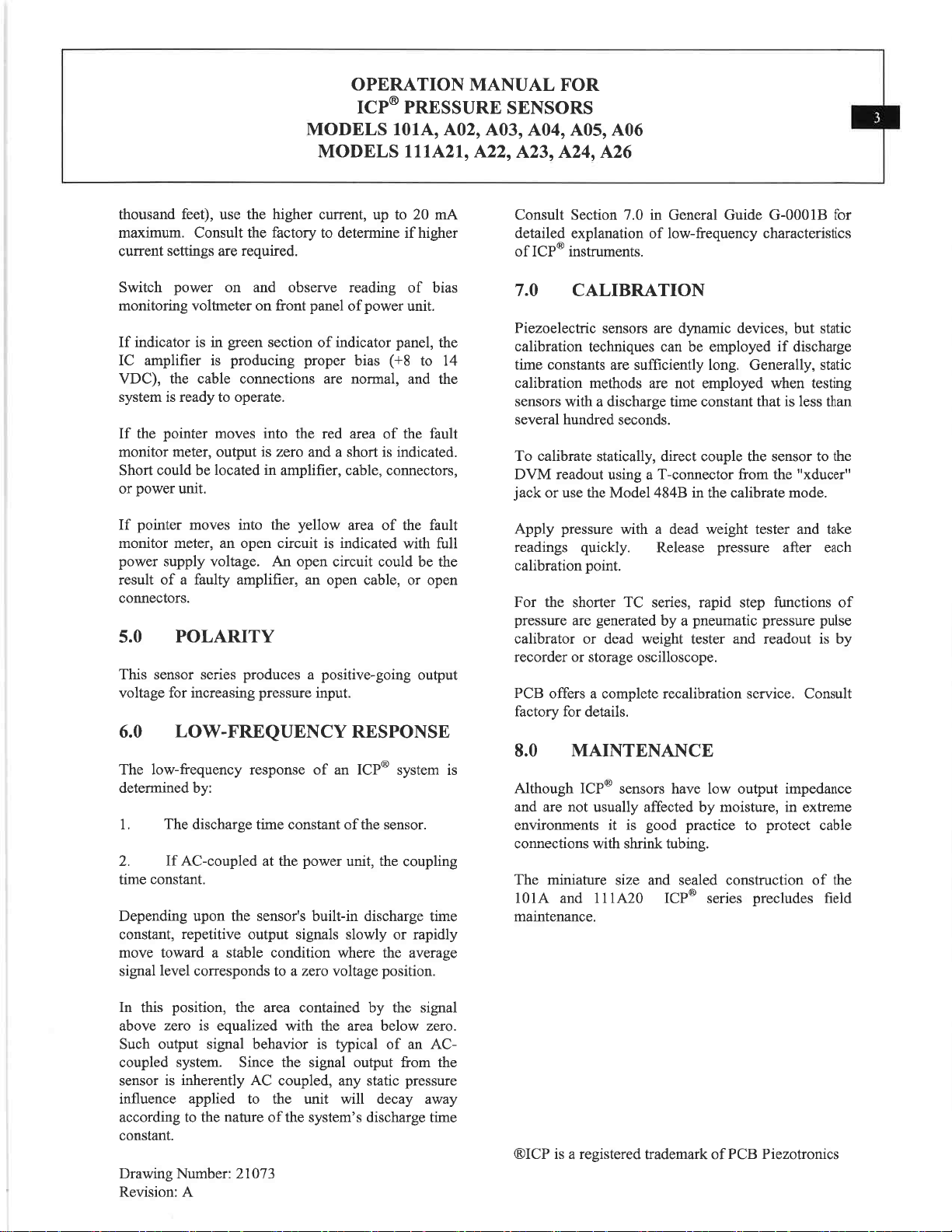

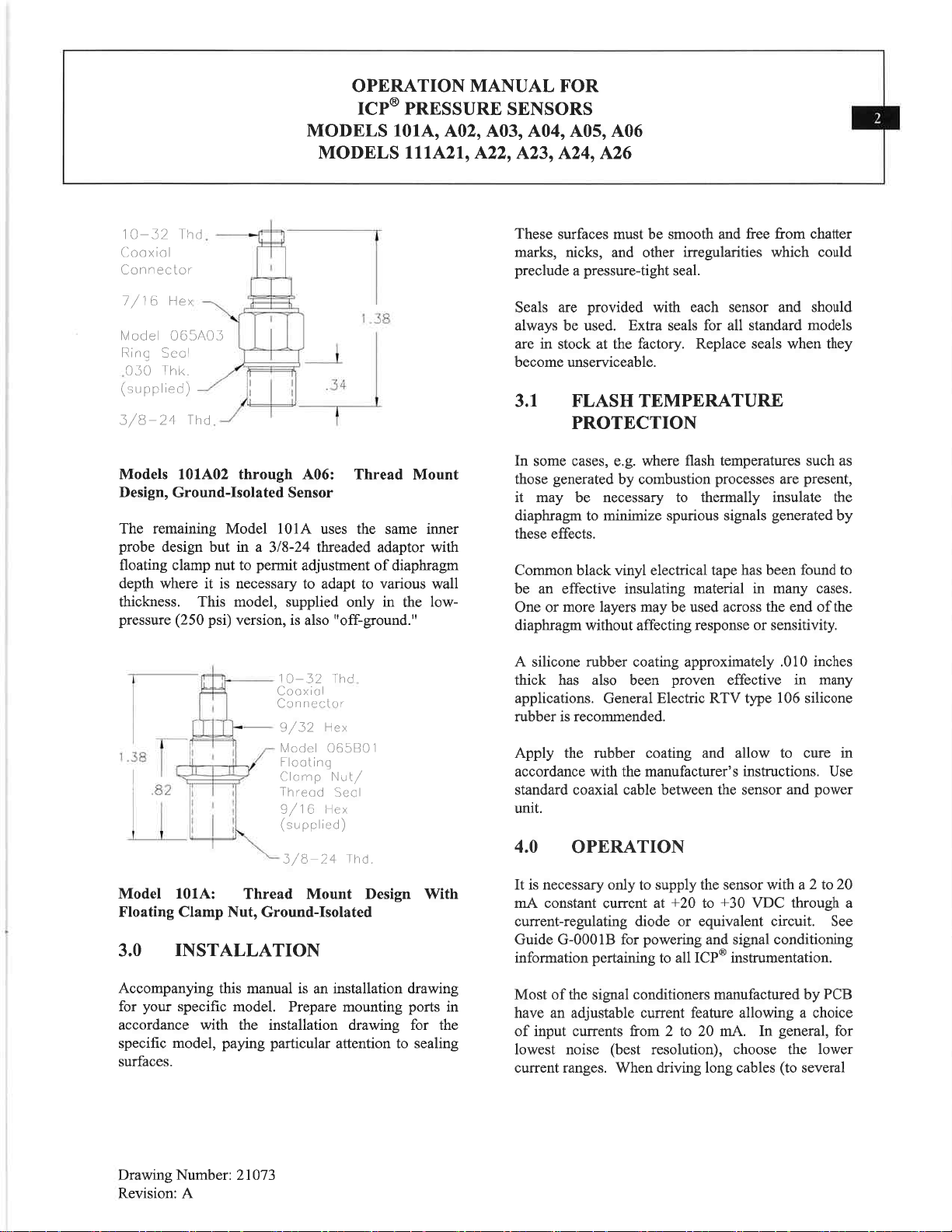

Total Customer Satisfaction –PCB

Piezotronics guarantees Total Customer

Satisfaction. If, at any time, for any

reason, you are not completely satisfied

with any PCB product, PCB will repair,

replace, or exchange it at no charge.

You may also choose to have your

purchase price refunded in lieu of the

repair, replacement, or exchange of the

product.

Service –Due to the sophisticated

nature of the sensors and associated

instrumentation provided by PCB

Piezotronics, user servicing or repair is

not recommended and, if attempted,

may void the factory warranty. Routine

maintenance, such as the cleaning of

electrical connectors, housings, and

mounting surfaces with solutions and

techniques that will not harm the

physical material of construction, is

acceptable. Caution should be observed

to insure that liquids are not permitted to

migrate into devices that are not

hermetically sealed. Such devices

should only be wiped with a dampened

cloth and never submerged or have

liquids poured upon them.

Repair –In the event that equipment

becomes damaged or ceases to

operate, arrangements should be made

to return the equipment to PCB

Piezotronics for repair. User servicing or

repair is not recommended and, if

attempted, may void the factory

warranty.

Calibration –Routine calibration of

sensors and associated instrumentation

is recommended as this helps build

confidence in measurement accuracy

and acquired data. Equipment

calibration cycles are typically

established by the users own quality

regimen. When in doubt about a

calibration cycle, a good “rule of thumb”

is to recalibrate on an annual basis. It is

also good practice to recalibrate after

exposure to any severe temperature

extreme, shock, load, or other

environmental influence, or prior to any

critical test.

PCB Piezotronics maintains an ISO-

9001 certified metrology laboratory and

offers calibration services, which are

accredited by A2LA to ISO/IEC 17025,

with full traceability to SI through

N.I.S.T. In addition to the normally

supplied calibration, special testing is

also available, such as: sensitivity at

elevated or cryogenic temperatures,

phase response, extended high or low

frequency response, extended range,

leak testing, hydrostatic pressure

testing, and others. For information on

standard recalibration services or

special testing, contact your local PCB

Piezotronics distributor, sales

representative, or factory customer

service representative.

Returning Equipment –Following

these procedures will insure that your

returned materials are handled in the

most expedient manner. Before

Warranty, Service, Repair, and

Return Policies and Instructions

returning any equipment to PCB

Piezotronics, contact your local

distributor, sales representative, or

factory customer service representative

to obtain a Return Warranty, Service,

Repair, and Return Policies and

Instructions Materials Authorization

(RMA) Number. This RMA number

should be clearly marked on the outside

of all package(s) and on the packing

list(s) accompanying the shipment. A

detailed account of the nature of the

problem(s) being experienced with the

equipment should also be included

inside the package(s) containing any

returned materials.

A Purchase Order, included with the

returned materials, will expedite the

turn-around of serviced equipment. It is

recommended to include authorization

on the Purchase Order for PCB to

proceed with any repairs, as long as

they do not exceed 50% of the

replacement cost of the returned

item(s). PCB will provide a price

quotation or replacement

recommendation for any item whose

repair costs would exceed 50% of

replacement cost, or any item that is not

economically feasible to repair. For

routine calibration services, the

Purchase Order should include

authorization to proceed and return at

current pricing, which can be obtained

from a factory customer service

representative.

Warranty –All equipment and repair

services provided by PCB Piezotronics,

Inc. are covered by a limited warranty

against defective material and

workmanship for a period of one year

from date of original purchase. Contact

PCB for a complete statement of our

warranty. Expendable items, such as

batteries and mounting hardware, are

not covered by warranty. Mechanical

damage to equipment due to improper

use is not covered by warranty.

Electronic circuitry failure caused by the

introduction of unregulated or improper

excitation power or electrostatic

discharge is not covered by warranty.

Contact Information –International

customers should direct all inquiries to

their local distributor or sales office. A

complete list of distributors and offices

can be found at www.pcb.com.

Customers within the United States may

contact their local sales representative

or a factory customer service

representative. A complete list of sales

representatives can be found at

www.pcb.com. Toll-free telephone

numbers for a factory customer service

representative, in the division

responsible for this product, can be

found on the title page at the front of this

manual. Our ship to address and

general contact numbers are:

PCB Piezotronics, Inc.

3425 Walden Ave.

Depew, NY14043 USA

Toll-free: (800) 828-8840

24-hour SensorLineSM: (716) 684-0001

Website: www.pcb.com

E-mail: [email protected]

PCB工业监视和测量设备 - 中国RoHS2公布表

PCB Industrial Monitoring and Measuring Equipment - China RoHS 2 Disclosure Table

部件名称

有害物质

铅(Pb)

汞

(Hg)

镉

(Cd)

六价铬(Cr(VI))

多溴联苯 (PBB)

多溴二苯醚(PBDE)

住房

PCB板

电气连接器

压电晶体

环氧

铁氟龙

电子

厚膜基板

电线

电缆

塑料

焊接

铜合金/黄铜

本表格依据 SJ/T 11364 的规定编制。

O：表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 规定的限量要求以下。

X：表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 规定的限量要求。

铅是欧洲RoHS指令2011/65/ EU附件三和附件四目前由于允许的豁免。

CHINA RoHS COMPLIANCE

DOCUMENT NUMBER: 21354

DOCUMENT REVISION: C

ECN: 45605

Component Name

Hazardous Substances

Lead

(Pb)

Mercury

(Hg)

Cadmium

(Cd)

Chromium VI

Compounds

(Cr(VI))

Polybrominated

Biphenyls

(PBB)

Polybrominated

Diphenyl

Ethers (PBDE)

Housing

PCB Board

Electrical

Connectors

Piezoelectric

Crystals

Epoxy

Teflon

Electronics

Thick Film

Substrate

Wires

Cables

Plastic

Solder

Copper Alloy/Brass

This table is prepared in accordance with the provisions of SJ/T 11364.

O: Indicates that said hazardous substance contained in all of the homogeneous materials for this part is below the limit

requirement of GB/T 26572.

X: Indicates that said hazardous substance contained in at least one of the homogeneous materials for this part is above

the limit requirement of GB/T 26572.

Lead is present due to allowed exemption in Annex III or Annex IV of the European RoHS Directive 2011/65/EU.

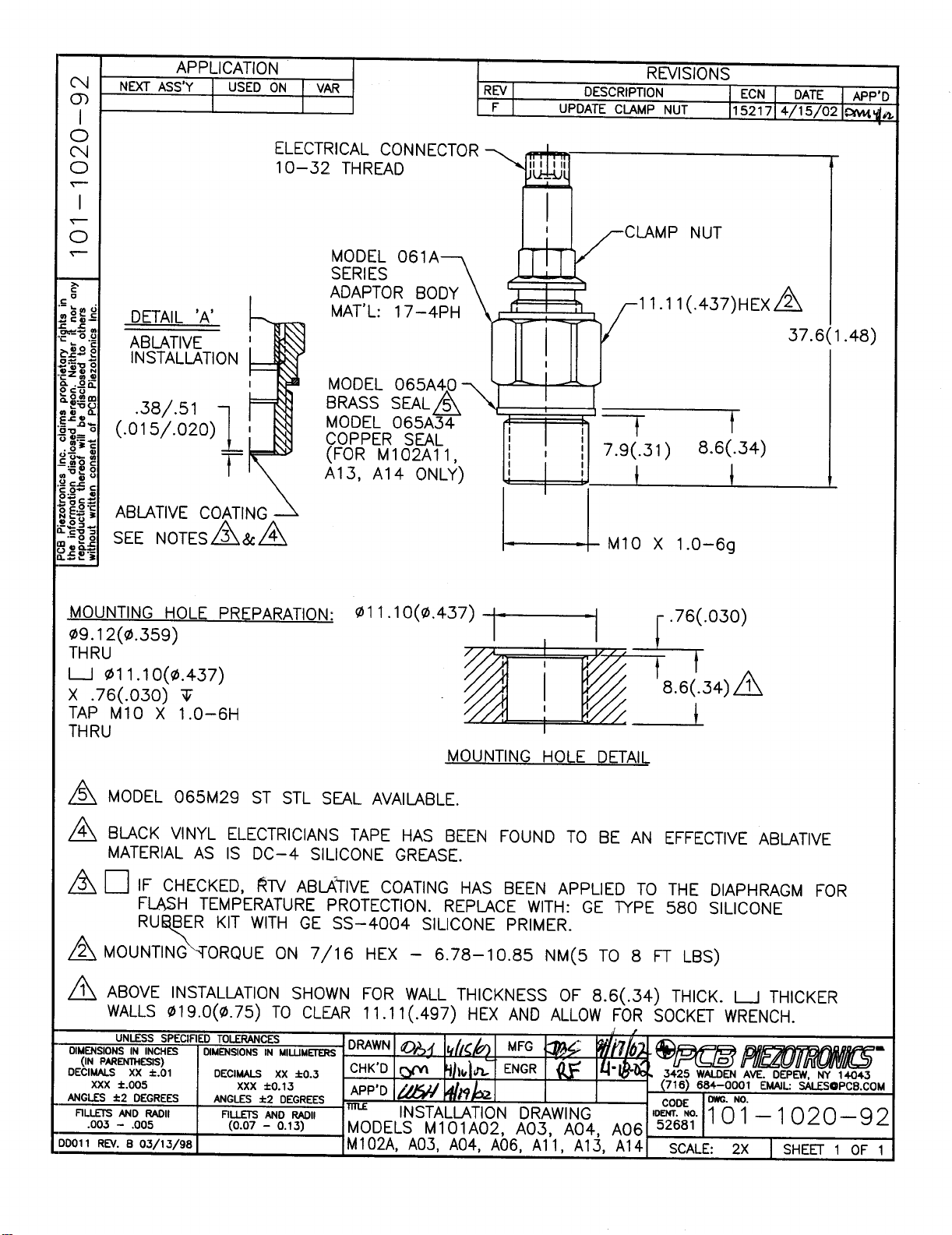

Model Number

101A04 ICP® PRESSURE SENSOR Revision: F

ECN #: 44786

Performance ENGLISH SI

Measurement Range(for ±5V output) 1000 psi 6895 kPa

Useful Overrange(for ± 10V output) 2000 psi 13,790 kPa [1]

Sensitivity(± 0.5 mV/psi) 5.0 mV/psi 0.73 mV/kPa

Maximum Pressure(static) 10,000 psi 69,000 kPa

Resolution 0.020 psi 0.138 kPa

Resonant Frequency ≥400 kHz ≥400 kHz

Rise Time(Reflected) ≤1.5 µ sec ≤1.5 µ sec

Low Frequency Response(-5 %) 0.005 Hz 0.005 Hz

Non-Linearity ≤2.0 % FS ≤2.0 % FS [2]

Environmental

Acceleration Sensitivity ≤0.002 psi/g ≤0.0014 kPa/(m/s²)

Temperature Range(Operating) -100 to +275 °F -73 to +135 °C

Temperature Coefficient of Sensitivity ≤0.03 %/°F ≤0.054 %/°C

Maximum Flash Temperature 3000 °F 1650 °C

Maximum Shock 20,000 g pk 196,000 m/s² pk

Electrical

Output Polarity(Positive Pressure) Positive Positive

Discharge Time Constant(at room temp) ≥100 sec ≥100 sec

Excitation Voltage 20 to 30 VDC 20 to 30 VDC

Constant Current Excitation 2 to 20 mA 2 to 20 mA

Output Impedance ≤100 Ohm ≤100 Ohm

Output Bias Voltage 8 to 14 VDC 8 to 14 VDC

Electrical Isolation 108Ohm 108Ohm

Physical

Sensing Geometry Compression Compression

Sensing Element Quartz Quartz

Housing Material Stainless Steel Stainless Steel

Diaphragm Invar Invar

Sealing Welded Hermetic Welded Hermetic

Electrical Connector 10-32 Coaxial Jack 10-32 Coaxial Jack

Weight 0.44 oz 12.5 gm

All specifications are at room temperature unless otherwise specified.

In the interest of constant product improvement, we reserve the right to change specifications without notice.

ICP®is a registered trademark of PCB Group, Inc.

H- Hermetic Seal

Sealing Welded Hermetic Welded Hermetic

M- Metric Mount

Supplied Accessory : Model 065A40 Seal ring 0.435" OD x 0.397" ID x 0.030" thk brass (3)

replaces Model 084C11

N- Negative Output Polarity

S- Stainless Steel Diaphragm

Diaphragm 316L Stainless Steel 316L Stainless Steel

W- Water Resistant Cable

NOTES:

[1]For +10 volt output, minimum 24 VDC supply voltage required. Negative 10 volt output may be

limited by output bias.

[2]Zero-based, least-squares, straight line method.

[3]See PCB Declaration of Conformance PS023 for details.

SUPPLIED ACCESSORIES:

Model 065A03 Seal ring 0.435" OD x 0.377" ID x 0.030" thk brass (3)

3425 Walden Avenue, Depew, NY 14043

Phone: 716-684-0001

Fax: 716-684-0987

E-Mail: [email protected]

[3]

OPTIONAL VERSIONS

Optional versions have identical specifications and accessories as listed for the standard model

except where noted below. More than one option may be used.

Entered: LK Engineer: BAM Sales: RWM Approved: BAM Spec Number:

Date: 11/4/2015 Date: 11/4/2015 Date: 11/4/2015 Date: 11/4/2015 5956

Andere Handbücher für M101A04

Inhaltsverzeichnis

Andere PCB Piezotronics Zubehör Handbücher

PCB Piezotronics

PCB Piezotronics JT352C04 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 209C01 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics M105C12/003G10 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 356A03/NC Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics IMI SENSORS 640 Series Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics ICP 105A Series Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 103B12 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics PCB-HT(M)354C02 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics PCB-(M)320C18 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 102A05 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 208C01 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics IMI SENSORS 653A01 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 351B04 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics IMI SENSORS EX641B72 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 117B237 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics IMI SENSORS 629A11 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 483C05 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics IMI SENSORS EX641B71D Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics ICP 320C33 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics IMI SENSORS 640B71 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 356A17 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 112B05 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics PCB LOAD & TORQUE 1102-02A Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics IMI SENSORS 643A62 Bedienungsanleitung

Beliebte Zubehör Handbücher anderer Marken

Hillco

Hillco 2810 Bedienungsanleitung

Siemens

Siemens QSA2700D Bedienerhandbuch

Contours

Contours ZY024 Bedienungsanleitung

Saivod

Saivod VS621 Bedienungsanleitung

Virtuox

Virtuox VirtuCLEAN 2.0 Bedienungsanleitung

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Bedienungsanleitung

Z-Wave

Z-Wave HSD-200Z Bedienungsanleitung

turck

turck FMX-IM-2UPLI63FX Bedienungsanleitung

Decagon Devices

Decagon Devices 10HS Bedienungsanleitung

UPPAbaby

UPPAbaby Cup Holder Bedienungsanleitung

Elko

Elko SmartSensor Leakage Wireless Bedienungsanleitung

Grizzly

Grizzly H8371 Bedienungsanleitung

Panasonic

Panasonic HG-T Series Bedienungsanleitung

IFM Electronic

IFM Electronic Efector 250 Series Referenzhandbuch

DigiDesign

DigiDesign 888/24 I/O Bedienungsanleitung

PROZIS

PROZIS QUAY Bedienungsanleitung

patagonia

patagonia PSI Vest Bedienungsanleitung

SFC Energy

SFC Energy EFOY GO! Bedienungsanleitung
