PCB Piezotronics IMI Sensors 691A80 Bedienungsanleitung

Model 691A80

36 Channel (12 Tri-Ax) Switch Box

Installation and Operating Manual

For assistance with the operation of this product,

contact PCB Piezotronics, Inc.

Toll-free: 800-959-4464

24-hour SensorLine: 716-684-0001

Fax: 716-684-3823

E-mail: [email protected]

Web: www.imi-sensors.com

Manual 21354 Rev E

ECN 50523

Repair and Maintenance

PCB guarantees Total Customer Satisfaction through its

“Lifetime Warranty Plus” on all Platinum Stock Products

sold by PCB and through its limited warranties on all other

PCB Stock, Standard and Special products. Due to the

sophisticated nature of our sensors and associated

instrumentation, field servicing and repair is not

recommended and, if attempted, will void the factory

warranty.

Beyond routine calibration and battery replacements

where applicable, our products require no user

maintenance. Clean electrical connectors, housings, and

mounting surfaces with solutions and techniques that will

not harm the material of construction. Observe caution

when using liquids near devices that are not hermetically

sealed. Such devices should only be wiped with a

dampened cloth—never saturated or submerged.

In the event that equipment becomes damaged or ceases

to operate, our Application Engineers are here to support

your troubleshooting efforts 24 hours a day, 7 days a

week. Call or email with model and serial number as well

as a brief description of the problem.

Calibration

Routine calibration of sensors and associated

instrumentation is necessary to maintain measurement

accuracy. We recommend calibrating on an annual basis,

after exposure to any extreme environmental influence,

or prior to any critical test.

PCB Piezotronics is an ISO-9001 certified company whose

calibration services are accredited by A2LA to ISO/IEC

17025, with full traceability to SI through N.I.S.T. In

addition to our standard calibration services, we also offer

specialized tests, including: sensitivity at elevated or

cryogenic temperatures, phase response, extended high

or low frequency response, extended range, leak testing,

hydrostatic pressure testing, and others. For more

information, contact your local PCB Piezotronics

distributor, sales representative, or factory customer

service representative.

Returning Equipment

If factory repair is required, our representatives will

provide you with a Return Material Authorization (RMA)

number, which we use to reference any information you

have already provided and expedite the repair process.

This number should be clearly marked on the outside of

all returned package(s) and on any packing list(s)

accompanying the shipment.

Contact Information

PCB Piezotronics, Inc.

3425 Walden Ave.

Depew, NY14043 USA

Toll-free: (800) 828-8840

24-hour SensorLine: (716) 684-0001

General inquiries: in[email protected]

Repair inquiries: rma@pcb.com

For a complete list of distributors, global offices and sales

representatives, visit our website, www.pcb.com.

Safety Considerations

This product is intended for use by qualified personnel

who recognize shock hazards and are familiar with the

precautions required to avoid injury. While our equipment

is designed with user safety in mind, the protection

provided by the equipment may be impaired if equipment

is used in a manner not specified by this manual.

Discontinue use and contact our 24-Hour Sensorline if:

Assistance is needed to safely operate equipment

Damage is visible or suspected

Equipment fails or malfunctions

For complete equipment ratings, refer to the enclosed

specification sheet for your product.

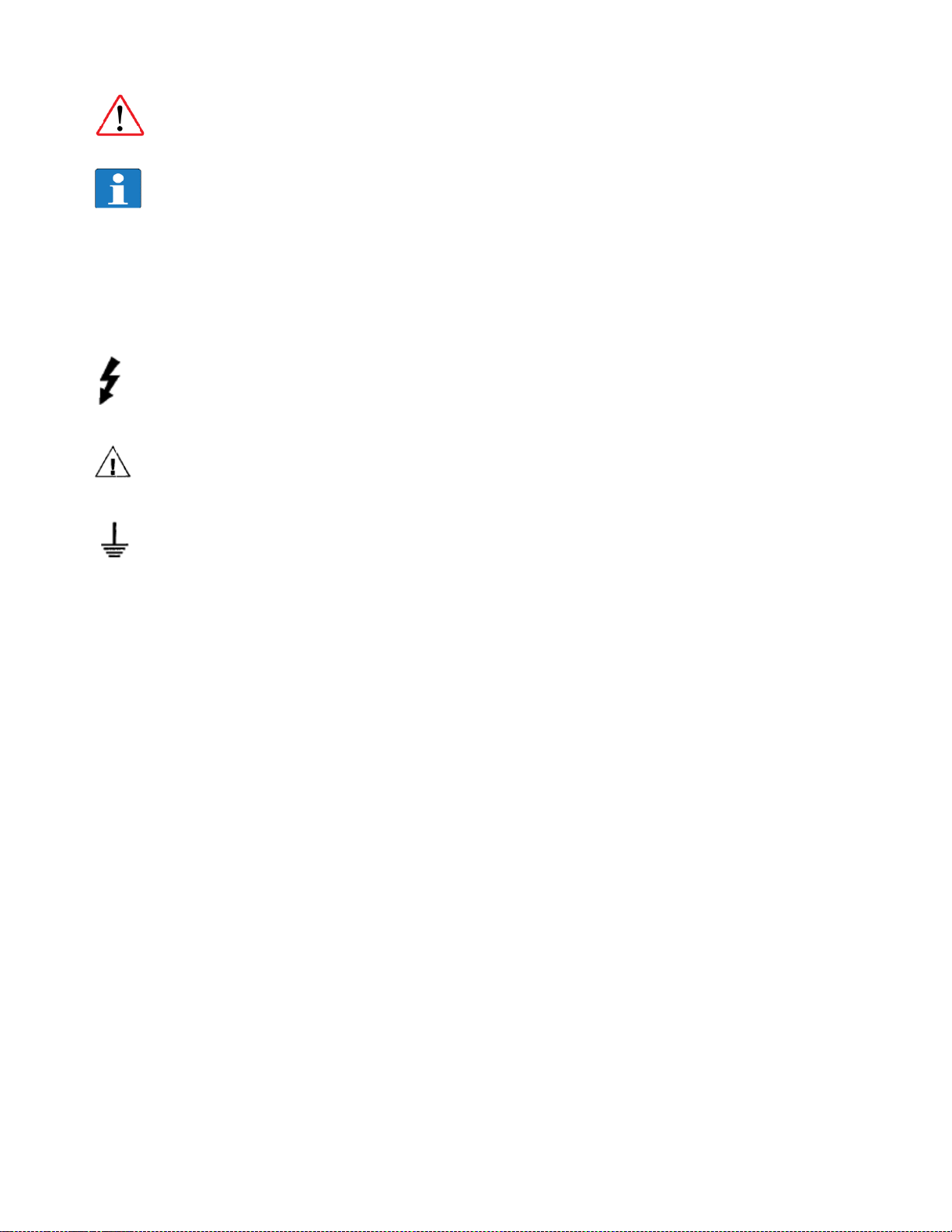

Definition of Terms and Symbols

The following symbols may be used in this manual:

DANGER

Indicates an immediate hazardous

situation, which, if not avoided, may

result in death or serious injury.

Manual 21354 Rev E

ECN 50523

CAUTION

Refers to hazards that could damage

the instrument.

NOTE

Indicates tips, recommendations and

important information. The notes

simplify processes and contain

additional information on particular

operating steps.

The following symbols may be found on the equipment

described in this manual:

This symbol on the unit indicates that

high voltage may be present. Use

standard safety precautions to avoid

personal contact with this voltage.

This symbol on the unit indicates that

the user should refer to the operating

instructions located in the manual.

This symbol indicates safety, earth

ground.

Manual 21354 Rev E

ECN 50523

PCB工业监视和测量设备 - 中国RoHS2公布表

PCB Industrial Monitoring and Measuring Equipment - China RoHS 2 Disclosure Table

部件名称

有害物质

铅(Pb)

汞

(Hg)

镉

(Cd)

六价铬(Cr(VI))

多溴联苯 (PBB)

多溴二苯醚(PBDE)

住房

PCB板

电气连接器

压电晶体

环氧

铁氟龙

电子

厚膜基板

电线

电缆

塑料

焊接

铜合金/黄铜

本表格依据 SJ/T 11364 的规定编制。

O：表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 规定的限量要求以下。

X：表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 规定的限量要求。

铅是欧洲RoHS指令2011/65/ EU附件三和附件四目前由于允许的豁免。

CHINA RoHS COMPLIANCE

Manual 21354 Rev E

ECN 50523

Component Name

Hazardous Substances

Lead (Pb)

Mercury (Hg)

Cadmium (Cd)

Chromium VI

Compounds

(Cr(VI))

Polybrominated

Biphenyls (PBB)

Polybrominated

Diphenyl Ethers

(PBDE)

Housing

PCB Board

Electrical Connectors

Piezoelectric Crystals

Epoxy

Teflon

Electronics

Thick Film Substrate

Wires

Cables

Plastic

Solder

Copper Alloy/Brass

This table is prepared in accordance with the provisions of SJ/T 11364.

O: Indicates that said hazardous substance contained in all of the homogeneous materials for this part is below the limit

requirement of GB/T 26572.

X: Indicates that said hazardous substance contained in at least one of the homogeneous materials for this part is above the limit

requirement of GB/T 26572.

Lead is present due to allowed exemption in Annex III or Annex IV of the European RoHS Directive 2011/65/EU.

INDUSTRIAL MONITORING INSTRUMENTATION DIVISION

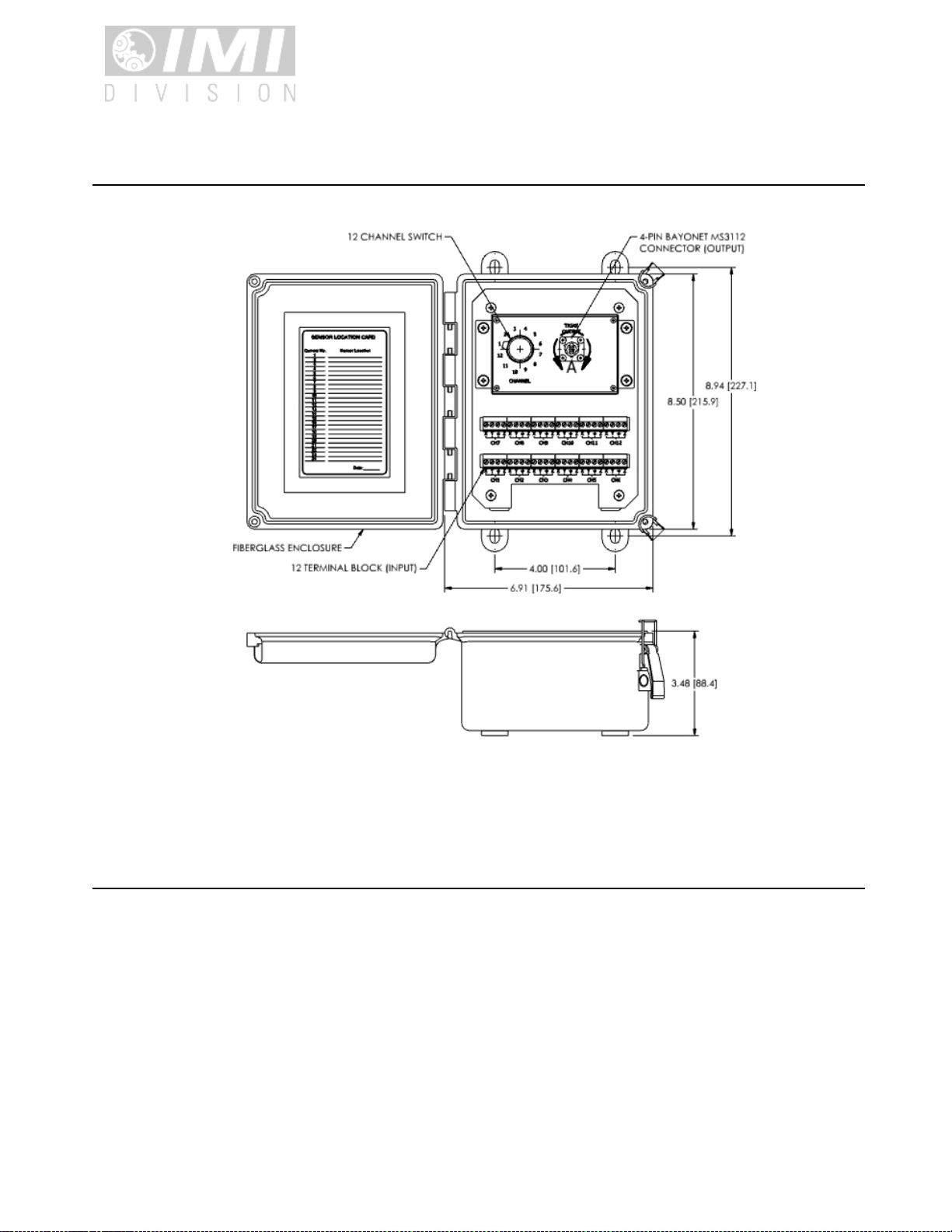

The Model 691A80 36 Channel (12 Tri-Ax) Switch Box

(

-A

)

Operating Guide with Enclosed Warranty Information

3425 Walden Avenue, Depew, New York 14043-2495

Phone (716) 684-0003

Fax (716) 684-3823

Toll Free Line 1-800-959-4IMI

SENSORS AND INSTRUMENTATION FOR MACHINE CONDITION MONITORING

MANUAL NUMBER: 59497

MANUAL REVISION: B

ECO: 49870

INDUSTRIAL MONITORING INSTRUMENTATION DIVISION

PAGE

SENSORS AND INSTRUMENTATION FOR MACHINE CONDITION MONITORING

Table of contents

Introduction....................................................................................................................... page 3

Installation........................................................................................................................ page 3

Terminal Strip Wiring........................................................................................................ page 4

4-Pin Bayonet Wiring........................................................................................................ page 4

Grounding the Enclosure.................................................................................................. page 5

Figure 1 –36 Channel (12 Tri-Ax) Switch Box............................................................ page 5

Calibration........................................................................................................................ page 5

ESD Warning Information................................................................................................. page 6

Warranty/servicing

Warranty, Service & Return Procedure ............................................................................ page 7

Customer Service............................................................................................................. page 8

INDUSTRIAL MONITORING INSTRUMENTATION DIVISION

PAGE

SENSORS AND INSTRUMENTATION FOR MACHINE CONDITION MONITORING

Introduction

The Model 691A80 is a 36 channel (12 Tri-Ax) switch box that provides terminal strip input with the convenience

of 4-Pin Bayonet outputs. It is used in conjunction with commercially available data collectors and analyzers. It

provides inputs and switched outputs for vibration tri-axial sensors. A few specifications are listed below for easy

reference:

Tri-Ax Channels..............................................................................................................................12

Single Channels..............................................................................................................................36

Input Connectors .......................................................................................4-Socket Terminal Strip

Output Connector: Tri-axial ...................................................................................... 4-Pin Bayonet

Enclosure Type........................................................................................................NEMA 4X (IP67)

Size.......................................................................8.50 x 6.93 x 3.46 in [216.0 x 176.0 x 87.9 mm]

Installation

Establish an easily accessible location for installation and keep in mind that the cabling will be coming from the

bottom panel of the enclosure. Use the supplied mounting feet to install the enclosure.

NOTE: Be very careful when drilling the enclosure as to not damage the internal metal, terminal strips and

printed circuit boards.

INDUSTRIAL MONITORING INSTRUMENTATION DIVISION

PAGE

SENSORS AND INSTRUMENTATION FOR MACHINE CONDITION MONITORING

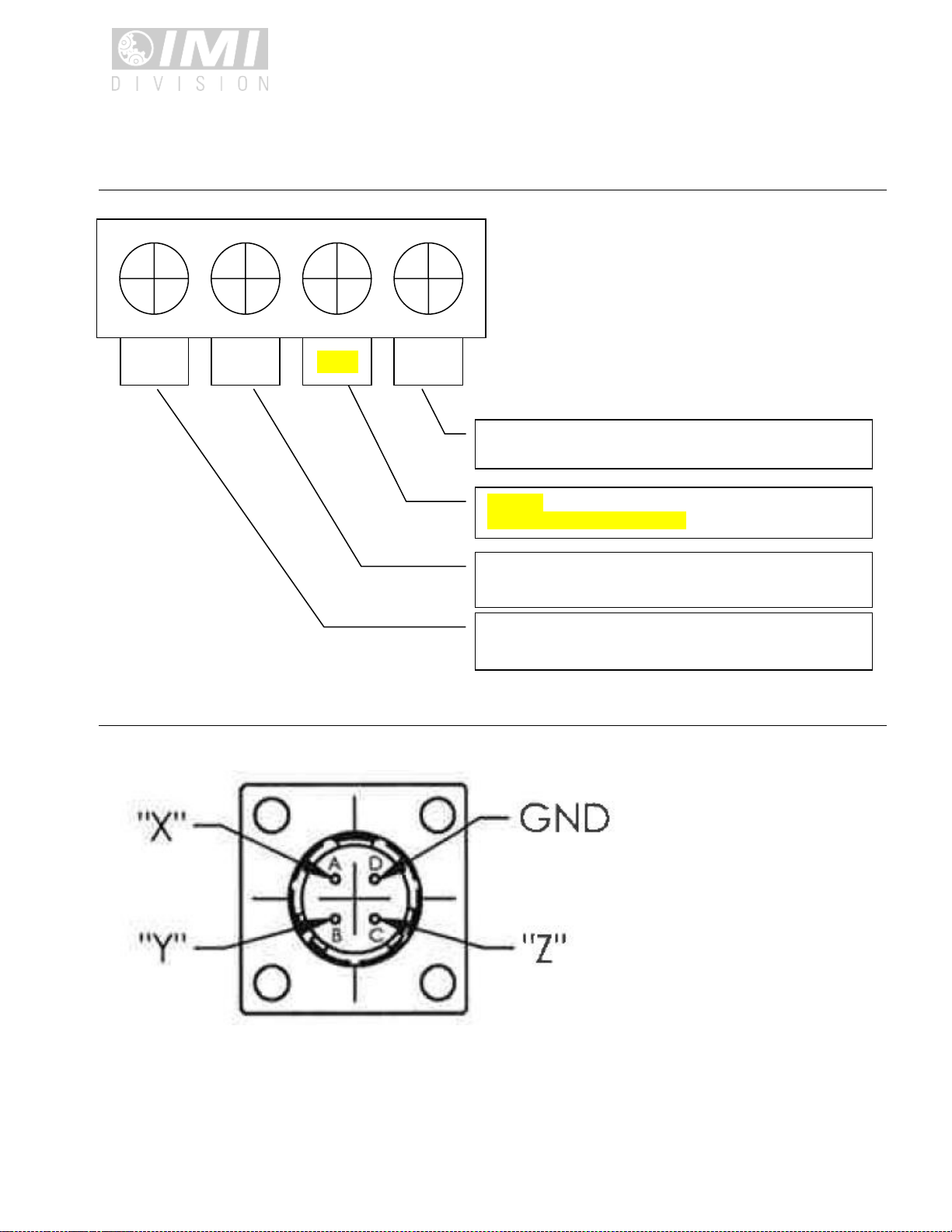

Terminal strip wiring

4-Pin Bayonet Wiring

X-Axis Input

Connect the sensor’s X-Axis input

Y-Axis Input

Connect the sensor’s Y-Axis input

Ground

Connect the sensor’s ground

Z-Axis Input

Connect the sensor’s Z-Axis input

GRD

INDUSTRIAL MONITORING INSTRUMENTATION DIVISION

PAGE

SENSORS AND INSTRUMENTATION FOR MACHINE CONDITION MONITORING

Grounding

The enclosure itself cannot be grounded. To ground the sensor cables, the cable shields should be tied together

and tied to an earth ground outside of the enclosure.

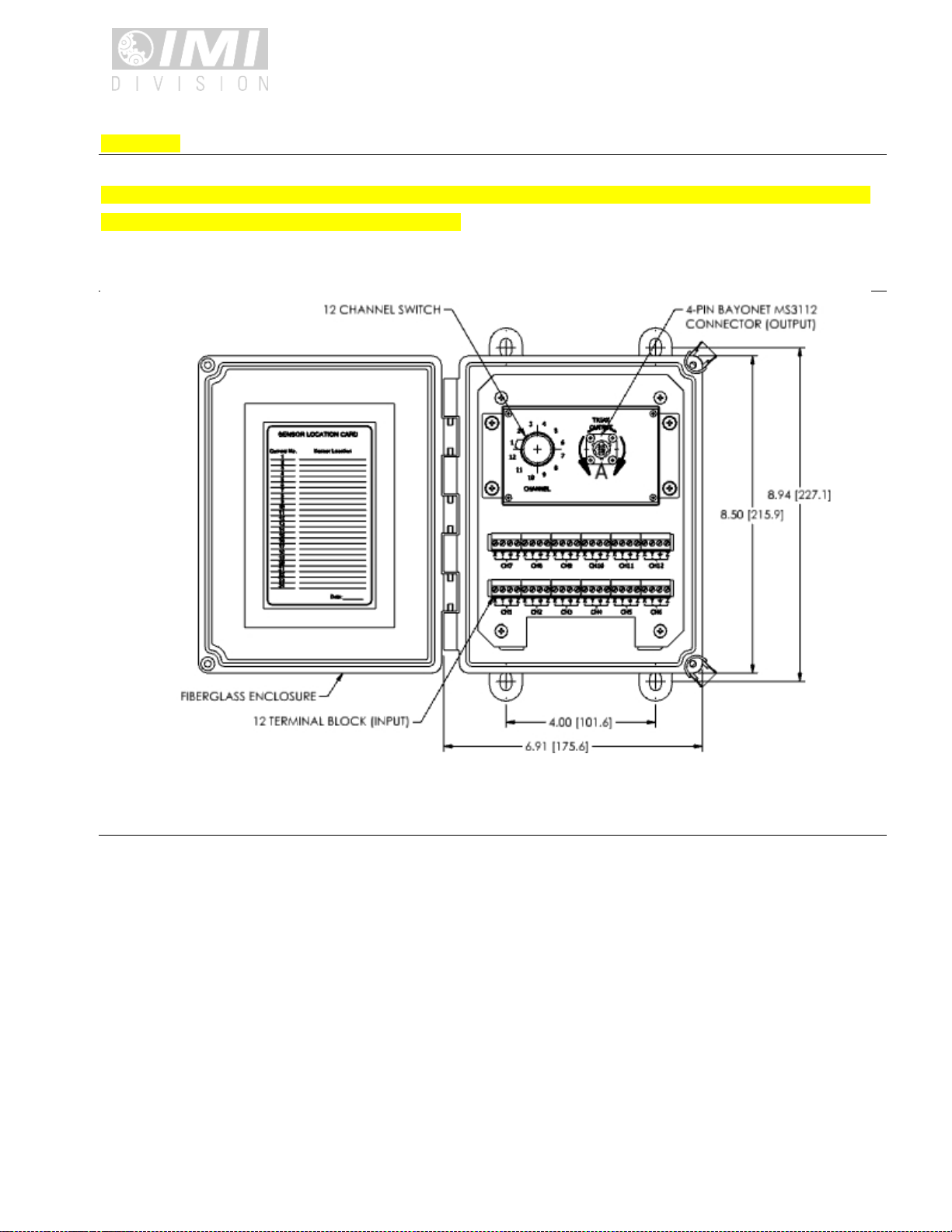

Figure 1 –36 Channel (12 Tri-Ax) Switch Box

Calibration

The 691A80 does not need any calibration since it is only a switch box. If there are any questions concerning the

products, please contact the factory.
