PCB Piezotronics IMI SENSORS 691B44 Series Bedienungsanleitung

Model 691B44/691040

Switch Box

Installation and Operating Manual

For assistance with the operation of this product,

contact PCB Piezotronics, Inc.

Toll-free: 800-959-4464

24-hour SensorLine: 716-684-0001

Fax: 716-684-3823

E-mail: [email protected]

Web: www.imi-sensors.com

Manual 21354 Rev E

ECN 50523

Repair and Maintenance

PCB guarantees Total Customer Satisfaction through its

“Lifetime Warranty Plus” on all Platinum Stock Products

sold by PCB and through its limited warranties on all other

PCB Stock, Standard and Special products. Due to the

sophisticated nature of our sensors and associated

instrumentation, field servicing and repair is not

recommended and, if attempted, will void the factory

warranty.

Beyond routine calibration and battery replacements

where applicable, our products require no user

maintenance. Clean electrical connectors, housings, and

mounting surfaces with solutions and techniques that will

not harm the material of construction. Observe caution

when using liquids near devices that are not hermetically

sealed. Such devices should only be wiped with a

dampened cloth—never saturated or submerged.

In the event that equipment becomes damaged or ceases

to operate, our Application Engineers are here to support

your troubleshooting efforts 24 hours a day, 7 days a

week. Call or email with model and serial number as well

as a brief description of the problem.

Calibration

Routine calibration of sensors and associated

instrumentation is necessary to maintain measurement

accuracy. We recommend calibrating on an annual basis,

after exposure to any extreme environmental influence,

or prior to any critical test.

PCB Piezotronics is an ISO-9001 certified company whose

calibration services are accredited by A2LA to ISO/IEC

17025, with full traceability to SI through N.I.S.T. In

addition to our standard calibration services, we also offer

specialized tests, including: sensitivity at elevated or

cryogenic temperatures, phase response, extended high

or low frequency response, extended range, leak testing,

hydrostatic pressure testing, and others. For more

information, contact your local PCB Piezotronics

distributor, sales representative, or factory customer

service representative.

Returning Equipment

If factory repair is required, our representatives will

provide you with a Return Material Authorization (RMA)

number, which we use to reference any information you

have already provided and expedite the repair process.

This number should be clearly marked on the outside of

all returned package(s) and on any packing list(s)

accompanying the shipment.

Contact Information

PCB Piezotronics, Inc.

3425 Walden Ave.

Depew, NY14043 USA

Toll-free: (800) 828-8840

24-hour SensorLine: (716) 684-0001

General inquiries: in[email protected]

Repair inquiries: rma@pcb.com

For a complete list of distributors, global offices and sales

representatives, visit our website, www.pcb.com.

Safety Considerations

This product is intended for use by qualified personnel

who recognize shock hazards and are familiar with the

precautions required to avoid injury. While our equipment

is designed with user safety in mind, the protection

provided by the equipment may be impaired if equipment

is used in a manner not specified by this manual.

Discontinue use and contact our 24-Hour Sensorline if:

Assistance is needed to safely operate equipment

Damage is visible or suspected

Equipment fails or malfunctions

For complete equipment ratings, refer to the enclosed

specification sheet for your product.

Definition of Terms and Symbols

The following symbols may be used in this manual:

DANGER

Indicates an immediate hazardous

situation, which, if not avoided, may

result in death or serious injury.

Manual 21354 Rev E

ECN 50523

CAUTION

Refers to hazards that could damage

the instrument.

NOTE

Indicates tips, recommendations and

important information. The notes

simplify processes and contain

additional information on particular

operating steps.

The following symbols may be found on the equipment

described in this manual:

This symbol on the unit indicates that

high voltage may be present. Use

standard safety precautions to avoid

personal contact with this voltage.

This symbol on the unit indicates that

the user should refer to the operating

instructions located in the manual.

This symbol indicates safety, earth

ground.

Manual 21354 Rev E

ECN 50523

PCB工业监视和测量设备 - 中国RoHS2公布表

PCB Industrial Monitoring and Measuring Equipment - China RoHS 2 Disclosure Table

部件名称

有害物质

铅(Pb)

汞

(Hg)

镉

(Cd)

六价铬(Cr(VI))

多溴联苯 (PBB)

多溴二苯醚(PBDE)

住房

PCB板

电气连接器

压电晶体

环氧

铁氟龙

电子

厚膜基板

电线

电缆

塑料

焊接

铜合金/黄铜

本表格依据 SJ/T 11364 的规定编制。

O：表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 规定的限量要求以下。

X：表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 规定的限量要求。

铅是欧洲RoHS指令2011/65/ EU附件三和附件四目前由于允许的豁免。

CHINA RoHS COMPLIANCE

Manual 21354 Rev E

ECN 50523

Component Name

Hazardous Substances

Lead (Pb)

Mercury (Hg)

Cadmium (Cd)

Chromium VI

Compounds

(Cr(VI))

Polybrominated

Biphenyls (PBB)

Polybrominated

Diphenyl Ethers

(PBDE)

Housing

PCB Board

Electrical Connectors

Piezoelectric Crystals

Epoxy

Teflon

Electronics

Thick Film Substrate

Wires

Cables

Plastic

Solder

Copper Alloy/Brass

This table is prepared in accordance with the provisions of SJ/T 11364.

O: Indicates that said hazardous substance contained in all of the homogeneous materials for this part is below the limit

requirement of GB/T 26572.

X: Indicates that said hazardous substance contained in at least one of the homogeneous materials for this part is above the limit

requirement of GB/T 26572.

Lead is present due to allowed exemption in Annex III or Annex IV of the European RoHS Directive 2011/65/EU.

INDUSTRIAL MONITORIN

G INSTRUMENTATION DI

VISION

SENSORS AND INSTRUMENTATION FOR MACHINE CONDITION MONITORING

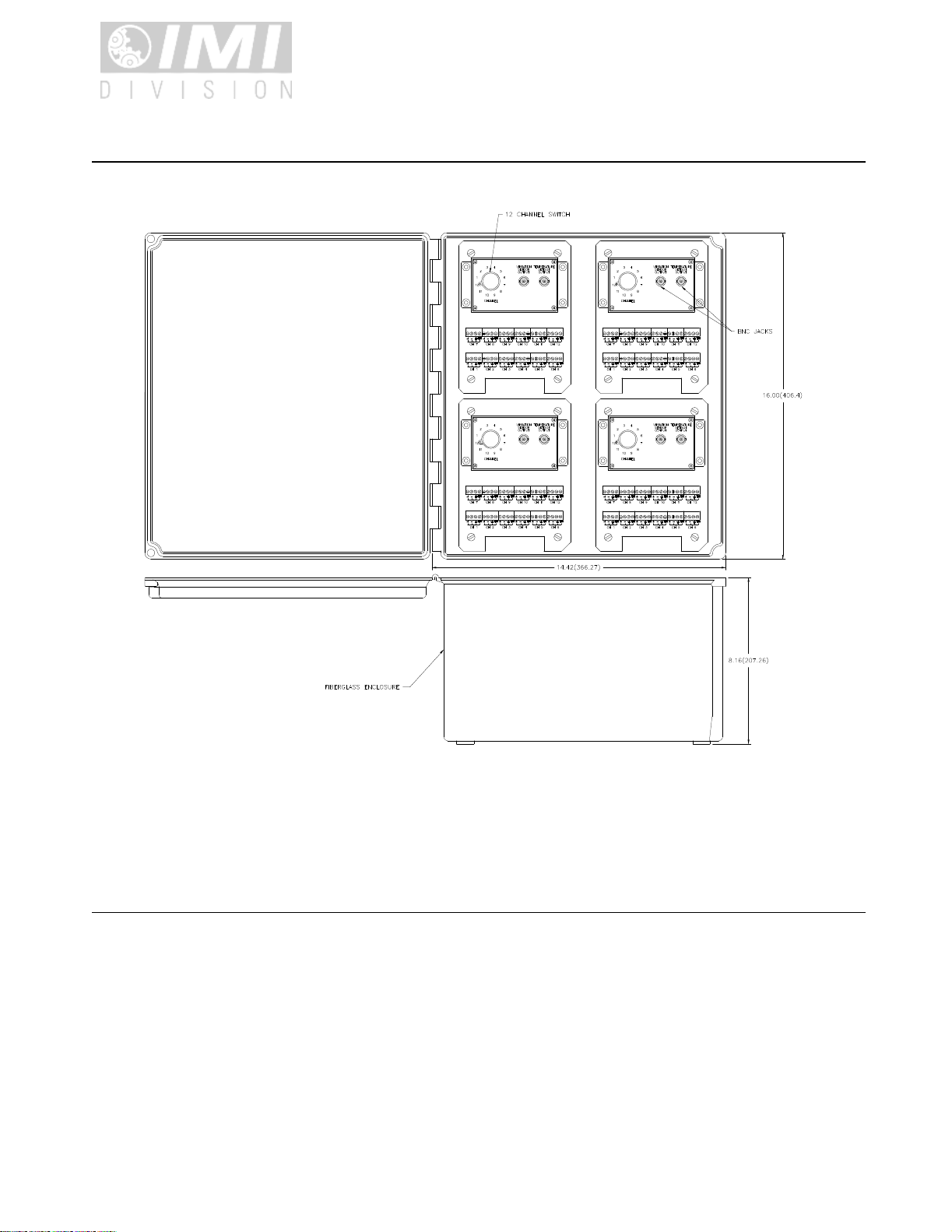

The 691B43, 691B44, 691B45 & 691B46 Series Vibration Switch Boxes

Operating Guide with Enclosed Warranty Information

3425 Walden Avenue, Depew, New York 14043-2495

Phone (716) 684-0003

Fax (716) 684-3823

Toll Free Line 1-800-959-4IMI

MANUAL NUMBER: 18421

MANUAL REVISION: NR

INDUSTRIAL MONITORING INSTRUMENTATION DIVISION

PAGE 2

SENSORS AND INSTRUME

NTATION FOR MACHINE

CONDITION MONITORING

table of contents

Introduction....................................................................................................................... page 3

Description ....................................................................................................................... page 3

Terminal Strip Wiring........................................................................................................ page 4

Grounding the Enclosure.................................................................................................. page 4

Figure 1 –Grounding the Enclosure........................................................................... page 5

Calibration........................................................................................................................ page 5

ESD Warning Information................................................................................................. page 6

warranty/servicing

Warranty, Service & Return Procedure ............................................................................ page 7

Customer Service............................................................................................................. page 8

INDUSTRIAL MONITORING INSTRUMENTATION DIVISION

PAGE 3

SENSORS AND INSTRUME

NTATION FOR MACHINE

CONDITION MONITORING

introduction

The Models 691B43, 691B44, 691B45 and 691B46 Series Vibration Switch Boxes provide terminal strip input with

the convenience of BNC outputs. They are used in conjunction with commercially available data collectors and

analyzers. They provide inputs and switched outputs for vibration sensors with built-in temperature sensors. This

series provides expandability up to 48 channels by offering field-installable, 12-channel switch panel modules

which may be ordered as the 691B40. A few specifications are listed below for easy reference.

Specifications

691B43 12 Channels

691B44 24 Channels

691B45 36 Channels

691B46 48 Channels

Input Connectors 4 Socket Terminal Strip

Output Connector –Temperature BNC Jack

Output Connector - Vibration BNC Jack

description

Establish an easily accessible location for installation, keeping in mind the cabling will be coming from the bottom

panel of the enclosure. Make the necessary holes in the panel for the vibration sensor cabling. Use the supplied

mounting feet and hardware to install the unit.

Note: Be very careful when punching and/or drilling the enclosure as not to damage the internal metal, terminal

strips and printed circuit boards.

INDUSTRIAL MONITORING INSTRUMENTATION DIVISION

PAGE 4

SENSORS AND INSTRUME

NTATION FOR MACHINE

CONDITION MONITORING

terminal strip wiring

grounding the enclosure

The enclosure is made of a non-conductive material. To ground the internal shielding system (ground planes on

PC board, mounting panel and switch enclosure), an external earth ground wire must be connected. To do this,

the bottom, left, inner-mounting hole has a ground lug included. Simply attach the external ground wire to the

ground lug. This will earth ground all the shields and the inner metal pieces. This will not ground the (-) input of

the vibration sensors, since they are isolated from the shield.

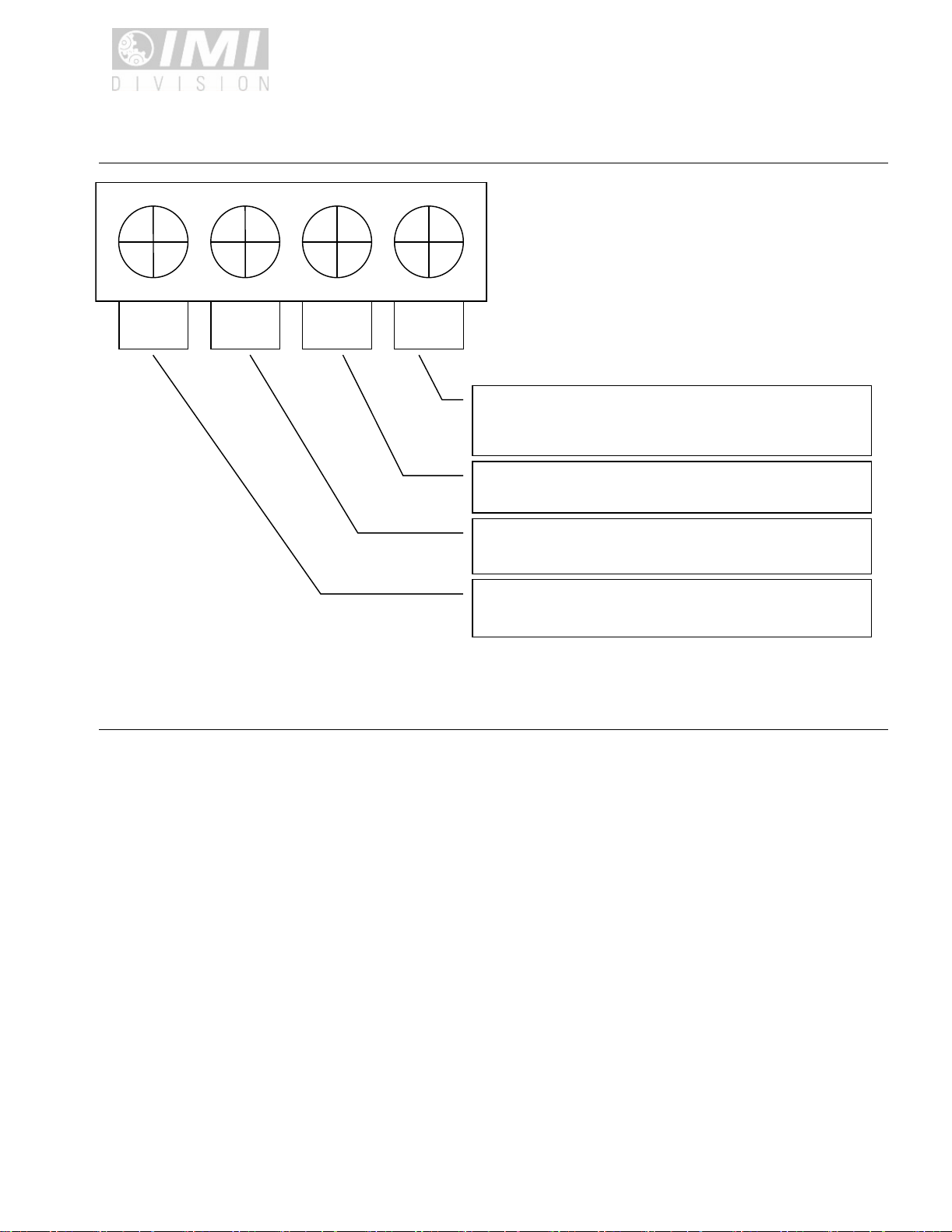

Positive Input

Connect the sensor’s positive input

Negative Input

Connect the sensor’s negative input

Shield

Connect the sensor’s shield; if applicable

TEMP

TEMP –Temperature Sensor Input

If the vibration sensors have a built-in temperature

sensor, connect the wire to this terminal strip input.

INDUSTRIAL MONITORING INSTRUMENTATION DIVISION

PAGE 5

SENSORS AND INSTRUME

NTATION FOR MACHINE

CONDITION MONITORING

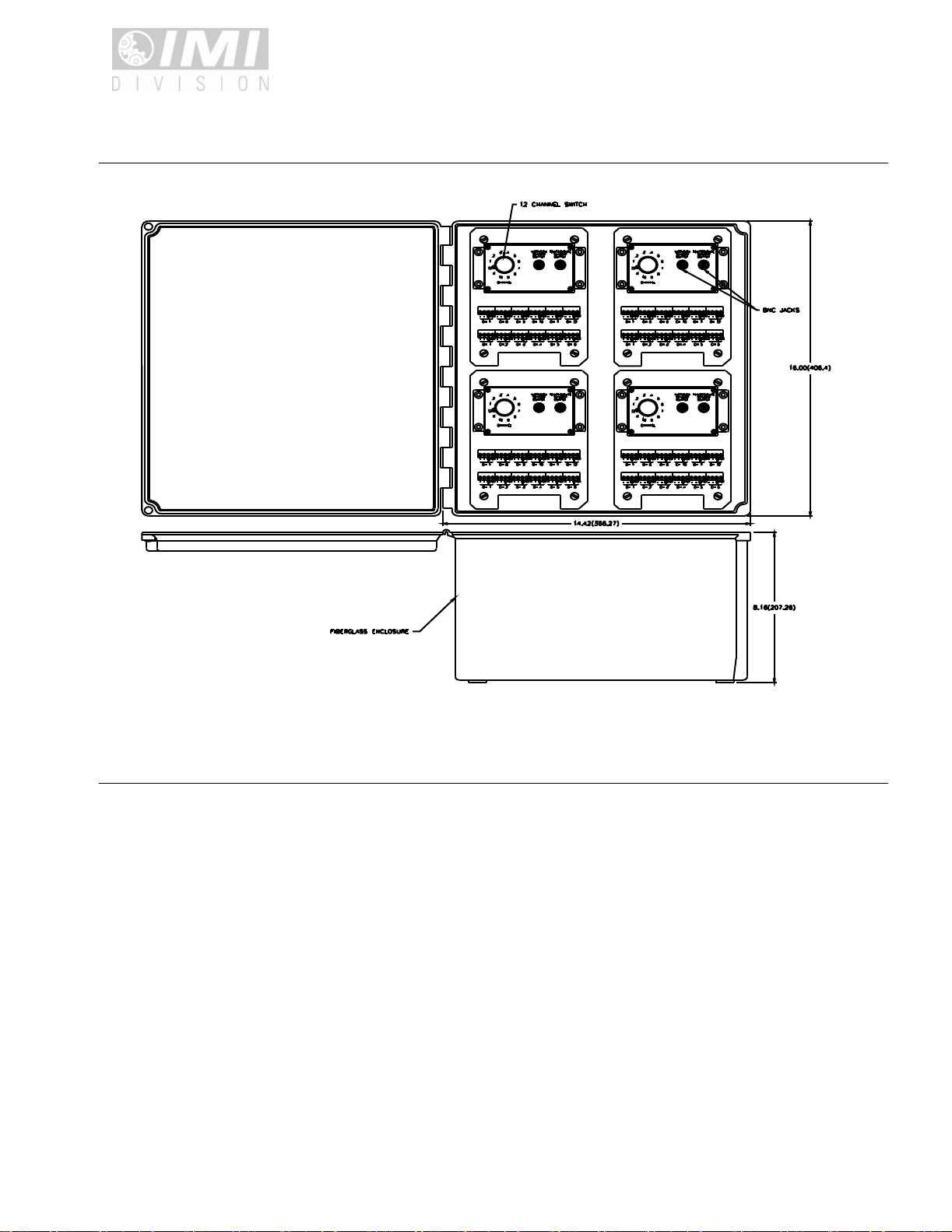

figure 1 –grounding the enclosure

calibration

The 691B43, 691B44, 691B45 and 691B46 do not need any calibration since they are only switch boxes. If there

are any questions concerning these products, please contact the factory.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere PCB Piezotronics Schalten Handbücher

PCB Piezotronics

PCB Piezotronics IMI SENSORS 685B0001C14 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 010D10 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics IMI SENSORS 691B46 Series Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics IMI SENSORS 685B1001A31 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics IMI SENSORS EX685A09 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 691B42 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics IMI SENSORS 685B0411C14 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics IMI SENSORS 685B0001A10 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 685B Series Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics IMI SENSORS 686B02 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics IMI SENSORS 686C01 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics IMI SENSORS 686B0X-0026 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics IMI SENSORS 685B-Series Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics IMI SENSORS 685B0401C14 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics IMI SENSORS 691B40 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics IMI SENSORS Y685B0001A13 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics IMI SENSORS Y685A19 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics IMI SENSORS 685B1001A30 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics IMI SENSORS 686 Series Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics IMI SENSORS 685A08 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics IMI SENSORS 686B0X-0027 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics IMI SENSORS 685B0001A30 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics IMI SENSORS 685B0000A10 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics IMI SENSORS EX686B71 Bedienungsanleitung

Beliebte Schalten Handbücher anderer Marken

URC

URC Total Control MFS-8 Bedienungsanleitung

Azbil

Azbil HPQ-D11 Bedienungsanleitung

Sony

Sony DFS-900M Bedienungsanleitung

SICK

SICK i17S Bedienungsanleitung

F&F

F&F SZR-277 Bedienungsanleitung

Shure

Shure UAMS/BK Bedienungsanleitung

Dräger

Dräger X-zone Switch Off Bedienungsanleitung

Asco

Asco Joucomatic 349 Series Bedienungsanleitung

BT Mini Hub Bedienungsanleitung

D-Link

D-Link DES-1226G Bedienungsanleitung

Johnson Controls

Johnson Controls FS80-C Bedienungsanleitung

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Bedienungsanleitung

MicroNet

MicroNet SP1200A Bedienungsanleitung

Ruijie

Ruijie RG-PF2920 Series Installations- und Betriebsanleitung

Altinex

Altinex DA1914SX Bedienungsanleitung

MiLAN

MiLAN MIL-SM2401M Bedienungsanleitung

RJM

RJM MASTERMIND PBC/6X Bedienungsanleitung

Atlas

Atlas MMK-KVM8 Bedienungsanleitung
