Model SS691C41

Stainless Steel Switch box with expansion jack

Installation and Operating Manual

For assistance with the operation of this product,

contact the PCB Piezotronics, Inc.

Toll-free: 800-959-4464

24-hour SensorLine: 716-684-0001

Fax: 716-684-3823

E-mail: [email protected]

Web: www.imi-sensors.com

Manual 21354 Rev E

ECN 50523

Repair and Maintenance

PCB guarantees Total Customer Satisfaction through its

“Lifetime Warranty Plus” on all Platinum Stock Products

sold by PCB and through its limited warranties on all other

PCB Stock, Standard and Special products. Due to the

sophisticated nature of our sensors and associated

instrumentation, field servicing and repair is not

recommended and, if attempted, will void the factory

warranty.

Beyond routine calibration and battery replacements

where applicable, our products require no user

maintenance. Clean electrical connectors, housings, and

mounting surfaces with solutions and techniques that will

not harm the material of construction. Observe caution

when using liquids near devices that are not hermetically

sealed. Such devices should only be wiped with a

dampened cloth—never saturated or submerged.

In the event that equipment becomes damaged or ceases

to operate, our Application Engineers are here to support

your troubleshooting efforts 24 hours a day, 7 days a

week. Call or email with model and serial number as well

as a brief description of the problem.

Calibration

Routine calibration of sensors and associated

instrumentation is necessary to maintain measurement

accuracy. We recommend calibrating on an annual basis,

after exposure to any extreme environmental influence,

or prior to any critical test.

PCB Piezotronics is an ISO-9001 certified company whose

calibration services are accredited by A2LA to ISO/IEC

17025, with full traceability to SI through N.I.S.T. In

addition to our standard calibration services, we also offer

specialized tests, including: sensitivity at elevated or

cryogenic temperatures, phase response, extended high

or low frequency response, extended range, leak testing,

hydrostatic pressure testing, and others. For more

information, contact your local PCB Piezotronics

distributor, sales representative, or factory customer

service representative.

Returning Equipment

If factory repair is required, our representatives will

provide you with a Return Material Authorization (RMA)

number, which we use to reference any information you

have already provided and expedite the repair process.

This number should be clearly marked on the outside of

all returned package(s) and on any packing list(s)

accompanying the shipment.

Contact Information

PCB Piezotronics, Inc.

3425 Walden Ave.

Depew, NY14043 USA

Toll-free: (800) 828-8840

24-hour SensorLine: (716) 684-0001

General inquiries: in[email protected]

Repair inquiries: rma@pcb.com

For a complete list of distributors, global offices and sales

representatives, visit our website, www.pcb.com.

Safety Considerations

This product is intended for use by qualified personnel

who recognize shock hazards and are familiar with the

precautions required to avoid injury. While our equipment

is designed with user safety in mind, the protection

provided by the equipment may be impaired if equipment

is used in a manner not specified by this manual.

Discontinue use and contact our 24-Hour Sensorline if:

Assistance is needed to safely operate equipment

Damage is visible or suspected

Equipment fails or malfunctions

For complete equipment ratings, refer to the enclosed

specification sheet for your product.

Definition of Terms and Symbols

The following symbols may be used in this manual:

DANGER

Indicates an immediate hazardous

situation, which, if not avoided, may

result in death or serious injury.

Manual 21354 Rev E

ECN 50523

CAUTION

Refers to hazards that could damage

the instrument.

NOTE

Indicates tips, recommendations and

important information. The notes

simplify processes and contain

additional information on particular

operating steps.

The following symbols may be found on the equipment

described in this manual:

This symbol on the unit indicates that

high voltage may be present. Use

standard safety precautions to avoid

personal contact with this voltage.

This symbol on the unit indicates that

the user should refer to the operating

instructions located in the manual.

This symbol indicates safety, earth

ground.

Manual 21354 Rev E

ECN 50523

PCB工业监视和测量设备 - 中国RoHS2公布表

PCB Industrial Monitoring and Measuring Equipment - China RoHS 2 Disclosure Table

部件名称

有害物质

铅(Pb)

汞

(Hg)

镉

(Cd)

六价铬(Cr(VI))

多溴联苯 (PBB)

多溴二苯醚(PBDE)

住房

PCB板

电气连接器

压电晶体

环氧

铁氟龙

电子

厚膜基板

电线

电缆

塑料

焊接

铜合金/黄铜

本表格依据 SJ/T 11364 的规定编制。

O：表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 规定的限量要求以下。

X：表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 规定的限量要求。

铅是欧洲RoHS指令2011/65/ EU附件三和附件四目前由于允许的豁免。

CHINA RoHS COMPLIANCE

Manual 21354 Rev E

ECN 50523

Component Name

Hazardous Substances

Lead (Pb)

Mercury (Hg)

Cadmium (Cd)

Chromium VI

Compounds

(Cr(VI))

Polybrominated

Biphenyls (PBB)

Polybrominated

Diphenyl Ethers

(PBDE)

Housing

PCB Board

Electrical Connectors

Piezoelectric Crystals

Epoxy

Teflon

Electronics

Thick Film Substrate

Wires

Cables

Plastic

Solder

Copper Alloy/Brass

This table is prepared in accordance with the provisions of SJ/T 11364.

O: Indicates that said hazardous substance contained in all of the homogeneous materials for this part is below the limit

requirement of GB/T 26572.

X: Indicates that said hazardous substance contained in at least one of the homogeneous materials for this part is above the limit

requirement of GB/T 26572.

Lead is present due to allowed exemption in Annex III or Annex IV of the European RoHS Directive 2011/65/EU.

INDUSTRIAL MONITORING INSTRUMENTATION DIVISION

Models (PS)(SS)691C41(T) & (PS)(SS)691C42(T)

Rotary Switch Boxes

Operating Guide with Enclosed Warranty Information

3425 Walden Avenue, Depew, New York 14043-2495

Phone (716) 684-0003

Fax (716) 684-3823

Toll Free Line 1-800-959-4IMI

SENSORS AND INSTRUMENTATION FOR MACHINE CONDITION MONITORING

MANUAL NUMBER: 65521

MANUAL REVISION: NR

ECO 47778

INDUSTRIAL MONITORING INSTRUMENTATION DIVISION

PAGE

SENSORS AND INSTRUMENTATION FOR MACHINE CONDITION MONITORING

Table of Contents

Introduction...................................................................................................................... Page 3

Installation....................................................................................................................... Page 4

Grounding the Enclosure ................................................................................................. Page 4

Input Wiring..................................................................................................................... Page 5

Output Wiring .................................................................................................................. Page 6

Using the Enclosure........................................................................................................ Page 6

Calibrating the Enclosure ................................................................................................ Page 6

ESD Warning Information................................................................................................ Page 7

Warranty/Servicing

Warranty, Service & Return Procedure ........................................................................... Page 8

Customer Service............................................................................................................ Page 9

INDUSTRIAL MONITORING INSTRUMENTATION DIVISION

PAGE

SENSORS AND INSTRUMENTATION FOR MACHINE CONDITION MONITORING

Introduction

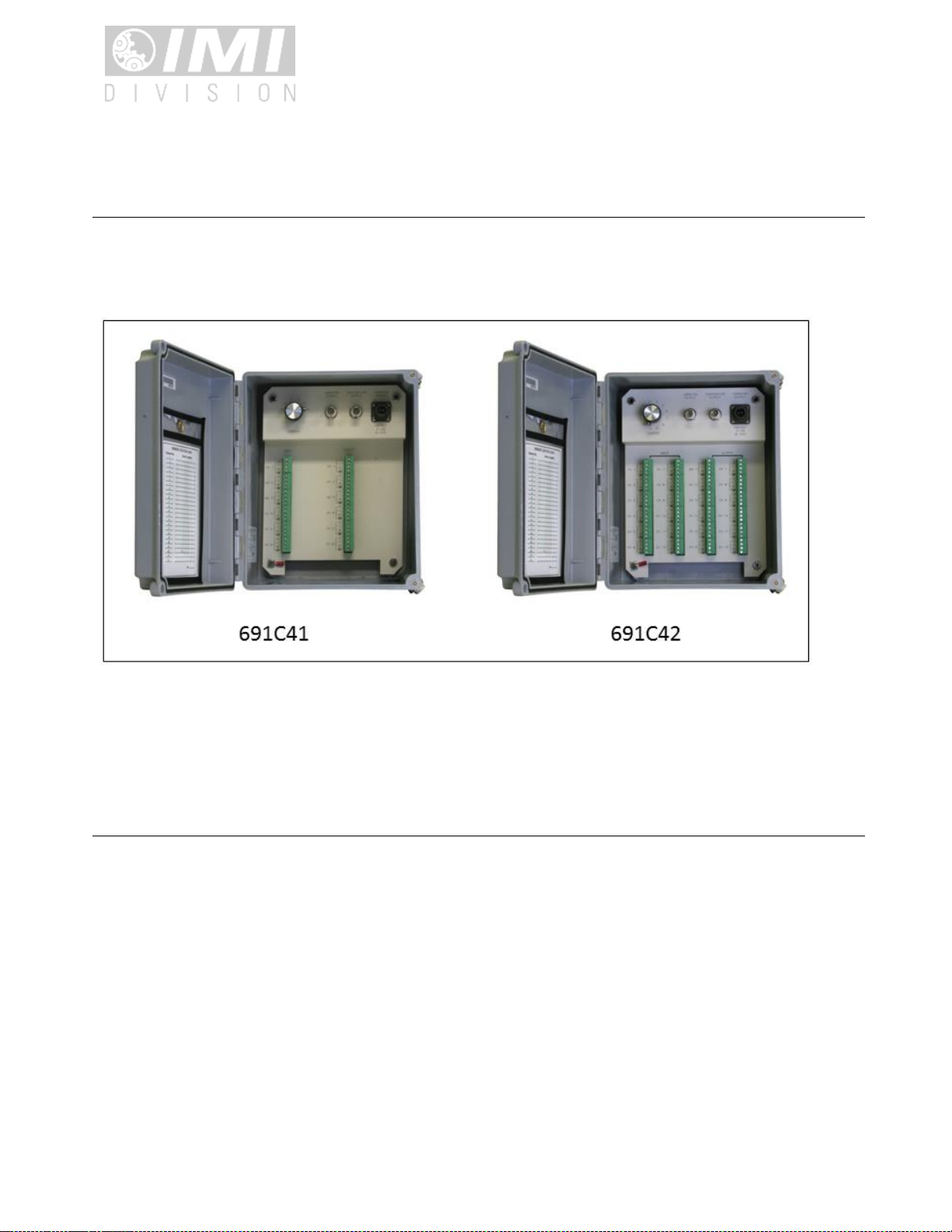

Models 691C41 and 691C42 are rotary switch boxes that provide terminal strip inputs for sensor cable termination

with the convenience of BNC & military connectors for switched outputs and terminal strips for continuous

outputs. They are typically used in conjunction with third-party data collectors and analyzers. The boxes provide

simultaneous vibration and temperature inputs on every channel so that they can be used in conjunction to

temperature output (TO) sensors (accelerometers with a built-in temperature sensor that provide simultaneous

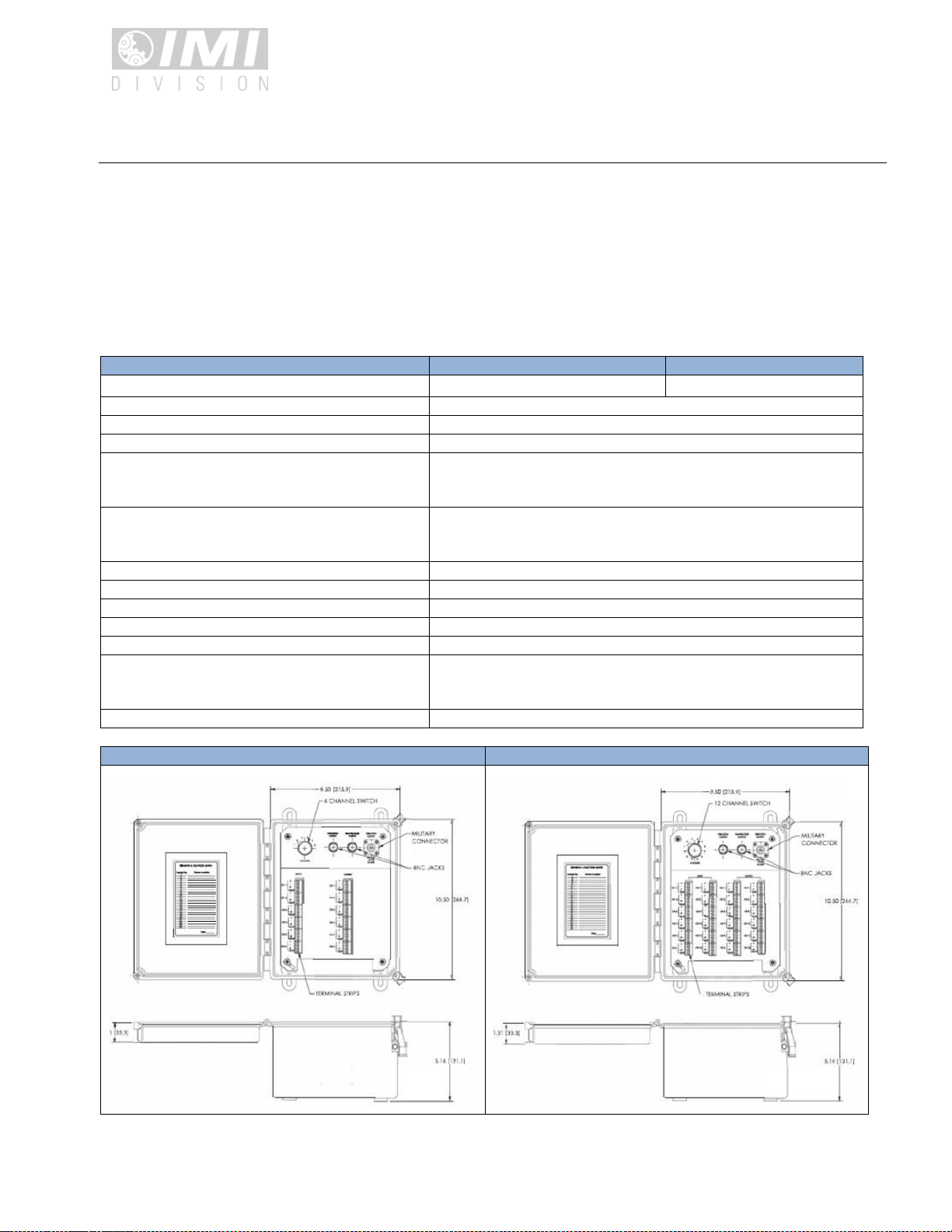

vibration and temperature signals). Specifications and drawings are below for reference:

Model Number

691C41

691C42

Channel Count

Input Connector

4-socket screw terminal strip per channel

Continuous Output Connector

4-socket screw terminal strip per channel

Switched Output Connector Number

Switched Output Connector #1 Type

2-pin MIL connector

3-pin MIL connector (T suffix)

Switched Output Connection #1 Output

Vibration (2-pin)

Vibration & Temp (T suffix)

Switched Output Connector #2 Type

BNC Jack

Switched Output Connector #2 Output

Vibration

Switched Output Connector #3 Type

BNC Jack

Switched Output Connector #3 Output

Temperature

Enclosure Rating

NEMA 4X (IP66)

Housing Material

Fiberglass

Painted Steel (PS prefix)

Stainless steel (SS prefix)

Size (excluding latch & mounting access)

10”H x 8”W x 6”D

Model 691C41

Model 691C42

INDUSTRIAL MONITORING INSTRUMENTATION DIVISION

PAGE

SENSORS AND INSTRUMENTATION FOR MACHINE CONDITION MONITORING

Installation

Establish an easily accessible location for

installation.

Fiberglass rotary switch boxes include four

polyester mounting brackets and four stainless

steel attachment screws that are shipped loose to

facilitate enclosure mounting. There are

positioning indents on the back of the box in each

corner. Once the mounting brackets are

positioned properly, they should then be fastened

to the box with the provided screws. Hardware for

fastening the mounting brackets to the installation surface are to be

provided in the field.

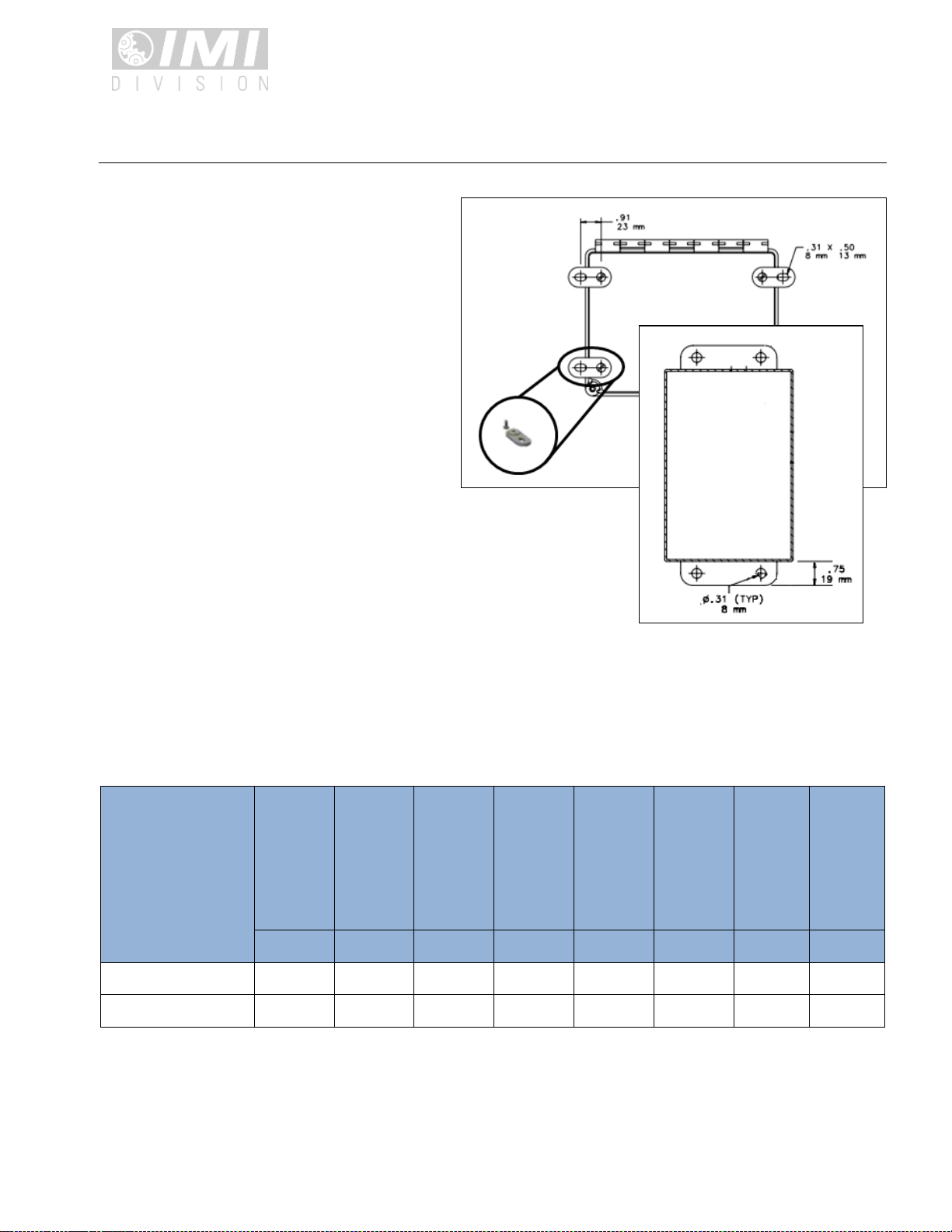

Painted steel and stainless steel boxes include two factory-installed

mounting brackets on the top and bottom of the box. Hardware for

fastening the mounting brackets to the installation surface are to be provided in the field.

Box may or may not have shipped from factory with factory-installed connection ports. If box did ship from factory

with factory-installed connection ports, ensure that box is mounted with connection ports facing down. The

factory-installed connection port options are listed in the table below.

(6)

PGME07

Cord

Grips

(12)

PGME07

Cord

Grips

(1)

PGME29

Cord

Grip

(2)

PGME29

Cord

Grips

(6)

PGME07

Cord

Grips &

(1)

PGME29

Cord

Grip

(6)

PGME07

Cord

Grips &

(1)

PGME29

Cord

Grip

(1) 1.5”

Conduit

Fitting

(2) 1.5”

Conduit

Fittings

/691010

/691020

/691011

/691071

/691004

/691000

/691013

/691026

(PS)(SS)691C41(T)

Yes

(PS)(SS)691C42(T)

Yes

INDUSTRIAL MONITORING INSTRUMENTATION DIVISION

PAGE

SENSORS AND INSTRUMENTATION FOR MACHINE CONDITION MONITORING

If the box did not ship from factory with factory-installed connections ports, drill/punch the necessary holes in the

bottom of box for the input and output cabling. Be very careful when drilling/punching holes in the box as to not

damage the internal metal, terminal strips and printed circuit boards. Also, take every possible precaution to

prevent water entrainment into the box.

Grounding the Enclosure

To ground the internal shielding system (ground planes on PC Board, mounting panel and switch enclosure), an

external earth ground wire must be connected. To do this, the bottom, right, inner-mounting hole has a double

nut included. Unscrew the nut and insert ground wire between the washers and screw nut tightly down again.

This will earth ground all the shields and the inner metal pieces. This will not ground the (-) input of the vibration

sensors, since they are isolated from the shield.

Input Wiring

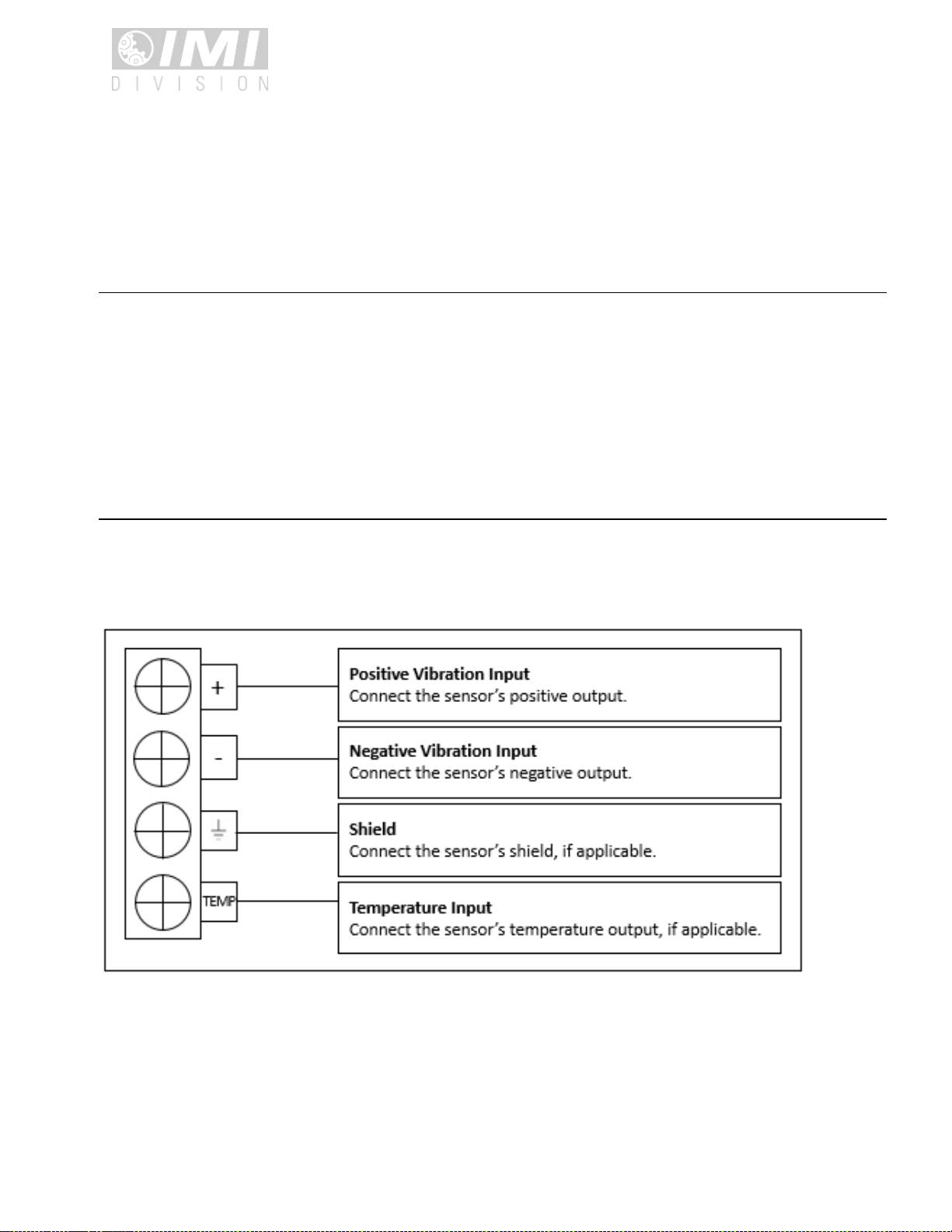

Sensor cables should be routed through connection ports and then connected to their respective channel’s

terminal strip per the diagram below. If connection ports are cord grips, cord grips should then be tightened to

maintain the enclosure’s ingress protection rating.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere PCB Piezotronics Schalten Handbücher

PCB Piezotronics

PCB Piezotronics IMI SENSORS Y685B0001C14 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics IMI SENSORS Y685B0001A13 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics IMI SENSORS 685B0001C14 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics IMI SENSORS 686 Series Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics IMI SENSORS 685A09 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics IMI SENSORS 685B1001A30 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics IMI SENSORS 686B71 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics IMI SENSORS 685B-Series Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics IMI SENSORS 686C01 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 685A39 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics IMI Sensors 686B11 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics IMI SENSORS EX686B74 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics IMI SENSORS 686B02 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics IMI SENSORS 685B0411C14 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 691B42 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics IMI Sensors 691A80 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics IMI SENSORS 685B0001D30 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics IMI SENSORS SS691C42 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics IMI SENSORS 685A08 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics IMI SENSORS 691B46 Series Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics IMI SENSORS 685B0000A10 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics IMI SENSORS EX686B71 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics IMI SENSORS 686B0X-0027 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics IMI Sensors 685B Series Bedienungsanleitung

Beliebte Schalten Handbücher anderer Marken

URC

URC Total Control MFS-8 Bedienungsanleitung

Azbil

Azbil HPQ-D11 Bedienungsanleitung

Sony

Sony DFS-900M Bedienungsanleitung

SICK

SICK i17S Bedienungsanleitung

F&F

F&F SZR-277 Bedienungsanleitung

Shure

Shure UAMS/BK Bedienungsanleitung

Dräger

Dräger X-zone Switch Off Bedienungsanleitung

Asco

Asco Joucomatic 349 Series Bedienungsanleitung

BT Mini Hub Bedienungsanleitung

D-Link

D-Link DES-1226G Bedienungsanleitung

Johnson Controls

Johnson Controls FS80-C Bedienungsanleitung

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Bedienungsanleitung

MicroNet

MicroNet SP1200A Bedienungsanleitung

Ruijie

Ruijie RG-PF2920 Series Installations- und Betriebsanleitung

Altinex

Altinex DA1914SX Bedienungsanleitung

MiLAN

MiLAN MIL-SM2401M Bedienungsanleitung

RJM

RJM MASTERMIND PBC/6X Bedienungsanleitung

Atlas

Atlas MMK-KVM8 Bedienungsanleitung
