PEERLESS Mounts RTLA-100 Leitfaden
Installation and Assembly:
Articulating Wall Arm for LCD screens
Models: RTLA-100, RTLA-100S, SA730P, SA730P-S, D-LA-100, D-LA-100S,
SWV150/BK, SWV150/SI
Features:
•Fits 10" - 26" (25 - 66 cm) LCD screens
• Pivots and articulates in all directions, even around corners and cabinets
• Frees up space by folding flat against the wall
• Keeps electronic wires routed internally to reduce clutter
ISSUED: 02-05-09 SHEET #: 202-9338-1
Max Load Capacity: 25 lb (11.3 kg)
©
UL
USC
I
D
:
0
0
0
0
0
1
8
7
6
2
2 of 18 ISSUED: 02-05-09 SHEET #: 202-9338-1
Table of Contents
Parts List.................................................................................................................................................................................3
Installation to Wood Stud Wall................................................................................................................................................4
Installation to Solid Concrete and Cinder Block .....................................................................................................................5
Notes: Read entire instruction sheet before you start installation and assembly.
• Do not begin to install your Peerless product until you have read and understood the instructions and warnings
contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, for US
customers please call Peerless customer care at 1-800-865-2112, for all international customers, please contact
your local distributor.
• This product should only be installed by someone of good mechanical aptitude, has experience with basic building
construction, and fully understands these instructions.
• Make sure that the supporting surface will safely support the combined load of the equipment and all attached
hardware and components.
• Never exceed the Maximum Load Capacity. See page one.
• If mounting to wood wall studs, make sure that mounting screws are anchored into the center of the studs. Use of
an "edge to edge" stud finder is highly recommended.
• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.
• Tighten screws firmly, but do not overtighten. Overtightening can damage the items, greatly reducing their holding
power.
• This product is intended for indoor use only. Use of this product outdoors could lead to product failure and personal
injury.
• This product was designed to be installed on the following wall construction only;
WALL CONSTRUCTION HARDWARE REQUIRED
• Wood Stud Included
•Wood Beam Included
•Solid Concrete Included
•Cinder Block Included
• Metal Stud Do not attach except with Peerless Metal Stud Accessory Kit - ACC908;
• Brick Contact Qualified Professional
• Other or unsure? Contact Qualified Professional
WARNING
Tools Needed for Assembly
•stud finder ("edge to edge" stud finder is recommended)
• phillips screwdriver
•drill
• 5/16" (8 mm) bit for concrete and cinder block wall
• 5/32" (4 mm) bit for wood stud wall
• level
3 of 18 ISSUED: 02-05-09 SHEET #: 202-9338-1
A
H
J
KL
F
G
C
B
D
E
I
SWV150/BK
D-LA-100
RTLA-100
SA730P
SWV150/SI
D-LA-100S
RTLA-100S
SA730P-S
Description Qty. Part # Part #
A
wall arm assembly 1 095-0385-B 095-0385-S
B3/16" allen wrench 1 560-0071 560-0071
Cconcrete anchor 2 590-0320 590-0320
D#14 x 63.5 mm flat head wood screw 2 520-1202 520-2165
Ecord management clip 2 590-1264 590-2164
FM4 x 12 mm phillips screw 4 504-9013 504-2013
GM4 x 20 mm phillips screw 4 504-9020 504-2014
Hretaining spacer 4 590-5005 590-5003
I5 mm allen wrench 1 560-9640 560-9640
JVESA 200 x 100 adapter plate 2 095-1590 095-4590
KM5 x 6 mm screw 4 520-1023 520-2214
L#10 flat washer 4 540-9400 540-9442
Parts List
Before you begin, make sure all parts shown are included with your product.
Parts may appear slightly different than illustrated.
4 of 18 ISSUED: 02-05-09 SHEET #: 202-9338-1
D
WOOD STUD WALL

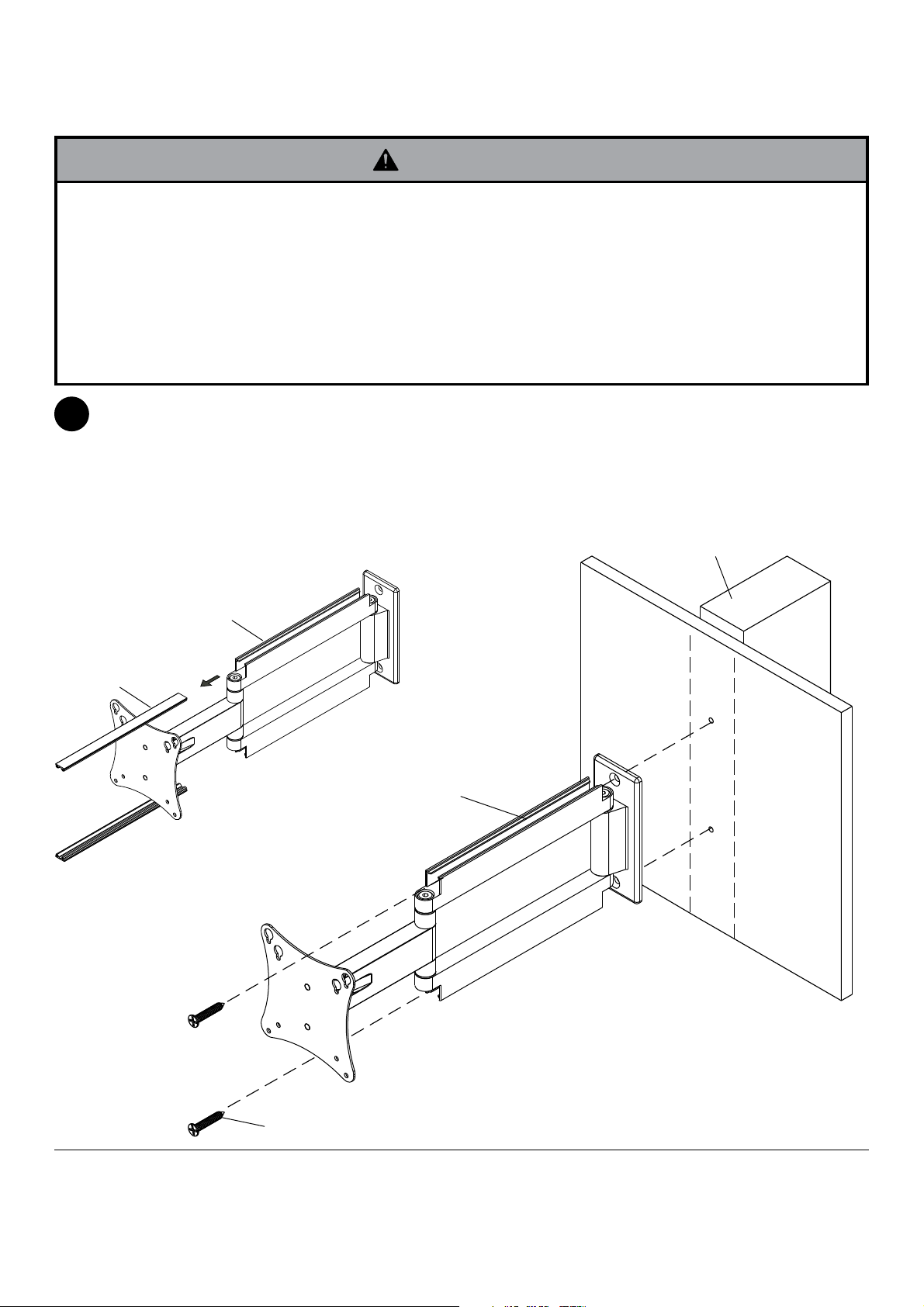

Remove cord covers from wall arm assembly (A) as shown in figure 1.1. Using a stud finder, locate and mark the
edges of the wood stud used in mounting this product. Use of an edge to edge stud finder is highly recommended.
Use a level to draw a vertical line down the center of the stud. Use wall plate as template to mark center of holes
along the vertical line. Drill two 5/32" (4 mm) dia. holes 2.5" (65 mm) deep. Attach wall arm assembly (A) to wall
using two #14 x 63.5 mm flat head wood screws (D) as shown in figure 1.2.
Skip to step 2 on page 6.
A
Installation to Wood Stud Wall
A
CORD COVERS
fig. 1.1
fig. 1.2
1
• Installer must verify that the supporting surface will safely support the combined load of the equipment and all
attached hardware and components.
• Tighten wood screws so that wall plate is firmly attached, but do not overtighten. Overtightening can damage the
screws, greatly reducing their holding power.
• Never tighten in excess of 80 in. • lb (9 N.M.).
• Make sure that mounting screws are anchored into the center of the stud. The use of an "edge to edge" stud finder
is highly recommended.
• Hardware provided is for attachment of mount through standard thickness drywall or plaster into wood studs. Install-
ers are responsible to provide hardware for other types of mounting situations (not UL approved).
WARNING
5 of 18 ISSUED: 02-05-09 SHEET #: 202-9338-1
D
Installation to Solid Concrete and Cinder Block
Remove cord covers from wall arm assembly (A) as
shown in figure 1.1 on page 4. Level and use wall
plate as template to mark center of holes. Drill two
5/16" (8 mm) dia. hole to a minimum depth of 2.5"
(64 mm). Insert anchors (C) in holes flush with wall.
Place wall arm (A) over anchor and secure with
wood screw (D). Make sure wall arm is level, and
tighten all fasteners.
A
C
1
• When installing Peerless wall mounts on cinder block, verify that you have a minimum of 1-3/8" (35 mm) of actual
concrete thickness in the hole to be used for the concrete anchors. Do not drill into mortar joints! Be sure to mount
in a solid part of the block, generally 1" (25 mm) minimum from the side of the block. Cinder block must meet ASTM
C-90 specifications. It is suggested that a standard electric drill on slow setting is used to drill the hole instead of a
hammer drill to avoid breaking out the back of the hole when entering a void or cavity.
• Concrete must be 2000 psi density minimum. Lighter density concrete may not hold concrete anchor.
• Make sure that the wall will safely support four times the combined load of the equipment and all attached hardware
and components.
WARNING
• Tighten screws so that wall plate is firmly attached,
but do not overtighten. Overtightening can damage
screws, greatly reducing their holding power.
• Never tighten in excess of 80 in. • lb (9 N.M.).
WARNING
• Always attach concrete expansion anchors directly
to load-bearing concrete.
• Never attach concrete expansion anchors to
concrete covered with plaster, drywall, or other
finishing material. If mounting to concrete surfaces
covered with a finishing surface is unavoidable,
the finishing surface must be counterbored as
shown below. Be sure concrete anchors do not
pull away from concrete when tightening screws. If
plaster/drywall is thicker than 5/8" (16 mm), custom
fasteners must be supplied by installer.
WARNING
CUTAWAY VIEW
INCORRECT CORRECT
wall
plate
wall
plate
plaster/
drywall plaster/
drywall
concrete concrete
1
3
2
C
Drill holes and insert anchors (C).
Place plate (A) over anchors (C) and secure with screws (D).
Tighten all fasteners.
A
C
D
concrete
surface
6 of 18 ISSUED: 02-05-09 SHEET #: 202-9338-1
Insert two M4 x 12 mm screws (F) into top two holes
of screen, leaving approximately 1/4" of exposed
thread. Hook screws onto keyslots of adapter plate
as indicated in figures 2.1 and 2.2.
*NOTE: If hole pattern is in a pocket, insert two M4
x 20 mm screws (G) with two retaining spacers (H)
into top two holes of screen as indicated right.
2
fig. 2.1
• If screws don't get three complete turns in the screen inserts or if screws bottom out and bracket is still not tightly
secured, damage may occur to screen or product may fail.
WARNING
1/4"
FOR VESA®75
MOUNTING PATTERN:
FOR VESA 100
MOUNTING PATTERN:
fig. 2.2
F
Screen may appear
slightly different than
illustrated
Insert one M4 screw (F or G) through bottom hole of
adapter plate as shown in figure 3.1.
Skip to step 7 on page 8.
fig. 3.1
F or G
ADAPTER
PLATE
H
*For screens with
a hole pattern in a
pocket, spacers (H)
go between adapter
plate and screen.
3
Attaching Front Plate to Screen Using VESA 75 or 100 mm Mounting Patterns
7 of 18 ISSUED: 02-05-09 SHEET #: 202-9338-1
Attach adapter plates (J) to tilt plate of arm
assembly (A) using four M5 x 6 mm screws (K) and
four #10 flat washers (L).
Insert one M4 screw (For G) through bottom hole of
adapter plate (J) as shown in figure 6.1.
Insert two M4 x 12 mm screws (F) into top two holes
of screen, leaving approximately 1/4" (6.3 mm) of
exposed thread. Hook screws onto slots of adapter
plates (J) as shown in figure 5.1
NOTE: If hole pattern is in a pocket, insert two
M4 x 20 mm screws (G) with two retaining spacers (H)
into top two holes of screen.
4
6
5
Attaching Front Plate to Screen Using VESA 200 x 100 mm Mounting Pattern
H
*For screens with
a hole pattern in a
pocket, spacers (H)
go between adapter
plate and screen.
F
Screen may appear
slightly different than
illustrated
F or G
J
K
A
L
J
TILT PLATE
fig. 5.1
fig. 6.1
• If screws don't get three complete turns in the screen inserts or if screws bottom out and bracket is still not tightly
secured, damage may occur to screen or product may fail.
WARNING
8 of 18 ISSUED: 02-05-09 SHEET #: 202-9338-1
A
NOTE: Make sure cords have enough slack to allow full movement of the arm.
Route cords inside arm slots of wall arm assembly (A). Optional: Run power cord through one side of mount and
signal cable(s) through other side to avoid interference with the signal.
Lock cords into place by sliding cord covers onto mount. Screen may have to be moved for better access for sliding
on the cord covers.
CORD COVERS
Route cords through center of cord management clip (E). Next, attach cord management clip (E) to adapter plate
using M4 screw (F or G) as shown in detail 1. Tighten all four screws (F or G).
NOTE: A cord management clip (E) was added for additional cords. If you want to use this additional clip (E),
remove the opposite bottom screw and repeat this step on opposite side of adapter plate.
F or G
EDETAIL 1
4
5
9 of 18 ISSUED: 02-05-09 SHEET #: 202-9338-1
If more or less tension is desired in the arm pivot points, do the following:
• To increase tension, turn socket screw clockwise with 3/16" allen wrench (B).
• To reduce tension, turn socket screw counter-clockwise with 3/16" allen wrench (B).
NOTE: Do not turn more than half a turn.
SOCKET SCREWS
NOTE: Adjustment points (socket screws) are factory torqued for optimal performance. This factory torque setting
is recommended to prevent the screen from slipping over time. If more or less tension is desired follow this option-
al step. You may not achieve optimal torque value if factory torque settings are adjusted.
If more or less tension is desired in tilt mechanism, remove snap caps as shown in detail 2. Insert a flat head
screw driver into slot and pry cap away from tilt mechanism. To adjust tilt, simply tighten or loosen socket screw no
more than half a turn using 5 mm allen wrench (I). To adjust roll, simply tighten or loosen 10-32 nylock nut.
OPTIONAL
• Do not remove screw or loosen screw until it is no longer engaged with the mount. Doing so may cause the screen
to fall.
WARNING
© 2009, Peerless Industries, Inc. All rights reserved.
All other brand and product names are trademarks or registered trademarks of their respective owners.
Peerless Industries, Inc.
3215 W. North Ave.
Melrose Park, IL 60160
www.peerlessmounts.com
SNAP CAP
SOCKET
SCREW
10-32 NYLOCK NUT
DETAIL 2
SLOT
Anbringung und Zusammenbau:
Wandhalterung mit Gelenkarm für LCD-Bildschirme
Modelle: RTLA-100, RTLA-100S, SA730P, SA730P-S, D-LA-100, D-LA-100S,
SWV150/BK, SWV150/SI
Merkmale:
• Für LCD-Bildschirme von 10 - 26 Zoll (25 - 66 cm)
• Schwenkbar und durch gelenkige Lagerung in alle Richtungen bewegbar,
selbst um Ecken und Schränke.
• Flach an die Wand klappbare Ausführung spart Platz
• Innenliegende Kabelführung verhindert Kabelgewirr
AUSGEGEBEN: 02-05-09 BLATT NR.: 202-9338-1
Maximale Tragfähigkeit: 25 lb (11.34 kg)
©
UL
USC
I
D
:
0
0
0
0
0
1
8
7
6
2
Dieses Handbuch passt für folgende Modelle
7
Inhaltsverzeichnis
Sprachen:
Andere PEERLESS Mounts Rack & Stand Handbücher
PEERLESS Mounts
PEERLESS Mounts PLAV70-UNLP-GB Leitfaden
PEERLESS Mounts
PEERLESS Mounts FPECMC-01 Leitfaden
PEERLESS Mounts
PEERLESS Mounts LCT-A1B6C Leitfaden
PEERLESS Mounts
PEERLESS Mounts PLA 50-UNL Leitfaden
PEERLESS Mounts
PEERLESS Mounts Smartmount D-FPF-220 Leitfaden
PEERLESS Mounts
PEERLESS Mounts Vector Pro II PJF2-UNV Series Leitfaden
PEERLESS Mounts
PEERLESS Mounts SUT660P Leitfaden
PEERLESS Mounts
PEERLESS Mounts Smartmount D-FPF-220 Leitfaden
PEERLESS Mounts
PEERLESS Mounts PRG UNV Leitfaden
PEERLESS Mounts
PEERLESS Mounts PLAV 70-UNL Leitfaden
PEERLESS Mounts
PEERLESS Mounts DS-VL-H060 Leitfaden
PEERLESS Mounts
PEERLESS Mounts SmartMount SA740P Leitfaden
PEERLESS Mounts
PEERLESS Mounts LCT-A1B3C Leitfaden
PEERLESS Mounts
PEERLESS Mounts LCT-A1B3H Leitfaden
PEERLESS Mounts
PEERLESS Mounts Paramount PF660 Leitfaden
PEERLESS Mounts
PEERLESS Mounts LCT-A1B4C Leitfaden
PEERLESS Mounts
PEERLESS Mounts DS-VL-H072 Leitfaden
PEERLESS Mounts
PEERLESS Mounts FPEWM Leitfaden
PEERLESS Mounts
PEERLESS Mounts SmartMount ST670 Leitfaden
PEERLESS Mounts
PEERLESS Mounts SmartMount ST632P Leitfaden
Beliebte Rack & Stand Handbücher anderer Marken
Salamander
Salamander Acadia AC/W/L400/WH Bedienungsanleitung
Fohhn
Fohhn VAT-09 Benutzerhandbuch
ricoo
ricoo FS0522 Bedienungsanleitung
AMSOIL
AMSOIL BMK-22 Kurzanleitung
Kargo Master
Kargo Master 48220 Bedienungsanleitung
Milestone AV Technologies
Milestone AV Technologies SIMPLICITY SLF2 Bedienungsanleitung
