Preface

This manual has been written to help you Install and Operate your Pertech® 6100 Series Scanner. Feel

free to contact us if you need further assistance after reading this manual. Please see the Troubleshooting

Scanner Problems section of this manual and determine the complete part number of your scanner prior to

calling. Pertech provides technical support Monday through Friday from 8:00 AM to 5:00 PM MST at 307-

856-4821.

Every effort has been made to insure the information in this manual is complete and accurate. Feel free to

Where to Get Additional information

The following publications contain more information about the 6100 series scanner. Contact your Pertech

sales representative to obtain additional copies of this Manual or any of the publications listed below.

Title Part Number

6100 Scanner: Setup Guide 220349

6100 Scanner: Users Guide 220350

6100 Scanner: Service Guide 220351

6100 Scanner: Pertech API Programming Manual 220346

6100 Scanner: Command Manual 220347

6100 Parts Information Manual

Ordering Supplies

The following section lists the paper and supplies available for order. In addition to paper and ribbons,

Parts, service and repair may be obtained by calling 1-800-800-6614.

Description Part Number

Sun Stamp 108762-001

Imaged Stamp 108762-002

6100 Scanner Certied USB Cable 6’ 106356-011

6100 Scanner Certied USB Cable 10’’ 106356-014

6100 Scanner Contact Image Sensor Wipe 108784

Unique Item Examples

Orientation Vertical or Horizontal

Stand

Adjustable Deck Guide

Deck Options

Case Color

Firmware

Logos

Cables

Available Models:

613211-001

}

Unique Feature Identier

Software Compatibility Identier

5= Customer Special 0= None

Model Series 61=6100 Family

Contact Image Sensor - Color - 2=2 Color, 3= B/W

DPI Capability - 2=200, 4=400

MICR - 0=No, 1= Yes

Stamp - 1= Yes, 2=No

Models & Options

www.pertechresources.com

Pertech Resources Inc. July 2010 220350A 2

Unpacking the Scanner

Save all packing materials in case you need to repack the scanner.

To report a scanner that was damaged during shipping, see “Contact Information” on the last page of this

Guide.

To repack the scanner, consult the below illustration and use the original packing materials.

Choosing a Location

Place the scanner on a level surface on or near the host computer. Leave space to open the cover, and to

insert a form.

The maximum distance from the scanner to the host and the power supply is: 6 feet (USB interface). The

scanner should be placed in a location that minimizes Electro-Magnetic Interference (EMI), a minimum of 1

foot away from monitors.

Pertech Resources Inc. July 2010 220350A 3

About the 6100 Scanner

The 6100 scanner is a manual single sheet feed imaging solution that has duplex imaging, (both front and

back of form). The scanner is capable of rear exit single pass stacking of at least 10 checks, and images

standard 256 bit gray scale @ 200DPI imaging. Image compression is CCITT G4 (black/white) or JPEG

(grayscale). The 6100 Series Scanner also has an optional MICR reader and form defacing stamp. USB

2.0 interface comes as the standard interface.

The MICR reader is in-line with the image scanner with on-board rmware decoding of E13B MICR char-

acters. Comes Standard with 32MB of DRAM memory upgradeable to a maximum of 64MB and super fast

document processing speed of 10 inches per second.

9. Mechanism Feed Sensor

2. Contact Image Sensor

4. Entrance to Rear

Exit Tray

3. MICR Read Head

8. Form-in Sensor

6. Defacing Stamp

7. ID Card Sensors

10. LED Indicator

5. Stamp Release

Actuator

1. Pressure Rollers

11. Entrance Tray

12. ID Card Diverter

1. Rear Deck

2. ID Card Exit Path

3. USB Interface

4. Power Connector

5. Power Switch

13. Mid-Field Sensor

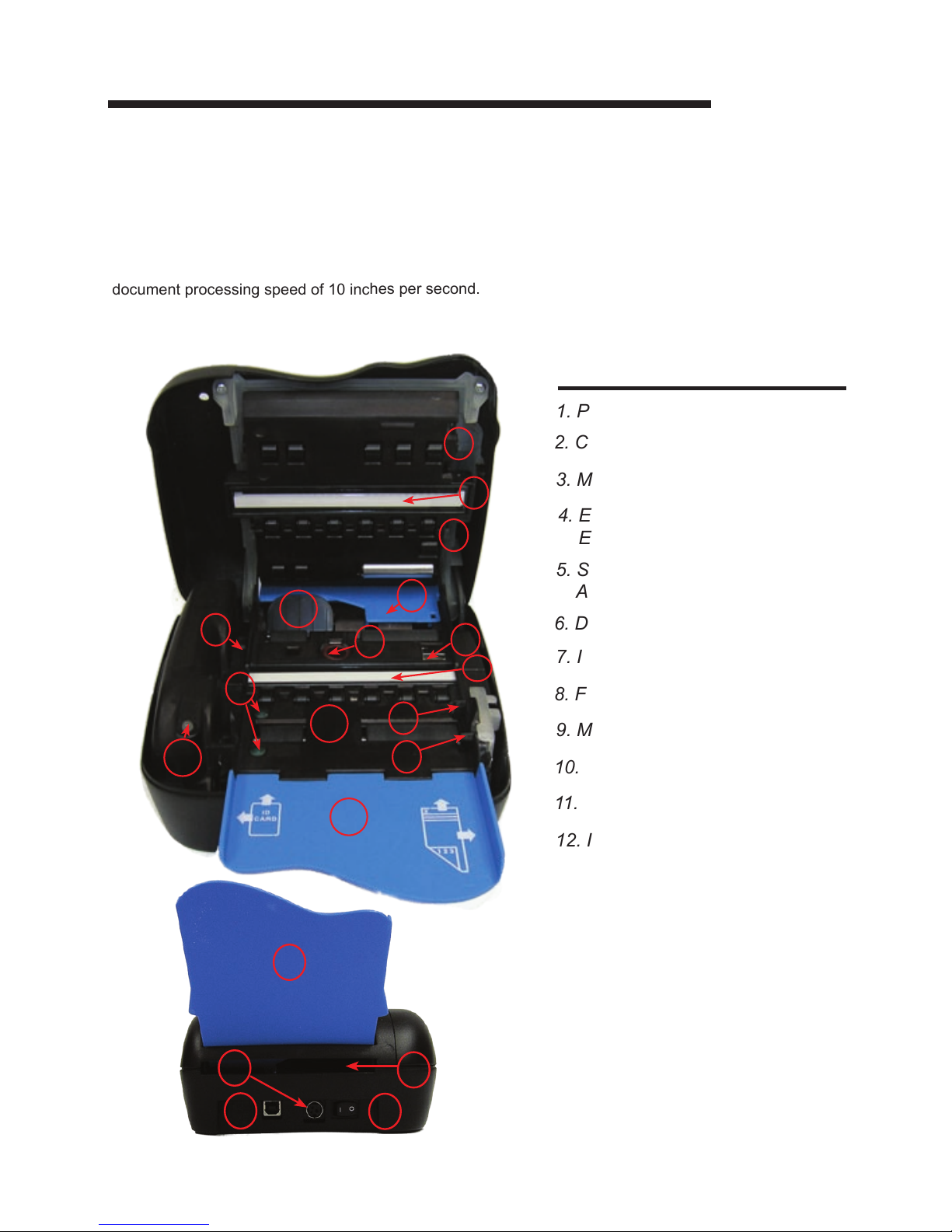

Features Identication

Pertech Resources Inc. July 2010 220350A 4

Connecting the Cables

Caution: Be sure the power switch is turned off before

connecting cables.

1. Make sure the unit is on a level surface.

2. Make sure the Scanner is powered off.

3. Connect the Power Supply to the Scanner.

3. Connect the Power Supply to the Power Source.

4. Connect The USB cable to the back or the scanner.

5. Load drivers on the PC (See Page 5 of this manual).

6. Connect the USB Cable to the PC and turn the scanner on.

USB Interface

Power Connection

Power Switch

Cables and Connections

USB 2.0 Interface

Standard Pinout

Pin 1 EOT/VCC

Pin 2 D-

Pin 3 D+

Pin 4 GND

Pin 5 GND

Pin 6 GND

The USB cable may be attached or detached when the

system is on. When Using the USB interface the Win-

dows® Operating System will automatically install the

USB port driver. Pertech has available scanner drivers

at www.pertechresources.com.

Warning: When Hot Swapping USB cable

make sure that cable is installed into the

correct connectors or damage to the scanner

could result.

USB Cable Part

Number 106356011

Printer View

Pertech Resources Inc. July 2010 220350A 5

Power Supply

To avoid damage to the scanner connect the Power Supply last.

1. Make sure the scanner power switch is off.

2. Plug the Power Supply Cable into the scanner. The power supply cable con-

nector has a locking mechanism to ensure that the cable stays fastened to the

scanner. When removing the cable release the locking mechanism by pulling the

mechanism away from the scanner.

3. Plug the Power Supply Cable into a grounded outlet.

4. Reference “Connecting the Cables” on the previous page to complete the pro-

cess.

Connector Cable

Locking Mecha-

nism

Hardware and Software Requirements

USB 2.0

Windows XP, 2000, or Vista Operating System. Pentium 4, 256MB RAM or higher recomended.

Windows drivers / SDK /Application Program Interface are available off the Pertech Web site.

www.pertechresources.com

Pertech can supply an API for developers who wish to interface the scanner directly into their application software.

Contact your Pertech Representative for the necessary les and documentation.

Installing the Driver

Windows XP, 2000, Vista Drivers

1.Download the 6100 USB driver from the Pertech Website. Unzip the le to a directory of your choosing . Make a

note of this location.

2.Next, plug in the 6100 into the host computer’s USB 2.0 bus and power up the unit.

When the 6100 Check Scanner is plugged into a USB port for the rst time, Windows XP

will automatically start the “New Hardware Wizard”. Follow the instructions of the hardware

wizard, Browse to the directory where the unzipped 6100 driver les are located.

3.Windows will give a message that the driver is not signed, click “Continue Anyway” to install the driver.

Note that this also installs a WIA class device for the 6100, but the check scanner cannot be used in this manner.

Running the scanner requires writing an application that accesses it

through the supplied PertechAPI.

Printer

Connectiion

Power Supply Connector

Pertech Resources Inc. July 2010 220350A 6

Operating the Scanner

Typical Form Handling

The 6100 teller scanner handles forms between 2 and 3.67

inches wide and 3.2 to 8.75 inches in length. The scanner will handle thicknesses between #16 to #32

(3.0 to 7.5 mills; .032" for ID Cards), with rear exit single pass stacking of a of 10 checks. The unit has a

in-line MICR reader with on board software for decoding E13B MICR characters

To load a form into the scanner insert the form justied to the right, face down with the

MICR line to the right side of the scanner.

MICR Line

Check face down with

MICR Line to Right side

Typical Form Scanning Process

The application software calls for the user to insert a form

into the scanner. The Green Power On LED begins blinking

to indicate that the scanner is waiting for a form.

There are two sensors (#8,#9) identied in the Features Iden-

tication on page 3. The rst sensor tells the scanner that a

form is present, activates feed the motor and draws the form

into the scanner.

The second sensor, if activated, passes the form through to

the imaging heads and MICR reader and ejects the form out

the back of the scanner onto the Exit Tray.

If the second sensor does not activate, as in the case of a

inserted form being skewed, the user will need to realign the

form with the right side of the scanner Entrance Tray before

feeding the form.

Andere Handbücher für 6100 Series

Inhaltsverzeichnis

Andere Pertech Scanner Handbücher

Pertech

Pertech 6100 Series Bedienungsanleitung

Beliebte Scanner Handbücher anderer Marken

Plustek

Plustek Scanner Bedienungsanleitung

Z/I Imaging

Z/I Imaging PhotoScan 2001 Bedienungsanleitung

Renkforce

Renkforce DS100-5M Bedienungsanleitung

Image Access

Image Access WideTEK A2 Bedienungsanleitung

Canon

Canon imageFORMULA CR-120N Bedienungsanleitung

Fujitsu

Fujitsu FI-4860C2 Bedienungsanleitung

GeoSlam

GeoSlam ZEB Horizon Montageanleitung

Kodak

Kodak i5800 Scanner Bedienungsanleitung

Kodak

Kodak i7300 Bedienungsanleitung

Revopoint

Revopoint POP Bedienungsanleitung

Fujitsu

Fujitsu fi-4860C Bedienungsanleitung

Eddyfi Technologies

Eddyfi Technologies Floormap X Bedienungsanleitung

Faselase

Faselase F6 Bedienungsanleitung

Fujitsu

Fujitsu CardMinder Bedienungsanleitung

Uniden

Uniden BC340CRS Bedienungsanleitung

Infinite Peripherals

Infinite Peripherals INFINEA TAB M Bedienungsanleitung

Mustek

Mustek PageExpress 4800 Pro Bedienungsanleitung

Optex

Optex 750830 Bedienungsanleitung
