20" & 21.5"TV Monitor Chassis: Meridian 1

Service

Description Page Description Page

Page

SAFETY NOTICE

ANY PERSON ATTEMPTING TO SERVICE THIS CHASSIS MUST FAMILIARIZE HIMSELF WITH THE

CHASSIS AND BE AWARE OF THE NECESSARY SAFETY PRECAUTIONS TO BE USED WHEN

SERVICING ELECTRONIC EQUIPMENT CONTAINING HIGH VOLTAGES.

CAUTION: USE A SEPARATE ISOLATION TRANSFOMER FOR THIS UNIT WHEN SERVICING

Table of Contents............................................………….1

Revision List................................................…………….2

Important Safety Notice………….................................3

1. General Specifications…............................................5

2. TV Monitor Description…………...............................6

3. Operation Instructions….............................................7

3.1 Front and Side Controls………..……………….……7

3.2 Remote Control ……………….………………….……8

3.3 Connection Overview………...................................10

4. Input/output Specification..........................………….13

4.1 Input Signal Connector...........................…………..13

4.2 Factory Preset Display Modes................................14

4.3 Pixel Defect Policy……………………………………15

4.4 Failure Mode of Panel …………………………….…17

5. Block Diagram……………………………................18

5.1 Software Flow Chart............................………….....18

5.2 Electrical Block Diagram.....................……….........20

6. Schematic Diagram............................................... 22

6.1 Scaler Board……………………….…………..…………22

6.2 Power Board..........................................................…...36

6.3 IR Board…….………………………..…………………38

6.4 Key Board…….………………………..…………………39

7. PCB Layout………………………………………………...40

7.1 Scaler Board……………………………………………..40

7.2 Power Board……………………………………………42

7.3 IR Board………...………………………………………44

7.4 Key Board………...………………………………………44

8. Wiring Diagram……………………………………….…..45

9. Scaler Board Overview………………………………....46

10. Mechanical Instructions………………………………....47

11. Trouble Shooting…….…….……………………………50

12. ISP Instructions...….....................................................53

13. White Balance, Luminance Adjustment……............54

14. Monitor Exploded View….............................................55

15. Recommended & Spare Parts List...……...................56

16. General Product Specification……………….……….60

REFER TO BACK COVER FOR IMPORTANT SAFETY GUIDELINES

KJun, 26, 2009

201T1SB/00

221T1SB/00

Meridian 1

Revision List

Version Release Date Revision History

A00 Jun, 26,2009 Initial release, Draft Version

A01 Jul,09,2009 Add CTV Model 201T1SB/00

Meridian 1

Important Safety Notice

Read and understand all instructions before you use your TV. If damage is caused by failure to follow instructions,

the warranty does not apply.

Safety

yRisk of electric shock or fire!

¾Never expose the TV to rain or water. Never place liquid containers. Such as vases, near the TV. If liquids

are spilt on or into the TV, disconnect the TV from the power outlet immediately. Contact Philips Consumer

Care to have the TV checked before use.

¾Never place the TV, remote control or batteries near naked flames or other heat source, including direct

sunlight. To prevent the spread of fire, keep candles or other flames away from the TV, remote control and

batteries at all time.

¾Never insert objects into the ventilation slots or other openings on the TV.

¾When the TV is swiveled ensure that no strain is exerted on the power cord. Strain on the power cord can

loosen connections and cause arcing.

yRisk of short circuit or fire!

¾Never expose the remote control or batteries to rain, water or excessive heat.

¾Avoid force coming onto power plugs. Loose power plugs can cause arcing or fire.

yRisk of injury or damage to the TV!

¾Two people are required to lift and carry a TV that weights more than 25 kg.

¾When stand mounting the TV, use only the supplied stand. Secure the stand to the TV tightly. Place the TV

on a flat, level surface that can support the combined weight of the TV and stand.

¾When wall mounting the TV, use only a wall mount that can support the weight of the TV. Secure the wall

mount to a wall can support the combined weight of the TV and wall mount. Koninklijke Philips Electronics

N.V. bears on responsibility for improper wall mounting that result in accident, injury or damage.

yRisk of injury to children! Follow these precautions to prevent the TV from toppling over and causing injury to

children:

¾Never place the TV on a surface covered by a cloth or other material that can be pulled away.

¾Ensure that no part of the TV hangs over the edge of the surface.

¾Never place the TV on tall furniture (such as a bookcase) without anchoring both the furniture and TV to the

wall or a suitable support

¾Educate children about the dangers of climbing on furniture to reach the TV.

yRisk of overheating! Never install the TV in a confined space. Always leave a space of at least 4 inches around

the TV for ventilation. Ensure curtains or other objects never cover the ventilation slots on the TV.

yRisk of damage to the TV! Before you connect the TV to the power outlet, ensure that the power voltage

matches the value printed on the back of the TV. Never connect the TV to the power outlet if the voltage is

different.

yRisk of injury, fire or power cord damage! Never place the TV or any objects on the power cord.

Meridian 1

yTo easily disconnect the TV power cord from the power outlet, ensure that you have full access to the power

cord at all times.

yWhen you disconnect the power cord, always pull the plug, never the cable.

yDisconnect the TV from the power outlet and aerial before lightning storms. During lightning storms, never touch

any part of the TV, power cord or aerial cable.

yRisk of hearing damage! Avoid using earphones or headphones at high volumes or for prolonged periods of

time.

yIf the TV is transported in temperatures below 5℃, unpack the TV and wait until the TV temperature matches

room temperature before connecting the TV to the power outlet.

Screen Care

yAvoid stationary images as much as possible. Stationary images are images that remain on-screen for

extended periods of time. Examples include: on-screen menus, black bars and time displays. If you must use

stationary images, reduce screen contrast and brightness to avoid screen damage.

yUnplug the TV before cleaning.

yClean the TV and frame with a soft, damp cloth. Never use substances such as alcohol, chemicals or household

cleaners on the TV.

yRisk of damage to the TV screen! Never touch, push, rub or strike the screen with any object.

yTo avoid deformations and color fading, wipe off water drops as soon as possible.

Recycling

Your product is designed and manufactured with high quality materials and components, which can be recycled

and reused. When you see the crossed-out wheeled bin symbol attached to a product, it means the product is

covered by the European Directive 2002/96/EC:

Never dispose of your product with other household waste. Please inform yourself about the local rules on the

separate collection of electrical and electronic products. The correct disposal of your old product helps prevent

potentially negative consequences for the environment and human health.

Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be disposed of with

normal household waste.

Please inform yourself about the local rules on the separate collection of batteries. The correct disposal of batteries

helps prevent potentially negative consequences for the environment and human health.

The most updated user manual on line

The contents of the user manual are subject to change. Please refer to www.philips.com/supp ort for the most

updated user manual info reference.

Meridian 1

1. General Specifications

Model 201T1 221T1

Picture /

Display

Aspect Ratio 16:9

Resolution 1600 x 900 @ 60Hz 1920 x 1080 @ 60Hz

Sound Output (RMS Watts) 3.0W x 2

Sound Mode Mono, Stereo, SAP (Secondary Audio Program)

Picture Formats Super zoom, 4:3, Movie expand 14:9, Movie expand 16:9, 16:9 subtitle,

Widescreen, Auto

Smart Mode Personal, Vivid, Standard, Movie, Game, Power saver

Rear Connectors YPbPr: Component video input + Audio L/R (support 480i/p, 576i/p,720p,

1080i/p)

HDMI (Ver. 1.3a HDMI, support video: 480i/p, 576i/p, 720p, 1080i/p)

PC IN: VGA, PC Audio IN

RS232 connector

SCART1 input / output :CVBS in/out, RGB in, S-Video in, Audio L/R in/out

SPDIF (digital audio) output: carrying stereo or multi-channel output.

Side Connectors CI slot input : PCMCIA card ( 5V)

Composite video input + Audio L/R

USB 4-pin Type-A connector for SW update

Power Consumption < 50 W < 35W (TBD)

Off mode power < 0.5W

Mains Power 100~240V, 50Hz

Ambient temperature 5 to 40 degrees Celsius

Tuner / Reception /

Transmission

Antenna input: 75 ohm coaxial (IEC75)

DVT: DVB Terrestrial, DVB- T MPEG4

TV system: DVB COFDM 2K / 8K; PAL I, B/G, D/K; SECAM B/G, D/K, L/L’

Video playback: NTSC, SECAM, PAL

Tuner Bands: Hyperband, S-channel, UHF, VHF

Note: Product information is subject to change without notice. For detailed product information, go to

www.philips.com/support.

Meridian 1

2. TV Monitor Description

The TV monitor will contain a scaler board, a power board, an IR board and a key board. The scaler board houses

the flat panel control logic, brightness control logic and DDC.

The power board will provide AC to DC Inverter voltage to drive the backlight of panel and the scaler board chips

each voltage.

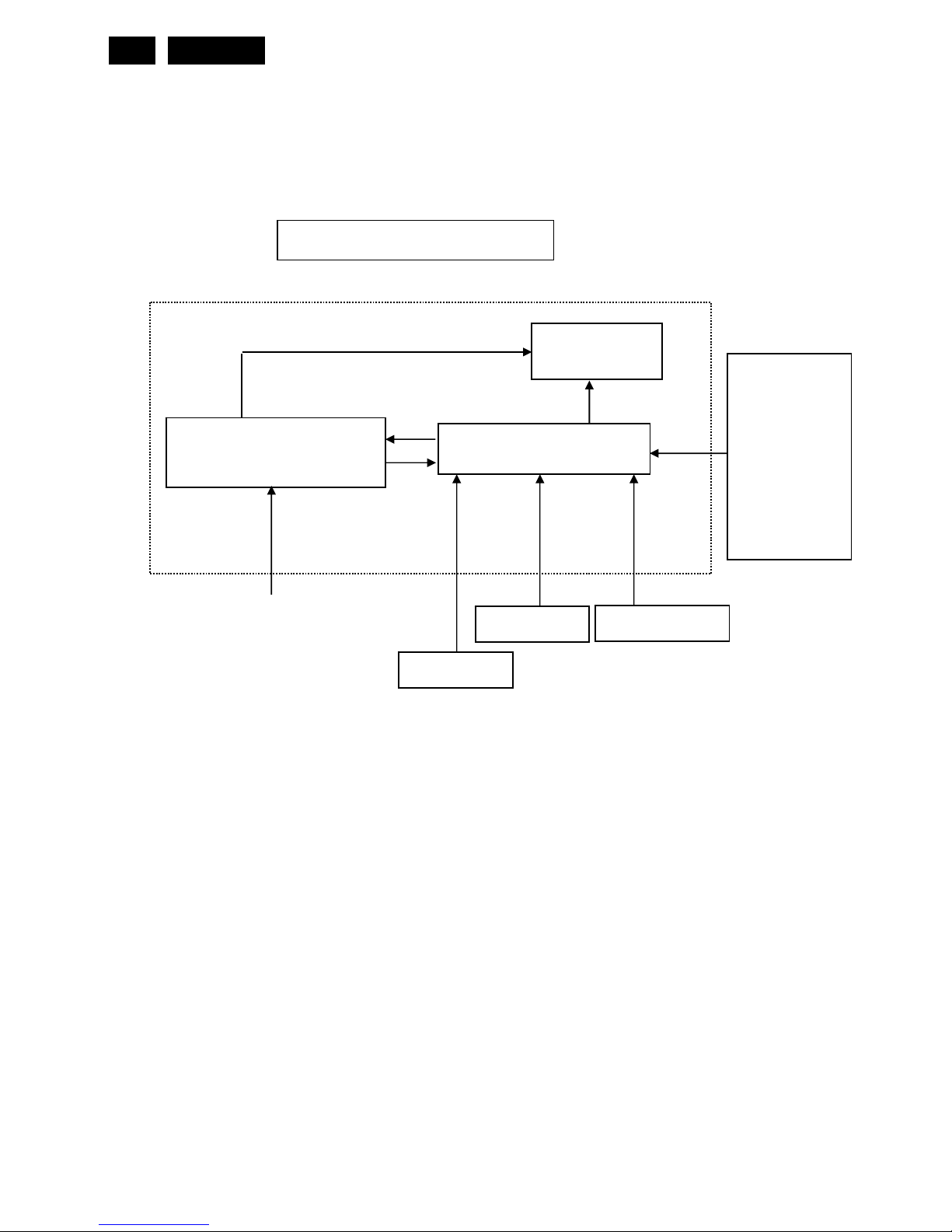

TV Monitor Block Diagram

AC-IN

100V-240V

Power Board

(Include: Adapter, Inverter)

Flat Panel and

CCFL backlight

Scaler Board

CVI

Tuner

HDMI

Audio

S-Video

SCART

VGA/ YPbPr

CCFL Drive.

Audio / Video Signal, DDC

Key Board HOST Computer

IR Board

Meridian 1

3. Operating Instructions

3.1 Front and side controls

Side Controls and indicators

1. POWER: Switches the TV on or off. The TV is not powered off completely unless it is physically unplugged.

2. SOURCE: Selects connected devices.

3. MENU/OK: Displays the on-screen menu and confirms a selection in menus.

4. CH +/-: Switches to the next or previous channel.

5. VOL+/-: Increases or decreases volume.

6. Power indicator: Red LED: In standby mode or off. Green LED: Power on.

Meridian 1

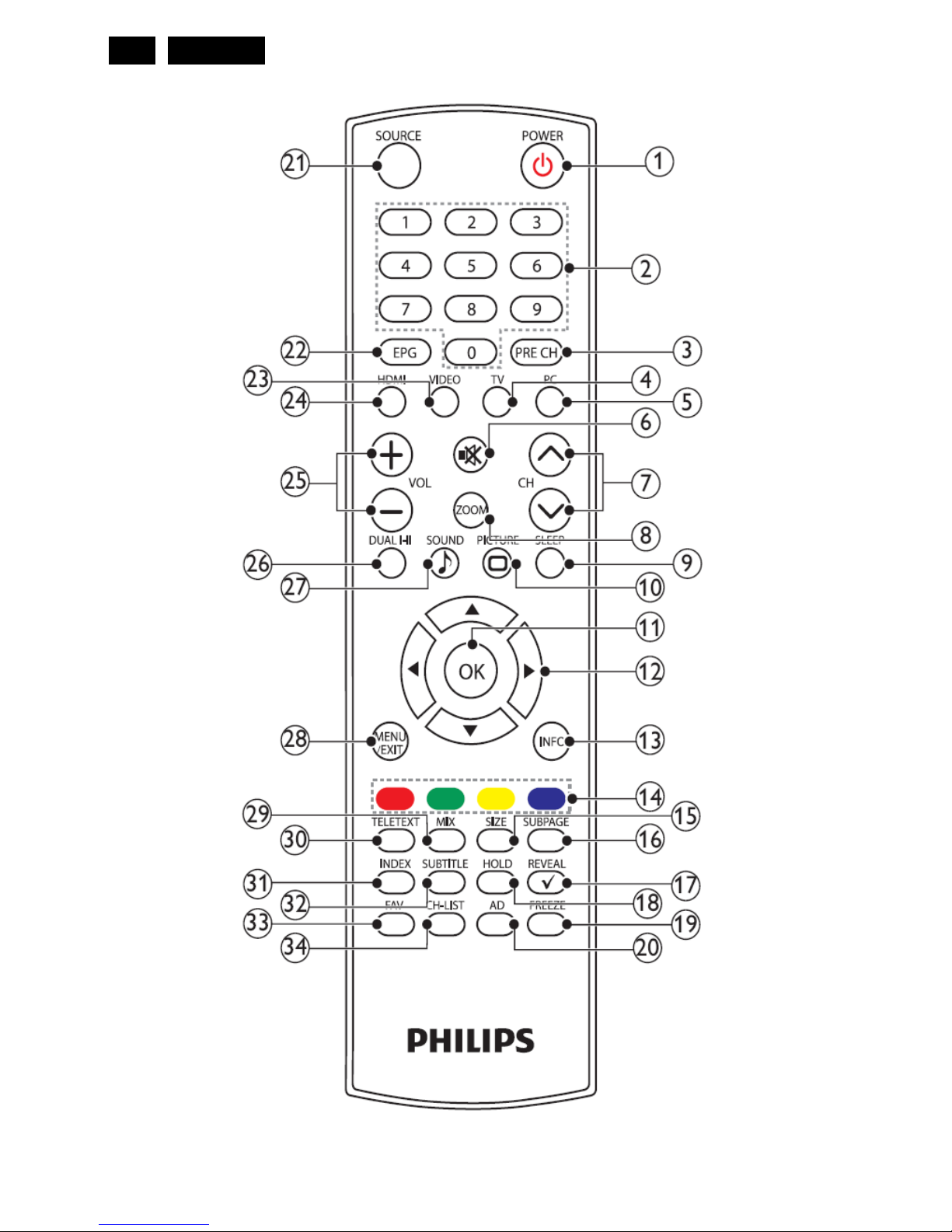

3.2 Remote Control

Meridian 1

1. (Standby-On): Switch the TV to standby if the TV is on. Switch the TV on if the TV is in standby.

2. 0-9 (Numeric buttons): Select a channel or setting.

3. PRE CH: Return to the previously viewed channel.

4. TV. Press to choose TV mode.

5. PC. Press to choose PC mode.

6. (Mute): Switch the sound on or off.

7. CH Λ/ V (Channel Λ/ V): Switch to the next or previous channel.

8. ZOOM: Toggle among screen formats.

9. SLEEP: Toggle to select the preset time to switch the TV to standby mode automatically.

10. PICTURE: Toggle to select the Smart Picture setting.

11.OK: Confirm an entry or selection and display the channel grid, when watching TV.

12.▲▼◄►(Navigation buttons): Navigate through the menus.

13.INFO: Display or hide the information screen about the selected channel.

14.Color buttons: Select tasks or options.

15.SIZE: Toggle to change the font size in Teletext mode. (Full screen / Top half / Bottom half)

16. SUBPAGE: Display the sub page when the Teletext information has more than one page.

17.REVEAL: Reveal hidden information of Teletext.

18. HOLD: Toggle to stop the scrolling of pages to stop the text decoder receiving data.

19.FREEZE: Press to freeze the TV picture.

20.AD (Audio Description) (For RF Digital TV only): UK only: Enables audio commentary for the visually

handicapped.

21.SOURCE: Select connected devices.

22.EPG; Switch the Electronic Program Guide On or Off.

23.VIDEO: Press to switch to VIDEO YPbPr /Composite /SCART mode.

24. HDMI: Press to switch to HDMI mode.

25.VOL +/-: Increase or decrease the volume.

26.DUAL I-II: Toggle to select mono / stereo / dual I/dual II from TV RF input.

27. SOUND: Toggle to select the Smartsound Mode.

28.MENU/EXIT: Press to open or close the on-screen menu.

29.MIX: Press to overlay the Teletext page on the TV picture.

30.TELETEXT: Press to open or close the Teletext.

31.INDEX: Press to display the index page of Teletext.

32.SUBTITLE: In TV mode: Press to turn the subtitle on or off. In Text mode: Press to open the subtitle page.

33.FAV: Press to display the Favorite List.

34.CH-LIST: Press to display the Channel List.

Meridian 1

3.3 Connection overview

Rear Connectors

1. PC IN: Audio and video input from a computer. (see Fig-1)

2. EXT 2 (Y PbPr and AUDIO L/R): Analogue audio and video input from analogue or digital devices such as

DVD players or game consoles. (see Fig-2)

Fig-1 Fig-2

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Philips Fernseher Handbücher

Philips

Philips 20RF50S Bedienungsanleitung

Philips

Philips 21PT136B Bedienungsanleitung

Philips

Philips 21PT4416 Bedienungsanleitung

Philips

Philips 43PUS7303/12 Bedienungsanleitung

Philips

Philips 55PUS7556/12 Bedienungsanleitung

Philips

Philips Magnavox MX2790B Bedienungsanleitung

Philips

Philips 21PT1323/71R Bedienungsanleitung

Philips

Philips Cineos 52PFL9432D Bedienungsanleitung

Philips

Philips Matchline 46PP910A Bedienungsanleitung

Philips

Philips 8808 Series Bedienungsanleitung

Philips

Philips 32FD9944-69S Bedienungsanleitung

Philips

Philips 14PT2116/69 Bedienungsanleitung

Philips

Philips 19PFL3205H/12 Bedienungsanleitung

Philips

Philips 7181 Series Bedienungsanleitung

Philips

Philips 8217 Series Bedienungsanleitung

Philips

Philips 21PT166B Bedienungsanleitung

Philips

Philips 4000 series Bedienungsanleitung

Philips

Philips 30 IN WIDESCREEN REAL FLAT HDTV 30PW850H Handbuch

Philips

Philips 29PT4631/55R Bedienungsanleitung

Philips

Philips 19PFL3403D/10 Bedienungsanleitung

Philips

Philips 48PUS7600/12 Bedienungsanleitung

Philips

Philips 55PFL5402/F7 Bedienungsanleitung

Philips

Philips 29PT8457 Bedienungsanleitung

Philips

Philips 47PFL7404H/12 Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Toshiba

Toshiba 27A10 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Sony

Sony XBR-100Z9D Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Sylvania

Sylvania 6427FB Bedienungsanleitung

Sanyo

Sanyo CE19LD90N-B Bedienungsanleitung

North State

North State TV2GO Bedienungsanleitung

RCA

RCA RTU7877 Bedienungsanleitung

Sharp

Sharp 21K-FG1RU Bedienungsanleitung

Sony

Sony Esprit TAV-L1 Bedienungsanleitung

Grundig

Grundig 43 VLE 4820 Bedienungsanleitung

Samsung

Samsung LN26C350D1D Bedienungsanleitung
