Thank you for buying this Pioneer product. Before using the drive, read all warnings, cautions, notices and other

important safety information contained in these Operating Instructions. Please read the entire manual before using

this drive as it contains important information, such as regulatory data, software license agreement(s), product

registration details, service instructions and guidelines.

WARNING

This equipment is not waterproof. To prevent a fire

or shock hazard, do not place any container filled

with liquid near this equipment (such as a vase or

flower pot) or expose it to dripping, splashing, rain

or moisture.

D3-4-2-1-3_B_En

WARNING: Handling the cord on this product or

cords associated with accessories sold with the

product may expose you to chemicals listed on

proposition 65 known to the State of California and

other governmental entities to cause cancer and

birth defect or other reproductive harm.

D36-P4_A_En

Wash hands after handling

Precautions Regarding Use

•

DANGER – VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN. AVOID DIRECT EXPOSURE TO BEAM.

Pioneer may not be held liable for the loss of any data or any other direct or indirect damage suffered as the

result of the use or breakdown of this product. It is strongly recommended to regularly back up all critical data.

Care must be taken not to infringe copyright restrictions under the laws of each country. If this device is used

to record copyrighted materials, approval must be obtained from the respective copyright holders. The

recording of copyrighted materials without the express approval of the respective copyright holders may result

in legal penalties. Pioneer disclaims any and all responsibility for any legal damages resulting from the use of

this device in the unauthorized copying of copyrighted materials.

All names of corporations, products, and systems listed herein, even when the (™) or (®) symbols are omitted,

are considered the registered trademarks of the respective owners.

The exclamation point within an equilateral

triangle is intended to alert the user to the

presence of important operating and

maintenance (servicing) instructions in the

literature accompanying the appliance.

The lightning flash with arrowhead symbol,

within an equilateral triangle, is intended to

alert the user to the presence of uninsulated

“dangerous voltage” within the product’s

enclosure that may be of sufficient

magnitude to constitute a risk of electric

shock to persons.

CAUTION:

TO PREVENT THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER (OR

BACK). NO USER-SERVICEABLE PARTS

INSIDE. REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

IMPORTANT

D3-4-2-1-1_A1_En

BDR-XD05_CU_En.fm 2 ページ２０１３年４月９日　火曜日　午後１２時１４分

CAUTION

This product is a class 1 laser product, but this

product contains a laser diode higher than Class 1.

To ensure continued safety, do not remove any covers

or attempt to gain access to the inside of the product.

Refer all servicing to qualified personnel.

The following caution label appears on your unit.

Location: bottom of the unit

CLASS 1

LASER PRODUCT

D3-4-2-1-8*_C_En

CAUTION : USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE

SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

CAUTION : THE USE OF OPTICAL INSTRUMENTS WITH THIS PRODUCT WILL INCREASE EYE HAZARD.

D6-8-2-1_En

For PLUGGABLE EQUIPMENT, the socket-outlet shall be installed near the equipment and shall be easily

accessible.

BDR-XD05

IMPORTANT NOTICE

RECORD THE MODEL NUMBER AND SERIAL NUMBERS OF THIS EQUIPMENT BELOW.

THE NUMBERS ARE

ON THE BOTTOM.

MODEL NO.

SERIAL NO.

KEEP THESE NUMBERS FOR FUTURE USE.

D1-4-2-6-2*_A1_En

Operating Environment

Operating environment temperature and humidity:

+5 °C to +35 °C (+41 °F to +95 °F); less than 85 %RH (cooling vents not blocked)

Do not install this unit in a poorly ventilated area, or in locations exposed to high humidity or direct sunlight (or

strong artificial light)

D3-4-2-1-7c*_A1_En

ここを開くとクラス 3B の可視レーザ放射及び不可視レーザ

放射が出ます。ビームの目又は皮膚への被ばくは危険！

見たり触れたりしないこと。

BDR-XD05_CU_En.fm 3 ページ２０１３年４月９日　火曜日　午後１２時１４分

Machine Noise Information Regulation 3.

GPSGV: The highest sound-pressure level is 70 dB(A) or less in accordance EN ISO 7779.

This product was classified under the Safety of laser products, IEC 60825-1:2007

[Canadian model only]

is a trademark of Blu-ray Disc Association.

is a trademark of DVD Format/Logo Licensing Corporation.

This Class B digital apparatus complies with Canadian ICES-003.

D8-10-1-3_A1_En

Information to User

Alterations or modifications carried out without appropriate authorization may invalidate the user’s right to operate

the equipment. D8-10-2_A1_En

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15

of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio communications. However,

there is no guarantee that interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by turning the equipment off and on,

the user is encouraged to try to correct the interference by one or more of the following measures:

— Reorient or relocate the receiving antenna.

— Increase the separation between the equipment and receiver.

— Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

— Consult the dealer or an experienced radio/TV technician for help.

D8-10-1-2_A1_En

CAUTION

This product satisfies FCC regulations when shielded cables (with Ferrite-cores attached) and connectors are used to

connect the unit to other equipment. To prevent electromagnetic interference with electric appliances such as radios

and televisions, use shielded cables (with Ferrite-cores attached) and connectors for connections. D8-10-3b_A1_En

FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This

device may not cause harmful interference, and (2) this device must accept any interference received, including

interference that may cause undesired operation.

Product Name:

BD/DVD/CD WRITER

Model Number:

BDR-XD05

Responsible Party Name: PIONEER ELECTRONICS (USA) INC.

Address: P.O. BOX 1760, Long Beach, California 90801-1760, U.S.A.

Phone: 1-800-872-4159

URL: http://www.pioneerelectronics.com/PUSA/

D8-10-4*_C1_En

BDR-XD05_CU_En.fm 4 ページ２０１３年４月９日　火曜日　午後１２時１４分

English

Safety instructions

To ensure yourpersonal safety and to maximize the full operating potential of yourunit, read and follow

these safety instructions.

Read & Retain Instructions – Read all operating and userinformation provided with this drive.

Cleaning – Use a dampcloth to clean the exteriorhousing. Avoid using any fluids including liquid,

aerosol oralcohol-based cleaning products.

Water or Moisture – Avoid operating orlocating this drive nearwaterorothersources of fluid.

Accessories – Do not place this product on an unstable cart, stand, ortable. The product may fall and

be seriously damaged.

Ventilation – Slots and openings in the chassis are forcooling and properoperation of the unit. Do NOT

block orcoverthe openings. Do NOT place this unit on a bed, rug, etc. as this can block the openings.

This unit should not be placed in a built-in installation unless properly ventilated.

Operation – Avoid moving, lifting orreorienting this drive while a disc is rotating inside.

Environment – Avoid installing this drive in a location with exposure to large quantities of dust, high

temperatures, high humidity, orsubject to excessive vibrations orshocks.

Power Sources – Operate this drive only from the recommended powersources. If you are unsure of the

powersource, consult an authorized Pioneerrepresentative.

Power-Cord Protection – When unplugging the unit, pull on the plug – not on the cord. Do not handle

the cord orplug with wet hands; doing so could cause an electric short orshock. Do not allow anything

to pinch orrest on the powercord and do not place in a walkway.

Object & Liquid Entry – Neverpush inappropriate objects into the device. Avoid spilling any liquids into

oron the outside of the drive.

Condensation – Moisture can form in the operating section of the product if the drive is taken from cool

surroundings to a room with a warmertemperature. Let the drive stand forone to two hours in the new

location before turning it ON.

Servicing – Opening orremoving the coverexposes you to possible electrical shock orotherdanger.

Contact a Pioneerauthorized service representative forrepairing this drive (referto the enclosed Service

& Support Card).

BDR-XD05_CU_En.fm 5 ページ２０１３年４月９日　火曜日　午後１２時１４分

Damage Requiring Service – Unplug the unit and referservicing to qualified service personnel in the

following situations:

• When the powercord, plug, orchassis is damaged.

• If liquid has been spilled, orobjects have fallen into the video product.

•Iftheproduct has been exposed to rain orwater.

•Iftheproduct does not operate normally when the operating instructions are followed. Adjust only

those controls that are covered by the operating instructions. Improperadjustment of other

controls may result in damage and can require extensive work by a qualified technician to restore

the unit to its normal operation.

• When the product exhibits a distinct change in performance – this indicates a need forservice.

About DualDisc Playback – DualDisc is a two-sided disc with one side containing DVD video/audio/etc.

content and the opposite side containing non-DVD content such as digital audio material. The non-DVD

audio side is not compliant with the CD Audio Specification; therefore, may not play. The DVD side of

DualDisc media plays in this unit. Formore details about the DualDisc specification, please referto the

disc manufactureroryourretailer.

Note

Some discs may not be playable due to different recording formats orthe physical condition of the

disc at the time of recording orplayback.

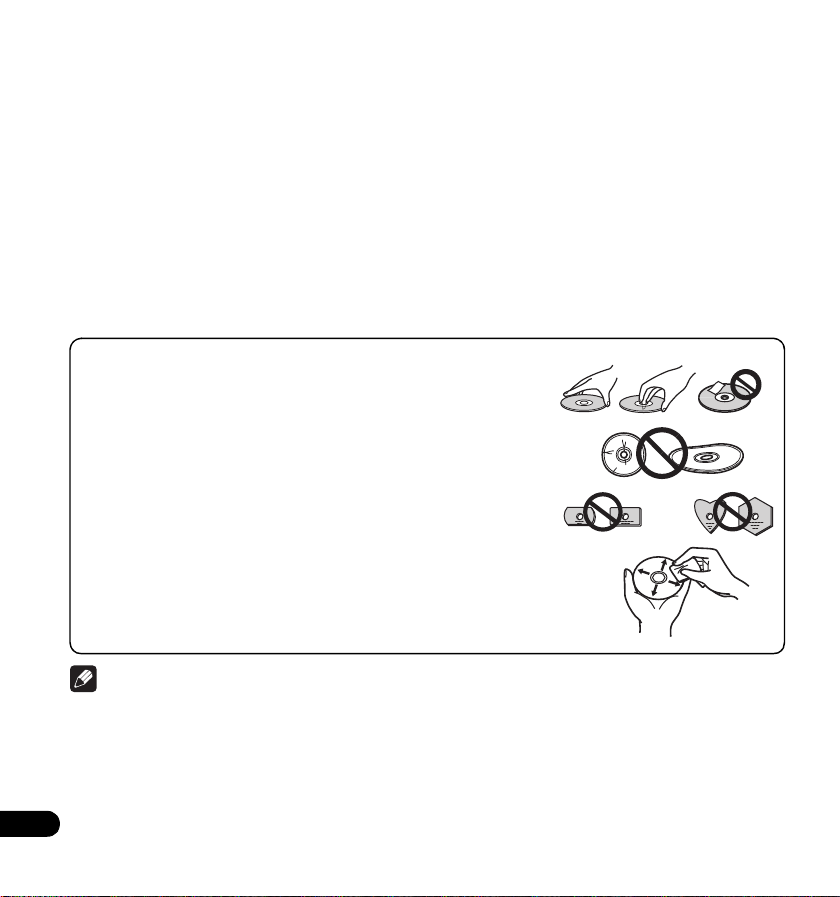

• Avoid touching orscratching the signal surface (shiny side) of the

disc.

• Hold the disc by the edges orby the centerhold and one edge.

•Donotaffixpaperorlabels to the disc.

•Discard warped orcracked discs as they may cause damage to

the drive.

•Avoidspecially shaped discs such as hearts orpolygons.

• Remove dust orlint from the disc with a soft cloth by wiping from

the inside to the outside edge ratherthan in a circularmotion.

•Donotuserecord-cleaning oranti-static agents as the solutions

may cause damage to a disc.

Always be sure to store your discs in proper disc storage cases

when not in use, and always be sure to check for dirt or dust

on discs (especially on the recording side) before use.

BDR-XD05_CU_En.fm 6 ページ２０１３年４月９日　火曜日　午後１２時１４分

English

Features

Write Speed (ZCLV, CAV) Maximum Read Speed (ZCLV, CAV, PCAV)

BD-R

BD-R DL

BD-R TL

BD-R QL

BD-R (LTH)

BD-RE

BD-RE DL

BD-RE TL

DVD-R

DVD-R DL

DVD-RW

DVD+R

DVD+R DL

DVD+RW

DVD-RAM

CD-R

CD-RW

2X, 4X, 6X*(3)

2X, 4X

2X, 4X, 6X*(3)

1X, 2X, 4X, 6X, 8X

2X, 4X, 6X

1X, 2X, 4X, 6X

2.4X, 4X, 6X, 8X

2.4X, 4X, 6X

2.4X, 3.3X*(1), 4X, 6X, 8X

2X, 3X, 5X

4X, 10X, 16X, 24X

4X, 10X, 16X*(2), 24X*(2)

BD-ROM

BD-ROM DL

BD-R

BD-R DL

BD-R TL

BD-R QL

BD-R (LTH)

BD-RE

BD-RE DL

BD-RE TL

DVD-ROM

DVD-ROM DL

DVD-R

DVD-R DL

DVD-RW

DVD+R

DVD+R DL

DVD+RW

DVD-RAM

CD-ROM

CD-R

CD-RW

6X

4X

6X

4X

8X

5X

24X

*(1) High Speed Media Only

*(2) US, US+CD-RW Only

*(3) When used with a USB 2.0 port, the drive will be unable to write at 6X speed without the installation of the

supplied USB 2.0 high-speed driver.

Buffer Memory Size

Interface 4 MBytes (Read/Write)

USB 3.0 & 2.0

Disc Format

• BD-ROM Single layer/dual layer

•BD-R

•BD-RE

• DVD-ROM Single layer/dual layer

• DVD-Video Single layer/dual layer

•DVD-R

•DVD-RW

•DVD+R

•DVD+RW

•DVD-RAM(Non-cartridge), ver2.0&2.1&2.2

•CD-ROMMode1

• CD-ROM XA Mode 2 (form 1, form 2)

• KODAK Photo CD (Single and Multi-session)

•CD-Extra (CD PLUS)

•CDtext

•CD-R

•CD-RW(MS/HS/US/US+)

media is supported only reading.

Note

•Aspecific application software is necessary to write the formats listed above.

•Supported media required forspecific BD, DVD and CD writing speeds.

•Average writing speed may decrease when multiple discs are written during the same session.

BDR-XD05_CU_En.fm 7 ページ２０１３年４月９日　火曜日　午後１２時１４分

Interface

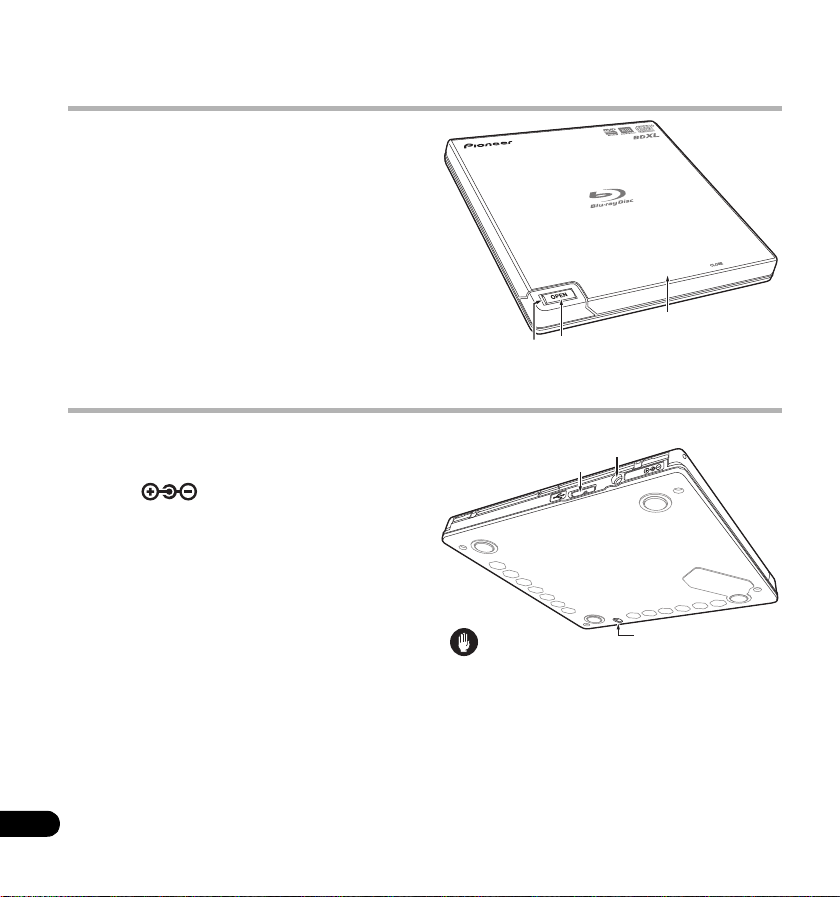

Front/Top view

1 Power/Busy Indicator

Operation status is indicated as follows:

During PowerON: Lights dimly

During reading/writing: Lights

During disc coveropen: Lights

2 OPEN Button

Press to open the disc cover.

3 Disc Cover

Press the OPEN button to open the disc cover

then place a BD, DVD orCD disc onto the tray

with the label facing up. Close the disc cover

gently.

Do not manually force open the disc cover.

Use the Forced Open Leverto open the disc coverduring POWER OFF.

Rear/Bottom view

4 USB 3.0

USB 3.0 Micro-B Connector

5DCIN

AC AdapterConnector

Some computers may not provide enough power

through two USB ports to operate the drive. An

AC adapter(not included) can be connected to

the drive through the DC IN connectorto provide

power. Formore details, visi

t orcontact

http://www.pioneerelectronics.com/PUSA/

Phone: 1-800-872-4159

Do not connect any AC adapter other than

specified by Pioneer.

6 Forced Open Lever

Use to open the disc coverwhen the drive is not

powered. If the disc coverfails to open when the

Open button is pressed, turn the powerto the

drive OFF and wait approximately one minute until

the disc stops spinning before trying to open the

disc cover. During normal operation, the Open

button should be used to open the disc cover.

DC IN

Caution

About Region codes

•Theregion code can only be changed five

(5) times, including the initial setting.

Please be aware that the fifth change

becomes PERMANENT. Therefore, avoid

changing the region code unless absolutely

necessary.

•Regioncodesare part of the DVD Standard.

However, region codes on DVD discs are

optional. DVD discs with no specified region

code can be played on all compliant players.

BDR-XD05_CU_En.fm 8 ページ２０１３年４月９日　火曜日　午後１２時１４分

English

Connection

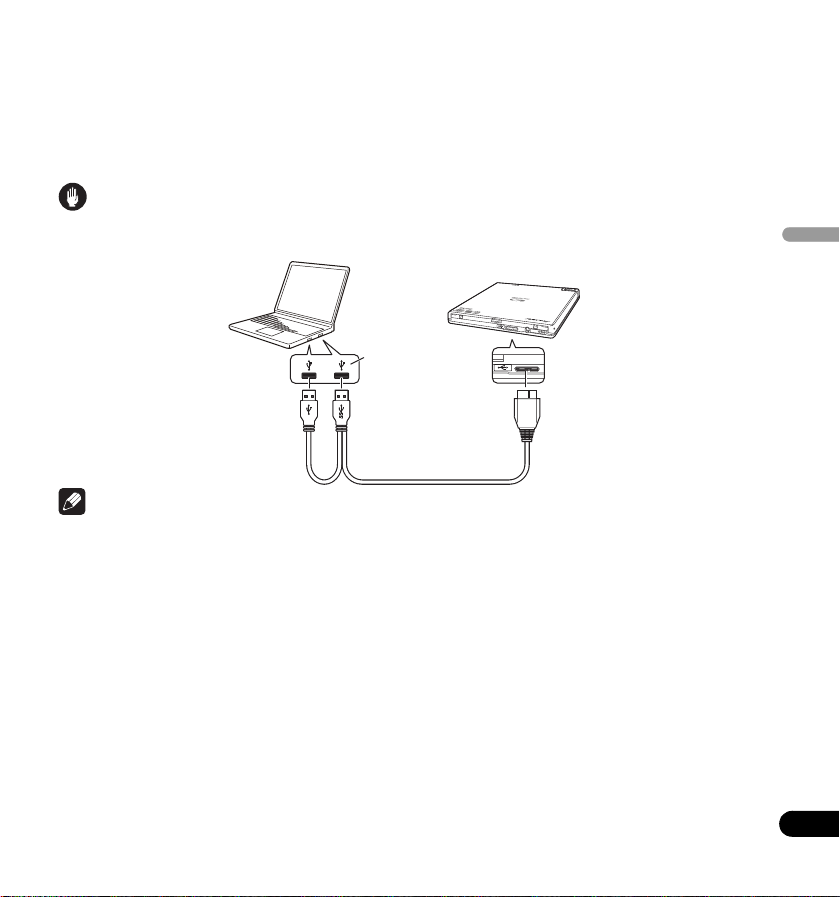

This is a hot-plug unit. Connect the unit to the supplied USB cable.

1 Confirm that your computer (PC) has available USB port.

2 With your Windows® or Mac® operating system running, use the supplied USB cable to connect

this unit to the PC.

Caution

• Do not disconnect the USB cable during data transfers.

• Do not disconnect the USB cable during the PC start norany operation with the unit.

Note

• Connection to a USB 3.0 port is recommended, since when a USB 3.0 cable is connected to a USB

2.0 port, the connection will be limited to USB 2.0 performance standards.

• When connecting the unit to a USB 2.0 port, the USB 2.0 high-speed filterdrivershould be installed.

• This unit can operate with USB 1.1 but will not provide optimum performance.

• Connecting this unit through a USB HUB orusing unspecified cables may not guarantee proper

operation.

• In some cases, the use of a single USB port may be insufficient fornormal operation.

Use two USB ports forpowerenhancement.

•Ifpoweris insufficient when using two USB ports, connect an AC adapter(not included) through

the DC IN connectoron the unit’s rearpanel and plug into a wall outlet to deliverpower. Connect

the USB cable (included) afterconnecting the AC adapterforproperoperation. Formore details

about the AC adapterconnection, visit orcontact

http://www.pioneerelectronics.com/PUSA/

Phone: 1-800-872-4159

• Do not connect any AC adapter other than specified by Pioneer.

•ThisBD/DVD/CDWRITERisforuse only with compatible UL Listed personal computers that have

Installation Instructions detailing userinstallation of USB accessories.

• UL Listed, Class 2 AC Adapter(Output 5 V, min. 1.0 A) shall be used.

DCIN

Computer

(PC)

USB cable (supplied)

This unit

USB 3.0 port

recommended

USB 3.0

Forpowersource

BDR-XD05_CU_En.fm 9 ページ２０１３年４月９日　火曜日　午後１２時１４分

Operations

The unit writes to BD-R/RE media when the supplied software application is installed on yourPC. Writing

fails if the PC oroperating system does not support the software.

Begin writing to BD-R/RE

1 Connect the necessary USB cable.

2 Turn on the PC.

3 Press the OPEN button, and gently lift the disc cover by hand.

4 Place the disc in the tray with the label facing up.

5 Close the disc cover gently.

6 Start the disc-burning application.

End the writing session

1 Quit the disc burning application.

2 Press the OPEN button, and gently lift the disc cover by hand.

3 Remove the disc.

4 Close the disc cover gently.

5 Shut down the PC.

•Forsoftware installation directions, please referto the manual available on the software disc included

with yourdrive. Forassistance with writing orplaying back discs, see the HELP function within the

software application.

• When the lock mechanism is released, the disc coverneeds to be fully opened in orderto close again.

Manual disc cover open

Use the Forced Open Leverto remove discs if the disc coverfails to

open and all othermethods have been exhausted.

1 Shut down the PC.

2 Wait for the disc to stop spinning.

3 Slide the Forced Open Lever to open the disc cover.

4 Gently open the disc cover and remove the disc.

Warning

To prevent injury and damage to the unit, do NOT force the disc

coverto open while the disc is spinning.

BDR-XD05_CU_En.fm 10 ページ２０１３年４月９日　火曜日　午後１２時１４分

Inhaltsverzeichnis

Sprachen:

Andere Pioneer CD/CDR-Laufwerk Handbücher

Pioneer

Pioneer DVR-104 Bedienungsanleitung

Pioneer

Pioneer BDR-XD08TB Bedienungsanleitung

Pioneer

Pioneer BDR-S13E-X Bedienungsanleitung

Pioneer

Pioneer BDR-S13UBK Bedienungsanleitung

Pioneer

Pioneer BDR-S13U-X Bedienungsanleitung

Pioneer

Pioneer DR-504S Bedienungsanleitung

Pioneer

Pioneer DR-704S Bedienungsanleitung

Pioneer

Pioneer BDR-XU03T Bedienungsanleitung

Pioneer

Pioneer BDR-2213 Bedienungsanleitung

Pioneer

Pioneer BDR-XD08UMB-S Bedienungsanleitung

Pioneer

Pioneer DR-944 Bedienungsanleitung

Pioneer

Pioneer BDR-XS07TUHD Bedienungsanleitung

Pioneer

Pioneer BDR-XD07B Bedienungsanleitung

Pioneer

Pioneer BDR-XS07CS Bedienungsanleitung

Pioneer

Pioneer BDR-XS07TUHD Bedienungsanleitung

Pioneer

Pioneer DVR-S806 Bedienungsanleitung

Pioneer

Pioneer LaserMemory DR-744 Bedienungsanleitung

Pioneer

Pioneer BDR-2207 Bedienungsanleitung

Pioneer

Pioneer DVR-SK12D Bedienungsanleitung

Pioneer

Pioneer LaserMemory DR-5045 Bedienungsanleitung

Pioneer

Pioneer DR-U124X-7 Bedienungsanleitung

Pioneer

Pioneer DVR-111D Bedienungsanleitung

Pioneer

Pioneer DRM-600 Bedienungsanleitung

Pioneer

Pioneer BDR-S08XLT Bedienungsanleitung

Beliebte CD/CDR-Laufwerk Handbücher anderer Marken

Philips

Philips CDD3610 Bedienungsanleitung

QPS

QPS Que!Fire Bedienungsanleitung

LG GCC-4241N Bedienungsanleitung

Plextor

Plextor 12X-3 Leitfaden

Samsung

Samsung SN-324B Bedienungsanleitung

Teac

Teac CD-211E Bedienungsanleitung

SmartDisk

SmartDisk Firewire CD-R/W Bedienungsanleitung

Axis

Axis CD-ROM SERVER Bedienungsanleitung

LG CRD-8322B Bedienungsanleitung

Memorex

Memorex 32023234 - 52x32x52x External USB2.0 CD... Montageanleitung

Yamaha

Yamaha CD Recordable/Rewritable Drive CRW3200 Bedienungsanleitung

Sony

Sony CRX230AE Bedienungsanleitung

Sony

Sony CRX - 160E Bedienungsanleitung

Panasonic

Panasonic KX-LD742 Bedienungsanleitung

Panasonic

Panasonic LK-MC606BP Bedienungsanleitung

Panasonic

Panasonic CF-VCW Series Bedienungsanleitung

LG CRD-8320B Bedienungsanleitung

Conner

Conner CFP2107 Series Bedienungsanleitung
