Pioneer PD-F958 Bedienungsanleitung

ORDER NO.

PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan

PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.

PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936

PIONEER ELECTRONIC CORPORATION 1999

MYXQ O AC220-230V

MVXQ O AC220-230V

FILE-TYPE COMPACT DISC PLAYER

RRV2106

T–ZZR FEB. 1999 Printed in Japan

PD-F958

¶Refer to the service manual RRV2085 for PD-F958/KUXQ/CA.

Remarks

Type Model

PD-F958 Power Requirement

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).

1. SAFETY INFORMATION....................................2

2. CONTRAST OF MISCELLANEOUS PARTS .....3

3. SCHEMATIC DIAGRAM....................................8

4. PCB CONNECTION DIAGRAM .......................11

CONTENTS

PD-F958

REAR

PD-F958/MVXQ only

PD-F958/MYXQ only

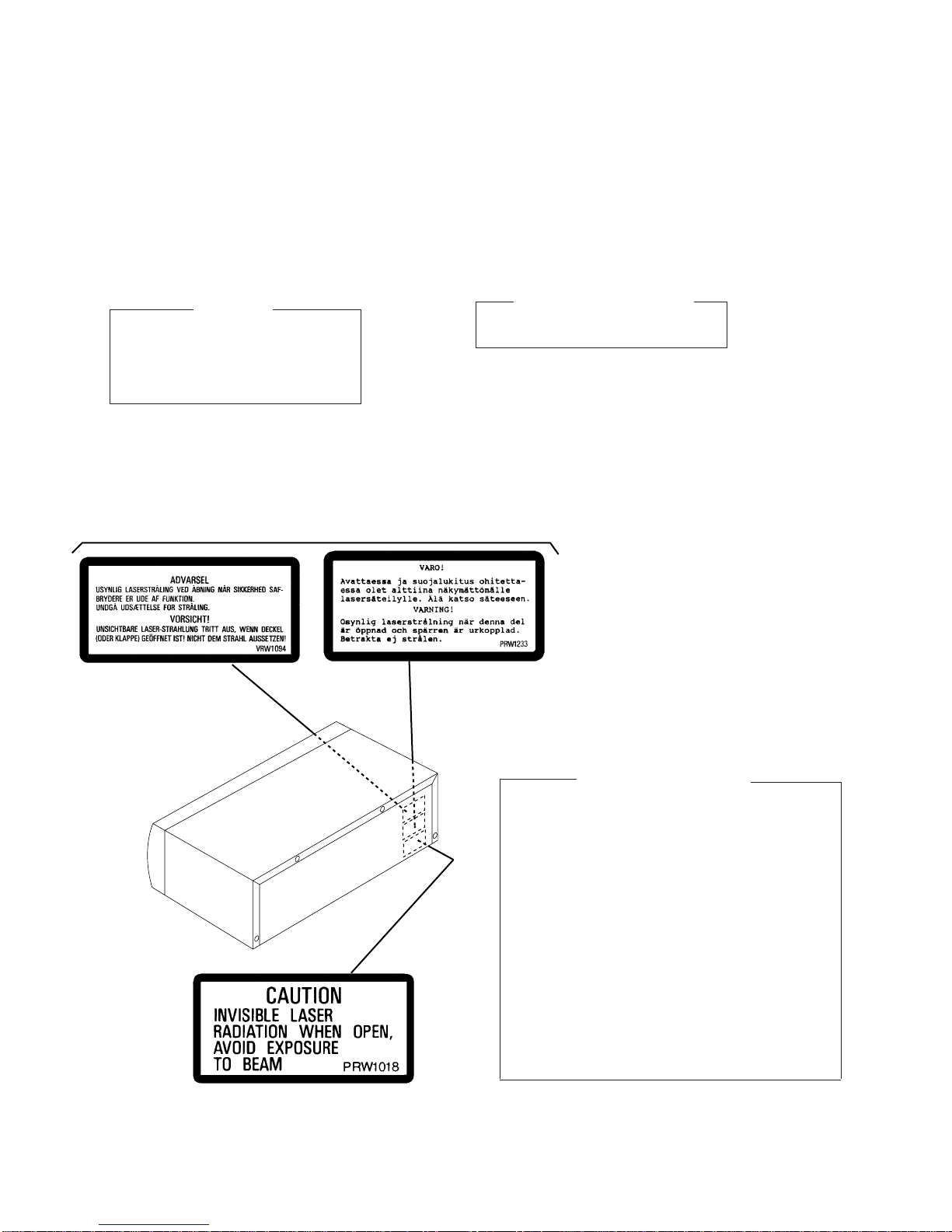

LABEL CHECK for (PD-F958/MYXQ and PD-F958/MVXQ types)

This service manual is intended for qualified service technicians; it is not meant for the casual

do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been

trained to properly and safely repair complex products such as those covered by this manual.

Improperly performed repairs can adversely affect the safety and reliability of the product and may

void the warranty. If you are not qualified to perform the repair of this product properly and safely, you

should not risk trying to do so and refer the repair to a qualified service technician.

1. SAFETY INFORMATION

LASER DIODE CHARACTERISTICS

MAXIMUM OUTPUT POWER: 7 mw

WAVELENGTH: 780 – 785 nm

IMPORTANT

THIS PIONEER APPARATUS CONTAINS

LASER OF CLASS 1.

SERVICING OPERATION OF THE APPARATUS

SHOULD BE DONE BY A SPECIALLY

INSTRUCTED PERSON.

Additional Laser Caution

1.Laser Interlock Mechanism

The position of the switch (S651) for detecting loading

state is detected by the system microprocessor, and

the design prevents laser diode oscillation when the

switch (S651) is not on CLMP terminal side (CLMP

signal is OFF or high level).

Thus,theinterlock will nolongerfunction if theswitch(S651)

is deliberatery set to CLMP terminal side. (low level)

The interlock also does not function in the test mode *.

Laser diode oscillation will continue, if pin 33 of

CXA1782CQ (IC151) on the MOTHER BOARDASSY

is connected to GND, or pin 22 of IC301 (LDON) is

connected to low level (ON), or else the terminals of

Q151 are shorted to each other (fault condition).

2.When the cover is opened, close viewing of the

objective lens with the naked eye will cause exposure

to a Class 1 laser beam.

: Refer to page 29. on the service manual RRV2085.

PD-F958

P6-1 MAIN BOARD ASSY PWZ3895 PWZ3896 PWZ3897

P6-2 POWER BOARD ASSY PWZ3900 PWZ3901 PWZ3901

P6-3 DISPLAY BOARD ASSY PWZ3904 PWZ3905 PWZ3905

P6-4 NSP SWITCH BOARD ASSY PWZ3907 PWZ3908 PWZ3908

NSP HEADPHONE BOARD ASSY Not used PWZ3910 PWZ3910 No.1

P6-10 Cord Stopper CM-22C CM-22B CM-22B

P6-12 AC Power Cord PDG1064 PDG1003 PDG1055

Fuse(T5A) (For AC power cord) Not used Not used PEK1003 No.2

P6-14 Foot Assy REC1263 Not used Not used

P6-18 Rear Base PNA2452 PNA2453 PNA2454

P6-47 Display Window PAM1772 PAM1773 PAM1773

P6-50 Operation Panel PNW2869 PNW2870 PNW2870

Headphone Knob Not used PAC1707 PAC1707 No.3

LED Lens Not used PNW2019 PNW2019 No.4

P6-55 65 Label ORW1069 Not used Not used

Caution Label (HE) Not used PRW1233 Not used No.5

Caution Label Not used VRW1094 Not used No.6

Caution Label Not used Not used PRW1018 No.7

NSP Sheet Not used PEC1038 PEC1038 No.8

PACKING

P3-5 NSP Warranty Card ARY7023 ARY7022 ARY7022

P3-7 Operating Instructions Not used PRD1036 Not used

(French/German/Italian/

Dutch/Swedish/Spanish/Portuguese)

P3-11 Packing Case PHG2337 PHG2338 PHG2339

Rear Spacer Not used Not used PHC1090 No.9

Index Label 100 Not used PRW1406 PRW1406 No.10

Jacket File Not used PHN1049 PHN1049 No.11

Polyethlene Bag (115X270X0.03) Not used Not used Z21-013 No.12

2. CONTRAST OF MISCELLANEOUS PARTS

NOTES : ÷Parts marked by “ NSP ” are generally unavailable because they are not in our Master Spare Parts List.

÷The mark found on some component parts indicates the importance of the safety factor of the part.

Therefore, when replacing, be sure to use parts of identical designation.

÷Reference Nos. indicate the pages and Nos. in the service manual for the base model.

÷When ordering resistors, first convert resistance values into code form as shown in the following examples.

Ex. 1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by

J = 5%, and K = 10%).

560 Ω=56 ×101 =561................................................... RD1/4PU 561J

47k Ω=47 ×10 3=473 .................................................. RD1/4PU 473J

0.5 Ω=R50 ...................................................................... RN2H Â50K

1 Ω=1R0 ......................................................................... RS1P 1Â0K

Ex. 2 When there are 3 effective digits (such as in high precision metal film resistors).

5.62k Ω=562 ×10 1=5621 ........................................... RN1/4PC 5621F

7CONTRAST OF PD-F958/KUXQ/CA, MYXQ and MVXQ

PD-F958/ MYXQ, MVXQ and KUXQ/CA are constructed the same except for the following:

Note : ÷The numbers in the remarks column correspond to the numbers on the exploded diagram, Refer to "EXPLODED VIEWS".

EXTERIOR

Part No. Remarks

KUXQ/CA type MYXQ type MVXQ type

Ref.

No. Mark Symbol and Description

PD-F958

EXTERIOR and FRONT PANEL SECTION

No.12

No.10

No.11

Packing Case

Front

Operating lnstructions

No.9

Protecter (FR)

Protecter (FL)

Protecter (RL)

Protecter (RR)

Control Cable

PD-F958/MVXQ only

Rear Base

Under Base

Screw (IBZ30P080FZK)

PD-F958/MYXQ only PD-F958/MVXQ only

PD-F958/MVXQ only

AC Power Cord

No.4

Operation Panel

No.7

No.6

No.5

No.3

No.1

No.8

Cord Stopper

No.2

Fuse Holder

lnsulator

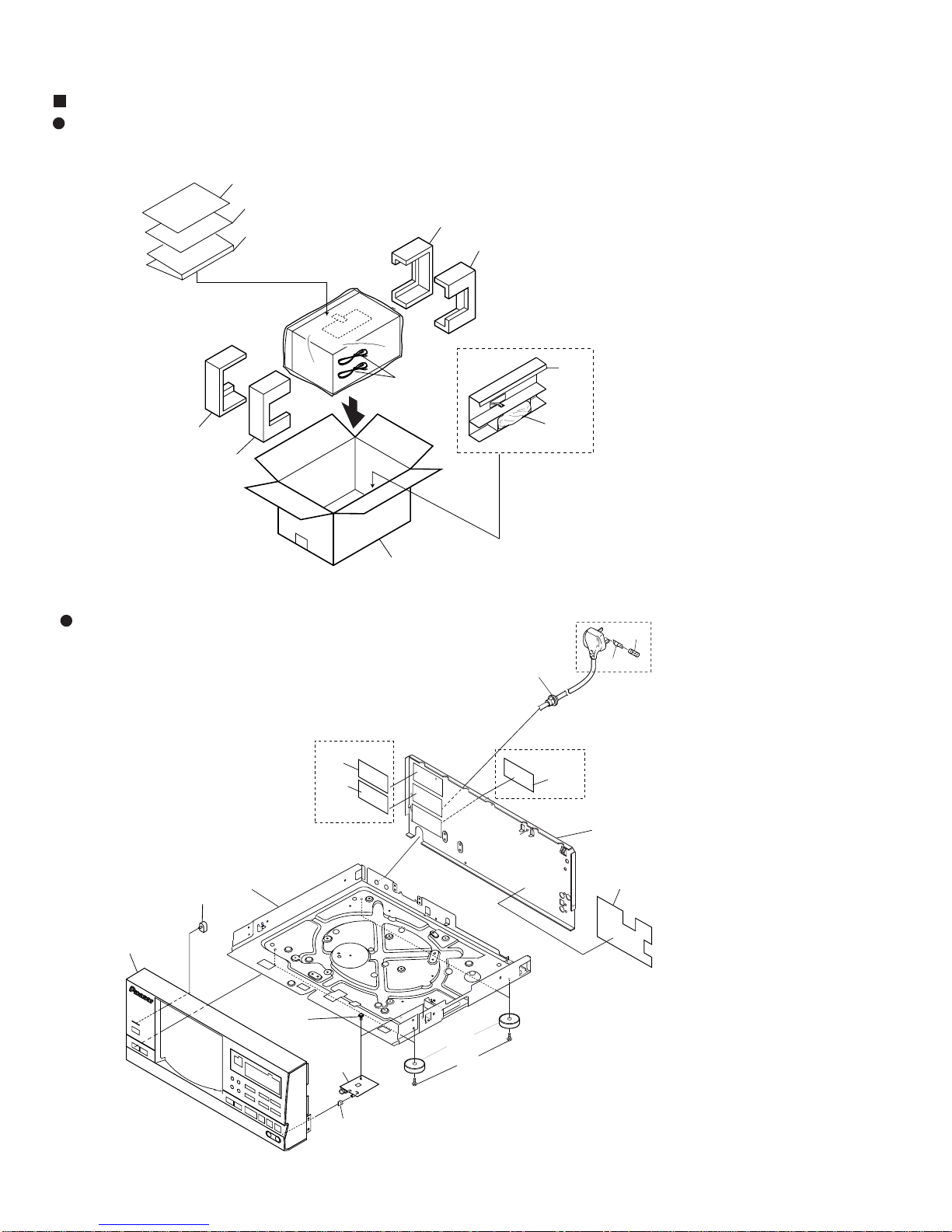

EXPLODED VIEWS

PACKING SECTION

PD-F958

C81, C367, C461, C475, C477 Not used CKCYF103Z50 CKCYF103Z50

C4276, C4287 Not used CKCYF103Z50 CKCYF103Z50

C175 CEAT101M10 CEAT471M6R3 CEAT471M6R3

C185, C323 CKCYF103Z50 Not used Not used

C341, C342 CCCCH120J50 Not used Not used

C365, C395, C413– C416, C4277 Not used CFTLA104J50 CFTLA104J50

C388, C389 Not used CCCSL101J50 CCCSL101J50

C397 CCCSL101J50 CCCSL101J50 Not used

C401 Not used CEAT471M6R3 CEAT471M6R3

C403 Not used CCCCH120J50 CCCCH120J50

C404 Not used CCCCH220J50 CCCCH220J50

C429, C430, C435– C438 Not used CCCSL390J50 CCCSL390J50

C431, C432 Not used CEAT330M16 CEAT330M16

C481, C482 CCCSL390J50 Not used Not used

CN401 Not used 52147-0310 52147-0310

D391– D394 1SS254 1SS254 Not used

D1301– D1309, D1312– D1314 1SS254 1SS254 Not used

IC401 Not used PD2026B PD2026B

IC406 Not used BA15218 BA15218

JA391 RKN1004 RKN1004 Not used

JA392 RKN1004 Not used Not used

JA394 DKN1035 DKN1035 Not used

L151, L152, L307, L351 Not used RTF1167 RTF1167

L309 Not used RTF1167 Not used

L391 LAU1R0J LAUR22J Not used

L395, L396 LAU1R0J LAUR22J LAUR22J

R310– R312, R411– R413 Not used RD1/4PU241J RD1/4PU241J

R341 RD1/4PU271J Not used Not used

R342 RD1/4PU105J Not used Not used

R375 RD1/4PU471J RD1/4PU241J RD1/4PU241J

R391 RD1/4PU244J RD1/4PU244J Not used

R392 RD1/4PU102J RD1/4PU102J Not used

R401, R472, R473 Not used RD1/4PU102J RD1/4PU102J

R405– R410 Not used RD1/4PU471J RD1/4PU471J

R427– R430 Not used RD1/4PU223J RD1/4PU223J

R435, R436 Not used RD1/4PU163J RD1/4PU163J

R437, R438 RD1/4PU473J RD1/4PU163J RD1/4PU163J

R439– R442 RD1/4PU823J RD1/4PU433J RD1/4PU433J

R470, R471 Not used RD1/4PU470J RD1/4PU470J

R481, R482, R485, R486 RD1/4PU223J Not used Not used

R487– R490 RD1/4PU104J Not used Not used

R1301– R1305, R1307 RD1/4PU471J RD1/4PU471J Not used

X341 PSS1008 Not used Not used

X401 Not used PSS1008 PSS1008

MAIN BOARD ASSY

PWZ3896, PWZ3897 and PWZ3895 are constructed the same except for the following:

CONTRAST OF PCB ASSEMBLIES

Mark Symbol and Description Part No.

PWZ3895 PWZ3896 PWZ3897 Remarks

Note : Refer to "3.SCHEMATIC DIAGRAM".

PD-F958

C714 Not used CKCYF103Z50

NSP J703 Not used DE010WE0

Mark Symbol and Description Part No.

PWZ3904 PWZ3905 Remarks

DISPLAY BOARD ASSY

PWZ3905 and PWZ3904 are constructed the same except for the following:

Note : Refer to "3.SCHEMATIC DIAGRAM".

D751 Not used PCX1019

R751 Not used RD1/4PU471J

Mark Symbol and Description Part No.

PWZ3907 PWZ3908 Remarks

SWITCH BOARD ASSY

PWZ3908 and PWZ3907 are constructed the same except for the following:

Note : Refer to "3.SCHEMATIC DIAGRAM".

C17 Not used CKCYF103Z50

Power Transformer(AC120V) PTT1342 Not used

Power Transformer(AC220-230V) Not used PTT1343

Mark Symbol and Description Part No.

PWZ3900 PWZ3901 Remarks

POWER BOARD ASSY

PWZ3901 and PWZ3900 are constructed the same except for the following:

Note : Refer to "3.SCHEMATIC DIAGRAM".

PD-F958

¶PCB PARTS LIST

HADPHONE BOARD ASSY (PWZ3910)

COILS AND FILTERS

L501, L504, L505 (AXIAL INDUCTOR) LAUR22J

CAPACITORS

C503, C504 CKCYF473Z50

RESISTORS

VR501 (0.5kΩΒ) PCS1003

OTHERS

JA501 HADPHONE JACK RKN1002

3P Cable Holder 51048-0300

J501 2mm JUMPER WIRE D20PDY0315E

Mark No. Description Part No.

PD-F958

1234

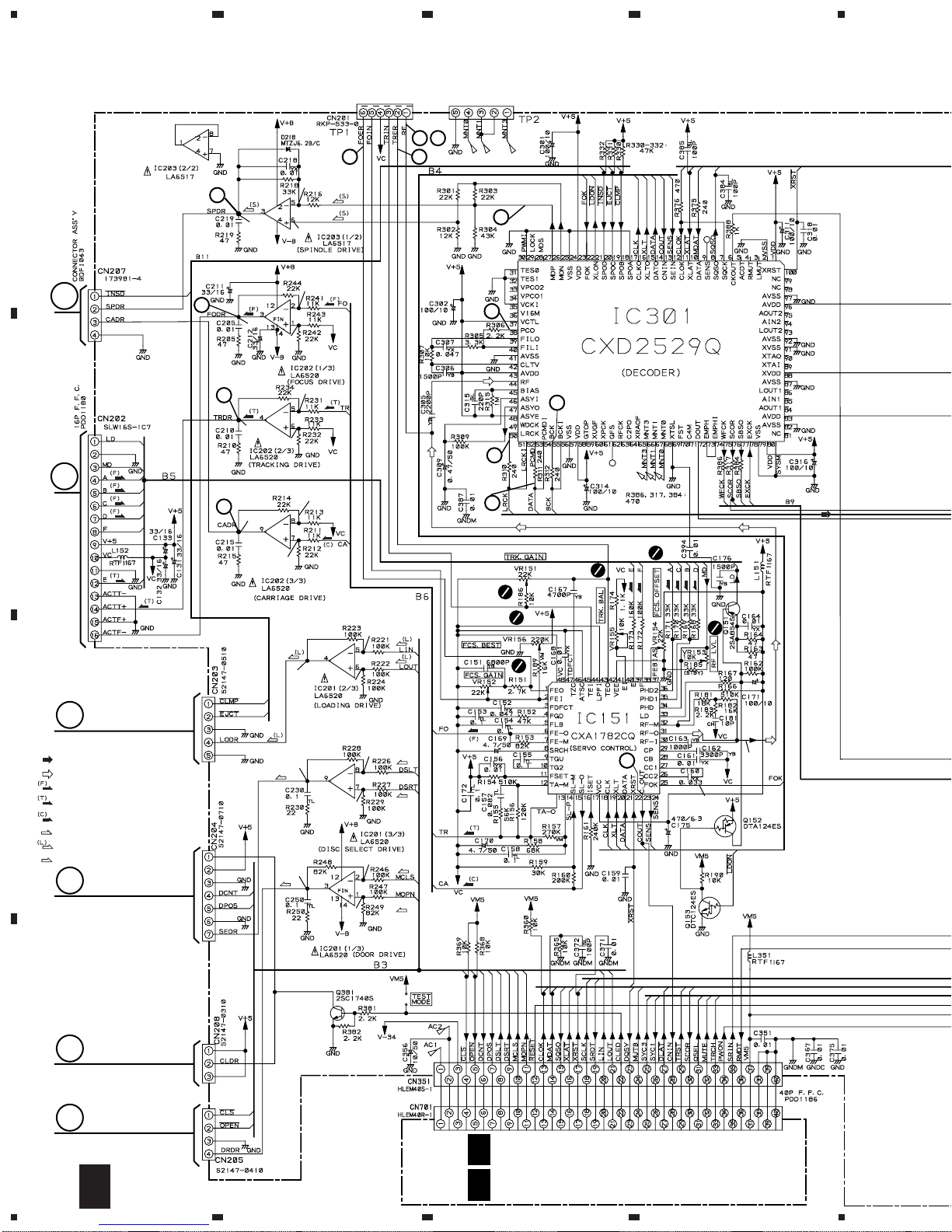

3. SCHEMATIC DIAGRAM

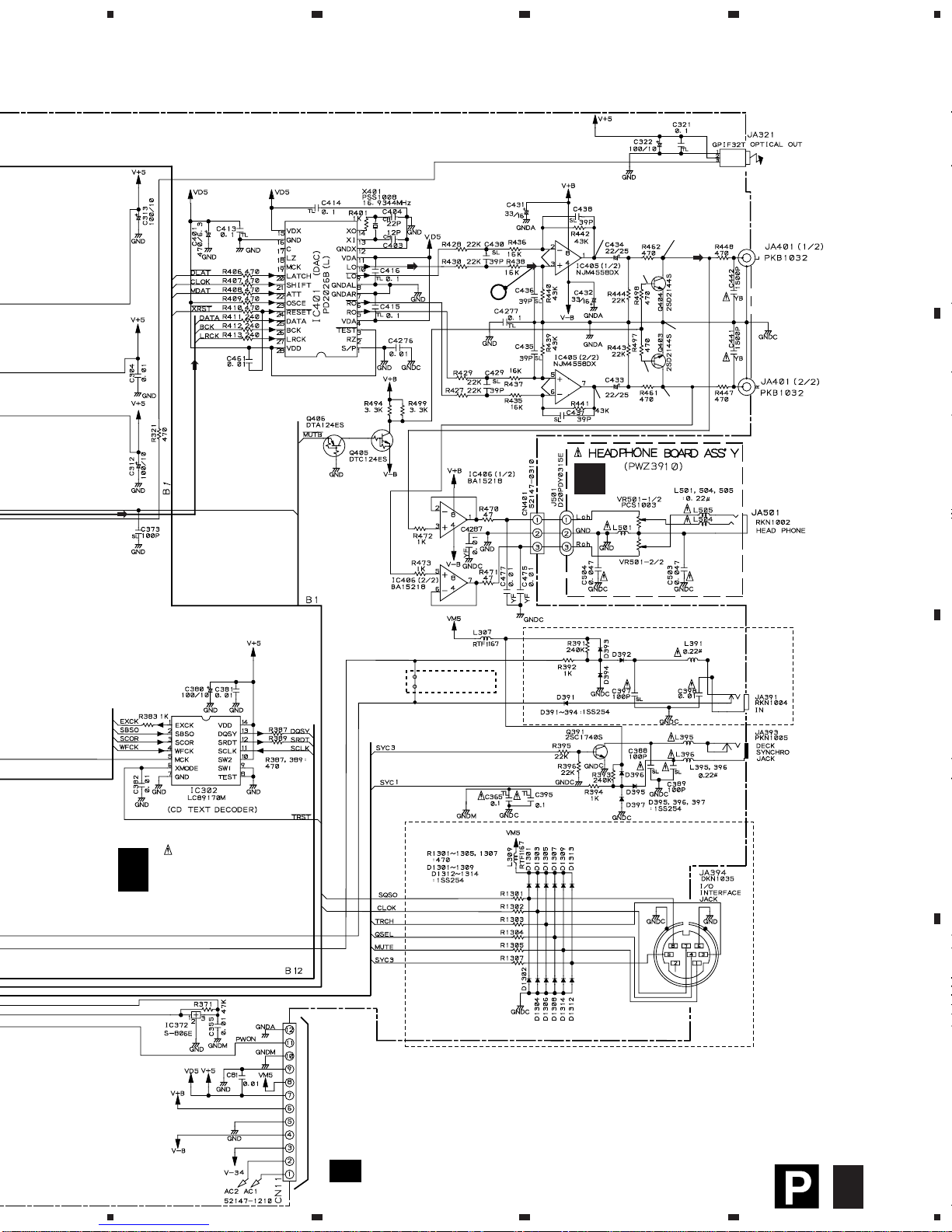

3.1 MAIN BOARD ASSY and HEADPHONE ASSY

DISPLAY BOARD ASSY

SWITCH BOARD ASSY

SIGNAL ROUTE

: AUDIO SIGNAL

: EFM SIGNAL

: FOCUS SERVO LOOP

: TRACKING SERVO LOOP

: CARRIAGE SERVO LOOP

: SPINDLE DRIVE

: LOADING DRIVE

: DOOR DRIVE

(SEL)

(D)

(S)

(D)

223

3.4V

5.0V

1.7V

0.2V

1.6V

1.8V

1.6V

-O.7V

(F)

(T)

(F)

PD-F958

5678

LINE OUT

JACK

MAIN BOARD ASSY

(PWZ3896:PD-F958/MYXQ)

(PWZ3897:PD-F958/MVXQ)

PD-F958/MYXQ Only

Note:

The numbers marked with a circle show the number of each

measuring point, which correspond to the number in the service

manual PD-F958 (ORDER NO. RRV2085) on page12 .

TO POWER BOARD ASSY

-9.2

1.6V

PD-F958/MVXQ Only

PD-F958/MYXQ Only

J11

PD-F958

1234

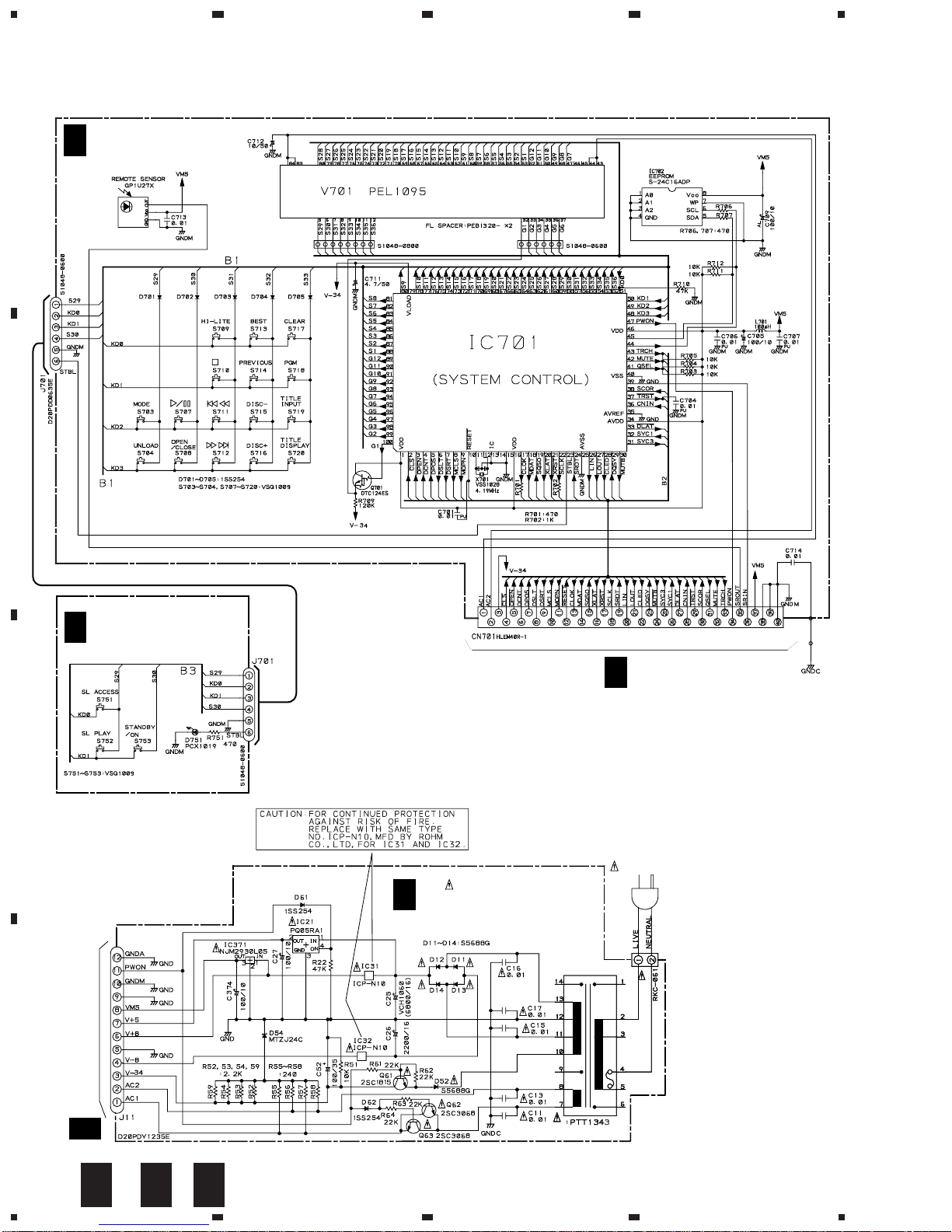

3.2 DISPLAY BOARD ASSY, POWER BOARD ASSY and SWITCH BOARD ASSY

SWITCH BOARD ASSY

DISPLAY BOARD ASSY

CN351

PD-F958/MYXQ,MVXQ

:(PWZ3908)

POWER BOARD ASSY

(PWZ3901:PD-F958/MYXQ

PD-F958/MVXQ)

(TO MAIN BOARD ASSY) CN11

PD-F958/MYXQ,MVXQ Types

AC220-230V

TO MAIN BOARD ASSY

50Hz

AC POWER CORD

MYXQ: PDG1003

MVXQ: PDG1055

P0WER TRANSFORMER

PD-F958/MYXQ, MVXQ

:(PWZ3905)

PE5032A

J703

DE010WE0

LFMFIF

Andere Handbücher für PD-F958

Inhaltsverzeichnis

Andere Pioneer CD-Player Handbücher

Pioneer

Pioneer SUPERTUNER III D DEH-P2650 Bedienungsanleitung

Pioneer

Pioneer PD-Z82M Bedienungsanleitung

Pioneer

Pioneer CLD-S360 Bedienungsanleitung

Pioneer

Pioneer Elite PD-D6-J Bedienungsanleitung

Pioneer

Pioneer MEP-7000 Installationsanleitung

Pioneer

Pioneer CDS-P5000 UC Bedienungsanleitung

Pioneer

Pioneer CLD-3760K V Bedienungsanleitung

Pioneer

Pioneer PD-7500 Bedienungsanleitung

Pioneer

Pioneer PR-8210-A Bedienungsanleitung

Pioneer

Pioneer DEH-2330R Bedienungsanleitung

Pioneer

Pioneer DEH-P755MP Bedienungsanleitung

Pioneer

Pioneer PD-F607 Bedienungsanleitung

Pioneer

Pioneer Elite PD-D6MK2-KElite D6 Bedienungsanleitung

Pioneer

Pioneer PD-F1009 - CD Changer Bedienungsanleitung

Pioneer

Pioneer CLD-97 Bedienungsanleitung

Pioneer

Pioneer CDX-P620S Bedienungsanleitung

Pioneer

Pioneer CLD-3070 Bedienungsanleitung

Pioneer

Pioneer Elite PD-D9-J Bedienungsanleitung

Pioneer

Pioneer DEH-MG8147 Bedienungsanleitung

Pioneer

Pioneer CDJ-500S Bedienungsanleitung

Pioneer

Pioneer DEH-1700 Bedienungsanleitung

Pioneer

Pioneer PD-M406 Bedienungsanleitung

Pioneer

Pioneer CDJ-400 - Cd/Media Player Stücklistenhandbuch

Pioneer

Pioneer PD-M406 Bedienungsanleitung

Beliebte CD-Player Handbücher anderer Marken

RCA

RCA RP-7923 Bedienungsanleitung

Philips

Philips AZ1207 Bedienungsanleitung

Philips

Philips CD582 Bedienungsanleitung

Philips

Philips AZ 6821 Bedienungsanleitung

Lasonic

Lasonic MSU-2020 Bedienungsanleitung

THOMSON

THOMSON RCD150 Bedienungsanleitung

Denon

Denon DCD-1420 Bedienungsanleitung

Panasonic

Panasonic SJ-MR100 Bedienungsanleitung

Onkyo

Onkyo DX-7210 Bedienungsanleitung

Sony

Sony MZ-R3 Bedienungsanleitung

Denon

Denon DVM-4800 Bedienungsanleitung

JBL

JBL MR-32 Bedienungsanleitung

RCA

RCA RCD152 Bedienungsanleitung

Technics

Technics SL-PS770A Bedienungsanleitung

Clarion

Clarion compact disc Bedienungsanleitung

Sony

Sony MZ-M10 Bedienungsanleitung

Philips

Philips Expanium AZ 1538 Bedienungsanleitung

Rotel

Rotel RCD 975 Bedienungsanleitung
