Piranha EV-500-S20 Bedienungsanleitung

Piranha

Vacuum Cleaner

For Household Use Only

Model No.: EV-500-S20

Item No.: 900238

Rev 2

Note: The specifications and/or components of this appliance are subject to change without prior notice.

If the Hose, Floor Head or any Accessories should fail during use, please call 1800 079 124 for an immediate

replacement. This will save you from returning the product to the store.

If we can assist you in any other way, please feel free to contact us

Page 2 of 18

1Warnings..................................................................................3

2Safety Direction.......................................................................3

3Transporting your Vacuum .................................................... 6

4Components ............................................................................7

5Assembly Method ...................................................................8

5.1 Fitting Flexible Hose....................................................................8

5.2 Hose Removal..............................................................................8

5.3 Fitting Telescopic Tube and Accessories..................................8

5.4 Tools.............................................................................................9

6Power and Power Cord...........................................................9

7Suction Relief Slide............................................................... 10

8Floor Head ............................................................................. 10

9Safety Devices Operation..................................................... 11

10 Emptying the Dust Canister ................................................. 11

11 User Maintenance ................................................................. 12

11.1 Cleaning Filters..........................................................................12

11.1.1 Main Filters...................................................................................... 12

11.1.2 Pre Motor Filter............................................................................... 14

11.1.3 Exhaust Air Filter............................................................................ 15

11.2 Cleaning the Vacuum Cleaner Body and Tools....................... 16

12 Troubleshooting.................................................................... 17

13 Warranty Against Defect ...................................................... 18

Page 3 of 18

1 Warnings

Before using this appliance, read and follow all warnings and instructions in

this manual, even if you are familiar with this product.

This appliance is not intended for use by persons (including children) with

reduced physical, sensory or mental capabilities, or lack of experience and

knowledge, unless they have been given supervision or instruction

concerning use of the appliance by a person responsible for their safety.

Young children should be supervised to ensure that they do not play with the

appliance.

2 Safety Direction

Please read this instruction manual carefully before first use. It is advisable to

keep this instruction manual for future reference.

DO NOT vacuum water, wet objects, liquids, ashes, hot coals, cigarette

butts, matches or any hot, smoking or burning objects, etc.

DO NOT pick up flammable or combustible materials (i.e. lighter fluid, petrol,

kerosene, etc.) or use in the presence of explosive liquids or vapour.

DO NOT pick up toxic material (i.e. chlorine bleach, ammonia, drain cleaner,

etc.)

DO NOT vacuum Toner (for laser printer, copy machines etc) as there is a

risk of fire and explosion.

DO NOT vacuum plaster, cement etc. as the filter can become blocked.

DO NOT use the vacuum without all the filters fitted.

DO NOT store or use the appliance near high temperature areas.

DO NOT run over the power cord with the vacuum cleaner.

DO NOT use the vacuum cleaner if it is blocked. Turn off and clear all

blockages before continuing.

DO NOT use the vacuum cleaner with blocked filters. Clean filters before

continuing. (refer to User Maintenance section).

Page 4 of 18

DO NOT use the vacuum cleaner if the appliance malfunctions, abnormal

noise, smell, smoke, is dropped or damaged in any manner or any breakage

is found during operation.

Return appliance to the nearest authorised service agent or similarly qualified

person for a thorough examination, repair, electrical or mechanical

adjustment.

DO NOT misuse the cord. Never pull the appliance by the cord or pull to

disconnect it from the outlet. Instead, grasp the plug and pull to disconnect.

DO NOT use the vacuum cleaner to pick up large objects, hard or sharp

objects such as glass, nails, screws, coins, etc. that are likely to cause

damage.

DO NOT use with damaged cord or plug.

DO NOT use vacuum cleaner if it has been dropped, damaged, left outdoors,

or dropped into liquid (water etc.)

DO NOT close door on cord, or pull cord around sharp edges or corners.

Cord Rewind - DO NOT allow the cord and plug to whip back at full speed.

Guide the cord and plug in gently.

DO NOT handle plug or vacuum cleaner with wet hands.

DO NOT put any objects into openings.

DO NOT use with any openings blocked and do not restrict airflow.

DO NOT operate the appliance with a damaged cord or plug.

If the supply cord is damaged, it must be replaced by the manufacturer, its

service agent or similarly qualified persons in order to avoid a hazard.

DO NOT use without filters in place.

DO NOT attempt to modify this product in any way.

DO empty the Dust Canister regularly for optimal operation of the vacuum.

Page 5 of 18

DO keep hair, loose clothing, fingers, feet and body parts away from

openings or moving parts.

DO disconnect the appliance from the mains supply before connecting the

flexible suction hose.

DO turn off controls before you connect or disconnect the appliance to or

from the mains supply.

DO disconnect the appliance from the power supply when not in use, before

changing the dust filter, cleaning the filters or connecting / disconnecting the

accessories.

DO use only on dry, indoor surfaces.

DO use only as described in this manual. Use only manufacturer's

recommended attachments.

DO Keep cord away from heated surfaces.

DO Keep all openings free of dust, lint. hair, and anything that may reduce

airflow.

DO use extra care when vacuuming on stairs.

DO keep your work area well lit.

DO store your appliance indoors in a cool. dry area.

DO ensure children and babies cannot play with plastic bags or any

packaging materials.

DO operate the appliance from a power source of the same voltage,

frequency and rating as indicated on the product identification plate

If this appliance is used by a third party, DO supply the instruction manual

with it.

No liability can be accepted for any damage caused by non-compliance with

these instructions or any other improper use or mishandling of appliance.

Page 6 of 18

This product has not been designed for any uses other than those specified

in this manual.

ONLY for domestic use. Industrial or commercial use invalidates the

warranty.

Read and Save These Instructions

3 Transporting your Vacuum

To move your vacuum cleaner from room to room, unplug the unit and carry

using the carry handle.

Never pull or carry the vacuum cleaner by its cord.

Never carry the vacuum cleaner by the flexible hose.

Page 7 of 18

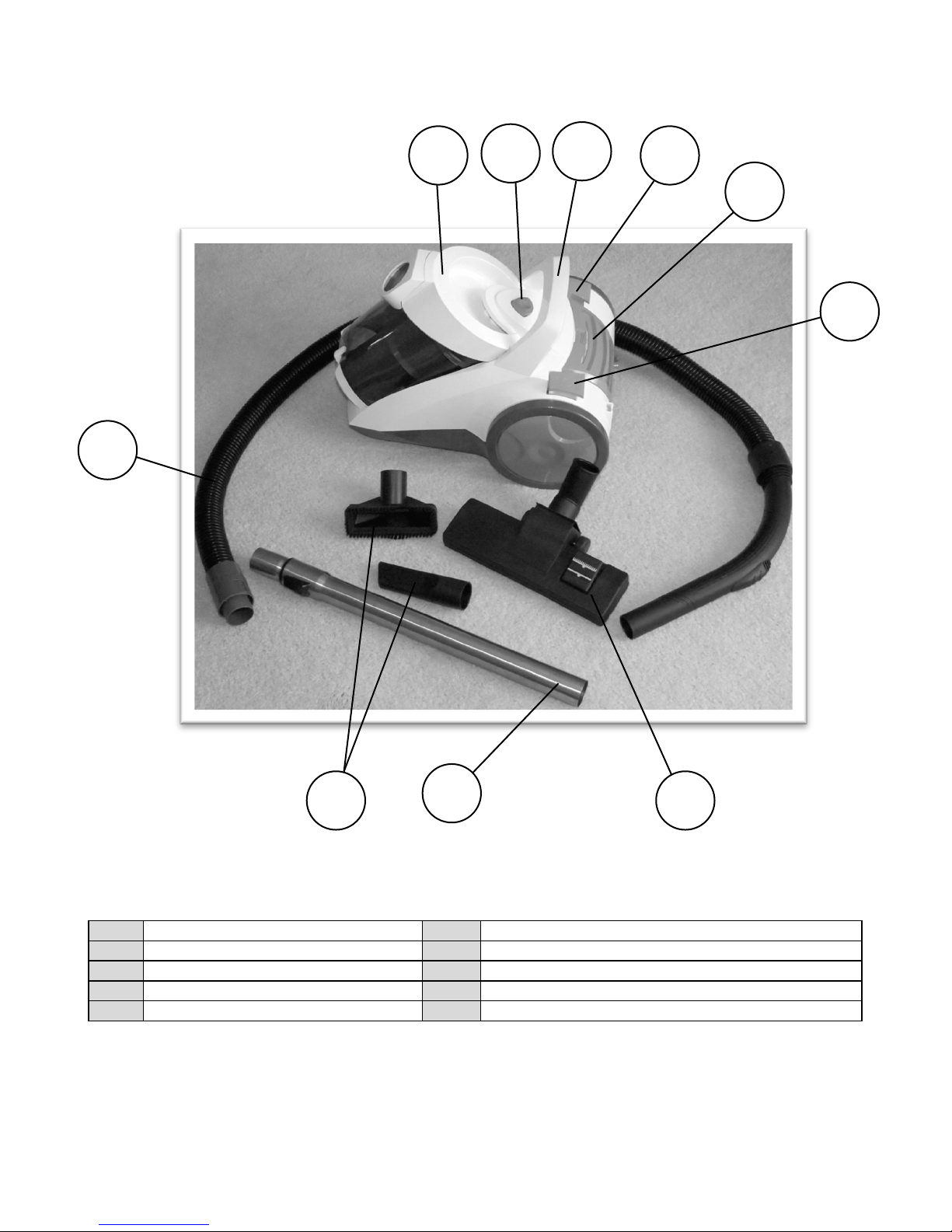

4 Components

Note: The specifications and/or components of this appliance are subject to change without prior notice

Dust Canister

Power On – Off Button

Dust Canister Release Button

Floor Head

Carry Handle

Telescopic Tube

Cord Rewind Button

Tools

5 Rear Exhaust Grille 10 Hose

Page 8 of 18

5 Assembly Method

Please Note: Always remove the plug from the power socket before fitting or

removing accessories.

Ensure all Filters are fitted, and fitted correctly before using.

5.1 Fitting Flexible Hose

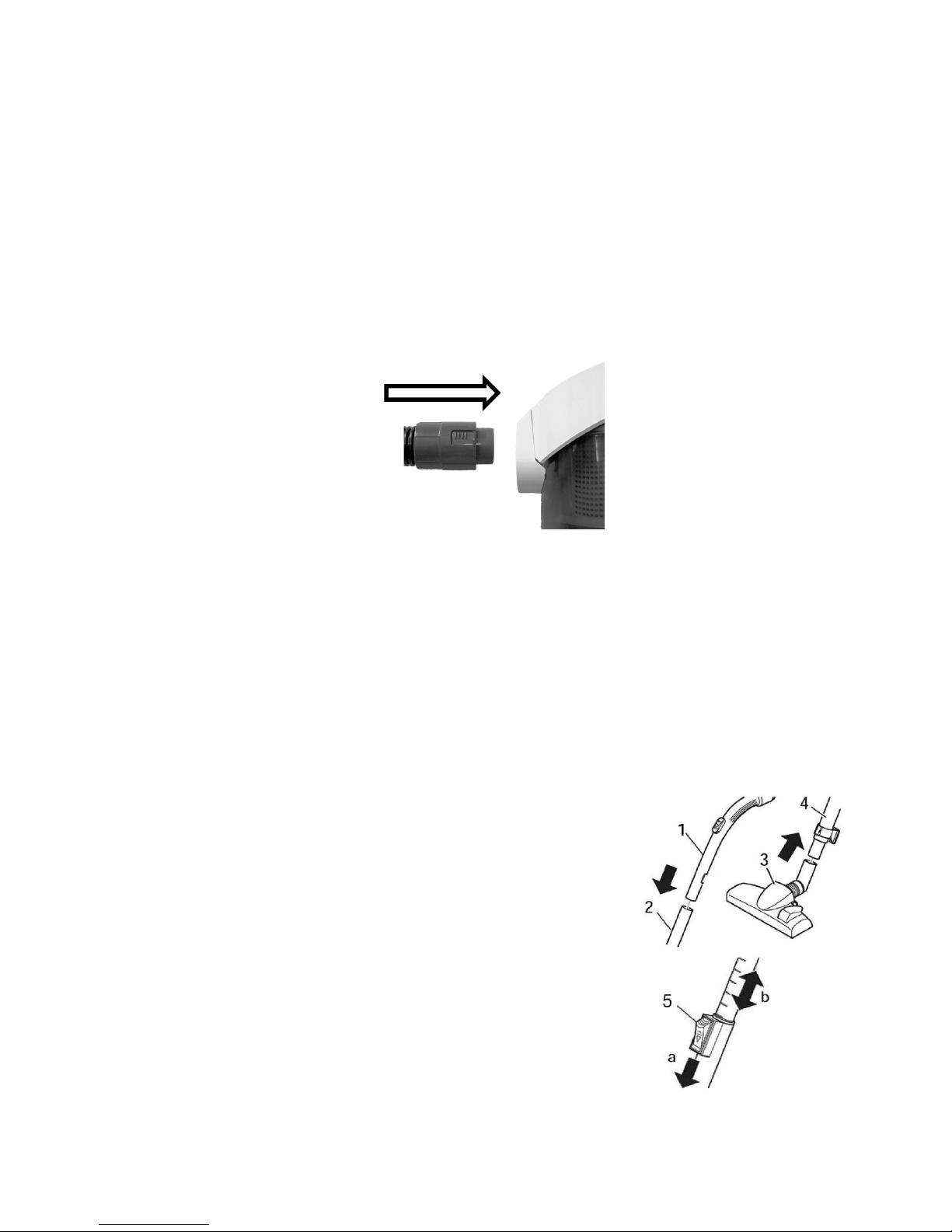

Insert the coupling end of the vacuum cleaner hose into the Hose

Connector hole and push inward until it locks into place.

The side locking buttons (which are located on the sides of the hose

coupling) may need to be depressed when pushing in for easier fitment.

5.2 Hose Removal

To remove the flexible hose from the vacuum cleaner, depress the locking

buttons which are located on the sides of the hose coupling and then pull

the coupling straight out.

5.3 Fitting Telescopic Tube and Accessories

•Insert the hose handle (1) into the upper end of

the telescopic tube (2).

•Insert the lower end of the telescopic tube (4)

into the Floor Head (3).

•To adjust the length of the telescopic tube, press

the telescopic tube lock button (5) down, and

then pull the handle and tube out to the desired

length.

Page 9 of 18

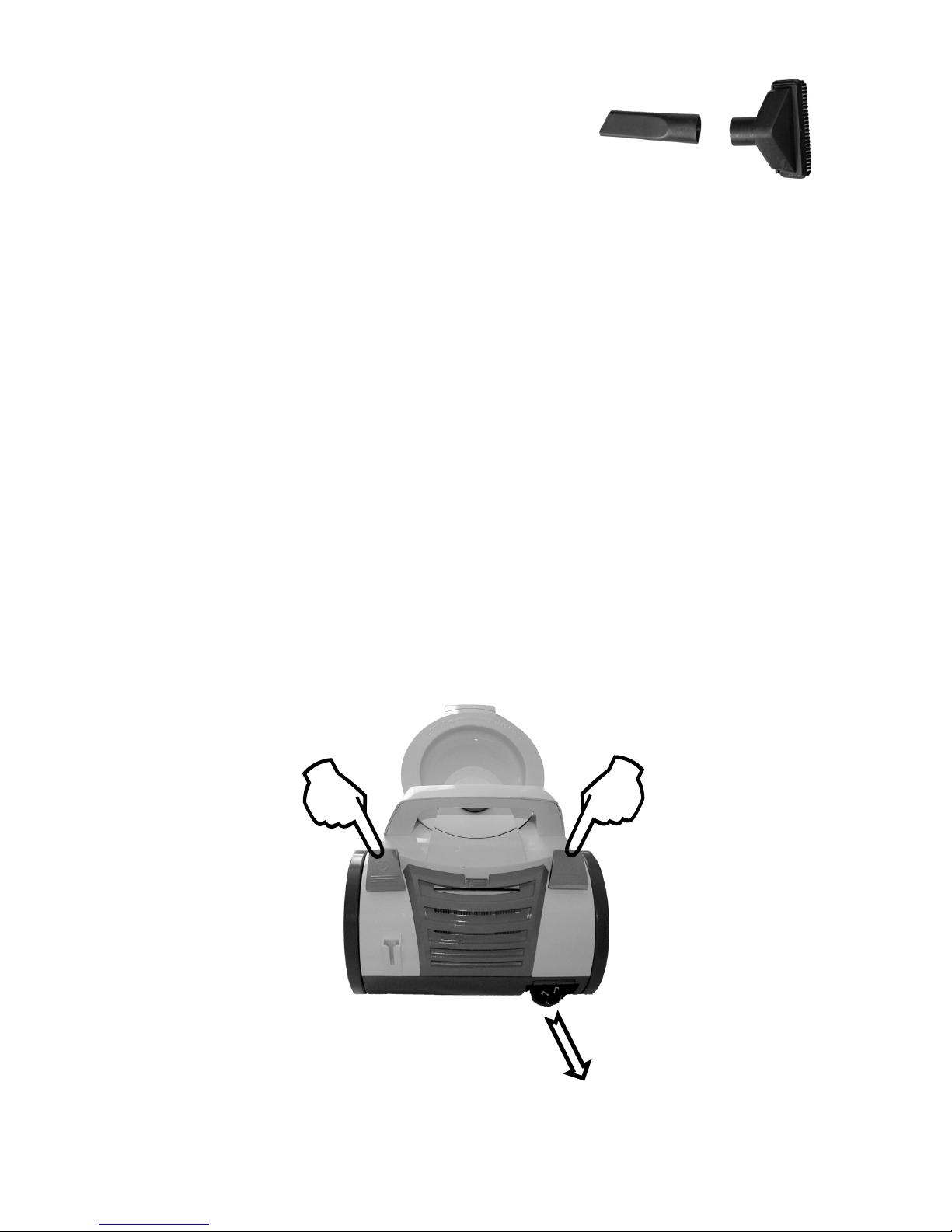

5.4 Tools

Crevice tool

Upholstery Tool with Removable Brush

•Crevice tool is for cleaning furniture and into corners.

•Brush attachment can be used for general applications

6 Power and Power Cord

•Before using the appliance, pull to unwind the cord fully up to the yellow

mark and insert the plug into the power supply.

The yellow mark on the cord shows the ideal cord length.

•Do not extend the cord past the red mark.

Note: To rewind the cord, press the Cord Rewind Button whilst controlling

the cord with the other hand to ensure that it does not whip back causing

damage to your person or surroundings.

•Press the On / Off button to start the motor.

Cord Rewind

Power On / Off

Pull Cord

Page 10 of 18

7 Suction Relief Slide

The Suction Relief Valve is used for easy, temporary reduction of the

vacuum cleaner suction at the floor head.

Slide the Suction Control Slide to the open position to reduce the suction

power and then slide close to revert back to full suction power at the floor

head.

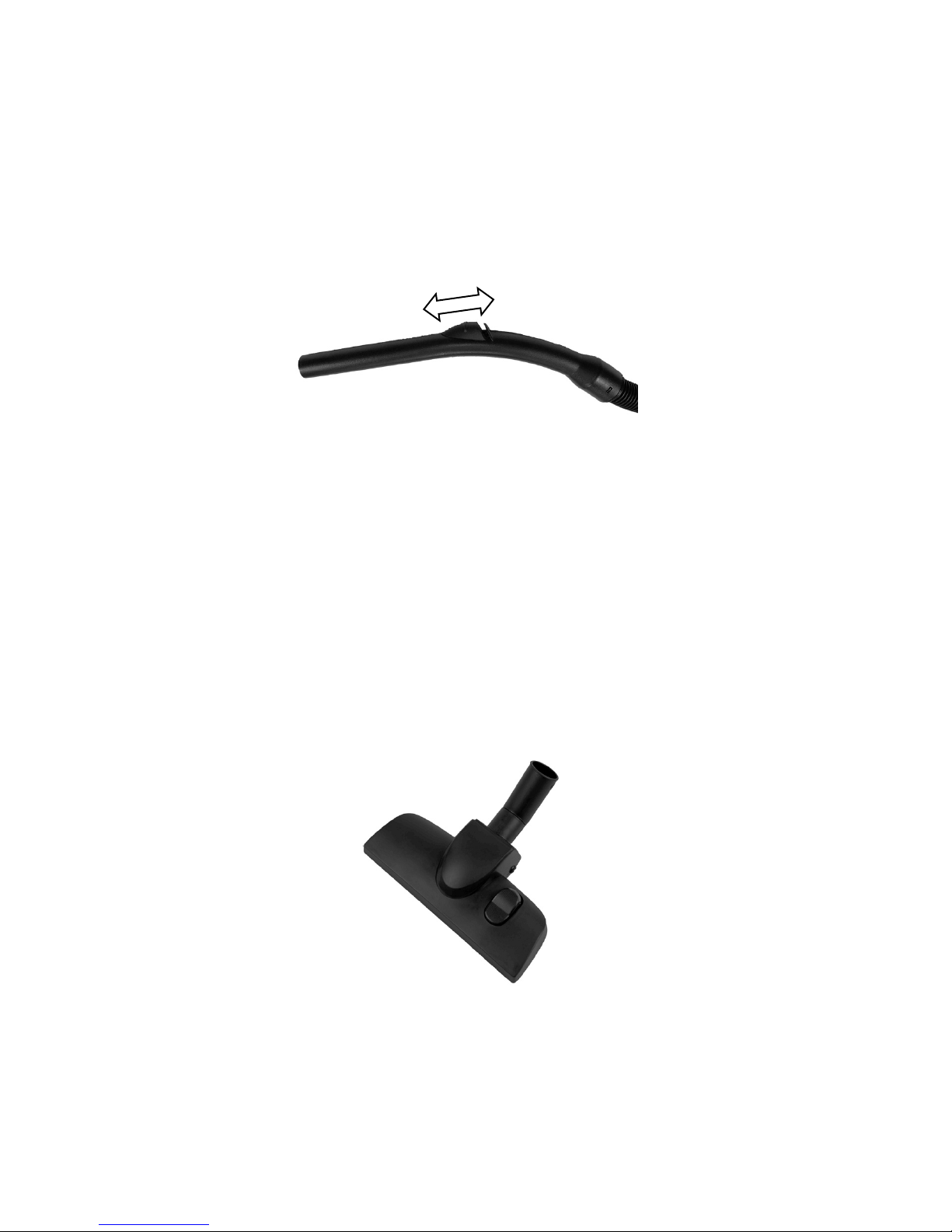

8 Floor Head

The floor head is adjustable to suit either hard floors or carpets.

The floor head has two settings. When cleaning hard surfaces (parquet

flooring, tiles, etc.), the floor head brushes should be extended.

When cleaning carpets and rugs, the brushes should be retracted into the

floor head.

Press the brush change button to switch between the two settings.

Note: If, during vacuuming, you need to pause to move furniture etc., you

can place the floor head in the parking holder using the hook on the back

of the floor head.
