Planet FT-701B Bedienungsanleitung

Trademarks

Contents subject torevisionwithout priornotice.

PLANET is aregisteredtrademark of PLANET Technology

Corp. The information in thismanual issubject to change

without notice. All other trademarks belongto their respective

owners.

Disclaimer

PLANETTechnology doesnot warrant that thehardwarewill

work properly in all environments and applications, and

makes nowarranty andrepresentation, either impliedorex-

pressed, with respect to thequality, performance, mer-

chantability, or fitness fora particularpurpose.

PLANEThas made everyeffortto ensure that this User s

Manual is accurate; PLANET disclaims liability for any inac-

curacies oromissions that may have occurred. Information in

this User sManual is subject to change withoutnotice and

does not representacommitment onthe partof PLANET.

PLANETassumes noresponsibility for any inaccuracies that

may be contained inthis User sManual. PLANET makesno

commitment to update orkeepcurrent the informationin this

User sManual, andreserves theright to make improvements

to this User s Manual and/or tothe products describedin this

User sManual, at any timewithout notice. If youfindinfor-

mation inthis manualthat is incorrect, misleading, or incom-

plete, we wouldappreciate your comments and suggestions.

FCC Warning

This equipment has beentestedand found to comply with the

regulationsfor a Class A digital device, pursuant to Part 15 of

theFCC Rules. These limits are designed toproviderea-

sonable protection against harmful interference whenthe

equipment is operatedin acommercial environment. This

equipment generates, uses, and canradiate radiofrequency

energy and, if notinstalledandusedin accordance with this

user sguide, maycause harmful interferenceto radio com-

munications. Operation ofthis equipmentin aresidentialarea

is likely tocause harmful interference, in which case theuser

will be required to correct theinterferenceat his ownexpense.

CE Mark Warning

This is aClass Aproduct. Inadomesticenvironment, this

product may cause radio interference, in which case theuser

may be required totake adequate measures.

Revision

User's manual forPLANET Fast Ethernet Converter

Multi-mode:FT-701B, FT-702B, FT-703, FT-704, FT-705

Single-mode: FT-702S15, FT-702S35, FT-702S50,

FT-703S, FT-706A15, FT-706B15

Rev 3.0 (Oct. 2002)

Part No. 2010-000001-002

Table ofContents

CHAPTER 1 OVERVIEW..............................................1

CHAPTER 2 MODEL LIST............................................1

CHAPTER 3 CHECKLIST.............................................2

CHAPTER 4 PRODUCT OUTLOOK..............................2

CHAPTER 5 INSTALLING THE CONVERTER.............3

CHAPTER 6 DUPLEX MODE SETTING.......................4

CHAPTER 7 THE LED INDICATIONS...........................5

CHAPTER 8 CABLE CONNECTION PARAMETER......6

CHAPTER 9 TECHNICAL SPECIFICATIONS...............7

CHAPTER 10 POWER INFORMATION........................7

Chapter 1OVERVIEW

Thank you forpurchasing PLANET FT-70Xfamily Fast Ethernet

Twisted pair to Fiber-optic Converter. This converter is usedto

convert one type media signal to othertype equivalentthat

allowstwotype segments connect easily, efficiently and inex-

pensively. This converter canbe used as astandalone unitor as

aslide-in module to the10”/19”media chassis (up to15 units) for

aTPandFiber combined networks at acentral wiring closet.

Please contact with your salesrepresentative for moreabout the

19”media chassis.

Chapter 2MODEL LIST

YourFast EthernetConvertercomes with one of the following

models.

FT-701Bon board ST fiberconnector

FT-702B/S on board SC fiber connector

FT-703/Son board MT-RJ fiber connector

FT-704/Son board VF-45 fiber connector

FT-705/Son board LC fiberconnector

FT-706A15on board single SC fiberconnector

FT-706B15on board single SC fiberconnector

Models withlast twonumbered characters indicates thefi-

ber-port is with “Single-Mode”optic fiberconnectorandthe

numberindicates the maximumdistance inkm. The rest will be

“Multi-Mode”optic fiber models.

Inthe following sections, theterm “FT-70X”indicatesthe product

family above.

Chapter 3 CHECKLIST

YourFT-70Xcarton should contain the following items:

The Fast Ethernet Converter

AC-DC Power Adapter (Output: 5VDC, 2 A max.)

This user s manual

If anyitemis missing or damaged, pleaseconsult thedealer

fromwhomyoupurchased your Fast Ethernet Converter.

Chapter 4 PRODUCT OUTLOOK

Right View(FT-70X)

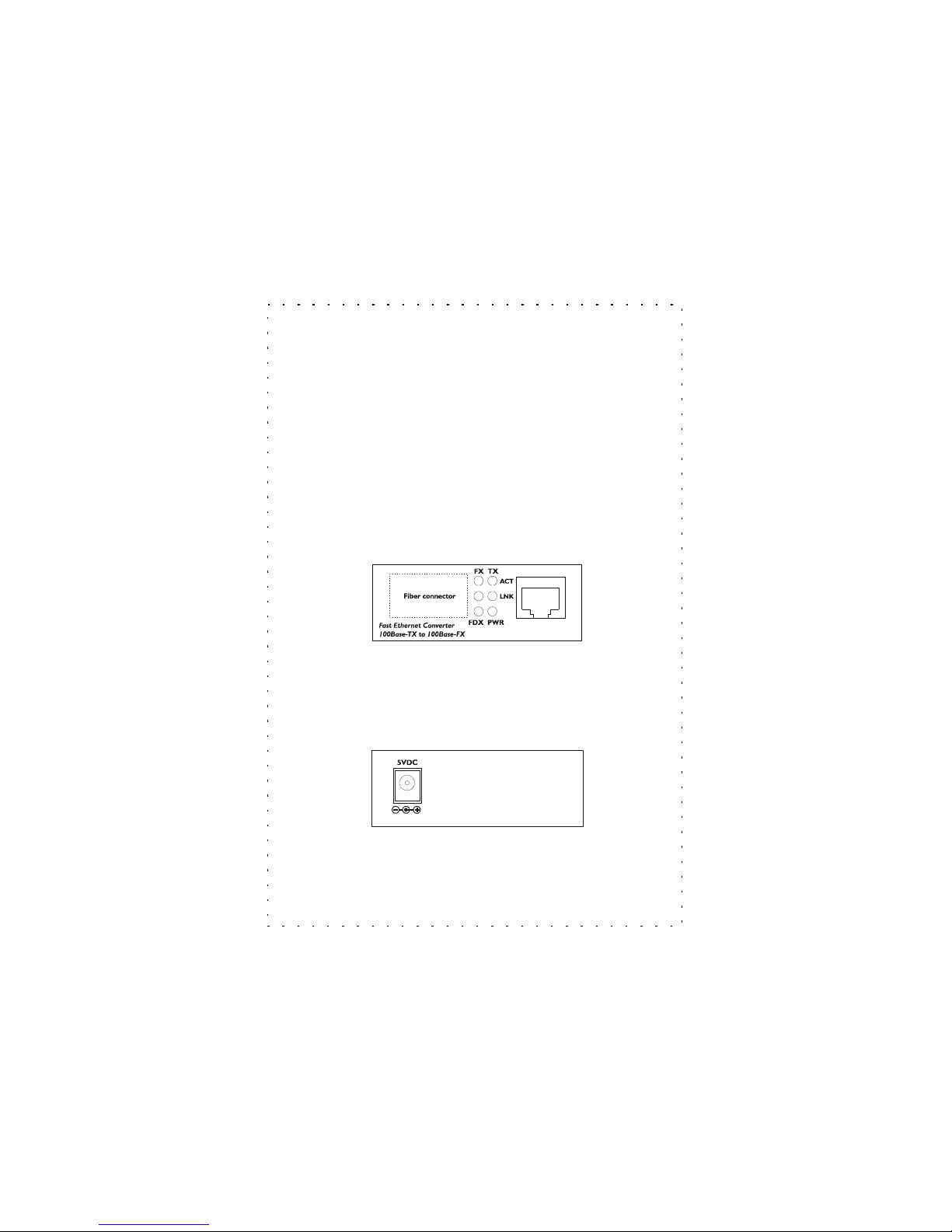

Thereare oneRJ-45 Twisted-Pairjack, one fiber-optic connector

and sixLED indicators onthis side.

The fiber connectoris different frommodel to model. Please

refer to the section2Model List andsection 9Technical

Specification for detail.

LeftView(FT-70X)

One DC jackforDCpowerinput.

Side View(FT-70X)

DTE MPR

One DIP Switch forTP Device selection.

Chapter 5INSTALLINGTHE CONVERTER

Please followthese steps to install the converter:

• Turn off the powerof thedevice/station in anetwork to

which the FT-70Xwill beattached.

• Ensure that there is noactivity in the network.

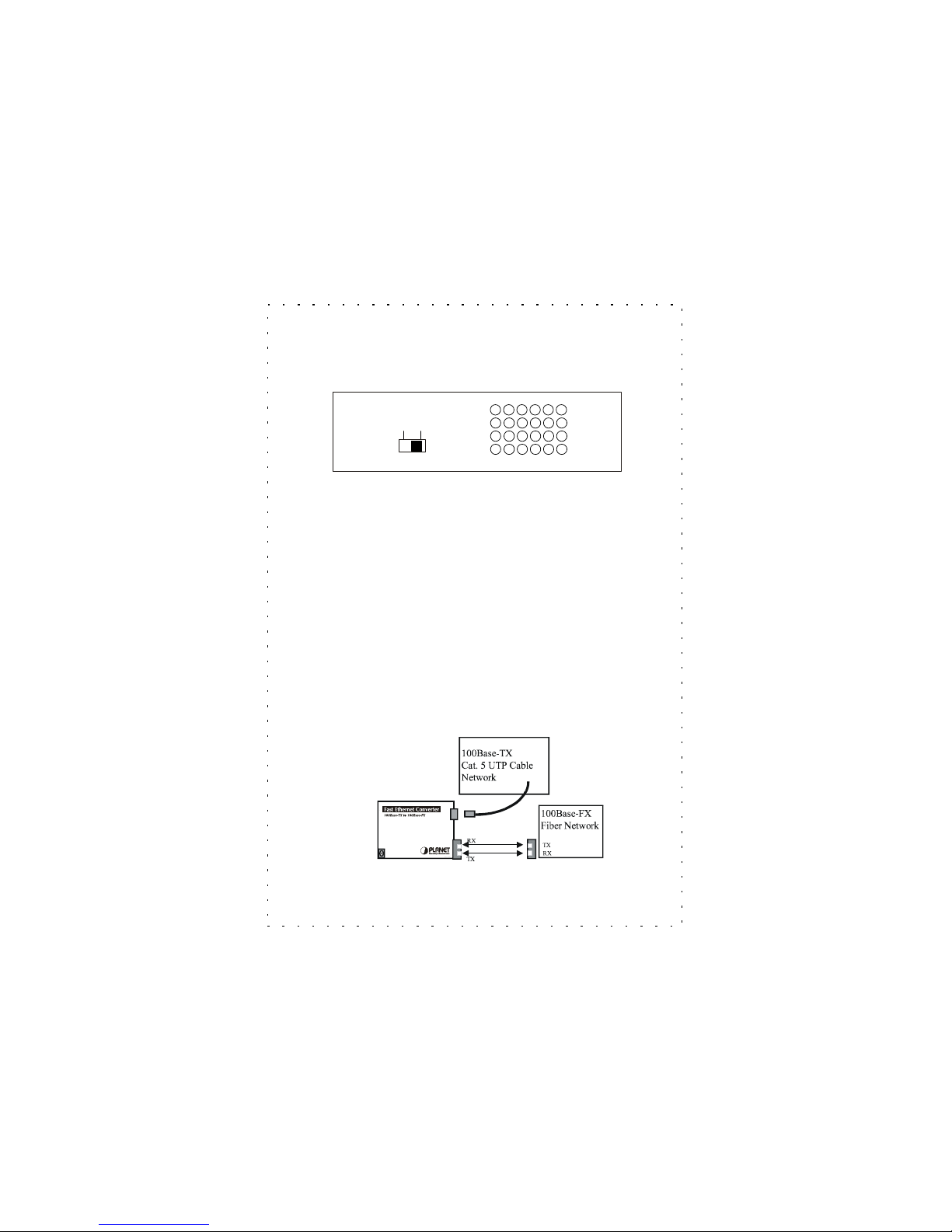

• Attach fiber cable fromthe FT-70X tothe fiber network. TX,

RXmust bepaired at both ends for some twoconnectors

models.

• Attach aCat. 5UTP cable fromthe100Base-TX network to

theRJ-45 port on the FT-70X.

• Connect the 5VDC poweradapter to the FT-70Xandverify

that thePower LED lights up.

• Turn onthe power of the device/station,the TX Link and FX

Link LEDs should light whenall cables are attached.

FT-70X

Note:

n RJ-45/STP, UTP Cat 5, straight-through cable is ac-

cepted.

n Cabling fromFT-70XTP port to aTP deviceis as below:

q To Workstation: DIPswitch on DTE

q To Hub/Switch: DIPswitchon MPR

n Please refertosection 8formoreabout the wiring dis-

tance of yourTP, Optic-fiber networks.

n Please note FT-706A15/706B15is designedto work to-

gether. It meansyou must connect FT-706A15 to

FT-706B15from them towork normally. If bothends are

FT-706A15orFT-706B15, they can tworknormallyand

may damage thefiberconnectors.

Chapter 6 DUPLEX MODESETTING

The twistedpair port of FT-70Xsupport duplexmode selection

by Auto-Negotiation (A-N). The following is theduplex mode

parameters:

Fast Ethernet Device FT-70X Duplex Mode support

Fast Ethernet Hub Half-Duplex

Fast Ethernet Switch (without A-N) Half-Duplex

Fast Ethernet Devices *

Support Auto-Negotiation Full-Duplex / Half-Duplex

Note: Normally, an A-Nswitch will bedetected and set to

Full-duplexwhere adual-speedhub will bedetectedand

set to Half-Duplex.

Chapter 7THE LED INDICATIONS

LEDCOLOR

Status

DESCRIPTION

Blinks If fiber-opticis not present for converterself

-diagnose / detecting

Blinks Ifbothports link with anyTPpackets

transmitting

OFF Fiber-optic linkispresent

TP ACT

Green

OFF Withno TP/FX LINK on, i.e. onlyturn on the

power andthe ACTdo notblink at all, pleas

consult your local dealer

TP Link

Green

ON TPconnection is good

FXACT

Green

Blinks When anyFXpacketstransmitting

FXLink

Green

ON When Fiber connection is good

FDX*Green

ON When Full-duplexmode is detected in TP

port

PWRGreen

ON When +5VDC power detected

Note: Fiber-optic partnershould besetto the correct mode

accordingtothis FDXindicator foroptimal network

performance.

Chapter 8 CABLE CONNECTION

PARAMETER

The cable distance limitations are as below:

DuplexConnectionLimitation (max.)

Twisted Pair

Half / Full Node to Node

Node to Switch/Hub 100 meters

Multi-Mode Converters

MM Half* Node to Node

Node to Switch 412 meters

MM Full Node to Node

Node to Switch 2 kilometers

Single-Mode Converters (FT-70xS, FT-706A15/706B15)

SMFull Node to Node

Node to Switch

FT-70xS15: 15km

FT-70xS35: 35km

FT-70xS50: 50km

FT-706A15: 15 km

FT-706B15: 15 km

*Note: If the fiberport works on half duplex,please note that

Fast Ethernet/100Base-TXnetworkallows 512bit-time

delay between any two nodes/stations in acollision

domain (when work inhalf duplex).Theoverallbittimeof

TP/Fiberwires anddevices must below512 bit-time in

one network segment. To extend the distance, however,

youmayuse switch tobreak upacollisiondomain and

extend the distance.

Chapter 9 TECHNICAL SPECIFICATIONS

The FT-70Xcomes with the following features:

Standard IEEE 802.3u, 100Base-TXand 100Base-FX

TPConnector One RJ-45Twisted Pair, EIA568 connectors

Fiber Connector

FT-701B: ST

FT-702B: SC

FT-702Sseries: SC

FT-703 series: MT-RJ

FT-704 series: VF-45

FT-705 series: LC

FT-706A/FT-706B series: single SC

Opticalwave-

length

FT-706A15: Tx-1310nm, Rx-1550nm

FT-706B15: Tx-1550nm, Rx-1310nm

Others: Txand Rx-1310nm

Data Rate 100Mbps

Duplex mode Full or half-duplexmode byAuto- Negotiation

LED indicators PWR, TXLNK/ACT, FXLNK/ACT, FDX

Power Re-

quirement 5V,2A

Ambient Tem-

perature 0°to 50°C

Humidity 5%to 90%

Dimension 26x70 x97mm (HxWxD)

Cable • UTP : Cat 5 UTPcable

• Fiber-MM: 50/125 µmor 62.5/125 µmoptic fiber

• Fiber-SM:8.3/125, 8.7/125, 9/125 µmoptic fiber

Chapter 10 POWERINFORMATION

The power jack of FT-70Xis with 2.5mm in thecentral post and

required+5VDC / 2Apower input. It will conform to the bundled

AC-DC adapter andPLANETsMedia Chassis. Should youhave

the problemto make thepowerconnection, please contact your

localsales representative.

Please keep the AC-DC adapteras spareparts whenyour

FT-70Xis installed to a Media Chassis.
