Planet WGT-705A Bedienungsanleitung
Trademarks
Copyright © PLANET Technology Corp. 2004.
Contents subject to revision without prior notice.
PLANET is a registered trademark of PLANET Technol-
ogy Corp. The information in this manual is subject to
change without notice. All other trademarks belong to
their respective owners.
FCC Warning
This equipment has been tested and found to comply
with the regulations for a Class B digital device, pur-
suant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference when the equipment is operated in
a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not
installed and used in accordance with this user’s guide,
may cause harmful interference to radio communica-
tions. Operation of this equipment in a residential area
is likely to cause harmful interference, in which case the
user will be required to correct the interference at his
own expense.
CE Mark Warning
This is a Class B product. In a domestic environment,
this product may cause radio interference, in which case
the user may be required to take adequate measures.
Revision
User’s manual for PLANET Gigabit Ethernet Media Con-
verter
For Models: WGT-702, WGT-702S, WGT-705A
Rev 1.0 (Mar. 2004)
Part No. EM-WGT7v2
This page is intentionally left blank
Table of Contents
Chapter 1 Overview 1
About Media Converter 1
About Link Pass Through 1
Chapter 2 Product Features 2
Chapter 3 Model List 3
Chapter 4 Checklist 3
Chapter 5 DIP Switch 4
Chapter 6 Installing the Converter to Chassis 5
Chapter 7 Manage the Media Converter 6
Chapter 8 LED Indicators 7
Chapter 9 Link Through Function 8
Chapter 10 Product Specification 11
1
This page is intentionally left blank
1
Chapter 1
OVERVIEW
Thank you for choosing the 1000 Base Gigabit Ethernet Media
Converter, The Converter introduced here provides one channel
media conversion between 1000BASE-T, 1000BASE-SX/LX and
1000BASE-SX/LX through mini-GBIC (WGT-705A only).
About Media Converter
Media Converter utilizes a network technology specied by IEEE
802.3ab and IEEE 802.3z 1000BASE- T/FX standards.
About Link Pass Through
When LLCF is enabled, the ports do not transmit a link signal
until they receive a link signal from the opposite port. Link loss is
“carried forward” to the managed switch or hub that is sending the
link. LLCF can be used for either the copper or ber ports.
When LLR is enabled, the ber port’s transmitter shuts down if
its receiver fails to detect a valid receive link. If one of the optical
conductors is bad, the card with LLR enabled will return a no link
condition to its link partner. LLR is used to detect link problems
only on the ber port.
2
3
Chapter 2
PRODUCT FEATURES
• One-channel media conversion between 1000BASE-T
and 1000BASE-SX/LX
• Provide one 1000BASE-T and one mini-GBIC port sup-
porting either multi-mode or single-mode (WGT-705A)
• Fiber media allows: multi-mode fiber and single-mode
fiber using SC connector
• Link Pass Through function
• Auto negotiation of duplex mode on TP port
• Auto MDI/MDI-X for TP port
• Full wire-speed forwarding rate
• Front panel status LEDs
• Used as a stand-alone device or with a chassis
• Hot-swappable when used with a chassis
• Manageable through Intelligent Chassis System
2
3
Chapter 3
MODEL LIST
Your Gigabit Ethernet Converter comes with one of the following
models.
• WGT-702 1000Baes-SX Multimode, SC
• WGT-702S 1000Baes-LX Singlemode, SC, 10km
• WGT-705A Depends on the Mini-GBIC module
capacity
In the following sections, the term “WGT-70X” indicates the
product family above.
Chapter 4
CHECKLIST
Your WGT-702/WGT-705A carton should contain the following
items:
• The Gigabit Ethernet Converter
• AC-DC Power Adapter (Output: 7.5VDC, 1.5 A max.)
• This user’s manual
If any item is missing or damaged, please consult the dealer from
whom you purchased your Gigabit Ethernet Converter.
4
5
Chapter 5
DIP SWITCH

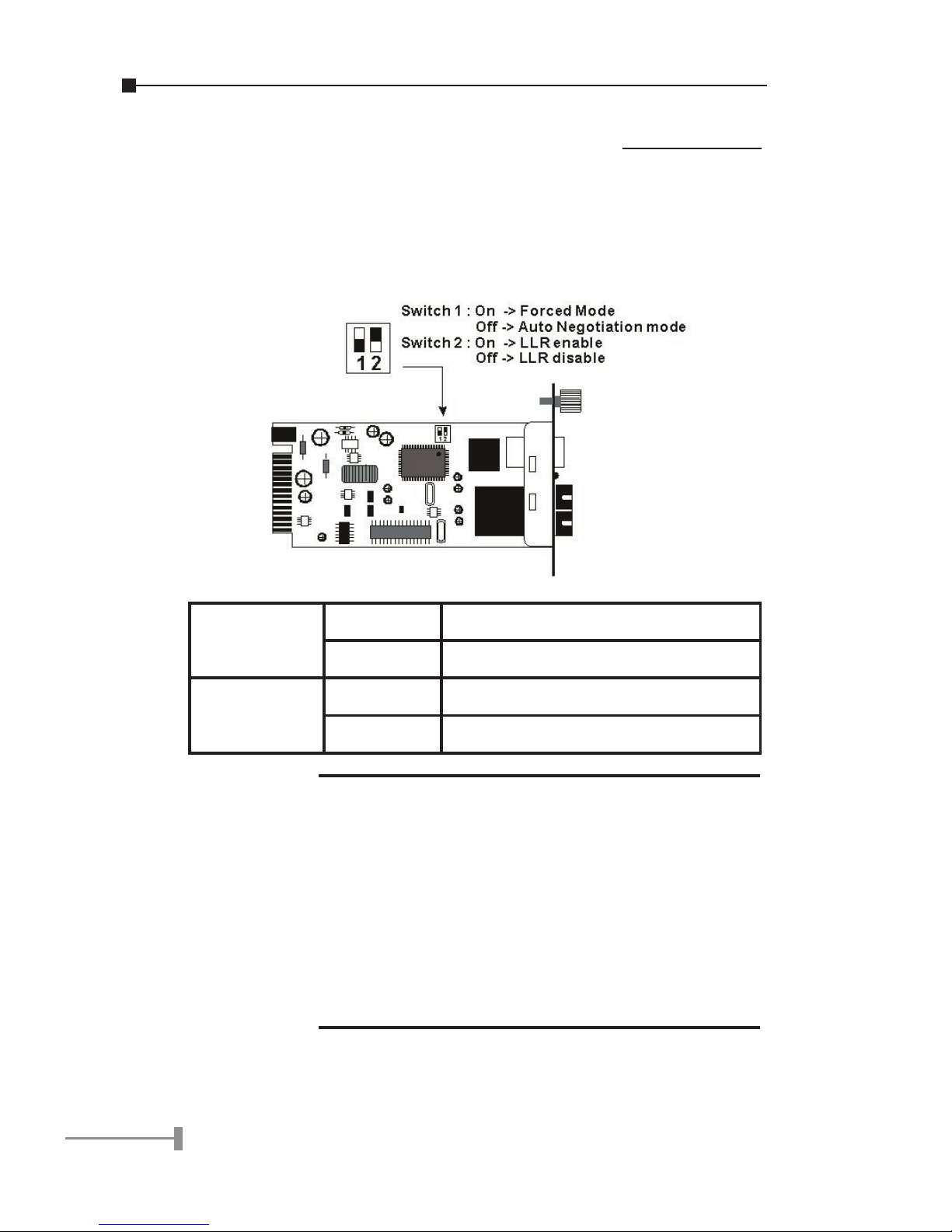

There is a DIP switch for the setting on copper and ber port.
Refer to the table below for more details.
Switch 1
On Fiber is Forced Mode
Off Fiber is Auto-Negotiation
Switch 2
On LLR enable
Off LLR disable
NOTE:
1. Be sure the opposite end is using the
same setting (forced or Auto-negotia-
tion). And when using two converters
at the same time, the two converters
MUST set to forced mode.
2. When using two converters, don’t en-
able the both device’s LLR function at
the same time.
4
5
Chapter 6
INSTALLING THE CONVERTER TO
CHASSIS

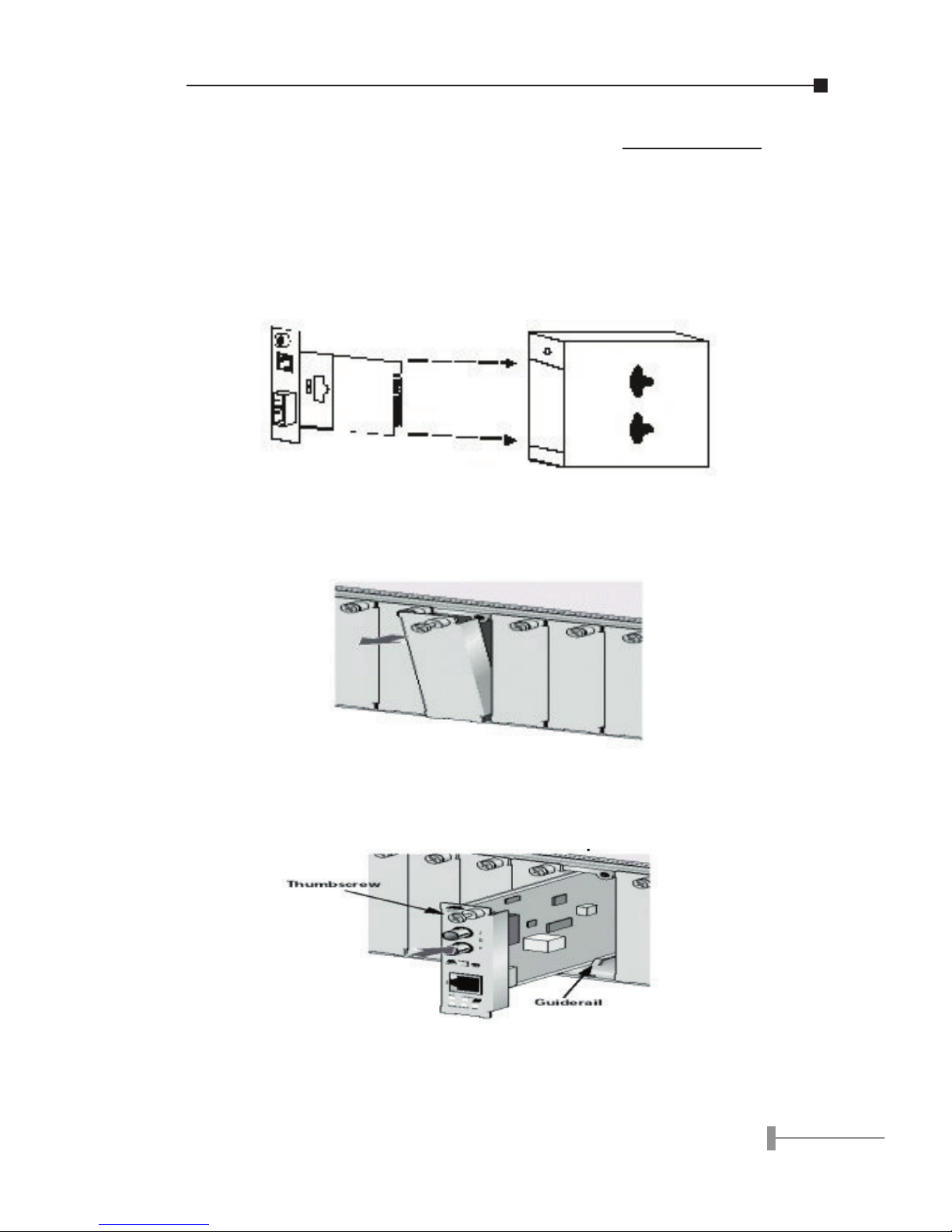

Step 1- Unscrew and pull out the media converter board
Step 2- Remove a blank faceplate from an empty expansion
slot on the front of the chassis. The module can be
installed in any expansion slot.
Step 3- Slide the module into the expansion slot, aligning
it with the guiderails, until it firmly connects to the
chassis’ backplane.
Step 4- Secure the module to the chassis by tightening the
thumbscrew.
6
7
Chapter 7

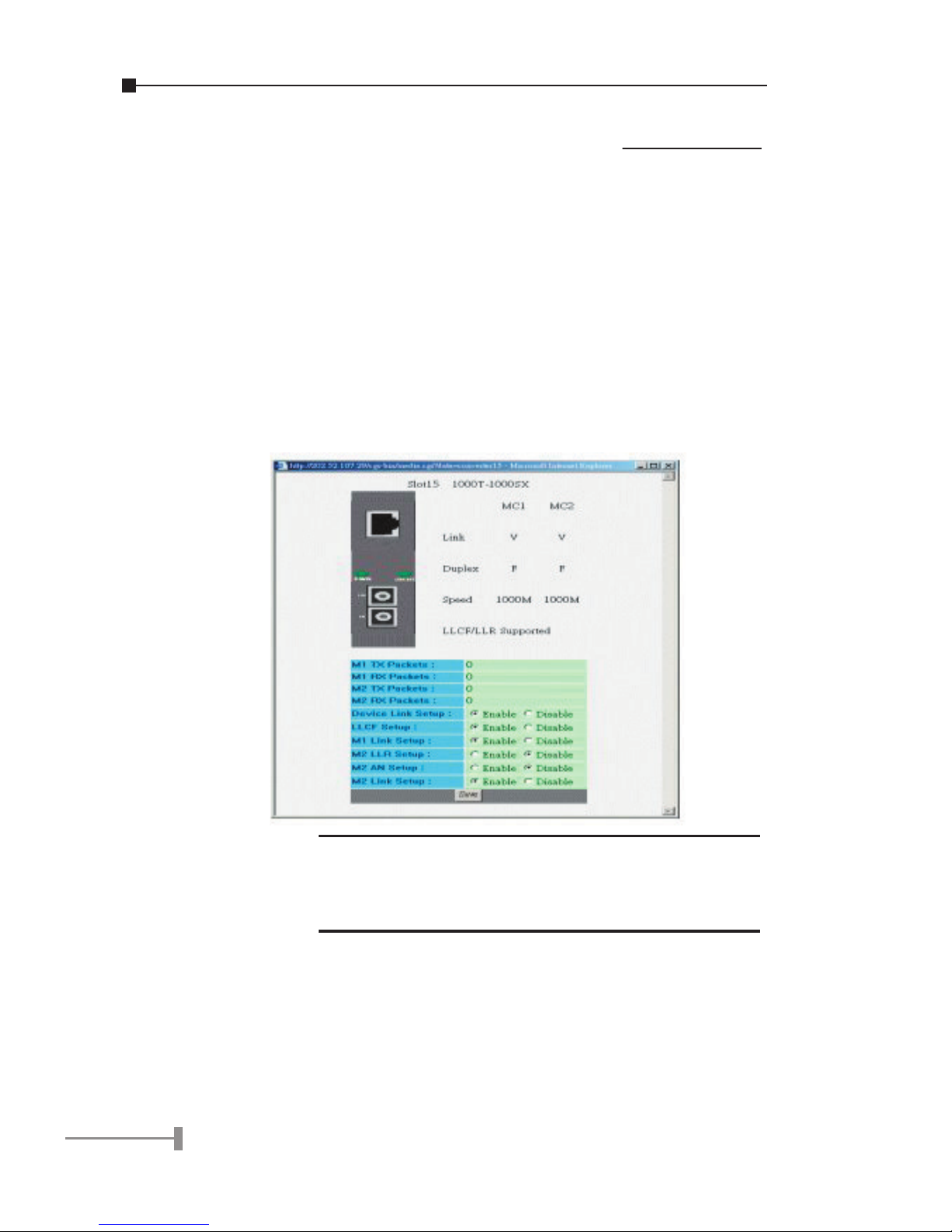

MANAGE THE MEDIA CONVERTER
The Intelligent Media Converter Chassis that can control this
Smart Media Converter through the management system, this
Smart Media Converter can be controlled through Web Browser,
SNMP management utility and terminal emulation program.
The Intelligent Media Converter Chassis will detect the setting on
the DIP switches and display out the status, also the Management
Chassis can control the function through the maanagement
system.
NOTE:
To control the function in a working station,
need to collocate together with Intelligent
Media
