Planet GT-1205A Bedienungsanleitung

10/100/1000Base-T to Dual 1000Base-X SFP

Media Converter

GT-1205A

User’s Manual

Trademarks

Contents subject to which revision without prior notice.

PLANET is a registered trademark of PLANET Technology Corp.

All other trademarks belong to their respective owners.

Disclaimer

PLANET Technology does not warrant that the hardware will

work properly in all environments and applications, and makes

no warranty and representation, either implied or expressed,

with respect to the quality, performance, merchantability, or

tness for a particular purpose.

PLANET has made every effort to ensure that this User’s Manual

is accurate; PLANET disclaims liability for any inaccuracies or

omissions that may have occurred.

Information in this User’s Manual is subject to change without

notice and does not represent a commitment on the part of

PLANET. PLANET assumes no responsibility for any inaccuracies

that may be contained in this User’s Manual. PLANET makes no

commitment to update or keep current the information in this

User’s Manual, and reserves the right to make improvements

to this User’s Manual and/or to the products described in this

User’s Manual, at any time without notice.

If you nd information in this manual that is incorrect,

misleading, or incomplete, we would appreciate your comments

and suggestions.

FCC Warning

This device has been tested and found to comply with the limits

for a Class B digital device, pursuant to Part 15 of the FCC

Rules. These limits are designed to provide reasonable protection

against harmful interference when the equipment is operated

in a commercial environment. This equipment generates, uses,

and can radiate radio frequency energy and, if not installed and

used in accordance with the Instruction manual, may cause

harmful interference to radio communications. Operation of

this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct

the interference at whose own expense.

CE Mark Warning

This is a Class B product. In a domestic environment, this

product may cause radio interference, in which case the user

may be required to take adequate measures.

Energy Saving Note of the Device

This power required device does not support Standby mode

operation. For energy saving, please remove the DC-plug to

discon-nect the device from the power circuit. Without removing

the DC-plug or switch off the device, the device will still

consume power from the power source. In the view of Saving

the Energy and reduce the unnecessary power consuming, it is

strongly suggested to power off or to remove the DC-plug for

the device if this device is not intended to be active.

WEEE Warning

To avo id the potential effects on the environment and

human health as a result of the presence of

hazardous substances in electrical and electronic

equipment, end users of electrical and electronic

equipment should understand the meaning of the crossed-out

wheeled bin symbol. Do not dispose of WEEE as unsorted

municipal waste and have to collect such WEEE separately.

Revision

PLANET Gigabit Ethernet Redundant Media Converter User’s

Manual

FOR MODEL: GT-1205A

Revision: 1.0 (Augest, 2011)

Part No.: 2350-AA4530-000

Table of Contents

1. Introduction ..................................................................... 5

1.1 Check List .................................................................. 5

1.2 Introduction To GT-1205A ............................................ 5

1.3 Key Features .............................................................. 6

2. Product Specication ......................................................... 6

2.1 Functional Specications .............................................. 6

2.2 LED Indicator ............................................................. 7

3. Installation....................................................................... 8

3.1 Product Outlook .......................................................... 8

3.2 Stand-alone Installation............................................... 9

3.3 Chassis Installation And Rack Mounting ...................... 11

3.4 Din-Rail Installation................................................... 11

4. Appendix A .................................................................... 12

A.1 Device’s RJ-45 Pin Assignments ................................. 12

A.2 RJ-45 Cable Pin Assignment ...................................... 12

A.3 Fiber Optical Cable Connection Parameter ................... 13

A.4 Power Information .................................................... 14

A.5 Available Modules ..................................................... 15

1. Introduction

1.1 Check List

Check the contents of your package for following parts:

GT-1205A x 1l

5V / 2A AC-DC Power Adapter x 1l

User’s Manual x 1l

Note

GT-1205A is with two vacant SFP module slot. The

1000Base-X SFP module is not bundled with in the

package

1.2 Introduction To GT-1205A

Thank you for choosing the 10/100/1000Base-T to Dual

1000Base-X SFP Media Converter.

The GT-1205A is a 3-Port Media Converter which supports

conversion between 10/100/1000Base-T and 1000Base-X

network. Different with the other one-port channel media

converter, the Media Converter is designed for critical networks

that require ber or copper link, such as ISP, telecom, hospital,

banking and enterprise. PLANET 3-Port Gigabit Media converter

is shown as following:

With the 3-Port switch mode, they work in high performance

Store and Forward mechanism; also can prevent packet loss

with IEEE 802.3x Flow Control (Full-Duplex) and Back Pressure

(Half-Duplex).

With 1000Base-X SFP ports, the GT-1205A is with high reliability

and exibility to extend the distance up to 550m, 10Km, 20Km,

or longer.

The Media Converter can be used as a stand-alone unit or as a

slide-in module to the PLANET Media Converter Chassis (MC-700

and MC-1500 series), it could be hot swappable in MC-Chassis.

1.3 Key Features

Standard

Complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3abl

10/100/1000Base-T, IEEE 802.3z, 1000Base-SX / LX

IEEE 802.3x Full-Duplex Flow-Control, Back-Pressure inl

Half-Duplex eliminate packets loss

Interface

Dual 1000Base-SX / LX SFP Fiber optic, Onel

10/100/1000Base-T Copper

Auto-Negotiation for 10/100Base-TX Half-Duplex orl

10/100/1000Base-T Full-Duplex

Auto MDI/MDI-Xl

Mechanical

5V/2A DC power supplyl

LED indicators for easy network diagnosel

Co-work with PLANET MC family Media Chassisl

(MC-700/1500/1500R/1500R48)

2. Product Specication

2.1 Functional Specications

Model GT-1205A

Ports Copper 1 x 10/100/1000Base-T port

Fiber 2 x 1000Base-X SFP interfaces

Optic Interface SFP

Cable

Twisted-pair

10Base-T: 2-Pair UTP CAT. 3, 4, 5, up

to 100 meter

100Base-TX: 2-Pair UTP CAT. 5, 5e up

to 100 meter

1000Base-T: 4-Pair UTP CAT. 5e, 6 up

to 100 meter

Fiber-optic

cable

50/125μm or 62.5/125μm multi-mode

ber cable, up to 220 & 550 meters

9/125μm single-mode cable,

provide long distance for

10/15/20/30/40/50/60/70/120km or

longer (vary on SFP module)

Switch Processing

Scheme Store-and-Forward

Switching Fabric 6Gbps / non-blocking

LED indicator

System: One Power LED

TP Port: One Speed, One LNK/ACT

Fiber Port: Two LNK/ACT

Dimension (W x D x H) 94 x 70 x 26 mm

Weight 191g (device only)

Power Requirement 5V DC, 2A max.

Power Consumption 5.4Watts / 18.5 BTU per hour max.

Standards

IEEE 802.3, 10Base-T

IEEE 802.3u, 100Base-TX

IEEE 802.3ab, 1000Base-T

IEEE 802.3z, 1000Base-SX / LX

IEEE 802.3x, Flow Control

2.2 LED Indicator

The LED indicators give you instant feedback on status of the

converter:

System

LED Color Function

PWR Green Lit: Power on.

GT-1205A -10/100/1000Base-T Port

LED Color Function

1Green

Lit Indicate that the ber optical port is link up.

Blink Indicate that the converter is actively sending

or receiving data over that port.

Off Indicate that the ber optical port is link

down.

2Green

Lit Indicate that the ber optical port is link up.

Blink Indicate that the converter is actively sending

or receiving data over that port.

Off Indicate that the ber optical port is link

down.

LNK/

ACT Orange

Lit Indicate that the copper port is link up.

Blink Indicate that the converter is actively sending

or receiving data over that port.

Off Indicate that the copper port is link down.

1000 Green

Lit Indicate that the copper port is operating at

1000Mbps.

Off Indicate that the copper port is link down or

10/100Mbps.

3. Installation

3.1 Product Outlook

Front Panel

Port-1 1000Base-X SFP slotl

Port-2 1000Base-X SFP slotl

Port-3 10/100/1000Base-T copper connectorl

Rear Panel

One DC jack for DCl

5V / 2A power input.

3.2 Stand-alone Installation

GT-1205A is with high reliability and exibility to extend the

distance up to 550m and 10/15/20/30/40/50/60/70/120km. It

depends on the 1000Base-SX / LX SFP transceiver modules. The

SFP transceiver is hot-pluggable and hot-swappable. You can

plug-in and out the transceiver to / from any SFP port without

having to power down the converter.

To install a GT-1205A stand-alone, on a desktop or shelf, simply

complete the following steps:

Step 1: Turn off the power of the device/station in a network

to which the GT-1205A will be attached.

Step 2: Ensure that there is no activity in the network.

Step 3: Slot in the 1000Base-X SFP. Make sure both side of

the SFP transceiver are with the same media type,

for example: 1000Base-SX / 550m multi-mode to

1000Base-SX / 550m multi-mode, 1000Bas-LX / 10km

single mode to 1000Base-LX / 10km single mode.

1000Base-X

LC Fiber 1000Base-X

LC Fiber

1000Base-X

SFP Transceiver

5V DC power

10/100/1000Base-T

UTP

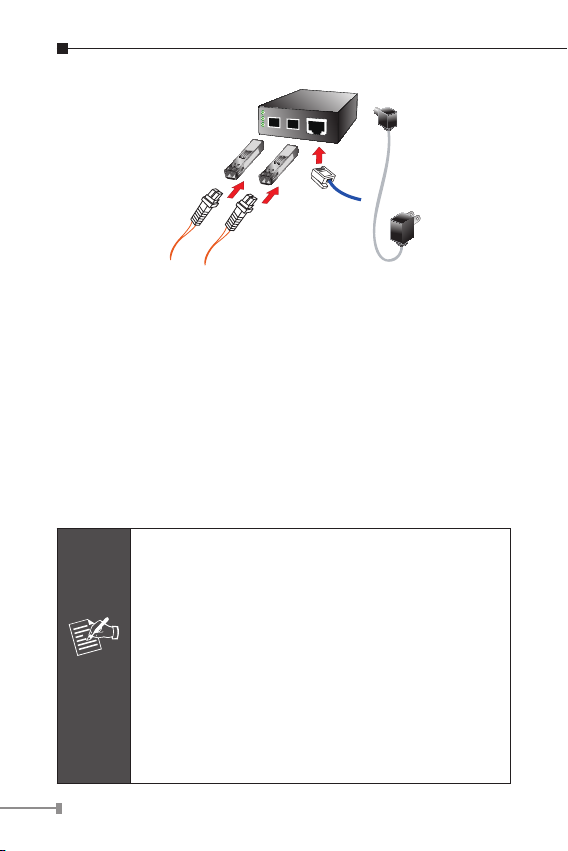

Figure 3-1: GT-1205A Media Converter Stand Alone Installation

Step 4: Connect the ber cable. Attach the duplex LC

connector on the network cable into the SFP

transceiver.

Step 5: Attach ber cable from the GT-1205A to the ber

network. TX, RX must be paired at both ends.

Step 6: Connect the 5V DC power adapter to the GT-1205A

and verify that the Power LED lights up.

Step 7: Turn on the power of the device/station; the LINK

LED should light when all cables are well attached.

Note

1. It is recommends using PLANET MGB series SFP

modules for the converter. If you insert a SFP

trans-ceiver that is not supported, the converter

will not recognize it. Please check appendix or

go visit our WEB site for details specification

information. http://www.planet.com.tw

2. To prevent from optic acceptor malfunction,

check the both wires / transmitter before power

on the con-verter.

3. To remove the SFP module, please remove the

fiber connectors in advanced and push the belt

or letch of the module. Pull out the module

with violent may damage the module and the

converter.

Andere Handbücher für GT-1205A

Inhaltsverzeichnis

Andere Planet Medienkonverter Handbücher

Planet

Planet VF-101-T Bedienungsanleitung

Planet

Planet Media Converter Chassis MC-1000R Bedienungsanleitung

Planet

Planet GT-702 Bedienungsanleitung

Planet

Planet VC-102M Bedienungsanleitung

Planet

Planet IXT-705AT Bedienungsanleitung

Planet

Planet ICS-100 Bedienungsanleitung

Planet

Planet FT-807 Bedienungsanleitung

Planet

Planet IPOE-17 S Series Bedienungsanleitung

Planet

Planet GT-922 Bedienungsanleitung

Planet

Planet GST-702/702S Bedienungsanleitung

Planet

Planet IGUP-805AT Bedienungsanleitung

Planet

Planet IGT-900 Series Bedienungsanleitung

Planet

Planet ET-508 Bedienungsanleitung

Planet

Planet FT-801 Bedienungsanleitung

Planet

Planet IGT-805AT Bedienungsanleitung

Planet

Planet WGT-705A Bedienungsanleitung

Planet

Planet vc-234 vdsl2 Bedienungsanleitung

Planet

Planet POE-165S Bedienungsanleitung

Planet

Planet GT-80X Series Bedienungsanleitung

Planet

Planet GT-805A Bedienungsanleitung

Planet

Planet IFT-802 Bedienungsanleitung

Planet

Planet VC-101M Bedienungsanleitung

Planet

Planet FT-90X FT-902S15 Bedienungsanleitung

Planet

Planet ICS-100 Bedienungsanleitung

Beliebte Medienkonverter Handbücher anderer Marken

SoundTraxx

SoundTraxx Blunami BLU-2200 Bedienungsanleitung

SPROLINK

SPROLINK VA1 Bedienungsanleitung

Acclaim Lighting

Acclaim Lighting DDC-1-AC Bedienungsanleitung

Nikon

Nikon AF-S TC-20E III Bedienungsanleitung

Axis

Axis AXIS Q7406 Bedienungsanleitung

Omega

Omega TAC80B-J Bedienungsanleitung

Zoom

Zoom Thunderbolt TAC-2R Bedienungsanleitung

OST

OST iConverter 10/100M Bedienungsanleitung

Vertiv

Vertiv Netsure Bedienungsanleitung

birddog

birddog MINI Bedienungsanleitung

Roland

Roland GI-10 Bedienungsanleitung

Wallenstein

Wallenstein WX310 Bedienungsanleitung

Pace

Pace MSS 200-1 Bedienungsanleitung

Solar Converters

Solar Converters EQ 12/24-50 Bedienungsanleitung

CYP

CYP EL-7400V Bedienungsanleitung

TIE

TIE MIDI 1i1o Bedienungsanleitung

DCS

DCS Vivaldi Upsampler Bedienungsanleitung

Westermo

Westermo MCW-211 SERIES Bedienungsanleitung
