Planet FT-801 Bedienungsanleitung

Contents subject to revision without prior notice.

PLANET is a registered trademark of PLANET Technol-

ogy Corp. The information in this manual is subject to

change without notice. All other trademarks belong to

their respective owners.

Disclaimer

PLANET Technology does not warrant that the hardware

will work properly in all environments and applications,

and makes no warranty and representation, either

implied or expressed, with respect to the quality, per-

formance, merchantability, or tness for a particular

purpose.

PLANET has made every effort to ensure that this User’s

Manual is accurate; PLANET disclaims liability for any

inaccuracies or omissions that may have occurred.

Information in this User’s Manual is subject to change

without notice and does not represent a commitment on

the part of PLANET. PLANET assumes no responsibility

for any inaccuracies that may be contained in this User’s

Manual. PLANET makes no commitment to update or

keep current the information in this User’s Manual, and

reserves the right to make improvements to this User’s

Manual and/or to the products described in this User’s

Manual, at any time without notice.

If you nd information in this manual that is incorrect,

misleading, or incomplete, we would appreciate your

comments and suggestions.

FCC Warning

This equipment has been tested and found to comply

with the regulations for a Class A digital device, pur-

suant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against

harmful interference when the equipment is operated in

a commercial environment. This equipment generates,

uses, and can radiate radio frequency energy and, if not

installed and used in accordance with this user’s guide,

may cause harmful interference to radio communica-

tions. Operation of this equipment in a residential area

is likely to cause harmful interference, in which case the

user will b

CE mark Warning

This is a Class A product. In a domestic environment,

this product may cause radio interference, in which case

the user may be required to take adequate measures.

Revision

User’s manual for PLANET Fast Ethernet Converter

Multi-mode: FT-801, FT-802

Single-mode: FT-802S

Rev 3.0 (May.2003)

Part No. 2010-000002-002

Table of Contents

Overview 1

Model List 1

Checklist 1

Product Outlook 2

Installing the Converter 3

Duplex Mode setting 4

LED indication 5

Cable Connection Parameter 6

FT-80X Technical Specifications 7

Power information 8

Overview

Thank you for purchasing PLANET FT-80X family 10/100Mbps

Ethernet Twisted pair to 100Base-FX Fiber-optic Bridge Converter.

This converter is used to convert one type media signal to other

type equivalent that allows two type segments connect easily,

efciently and inexpensively. This converter can be used as a

standalone unit or as a slide-in module to the 19” media chassis

(up to 15 units) for a TP and Fiber combined networks at a central

wiring closet. Please contact with your sales representative for

more about the 19” media chassis.

Model List

Your Fast Ethernet Converter comes with one of the following

models.

ð FT-801: on board ST fiber connector

ð FT-802/S: on board SC fiber connector

Models with last character “S” indicate the ber-port is with

“Single-Mode” optic ber connector.

In the following sections, the term “FT-80X” indicates the product

family above.

Checklist

Your FT-80X carton should contain the following items:

ð The Fast Ethernet Bridge Converter

ð AC-DC Power Adapter (Output: 5VDC, 2 A max.)

ð This user’s manual

If any item is missing or damaged, please consult the dealer from

whom you purchased your Fast Ethernet Converter.

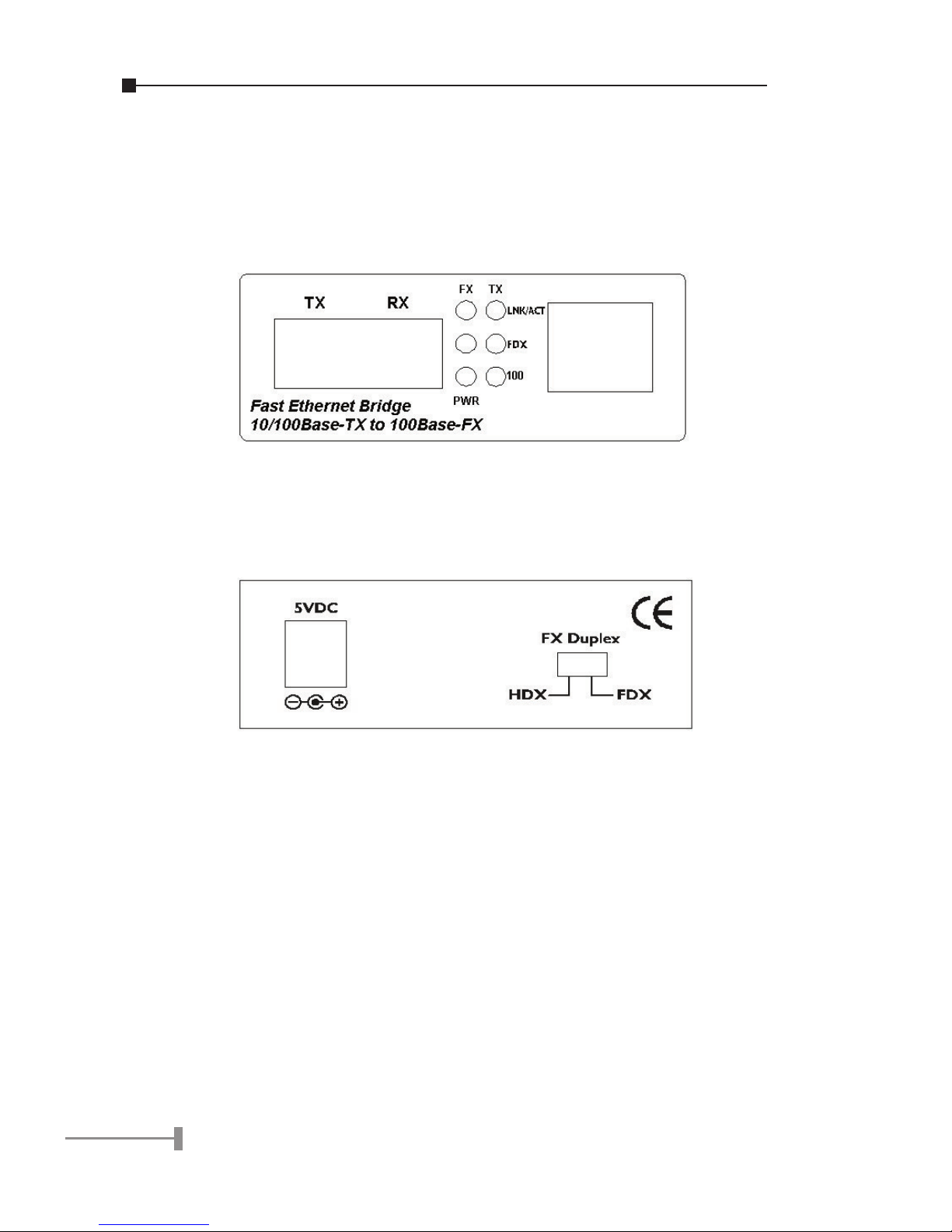

Product Outlook

Right View

There are one RJ-45 Twisted-Pair jack (Auto-MDI/MDI-X), one

ber-optic connector and six LED indicators.

Left View

One DIP switch for Fiber-optic mode operating selection, FDX for

full-duplex, and HDX for half-duplex.

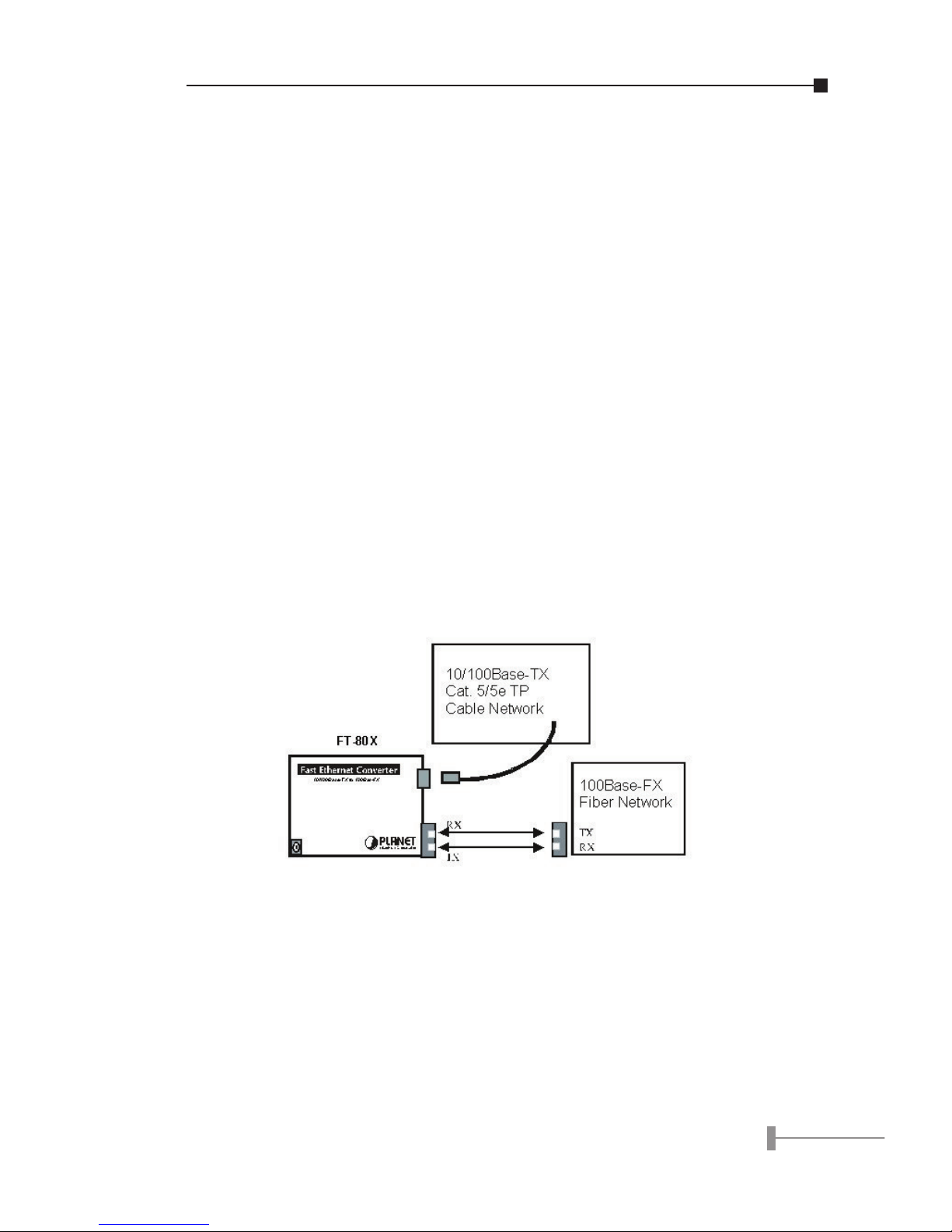

Installing the Converter

Please follow these steps to install the converter:

· Turn off the power of the device/station in a network to

which the FT-80X will be attached

· Ensure that there is no activity in the network

· Attach fiber cable from the FT-80X to the fiber network.

TX, RX must be paired at both ends

· Attach a Cat. 5 UTP cable from the 10/100Base-TX net-

work to the RJ-45 port on the FT-80X.

· Connect the 5VDC power adapter to the FT-80X and

verify that the Power LED lights up.

· Turn on the power of the device/station, the TX Link and

FX Link LEDs should light when all cables are attached

Note:

• RJ-45/STP, UTP Cat 5, straight/crossover cable is ac-

cepted

• Please refer to section 8 for more about the wiring

distance of your TP, Optic-fiber networks.

Duplex Mode setting

The TP port of FT-80X supports duplex mode detection by auto-

negotiation (A-N). The following is the duplex mode parameters:

Fast Ethernet Device FT-80X Duplex

Mode support

Ethernet / Fast Ethernet Hub Half-Duplex

Ethernet / Fast Ethernet Switch

(without A-N) Half-Duplex

Fast Ethernet Devices *

Support Auto-Negotiation

Full-Duplex /

Half-Duplex

Note: Normally, an A-N switch will detect and set to full-

duplex, where a dual-speed hub will detects half.

There is a DIP-switch as in the left view as section 4. Please

check and follow the duplex mode of the ber device and have

the duplex selection to your FT-80X.

LED indication

LED COLOR DESCRIPTION

FX LNK /

ACT Green

Blinks: when any FX packets trans-

mitting and receiving

Lit: when Fiber connection is good

TX LNK /

ACT Green

Blinks: when any TP packets trans-

mitting and receiving

Lit: when TP connection is good

FX FDX Green Lit: when Full-duplex mode is en-

abled in FX port

TX FDX Green

Lit: when Full-duplex mode is en-

abled (detect by Auto-Negotiation)

in TP port

100 Green

Lit when the TP port runs in

100Mbps.Remains off while LINK

LED lit represent the TP port runs

in 10Mbps

PWR Green Lit when +5VDC power detected

Note: Fiber-optic Partner should be set to the correct

mode according to this FDX indicator for optimal

network performance.

Cable Connection Parameter

The limitations are as below:

Duplex Connection Limitation (max.)

Twisted Pair

Half / Full Node to Node

Node to Switch/Hub 100 meters

Multi-Mode Converters

MM Half Node to Node

Node to Switch 412 meters

MM Full Node to Node

Node to Switch 2 kilometers

Single-Mode Converters (FT-802S*)

SM Full Node to Node

Node to Switch Depends on model

*Note: Consult your local dealer for more about our

single mode fiber connectivity.

FT-80X Technical Specifications

The FT-80X comes with the following standard features:

· Standard: IEEE802.3/u, 10/100Base-TX and

100Base-FX

· Connectors:

ð One RJ-45 (Auto-MDI/MDI-X) Twisted Pair, EIA568

ð One Fiber-optic, 1300nm wavelength, connector-

type vary with model

· Data Transfer Rate : 10/100Mbps ( TP), 100Mbps (FX)

· Duplex mode support : Full or half-duplex mode by

Auto- Negotiation (TP)

· LED indicators : PWR, FX LNK/ACT, FX FDX TP 100, TP

LNK/ACT, TP FDX

· Power Requirement : 5V DC, 2A

· Ambient Temperature : 0° to 50°C (operating)

· Humidity : 5% to 90% (non-condensing)

· Dimension : 26 x 70 x 97mm (HxWxD)

· Cable :

ð UTP : Cat 5 UTP cable

ð Fiber : MM: 50/125 mm or 62.5/125 mm optic

fiber

ð Fiber : SM: 8.3/125, 8.7/125, 9/125 mm optic

fiber

Connecting to Router, Bridge, or Switch, Hub, please refer to the

device’s Technical Manual.
