Planet FGSW-2620 Bedienungsanleitung

24-Port 10/100Mbps + 2-Port

Gigabit Ethernet Switch

FGSW-2620

User’s Manual

Trademarks

Contents subject to revision without prior notice.

PLANET is a registered trademark of PLANET Technology Corp. All other

trademarks belong to their respective owners.

Disclaimer

PLANET Technology does not warrant that the hardware will work

properly in all environments and applications, and makes no warranty

and representation, either implied or expressed, with respect to

the quality, performance, merchantability, or tness for a particular

purpose.

PLANET has made every effort to ensure that this User’s Manual is

accurate; PLANET disclaims liability for any inaccuracies or omissions

that may have occurred.

Information in this User’s Manual is subject to change without notice

and does not represent a commitment on the part of PLANET. PLANET

assumes no responsibility for any inaccuracies that may be contained in

this User’s Manual. PLANET makes no commitment to update or keep

current the information in this User’s Manual, and reserves the right

to make improvements to this User’s Manual and/or to the products

described in this User’s Manual, at any time without notice.

If you nd information in this manual that is incorrect, misleading, or

incomplete, we would appreciate your comments and suggestions.

FCC Warning

This equipment has been tested and found to comply with the limits

for a Class A digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against

harmful interference when the equipment is operated in a commercial

environment. This equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in accordance with

the Instruction manual, may cause harmful interference to radio

communications. Operation of this equipment in a residential area

is likely to cause harmful interference in which case the user will be

required to correct the interference at his own expense.

CE Mark Warning

This is a Class A product. In a domestic environment, this product may

cause radio interference, in which case the user may be required to

take adequate measures.

WEEE Warning

To avoid the potential effects on the environment and

human health as a result of the presence of hazardous

substances in electrical and electronic equipment, end users

of electrical and electronic equipment should understand the

meaning of the crossed-out wheeled bin symbol. Do not

dispose of WEEE as unsorted municipal waste and have to collect such

WEEE separately.

Revision

PLANET 24-Port 10/100Mbps+ 2-Port Gigabit Ethernet Switch User's

Manual

FOR Model: FGSW-2620

Rev: 3.0 (October, 2007)

Part No: 2010-A50060-001

TABLE OF CONTENTS

1. Introduction ............................................................................... 5

1.1 Package Contents ................................................................ 5

1.2 How to Use This Manual ..................................................... 5

1.3 Product Features ................................................................. 6

1.4 Product Specications .......................................................... 7

2. Installation................................................................................. 8

2.1 Product Description.............................................................. 8

2.1.1 Product Overview ........................................................ 8

2.1.2 FGSW-2620 Front Panel............................................... 8

2.1.3 LED Indicators ............................................................ 9

2.1.4 FGSW-2620 Rear Panel...............................................10

2.2 Installing a FGSW-2620 ......................................................10

2.2.1 Desktop Installation....................................................10

2.2.2 Rack Mounting ...........................................................11

3. Switch Operation .......................................................................14

3.1 Address Table.....................................................................14

3.2 Learning ............................................................................14

3.3 Forwarding & Filtering.........................................................14

3.4 Store-and-Forward..............................................................14

3.5 Auto-Negotiation ................................................................15

4. Troubleshooting .........................................................................17

Appendix A Networking Connection .................................................18

A.1 Switch‘s RJ-45 Pin Assignments...........................................18

A.2 RJ-45 cable Pin Assignments ...............................................19

1. Introduction

1.1 Package Contents

Check the contents of your package for following parts:

● 24-Port 10/100Mbps+ 2-Port Gigabit Ethernet Switch x1

● User's manual x1

● Power cord x1

● Two Rack-Mounting Brackets with Attachment Screws x1

If any of these are missing or damaged, please contact your dealer

immediately, if possible, retain the carton including the original packing

material, and use them against to repack the product in case there is a

need return to it to us for repairing.

1.2 How to Use This Manual

This 24-Port 10/100Mbps+ 2-Port Gigabit Ethernet Switch Us-

ers’ Manual is structured as follows:

● Section 2, Installation

It explains the functions of Switch and how to physically install the

FGSW-2620.

● Section 3 Switch operation

It explains the Switch operation of FGSW-2620.

● Section 4 Troubleshooting

It contains troubleshooting guide of FGSW-2620.

● Appendix A

It contains cable information of FGSW-2620.

In the following section, the term “Switch” means the Switch, i.e.

FGSW-2620; term of “switch” can be any third part switches.

1.3 Product Features

● Comply with the IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE

802.3z Gigabit Ethernet standard

● 24-Port 10/100Mbps Fast Ethernet ports

● 2 10/100/1000Mbps ports

● Each Switching ports support auto-negotiation-10/20, 100/200Mbps,

1000/2000Mbps supported

● Auto-MDI/MDI-X detection on each RJ-45 port

● Prevents packet loss with back pressure (half-duplex) and IEEE

802.3x PAUSE frame ow control (full-duplex)

● High performance Store and Forward architecture, broadcast storm

control, runt/CRC ltering eliminates erroneous packets to optimize

the network bandwidth

● 4K MAC address table, automatic source address learning and ageing

● 2.5Mbits embedded memory for packet buffers

● 19-inch rack mount size

● EMI standards comply with FCC Class A, CE

1.4 Product Specications

Product FGSW-2620

Hardware Specication

Ports 24 10/100Base-TX RJ-45 Auto-MDI/MDI-X

ports

Gigabit ports 2 10/100/1000Mbps ports

Switch Processing

Scheme Store-and-Forward

Throughput (packet

per second) 6.54Mpps

Switch fabric 8.8Gbps

Address Table 4K entries

Share data Buffer 2.5Mbits

Flow Control Back pressure for half duplex, IEEE 802.3x

Pause Frame for full duplex

Dimensions 440 x 120 x 44 mm (1U height)

Weight 1.57 kg

Power Requirement 100~240 VAC, 50~60 Hz

Power Consumption

/ Dissipation 23.1 watts / 78 BTU

Temperature Operating: 0~50 degree C

Storage: -40~70 degree C

Humidity Operating: 5% to 90%, Storage: 5% to 90% (Non-

condensing)

Standards Conformance

Regulation

Compliance FCC Part 15 Class A, CE

Standards

Compliance

IEEE 802.3 (Ethernet)

IEEE 802.3u (Fast Ethernet),

IEEE 802.3x (Full-duplex ow control)

2. Installation

This section describes the functionalities of FGSW-2620 components

and guides how to install it on the desktop or shelf. Basic knowledge

of networking is assumed. Please read this chapter completely before

continuing.

2.1 Product Description

The PLANET FGSW-2620 provides 24 10/100Mbps Fast Ethernet ports

with 2 10/100/1000Mbps ports (port 25/26). The two Gigabit ports can

be 1000Base-T for 10/100/1000Mbps; the distance can be extended

from 100 meters (TP). The Switch with non-blocking backplane

and simplies the task of upgrading your LAN to cater for increased

bandwidth demand.

2.1.1 Product Overview

PLANET FGSW-2620 is Ethernet Switch with 24 RJ-45 10/100Mbps

ports. The Switch also provides up to two 10/100/1000Mbps ports for

cost effective high-performance network connectivity. With its 8.8Gbps

non-blocking switch fabric, the Switch can also provide a local, high

bandwidth, Fast Ethernet network for your departmental backbone.

This Switch also supports store-and-forward forwarding scheme to

ensure low latency and high data integrity, eliminates unnecessary

trafc and relieves congestion on critical network paths. With an

intelligent address recognition algorithm, Switch could recognize up to

8K different MAC address and enables ltering and forwarding at full

wire speed.

2.1.2 FGSW-2620 Front Panel

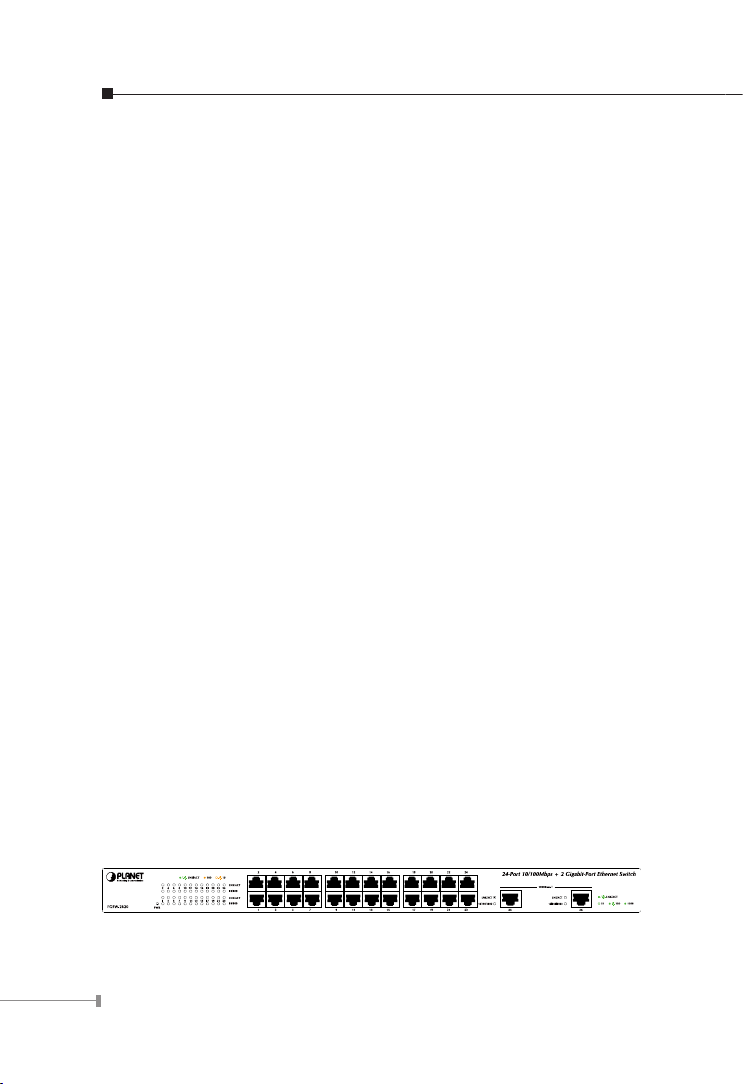

Figure 2-1 shows front panel of FGSW-2620.

Figure 2-1 FGSW-2620 Front Panel

2.1.3 LED Indicators

System

LED Color Function

PWR Green Lights to indicate that the Switch is powered on.

Per 10/100Mbps port

LED Color Function

LNK/ACT Green

Lights: to indicate the link through that port is

successfully established.

Blink: indicate that the Switch is actively sending

or receiving data over that port.

10/100 Orange

Steady Lights: to indicate the port is run at

100Mbps.

Blinking Slowly: to indicate the port is run at

10Mbps.

Per 10/100/1000Base-T port

LED Color Function

LNK/ACT Green

Lights: to indicate the link through that port

is successfully established.

Blink: indicate that the Switch is actively

sending or receiving data over that port.

10/100/1000 Green

Steady Lights: indicate the port is operating

at 1000Mbps.

Blinking Slowly: to indicate the port is run

at 100Mbps.

Off: to indicate the port is run at 10Mbps.
