16/24-Port 10/100/1000Mbps

802.3at PoE+ Ethernet Switch

GSW-1600HP/GSW-2620HP

User's Manual

Trademarks

Contents are subject to revision without prior notice.

PLANET is a registered trademark of PLANET Technology Corp. All other trademarks

belong to their respective owners.

Disclaimer

PLANET Technology does not warrant that the hardware will work properly in all

environments and applications, and makes no warranty and representation, either

implied or expressed, with respect to the quality, performance, merchantability, or

tness for a particular purpose.

PLANET has made every effort to ensure that this User’s Manual is accurate;

PLANET disclaims liability for any inaccuracies or omissions that may have

occurred.

Information in this User’s Manual is subject to change without notice and does not

represent a commitment on the part of PLANET. PLANET assumes no responsibility

for any inaccuracies that may be contained in this User’s Manual. PLANET makes

no commitment to update or keep current the information in this User’s Manual,

and reserves the right to make improvements to this User’s Manual and/or to the

products described in this User’s Manual, at any time without notice.

If you nd information in this manual that is incorrect, misleading, or incomplete,

we would appreciate your comments and suggestions.

FCC Warning

This equipment has been tested and found to comply with the limits for a Class

A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference when the equipment

is operated in a commercial environment. This equipment generates, uses, and

can radiate radio frequency energy and, if not installed and used in accordance

with the Instruction manual, may cause harmful interference to radio communica-

tions. Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at

his own expense.

CE Mark Warning

This is a Class A product. In a domestic environment, this product may cause radio

interference, in which case the user may be required to take adequate measures.

Energy Saving Note of the Device

This power required device does not support Standby mode operation.

For energy saving, please remove the power cable to disconnect the device from

the power circuit.

Without removing power cable, the device will still consuming power from the

power source. In the view of Saving the Energy and reduce the unnecessary power

consuming, it is strongly suggested to remove the power connection for the device

if this device is not intended to be active.

WEEE Warning

To avoid the potential effects on the environment and human health as a

result of the presence of hazardous substances in electrical and electronic

equipment, end users of electrical and electronic equipment should

understand the meaning of the crossed-out wheeled bin symbol. Do not

dispose of WEEE as unsorted municipal waste and have to collect such WEEE

separately.

Revision

PLANET 16/24-Port 10/100/1000Mbps 802.3at PoE+ Ethernet Switch User's Manual

Models: GSW-1600HP/GSW-2620HP

Revision: 1.0 (September, 2015)

Part No.: 2351-AK5020-001

Table of Contents

1. Introduction ............................................................................................... 5

1.1 Package Contents ................................................................................ 5

1.2 Product Description.............................................................................. 6

1.3 Features ............................................................................................. 7

1.4 Specication........................................................................................ 8

2. Hardware Description .................................................................................10

2.1 Front Panel ........................................................................................10

2.1.1 LED Indicators ..........................................................................10

2.2 Rear Panel .........................................................................................11

3. Hardware Installation .................................................................................13

3.1 Desktop Installation ............................................................................14

3.2 Rack Mounting ...................................................................................15

3.3 Installing the SFP Transceiver (GSW-2620HP only) ................................16

3.4 Product Applications............................................................................18

3.5 Power over Ethernet Powered Devices ..................................................19

4. Power over Ethernet Overview ....................................................................21

5. Troubleshooting .........................................................................................24

Appendix A Networking Connection ..................................................................25

A.1 Switch's Data RJ45 Pin Assignments - 1000Mbps, 1000BASE-T...............25

A.2 10/100Mbps, 10/100BASE-TX ..............................................................25

1. Introduction

Thank you for purchasing PLANET 16/24-Port 10/100/1000Mbps 802.3at PoE+

Ethernet Switch, GSW-1600HP and GSW-2620HP. The descriptions of these models

are shown below:

GSW-1600HP 16-Port 10/100/1000T 802.3at PoE+ Gigabit Ethernet Switch

GSW-2620HP 24-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SFP

Gigabit Ethernet Switch

“802.3at PoE+ Switch” mentioned in this Guide refers to the GSW-1600HP and

GSW-2620HP.

1.1 Package Contents

Open the box of the 802.3at PoE+ Switch and carefully unpack it. The box should

contain the following items:

The 802.3at PoE+ Switch x 1

User’s Manual x 1

Power Cord x 1

Rubber Feet x 4

SFP Dust Cap x 2 (GSW-2620HP only)

Two Rack-mounting Brackets with Attachment Screws x 8

If any of these pieces are missing or damaged, please contact your dealer

immediately, if possible, retain the carton including the original packing material,

and use them again to repack the product in case there is a need to return it to us

for repair.

In the following section, the term “802.3at PoE+ Switch” means the switch

devices, i.e., GSW-1600HP and GSW-2620HP; the term “switch” can be any third

switches.

1.2 Product Description

Centralized Power Management for Gigabit Ethernet PoE Networking

To facilitate high power PoE network applications with Gigabit speed transmission,

the 802.3at PoE+ Switch features high-performance Gigabit IEEE 802.3af

PoE (up to 15.4W) and IEEE 802.3at High-power PoE (up to 30.8W)

capabilities on all ports. By offering reliable switching technology and advanced

networking features, the 802.3at PoE+ Switch optimizes the installation and power

management of network devices such as wireless access points (AP), VoIP phones,

and security video cameras. It also eliminates time and cost of deployment by

integrating power and data switching into one unit, and freeing network devices

from restrictions of power outlet locations and the additional AC wiring.

Perfect Integration Solution for PoE IP Surveillance

The 802.3at PoE+ Switch brings an ideal, secure surveillance system at a lower

total cost. The 802.3at PoE+ Switch provides 16/24 10/100/1000Mbps 802.3at

PoE ports able to feed sufcient PoE power for 14 IEEE 802.3af / 7 IEEE 802.3at

PoE IP cameras at the same time. It is also able to connect with one 16-channel

NVR or two 8-channel NVR systems, uplinked to the backbone switch and the

monitoring center. With such high-performance switch architecture, the recorded

video les from the PoE IP cameras can be saved in the NVR system to enable the

administrators to control and monitor the surveillance images both in the local LAN

and the remote sites.

Energy-saving Design

The 802.3at PoE+ Switch uses new engine that incorporates two advanced Green

Networking technologies:

Idle Mode Link Down power saving

Intelligent Scales Power based on cable length

The Idle Mode Link Down power saving of the 802.3at PoE+ Switch complies with

IEEE 802.3az Energy Efcient Ethernet (EEE) standard to automatically lower

power for a given port when it is not linked. The Intelligent Scale Power technology

actively determines the appropriate power level based on the cable length. When

connecting to the 802.3at PoE+ Switch with Ethernet cable shorter than 20m, a

device can obtain maximum power saving because the 802.3at PoE+ Switch would

automatically detect the Ethernet cable length and reduce power usage. The

connected device can substantially reduce the overall power consumption, which

makes a signicant contribution to energy saving.

Easy Installation and Cable Connection

Providing data transfer and High Power PoE in one unit, the 802.3at PoE+ Switch

is able to reduce the need of extended cables and electrical outlets on the wall,

ceiling or any unreachable place. It helps to lower the installation costs and

simplify the installation effort. All RJ45 copper interfaces of the 802.3at PoE+

Switch support 10/100/1000Mbps auto-negotiation for optimal speed detection

through RJ45 Category 6, 5 or 5e cables. It also supports standard auto-MDI/

MDI-X that can detect the type of connection to any Ethernet device without

requiring special straight-through or crossover cables.

Flexible Extension Solution (GSW-2620HP only)

The two mini-GBIC slots built in the GSW-2620HP are compatible with the

1000BASE-SX/LX SFP (Small Form-factor Pluggable) ber transceiver to uplink

to backbone switch and monitoring center in long distance. The distance can be

extended from 550 meters (multi-mode ber) to 10/20/30/40/50/60/70/120

kilometers (single-mode ber or WDM ber). They are well suited for applications

within the enterprise data centers and distributions.

1.3 Features

Physical Port

16/24-port 10/100/1000BASE-T Gigabit RJ45 copper

2 1000BASE-X mini-GBIC/SFP slots (GSW-2620HP only)

Power over Ethernet

Complies with IEEE 802.3at High Power over Ethernet

Complies with IEEE 802.3af Power over Ethernet

Up to 16/24 ports of IEEE 802.3af/802.3at devices powered

Supports PoE Power up to 30.8 watts for each PoE port

Each port supports 52V DC power to PoE Powered Device

220-watt PoE budget

Auto detects powered device (PD)

Circuit protection prevents power interference between ports

Remote power feeding up to 100m

Switching

Hardware based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X

Flow control for full duplex operation and back pressure for half duplex opera-

tion

Integrates address look-up engine, supporting 8K absolute MAC addresses

9K Jumbo frame supports all speeds (10/100/1000Mbps)

IEEE 802.1Q VLAN transparency

Automatic address learning and address aging

Supports Energy-Efcient Ethernet (EEE) function (IEEE 802.3az)

Hardware

19-inch desktop size, 1U height

LED indicators for PoE ready and PoE activity

Ethernet Link Energy-saving technology

- Link down power saving

- Intelligent scale power based on cable length

1.4 Specications

Model GSW-1600HP GSW-2620HP

Hardware Specications

10/100/1000BASE-T Copper

Ports

16 auto-MDI/MDI-X

ports

24 auto-MDI/MDI-X

ports

802.3af / 802.3at PoE

Injector Port 16 24

1000BASE-X SFP/mini-GBIC

Slots NA 2

Switch Architecture Store-and-Forward

Switch Fabric 32Gbps/non-blocking 52Gbps/non-blocking

Switch Throughput@64 bytes 23.8Mpps@64 bytes 38.6Mpps@64 bytes

MAC Address Table 8K entries

Jumbo Frame 9216 bytes

Flow Control IEEE 802.3x pause frame for full-duplex; back

pressure for half-duplex

LED

System: Power (Green)

10/100/1000T RJ45

Interfaces

1000 LNK/ACT (Green),

10/100 LNK/ACT

(Orange), PoE (Orange)

System: Power (Green)

10/100/1000T RJ45

Interfaces

1000 LNK/ACT (Green),

10/100 LNK/ACT

(Orange), PoE (Orange)

1000Mbps SFP

Interfaces

1000 LNK/ACT (Green)

Dimensions (W x D x H) 445 x 207 x 45 mm (1U height)

Enclosure Metal

Weight 2.54kg 2.85kg

Power Requirements AC 100~240V, 50/60Hz,

3.5A max.

100~240V AC, 50/60Hz,

4A (max.)

Power Consumption/

Dissipation Max. 260 watts/885 BTU

Thermal Fan 2

Power over Ethernet

PoE Standard IEEE 802.3af Power over Ethernet/PSE

IEEE 802.3at Power over Ethernet Plus/PSE

PoE Power Output

Per port 52V DC, 300mA. max. 15.4 watts (IEEE

802.3af)

Per port 52V DC, 600mA. max. 30 watts (IEEE

802.3at)

PoE Power Budget 220 watts

Number of PDs, 7 watts 16 24

Number of PDs, 15.4 watts 14 14

Number of PDs, 30 watts 7 7

Standards Conformance

Regulatory Compliance FCC Part 15 Class A, CE

Standards Compliance

IEEE 802.3 10BASE-T

IEEE 802.3u 100BASE-TX

IEEE 802.3ab Gigabit 1000BASE-T

IEEE 802.3z Gigabit SX/LX

IEEE 802.3x Flow control and back pressure

IEEE 802.3af Power over Ethernet

IEEE 802.3at High Power over Ethernet

IEEE 802.3az Energy-Efcient Ethernet

Environment

Operating Temperature: 0 ~ 50 degrees C

Relative Humidity: 5 ~ 95% (non-condensing)

Storage Temperature: -10 ~ 70 degrees C

Relative Humidity: 5 ~ 95% (non-condensing)

2. Hardware Description

This product provides three different running speeds – 10Mbps, 100Mbps and

1000Mbps – in the same switch and automatically distinguishes the speed of

incoming connection.

This section describes the hardware features of 802.3at PoE+ Switch. For easier

management and control of the 802.3at PoE+ Switch, familiarize yourself with its

display indicators and ports. Front panel illustrations in this chapter display the unit

LED indicators. Before connecting any network device to the 802.3at PoE+ Switch,

please read this chapter carefully.

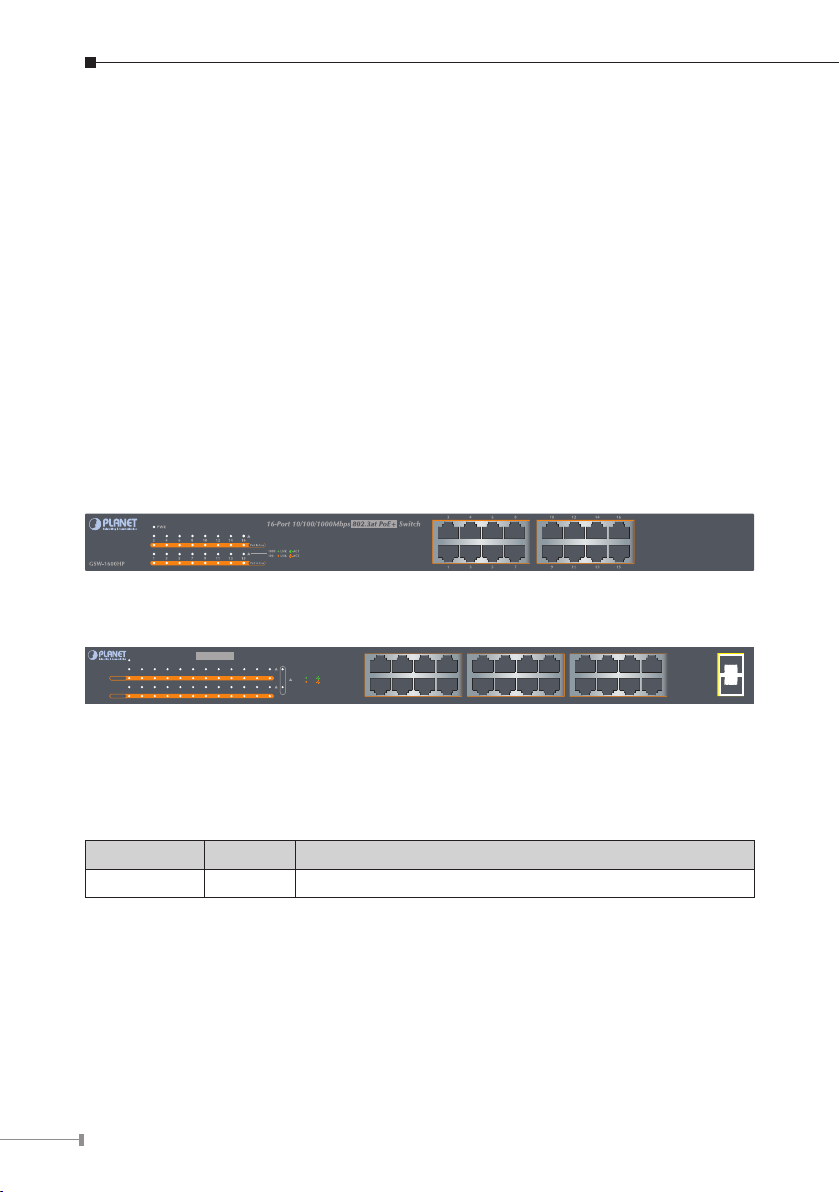

2.1 Front Panel

The Front Panel of the 802.3at PoE+ Switch consists of 16/24 auto-sensing

10/100/1000Mbps Ethernet RJ45 ports. The LED Indicators are also located on the

front panel of the 802.3at PoE+ Switch.

Figure 2-1: GSW-1600HP Switch Front Panel

PoE In Use

1 3 5 7 9 11 13 15 17 19 21 23

PWR

4 6 8 10 12 14 16 18 20 22 24

2468

1357

10 12 14 16

9 11 13 15

18 20 22 24 26

2517 19 21 23

GSW-2620HP

ACTLNK1000

ACTLNK10/100

24-Port Gigabit 802.3at PoE +

2G SFP Ethernet Switch

Figure 2-2: GSW-2620HP Switch Front Panel

2.1.1 LED Indicators

System

LED Color Function

PWR Green Lights to indicate the Switch has power.

Andere Handbücher für GSW-1600HP

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Planet Netzwerk-Router Handbücher

Planet

Planet CS-5800 Bedienungsanleitung

Planet

Planet WNRT-627 Bedienungsanleitung

Planet

Planet GRT-402 Bedienungsanleitung

Planet

Planet XRT-401C Bedienungsanleitung

Planet

Planet 85M Powerline to Ethernet Bridge with 4-Port Switch... Bedienungsanleitung

Planet

Planet GSW-2400HPS Bedienungsanleitung

Planet

Planet WNRT-625G Bedienungsanleitung

Planet

Planet FSD-1603 Bedienungsanleitung

Planet

Planet FGSW-2620 Bedienungsanleitung

Planet

Planet FNSW-2400PS Bedienungsanleitung

Planet

Planet FNSW-4800 Bedienungsanleitung

Planet

Planet WNRT-320GS Bedienungsanleitung

Planet

Planet XRT-401F Bedienungsanleitung

Planet

Planet PL-501-EU Bedienungsanleitung

Planet

Planet MAP-2100 Bedienungsanleitung

Planet

Planet IVR-100 Series Bedienungsanleitung

Planet

Planet GSD-800S Bedienungsanleitung

Planet

Planet WGSW-2620PV Bedienungsanleitung

Planet

Planet WRT-403 Bedienungsanleitung

Planet

Planet FGSD-1022 Bedienungsanleitung

Planet

Planet WGSD-10020 Bedienungsanleitung

Planet

Planet XRT-401D Bedienungsanleitung

Planet

Planet FGSW-1822VHP Bedienungsanleitung

Planet

Planet SW-504 Bedienungsanleitung

Beliebte Netzwerk-Router Handbücher anderer Marken

Allnet

Allnet ALL0333AU Bedienungsanleitung

HomeSeer

HomeSeer HT-SEL Bedienungsanleitung

Sercomm

Sercomm Genesis OC3505D Bedienungsanleitung

Billion

Billion BIPAC 5102 Series Bedienungsanleitung

TP-Link

TP-Link TD-8817 Bedienungsanleitung

Motorola

Motorola MR1900 Bedienungsanleitung

Digi

Digi IX14 Bedienungsanleitung

Cisco

Cisco NCS 540 Handbuch

XAVi

XAVi X8821e Bedienungsanleitung

BEC

BEC 6200WZL Bedienungsanleitung

MikroTik

MikroTik hAP ac3 Series Bedienungsanleitung

Korenix

Korenix JetNet 5428G Series Bedienungsanleitung

NETGEAR

NETGEAR FS526T - Switch Bedienungsanleitung

Korenix

Korenix JetNet 5710G Series Bedienungsanleitung

Automated Logic

Automated Logic ZN551 Betriebsanleitung

Cisco

Cisco ASR 1000 Series Bedienerhandbuch

EnGenius

EnGenius ESR-9710 Bedienungsanleitung

Cisco

Cisco 805 Series Bedienungs- und Sicherheitshinweise
