Planet FWA-2100-NR Bedienungsanleitung

Industrial 5G NR Outdoor Unit (ODU)

FWA-2100-NR

Quick Installation Guide

Table of Contents

1. Package Contents................................................................................. 3

2. Requirement ........................................................................................ 4

3. Hardware Installation............................................................................ 5

3.1 SIM Card Installation ..................................................................... 5

3.2 Wiring the Ethernet Cable Installation.............................................. 6

3.3 Wall Hanging and Pole Mounting Installation ..................................... 7

4. Starting Web Management .................................................................... 9

5. RecoveringBacktoDefaultConguration ............................................. 12

6. Discovery through PLANET NMS Controller............................................ 13

7. Customer Support .............................................................................. 14

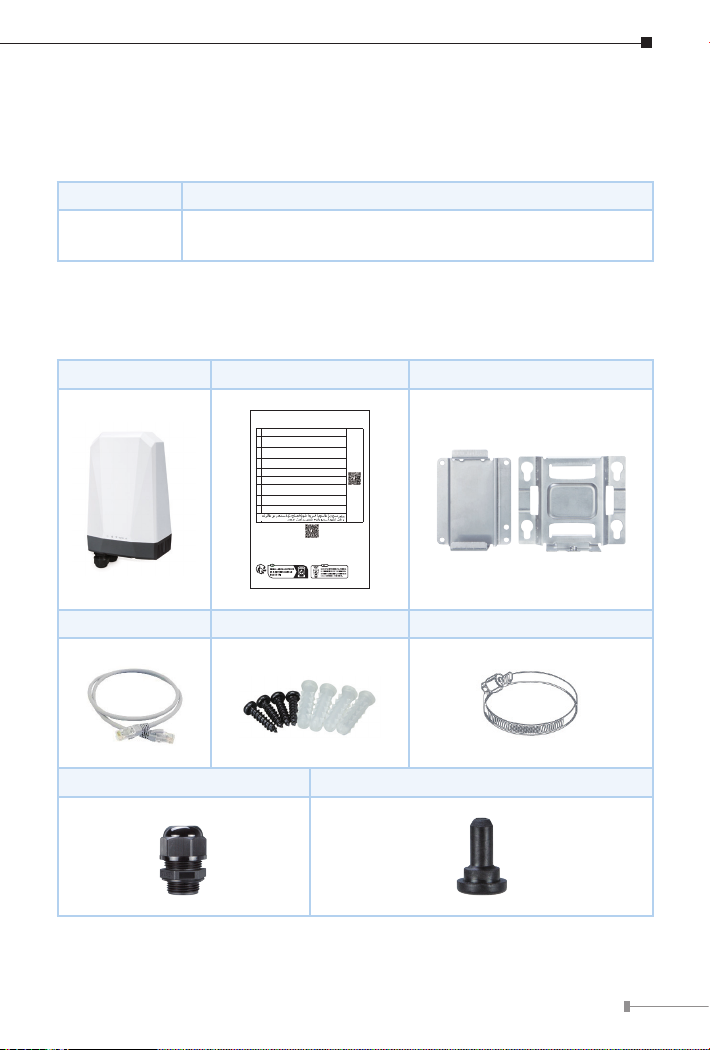

1. Package Contents

Thank you for purchasing PLANET Industrial 5G NR Cellular Outdoor Unit,

FWA-2100-NR. The description of this model is as follows:

Model Name Description

FWA-2100-NR Industrial 5G NR Outdoor Unit (ODU) with 1-port Gigabit

PoE PD

“5G ODU” is used as an alternative name in this Quick Installation Guide.

Open the box of the 5G ODU and carefully unpack it. The box should contain

the following items:

5G ODU x 1 QR Code Sheet Wall Bracket and Base x 1

Let’s get started with your PLANET product

FWA-2100-NR

EN Please scan the QR code to browse our online User’s Manual or Quick

Installation Guide and follow the instructions to complete the setup.

Quick

Installation

Bitte scannen Sie den QR Code sie werden per Browser zur

Bedienungsanleitung oder Schnellanleitung weiter geleitet. Folgen Sie den

Anweisungen um die Installation abzuschließen.

Veuillez scanner le code QR pour obtenir notre Notice d’Utilisation en

ligne ou notre Guide d’Installation Rapide et suivez les instructions pour

compléter la conguration

Escanee el código QR para encontrar el Manual del Usuario en línea o

la Guía de Instalación Rápida y siga las instrucciones para completar la

conguración.

IT Scansiona il codice QR per consultare online il Manuale utente o la Guida di

installazione rapida e segui le istruzioni per completare la congurazione.

PT Por favor, escaneie o QR code para navegarno Manual do Usuário ou Guia

de Instalação Rápida. Siga as instruções para completar a conguração.

Zeskanuj kod QR, aby otworzyć naszą internetową instrukcję obsługi

lub instrukcję szybkiej instalacji. Postępuj zgodnie z instrukcjami, aby

zakończyć poprawną kongurację.

One word modify: Отсканируйте QR-код, чтобы просмотреть наше

онлайн-руководство пользователя или руководство по быстрой

настройке, и следуйте инструкциям для завершения настройки

RO Te rugam sa scanezi codul QR, pentru a descarca User’s Manual sau Quick

Installation Guide si a urmari instructiunile necesare in nalizarea instalarii

Need more help?

PLANET online FAQs:

http://www.planet.com.tw/en/support/faq

Technical Support: [email protected]

Contents are subject to revision without prior notice.

PLANET is a registered trademark of PLANET Technology Corp.

All other trademarks belong to their respective owners.

Part No. 2341-B90570-000

EU Wireless Use Restriction

This device is restricted to indoor use

when operating in the 5150 to 5350

MHz freguency range. This restriction

applies in: AT, BE, BG, CH, C Y, CZ, DE,

DK, EE, EL, ES, FI, FR, HR, HU, IE, IS,

IT, LI, LT, LU, L V, M T, NL, NO, PL, P T,

RO, SE, SI, SK, TR, UA.

RJ45 Wall-mounted Kit x 1 Pole Clamp x 1

Wired Waterproof Kit x 2 Waterproof Rubber Stopper

If any item is found missing or damaged, please contact your local reseller for

replacement.

2. Requirement

zWorkstations running Windows 10/11, MAC OS X or later, Linux, UNIX, or

other platforms are compatible with TCP/IP protocols.

zWorkstations are installed with Ethernet NIC (Network Interface Card)

zEthernet Port Connection

Network cables -- Use standard network (UTP) cables with RJ45 connec-

tors.

The above PC is installed with Web browser and JAVA runtime environ-

ment plug-in.

It is recommended to use Chrome 98.0.xx to access the Cellular

Gateway. If the Web interface of the 5G ODU is not accessible,

please turn off the anti-virus software or firewall and then try it

again.

Using either a PoE injector, a PoE switch, or a DC adapter (12V,

1.5A) for power supply ensures the device functions properly.

Please note that these power supplies are not included in the

package.

3. Hardware Installation

Refer to the illustration and follow the simple steps below to quickly install

your 5G ODU.

3.1 SIM Card Installation

A. Unscrew the two screws on the device’s cover to remove the cover.

B. Insert the SIM card as directed by the SIM card interface.

SIM 2

SIM 1

C. Put back the device’s cover and tighten the screws.

A Nano SIM card with 5G NR and 4G LTE subscription

3.2 Wiring the Ethernet Cable Installation

By following the steps in the picture from left to right, put the network cable

into the waterproof connector, and tighten the connector. Plug the cable into

the device’s LAN port, and tighten the waterproof connector with the device.

Plug the other end of the network cable into the PoE port of the PoE switch to

nishtheinstallation.

Please make sure that the waterproof connector is securely

fastened with 5G ODU to prevent internal water seepage.

3.3 Wall Hanging and Pole Mounting Installation

Wall hanging

Step 1: Lock the base to the device.

Step 2: Connect the wall bracket to the base and fasten the screws.

Step 3: Drill 4 holes with a 3mm diameter on the wall. The horizontal and

vertical distances between the 2 holes are 69.5mm and 45mm,

respectively.

Step 4: Place four anchors inside the hole by hammering them. Then screw

the four screws leaving a space of 2mm apart as shown in the

circled diagram below.

1 2

Step 5: The switch, shown in the picture below, can now be hung on the

wall.

1Place against a wall

2Hang up

3mm Screw

4G/5G

45mm

69.5mm

Pole mounting

To install the base and wall bracket, refer to Step 1 and Step 2 in Device

Installation (Wall Hanging).

Step 6: The pole clamp goes through the hole of the wall bracket, and is

wrappedaroundthepole.Tonishtheinstallation,fastentheclamp.

4. Starting Web Management

The following shows how to start up the Web Management of the 5G ODU.

Note the 5G ODU is congured through an Ethernet connection. Please make

sure the manager PC must be set to the same IP subnet address.

For example, the default IP address of the 5G ODU is 192.168.1.1, then the

manager PC should be set to 192.168.1.x (where x is a number between 2

and 254), and the default subnet mask is 255.255.255.0.

PC/Workstation with Web

Browser 192.168.1.x

PoE Switch/Injector

PoE

Figure 4-1: IP Management Diagram

The DHCP server of the Cellular Gateway is enabled. Therefore,

the LAN PC will get IP from the Cellular Gateway.

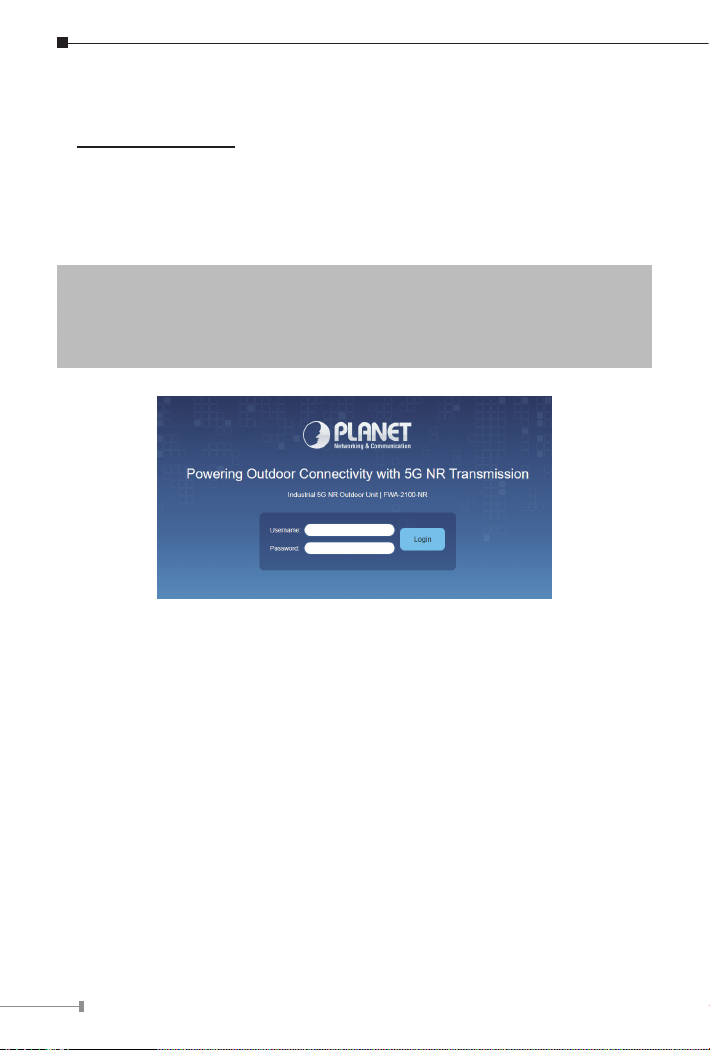

Logging in to the Cellular Gateway

1. Use Chrome 98.0.xx or above Web browser and enter IP address

http://192.168.1.1 (the factory default IP address or the one that you

have just changed in console) to access the Web interface.

2. When the following dialog box appears, please enter the default user name

“admin” and password “admin” (or the password you have changed

before) as shown in Figure 4-2.

Default IP Address: 192.168.1.1

Default User Name: admin

Default Password: admin

Default SSID (2.4G): PLANET_2.4G

Figure 4-2: Login Screen
