Step 2: To secure your powerline network:

1. Press and hold the Security button of PL-802 for 10

seconds. Then all the LEDs are off and restart. The

original network encryption setting is cleared.

2. Repeat 1 to clear another powerline’s original network

encryption setting.

3. Press the Security buttons of both powerlines for 1 to

3 seconds.

4. The power LED of both powerlines starts to blink

and try to communicate with their private network

encryption.

Note: The operation timeout is 120 seconds.

5. After the successful setup, the Power LED will

remain solid and the Powerline LED will start

blinking.

Push

Button

Within 2 minutes

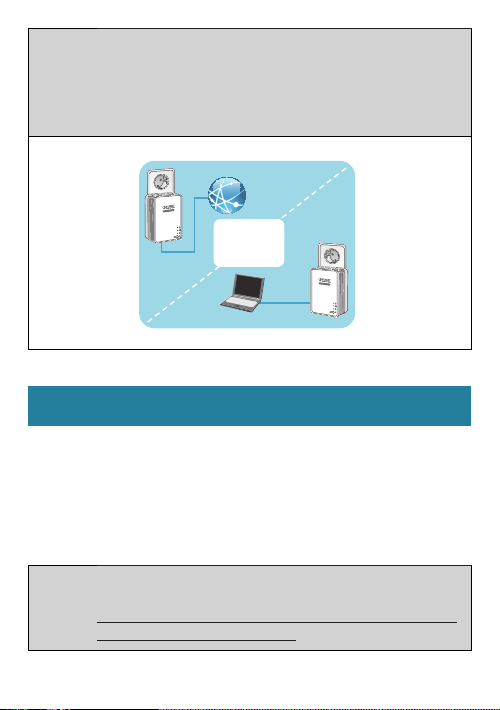

Step 3: 1. Connect the Ethernet port of PL-802 to your home

router, switch or ADSL modem’s Ethernet port via the

RJ45 cable.

2. Connect the Ethernet port of the PL-802 to the

computer via the RJ45 cable.

Linked

Internet

Laptop

6. Utility Installation for Windows

PLANET Power Packet Utility is a software utility used to search and

make connecting on a powerline network quick and simple.

The installation procedure for the Powe Packet Utility will vary

depending on which operating system you are using on your computer.

The following procedure is for installation under Windows 7. Installation

of other operating systems is similar.

Step 1: Download the Power Packet Utility from PLANET download

URL

http://www.planet.com.tw/en/support/download.

php?view=8184&key=PL-802#list

Step 2: The le you have downloaded is a zip le. Unzip it and

double-click on the “Setup.exe” executable le to begin

installation.

Step 3: The utility will be installed on your computer and

a new icon “Power Packet Utility” will appear

on your desktop.

Power Packet

Utility

Note

This utility is only for Windows 2000, 2003, XP, Vista,

Windows 7, Windows 8 and Windows 10.

Further Information:

The above steps introduce the simple installations of the PL-802. For

further details on the installation of the powerline, please refer to the

user manual which can be downloaded from the PLANET website.

http://www.planet.com.tw/en/support/download.

php?view=3&key=PL-802#list

If you have further questions, please contact the local dealer or

distributor where you purchased this product or you can contact PLANET

directly at the following email address: support@planet.com.tw

– 5 –

– 1 –

– 3 –

– 2 –

– 4 –

3. Physical Introduction

Port & Button Descriptions

Security Button

10/100BASE-TX

Ethernet RJ-45 Port

Button Description

Security

Reset: Hold the Security button down for 10 seconds to

reset to default setting. All of the LED lights will

go out 1 second and then light up again.

Pair: Press the Security button for 1~3 seconds to join

another powerline network. The power LED will ash

to search another powerline.

1. Package Contents

Thank you for choosing PLANET 600M AV2 Powerline Ethernet Bridge,

PL-802/PL-802-KIT. Open the box of the PL-802/PL-802-KIT carefully and

unpack it. The box should contain the following items:

PL-802

(Twin pack x 2) Quick Install Guide Ethernet Cable

(Twin pack x 2)

Note

If there is any item missing or damaged, please contact

the seller immediately.

2. Installation Precautions

Do not plug this powerline adapter into a powerstrip that has surge

protection. Doing so will degrade powerline performance. For best

performance, plug all powerline adapters directly into a wall outlet.

Good Performance Weak Performance

A maximum of 16 powerline adapters can be networked.

LED Descriptions

Ethernet LED

Power LED

Powerline LED

LED Denition

LED Status Description

Power

Green Steady on to indicate the PL-802 is connected to

the power outlet.

Blinking Standby mode.

Off Power off.

Powerline

Off This powerline adapter is not connected.

Green The quality of signal is excellent with optimal

network.

Orange The quality of signal is normal with standard

network.

Red The quality of signal is weak which causes slower

network.

Blinking

Green

The PL-802 is actively sending or receiving data

with another powerline.

Ethernet

Green Ethernet Link detected

Blinking The PL-802 is actively sending or receiving data

over the Ethernet port.

Off Ethernet Link not active.

Note

The Power LED indicator will blink in standby mode.

It will automatically get into standby mode, if the

Ethernet-link is lost for 60 seconds. If you unplug the

Ethernet cable, it will get into standby mode after 60

seconds. Under standby mode, Powerline and

Ethernet LEDs will both be off.

4. Hardware Installation

To create a powerline network, simply connect the PL-802 and the

Powerline Ethernet Bridge to AC wall power outlets that are on the

same electrical system. No additional conguration in the powerline

network is necessary.

Follow the steps below to install the PL-802 in the house.

Step 1: 1. Plug the Powerline Ethernet Bridge into AC wall

power outlets near the device you want to connect.

2. Plug the PL-802 into AC wall power outlet in your room

or ofce where you want to install.

3. Ensure the Power LEDs are on.

Plug
