Planet WNRT-320GS Bedienungsanleitung

3G / 802.11n Wireless Portable Router

with 3G HSUPA

WNRT-320GS

Quick Installation Guide

Table of Contents

1. Package Contents ................................................. 3

2. Physical Introduction ............................................. 4

3. Hardware Installation ............................................ 5

4. Web UI Conguration .......................................... 10

5. Further Information ............................................ 12

1.Package Contents

Thank you for choosing PLANET WNRT-320GS, the most

convenient wireless portable 3G router. Before installing

the router, please verify the contents inside the package

box.

WNRT-320GS Quick Guide CD-ROM

Power Adapter USB Cable Ethernet Cable Li-ion Battery

Note

If there is any item missed or damaged,

please contact the seller immediately.

2.Physical Introduction

Top Panel Description

Power/Battery

Wireless Connection

WPS

3G Connection

WAN/LAN

Front Panel Description

The Switch of Router

and AP Modes

Power Connector

RJ-45 Port

Power Switch

Side Panel Description

WPS Button

Reset Button

3.Hardware Installation

Please follow the instructions below to activate the

WNRT-320GS.

Step 1: Remove the cover in the bottom of the

machine. You can choose to insert the SIM

card into the slot for 3G connection, or connect

WNRT-320GS directly with the Cable/xDSL

Modem via UTP cable for Internet service. And

install the attached battery into the slot if you

need. Then replace the cover.

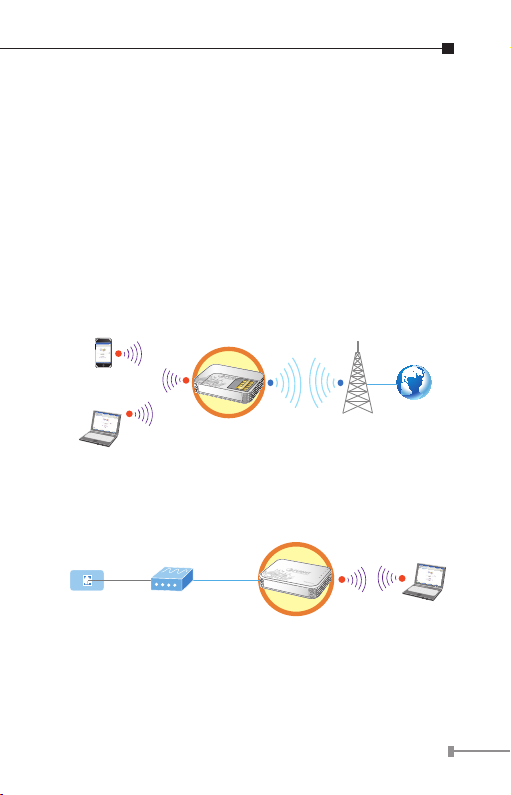

WNRT-320GS

Laptop

Smart Phone N

Base Station

Internet

Client

WNRT-320GS

Cable/xDSL

Modem

Phone Jack

RJ-45RJ-11

SSID: default

WAN

001101010

Note

1. Please only charge the battery by the

power adapter and USB cable attached in

the package.

2. When the battery is being charged, the

red LED will be lit up. After the battery

is fully charged, the LED will become

green. Please do not recharge the battery

continuously at this moment.

3. The battery should be kept in a cool and

dry place.

Step 2: Make sure the operation mode by the hardware

switch is at Router Mode (default setting).

ON/OFF AP/RT

Step 3: Connect the power adapter with the

WNRT-320GS if necessary. And then turn on it.

ON/OFF AP/RT

Step 4: Use your PC equipped wireless adapter to site

survey the wireless signal of WNRT-320GS, and

connect your PC with it wirelessly.

Default SSID: default

Default Wireless Encryption: WPA-PSK / WPA2-PSK

Default Password: 1234567890

Note

1. When the WNRT-320GS is at Router

Mode, the only RJ-45 port will act as a

WAN port. Therefore, the client devices

can only connect with WNRT-320GS wire-

lessly. However, if you need to connect

the WNRT-320GS with your computer by

UTP cable, please switch it to AP Mode

first. And the RJ-45 port will act as a

LAN port to be able to connect with your

computer.

Note

2. If you cannot obtain an IP address

automatically from the WNRT-320GS at

Router Mode after clicking the Connect

button on the screen, please follow

the procedures below to congure the

Windows Network Connection.

Step 1.Click “Start” button located at

lower-left corner of the screen.

Step 2.Click “Control Panel”.

Step 3.Click “Network and Sharing

Center”.

Step 4.Click “Change adapter settings”.

Step 5.Right-click “Wireless Network

Connection” or “Local Area

Connection”, and choose

“Properties”.

Step 6.Select “Internet Protocol

Version 4 (TCP/IPv4)” and click

“Properties” button.

Note

Step 7.Select “Obtain an IP address a

utomatically” and “Obtain DNS

server address automatically”,

then click “OK”.

4.WebUIConguration

Default IP Address: 192.168.1.1

Default Username: admin

Default Password: admin

Step 1: Open the Web browser and enter the default IP

address http://192.168.1.1

The default username and password are both

“admin”. Then click OK button to continue.
