POSIFLEX XT- 3015 Bedienungsanleitung

Part 1

FCC Notes:

This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions manual, may cause interference

to radio communications. It has been tested and found to comply with limits for a Class

A digital device pursuant to subpart J of Part 15 of FCC Rules, which are designed to

provide reasonable protection against interference when operated in a commercial

environment. Operation of this equipment in a residential area is likely to cause

interference in which case the user at his own expense will be required to take whatever

measures to correct the interference.

Warranty Limits:

Warranty terminates automatically when any person other than the authorized

technicians opens the machine. The user should consult his/her dealer for the problem

happened. Warranty voids if the user does not follow the instructions in application of

this merchandise. The manufacturer is by no means responsible for any damage or

hazard caused by improper application.

About This Manual:

Posiflex has made every effort for the accuracy of the content in this manual. However,

Posiflex Technology, Inc. will assume no liability for any technical inaccuracies or

editorial or other errors or omissions contained herein, nor for direct, indirect,

incidental, consequential or otherwise damages, including without limitation loss of

data or profits, resulting from the furnishing, performance, or use of this material.

This information is provided “as is” and Posiflex Technology, Inc. expressly disclaims

any warranties, expressed, implied or statutory, including without limitation implied

warranties of merchantability or fitness for particular purpose, good title and against

infringement.

The information in this manual contains only essential hardware concerns for general

user and is subject to change without notice. Posiflex Technology, Inc. reserves the

right to alter product designs, layouts or drivers without notification. The system

integrator shall provide applicative notices and arrangement for special options utilizing

this product. The user may find the most up to date information of the hardware from:

http://www.posiflex.com or http://www.posiflex.com.tw or http://www.posiflexusa.com

All data should be backed-up prior to the installation of any drive unit or storage

peripheral. Posiflex will not be responsible for any loss of data resulting from the use,

disuse or misuse of this or any other Posiflex product.

All rights are strictly reserved. No part of this documentation may be reproduced,

stored in a retrieval system, or transmitted in any form or by any means, electronic,

mechanical, photocopying, or otherwise, without prior express written consent from

Posiflex Technology, Inc. the publisher of this documentation.

©Copyright Posiflex Technology, Inc. 2013

All brand and product names and trademarks are the property of their respective holders.

XT– 3015

Fanfree LCD Touch Terminal

User’s Manual

Rev.: Original

P/N:

16640900010

Part 2

ALERT TO OUR HONORABLE CUSTOMERS:

Please always read thoroughly all the instructions and documents

delivered with the product before you do anything about it. Don’t

take any premature action before you have a full understanding of

the consequences.

This product contains inside a Lithium battery. Please always

follow local environmental protection laws / regulations for

disposal of used batteries and always replace only with battery of

same type.

If you have an UPS battery installed in the product:

Temperature above 40°C must be strictly avoided as it

could cause termination of battery life and unexpected result

even if the battery is not in work.

Do not power off the system just by shutting off the AC

power leaving the battery supporting the whole system till

completely exhausted. Repeatedly using it up or improper

maintenance reduces the battery life dramatically.

Always fully recharge the UPS battery at least once every 3

months if the battery is not connected.

Always disconnect the UPS battery from the system if the

system is to be left OFF for more than 72 hours to prevent

possible damage. Only connect the UPS battery back right

before you are going to re-power on the system.

Replace the UPS battery as soon as the monitoring software

indicates the battery is out of service. Attempt to recharge a

dead battery is dangerous!

A separate battery monitor is not required for this series.

DAILY MAINTENANCE GUIDE

For regular cleaning of the XT system, please use only soft haired brush or dry

soft cloth. You may use moist soft cloth to remove stains when necessary.

Apply only proper amount of mild neutral detergent for obstinate stains. Please

note that never use Acryl dissolving solvent or Polycarbonate dissolving

solvent. You may apply ammonia-based glass cleaner only on the screen

surface.

CAUTION

Risk of Explosion If Battery Is Replaced By An Incorrect Type

Dispose Of Used Batteries According To Local Regulations

Part 3

INTRODUCTION

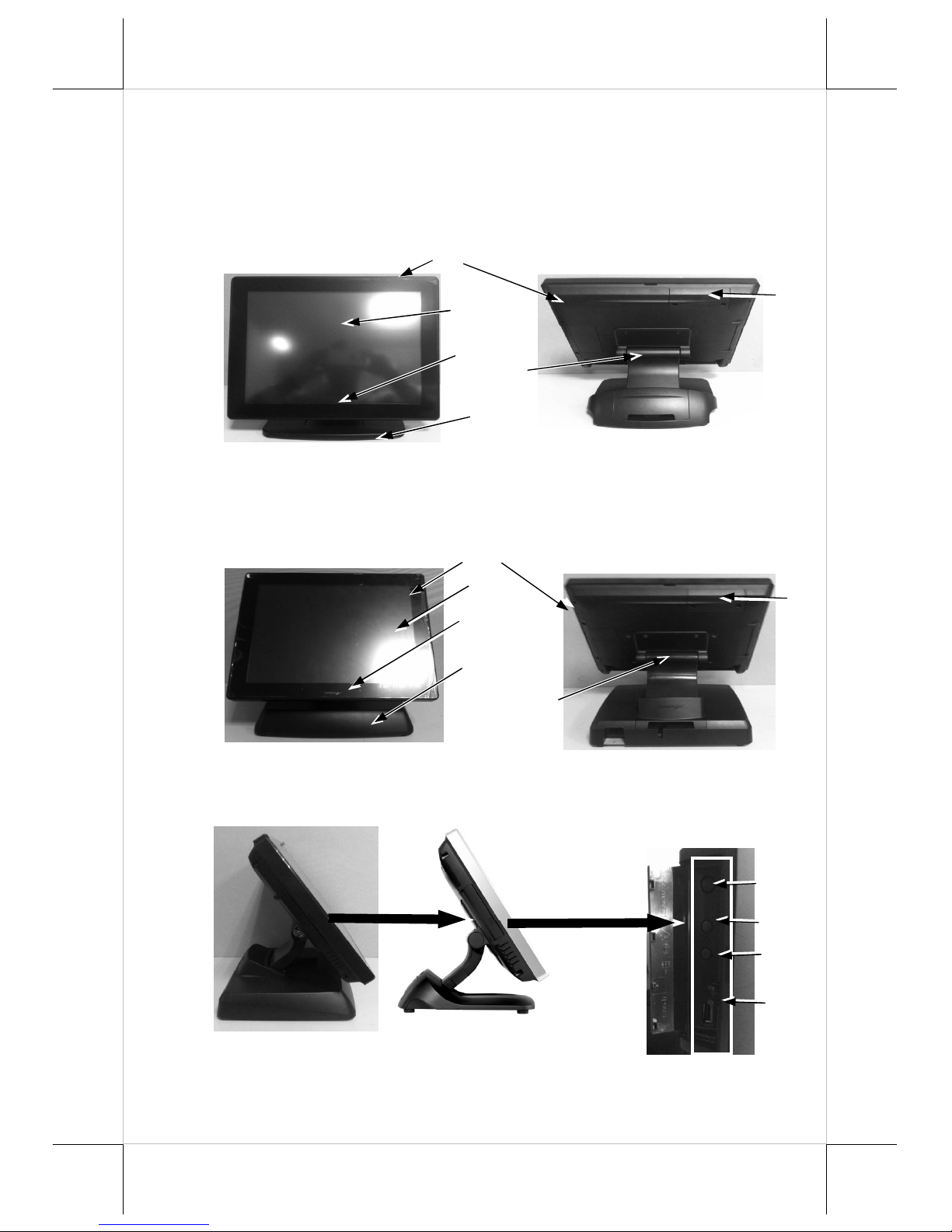

PRODUCT PICTURES FOR Gen 7&8 BASE STAND

Gen 7 Base

Front View Rear View

Gen 8 Base

Front View Rear View

Side View

Inside touch open door

Part 4

Gen 7 Base

Gen 8 Base

PARTS IDENTIFICATION

1. Main Unit

2. LCD touch panel

3. Power indicator

4. Gen 7 ,8 base stand

5. Hinge for LCD terminal

6. HDD cover

7. Power switch

8. Brightness adjust push button “+”

9. Brightness adjust push button “-”

10. USB port

11. Cable exit

12. Base stand

Base Stand and Bottom View

Part 5

13. Compression lock for base stand cover

14. Bottom plate

15. Rubber feet with bottom plate fixing screw

16. 2

HDD cover

17. Base cover

PRODUCT FEATURES

Standard Features:

a)a)

CPU: Intel Pine View D525 1.8G CPU, 1M Cache, Dual core .

b)b)

Fan free structure with Aluminum die-cast main unit casing.

c)c)

Data storage device: 2.5” SATA HDD x 1 in main unit or optional SSD

in main unit.

d)d)

An advanced slim base design that supports storage room for optional

2.5” HDD and optional UPS battery in base.

e)e)

Support Windows XP Pro / WEPOS / POSReady / Win 7 / Linux /

WinCE.

f)f)

High quality 15” TFT active matrix LCD panel.

g)g)

LCD panel with easy tilt angle adjustment from 15° to 90°.

h)h)

LCD brightness adjust buttons at side of main unit.

i)i)

Durable resistive type touch panel that endures 10 million touches min.

at same spot or (P-cap touch optional).

j)j)

Water resistant structure allowing easy cleaning.

k)k)

Easy maintenance construction.

l)l)

Various I/O ports supported, including:

1. 4 serial ports with 3 of DB9 connectors and one of 10 pin RJ45 type

modular connector. The COM1/2/3/4 connectors are supported with

capability for +5V DC through BIOS setup.

2. +12V DC power supply for COM 1/2/3/4 through jumper setting.

3. 7 standard USB ports with 1 at side, 4 in I/O area and 2 internal

proprietary port for extension device.

4. 2 LAN ports Ethernet 10/100/1000 Base T with LAN status

indicators on jack (green for link, orange for data transmission).

5. 1 external VGA monitor port with +12V DC support through

software setting.

6. 1 SATA port with one 4 pin power connector at back side window

for 2

HDD at base stand.

7. LED indicators for systems operation status.

8. 1 built-in internal 2W speaker.

9. 1 CR port capable of controlling 2 cash drawers max.

10. One 4 pin type DC 12 V power input connector.

Part 6

11. One 4 pin connector for optional UPS battery in Gen 8

base only.

m)m)

Dual display support (per OS capability).

n)n)

VGA memory support DVMT 4.0.

o)o)

Support high performance DDR3 SDRAM with maximum memory

size 4GB in one SODIMM.

p)p)

Integrated structure for side mount upgrade kit: SA-100/SA-200/SA-

300; back mount display: LM-3010/LM-3014 and PD-6307.

q)q)

Preconditioned power up function – by alarm clock or LAN.

r)r)

Gen 8 base inside installation: including UPS battery, power USB

board, HDD and 60W/80W/150W power adaptor.

Optional Items:

Note: The underlined items in the following list means that option must be

set prior to shipment from the factory. The rest of items can be set by

the dealers.

a) DDR3 SODIMM memory expansions up to 4GB max in one SODIMM.

b) Integrated side mount upgrade kit:

SA-100: with optional MSR; SA-200: iButton.

c) Preload Windows XP Pro / WEPOS / POSReady / Win 7 / Linux /

WinCE.

d) Parallel extension cable and 2

HDD kit.

e) Wireless LAN port.

f) RJ45 to DB9 serial port conversion cable.

g) Split cable for 2 cash drawer control.

INSTALLATION GUIDES

CAUTION: Before any installation or cable connection to the set, please

always make certain that the system is turned off and the

external power source to the set is removed to prevent electric

hazard! Never touch any metal pin in the connectors or

circuits to avoid high voltage hazard or electrostatic

discharge damage unless the operator is well grounded.

Failure to do the above will void the product warranty!

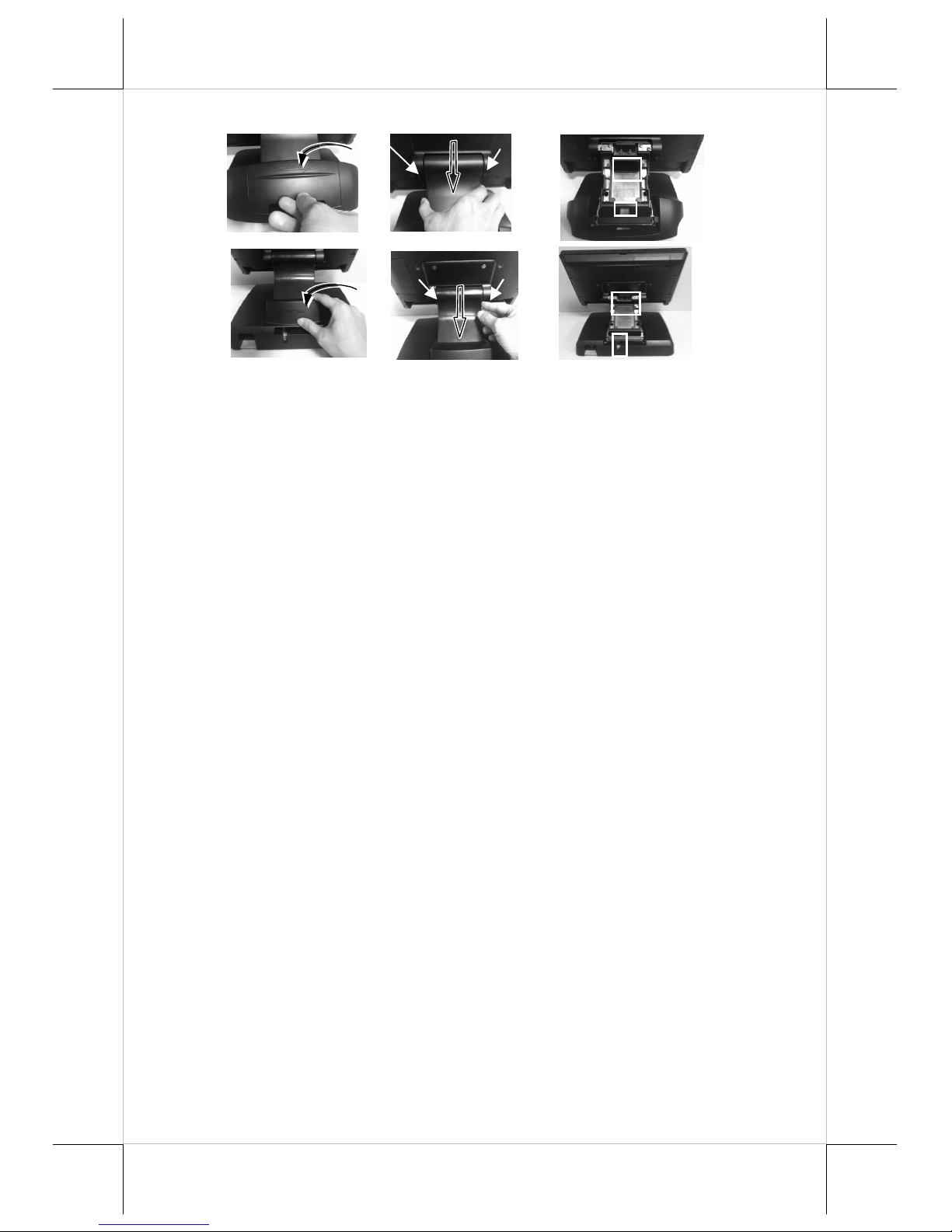

OPENING CABLE COVER

Please follow steps sequentially with reference to pictures below to remove the

cable cover for Gen 7 slim base models.

Step A: Release the base cover.

Step B: Release the of compression lock of base stand cover at both sides.

Step C: Route the cable to the circled holes.

Part 7

DISCONNECTING ALL CABLES

After removal of the cable cover, the connector area will be accessible then.

Please first note orientations of every existing cable connection and then

disconnect every cable properly before separating the main unit from the

adjustable stand assembly. Please note that the click lock spring has to be

pressed down prior to pulling out the connector such as the LAN port or the

CR port or the alternate RJ45 form COM3/4 port. Please also note that the

fixing screws have to be loosened free prior to disconnection such as the 2

regular DB9 form COM ports or the VGA port. Please always hold the

connector head instead of pulling on the cable wire when disconnecting any

connector. Failure to do this could damage the cable and jack that is

considered as an artificial destruction. Damages due to incorrect

disconnection operation are not covered by product warranty!

CABLE PASSAGE FROM BOTTOM

For Gen 7&8 Base

Please route all cables through the cable passage to main unit in desktop mount

application. Pull the compression lock to open the back cover of base stand.

Hold them together with a cable tie. Pass all cables through the cable exit to

external connections.

Part 8

BASE MOUNT UPGRADE KIT

Please follow the instructions on the manual that comes along with the

customer display LM-3010/LM-3014/LM-3015, and PD-6307 if installed.

1. For Second LCD Display

There are LM-3010/LM-3014/LM-3015 available

for 2

LCD display, needed to combine with XT3015

with supporting bracket to tighten.

Please refer to the following steps to assemble properly.

Please take out the join bracket and use the attached 4

pcs long screws to fasten this bracket to the main unit

back cover which is circled in the right picture.

Next, please connect the VGA Cable to the LM VGA

port and route the VGA cable through the cable exit of the

base stand to the system VGA ports.

Note: When XT-3015 series equipping with LM-3010/3014/3015 series

second LCD monitor, system power adaptor must be upgraded from 60W

to 80W (or kept as 60W) .

UPS Battery Installation Inside Gen 8 BASE:

Inside Gen 8 base, UPS battery can be installed below:

Step A: Slide the UPS battery inside the casing

then tighten the screws included in the package.

Step B: Route the UPS battery cable to the

Part 9

circled hole of base stand then

connect at the power port end of

the mother board.

Step C: For un-installation, go back to

UPS battery installation procedure

in its reverse way.

24V Power USB Connection

To install a printer for XT-3015, it’s essential to properly plug the 24V

power USB cable as indicated below:

Step A: Release the base cover.

Step B: Plug the 24V power USB

cable at the rear port.

Step C: Close the base cover.

CONNECTING CASH DRAWER (OPTIONAL)

The RJ11 connector in I/O area of a XT-3015 system can be used for

controlling most of the common cash drawers available on the market.

However, it is most recommended to use Posiflex CR-2200 or CR-2210 or

CR-3100 or CR-4000 or CR-4100 or CR-6300 for best compliance to operate

the opening mechanism and to monitor the drawer open status.

This cable of Cash Drawer has a 6-pole plug at one end and an 8-pole plug at

Part 10

the other. The 8-pole plug should be inserted into the connector of the cash

drawer which marked “Signal”. The 6-pole plug should be inserted in the

connector marked “CR” which can found in the main connection area in the

system.

The user may also purchase the optional 2-in-1 cash drawer control cable to

control 2 cash drawers in 1 port. It has a 6-pole plug at one end and two 8-pole

plugs at the other. The 6-pole plug should be inserted in the connector marked

“CR” found in the I/O area in the system. Each 8-pole plug should be inserted

into the connector marked “signal cable from POS Printer” at the rear of one of

the cash drawers.

CONNECTING CABLES

To have the re-assembled main unit with stand assembly ready for operation,

please connect all required cables to the appropriate connectors. Please make

sure that each connector is connected to the correct port with the correct

orientation. Damages due to incorrect connection or orientation are not

covered by product warranty!

Some connectors like the COM, LAN or CR connector have to be gently

inserted until a click sound is heard. It is recommended that connectors such as

the COM1/2/3 and VGA connector be screwed into place once seated.

Re-adjust the tilt angle of the screen for best viewing. Connect the cables to

appropriate external devices through the cable exit at the bottom of stand

assembly. Please make sure that each connector has to be connected to the

right device in the right way.

CAUTION: On doing any insertion or extraction of any connector, please

always hold the connector head itself instead of pulling on the

cable wire. Failure to do this could damage the cable and

jack that is considered as an artificial destruction and is not

covered by the warranty.

OPERATING SYSTEM INSTALLATION

This product is highly professionalized equipment. The installation of an OS

into a machine without any preloaded OS could be a major difficulty for

average user or obstacle by possibly unintentional negligence even for PC

veterans to accomplish such a task. Therefore, OS installation into a system

without preloaded OS is highly discouraged. Posiflex Technology, Inc. shall

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere POSIFLEX Touch-Terminal Handbücher

POSIFLEX

POSIFLEX XT-4015 Bedienungsanleitung

POSIFLEX

POSIFLEX KS - 6215N Bedienungsanleitung

POSIFLEX

POSIFLEX HS-2510W-2D Bedienungsanleitung

POSIFLEX

POSIFLEX TX-3000 Series Bedienungsanleitung

POSIFLEX

POSIFLEX KS - 6910 series Bedienungsanleitung

POSIFLEX

POSIFLEX HT-3600 Series Bedienungsanleitung

POSIFLEX

POSIFLEX TX-4200 Bedienungsanleitung

POSIFLEX

POSIFLEX Jiva TP-5815 Pro series Bedienungsanleitung

POSIFLEX

POSIFLEX XT-5515: XT-5515Pro Bedienungsanleitung

POSIFLEX

POSIFLEX XP-2000 Series Bedienungsanleitung

POSIFLEX

POSIFLEX Jiva KS-6615 Series Bedienungsanleitung

POSIFLEX

POSIFLEX TX-5300 Bedienungsanleitung

POSIFLEX

POSIFLEX XT-4015-G2 Bedienungsanleitung

POSIFLEX

POSIFLEX KS - 2010 Bedienungsanleitung

POSIFLEX

POSIFLEX HT-4712 Bedienungsanleitung

POSIFLEX

POSIFLEX PS-3515-G2 Bedienungsanleitung

POSIFLEX

POSIFLEX MT-4310W/R Bedienungsanleitung

POSIFLEX

POSIFLEX TX-4200 Bedienungsanleitung

POSIFLEX

POSIFLEX KS - 6910 series Bedienungsanleitung

POSIFLEX

POSIFLEX RT-2015E Bedienungsanleitung

POSIFLEX

POSIFLEX TX-2101 Bedienungsanleitung

POSIFLEX

POSIFLEX Jiva LT - 8300 Bedienungsanleitung

POSIFLEX

POSIFLEX KS - 6915 Bedienungsanleitung

POSIFLEX

POSIFLEX JIVA TP-5700 Bedienungsanleitung

Beliebte Touch-Terminal Handbücher anderer Marken

Wincor Nixdorf

Wincor Nixdorf iPOS plus Advanced Bedienungsanleitung

Ingenico

Ingenico AXIUM EX4000 Bedienungsanleitung

Heisei Electronics

Heisei Electronics Q-POS 815 Bedienungsanleitung

Amano

Amano MTX-15 Bedienungsanleitung

FLOWBIRD

FLOWBIRD CWT Compact Touch Bedienungsanleitung

Demco

Demco SP7 Bedienungsanleitung

Lathem

Lathem PC600 Series Bedienungsanleitung

Partner

Partner MF-2352 Bedienungsanleitung

NCR

NCR RealPOS 7460-2 Handbuch

Simrad

Simrad MS50 Montageanleitung

Unitech

Unitech MR350 MKII Kurzanleitung

Jungheinrich

Jungheinrich WMT 210 Bedienungsanleitung

Motorola

Motorola MTP850 Bedienungsanleitung

YASKAWA

YASKAWA 62H-MDC0 Bedienungsanleitung

MVG industries

MVG industries NeptuLink Bedienungsanleitung

Price Industries Limited

Price Industries Limited FDC Gebrauchsanweisung

Honeywell

Honeywell TemaKey Bedienungsanleitung

EBN

EBN BPC65-B-A16G Bedienungsanleitung
