V4.0 8823494

Please read and understand all instructions before use. Retain this manual for

future reference.

User Manual

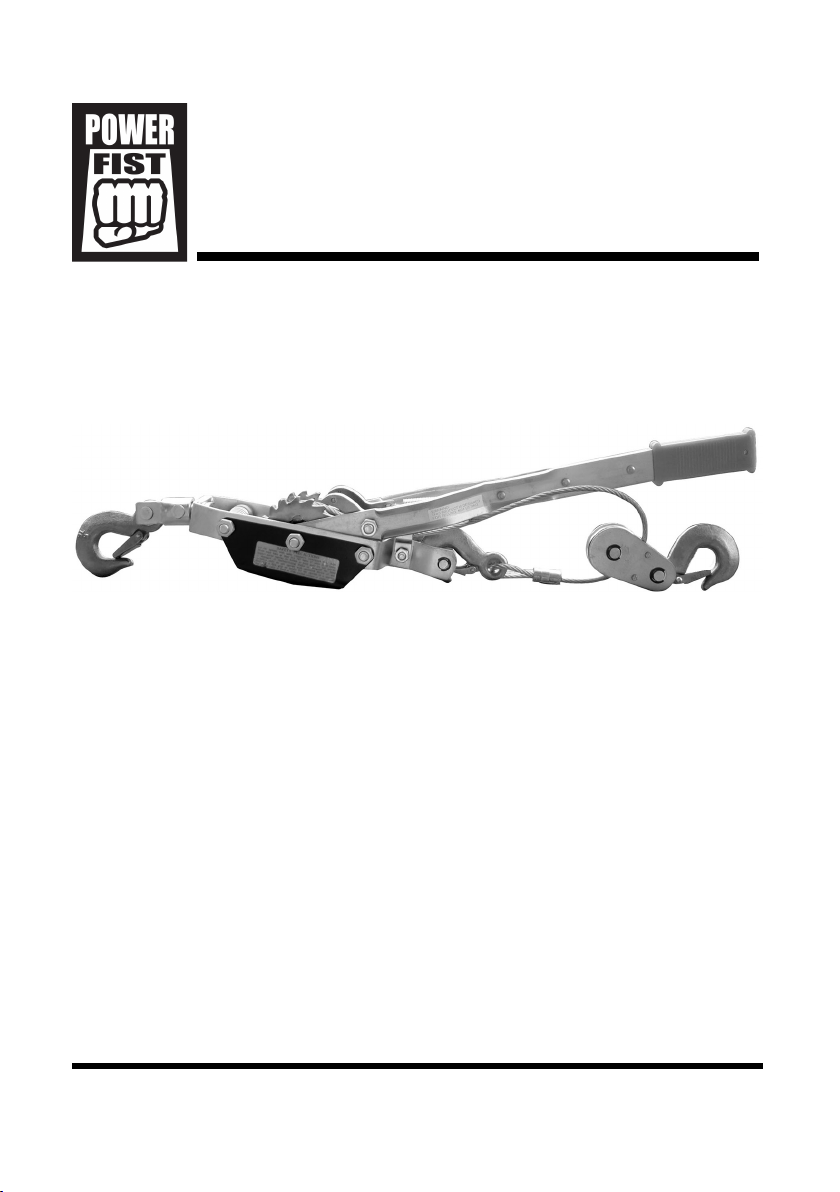

4 Ton Cable Puller

with 3 Hooks

8823494 4 Ton Cable Puller with 3 Hooks V4.0

2 For technical questions call 1-800-665-8685

SPECIFICATIONS

Pull Capacity 3 Hooks 8,000 lb

2 Hooks 4,000 lb

Cable Diameter 0.22 in.

Cable Length 10 ft

Min. Between Hooks 26 in.

Hook Opening 0.7 in.

Hook Type Eye Hook

Ratchet 3

Material Steel

INTRODUCTION

The 4 Ton Cable Puller is great for stretching fencing or wire or moving a load

horizontally. The ratchet mechanism makes pulling easy. The cable puller has

two latched eye-hooks, a non-slip grip and a galvanized steel cable to resist

corrosion.

SAFETY

WARNING! Read and understand all instructions before using this tool. The

operator must follow basic precautions to reduce the risk of personal injury

and/or damage to the equipment.

Keep this manual for safety warnings, precautions, operating or inspection and

maintenance instructions.

4 Ton Cable Puller

with 3 Hooks

V4.0 4 Ton Cable Puller with 3 Hooks 8823494

Visit www.princessauto.com for more information 3

HAZARD DEFINITIONS

Please familiarize yourself with the hazard notices found in this manual. A notice

is an alert that there is a possibility of property damage, injury or death if certain

instructions are not followed.

DANGER! This notice indicates an immediate and specific hazard that will

result in severe personal injury or death if the proper precautions

are not taken.

WARNING! This notice indicates a specific hazard or unsafe practice that

could result in severe personal injury or death if the proper

precautions are not taken.

CAUTION! This notice indicates a potentially hazardous situation that may result

in minor or moderate injury if proper practices are not taken.

NOTICE! This notice indicates that a specific hazard or unsafe practice will

result in equipment or property damage, but not personal injury.

WORK AREA

1. Operate in a safe work environment. Keep your work area clean, well-lit

and free of distractions. Place lights so you are not working in a shadow.

2. Keep anyone not wearing the appropriate safety equipment away from the

work area.

3. Store unused tools properly in a safe and dry location to prevent rust or

damage. Lock tools away and keep out of the reach of children.

PERSONAL SAFETY

WARNING! Wear personal protective equipment approved by the Canadian

Standards Association (CSA) or American National Standards Institute (ANSI).

PERSONAL PROTECTIVE EQUIPMENT

1. Always wear impact safety goggles that provide front and side protection

for the eyes. Eye protection equipment should comply with CSA Z94.3-07

or ANSI Z87.1 standards based on the type of work performed.

2. Wear gloves that provide protection based on the work materials or to

reduce the effects of tool vibration.

8823494 4 Ton Cable Puller with 3 Hooks V4.0

4 For technical questions call 1-800-665-8685

a. Do not wear gloves when operating a tool that can snag the material

and pull the hand into the tool.

3. Wear protective clothing designed for the work environment and tool.

4. Non-skid footwear is recommended to maintain footing and balance in the

work environment.

5. Wear steel toe footwear or steel toe caps to prevent a foot injury from

falling objects.

PERSONAL PRECAUTIONS

Control the tool, personal movement and the work environment to avoid

personal injury or damage to tool.

1. Do not operate any tool when tired or under the influence of drugs, alcohol

or medications.

2. Avoid wearing clothes or jewelry that can become entangled with the

moving parts of a tool. Keep long hair covered or bound.

3. Do not overreach when operating a tool. Proper footing and balance

enables better control in unexpected situations.

SPECIFIC SAFETY PRECAUTIONS

WARNING! DO NOT let comfort or familiarity with product (gained from

repeated use) replace strict adherence to the tool safety rules. If you use

this tool unsafely or incorrectly, you can suffer serious personal injury.

1. Use the correct tool for the job. This tool was designed for a specific function.

Do not modify or alter this tool or use it for an unintended purpose.

2. Do not use the tool if any parts are damage broken or misplaced. Repair or

replace the parts.

3. Inspect the cable regularly. Check for fraying, kinks, broken strands or

distortion. If any of these appear, the cable should be replaced before use.

4. Do not pull cable around or over corners.

5. Do not wrap the cable around any object and hook it back on itself. If

possible, always use an adequate sling, eyebolt or other accessory

attached to the load to be pulled. Always make sure that there is positive

engagement of the hook to the load.

V4.0 4 Ton Cable Puller with 3 Hooks 8823494

Visit www.princessauto.com for more information 5

6. Do not exceed the load capacity. Know how much load you are pulling.

7. Never use a ‘cheater’ pipe or other device to lengthen the handle for

additional leverage. This will cause the handle to bend or break thereby

destroying the tool.

8. Do not operate the ratcheting cable puller with less than three wraps of the

cable on the ratchet drum.

9. A cable that breaks under tension can whiplash and inflict death or a

serious injury. Use a winch rope dampener to absorb the cable’s energy

should it break.

10. Do not lift or hoist a load with the cable puller.

UNPACKING

WARNING! Do not operate the tool if any part is missing. Replace the

missing part before operating. Failure to do so could result in a malfunction

and personal injury.

Remove the parts and accessories from the packaging and inspect for damage.

Make sure that all items in the Identification Key are included.

IDENTIFICATION KEY

A Anchor Hook

B Stop Pawl

C Ratchet Drum

D Drive Pawl

E Drive Pawl Spring

F Cable

G Handle

H Cable Guide

I Anchor Point

J Cable Hook

K Pulley Hook

8823494 4 Ton Cable Puller with 3 Hooks V4.0

6 For technical questions call 1-800-665-8685

OPERATION

Letter references in parenthesis (A) refer to the included Identification Key.

You can set-up the cable puller with either a single or double line. Doubling the line

will decrease the effort needed to move the load, but it will move at half the speed.

1. Hook the cable hook (J) onto the load or pulling device (straps, chains,

etc.) and check that the latch is shut.

a. Double-Line option: Hook the pulley hook (K) onto the load or pulling

device (straps, chains, etc.) instead of the cable hook and check that

the latch is shut.

b. Hook the cable hook onto the anchor point (I) and check that the latch

is shut.

2. Press down on the drive pawl spring (E). The end of the spring will slide to

the slot’s bottom and raise the drive pawls (D).

3. Push the handle forward towards the cable hook (J). Push the stop pawls

(B) away from the ratchet drum’s teeth.

4. Pull out the amount of cable desired, leaving a minimum of three wraps on

the drum. Release the stop pawl and move the handle to the start position.

5. Clip the anchor hook (A) to a sturdy object capable of withstanding the

strain. Make sure the latch is fully shut.

6. Press upward on the drive pawl spring (E) to engage the drive pawls with

the ratchet teeth.

7. Raise the handle to force the pawls into the ratchet teeth and advance the

spool to draw the cable onto the puller’s drum. Lower the arm to reset for

the next pull.

8. Repeat until the load reaches its final position. Check that the cable is

wrapping neatly on the drum. Do not allow it to pile up on one side or to

overlap in the middle.

9. Disengage the pawls (steps 2 and 3) and pull the cable puller to release the

cable tension. Disengage the cable hook and anchor hooks.

10. Recover the remaining cable onto the drum.

V4.0 4 Ton Cable Puller with 3 Hooks 8823494

Visit www.princessauto.com for more information 7

CARE & MAINTENANCE

1. Maintain the tool with care. A tool in good condition is efficient, easier to

control and will have fewer problems.

2. Inspect the tool components periodically. Repair or replace damaged or

worn components. Only use identical replacement parts when servicing.

3. Follow instructions for lubricating and changing accessories.

4. Only use accessories intended for use with this tool.

5. Keep the tool handles clean, dry and free from oil/grease at all times.

6. Maintain the tool’s labels and name plates. These carry important information.

If unreadable or missing, contact Princess Auto Ltd. for replacements.

WARNING! Only qualified service personnel should repair the tool. An

improperly repaired tool may present a hazard to the user and/or others.

CABLE REPLACEMENT

1. Pull the entire cable off the drum.

2. Remove the cable from the drum’s keyhole.

3. Pull the cable through the cable guide (H), the pulley hook (K).

4. Cut the cable looping through the cable hook (J).

a. Skip step 4 if removing the cable for cleaning.

5. Insert the new cable under the pulley in the pulley hook (K).

6. Slide a cable sleeve onto the cable. Insert the cable end through the cable

hook. Insert the cable end into the sleeve and crimp to secure.

7. Thread the new cable through the cable guide (H) and onto the ratchet

drum (C).

8. Insert the cable end into the drum key hole and pull the handle to wrap

three turns of cable onto the drum.

9. Attach the tool to an anchor point and a load that will place tension on the

cable. Pull the load towards you and carefully guide the wraps until the

cable is wrapped neatly on the drum.

10. Detach from the anchor and load.

8823494 4 Ton Cable Puller with 3 Hooks V4.0

8 For technical questions call 1-800-665-8685

CLEANING

Wipe the tool with a clean cloth and periodically blow out all areas with

compressed air. If compressed air is not available, use a brush to remove dust

from areas. Do not use harsh chemicals or solvents to clean the tool.

CABLE CLEANING

A cable will accumulate debris over time. This debris can act as an abrasive on

the cable and damage it.

Spread the cable out on a clean surface and spray it clean with a garden hose.

Scrub the wire strand cable with a wire brush to loosen dirt and rinse.

Commercially available cleaners may also be used. Dry the cable with

compressed air.

LUBRICATION

Inspect and lubricate the tool when required. Only use light oil to lubricate the

tool. Other lubricants may not be suitable and could damage the tool or cause a

malfunction during use.

Bend the cable to spread the strands and apply a penetrating lubricant.

Application can be done with a spray or bath. Allow time for the lubricant to

soak into the cable. Multiple lubricant applications may be required. Wipe off

any excess lubrication once the task is complete.

STORAGE

When not in use for an extended period, apply a thin coat of lubricant to the

steel parts to avoid rust. Remove the lubricant before using the tool again.

TROUBLESHOOTING

Visit a Princess Auto Ltd. location for a solution if the tool does not function

properly or parts are missing. If unable to do so, have a qualified technician

service the tool.

V4.0 4 Ton Cable Puller with 3 Hooks 8823494

Visit www.princessauto.com for more information 9

8823494 4 Ton Cable Puller with 3 Hooks V4.0

10 For technical questions call 1-800-665-8685

Inhaltsverzeichnis

Sprachen:

Andere Power Fist Werkzeuge Handbücher

Power Fist

Power Fist 8308231 Bedienungsanleitung

Power Fist

Power Fist 8536609 Bedienungsanleitung

Power Fist

Power Fist 8916793 Bedienungsanleitung

Power Fist

Power Fist 8505547 Bedienungsanleitung

Power Fist

Power Fist 8662330 Bedienungsanleitung

Power Fist

Power Fist 8074668 Bedienungsanleitung

Power Fist

Power Fist 8517393 Bedienungsanleitung

Power Fist

Power Fist 8549024 Bedienungsanleitung

Power Fist

Power Fist 9011438 Bedienungsanleitung

Power Fist

Power Fist 8502494 Bedienungsanleitung

Power Fist

Power Fist 8843773 Bedienungsanleitung

Power Fist

Power Fist Air Line Delivery Kit Bedienungsanleitung

Power Fist

Power Fist 8814436 Bedienungsanleitung

Power Fist

Power Fist 9166695 Bedienungsanleitung

Power Fist

Power Fist 8663783 Bedienungsanleitung

Power Fist

Power Fist 8655888 Bedienungsanleitung

Power Fist

Power Fist 8885642 Bedienungsanleitung

Power Fist

Power Fist 8843799 Bedienungsanleitung

Power Fist

Power Fist 9151051 Bedienungsanleitung

Power Fist

Power Fist 8623159 Bedienungsanleitung

Power Fist

Power Fist 8957425 Bedienungsanleitung

Power Fist

Power Fist 9081415 Bedienungsanleitung

Power Fist

Power Fist 8536773 Bedienungsanleitung

Power Fist

Power Fist Air Hammer Bedienungsanleitung

Beliebte Werkzeuge Handbücher anderer Marken

Martor

Martor SECUNORM 175 Bedienungsanleitung

ERKCO

ERKCO 1000 Bedienungsanleitung

jbc

jbc N4473 Bedienungsanleitung

FEINMETALL

FEINMETALL FZWZ-SET-001 Bedienungsanleitung

Worx Professional

Worx Professional Sonicrafter WU676 Bedienungsanleitung

Gage Bilt

Gage Bilt GB713SH Bedienungsanleitung

Hilti

Hilti DX 9-ENP Bedienungsanleitung

norbar

norbar NORTRONIC 34399 Bedienungsanleitung

BGS technic

BGS technic 8578 Bedienungsanleitung

Makita

Makita DHR241 Bedienungsanleitung

Motor Guard

Motor Guard JMB-1250 Bedienungsanleitung

Power Adhesives

Power Adhesives 805-12 Bedienungsanleitung

Clemco

Clemco 24189 Bedienungsanleitung

VVG

VVG VNG 903 Series Bedienungsanleitung

Hilti

Hilti FX 3-A Bedienungsanleitung

Grizzly

Grizzly H6472 Bedienungsanleitung

axing

axing BWZ 5-02 Bedienungsanleitung

Dh-Robotics

Dh-Robotics RGI-100 Anleitung zur Verwendung
