Premier Mounts LMVF Bedienungsanleitung

Installation Guide

Flat Large Matrix Video Wall Mount

LMVF

premiermounts.com | p. 800.368.9700 | e. [email protected]

500 W Central Ave, Suite A, Brea, CA 92821 USA

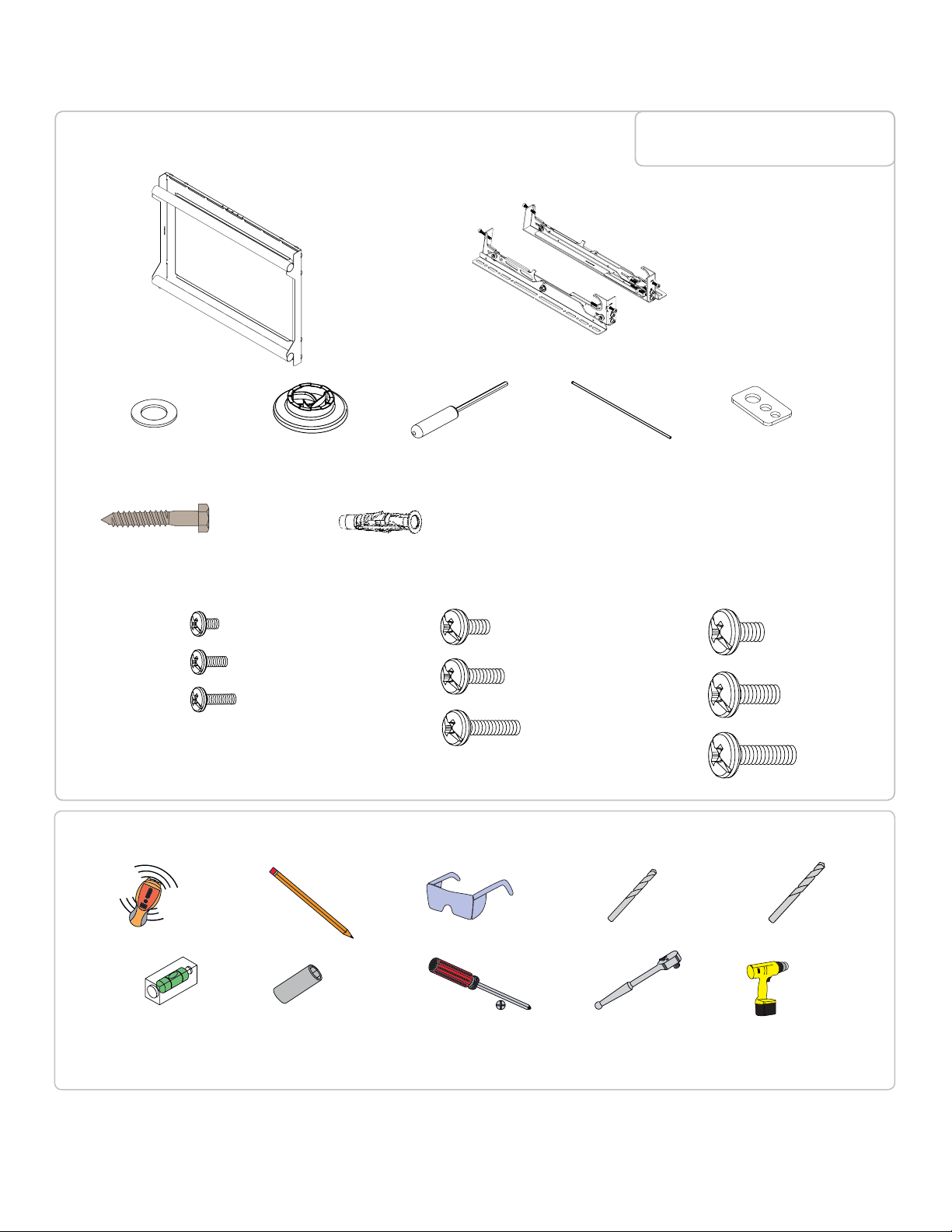

5/16” x 3” Lag Bolts

(Qty 4)

Thread Depth Indicator

(Qty 1)

Universal Spacers

(Qty 8)

Finned Anchors

(Qty 4)

5/16” Flat Washers

(Qty 4)

Universal Washers

(Qty 4)

Pencil Protective Eyewear

Electronic Stud Finder M6 or 1/4” Drill Bit 3/8” Masonry Drill Bit

Portable DrillPhillips Head Screwdriver Socket Wrench

13mm or 1/2” Socket

Level

M5 Allen Driver

(Qty 1)

M4 x 12mm (Qty 4)

M4 x 16mm (Qty 4)

M4 x 25mm (Qty 4)

M6 x 12mm (Qty 4)

M6 x 16mm (Qty 4)

M6 x 25mm (Qty 4)

M8 x 12mm (Qty 4)

M8 x 16mm (Qty 4)

M8 x 25mm (Qty 4)

Wall Mount

(Qty 1)

Bracket

(Qty 1 Pair)

Included Components

Required for installation

Maximum Flat Panel Weight:

160 lb. / 72.57 kg.

Installation Guide

LMVF

Page 2 premiermounts.com | p. 800.368.9700 | e. [email protected]

the vicinity of the mount.

2. Use a pencil to mark each of the wall studs.

Wood Stud Installation

Use a pencil to mark the upper right mounting location

of the wall stud.

Drill a pilot hole using a M6 or 1/4” drill bit on the

stud that was marked on the upper right.

1. Place the mount against the wall and align it

with the pilot hole.

2. Insert one (1) 5/16” x 3” lag bolt one (1) 5/16”

washer into the upper right pilot hole.

3. Use a socket wrench and a 1/2” socket to

tighten the lag bolt.

4. Do not over tighten the lag bolt.

Installation Guide

LMVF

Page 3

premiermounts.com | p. 800.368.9700 | e. [email protected]

1. Level the mount

2. Use a pencil to mark the remaining three (3)

mounting locations

1. Insert one (1) 5/16” x 3” lag bolt and one (1) 5/16”

washer into each pilot hole.

2. Tighten all lag bolts using a socket wrench and

1/2” socket.

3. Do not over tighten the lag bolts

Drill a pilot hole in each of the three (3) marks with a

power drill and a M6 or 1/4” drill bit.

Installation Guide

LMVF

Page 4 premiermounts.com | p. 800.368.9700 | e. [email protected]

Two people recommended for this step; one person

to level the mount and another person to mark the

mounting locations.

Drill a pilot hole in each of the four (4) mark areas

with a 3/8” masonry drill bit.

Insert the Finned anchors into each pilot holes.

Lightly tap each Finned anchors into place with a

hammer.

1. Insert one (1) 5/16” x 3” Lag Bolt and one (1) 5/16”

washer into Finned Anchors.

2. Tighten all lag bolts using a socket wrench and

1/2” socket.

Concrete Wall Installation

Installation Guide

LMVF

Page 5

premiermounts.com | p. 800.368.9700 | e. [email protected]

Use commercially available hardware to secure the spacer.

Utilize the same spacer for multiple LMVF installations.

For illustration only. LMVF Spacer will vary.

spacers. Simply repeat step one when installing each of the

surrounding LMVF mounts. Use one spacer for each 2x2

installation by mounting it to the wall, or utilize the same spacer as

many times needed to complete an unlimited LMVF large matrix

video wall.

1. Plumb and level and mark each corner where the LMVF will

be mounted (or secure to the wall).

2. Install the second mount working in a horizontal direction.

3. Square, Level, and Plumb.

4. Repeat this step for each mount horizontally

1) Mount the LMVF to the desired location.

2) Align and Level the spacer to the corner register tabs

of the mount.

Level

For ease of installation

installation tim on large video wall array. Contact Customer

Installation Guide

LMVF

Page 6

premiermounts.com | p. 800.368.9700 | e. [email protected]

1) Insert a small straw or toothpick into the threaded inserts found

2) Use a pencil to mark the depth of the threaded insert on the

small straw or toothpick.

3) Mark the straw or toothpick 1/8” above the depth of the

threaded insert, as shown in Figure 1.

4) Insert the small straw or toothpick into the remaining threaded

inserts to compare and verify their depth using the straw or

toothpick’s 1/8” allowance mark.

5) Locate the correct diameter screw for the threaded insert.

If the selected screw is longer than the 1/8” allowance mark

on the small straw or toothpick, as shown in Figure 2 and

Figure 3, do not use this screw. The screw length must not

bypass the mark.

6) Test each size of the screws provided.

The correct screws should thread easily into the mounting

point and not pull out when tension is applied.

Small Straw or Toothpick

Marking the 1/8”

Allowance

Small Straw

or Toothpick

Small Straw

or Toothpick Depth Plus 1/8” Allowance

Mark

Depth Plus 1/8” Allowance

Mark

Selecting the Mounting Hardware

Installation Guide

LMVF

Page 7

premiermounts.com | p. 800.368.9700 | e. [email protected]

Universal Spacer Installation

Flat Panel

Universal Washer

Universal Spacer

Mounting Bracket

Mount Point

Mounting Screw

2) Identify the number and location of the thread inserts on the

3) Aligning the holes on each mounting bracket with the thread

minimum of two (2) screws per bracket.

Do not over tighten the mounting hardware.

Make sure the directional arrows on the mounting brackets

are facing up.

Universal Washer Installation

M5, M6

Universal Washers are designed to accommodate the various

Installation Guide

LMVF

Page 8

Universal Spacers allow the user to attach the mounting bracket

Universal Spacer adds 1/4” to the distance between the mounting

The Universal Spacers must be stacked and oriented as

shown.

The Universal Spacers must only be installed between the

premiermounts.com | p. 800.368.9700 | e. [email protected]

Mounting bracket adjustments are factory pre-set (see Note).

This section requires two people.

hooks of both mounting brackets must be securely seated on

the upper and lower mounting rails.

wall panel.

3) Engage the top and bottom mounting brackets to the rails of the

mount.

Note: These registers must

align prior to installation.

They are factory set.

Check to determine proper

alignment

Attaching the Flat-Panel to the Mount

being accidently dislodged from the LMVF.

1) Locate the pre-installed security locking safety screw at

the bottom of each of the mounting brackets.

2) Use the M5 Allen driver (supplied) to tighten the locking

safety screw.

Locking Safety Screw Installation

Do not overtighten the locking safety screws.

Note: Tighten screw to surface, then tighten 1/4” turn

Pre-installed

Locking Safety Screw

( 1 per Bracket )

Installation Guide

LMVF

Page 9

premiermounts.com | p. 800.368.9700 | e. [email protected]

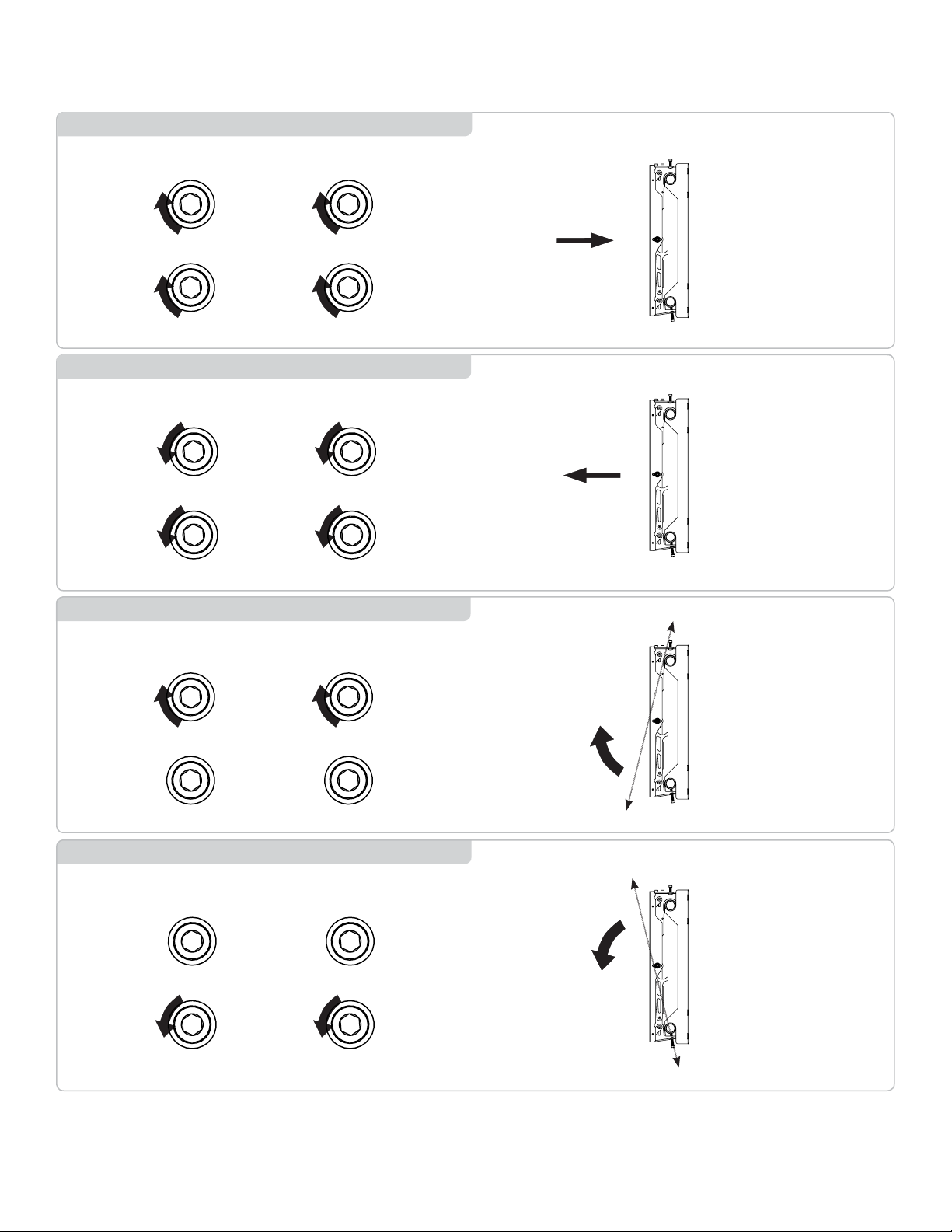

Left

Control

Right

Control

TOP

BOTTOM

Left

Control

TOP

BOTTOM

TOP

BOTTOM

TOP

BOTTOM

Right

Control

Left

Control

Right

Control

TOP

BOTTOM

Left

Control

TOP

BOTTOM

TOP

BOTTOM

TOP

BOTTOM

Right

Control

TILT DOWN

TILT UP

MOVE OUTWARD

MOVE INWARD

Installation Guide

LMVF

Page 10 premiermounts.com | p. 800.368.9700 | e. [email protected]
