INSTALLATION GUIDE

LMVLF

Press and Release Pop Out Mount for

300lbs/136kg Flat Panel Display

9500435 v1.0

publ. 05/28/20

Maximum Flat Panel Weight:

300 lb. / 136 kg.

Page 2

Maximum Weight Capacity: 300 lbs.

CAUTION STATEMENT

PRIOR TO THE INSTALLATION OF THIS PRODUCT, THE INSTALLATION INSTRUCTIONS MUST BE READ AND COMPLETELY

UNDERSTOOD. KEEP THESE INSTALLATION INSTRUCTIONS IN AN EASILY ACCESSIBLE LOCATION FOR FUTURE REFERENCE.

PROPER INSTALLATION PROCEDURE BY A QUALIFIED SERVICE TECHNICIAN MUST BE FOLLOWED, AS OUTLINED IN THESE

INSTALLATION INSTRUCTIONS. FAILURE TO DO SO COULD RESULT IN PROPERTY DAMAGE, SERIOUS PERSONAL INJURY, OR

EVEN DEATH.

SAFETY MEASURES MUST BE PRACTICED AT ALL TIMES DURING THE ASSEMBLY OF THIS PRODUCT. USE PROPER SAFETY

EQUIPMENT AND TOOLS FOR THE ASSEMBLY PROCEDURE TO PREVENT PERSONAL INJURY.

PREMIER MOUNTS DOES NOT WARRANT AGAINST DAMAGE CAUSED BY THE USE OF ANY PREMIER MOUNTS PRODUCT FOR

PURPOSES OTHER THAN THOSE FOR WHICH IT WAS DESIGNED OR DAMAGE CAUSED BY UNAUTHORIZED ATTACHMENTS OR

MODIFICATIONS, AND IS NOT RESPONSIBLE FOR ANY DAMAGES, CLAIMS, DEMANDS, SUITS, ACTIONS OR CAUSES OF ACTION

OF WHATEVER KIND RESULTING FROM, ARISING OUT OF OR IN ANY MANNER RELATING TO ANY SUCH USE, ATTACHMENTS OR

MODIFICATIONS.

At least two qualied people should perform the assembly procedure. Personal injury and/or property damage can result from dropping or

mishandling the at panel.

If mounting to wall studs or ceiling studs, make sure that the mounting screws are anchored into the center of the wall studs or ceiling studs.

Use of an edge-to-edge stud nder is recommended.

It is recommended that a maximum of 5/8” plaster board be used when mounting to wooden studs.

Be aware of the mounting environment. If drilling and/or cutting into the mounting surface, always make sure that there

are no electrical wires in wall. Cutting or drilling into an electrical line may cause serious personal injury.

Make sure there are no water or natural gas lines inside the wall where the mount is to be located. Cutting or drilling into a water or gas line

may cause severe property damage or personal injury.

This product is intended for indoor use only. Use of this product outdoors could lead to product failure and/or serious personal injury.

Do not install near sources of high heat. Do not install on a structure that is prone to vibration, movement or chance of impact.

THE WALL STRUCTURE MUST BE CAPABLE OF SUPPORTING

AT LEAST FOUR TIMES THE WEIGHT OF THE FLAT PANEL. IF

NOT, THE WALL STRUCTURE MUST BE REINFORCED.

M6 or 1/4"

Wood Drill bit

3/8" Masonry

Drill bit

13mm or 1/2"

Socket

Required for installation

Installation Guide

LMVLF

www.premiermounts.com | North America 800.368.9700 | International +1-714-632-7100

Page 3

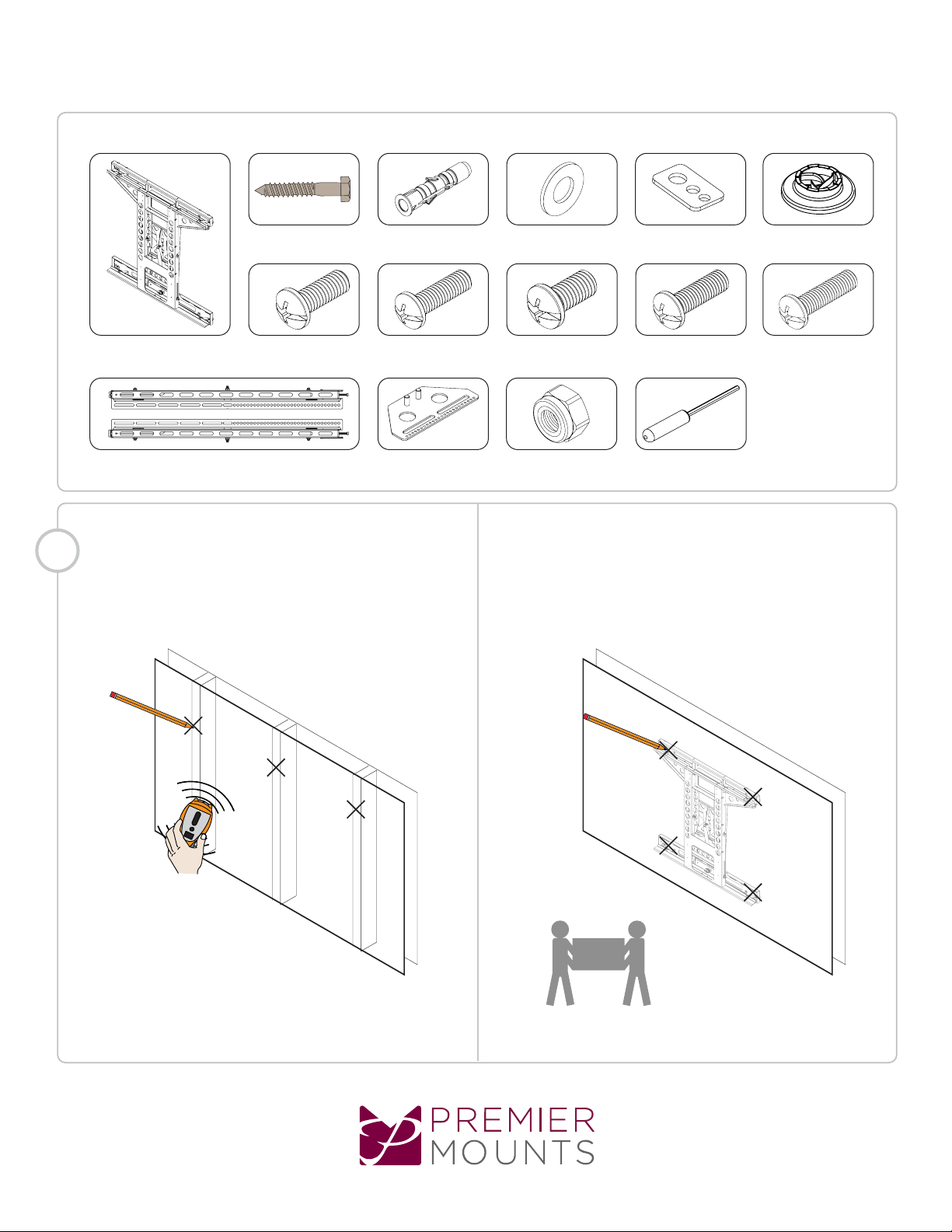

Use a stud finder to determine the wall

studs in the vicinity of the mount and

mark the wall.

Two people recommended for this step; one

person to level the mount and another person

to mark the mounting locations.

INCLUDES:

M8 Lock Nut

(Qty 4)

M5 Allen Driver

(Qty 1)

M6 x 16mm

(Qty 4)

Wall Mount

Mounting Brackets

5/16” x 3” Lag

Bolts (Qty 7)

M6 x 20mm

(Qty 4)

Finned Anchors

(Qty 7)

Universal Spacers

(Qty 8)

M8 x 16mm

(Qty 4)

Universal Washers

(Qty 4)

M8 x 25mm

(Qty 4)

M8 x 30mm

(Qty 4)

5/16” Flat Washers

(Qty 11)

Adapter Wings

(Qty 4)

Stud

Finder

Wood Application Concrete Application

Solid Wall

Heavy, May require

2-person.

Installation Guide

LMVLF

www.premiermounts.com | North America 800.368.9700 | International +1-714-632-7100

Page 4

LEVEL THE MOUNT VERTICALLY AND HORIZONTALLY BEFORE TIGHTENING THE BOLT.

CONCRETE APPLICATION

(7) 5/16” x 3” Hex Lag

with Washers

Marked for locating the center of

the stud (on wood application).

00.0 o

Make pilot holes with 1/8” or 7/32” drill bit

and finish with 3/8” drill bit.

Finned Anchor

1. Place a lag bolt at the desired

location to hang the mount via

keyhole mounting.

2. Mount then plumb and level.

3. Bolt at (6) remaining locations.

Set the mount using

the keyhole slot.

16.19 ”

[411mm]

13 .17 ”

[335mm]

Installation Guide

LMVLF

www.premiermounts.com | North America 800.368.9700 | International +1-714-632-7100

Page 5

Small Straw or Toothpick

Marking the 1/8”

Allowance

Small Straw

or Toothpick

Small Straw

or Toothpick Depth Plus 1/8” Allowance

Mark

Depth Plus 1/8” Allowance

Mark

1) Insert a small straw or toothpick into the threaded inserts found on the

back of the at-panel.

2) Use a pencil to mark the depth of the threaded insert on the small straw

or toothpick.

3) Mark the straw or toothpick 1/8” above the depth of the threaded insert,

as shown in Figure 1.

4) Insert the small straw or toothpick into the remaining threaded inserts

to compare and verify their depth using the straw or toothpick’s 1/8”

allowance mark.

5) Locate the correct diameter screw for the threaded insert.

If the screw you selected is longer than the 1/8” allowance mark on

the small straw or toothpick, as shown in Figure 2 and Figure 3, do

not use this screw. The screw length must not bypass the mark.

6) Test each size of the screws provided.

The correct screws should thread easily into themounting point and

not pull out when tension is applied.

SELECTING THE MOUNTING HARDWARE

Installation Guide

LMVLF

www.premiermounts.com | North America 800.368.9700 | International +1-714-632-7100

Page 6

EXTENSION ADAPTER WINGSINSTALL THE MOUNTING BRACKETS

Universal Spacers allow the user to attach the mounting bracket to flat-panels

which have recessed or uneven mount points. Each Universal Spacer adds 1/4”

to the distance between the mounting bracket and the flat-panel.

1˝ ¼˝

Recessed or uneven

mounting points

LANDSCAPE

OR PORTRAIT

Max Mounting Pattern

Top of flat

panel

Install the optional adapter wings

to make accommodations for various

mounting patterns.

937mm

926mm

(w/o adapter)

829mm

(w/o adapter)

1028mm

UP Arrow

USE ADDITIONAL UNIVERSAL SPACERS TO FILL UNEVEN GAPS

Selected mounting screws

(from previous step) and

universal washers.

Do not overtighten.

(4) Adapter

Wings

(4) M8 Lock Nut

w/ washers

M5, M6

Universal Washers x4

Installation Guide

LMVLF

www.premiermounts.com | North America 800.368.9700 | International +1-714-632-7100

Page 7

Left

Control

Right

Control

TOPLOW TOPLOW

Left

Control

Right

Control

TOPLOW TOPLOW

AND/

TOPLOW TOPLOW

AND/

Installation Guide

LMVLF

www.premiermounts.com | North America 800.368.9700 | International +1-714-632-7100

TILT DOWN

TILT UP

MOVE OUTWARD

MOVE INWARD

Page 8

Left Control Right Control

Installation Guide

LMVLF

www.premiermounts.com | North America 800.368.9700 | International +1-714-632-7100

ROTATE LEFT

LEVEL DOWN

LEVEL UP

ROTATE RIGHT

Page 9

Mounting bracket adjustments are factory preset (see note).

This section requires two people.

Do not release the at-panel prematurely. The top and bottom

hooks of both mounting brackets must be securely seated on

the upper and lower mounting rails.

1) Raise the at-panel past the top and bottom mounting rails on the

wall panel.

2) Slide the at-panel down slowly, keeping it close to the wall.

3) Engage the top and bottom mounting brackets to the rails of the

mount.

Attaching the Flat-Panel to the Mount

Note: The registers

must align prior to

installation.

Neutral Position

(factory preset).

The locking safety screws keep the at-panel from being

accidently dislodged from the mount.

1) Locate the pre-installed security locking safety screw at

the bottom of each of the mounting brackets.

2) Use the M5 Allen driver (supplied) to tighten the locking

safety screw.

Locking Safety Screw Installation

Do not overtighten the locking safety screws.

Note: Tighten screw to surface, then tighten 1/4” turn

Pre-installed

Locking Safety Screw

( 1 per Bracket )

ONLY TIGHTEN AFTER

FINAL ADJUSTMENT

Installation Guide

LMVLF

www.premiermounts.com | North America 800.368.9700 | International +1-714-632-7100

Page 10

LMVLF SPACER

Use the GAPit GO/No Go Gauge as a final step in the process to inspect and adjust the gap to

prevent costly replacement and extend the lifespan of the displays. For more information,

please visit: www.mounts.com

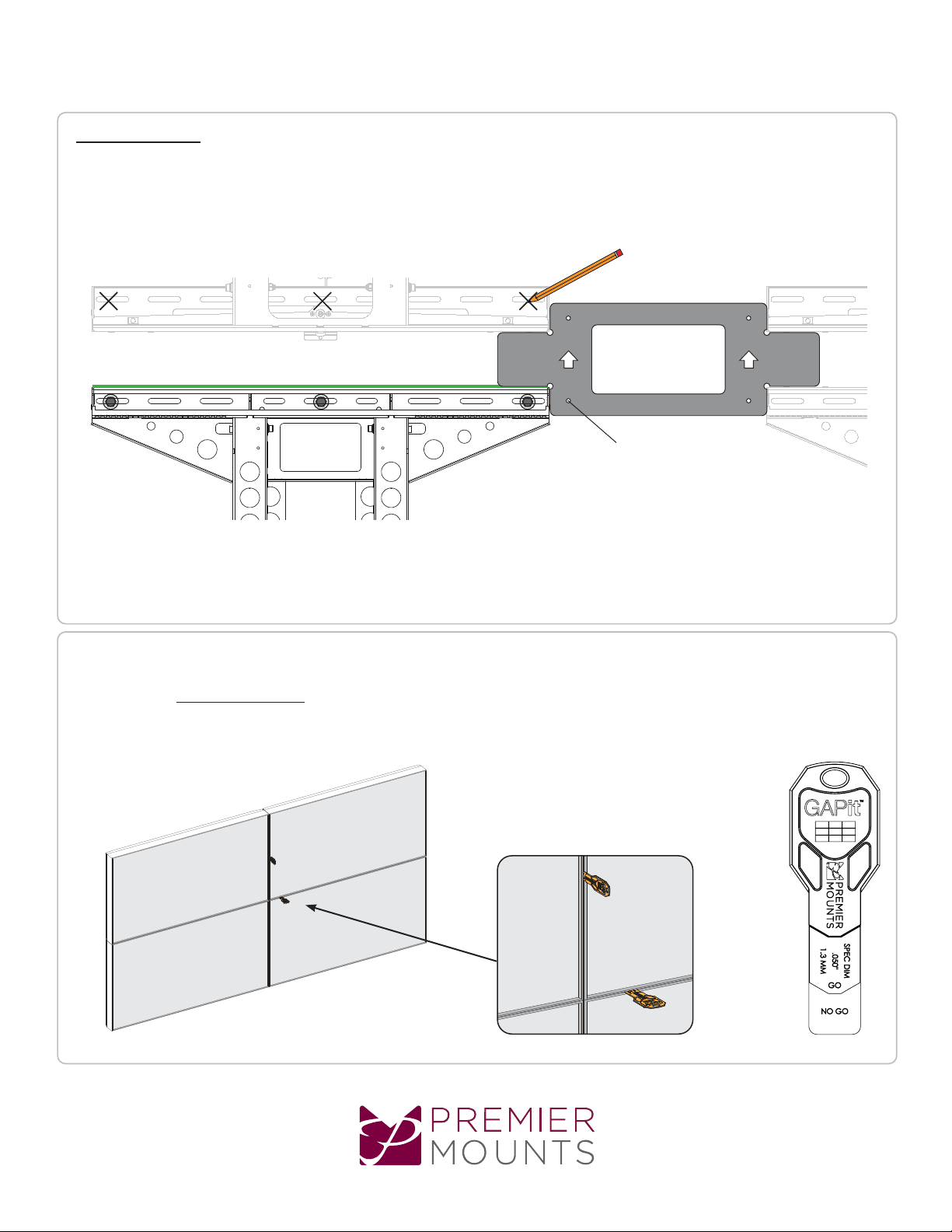

1. Swipe GAPit along vertical gap

2. Inspect for .050” gap & adjust if needed

3. Swipe GAPit along horizontal gap

4. Inspect for .050” gap & adjust if

needed

Installation Guide

LMVLF

www.premiermounts.com | North America 800.368.9700 | International +1-714-632-7100

OPTIONAL FOR EASE OF INSTALLTION

Model-specic spacers are available for most at-panel displays. Engineered with the intent of signicantly

reducing installation time on large video wall array. Contact customer service to inquire about model specic

spacers.

1. Align the corner register tabs of the mount and spacer then temporary secure the spacer in place.

Use commercially available hardware.

2. Set the following mount on the next register corner tabs and mark its mounting location.

3. Reutilize the same spacer as many times as needed to complete the video wall matrix.

LEVEL

Mounting

holes
