Pride Mobility Victory XL Bedienungsanleitung

Owner’s Manual

Exeter, PA

St. Catharines, ON 1-800-800-8586

www.pridemobility.com

The Ultimate In Style & Performance

ATTENTION:

Please read the content

of your owners manual

before operating your

scooter.

SAFETY GUIDELINES

Pride Mobility Products Corp.

Please read and follow all instructions in this owners manual before attempting to operate your scooter for the first

time. If there is anything in this manual you do not understand or if you require additional assistance for setup

contact your authorized Pride provider.

Using your Pride product safely depends upon your diligence in following the warnings cautions and instructions

in this owners manual. Using your Pride product safely also depends upon your own good judgement and/or

common sense as well as that of your provider caregiver and/or healthcare professional. Pride is not responsible

for injuries and/or damage resulting from any persons failure to follow the warnings cautions and instructions in

this owners manual. Pride is not responsible for injuries and/or damage resulting from any persons failure to

exercise good judgement and/or common sense.

The symbols below are used throughout this owners manual to identify warnings and cautions. It is very important

for you to read and understand them completely.

WARNING! Failure to heed the warnings in this owners manual may result in personal injury.

CAU ION! Failure to heed the cautions in this owners manual may result in damage to your

scooter.

INFMANU1297

Victory XL/RevD/June03 www.pridemobility.com

CONTENTS

I. INT ODUCTION......................................................................................................................... 4

II. SAFETY ......................................................................................................................................... 6

III. EMI/ FI ........................................................................................................................................ 15

IV. SPECIFICATIONS ................................................................................................................... 17

V. YOU VICTO Y XL ................................................................................................................. 19

VI. BATTE IES AND CHA GING ............................................................................................ 24

VII. OPE ATION ............................................................................................................................... 28

VIII. COMFO T ADJUSTMENTS................................................................................................ 30

IX. DISASSEMBLY AND ASSEMBLY ..................................................................................... 32

X. OPTIONAL ACCESSO IES ................................................................................................. 34

XI. BASIC T OUBLESHOOTING ............................................................................................. 35

XII. CA E AND MAINTENANCE ................................................................................................ 36

XIII. WA ANTY ............................................................................................................................... 38

4www.pridemobility.com Victory XL/RevD/June03

I. INTRODUCTION

Welcome to Pride Mobility Products Corporation (Pride). Congratulations on the purchase of your new Pride

Scooter. Your scooter design combines the most advanced state-of-the-art components with modern attractive

styling. We are certain that the design features and trouble-free operation will add convenience to your daily living

and ensure complete satisfaction.

At Pride your safety is important to us. Please read and follow all of the instructions in this manual before you

attempt to operate your scooter for the first time. These instructions were produced for your benefit. Your under-

standing of these instructions is essential for the safe operation of your new Pride Scooter.

Pride is not liable for damage to property or personal injury arising out of the unsafe use of a Pride Scooter. Pride

is also not liable for any property damage or personal injury arising out of the failure of any person and/or user to

follow the instructions and recommendations set forth in this manual or any other instructions or recommendations

contained in other scooter related literature issued by Pride or contained on the Pride Scooter itself.

This owners manual is compiled from the latest specifications and product information available at the time of

publication. We reserve the right to make changes as they become necessary. Any changes to our products may

cause slight variations between the illustrations and explanations in this manual and the product you have purchased.

If you experience any problems with your scooter that your are not able to solve or if you do not feel capable of safely

following any of the instructions and/or recommendations contained in this manual please contact your authorized

Pride Provider for assistance.

Once you understand how to operate and take care of your scooter we are certain that it will give you years of trouble-

free service and enjoyment.

Information Exchange

We want to hear your questions comments and suggestions regarding this manual. We would also like to hear about the

safety and reliability of your new Pride Scooter and the service you received from your authorized Pride Provider.

Please notify us of any change of address so we can keep you apprised of important information regarding safety new

products and new options that can increase your ability to use and enjoy your Pride Scooter. Please feel free to write us

at the address below:

Pride Mobility Products Corporation

Attn: Customer Care Department

182 Susquehanna Avenue

Exeter PA 18643-2694

customercare@pridemobility.com

1-800-424-8205

Victory XL/RevD/June03 www.pridemobility.com

I. INTRODUCTION

Pride Owners Club

As a Pride product owner you are invited to register your products warranty and enroll in the Pride Owners Club.

You may do so by filling out and returning your enclosed registration card or by visiting Prides web site at

www.pridemobility.com. As a registered member each time you visit our site you will have access to the most

interactive and honest educational venue available today for people with mobility needs their families and friends.

From our home page click on the button that reads Owners Club to enter a page dedicated to current and

potential Pride product owners. You will gain access to interviews stories recreation ideas daily living tips

product and funding information and interactive message boards. Message boards invite you to speak with other

Pride customers as well as Pride representatives who are available to assist you with any questions or concerns

you may have.

My Authorized Pride Provider Is:

Name:_______________________________________________________________________________

Address:_____________________________________________________________________________

Phone Number:________________________________________________________________________

Quick Reference Information:

Scooter Model:________________________________________________________________________

Serial Number:__________________________________________________________________________

Purchase Date:________________________________________________________________________

NOTE: If you ever lose or misplace your product registration card or this owners manual, contact us and

we will be glad to send you a new one immediately.

6www.pridemobility.com Victory XL/RevD/June03

II. SAFETY

GENERAL

Your Scooter is a state-of-the-art life-enhancement device designed to increase mobility. Pride provides an exten-

sive variety of products to best fit the individual needs of the scooter user. Please be aware that the final selection

and purchasing decision regarding the type of scooter to be used is the responsibility of the scooter user who is

capable of making such a decision and his/her healthcare professional (i.e. medical doctor physical therapist etc.).

The contents of this manual are based on the expectation that a mobility device expert has properly fitted the

scooter to the user and has assisted the prescribing healthcare professional and/or the authorized Pride Provider in

the instruction process for the use of the product.

There are certain situations including some medical conditions where the scooter user will need to practice

operating the scooter in the presence of a trained attendant. A trained attendant can be defined as a family member

or care professional specially trained in assisting a scooter user in various daily living activities.

As you begin using your scooter during daily activities you will probably encounter situations in which you will

need some practice. Simply take your time and you will soon be in full and confident control as you maneuver

through doorways on and off lifts up and down ramps and over moderate terrain.

Below are some precautions tips and other safety considerations that will help the user become accustomed to

operating the scooter safely.

MODIFICATIONS

Pride has designed and engineered your scooter to provide maximum mobility and utility. A wide range of acces-

sories is available from your authorized Pride Provider to further customize your scooter to better suit your needs

and/or preferences. However under no circumstances should you modify add remove or disable any feature

part or function of your scooter.

WARNING! Do not operate your new scooter for the first time without completely reading

and understanding this owners manual.

ELECTROMAGNETIC FIELDS

Your scooters road performance features may be influenced by electromagnetic fields caused by cellular tele-

phones or other radiating devices such as hand-held radios radio and television stations wireless computer links

microwave sources and paging transmitters. Learn more about this topic in III.  EMI-RFI.

WARNING! Do not modify your scooter in any way not authorized by Pride. Unauthorized

modifications may result in personal injury and/or damage to your scooter.

REMOVABLE PARTS

WARNING! Do not attempt to lift or move your scooter by any of its removable parts.

Personal injury and damage to the scooter may result.

Victory XL/RevD/June03 www.pridemobility.com

II. SAFETY

PRE-RIDE SAFETY CHECK

Get to know the feel of your scooter and its capabilities. Pride recommends that you perform a safety check before

each use to make sure your scooter operates smoothly and safely. For details on how to perform these necessary

inspections see XII. Care and Maintenance.

Perform the following inspections prior to using your scooter:

nCheck for proper tire inflation (if equipped with pneumatic tires).

nCheck all electrical connections. Make sure they are tight and not corroded.

nCheck all harness connections. Make sure they are secured properly.

nCheck the brakes.

nCheck battery charge.

If you discover a problem contact your authorized Pride Provider for assistance.

INCLINE INFORMATION

More and more buildings have ramps with specified degrees of inclination designed for easy and safe access.

Some ramps may have turning switchbacks (180-degree turns) that require you to have good cornering skills on

your scooter.

nProceed with extreme caution as you approach the downgrade of a ramp or other incline.

nTake wide swings with your scooter around any tight corners. If you do that the scooters rear wheels will

follow a wide arc not cut the corner short and not bump into or get hung up on any railing corners.

nWhen driving down a ramp keep the scooters speed adjustment set to the slowest speed setting to ensure a

safely controlled descent.

nAvoid sudden stops and starts.

WEIGHT LIMITATIONS

Your scooter is rated for a maximum weight capacity. Please refer to the specifications table for information.

TIRE INFLATION

If your scooter is equipped with pneumatic tires you should check or have the air pressure checked at least once

a week. Proper inflation pressures will prolong the life of your tires and help ensure the smooth operation of your

scooter.

WARNING! It is critically important that 30-35 psi tire pressure be maintained in pneumatic

tires at all times. Do not underinflate or overinflate your tires. Low pressure may result in

loss of control, and overinflated tires may burst. Failure to maintain 30-35 psi tire pressure

in pneumatic tires at all times may result in tire and/or wheel failure, causing serious

personal injury and/or damage to your scooter.

WARNING! Inflate your scooter tires from a regulated air source with an available pressure

gauge. Inflating your tires from an unregulated air source could overinflate them, resulting

in a burst tire and/or personal injury.

WARNING! Exceeding the weight capacity voids your warranty and may result in personal

injury and damage to your scooter. Pride will not be held responsible for injuries and/or

property damage resulting from failure to observe weight limitations.

WARNING! Do not carry passengers on your scooter. Carrying passengers may result in

personal injury and/or property damage.

8www.pridemobility.com Victory XL/RevD/June03

When climbing an incline try to keep your scooter moving. If you must stop start up again slowly and then

accelerate cautiously. When driving down an incline do so by setting the speed adjustment dial to the slowest

setting and driving in the forward direction only. If your scooter starts to move down the incline faster than you

anticipated or desired allow it to come to a complete stop by releasing the throttle control lever. Then push the

throttle control lever forward slightly to ensure a safely controlled descent.

WARNING! Any attempt to climb or descend a slope steeper than what is shown in figure

1 may put your scooter in an unstable position and cause it to tip, resulting in personal

injury.

WARNING! When climbing an incline, do not zigzag or drive at an angle up the face of the

incline. Drive your scooter straight up the incline. his greatly reduces the possibility of a

tip or a fall. Always exercise extreme caution when negotiating an incline.

WARNING! Do not drive your scooter across the side of a hill or diagonally up or down a

hill; do not stop, if possible, while driving up or down an incline.

WARNING! You should not travel up or down a potentially hazardous incline (i.e., areas

covered with snow, ice, cut grass, or wet leaves).

WARNING! When on any sort of an incline or decline, never place the scooter in freewheel

mode while seated on it or standing next to it.

WARNING! Even though your scooter is capable of climbing slopes greater than those

illustrated in figure 1, do not, under any circumstances, exceed the incline guidelines or

any other specifications presented in this manual. Doing so could cause instability in your

scooter, resulting in personal injury and/or damage to your scooter.

WARNING! Never carry an oxygen tank weighing more than 15 lbs. Never fill the rear

basket with contents exceeding 15 lbs.

Handicap public access ramps are not subject to government regulation in all countries and therefore do not

necessarily share the same standard percent of slope. Other inclines may be natural or if man-made not designed

specifically for scooters. Figure 1 illustrates your scooters stability and its ability to climb grades under various

weight loads and under controlled testing conditions.

These tests were conducted with the scooters seat in the highest position and adjusted rearward on the seat base

to its farthest rearward position. Use this information as a guideline. Your scooters ability to travel up inclines is

affected by your weight your scooters speed your angle of approach to the incline and your scooter setup.

7˚

8˚

9˚

250 lbs. 300 lbs.

200 lbs.

10˚

150 lbs.

Figure 1. (Maximum Recommended Incline Angles

II. SAFETY

Victory XL/RevD/June03 www.pridemobility.com

CORNERING INFORMATION

Excessively high cornering speeds can create the possibility of tipping. Factors which affect the possibility of

tipping include but are not limited to cornering speed steering angle (how sharply you are turning) uneven road

surfaces inclined road surfaces riding from an area of low traction to an area of high traction (such as passing from

a grassy area to a paved area  especially at high speed while turning) and abrupt directional changes. High

cornering speeds are not recommended. If you feel that you may tip over in a corner reduce your speed and

steering angle (i.e. lessen the sharpness of the turn) to prevent your scooter from tipping.

WARNING! When cornering sharply, reduce your speed. When using your scooter at higher

speeds, do not corner sharply. his greatly reduces the possibility of a tip or fall. o avoid

personal injury or property damage, always exercise common sense when cornering.

When you approach an incline it is best to lean forward. See figures 2 and 2A. This shifts the center of gravity of

you and your scooter toward the front of the scooter for improved stability.

BRAKING INFORMATION

Your scooter is equipped with two powerful brake systems:

1. Regenerative: Uses electricity to rapidly slow the vehicle when the throttle control lever returns to the center/

stop position.

2. Disc Park Brake: Activates mechanically after regenerative braking slows the vehicle to near stop or when

power is removed from the system for any reason.

Figure 2A. Increased Stability Driving Position

Figure 2. Normal Driving Position

II. SAFETY

10 www.pridemobility.com Victory XL/RevD/June03

OUTDOOR DRIVING SURFACES

Your scooter is designed to provide optimum stability under normal driving conditionsdry level surfaces com-

posed of concrete blacktop or asphalt. However Pride recognizes that there will be times when you will encoun-

ter other surface types. For this reason your scooter is designed to perform admirably on packed soil grass and

gravel. Feel free to use your scooter safely on lawns and in park areas.

nReduce your scooters speed when driving on uneven terrain and/or soft surfaces.

nAvoid tall grass that can become tangled in the running gear.

nAvoid loosely packed gravel and sand.

nIf you feel unsure about a driving surface avoid that surface.

WARNING! You should not operate your scooter on public streets and roadways. Be aware

that it may be difficult for traffic to see you when you are seated on your scooter. Obey all

local pedestrian traffic rules. Wait until your path is clear of traffic, and then proceed with

extreme caution.

PUBLIC STREETS AND ROADWAYS

NOTE: afety accessories like fluorescent flags are available to order from your authorized Pride Provider.

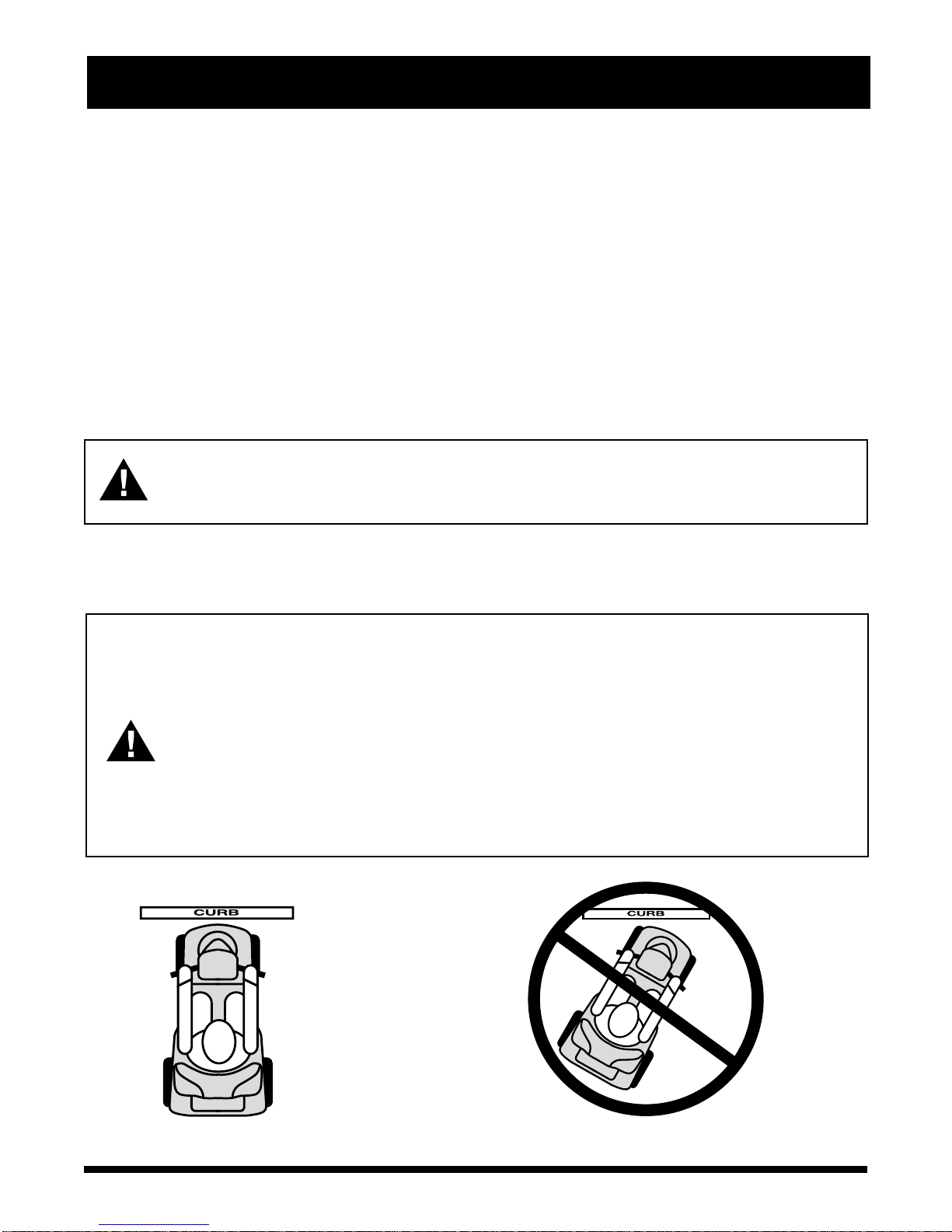

Figure 3. Correct Curb Approach Figure 3A. Incorrect Curb Approach

STATIONARY OBSTACLES (STEPS, CURBS, ETC.)

WARNING! Do not drive near raised surfaces, unprotected ledges, and/or drop-offs (curbs,

porches, stairs, etc.).

WARNING! Do not attempt to have your scooter climb or descend an obstacle that is

inordinately high. Serious personal injury and/or damage may result.

WARNING! Do not attempt to have your scooter proceed backward down any step, curb, or

other obstacle. his may cause the scooter to tip and cause personal injury.

WARNING! Be sure your scooter is traveling perpendicular to any curb you may be required

to ascend or descend. See figures 3 and 3A.

WARNING! Do not attempt to negotiate a curb that has a height greater than 2 in.

II. SAFETY

Andere Handbücher für Victory XL

Inhaltsverzeichnis

Andere Pride Mobility Roller Handbücher

Pride Mobility

Pride Mobility Colt Twin Bedienungsanleitung

Pride Mobility

Pride Mobility CELEBRITY X Bedienungsanleitung

Pride Mobility

Pride Mobility SC40X Bedienungsanleitung

Pride Mobility

Pride Mobility Sidekick Bedienungsanleitung

Pride Mobility

Pride Mobility VICTORY SERIES Bedienungsanleitung

Pride Mobility

Pride Mobility Go-Go Elite traveller Bedienungsanleitung

Pride Mobility

Pride Mobility CELEBRITY DELUXE Bedienungsanleitung

Pride Mobility

Pride Mobility REVO Bedienungsanleitung

Pride Mobility

Pride Mobility REVO Bedienungsanleitung

Pride Mobility

Pride Mobility Celebrity DX Bedienungsanleitung

Pride Mobility

Pride Mobility Celebrity X Sport Bedienungsanleitung

Pride Mobility

Pride Mobility Path rider Bedienungsanleitung

Pride Mobility

Pride Mobility Go-Go Ultra X Bedienungsanleitung

Pride Mobility

Pride Mobility OUTBACK Bedienungsanleitung

Pride Mobility

Pride Mobility CELEBRITY X Bedienungsanleitung

Pride Mobility

Pride Mobility Go-Go Series Bedienungsanleitung

Pride Mobility

Pride Mobility Legend 3-Wheel Scooter Bedienungsanleitung

Pride Mobility

Pride Mobility Dash Bedienungsanleitung

Pride Mobility

Pride Mobility Sundancer SC2000PS Bedienungsanleitung

Pride Mobility

Pride Mobility Maxima Scooter SC940 Bedienungsanleitung

Pride Mobility

Pride Mobility CELEBRITY X Bedienungsanleitung

Pride Mobility

Pride Mobility Quantum Jazzy 1420 Bedienungsanleitung

Pride Mobility

Pride Mobility Legend XL Bedienungsanleitung

Pride Mobility

Pride Mobility CELEBRITY XL Bedienungsanleitung

Beliebte Roller Handbücher anderer Marken

TEKTRO

TEKTRO CHEETAH Bedienungsanleitung

Douglas

Douglas Vespa Sprint Installationsanleitung

PLAYTIVE

PLAYTIVE AS-2448 Bedienungsanleitung

Ebinger

Ebinger DONKEY XL Bedienungsanleitung

Flyer

Flyer Mountain Benutzerhandbuch

BackCountry eBikes

BackCountry eBikes Storm Bedienungsanleitung

equipmed

equipmed FreeRoam II Bedienungsanleitung

Yoto

Yoto Lion Bedienungsanleitung

WESTHILL BIKES

WESTHILL BIKES LINK Bedienungsanleitung

BAnff

BAnff eProdigy series Bedienungsanleitung

Winther

Winther 475 Bedienungsanleitung

Jetson

Jetson JBZL17 Bedienungsanleitung

First Choice Mobility

First Choice Mobility Roma Medical Corella S741 Bedienungsanleitung

Carrera

Carrera impel Bedienungsanleitung

Afikim

Afikim Superlight SL-3 Bedienungsanleitung

CareCo

CareCo ZOOM Bedienungsanleitung

Douglas

Douglas Vespa G.S. Bedienungsanleitung

Gazelle

Gazelle with BOSCH System Bedienungsanleitung
