Pride PURSUIT Series Bedienungsanleitung

Includes Models: Pursuit and Pursuit HD

SERIES

PURSUIT

Pride Mobility Products Company

INFMANU3906/Rev B/February 2012

SAFETY GUIDELINES

NOTE: This owner’s manual is compiled from the latest specifications and product information avail-

able at the time of publication. We reserve the right to make changes as they become necessary. Any

changes to our products may cause slight variations between the illustrations and explanations in this

manual and the product you have purchased. The latest/current version of this manual is available on

our website.

Pride Provider: _____________________________________________________________________

Address: __________________________________________________________________________

Phone Number:__________________________

Purchase Date: __________________________ Serial Number: ___________________________

WARNING! An authorized Pride Provider or qualified technician must perform the initial

setup of this scooter and must perform all of the procedures in this manual.

The symbols below are used throughout this owner's manual and on the scooter to identify warnings and

important information. It is very important for you to read them and understand them completely.

WARNING! Indicates a potentially hazardous condition/situation. Failure to follow

designated procedures can cause either personal injury, component damage, or

malfunction. On the product, this icon is represented as a black symbol on a yellow

triangle with a black border.

MANDATORY! These actions should be performed as specified. Failure to perform

mandatory actions can cause personal injury and/or equipment damage. On the product,

this icon is represented as a white symbol on a blue dot with a white border.

PROHIBITED! These actions are prohibited. These actions should not be performed at

any time or in any circumstances. Performing a prohibited action can cause personal

injury and/or equipment damage. On the product, this icon is represented as a black

symbol with a red circle and a red slash.

INTENDED USE

The intended use of the Pride Mobility Products device is to provide mobility to persons limited to a seated

position that have the capability of operating a powered scooter.

Please fill out the following information for quick reference:

Pursuit www.pridemobility.com

CONTENTS

I. INTRODU CTION .....................................................................................................................4

II. SAFETY .......................................................................................................................................5

III. YOU R SCOOTER ....................................................................................................................20

IV. BATTERIES AND CH ARGI N G ........................................................................................25

V. OPERATION ............................................................................................................................30

V I. COM FOR T ADJ U ST MEN TS .............................................................................................32

VII. DISASSEMBLY AND ASSEMBLY .................................................................................34

VIII. BASI C T ROU BLESH OOT I N G ..........................................................................................36

IX. CARE AND MAI N T ENAN CE ............................................................................................38

APPEN DIX I – SPECI FICAT I ONS ..............................................................................................41

4www.pridemobility.com Pursuit

I. INTRODUCTION

SAFETY

Welcome to Pride Mobility Products Corporation (Pride). The product you have purchased combines

state-of the-art components with safety, comfort, and styling in mind. We are confident the design features

will provide you with the conveniences you expect during your daily activities. Understanding how to

safely operate and care for this product should bring you years of trouble free operation and service.

Read and follow all instructions, warnings, and notes in this manual and all other accompanying literature

before attempting to operate this product for the first time. In addition, your safety depends upon you, as

well as your provider, caretaker, or healthcare professional in using good judgement.

If there is any information in this manual which you do not understand, or if you require additional assis-

tance for setup or operation, please contact your authorized Pride Provider. Failure to follow the instruc-

tions, warnings, and notes in this manual and those located on your Pride product can result in

personal injury or product damage and will void Pride’s product warranty.

PURCHASER’S AGREEMENT

By accepting delivery of this product, you promise that you will not change, alter, or modify this product

or remove or render inoperable or unsafe any guards, shields, or other safety features of this product; fail,

refuse, or neglect to install any retrofit kits from time to time provided by Pride to enhance or preserve the

safe use of this product.

SHIPPING AND DELIVERY

Before using your scooter, make sure your delivery is complete as some components may be individually

packaged. If you do not receive a complete delivery, please contact your authorized Pride Provider imme-

diately. Where damage has occurred during transport, either to the packaging or content, please contact

the delivery company responsible.

INFORMATION EXCHANGE

We want to hear your questions, comments, and suggestions about this manual. We would also like to hear

about the safety and reliability of your new scooter, and about the service you received from your autho-

rized Pride Provider. Please notify us of any change of address, so we can keep you apprised of important

information about safety, new products, and new options that can increase your ability to use and enjoy

your scooter. Please feel free to contact us at the address below:

Pride Mobility Products Company

380 Vansickle Road Unit 350

St. Catharines, Ontario L2R 6P7

1-888-570-1113

NOTE: If you ever lose or misplace your product registration card or your copy of this manual, contact

us and we will be glad to send you a new one immediately.

Pursuit www.pridemobility.com

II. SAFETY

PRODUCT SAFETY SYMBOLS

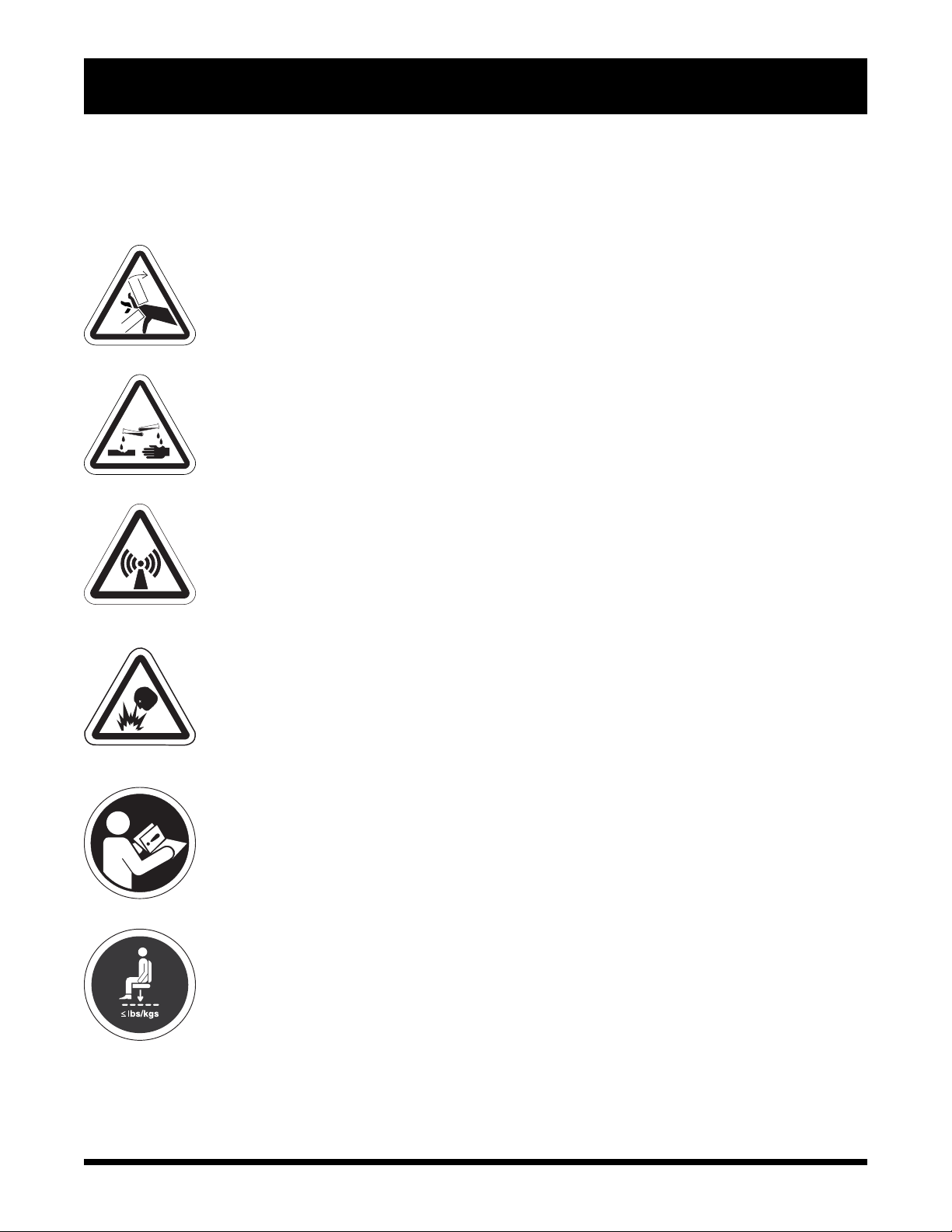

The symbols below are used on the scooter to identify warnings, mandatory actions, and prohibited

actions. It is very important for you to read and understand them completely.

Pinc h/Crush points c rea te d during assem bly.

Corrosive chem icals cont a ine d in ba t t ery.

EM I -RFI - T his produc t ha s bee n t e ste d a nd pa ssed at an im munity leve l of 20 V/m .

Ex plosive condit ions exist !

Re a d a nd follow the inform a tion in the ow ne r’s m anua l.

Ma x imum se at ing w e ight.

6www.pridemobility.com Pursuit

II. SAFETY

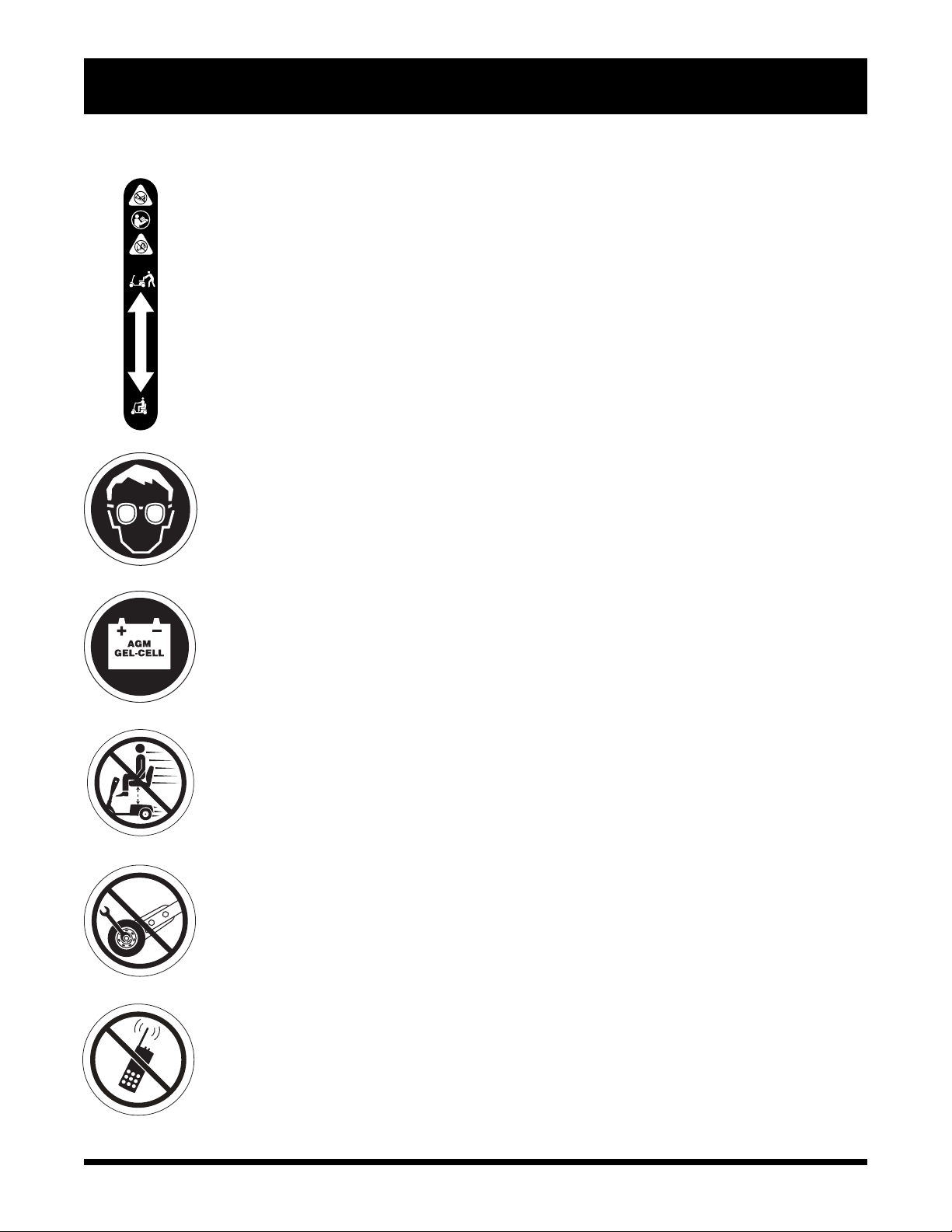

Pla c e unit on le vel ground a nd sta nd to one side w he n c hanging from drive mode

to fre ew he e l mode or fre e w he el m ode to drive mode .

Loc k ed a nd in drive mode .

Unlock e d and in free w he el mode.

Do not re move ant i-t ip w heels.

We a r safe ty goggles.

Use only AGM or Gel-Cell ba t te ries t o re duc e t he risk of le a kage or ex plosive

condit ions.

Do not raise or low e r t he pow er se at w hile the sc oote r is in motion.

Do not use a c ell phone, w a lkie /t a lk ie, la pt op, or ot he r ra dio t ransmit t er w hile

ope rat ing.

Pursuit www.pridemobility.com

II. SAFETY

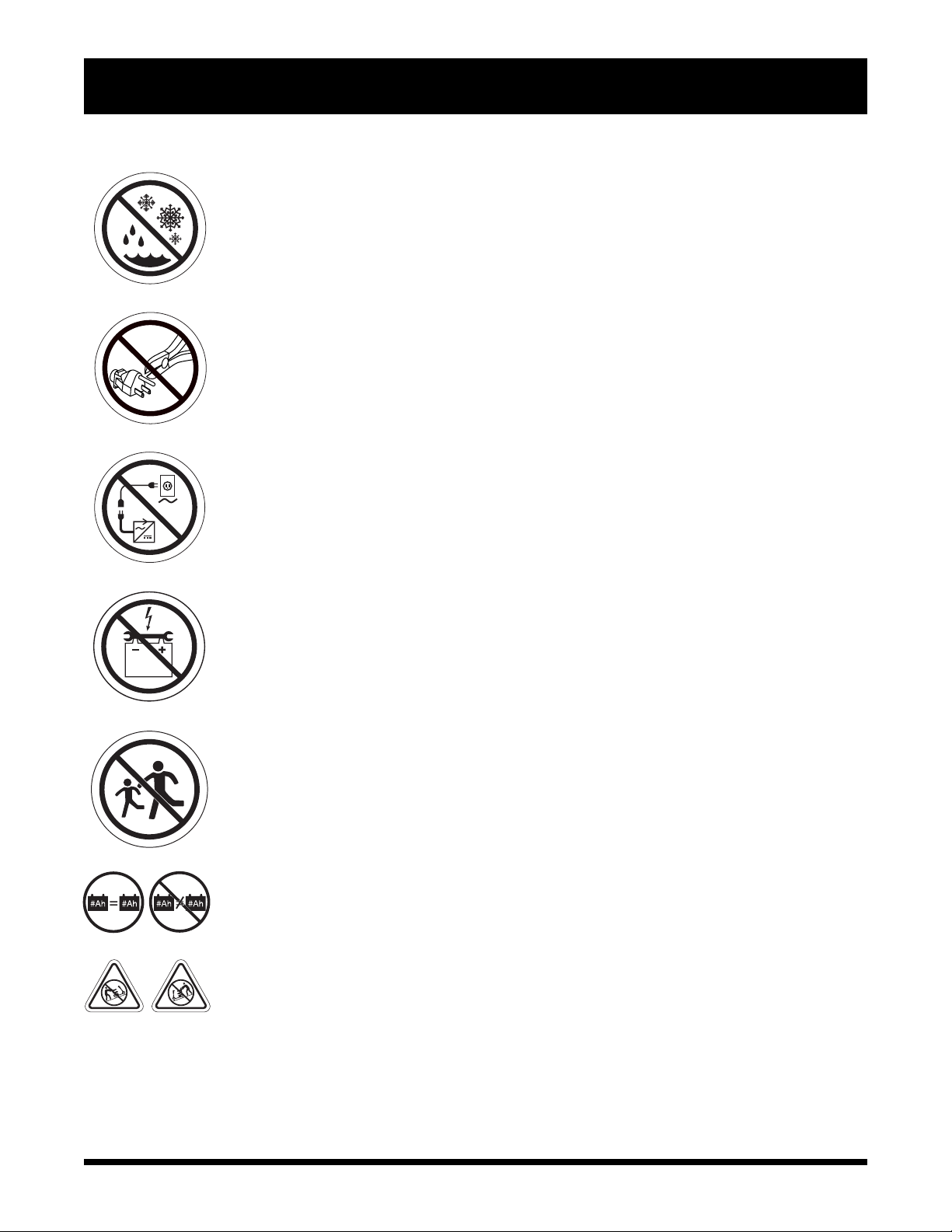

Avoid e xposure to ra in, snow , ice, sa lt, or st anding w a t e r w he neve r possible .

Ma inta in a nd st ore in a cle a n and dry condition.

Re m ova l of grounding prong c an cre a t e e le ctrica l ha za rd. I f ne c essa ry, properly

insta ll a n approve d 3-pronged a dapt e r to a n ele c tric a l out let ha ving 2 -pronged

plug ac c e ss.

Do not conne c t an e xt e nsion c ord t o t he AC/DC c onve rter or t he bat t ery c harge r.

Ke ep tools and othe r m et a l obje c ts a w ay from ba t tery t erm inals. Cont a ct w ith

tools ca n ca use ele c t ric a l shoc k.

Do not allow unsupervise d c hildren to pla y near the scoot e r w hile t he ba tte ries

are c harging.

Do not use ba t terie s w ith diffe re nt a mp-hour (Ah) c a pa c itie s. Do not m ix old a nd

ne w ba t t erie s. Alw a ys repla ce bot h ba tte ries at t he sa m e tim e .

Do not pla ce t he sc oot e r in fre ew he e l m ode w he n on an inc line or de cline .

8www.pridemobility.com Pursuit

II. SAFETY

Ba t t ery c harge r for indoor use only.

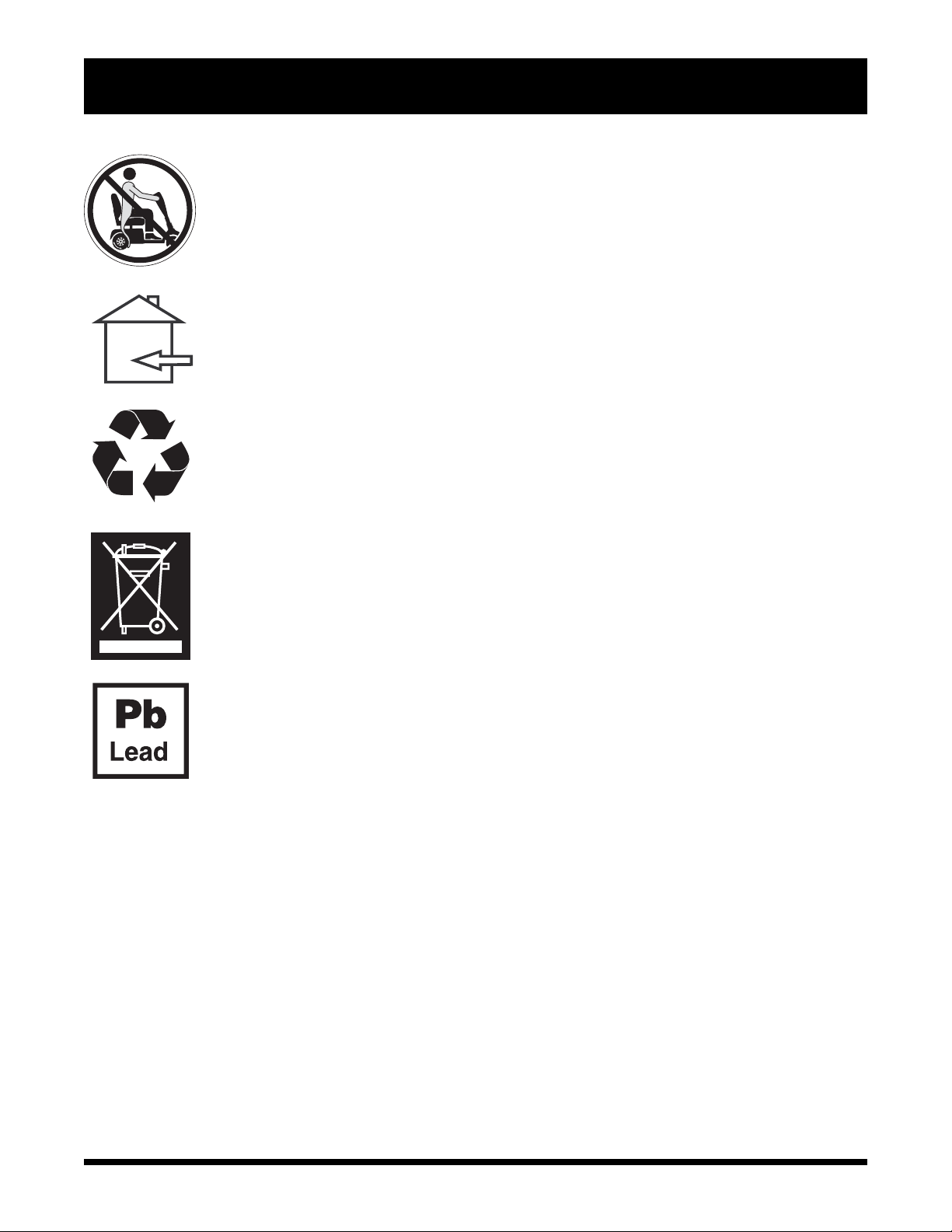

Disposa l a nd re c ycling - Cont act your aut horize d Pride Provide r for informa t ion on

proper disposa l a nd recyc ling of your Pride product and it s pac k a ging.

Cont ains Lea d.

Ke ep your ha nds aw ay from the tire s w he n driving. Be aw a re tha t loose fitt ing

clot hing c an be c ome ca ught in drive tires.

Pursuit www.pridemobility.com

II. SAFETY

GENERAL

MAN DATORY ! Do not ope ra t e your ne w scoot e r for t he first tim e w ithout com ple t ely re ad-

ing a nd underst anding t his ow ner’s ma nual.

Your scooter is a state-of-the-art life-enhancement device designed to increase mobility. Pride provides an

extensive variety of products to best fit the individual needs of the scooter user. Please be aware that the

final selection and purchasing decision regarding the type of scooter to be used is the responsibility of the

scooter user, who is capable of making such a decision, and his/her healthcare professional (i.e., medical

doctor, physical therapist, etc.).

The contents of this manual are based on the expectation that a mobility device expert has properly fitted

the scooter to the user and has assisted the prescribing healthcare professional and/or the authorized Pride

Provider in the instruction process for the use of the product.

There are certain situations, including some medical conditions, where the scooter user will need to prac-

tice operating the scooter in the presence of a trained attendant. A trained attendant can be defined as a

family member or care professional specially trained in assisting a scooter user in various daily living

activities.

As you begin using your scooter during daily activities, you will probably encounter situations in which

you will need some practice. Simply take your time and you will soon be in full and confident control as

you maneuver through doorways, on and off elevators, up and down ramps, and over moderate terrain.

Below are some precautions, tips, and other safety considerations that will help you become accustomed

to operating the scooter safely.

MODIFICATIONS

Pride has designed and engineered your scooter to provide maximum mobility and utility. However, under

no circumstances should you modify, add, remove, or disable any feature, part, or function of your scooter.

WARNIN G! Do not modify your scoote r in a ny w a y not authorized by Pride . Do not use

ac c essorie s if the y ha ve not be e n t est e d or approve d for Pride produc ts.

REMOVABLE PARTS

WARNIN G! Do not a tt e m pt to lift or move your sc oote r by a ny of it s rem ovable pa rt s,

inc luding the arm rest s, sea t , or shroud.

PRE-RIDE SAFETY CHECK

Get to know the feel of your scooter and its capabilities. Pride recommends that you perform a safety check

before each use to make sure your scooter operates smoothly and safely.

10 www.pridemobility.com Pursuit

II. SAFETY

Perform the following inspections prior to using your scooter:

Check for proper tire inflation. Maintain but do not exceed the psi/bar/kPa air pressure rating indicated

on each tire if equipped with pneumatic tires.

Check all electrical connections. Make sure they are tight and not corroded.

Check all harness connections. Make sure they are secured properly.

Check the brakes.

Check battery charge.

If you discover a problem, contact your authorized Pride Provider for assistance.

TIRE INFLATION

If your scooter is equipped with pneumatic tires, you should check or have the air pressure checked at least

once a week. Proper inflation pressures will prolong the life of your tires and help ensure the smooth

operation of your scooter.

WARNIN G! It is c rit ic ally importa nt tha t t he psi/bar/k Pa air pre ssure ra t ing indic a t ed on

the t ire be ma inta ined in pne uma t ic tire s at a ll t im e s. Do not unde rinflat e or overinflat e

your t ire s. Low pre ssure may re sult in loss of c ontrol, a nd ove rinflat e d t ire s m ay burst.

Fa ilure t o mainta in the psi/bar/k Pa air pre ssure rating indic a te d on the pne uma t ic t ires

at all t ime s m a y re sult in tire and/or w he el fa ilure .

WARNIN G! Infla te your scooter t ires from a re gula t ed air source w it h a n a vaila ble pre s-

sure ga uge . I nfla t ing your tire s from a n unregula te d a ir sourc e c ould ove rinflat e t hem,

re sult ing in a burst tire .

WEIGHT LIMITATIONS

Your scooter is rated for a maximum weight capacity. Refer to the specifications table for information.

Keep in mind that the maximum weight capacity includes the combined weight of the user and any acces-

sories mounted to the scooter.

MAN DATORY ! St ay w it hin the spe c ifie d w e ight capa c it y for your sc oote r. Ex ce e ding t he

w eight c a pa c ity voids your w arra nty. Pride w ill not be he ld responsible for injuries and/

or prope rt y dam age re sulting from fa ilure to obse rve w eight lim it at ions.

WARNIN G! Do not ca rry passenge rs on your sc oote r. Carrying pa ssenge rs on your

sc oote r m a y affe c t the ce nt er of gravit y, re sulting in a tip or a fa ll.

INCLINE INFORMATION

More and more buildings have ramps with specified degrees of inclination, designed for easy and safe

access. Some ramps may have turning switchbacks (180-degree turns) that require you to have good cor-

nering skills on your scooter.

Proceed with extreme caution as you approach the downgrade of a ramp or other incline.

Take wide swings with your scooter around any tight corners. If you do that, the scooter’s rear wheels

will follow a wide arc, not cut the corner short, and not bump into or get hung up on any railing corners.

When driving down a ramp, keep the scooter’s speed adjustment set to the slowest speed setting to

ensure a safely controlled descent.

Avoid sudden stops and starts.

NOTE: If the tire on your scooter lists the psi rating only, use the following conversion formulas to find

the bar or kPa rating: bar = psi x 0.06895; kPa = psi x 6.89476.

Inhaltsverzeichnis

Andere Pride Roller Handbücher

Pride

Pride Jazzy 623 Bedienungsanleitung

Pride

Pride Hurricane PMV Bedienungsanleitung

Pride

Pride Boxter Bedienungsanleitung

Pride

Pride Hurricane PMV Bedienungsanleitung

Pride

Pride Hurricane Bedienungsanleitung

Pride

Pride Go-Go Elite Traveller SC40E Bedienungsanleitung

Pride

Pride Victory Viper-3 Bedienungsanleitung

Pride

Pride MAXIMA-V Bedienungsanleitung

Pride

Pride Celebrity X LE Bedienungsanleitung

Pride

Pride Maxima Scooter SC900 Bedienungsanleitung

Pride

Pride PATHRIDER 140 XL Bedienungsanleitung

Pride

Pride Pursuit Bedienungsanleitung

Pride

Pride Boxter Bedienungsanleitung

Pride

Pride CELEBRITY XL DELUXE Bedienungsanleitung

Pride

Pride COLT ES10 Bedienungsanleitung

Pride

Pride Victory Viper Bedienungsanleitung

Pride

Pride Celebrity X-6 Bedienungsanleitung

Pride

Pride Rally Bedienungsanleitung

Pride

Pride Ultimate 3 CF3001 Bedienungsanleitung

Pride

Pride Sundancer Bedienungsanleitung

Pride

Pride CELEBRITY XL Bedienungsanleitung

Pride

Pride JAZZY Bedienungsanleitung

Pride

Pride Hurricane PMV Bedienungsanleitung

Pride

Pride BAJA MOBILITY WRANGLER Bedienungsanleitung

Beliebte Roller Handbücher anderer Marken

TEKTRO

TEKTRO CHEETAH Bedienungsanleitung

Douglas

Douglas Vespa Sprint Installationsanleitung

PLAYTIVE

PLAYTIVE AS-2448 Bedienungsanleitung

Ebinger

Ebinger DONKEY XL Bedienungsanleitung

Flyer

Flyer Mountain Benutzerhandbuch

BackCountry eBikes

BackCountry eBikes Storm Bedienungsanleitung

equipmed

equipmed FreeRoam II Bedienungsanleitung

Yoto

Yoto Lion Bedienungsanleitung

WESTHILL BIKES

WESTHILL BIKES LINK Bedienungsanleitung

BAnff

BAnff eProdigy series Bedienungsanleitung

Winther

Winther 475 Bedienungsanleitung

Jetson

Jetson JBZL17 Bedienungsanleitung

First Choice Mobility

First Choice Mobility Roma Medical Corella S741 Bedienungsanleitung

Carrera

Carrera impel Bedienungsanleitung

Afikim

Afikim Superlight SL-3 Bedienungsanleitung

CareCo

CareCo ZOOM Bedienungsanleitung

Douglas

Douglas Vespa G.S. Bedienungsanleitung

Gazelle

Gazelle with BOSCH System Bedienungsanleitung
