2Victory XL

Please read and follow all instructions in this owners manual before attempting to operate your

Scooter for the first time. If there is anything in this manual you do not understand, or if you

require additional assistance for set-up, contact your local authorized Pride provider.

sing your Pride product safely depends upon your diligence in following the warnings, cautions,

and instructions in this owners manual. sing your Pride product safely also depends upon your

own good judgement and/or common sense, as well as that of your provider, caregiver, and/or

healthcare professional. Pride is not responsible for injuries and/or damage resulting from any

persons failure to follow the warnings, cautions, and instructions in this owners manual. Pride

is not responsible for injuries and/or damage resulting from any persons failure to exercise

good judgement and/or common sense.

The symbols below are used throughout this owners manual to identify warnings and cautions. It

is very important for you to read and understand them completely.

WARNING! Failure to heed the warnings in this owners manual may result in personal injury.

CAU ION! Failure to heed the cautions in this owners manual may result in damage to your

Scooter.

SAFETY GUIDELINES

Pride Mobility Products Australia Pty. Ltd.

INFMANU1717/REV C/JULY 2002

All manuals and user guides at all-guides.com

3Victory XL

I. INTRODUCTION......................................................................................................................... 4

II. SAFETY ......................................................................................................................................... 6

III. SPECIFICATIONS ................................................................................................................... 0

IV. YOUR VICTORY XL ................................................................................................................. 2

V. BATTERIES AND CHARGING ............................................................................................ 8

VI. OPERATION ............................................................................................................................... 22

VII. COMFORT ADJUSTMENTS................................................................................................ 24

VIII. DISASSEMBLY AND ASSEMBLY ..................................................................................... 26

IX. TROUBLESHOOTING ............................................................................................................ 28

X. CARE AND MAINTENANCE ................................................................................................ 29

XI. WARRANTY ................................................................................................................................3

CONTENTS

All manuals and user guides at all-guides.com

4Victory XL

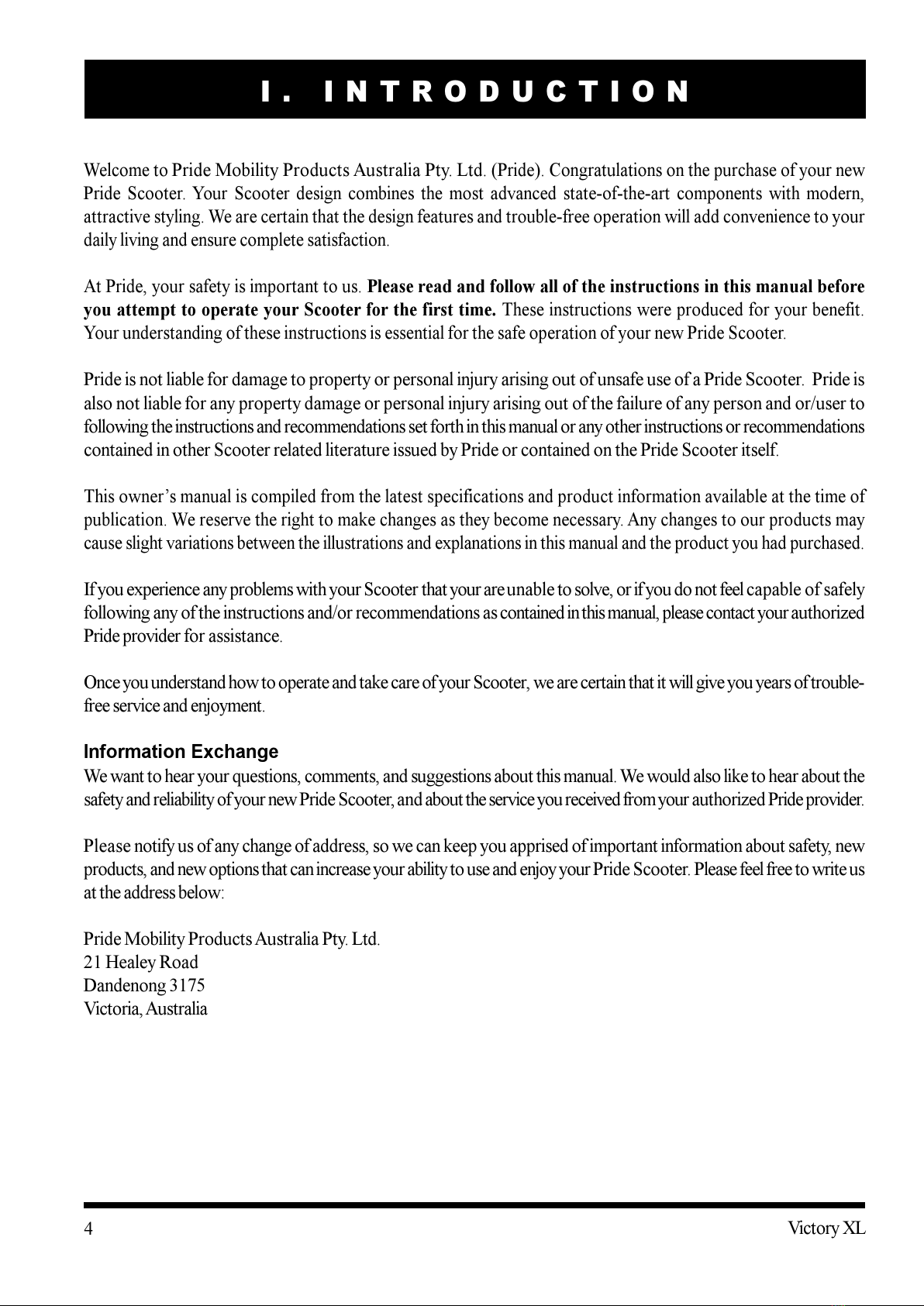

I. INTRODUCTION

Welcome to

Pride Mobility Products Australia Pty. Ltd.

(Pride). Congratulations on the purchase of your new

Pride Scooter. Your Scooter design combines the most advanced state-of-the-art components with modern,

attractive styling. We are certain that the design features and trouble-free operation will add convenience to your

daily living and ensure complete satisfaction.

At Pride, your safety is important to us. Please read and follow all of the instructions in this manual before

you attempt to operate your Scooter for the first time. These instructions were produced for your benefit.

Your understanding of these instructions is essential for the safe operation of your new Pride Scooter.

Pride is not liable for damage to property or personal injury arising out of unsafe use of a Pride Scooter. Pride is

also not liable for any property damage or personal injury arising out of the failure of any person and or/user to

following the instructions and recommendations set forth in this manual or any other instructions or recommendations

contained in other Scooter related literature issued by Pride or contained on the Pride Scooter itself.

This owners manual is compiled from the latest specifications and product information available at the time of

publication. We reserve the right to make changes as they become necessary. Any changes to our products may

cause slight variations between the illustrations and explanations in this manual and the product you had purchased.

If you experience any problems with your Scooter that your are unable to solve, or if you do not feel capable of safely

following any of the instructions and/or recommendations as contained in this manual, please contact your authorized

Pride provider for assistance.

Once you understand how to operate and take care of your Scooter, we are certain that it will give you years of trouble-

free service and enjoyment.

Information Exchange

We want to hear your questions, comments, and suggestions about this manual. We would also like to hear about the

safety and reliability of your new Pride Scooter, and about the service you received from your authorized Pride provider.

Please notify us of any change of address, so we can keep you apprised of important information about safety, new

products, and new options that can increase your ability to use and enjoy your Pride Scooter. Please feel free to write us

at the address below:

Pride Mobility Products Australia Pty. Ltd.

2 Healey Road

Dandenong 3 75

Victoria, Australia

All manuals and user guides at all-guides.com

5Victory XL

Pride Owners Club

As an owner of a Pride product, you are invited to register your products warranty and enroll in the Pride Owners

Club. You may do so by filling out and returning your enclosed registration card or by visiting Prides web site at

www.pridemobility.com. As a registered member, each time you visit our site, you will have access to the most

interactive and honest educational venue available today for people with mobility needs, their families and friends.

From our home page, click on the button that reads Owners Club to enter a page dedicated to current and

potential Pride product owners. You will gain access to interviews, stories, recreation ideas, daily living tips,

product and funding information, and interactive message boards. On these message boards you are invited to

speak with other Pride customers as well as Pride representatives who are available to assist you with any questions

or concerns you may have. You will receive a free gift simply for registering with the Pride Owners Club.

My Authorized Pride Provider is:

Name:_______________________________________________________________________________

Address:_____________________________________________________________________________

Phone Number:________________________________________________________________________

uick Reference Information:

Scooter Model:________________________________________________________________________

Serial Number:__________________________________________________________________________

Purchase Date:________________________________________________________________________

NOTE: If you ever lose or misplace your warranty card or your copy of this manual, call or write to us and

we will be glad to send you a new one immediately.

I. INTRODUCTION

All manuals and user guides at all-guides.com

6Victory XL

You must read, understand, and follow all of the safety precautions and product information contained in this

manual before operating your Scooter for the first time. Below are some safety tips that are designed to help you

become accustomed to operating your new Scooter safely.

SAFETY PRECAUTIONS

Motor Vehicle Transport

Never use your Scooter as a seat in a moving vehicle. Your Scooter was not designed for such use and cannot

protect you in the event of an automobile accident or an abrupt stop. Anyone traveling in a motor vehicle should be

properly secured in his/her seat with seat belts approved by the vehicle manufacturer.

II. SAFETY

WARNING! Always be sure your Scooter is properly secured when it is being transported. Failure to

do so may result in personal injury and/or damage to your Scooter.

Also, make sure to secure the batteries before loading your Scooter into a motor vehicle for transport.

Weight Limitations

Your Victory XL is rated for a maximum weight limit of 35 kg (300 lbs.).

WARNING! Do not carry passengers on your Scooter under any circumstances. Exceeding the

weight limit voids your warranty and may result in personal injury and/or damage to your Scooter.

Public Roads and Parking Lots

WARNING! Do not operate your Scooter on public streets and roadways. Please be aware it may be

difficult for traffic to see you when you are seated on your Scooter. Obey all local pedestrian traffic

rules. Wait until your path is clear of traffic, and then proceed with extreme caution.

Anti-tip Precautions

nKeep both hands on the tiller and your feet on the floorboard at all times while operating your Scooter. This

position gives you the most control over your Scooter.

nUse extreme caution when driving near raised surfaces or unprotected ledges or drop-offs (kerbs, porches,

stairs, etc.).

nNever drive your Scooter across the side of an incline or diagonally up or down an incline; do not stop, if

possible, while driving up or down an incline.

nReduce your speed when approaching a turn.

nDrive slowly through turns.

All manuals and user guides at all-guides.com

all-guides.com

7Victory XL

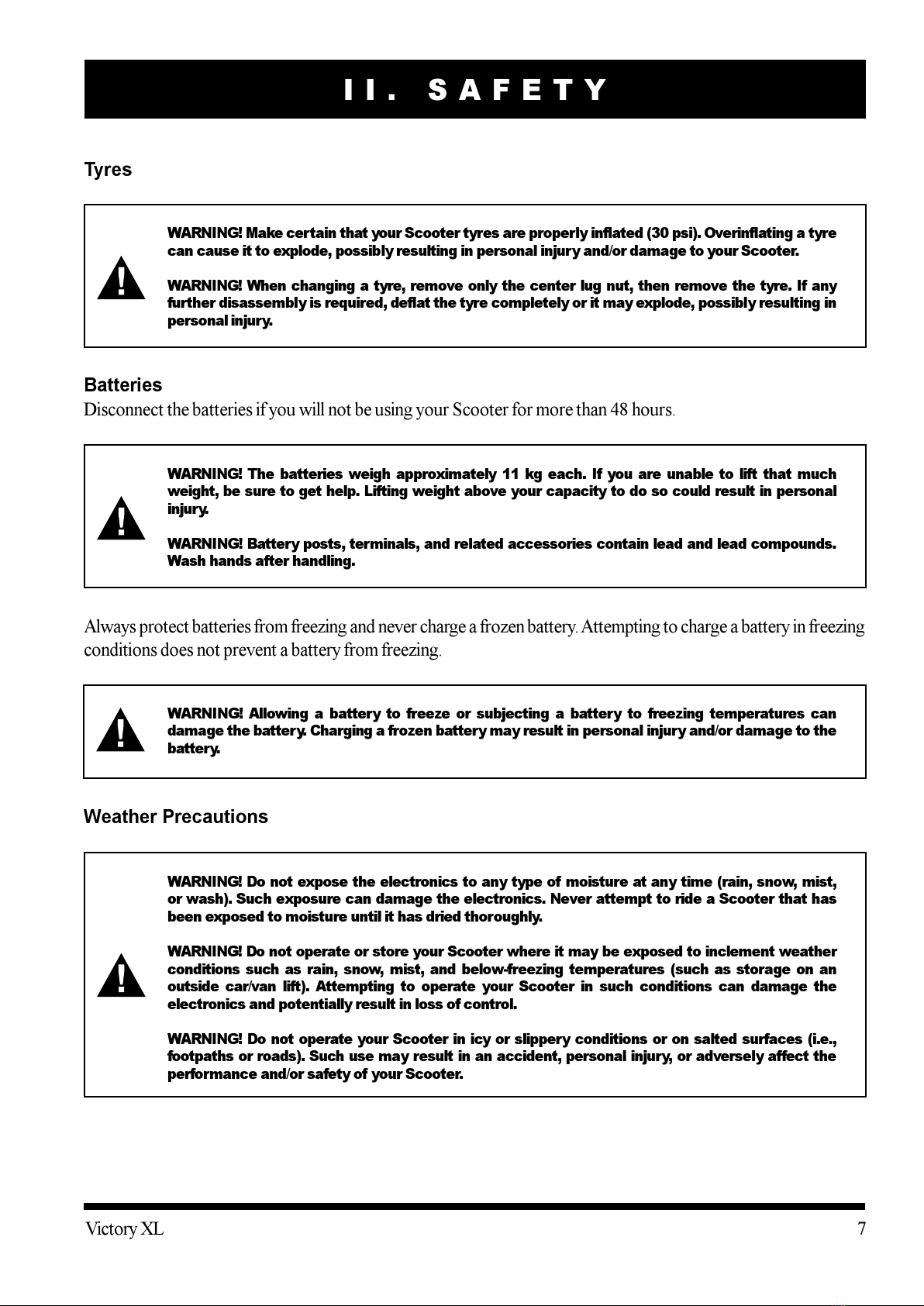

Tyres

II. SAFETY

WARNING! Make certain that your Scooter tyres are properly inflated (30 psi). Overinflating a tyre

can cause it to explode, possibly resulting in personal injury and/or damage to your Scooter.

WARNING! When changing a tyre, remove only the center lug nut, then remove the tyre. If any

further disassembly is required, deflat the tyre completely or it may explode, possibly resulting in

personal injury.

Batteries

Disconnect the batteries if you will not be using your Scooter for more than 48 hours.

WARNING! he batteries weigh approximately 11 kg each. If you are unable to lift that much

weight, be sure to get help. Lifting weight above your capacity to do so could result in personal

injury.

WARNING! Battery posts, terminals, and related accessories contain lead and lead compounds.

Wash hands after handling.

Always protect batteries from freezing and never charge a frozen battery. Attempting to charge a battery in freezing

conditions does not prevent a battery from freezing.

WARNING! Allowing a battery to freeze or subjecting a battery to freezing temperatures can

damage the battery. Charging a frozen battery may result in personal injury and/or damage to the

battery.

Weather Precautions

WARNING! Do not expose the electronics to any type of moisture at any time (rain, snow, mist,

or wash). Such exposure can damage the electronics. Never attempt to ride a Scooter that has

been exposed to moisture until it has dried thoroughly.

WARNING! Do not operate or store your Scooter where it may be exposed to inclement weather

conditions such as rain, snow, mist, and below-freezing temperatures (such as storage on an

outside car/van lift). Attempting to operate your Scooter in such conditions can damage the

electronics and potentially result in loss of control.

WARNING! Do not operate your Scooter in icy or slippery conditions or on salted surfaces (i.e.,

footpaths or roads). Such use may result in an accident, personal injury, or adversely affect the

performance and/or safety of your Scooter.

All manuals and user guides at all-guides.com

8Victory XL

II. SAFETY

Lift/Elevation Products

If you are going to be traveling with your Scooter, you may find it necessary to use a lift/elevation product to aid in

transportation. Pride recommends that you review closely the instructions and specifications set forth by the

manufacturer of the lift/elevation product for use of that product.

WARNING! Never sit on your Scooter when it is being used in connection with any type of lift/

elevation product. Your Scooter was not designed with such use in mind, and any damage or injury

incurred from such use is not the responsibility of Pride.

It is imperative that you read this entire manual and understand all of the safety precautions before you attempt to

operate your new Victory XL for the first time.

Drugs and Alcohol

WARNING! Do not operate your Scooter while you are under the influence of alcohol. Alcohol can

impair your ability to operate your Scooter in a safe manner.

WARNING! Consult your physician if you are taking prescribed or over-the-counter medication or if

you have certain physical limitations. Some medications and limitations may impair your ability to

operate your Scooter in a safe manner.

Driving Surfaces

Your Scooter was designed to provide optimum stability under normal driving conditions; dry, level surfaces

composed of concrete or asphalt. However, Pride recognizes that there will be times when you will face surfaces

other than concrete or asphalt. For that reason, we also designed your Scooter to perform admirably on packed

soil, grass, and gravel.

nFeel free to use your Scooter safely on lawns and in park areas.

nAvoid tall grass that can entangle the running gear.

nPacked soil, gravel, driveways, or roads will not present a problem for your Scooter.

nAvoid loosely packed gravel and sand.

nIf you feel unsure about a driving surface, avoid that surface.

Doors

nDetermine if the door opens toward or away from you.

nUse your hand to turn the knob or push the handle or push-bar.

nDrive slowly forward to push the door open or drive slowly backward to pull the door open.

Elevators

Modern elevators have a door-edge safety mechanism that, when pushed, reopens the elevator door(s).

nIf you are in the doorway of an elevator when the door(s) begin to close, push on the rubber door edge or

allow the rubber door edge to contact your Scooter to reopen the door.

nUse care that pocketbooks, packages, or Victory XL accessories do not become caught in the elevator doors.

All manuals and user guides at all-guides.com

9Victory XL

II. SAFETY

Figure 2. Normal Driving Position Figure 3. Increased Stability Driving Position

Figure 1. Maximum Recommended Incline ngle

68 kg 90 kg 113 kg 136 kg

12,3%

14,1%

15,8%17,6%

68 kg

(150 lbs.)

17,6%

90 kg

(200 lbs.)

15,8%

113 kg

(250 lbs.)

14,1%

135 kg

(300 lbs.)

12,3%

Ramps and Other Inclines

More and more buildings have ramps with specified degrees of inclination, designed for easy and safe access.

Some ramps may have turning switchbacks that require you to have good cornering skills on your Victory XL.

nTake slow, wide swings with the front wheels around any tight corners. If you do that, the rear wheels will

follow a wide arc and will not cut the corner short, bump into, or get hung up on any railing corners.

nWhen driving down a ramp, keep the speed adjustment dial (see IV. Your Victory XL) set to the tortoise

(slowest speed setting) to ensure a safely controlled descent.

nAvoid sudden stops, starts, and turns. Reduce your speed when approaching a turn.

Maximum Recommended Incline

Other inclines may be natural or, if man-made, not designed specifically for Scooters. Figure illustrates your

Victory XLs maximum ability to climb an incline while carrying its maximum weight load.

Controlled tests show that, when you approach an incline, it is best to lean forward. See figures 2 and 3. This shifts

the center of gravity of you and your Victory XL toward the front of the Scooter for improved stability.

WARNING! Do not exceed the incline guidelines or any other specifications presented in this

manual.

All manuals and user guides at all-guides.com

0 Victory XL

III. SPECIFICATIONS

Figure 4. Victory XL Specifications

All manuals and user guides at all-guides.com

Inhaltsverzeichnis

Andere Pride Roller Handbücher

Pride

Pride CELEBRITY XL Bedienungsanleitung

Pride

Pride MAXIMA Bedienungsanleitung

Pride

Pride Victory Viper Bedienungsanleitung

Pride

Pride PATHRIDER ES10 Bedienungsanleitung

Pride

Pride Wrangler Bedienungsanleitung

Pride

Pride Pursuit Bedienungsanleitung

Pride

Pride Jet 2 Bedienungsanleitung

Pride

Pride Hurricane PMV Bedienungsanleitung

Pride

Pride CELEBRITY X SPORT Bedienungsanleitung

Pride

Pride Victory 9 Bedienungsanleitung

Pride

Pride Hurricane Bedienungsanleitung

Pride

Pride Hurricane PMV Bedienungsanleitung

Pride

Pride PATHRIDER 140 XL Bedienungsanleitung

Pride

Pride Victory XL-4 Bedienungsanleitung

Pride

Pride CELEBRITY XL DELUXE Bedienungsanleitung

Pride

Pride Celebrity X-6 Bedienungsanleitung

Pride

Pride COLT ES10 Bedienungsanleitung

Pride

Pride Revo Bedienungsanleitung

Pride

Pride Victory Bedienungsanleitung

Pride

Pride Victory XL-4 Bedienungsanleitung

Pride

Pride Maxima Scooter SC900 Bedienungsanleitung

Pride

Pride CELEBRITY XL Bedienungsanleitung

Pride

Pride MAXIMA-V Bedienungsanleitung

Pride

Pride Dynamo Bedienungsanleitung

Beliebte Roller Handbücher anderer Marken

TEKTRO

TEKTRO CHEETAH Bedienungsanleitung

Douglas

Douglas Vespa Sprint Installationsanleitung

PLAYTIVE

PLAYTIVE AS-2448 Bedienungsanleitung

Ebinger

Ebinger DONKEY XL Bedienungsanleitung

Flyer

Flyer Mountain Benutzerhandbuch

BackCountry eBikes

BackCountry eBikes Storm Bedienungsanleitung

equipmed

equipmed FreeRoam II Bedienungsanleitung

Yoto

Yoto Lion Bedienungsanleitung

WESTHILL BIKES

WESTHILL BIKES LINK Bedienungsanleitung

BAnff

BAnff eProdigy series Bedienungsanleitung

Winther

Winther 475 Bedienungsanleitung

Jetson

Jetson JBZL17 Bedienungsanleitung

First Choice Mobility

First Choice Mobility Roma Medical Corella S741 Bedienungsanleitung

Carrera

Carrera impel Bedienungsanleitung

Afikim

Afikim Superlight SL-3 Bedienungsanleitung

CareCo

CareCo ZOOM Bedienungsanleitung

Douglas

Douglas Vespa G.S. Bedienungsanleitung

Gazelle

Gazelle with BOSCH System Bedienungsanleitung
