Prime Design URX-001-E Bedienungsanleitung

PRIME DESIGN, A SAFE FLEET BRAND ▪ Address: 1689 Oakdale Avenue #102, West St Paul, Minnesota 55118

Toll Free: 1.8.PRIME.RACK ▪ Fax: 651-552-1799 ▪ Email: [email protected] ▪ Website: www.primedesign.net

Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability

(the “Prime Design Limited Warranty”).

▪

TM & © 2020 PRIME DESIGN. PROTECTED BY ONE OR MORE OF THE FOLLOWING PATENT NO.’s 6427889, 6764268, 6971563, 8991889, 9415726, 9506292, 9481313, 9776476, 9796340, 10470565, 10486608 AND OTHER PATENTS PENDING

2

1

3

5

4

8

6

7

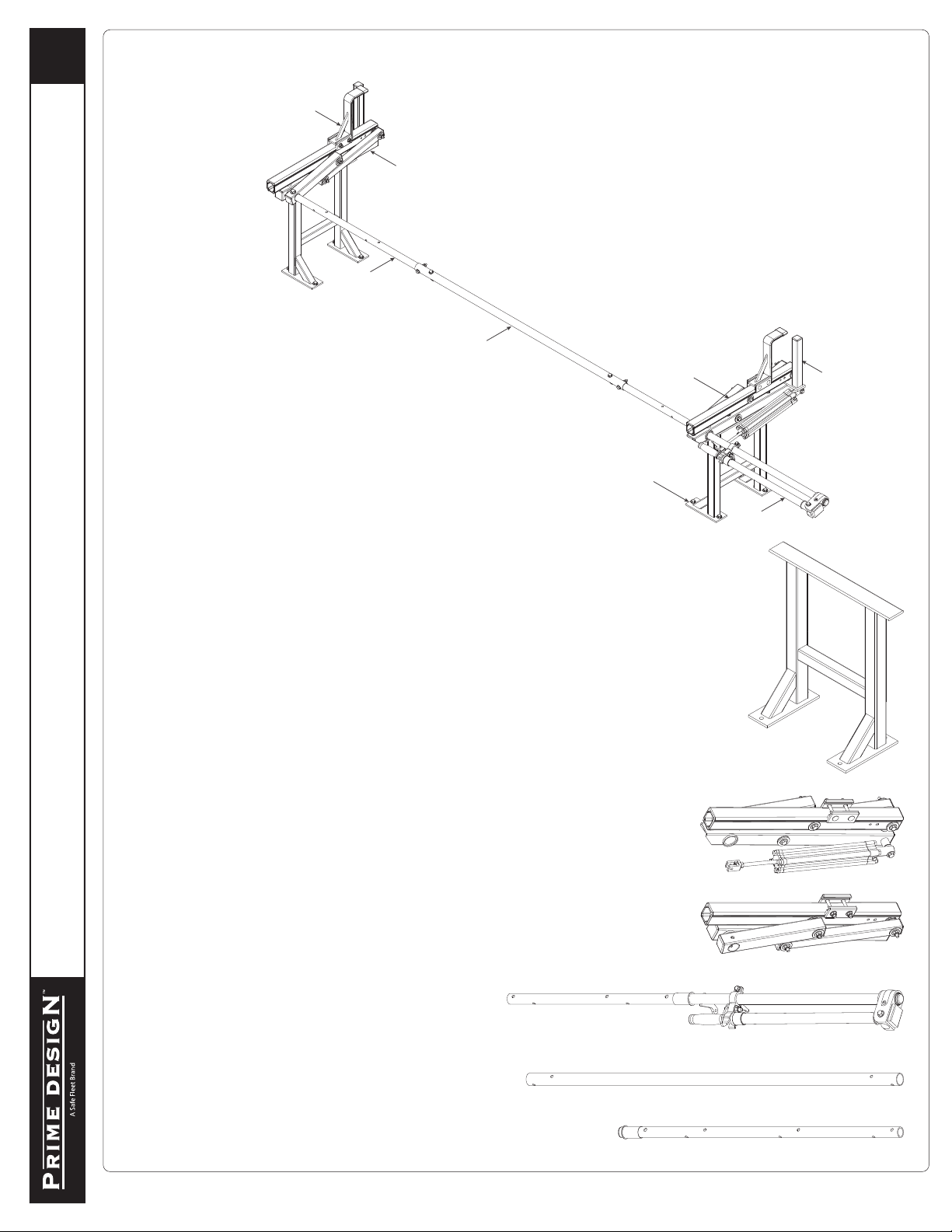

URX-001-E ASSEMBLY INSTRUCTIONS–PACKAGING CONTENTS

CONTENTS OVERVIEW

2—Rear Rotation Assembly................................... (Qty 1)

1—Utility Base Standing Mount............................ (Qty 2)

4—Rear Drive Shaft............................................... (Qty 1)

Left Hand, B4 Version, 50.00”

3—Front Rotation Assembly.................................. (Qty 1)

6—Front Drive Shaft .............................................. (Qty 1)

B Version, 35.75”

5—Connecting Bar................................................. (Qty 1)

48.00”

Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability

(the “Prime Design Limited Warranty”).

▪

TM & © 2020 PRIME DESIGN. PROTECTED BY ONE OR MORE OF THE FOLLOWING PATENT NO.’s 6427889, 6764268, 6971563, 8991889, 9415726, 9506292, 9481313, 9776476, 9796340, 10470565, 10486608 AND OTHER PATENTS PENDING

3

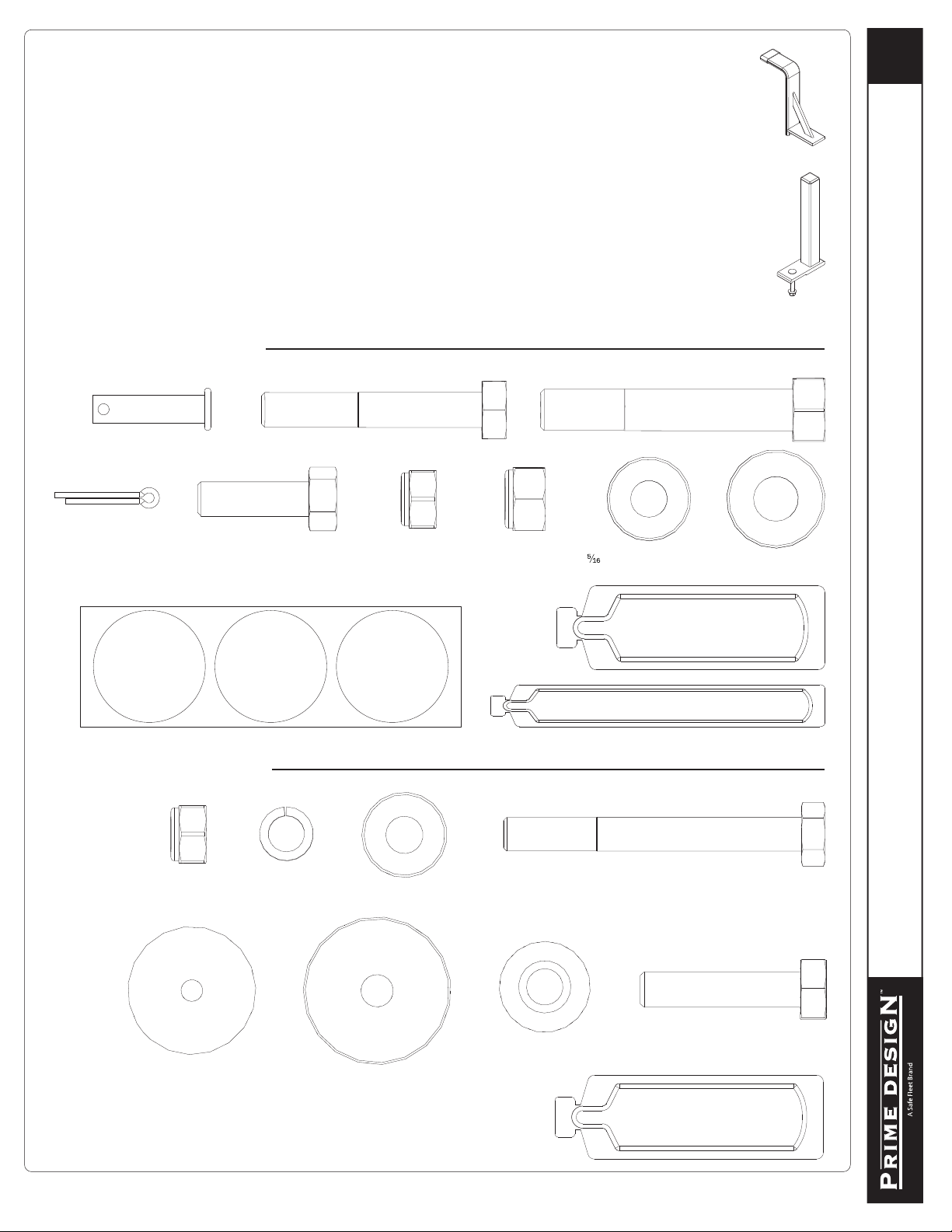

URX-001-E ASSEMBLY INSTRUCTIONS–PACKAGING CONTENTS

7—Z Post ................................................................ (Qty 2)

Adjustable, 7.25”

8—L Post ................................................................ (Qty 2)

9.25”

HKT-0122 Mounting Hardware Kit

Anti-Seize (1X)

M8 x 35MM (8X)

M8 x 70MM (4X)

Lock Nut (12X) Flat Washer (8X)Lock Washer (4X)

Sealing Washer (8X)

Fender Washer

(8X)

Neoprene Washer

(8X)

HKT-8163-Rotation Hardware Kit

" Flat Washer (10X)

Anti-Seize (1X)

Lubricant (1X)

Clevis Pin (1X)

Cotter Pin (1X)

M8 x 50MM (4X) ⅜" x 2.25" (2X)

1.00" Sealing

Stickers (16X)

M8 Lock Nut (5X) ⅜" Lock Nut (2X) ⅜" Flat Washer (4X)

M8 x 25MM (1X)

Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability

(the “Prime Design Limited Warranty”).

▪

TM & © 2020 PRIME DESIGN. PROTECTED BY ONE OR MORE OF THE FOLLOWING PATENT NO.’s 6427889, 6764268, 6971563, 8991889, 9415726, 9506292, 9481313, 9776476, 9796340, 10470565, 10486608 AND OTHER PATENTS PENDING

4

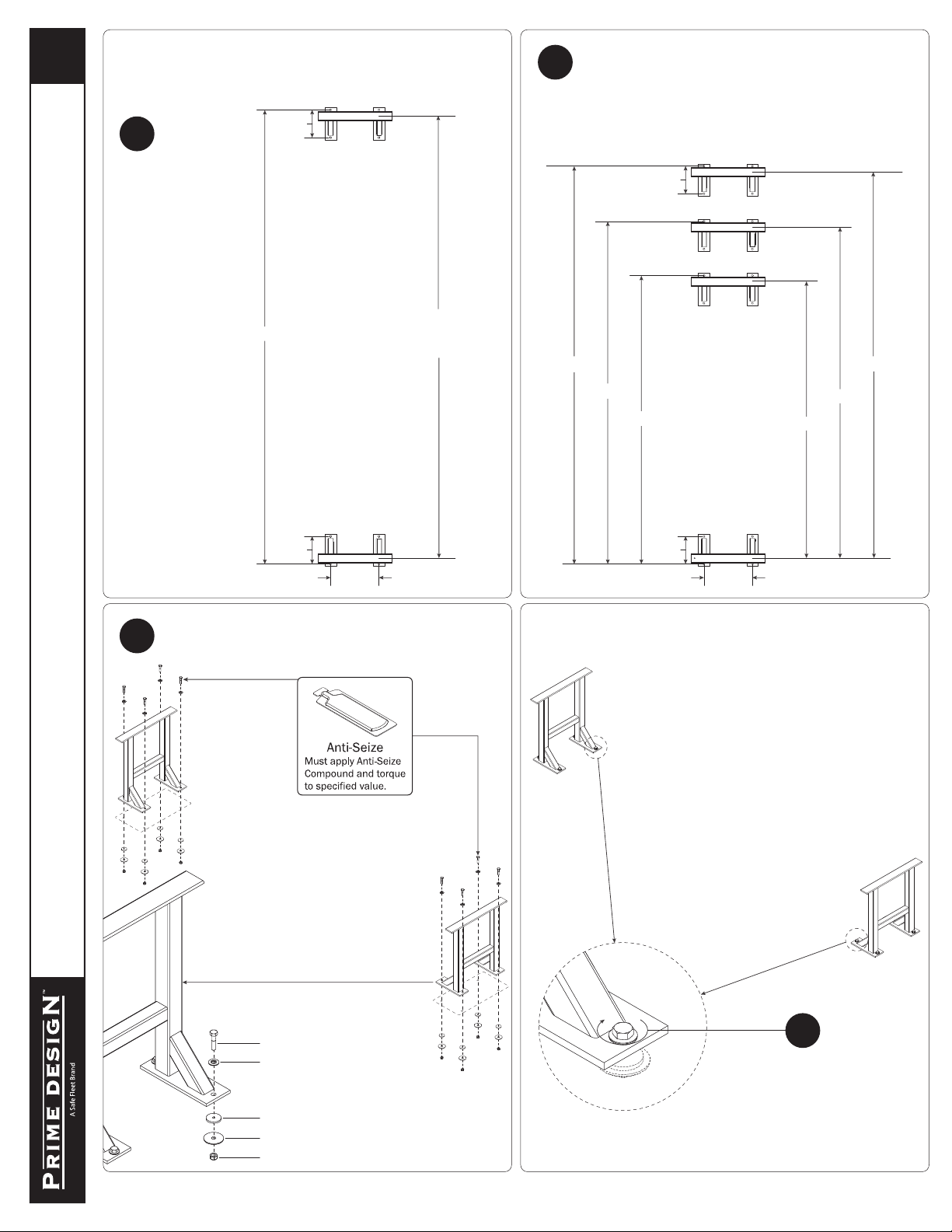

URX-001-E ASSEMBLY INSTRUCTIONS–MOUNTING BRACKETS

98.50”

96.00”

(Do Not Drill. Shown

for reference only.)

6.00”

10.50”

86.50”

74.50”

62.50”

72.00”

60.00”

6.00”

10.50”

84.00”

Dimensions A

Dimensions B

M8 x 35mm Bolt

Sealing Washer

Neoprene Washer

Fender Washer

M8 Lock Nut

UTB-2316 MOUNTING BRACKETS

BRACKET PRE-ASSEMBLY

Drill holes into the service

body mounting location

according to dimensions

shown for 8.00 ft rack

conguration.

0.1

Apply Anti-Seize compound to Mounting Bracket bolts. The

shorter bolt assemblies are on the outside as shown.

0.3

0.4

Torque all Mounting

Bracket bolts to 90 in-lbs.

Dimensions shown below are for 5’ (60.00”), 6’ (72.00”), and

7’ (84.00”) spacing.

Dimensions A are measured from center to center of top

mounting rail. Dimensions B are measured from outside

bracket hole to outside bracket hole.

0.2

Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability

(the “Prime Design Limited Warranty”).

▪

TM & © 2020 PRIME DESIGN. PROTECTED BY ONE OR MORE OF THE FOLLOWING PATENT NO.’s 6427889, 6764268, 6971563, 8991889, 9415726, 9506292, 9481313, 9776476, 9796340, 10470565, 10486608 AND OTHER PATENTS PENDING

5

1

2

5

3

4/11

8

6

7

10

9

M8 x 70mm Bolt M8 x 70mm Bolt

Drill as required Drill as required

LEFT ROTATION ASSEMBLY SEQUENCE

REAR ROTATION ASSEMBLY FRONT ROTATION ASSEMBLY

URX-001-E ASSEMBLY INSTRUCTIONS–LEFT SIDE ROTATION

1.1

1.2

Torque to 90 in-lbs.

2.1

2.2

Torque to 90 in-lbs.

Installer’s Note: Due to variances between Utility Body

manufacturers, the UTB Mounting Bracket’s top plate

comes undrilled from the factory. After installing the

Mounting Brackets, determine the correct positioning

of the Rotation Assembly according to your Utility

Body, then mark the hole locations on the Mounting

Brackets based upon the holes found in the Lowers as

shown in Steps 1.1–2.2

Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability

(the “Prime Design Limited Warranty”).

▪

TM & © 2020 PRIME DESIGN. PROTECTED BY ONE OR MORE OF THE FOLLOWING PATENT NO.’s 6427889, 6764268, 6971563, 8991889, 9415726, 9506292, 9481313, 9776476, 9796340, 10470565, 10486608 AND OTHER PATENTS PENDING

6

URX-001-E ASSEMBLY INSTRUCTIONS–LEFT SIDE ROTATION

REAR DRIVE SHAFT

CONNECTING BAR

CYLINDER HARDWARE

FRONT DRIVE SHAFT

3.1

3.2

3.3

Torque to 90 in-lbs

4.1

4.2

5.1

6.1

6.2

5.2

6.3

Torque to 90 in-lbs

Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability

(the “Prime Design Limited Warranty”).

▪

TM & © 2020 PRIME DESIGN. PROTECTED BY ONE OR MORE OF THE FOLLOWING PATENT NO.’s 6427889, 6764268, 6971563, 8991889, 9415726, 9506292, 9481313, 9776476, 9796340, 10470565, 10486608 AND OTHER PATENTS PENDING

7

URX-001-E ASSEMBLY INSTRUCTIONS–LEFT SIDE ROTATION

CONNECTING BAR FASTENERS

Z POSTS

SEE QUICK START GUIDE FOR ADJUSTMENTS

DRIVE SHAFT SEALING

L POSTS

7

7.1

8.1

8.2

Torque to 90 in-lbs

9.2

Torque to 90 in-lbs

9.1

10.1

10.2

Apply Silicone Sealant

to Connecting Bar ends

Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability

(the “Prime Design Limited Warranty”).

▪

TM & © 2020 PRIME DESIGN. PROTECTED BY ONE OR MORE OF THE FOLLOWING PATENT NO.’s 6427889, 6764268, 6971563, 8991889, 9415726, 9506292, 9481313, 9776476, 9796340, 10470565, 10486608 AND OTHER PATENTS PENDING

8

URX-001-E ASSEMBLY INSTRUCTIONS–FINAL INSTRUCTIONS

USAM-URX001E-US01 Rev-C 0618

Adjust the Cylinder Flow

Control Screw to allow

approximately 3 seconds

time for the ladder to glide

down when operating the

loaded Ladder Rack.

11

CYLINDER ADJUSTMENT
