Princeton EO710F Bedienungsanleitung
EO710f
17” FLAT COLOR MONITOR
REFERENCE MANUAL
FRONT COVER
EO710f
Table of Contents
FCC Information
Safety Information
Installation
Controls & Functions
Preset Timing
Input Pin Assignment
Technical Specifications
Troubleshooting
1
2
3
4
8
8
9
10
Reference Manual
FCC Information
This equipment has been tested and found to comply with limits
for a class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protec-
tion against harmful interference in a residential installation.
This equipment can generates, uses, and radiate radio fre-
quency energy, and if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications. If this equipment does cause unacceptable
interference to radio and television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of
the following measures.
Caution:
To comply with the limits for an FCC Class B computing device,
always use the shielded signal cord and shielded power cord
supplied with this unit.
Caution to the User:
The Federal Communications Commission warns the user that
changes or modifications to the unit not expressly approved
by the party responsible for compliance could void the user’s
authority to operate the equipment. if necessary, the user should
contact the dealer or an experienced radio/television technician
for additional suggestions.
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and
receiver.
Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
Consult the dealer or an experienced Radio/TV technician
for help.
1
Safety Information
Provided with this monitor is a detachable power supply cord
with IEC320 style terminations. It may be suitable for con-
nection to any UL listed personal computer with similar con-
figuration. Before making the connection, ensure that the
voltage rating of the computer convenience outlet is the same
as the monitor and that the ampere rating of the computer
convenience outlet is equal to or exceeds the monitor current
rating.
For 120V applications use only UL listed detachable power
cord with NEMA configuration 5-15P type (parallel blades)
plug cap.
For 240V applications use only UL listed detachable power
cord with NEMA configuration 6-15P type (tandem blades)
plug cap.
Use only a power source and connection appropriate for the
monitor as indicated on the marking label.
Slots and openings in the cabinet are provided for ventilation;
these openings must not be blocked or covered. Never push
objects of any kind into cabinet slots or other openings.
Never insert anything metallic into the monitor openings.
Doing so may create a danger of electric shock.
To avoid electric shock, never touch the inside of the monitor.
Only a qualified technician should open the monitor’s case.
Unplug the monitor from the wall outlet before cleaning. Do
not use liquid cleaners or aerosol cleaners. use a damp, lint-
free cloth for cleaning.
Install the monitor near an outlet that you can reach easily.
Disconnect the product by grasping the plug firmly and pull-
ing in from the outlet. Never disconnect it by pulling the
cord.
2

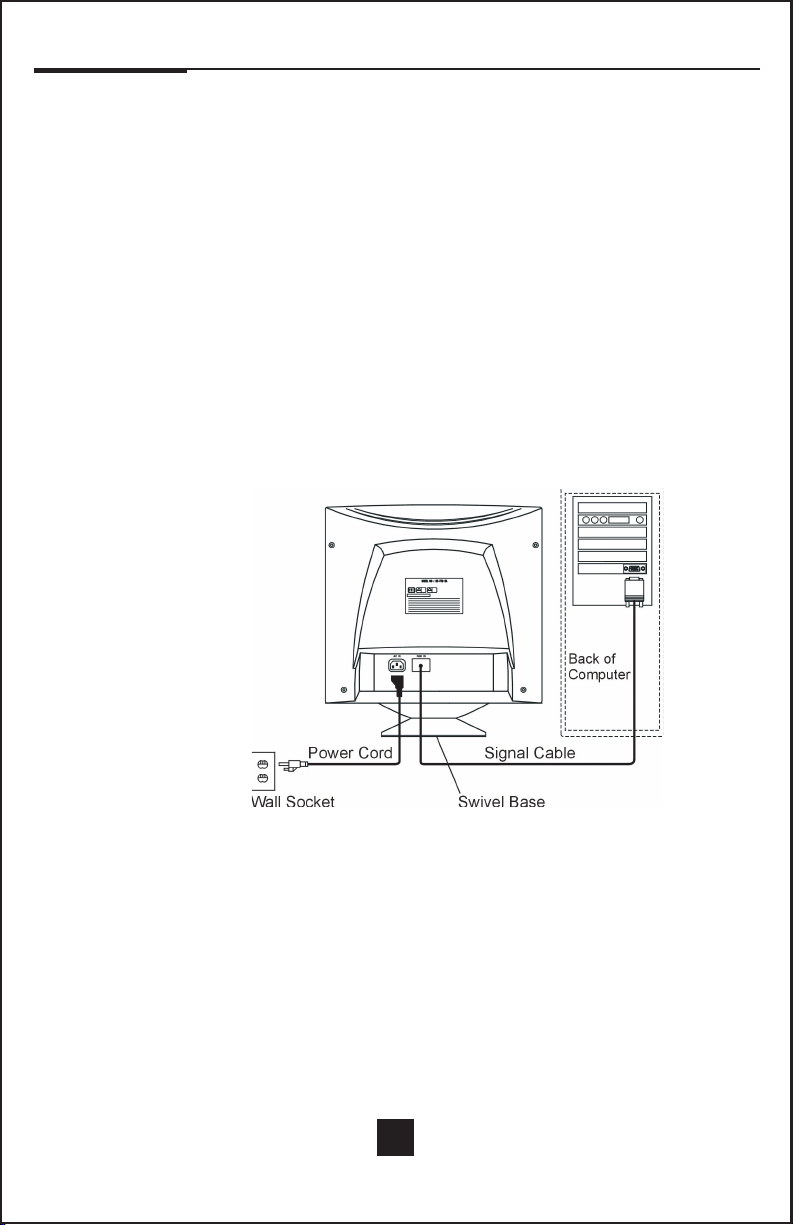

Installation
No tools are required to install the EO710f. Simply follow the
instructions outlined in the next few pages.
Connect Power Cord
Connect the female end of the power cable to the power input
receptacle on the back panel of the EO710f. Then, plug the
male end of the power cable into an AC outlet.
Connect Signal Cable
Attach the loose end of the signal cable to the graphics card.
Be cautious in inserting the cable properly into the graphics
card. If the cable does not seem to fit, it may be facing
the wrong direction. Turn the cable over and try to match
the shape of the connector with that of the graphics card.
Power On
Switch ON the power to both the EO710f and your computer.
There will be a short delay before the display appears.
Adjust the Picture
Adjust the controls, if necessary, to obtain the best display.
Instructions on how to use the On-Screen Display controls and
the Auto Setup button may be found in the next section, “Con-
trols and Functions.”
3
Controls & Functions
Base of Unit
Assemble the tilt/swivel base onto the bottom of the monitor.
Turn the monitor for a comfortable viewing angle within 80
degrees horizontally and 20 degrees vertically.
Signal Cable (VGA Cable)
Connect the end of the signal cable to your graphics card on
your computer.
Power Input (AC)
Connect the AC outlet with the supplied power cord as shown
on page 3.
Power Button
Press this button to turn the power ON or OFF. There will be a
short delay before the display appears.
Control & Functions Buttons
Press “MENU” button to activate OSD menu.
Press “Up/Down” buttons to scroll through the selection.
Press “Enter” button to execute the selection.
Adjustment Buttons
Pressing the “Up/Down” buttons are used to adjust picture
adjustment or to highlight a selection.
4
From left to right:
“MENU” button
“UP” button
“DOWN” button
“ENTER” button
CLOSER LOOK
Controls & Functions
The OSD menu activates when you press the “MENU” button. Use either the
“Up” button to move your selection up or “Down” button to move your selection
down. After making your selection, Press the “Enter” button and you will be able
to move your selection in the sub-menu to the right.
Use either the “Up” or “Down” buttons to select the function you would like to
modify. Use the “Enter” button and you will see a status bar indicating adjust-
ment values. Press either the “UP” or “DOWN” to perform the adjustment.
Below are the descriptions of what each function will do:
5
Contrast
Selecting this function allows you to make adjustments to
the luminosity level of the display screen.
Brightness
Selecting this function allows you to make adjustments to
the black level of the display screen.
Input Level
Selecting this function allows you to choose input of 0.7V
or 1.0V video input voltage levels. (Expert Only)
Reset
Selecting this function will reset the Contrast and Bright-
ness levels, Size, Position, Geometry to factory preset
values.
Zoom
Selecting this function allows you to enlarge your image
proportionally.
H-Position (Horizontal Position)
Select this function, then use the “UP/DOWN buttons to
center the image horizontally on the display screen.
H-Size (Horizontal Size)
Select this function, then use the “UP/DOWN” buttons to
increase or decrease the image width to horizontally fill
the display screen.
V-Position (Vertical Position)
Select this function, then use the “UP/DOWN” buttons to
center the image vertically on the display screen.
V-Size (Vertical Size)
Select this function, then use the “UP/DOWN” buttons to
increase or decrease the image height to vertically fill the
Controls & Functions
6
Pincushion (Side-Pin)
Select this function, then use the “UP/DOWN” buttons
to straighten the sides of the image by pulling them in
opposing directions.
Pin Balance
Select this function, then use the “UP/DOWN” buttons to
straighten the sides of the image by pulling them in the
coressponding direction.
Trapezoid
Select this function, then use the “UP/DOWN” buttons
to even the widths of the top and bottom of the display
(pulling the sides in opposing directions).
Parallel
Select this function, then use the “UP/DOWN” buttons to
center the top and bottom of the display (pulling the sides
in the corresponding direction).
Rotation
Select this function, then use the “UP/DOWN” buttons to
rotate the image until the sides of the image are parallel
to the edge of the bezel.
9300K
Select this to select your color temperature to 9300°
Kelvin. (Cool White Point)
6500K
Select this to select your color temperature to 6500°
Kelvin. (Warm White Point)
User (custom color temperature settings)
Select this to customize your white point settings. You
will be given the Red, Green, and Blue adjustments.
(Changes to the “User” is not recommended).
Controls & Functions
7
English
Selecting this will change your OSD to English.
Deutsch
Selecting this will change your OSD to German.
Francais
Selecting this will change your OSD to French.
Espanol
Selecting this will change your OSD to Spanish.
Italic
Selecting this will change your OSD to Italian.
H-Moire (Horizontal Moire)
Select this function, then use the “UP/DOWN” buttons
to decrease the moire, a Finger Print Pattern that causes
some dithered colors to appear uneven.
V-Moire (Vertical Moire)
Select this function, then use the “UP/DOWN” buttons to
decrease the moire, an interference pattern that causes
some dithered colors to “vertical shimmer” or appear
uneven.
OSD H-Position
Select this function, then use the “UP/DOWN” buttons to
move the OSD menu horizontally.
OSD V-Position
Select this function, then use the “UP/DOWN” buttons to
move the OSD menu vertically.
Degauss
Selecting this function will demagnetize the CRT when the
display becomes discolored or washed out in appear-
ance. The monitor will automatically degauss on startup
if the monitor has been shut-off.
