USER’S MANUAL

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Keep this manual

for future reference.

Model No. PFEX62715.0

Serial No.

Write the serial number in the space

above for reference.

Serial Number Decal

www.proform.com

To register your product and

activate your warranty today,

go to www.proformservice.com/

registration.

For service at any time, go to

www.proformservice.com.

Or call 1-888-533-1333

Mon.–Fri. 6 a.m.–6 p.m. MT

Sat. 8 a.m.–12 p.m. MT

Please do not contact the store.

ACTIVATE YOUR

WARRANTY

CUSTOMER CARE

WARNING DECAL PLACEMENT

TABLE OF CONTENTS

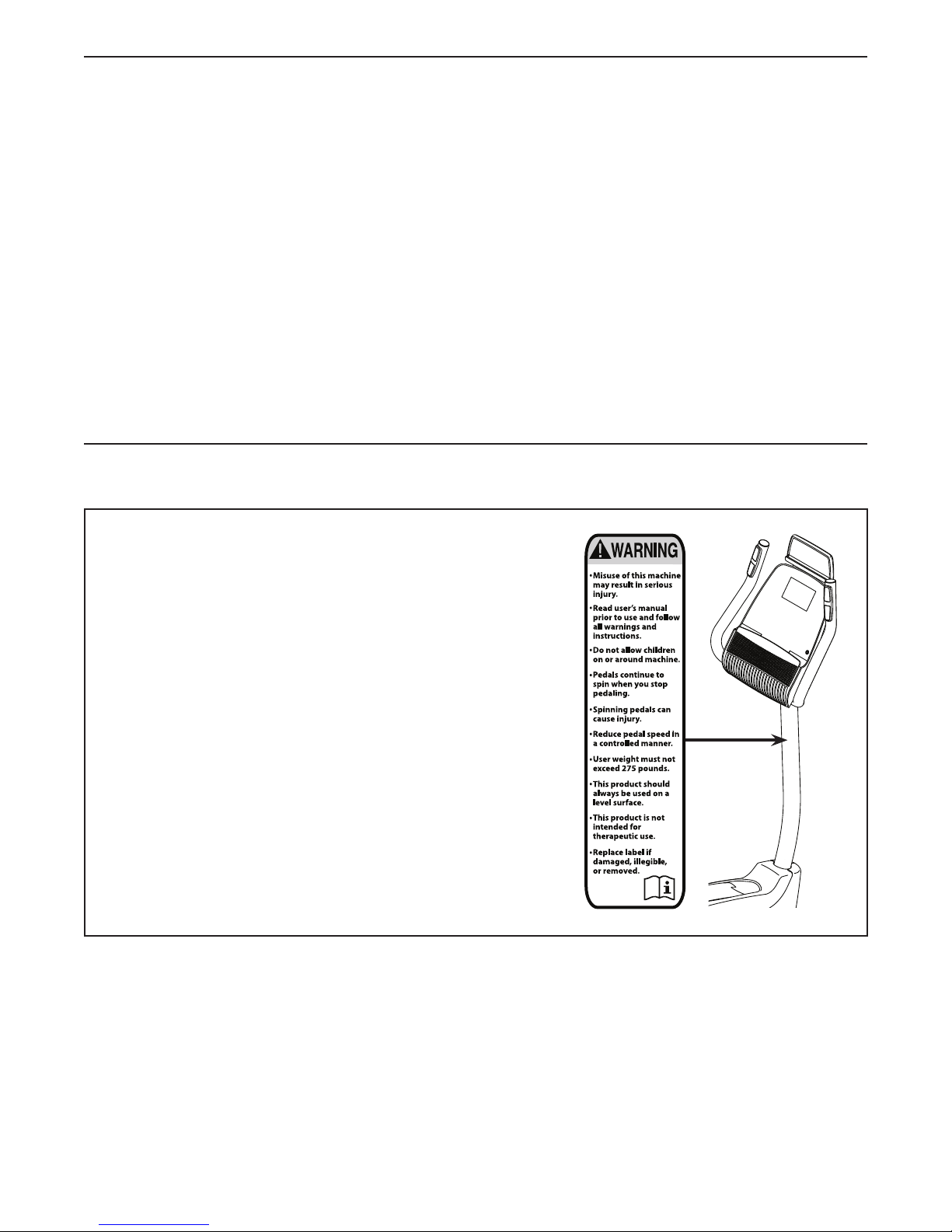

This drawing shows the location(s) of the warning decal(s).

If a decal is missing or illegible, see the front cover of

this manual and request a free replacement decal. Apply

the decal in the location shown. Note: The decal(s) may

not be shown at actual size.

IFIT is a registered trademark of ICON Health & Fitness, Inc.

PROFORM is a registered trademark of ICON Health & Fitness, Inc.

WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

IMPORTANT PRECAUTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

HOW TO USE THE EXERCISE BIKE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

MAINTENANCE AND TROUBLESHOOTING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

FCC INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

IMPORTANT PRECAUTIONS

WARNING: To reduce the risk of serious injury, read all important precautions and

instructions in this manual and all warnings on your exercise bike before using your exercise bike.

ICON assumes no responsibility for personal injury or property damage sustained by or through the

use of this product.

1. It is the responsibility of the owner to ensure

that all users of the exercise bike are ade-

quately informed of all precautions.

2. Before beginning any exercise program,

consult your physician. This is especially

important for persons over age 35 or per-

sons with pre-existing health problems.

3. The exercise bike is not intended for use by

persons with reduced physical, sensory, or

mental capabilities or lack of experience and

knowledge, unless they are given supervi-

sion or instruction about use of the exercise

bike by someone responsible for their safety.

4. Use the exercise bike only as described in

this manual.

5. The exercise bike is intended for home use

only. Do not use the exercise bike in a com-

mercial, rental, or institutional setting.

6. Keep the exercise bike indoors, away from

moisture and dust. Do not put the exercise

bike in a garage or covered patio, or near

water.

7. Place the exercise bike on a level surface

with at least 2 ft. (0.6 m) of clearance around

the exercise bike. To protect the floor or

carpet from damage, place a mat under the

exercise bike.

8. Inspect and properly tighten all parts each

time the exercise bike is used. Replace any

worn parts immediately.

9. Keep children under age 13 and pets away

from the exercise bike at all times.

10. Wear appropriate clothes while exercising;

do not wear loose clothes that could become

caught on the exercise bike. Always wear

athletic shoes for foot protection.

11. The exercise bike should not be used

by persons weighing more than 275 lbs.

(125 kg).

12. Be careful when mounting and dismounting

the exercise bike.

13. The heart rate monitor is not a medical

device. Various factors, including the user’s

movement, may affect the accuracy of heart

rate readings. The heart rate monitor is

intended only as an exercise aid in determin-

ing heart rate trends in general.

14. Always keep your back straight while using

the exercise bike; do not arch your back.

15. Over exercising may result in serious injury

or death. If you feel faint, if you become short

of breath, or if you experience pain while

exercising, stop immediately and cool down.

all

STANDARD SERVICE PLANS

Heart Rate Monitor

Tab l et Ho l d er

Seat

Seat Knob

Handle

Leveling Foot

Wheel

Pedal/Strap

Console

Handlebar

Fan

Seat Post Knob

Accessory Tray

BEFORE YOU BEGIN

Thank you for selecting the revolutionary PROFORM®

525 CSX exercise bike. Cycling is an effective exercise

for increasing cardiovascular fitness, building endur-

ance, and toning the body. The 525 CSX exercise bike

provides an impressive selection of features designed

to make your workouts at home more effective and

enjoyable.

For your benefit, read this manual carefully before

you use the exercise bike. If you have questions after

reading this manual, please see the front cover of this

manual. To help us assist you, note the product model

number and serial number before contacting us. The

model number and the location of the serial number

decal are shown on the front cover of this manual.

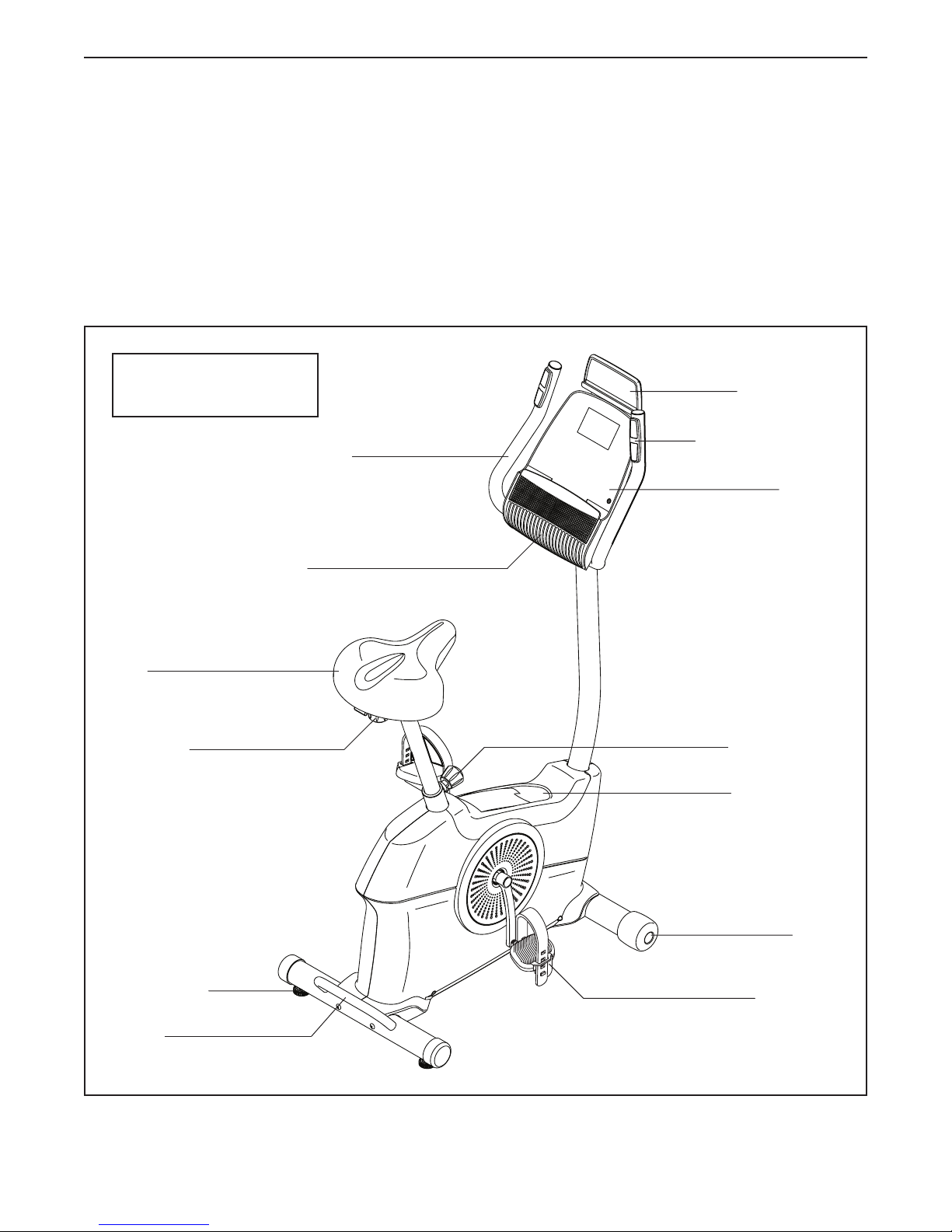

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

Length: 3 ft. 3 in. (99 cm)

Width: 1 ft. 9 in. (53 cm)

M8 x 58mm Bolt

(24)–2

M8 x 70mm Screw

(46)–4

M4 x 16mm

Screw (2)–6

M8 Locknut

(17)–2

M8 x 20mm

Screw (29)–4

#8 x 5/8"

Screw (65)–4

PART IDENTIFICATION CHART

Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each

drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the

key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it

has been preassembled. Extra parts may be included.

• To hire an authorized service technician to

assemble this product, call 1-800-445-2480.

• Assembly requires two persons.

• Place all parts in a cleared area and remove the

packing materials. Do not dispose of the packing

materials until you ﬁnish all assembly steps.

• Left parts are marked “L” or “Left” and right parts

are marked “R” or “Right.”

• To identify small parts, see page 7.

• In addition to the included tool(s), assembly

requires the following tools:

one Phillips screwdriver

one standard screwdriver

one adjustable wrench

Assembly may be easier if you have a set of

wrenches. To avoid damaging parts, do not use

power tools.

ASSEMBLY

1. Go to www.proform.com/registration on your

computer and register your product.

•activates your warranty

•saves you time if you ever need to contact

Customer Care

•allows us to notify you of upgrades and offers

Note: If you do not have Internet access, call

Customer Care (see the front cover of this

manual) and register your product.

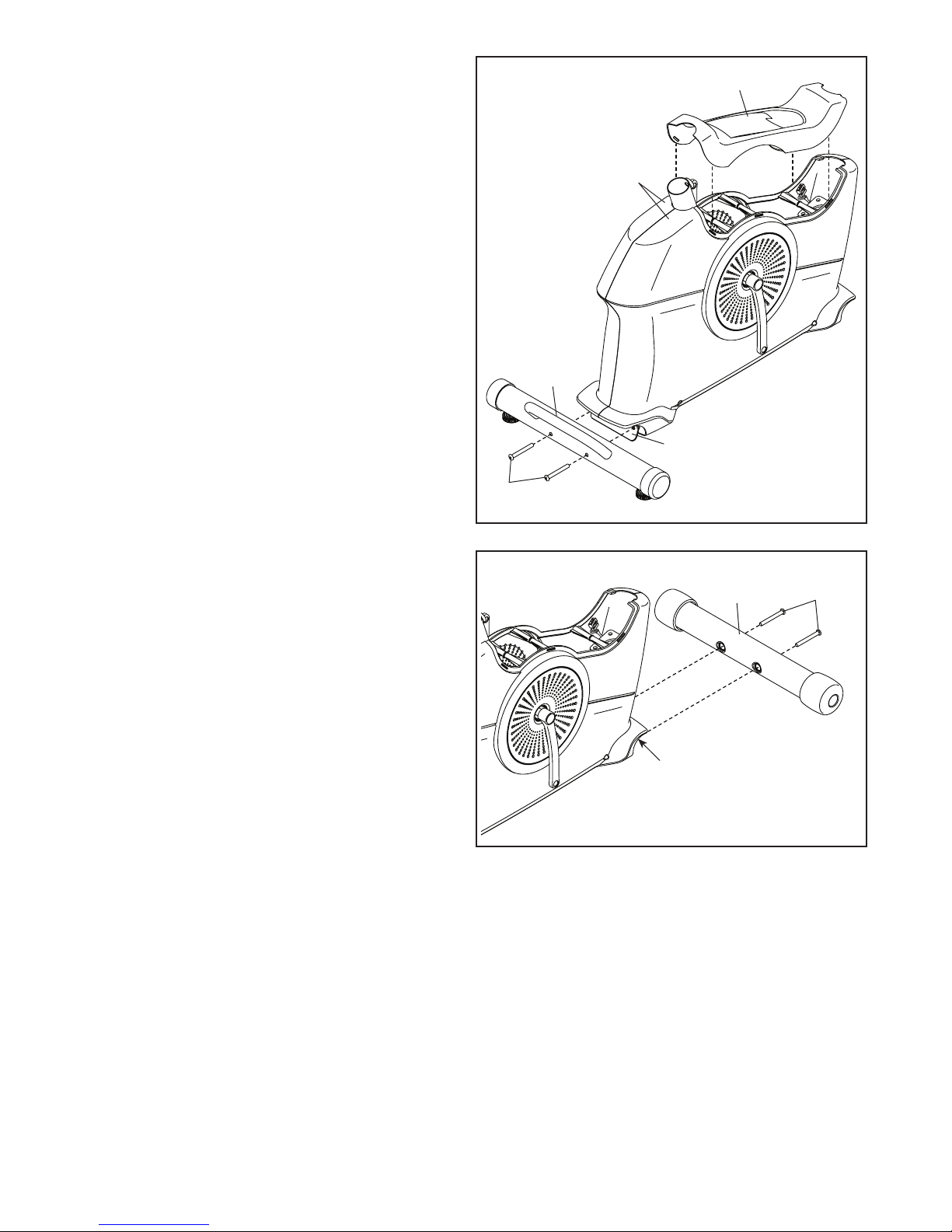

2. Using a standard screwdriver, remove the Shield

Cover (26) from the Left and Right Shields

(37, 58).

Ifthereisashippingtube(notshown)onthe

rear of the Frame (50), remove and discard the

shipping screws and the shipping tube.

Next,setasturdypieceofpackingmaterial

under the rear of the Frame (50). Have a sec-

ond person hold the Frame to prevent it from

tipping while you complete this step.

Identify the Rear Stabilizer (44).

AttachtheRearStabilizer(44)totheFrame(50)

with two M8 x 70mm Screws (46).

Then,removethepackingmaterialfromunder

the rear of the Frame (50).

37, 58

3. If there is a shipping tube (not shown) on the

front of the Frame (50), remove and discard the

shipping screws and the shipping tube.

Next,setasturdypieceofpackingmaterial

under the front of the Frame (50).

Attach the Front Stabilizer (63) to the Frame (50)

with two M8 x 70mm Screws (46).

Then,removethepackingmaterialfromunder

the front of the Frame (50).

63 46

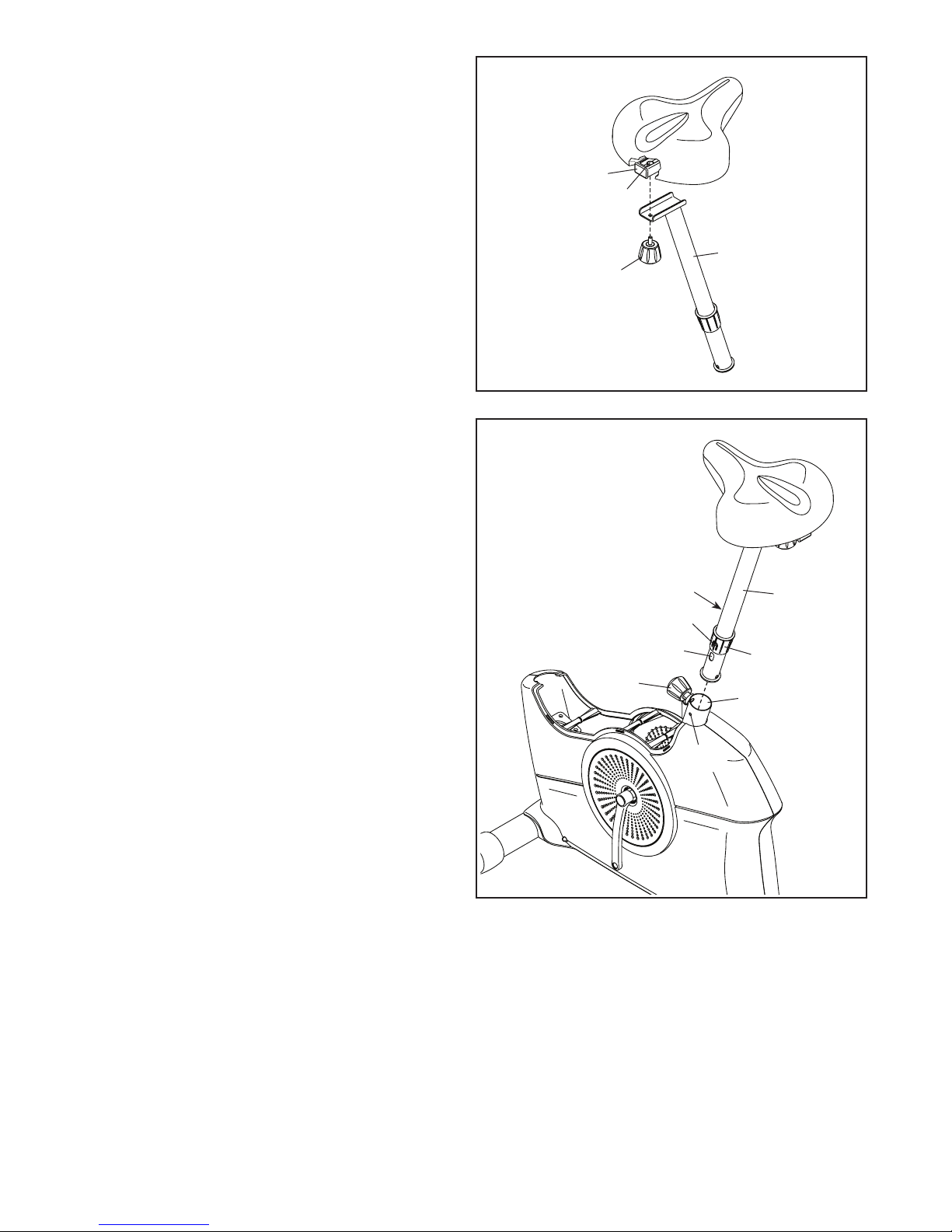

5. Hold the Seat Post (18) near the Frame (50),

and move the Seat Post Bushing (21) so that

the lock tab is covering the oval hole in the Seat

Post.

Have a second person loosen the Seat Post

Knob (28) a few turns and pull it outward.

Insert the Seat Post (18) and the Seat Post

Bushing (21) into the Frame (50) until the lock

tab snaps into the indicated hole in the Frame.

Next,slidetheSeatPost(18)upwardordown-

ward to the desired position, and release the

Seat Post Knob (28) into an adjustment hole in

the Seat Post. Then, tighten the Seat Post Knob.

Move the Seat Post (18) upward or downward

slightly to make sure that the Seat Post Knob

(28) is engaged in an adjustment hole.

Adjustment

Holes

Lock Tab

Oval Hole

4. Set the Seat Carriage (15) on the Seat Post (18)

and hold it in place.

InserttheSeatKnob(19)upwardintotheSeat

Post (18), and tighten the Seat Knob into the

Seat Bracket (14) inside the Seat Carriage (15).

Hole
