USER'S MANUAL

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Keep this manual

for future reference.

Serial

Number

Decal

Model No. PFEX17932

Serial No.

Visit our website at

www.proform.com

new products, prizes,

fitness tips, and much more!

Patent Pending

QUESTIONS?

If you have questions, or if there

are missing parts, we will guar-

antee complete satisfaction

through direct assistance from

our factory.

TO AVOID DELAYS, PLEASE

CALL DIRECT TO OUR TOLL-

FREE CUSTOMER HOT LINE. The

trained technicians on our cus-

tomer hot line will provide imme-

diate assistance, free of charge to

you.

CUSTOMER HOT LINE:

1-888-533-1333

Mon.–Fri., 6 a.m.–6 p.m. MST

TABLE OF CONTENTS

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

HOW TO OPERATE THE EXERCISE CYCLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

HOW TO ORDER REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

PROFORM is a registered trademark of ICON IP, Inc.

1. Read all instructions in this manual before

using the exercise cycle.

2. Use the exercise cycle only as described in

this manual.

3. It is the responsibility of the owner to ensure

that all users of the exercise cycle are ade-

quately informed of all precautions.

4. The exercise cycle is intended for home use

only. Do not use the exercise cycle in

a commercial, rental, or institutional setting.

5. Place the exercise cycle indoors on a level

surface. Keep the exercise cycle away from

moisture and dust. Place a mat under the

exercise cycle to protect the floor.

6. Inspect and properly tighten all parts regular-

ly. Replace any worn parts immediately.

7. Keep children under the age of 12 and pets

away from the exercise cycle at all times.

8. Wear appropriate clothing when exercising;

do not wear loose clothing that could become

caught on the exercise cycle. Always wear

athletic shoes for foot protection.

9. The exercise cycle should not be used by

persons weighing more than 250 pounds.

10.The pulse sensor is not a medical device.

Various factors, including the user's move-

ment, may affect the accuracy of heart rate

readings. The pulse sensor is intended only

as an exercise aid in determining heart rate

trends in general.

11. Always keep your back straight when using

the exercise cycle; do not arch your back.

12. If you feel pain or dizziness while exercising,

stop immediately and cool down.

13.The exercise cycle does not have a free-

wheel; the pedals will continue to move until

the flywheel stops.

14. The decal shown below has been placed on

the exercise cycle. If the decal is missing, or

if it is not legible, please call our Customer

Service Department toll-free at 1-888-533-

1333 to order a free replacement decal. Apply

the decal in the location shown.

WARNING: Before beginning this or any exercise program, consult your physician. This

is especially important for persons over the age of 35 or persons with pre-existing health problems.

Read all instructions before using. ICON assumes no responsibility for personal injury or property

damage sustained by or through the use of this product.

IMPORTANT PRECAUTIONS

WARNING: To reduce the risk of serious injury, read the following important precau-

tions before using the exercise cycle.

Congratulations for selecting the new PROFORM®

GL35 exercise cycle. Cycling is one of the most effec-

tive exercises for increasing cardiovascular fitness,

building endurance, and toning the entire body. The

PROFORM®GL35 exercise cycle offers an impressive

array of features to let you enjoy this healthful exer-

cise in the convenience and privacy of your home.

For your benefit, read this manual carefully before

you use the exercise cycle. If you have questions

after reading this manual, please call our Customer

Service Department toll-free at 1-888-533-1333,

Monday through Friday, 6 a.m. until 6 p.m. Mountain

Time (excluding holidays). To help us assist you,

please note the product model number and serial

number before calling. The model number is

PFEX17932. The serial number can be found on a

decal attached to the exercise cycle (see the front

cover of this manual).

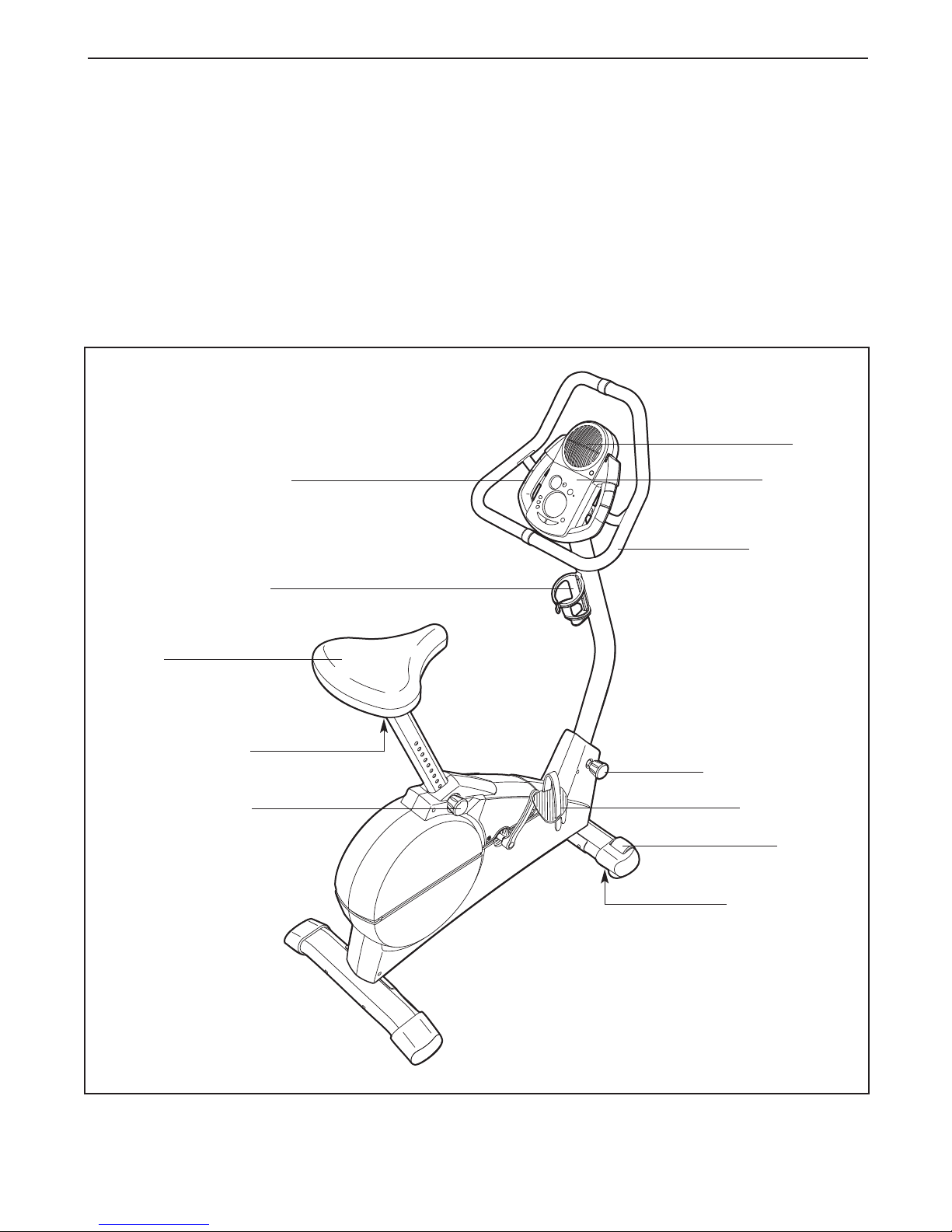

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

*No water bottle is included

Handgrip Pulse Sensor

REAR

FRONT

Seat

Adjustment Knob

Pedal/Strap

Wheel

Leveling Foot

Console

Fan

Handlebar

Adjustment Knob

Water Bottle Holder*

Adjustment Knob

RIGHT SIDE

BEFORE YOU BEGIN

ASSEMBLY

Assembly requires two persons. Place all parts of the exercise cycle in a cleared area and remove the packing

materials. Do not dispose of the packing materials until assembly is completed.

Assembly requires the included tools and your own adjustable wrench and Phillips screw-

driver .

Use the part drawings below to identify the small parts used in assembly. The number in parenthesis below

each drawing refers to the key number of the part, from the PART LIST on page 22. The second number refers

to the quantity needed for assembly. Note: Some small parts may have been pre-attached. If a part is not in

the parts bag, check to see if it has been pre-attached.

M10 Black Nylon

Locknut (63)–4

M6 x 25.4mm Button

Screw (33)–1

M8 x 14mm Button

Screw (49)–1

M8 x 22mm Button

Screw (74)–4

M8 x 39mm Button

Bolt (64)–2

M4 x 16mm

Screw (66)–6

M8 Split

Washer (70)–4

M8 Nylon

Locknut (10)–6

M4 x 22mm

Screw (21)–2

M10 x 112mm Carriage Bolt (65)–4

1. Identify the Front Stabilizer (2). While another person

lifts the front of the Frame (1), attach the Front

Stabilizer to the Frame with two M10 x 112mm

Carriage Bolts (65) and two M10 Black Nylon Locknuts

(63). Make sure that the Front Stabilizer is turned

so the Wheels (30) are not touching the floor.

2. While another person lifts the rear of the Frame (1),

attach the Rear Stabilizer (3) to the Frame with two

M10 x 112mm Carriage Bolts (65) and two M10 Black

Nylon Locknuts (63).

Make sure the

wire harnesses

do not get

pinched and

damaged during

this step.

Slot

Rod

3. While another person holds the Upright (13) in the

position shown, connect the Upper Wire Harness (36)

to the Lower Wire Harness (35). Carefully pull the

upper end of the Upper Wire Harness to remove

any slack from the Wire Harnesses; make sure that

the connectors do not catch on the indicated rod.

Turn the indicated Adjustment Knob (28) counterclock-

wise two or three turns to loosen it. Next, pull the Knob,

insert the Upright (13) into the Frame (1), and then

release the Knob. Be careful to avoid pinching the

Wire Harnesses (35, 36). Move the Upright up and

down slightly until the pin on the Knob snaps into

one of the holes in the Upright. Then, turn the Knob

clockwise until it is tight.

Tighten the M6 x 25.4mm Button Screw (33) into the

Frame (1) and into the slot in the side of the Upright (13).

Attach the Water Bottle Holder (9) to the Upright (13)

with two M4 x 22mm Screws (21).

263

5. While another person holds the Console (16) in the

position shown, connect the wire harness on the

Console to the Upper Wire Harness (36). Insert the

excess wire harness into the Upright (13).

Attach the Console (16) to the Upright (13) with four

M4 x 16mm Screws (66). Be careful to avoid pinch-

ing the wire harnesses.

7. Turn the indicated Adjustment Knob (28) counterclock-

wise two or three turns to loosen it. Next, pull the Knob,

insert the Seat Post (5) into the Frame (1), and then

release the Knob. Move the Seat Post up and down

slightly until the pin on the Knob snaps into one of

the holes in the Seat Post. Then, turn the Knob clock-

wise until it is tight.

4. Slide the two Handlebar Collars (7) onto the Left

Handlebar (50). Insert the Right Handlebar (51) into

the Left Handlebar. Connect the Handlebar Collars, the

Left Handlebar, and the Right Handlebar with two M4 x

16mm Screws (66).

Attach the Handlebar Bracket (15) to the Left and

Right Handlebars (50, 51) with four M8 x 22mm Button

Screws (74).

Attach the Handlebar Bracket (15) to the Upright (13)

with two M8 x 39mm Button Bolts (64), two M8 Nylon

Locknuts (10), and an M8 x 14mm Button Screw (49).

10 49

Wire

Harness

6. The Console (16) requires four “D” batteries (not

included); alkaline batteries are recommended.

Remove the indicated screw from the battery drawer,

and pull the battery drawer open. Insert four batteries

into the battery drawer; make sure that the batteries

are oriented as shown by the markings inside the

battery drawer. Close the battery drawer and reattach

the screw. Note: When the batteries are installed cor-

rectly, the fan will turn on for a moment.

Batteries

Battery

Drawer

Screw

10.Make sure that all parts are properly tightened before you use the exercise cycle. Note: After assembly is

completed, some extra parts may be left over. Place a mat beneath the exercise cycle to protect the floor.

9. Identify the Left Pedal (24), which is marked with an

“L.” Using an adjustable wrench, firmly tighten the

Left Pedal counterclockwise into the Left Crank Arm

(42). Tighten the Right Pedal (not shown) clockwise

into the Right Crank Arm. Important: Tighten both

Pedals as firmly as possible. After using the exer-

cise cycle for one week, retighten the Pedals. For

best performance, the Pedals must be kept tight-

ened.

Adjust the Left Pedal Strap (25) to the desired position,

and press the end of the Pedal Strap onto the tab on

the Left Pedal (24). Adjust the Right Pedal Strap (not

shown) in the same way.

Tab

8. Attach the Seat (12) to the Seat Bracket (6) with four

M8 Nylon Locknuts (10) and four M8 Split Washers

(70). Note: The Nylon Locknuts and the Split Washers

may be pre-attached to the underside of the Seat.

Turn the indicated Adjustment Knob (28) counterclock-

wise two or three turns to loosen it. Next, pull the Knob,

slide the Seat Bracket (6) into the top of the Seat Post

(5), and then release the Knob. Move the Seat

Bracket forward and backward slightly until the pin

on the Knob snaps into one of the holes in the Seat

Bracket. Then, turn the Knob clockwise until it is tight.

HOW TO OPERATE THE EXERCISE CYCLE

HOW TO ADJUST THE SEAT POST

For effective exer-

cise, the seat

should be at the

proper height. As

you pedal, there

should be a slight

bend in your knees

when the pedals

are in the lowest

position. To adjust

the height of the

seat, first turn the

indicated knob counterclockwise two or three turns to

loosen it (if the knob is not loosened enough, it may

scratch the seat post). Next, pull the knob, slide the

seat post to the desired height, and then release the

knob. Move the seat post up and down slightly until

the pin on the knob snaps into one of the holes in

the seat post. Then, turn the knob clockwise until it is

tight.

HOW TO ADJUST THE SEAT

The seat can be

adjusted to the

position that is the

most comfortable

for you. Before

adjusting the seat,

dismount the

exercise cycle; do

not adjust the

seat while you are

sitting on it. To

adjust the seat, first

turn the indicated knob counterclockwise two or three

turns to loosen it (if the knob is not loosened enough, it

may scratch the seat bracket). Next, pull the knob,

slide the seat to the desired position, and then release

the knob. Move the seat bracket forward and back-

ward slightly until the pin on the knob snaps into

one of the holes in the seat bracket. Then, turn the

knob clockwise until it is tight.

HOW TO ADJUST THE UPRIGHT

The upright can be

adjusted to the

height that is the

most comfortable for

you. To adjust the

upright, first turn the

indicated knob

counterclockwise

two or three turns to

loosen it (if the knob

is not loosened

enough, it may

scratch the upright).

Next, pull the knob,

slide the upright to

the desired height,

and then release

the knob. Move the upright up and down slightly

until the pin on the knob snaps into one of the

holes in the upright. Then, turn the knob clockwise

until it is tight.

HOW TO ADJUST THE PEDAL STRAPS

To adjust the pedal

straps, first pull the

ends of the straps

off the tabs on the

pedals. Adjust the

straps to the

desired position,

and press the ends

of the straps back

onto the tabs.

Pedal

Strap

Tab

Upright

Knob

Seat

Post

Knob

Seat

Bracket

Seat

Knob

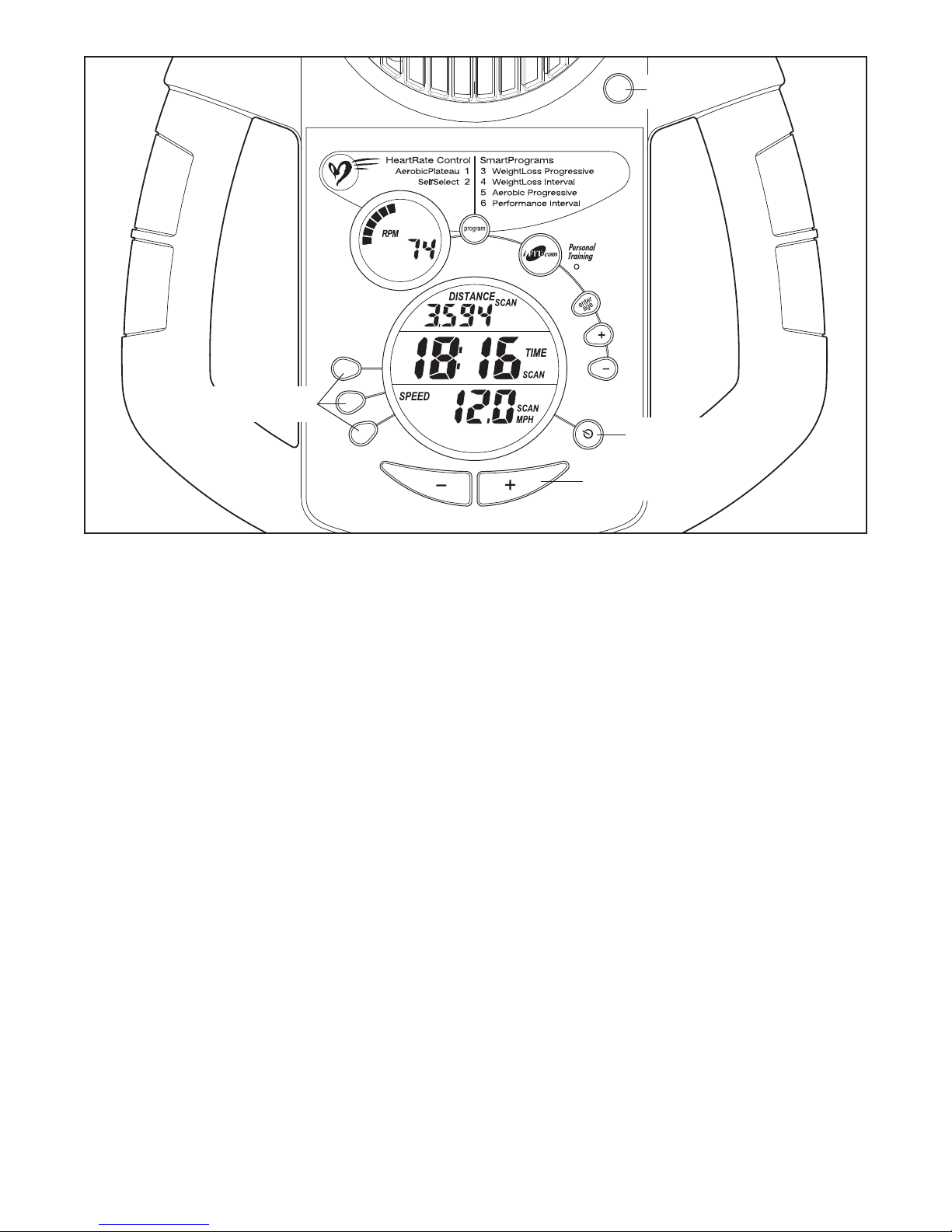

FEATURES OF THE CONSOLE

The advanced console offers a selection of features

designed to make your workouts more enjoyable and

effective. When the manual mode of the console is

selected, the resistance of the pedals can be changed

with the touch of a button. As you pedal, the console

will provide continuous exercise feedback. You can

even measure your heart rate using the built-in hand-

grip pulse sensor.

The console also offers four Smart programs. Each pro-

gram automatically changes the resistance of the ped-

als and prompts you to increase or decrease your pace

as it guides you through an effective workout.

In addition, the console features two Heart Rate pro-

grams that change the resistance of the pedals and

prompt you to vary your pace to keep your heart rate

near a target heart rate as you exercise.

The console also features iFIT.com interactive technol-

ogy. Having iFIT.com technology is like having a per-

sonal trainer in your home. Using a stereo audio cable

(available at electronics stores), you can connect the

exercise cycle to your home stereo, portable stereo,

computer, or VCR and play special iFIT.com CD and

video programs (iFIT.com CDs and videocassettes are

available separately). iFIT.com CD and video programs

automatically control the resistance of the pedals and

prompt you to vary your pace as a personal trainer

coaches you through every step of your workout. High-

energy music provides added motivation. To purchase

iFIT.com CDs and videocassettes, call toll-free

1-888-533-1333.

With the exercise cycle connected to your computer,

you can also go to our Web site at www.iFIT.com and

access programs directly from the internet. Explore

www.iFIT.com for more information.

To use the manual mode of the console, see page

11. To use a Smart program, see page 13. To use a

Heart Rate program, see page 14. To use an

iFIT.com CD or videocassette, see page 18. To use

a program directly from our Web site, see page 19.

Display Buttons

Fan Button

On/Reset Button

Resistance Buttons

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Pro-Form Heimtrainer Handbücher

Pro-Form

Pro-Form 440 ES Bedienungsanleitung

Pro-Form

Pro-Form 210 Csx Bike Bedienungsanleitung

Pro-Form

Pro-Form GR 80 Bedienungsanleitung

Pro-Form

Pro-Form 710 Ekg Exercise Bike Bedienungsanleitung

Pro-Form

Pro-Form 345 Zlx Bike Bedienungs- und Wartungshandbuch

Pro-Form

Pro-Form 735 Ekg Bike Bedienungsanleitung

Pro-Form

Pro-Form 710 Ekg Exercise Bike Systemhandbuch

Pro-Form

Pro-Form 100 Zlx Bike Bedienungsanleitung

Pro-Form

Pro-Form 10.8x Bike Bedienungsanleitung

Pro-Form

Pro-Form 1150ci Kurzanleitung

Pro-Form

Pro-Form 880s Elliptical Bedienungsanleitung

Pro-Form

Pro-Form PFEL14721-INT.0 Bedienungsanleitung

Pro-Form

Pro-Form GameFit Bike PFEVEX92407.0 Bedienungsanleitung

Pro-Form

Pro-Form 280 Zlx Bike Systemhandbuch

Pro-Form

Pro-Form 785 Watts Bike Kurzanleitung

Pro-Form

Pro-Form 100 Zlx Bike Bedienungs- und Wartungshandbuch

Pro-Form

Pro-Form WHIRLWIND DUAL ACTION Bedienungsanleitung

Pro-Form

Pro-Form SR 30 Bedienungsanleitung

Pro-Form

Pro-Form 225 Zlx Bike Bedienungsanleitung

Pro-Form

Pro-Form TOUR DE FRANCE CBC Bedienungsanleitung

Pro-Form

Pro-Form 975S Bedienungsanleitung

Pro-Form

Pro-Form 28728 Equalizer Bedienungsanleitung

Pro-Form

Pro-Form 120 R Bedienungsanleitung

Pro-Form

Pro-Form XP WhirlWind 280 Bedienungsanleitung

Beliebte Heimtrainer Handbücher anderer Marken

Weslo

Weslo Vector 302 Kurzanleitung

TOORX

TOORX BRX85 Bedienungsanleitung

Matrix

Matrix KranKcycle Bedienungsanleitung

Matrix

Matrix IC3 Bedienungsanleitung

Sunny Health & Fitness

Sunny Health & Fitness SF-B121021 Bedienungsanleitung

Monark

Monark 827E Bedienungsanleitung

Stamina

Stamina 1310 Bedienungsanleitung

American Fitness

American Fitness SPR-BK1072A Bedienungsanleitung

Cateye

Cateye CS-1000 (CYCLO SIMULATOR) Bedienungsanleitung

BH FITNESS

BH FITNESS H9158H Bedienerhandbuch

Body Sculpture

Body Sculpture BC-7220G Bedienungsanleitung

Cateye

Cateye EC-2300 Bedienungsanleitung

FYTTER

FYTTER RACER RC MSR Bedienungsanleitung

Kikos

Kikos HM-9090M Bedienungsanleitung

Fuel Fitness

Fuel Fitness SU135-40 Bedienungsanleitung

NordicTrack

NordicTrack Gxr 4.2 Bike Bedienungsanleitung

Vision Fitness

Vision Fitness U70 Bedienungsanleitung

Stamina

Stamina 15-0340A Bedienungsanleitung
