Pro's Kit MT-4616 Bedienungsanleitung

MT-4616

Temperature / Humidity / Dew point Meter

User’s Manual

1st Edition,2018

All manuals and user guides at all-guides.com

all-guides.com

- 1 -

Statements

According to the international copyright law, please don’t copy any

content from the user manual without permission and written

consent.

The user manual may be changed in the future without notice.

Safety statements

Caution

“”sign shows what will cause damage to the temperature and

humidity meter.

Please be careful of the operation when using the tester, incorrect

operation or operation steps maybe cause damage to the temperature

and humidity meter or to the equipment.

Please be careful of the operation when using the tester,incorrect

operation or operation steps maybe damage to the temperature and

humidity meter or to the equipment.

Warning

“”sign shows that there is danger of electric shock,serious injury or

death .The case or operation may result in personal injury to the users. If

these conditions are not met or you don’t fully understand how to

operate the temperature and humidity meter, please don’t continue

any operation with warning sign indicating.

Brief Introduction

This is a battery powered meter for measuring relative humidity and

temperature. It can display three types of temperatures around the

sensor’s area via several convenient procedures: Ambient temperature,

Dew-point temperature and Wet bulb temperature.

All manuals and user guides at all-guides.com

- 2 -

Display Screen

All manuals and user guides at all-guides.com

- 3 -

NO.

explanation

Low battery

Automatic power-off mark

Display wet bulb temperature or dew-point temperature

Temperature measurement unit

Relative humidity measurement unit

MEM, RAM position number

Max-min

Hold function activated. The screen freezes the current

reading

Operation

Notice

When moving the meter from one atmosphere with extreme temperature

or humidity to another, you need to wait for it to stabilize. Press to

start the meter and read the measurements displayed by °C or °F. Press

to switch.

Dew-point & Wet-bulb

When starting the meter, the ambient temperature appears on the

screen. To obtain DP, press a first time and press for a second

time, WB is switched. Press a third time, to get the ambient

temperature back. A corresponding signal will be shown on the screen

indicating DP and WB.

Holding

Hold the button Press to freeze the current reading, and stop the

meter from displaying the measurements. When the HOLD function is

active, the screen displays . To continue reading the measured

value, press again.

Max-min

Pressing , Max-min is set up, and max updates constantly,

press again, it is min. The two stations can be switched. If turned off,

you need to press for two seconds; a sound shows that this function

has been turned off. Max means that the peak of temperature and

humidity, while min is the lowest reading.

All manuals and user guides at all-guides.com

- 4 -

Saving and transferring the measurements

This meter is able to save 99 groups reading for transferring. Press to

save the reading, and its location displays at the screen’s upper right

corner. After two seconds, the meter comes back to the normal state; If

RAM is filled fully, the meter will cover the stored data from No.1 RAM

and keep the reading.

When transferring the saved figure, press to enter MEM check-up.

At this time, and are used to change the page. To exit it, press

again. In the state of check-up, press for five seconds and “00”is

displayed at the screen’s right upper corner, which means RAM is

cleared.

Automatic power-off

To prolong the life-span of the battery, this meter offers an automatic

power-off function, and it shuts down after 30 minutes of no use. Just

press if setting it for longer measurement, and disappears. Do it

again, the automatic power-off is on.

The backlight

Press to start the backlight, press again to turn off the

backlight. If starting without automatic power-off, it will close after 15

seconds.

Maintenance

Replace the batteries

The meter is charged with four 1.5(AAA type) batteries. When

appears, the batteries should be replaced as soon as possible. Follow

the instructions:

1. Unscrew the top of the entrance.

2. Remove the batteries out.

3. Install four unused AAA batteries in accordance with polarity

described on the bottom.

4. Replace the lid and fasten the screw.

All manuals and user guides at all-guides.com

- 5 -

Specification

Ambient temperature

Range: -20 to 60°C (-4 to 140°F)

Precision: ±1.0°C(0 to 45°C)/±1.5°C(-20 to 0°C，45 to 60°C)

Resolution: 0.1°C/°F

Update rate: 400ms

Sensor’s type: High-Precision digital sensor

Range: 0 to 100%RH

Accuracy:±3.0% RH(20% to 80%) /±4.0% RH(0% to 20%，

80% to 100%)

Resolution:0.1%

Update rate: 400ms

Sensor’s type: High-precision digital sensor

Range: -20 to 60°C (-4 to 140°F)

Precision : ±1°C(0 to 45°C)/±1.5°C(-20 to 0°C，45 to 60°C)

Resolution: 0.1°C/°F

Update rate: 400ms

Range: -50 to 60°C (-58 to 140°F)

Precision : ±1°C（0 to 45°C/±1.5°C（-50 to 0°C，45 to 60°C）

Resolution: 0.1°C/°F

Update rate: 400ms

RAM: 99 data point

Power: 4 AAA batteries

Weight: 190g (batteries included)

Size: 184mm×60mm×29mm

All manuals and user guides at all-guides.com

all-guides.com

- 6 -

MT-4616-C 溫度.溼度.露點測試器使用說明書

安全聲明

小心或注意

〝小心〞或〝注意〞標誌表示會對儀錶或設備造成損壞的狀況和操作。

它要求在執行此操作時必須小心，如果不正確執行此操作或不遵循此操作步驟，則

可能導致儀錶或設備損壞。在不滿足這些條件或沒有完全理解的情況下，請勿繼續

執行小心標誌所指示的任何操作。

警告

〝警告〞標誌表示會對用戶造成危險的狀況和操作。

它要求在執行此操作時必須注意，如果不正確執此行操作或不遵守此操作步驟，則

可能導致人身傷害或傷亡。在不滿足這些條件或沒有完全理解的情況下，請勿繼續

執行警告標誌所指示的任何操作。

使用本儀錶前，請仔細閱讀說明書並請注意有關安全警訊

簡介

MT-4616 是一款由電池供電、用於測量相對濕度和溫度的儀錶。通過數個操作方便

的控制步驟，儀錶就可顯示其感測器周圍空氣的三種不同的溫度值：環境溫度、露

點溫度和濕球溫度。

All manuals and user guides at all-guides.com

- 7 -

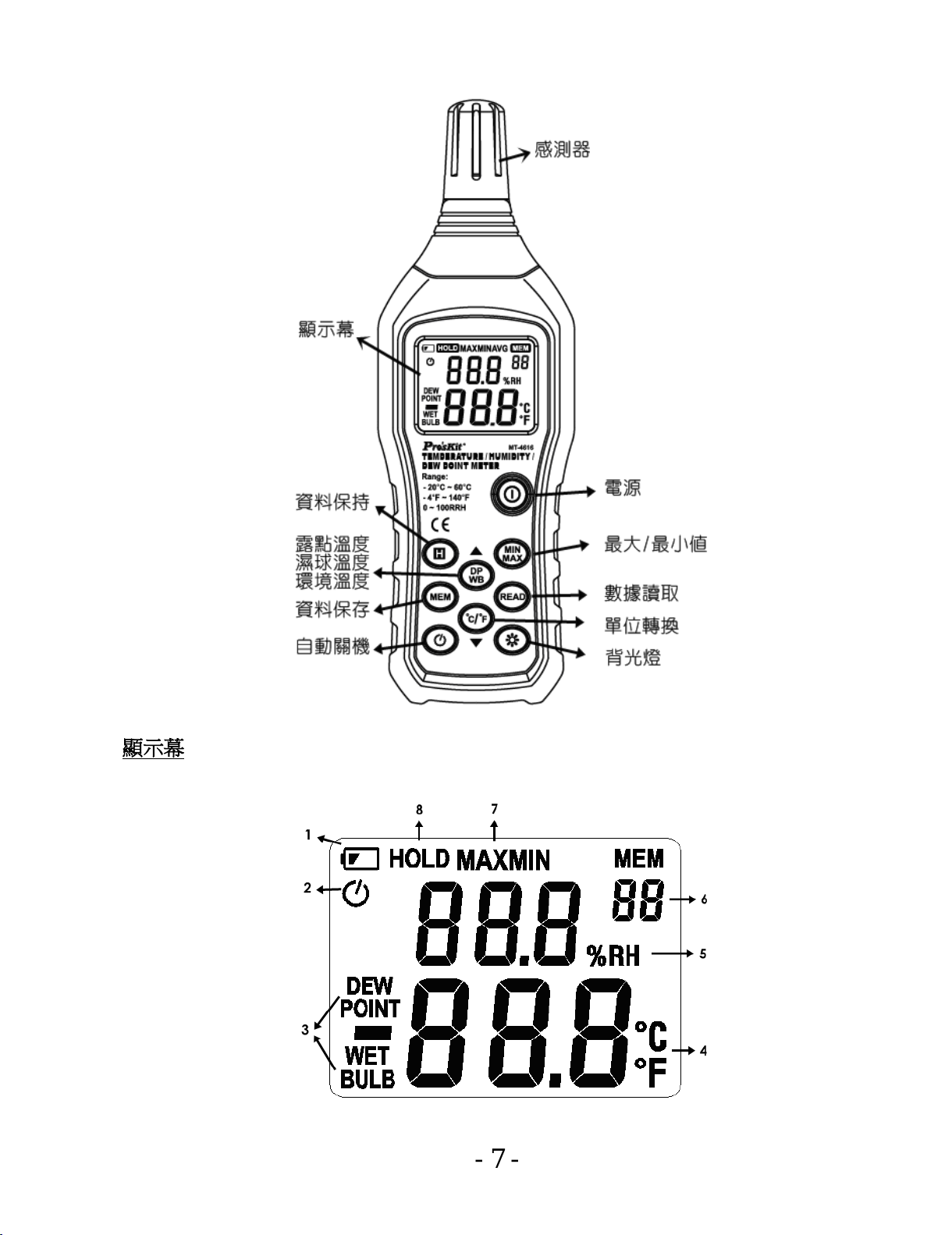

顯示幕

All manuals and user guides at all-guides.com

- 8 -

序號

含義

電池電量不足。

自動關機使能符號。

顯示濕球溫度或露點溫度。

溫度測量單位。

相對濕度測量單位。

顯示讀數取自記憶體，記憶體位置編號。

顯示最大讀數或最小讀數。

保持功能被啟用。顯示幕凍結當前讀數。

儀錶操作

注意

當把儀錶從一個溫度/濕度極限環境移動至另一個時，要等待一段時間讓儀錶穩定。

1. 按啟動儀錶，然後開始讀取測量值。

2. 溫度讀數以攝氏度（°C）或華氏度（°F）顯示。按可切換單位°C與°F。

露點溫度與濕球溫度

剛啟動儀錶時，儀錶顯示的是環境溫度。要顯示露點溫度（DP），按一下。再按

一次，可切換至濕球溫度（WB）。再按一次則儀錶返回到環境溫度。選擇露

點溫度和濕球溫度時，顯示幕上會有對應的符號指示。

資料保持

按下鍵可鎖住儀錶當前顯示的讀數。當 HOLD（保持）功能被啟動時，顯示幕

上顯示。要繼續讀取測量值，再按一次鍵。

All manuals and user guides at all-guides.com

- 9 -

最大最小值記錄

當按一下，最大最小值功能啟動，螢幕將不斷更新啟動後所測的最大值，若需

查看啟動後不斷更新的最小值，只需再按一下，同樣方式可切換回查看最大值；

若想退出最大最小值功能，只需長按兩秒，當聽到“嘀”聲後，儀錶就退出了此功

能。此功能中最大值包括功能啟動後的溫度最大值和濕度最大值，最小值包括功能

啟動後的溫度最小值和濕度最小值。

保存和調用測量值

儀錶最多可保存 99 組讀數值供以後查看。按一下將保存當前數值到記憶體中，

同時螢幕右上角將顯示所存位置，2秒後儀錶將自動跳回正常測量狀態；若記憶體存

滿，則儀錶將自動從 1號記憶體位元覆蓋已存資料並存儲當前值。若要調用記憶體

中所存的讀數，按鍵進入記憶體讀數查看模式，此時可按和鍵上下翻頁，

若要退出查看模式，只需再按一下鍵。若要清空記憶體，請在查看模式下，長

按鍵 5秒，螢幕右上角將有 00 編號顯示，說明記憶體已清空，再按鍵退回

正常測量模式。

自動關閉電源

為節省電池壽命，儀錶提供了自動關機功能，儀錶在 30 分鐘無操作活動後關閉電源。

儀錶的自動關機功能默認開啟，若需關閉此功能，使得儀錶可以長時間測量，只需

按一下鍵，此時螢幕上自動關機符號將消失，同上，再按一下，又可開啟自

動關機功能。

背光

按一下鍵，將開啟背光燈，再按一下關閉背光燈。若開啟後未手動關閉，背光燈

將在 15 秒後自動關閉。
