Pro user BRILJANT Bedienungsanleitung

NL: Montagehandleiding en Veiligheidsvoorschriften

DE: Montageanleitung und Sicherheitsvorschriften

UK: Assembly instruction and safety regulations

FR: Notice d’assemblage et de sécurité

Fietsdrager/Fahrradträger/Bike carrier/Porte-vélos

BRILJANT

INTRODUCTION

The Pro-User BRILJANT bike carrier is part of the family of bike carriers

manufactured by Tradekar Benelux BV.

Safe and reliable bike carrier for the transportation of 2 bicycles

Universal fitting on the tow ball

Easy fitting without the use of tools

Easy and quick storage

Including storage/carry bag

Good protection of bicycles by several foam rubber accessories

Including lighting and license plate holder

Lighting via a combined 7 and 13 -pin (Jaegers) plug

Almost no influence on the driving behaviour of your car

Read the following safety- and operating instructions

carefully and act accordingly before using the bike

carrier.

IMPORTANT INFORMATION

Read these instructions carefully before using the product for the first time.

Do not use this product until the manual and safety regulations are read and are

entirely clear.

The assembly and installation of the bike carrier can only be done according this

instruction manual.

The steps that are mentioned and the safety regulations for assembly, handling

and use of the bike carrier need to be followed! The slightest non conformity can

lead to incorrect assembly or wrong use.

The carrier is suitable for the transport of two bikes at most. Please check the

maximum permissible ball load. You can find it on the identification plate of the

tow bar of your car (for most cars this is 75kg). The total weight of the carrier

with the bikes cannot exceed the maximum permissible ball load of the tow bar.

The maximum permissible load for the carrier itself may be 40kg.

The net weight of the carrier is 6,5kg.

Max. permissible Ball

load Weight bike carrier Max. load

50kg 6,5kg Max. 40kg

60kg 6,5kg Max. 40kg

75kg 6,5kg Max. 40kg

90kg 6,5kg Max. 40kg

Not suitable for the use on an aluminium hitch ball.

Keep these instructions in your car.

CONSUMER HELPDESK & SUPPORT

+31 (0) 345-470998 (Monday till Thursday 8:30-12:30)

[email protected]

MOUNTING THE BIKE CARRIER

The bike carrier is already assembled in part. Remove all parts from packaging

and arrange them in a well-organized way. The instructions will clearly describe

and show the parts that you need for further assembly of the bike carrier and

mounting of the bikes.

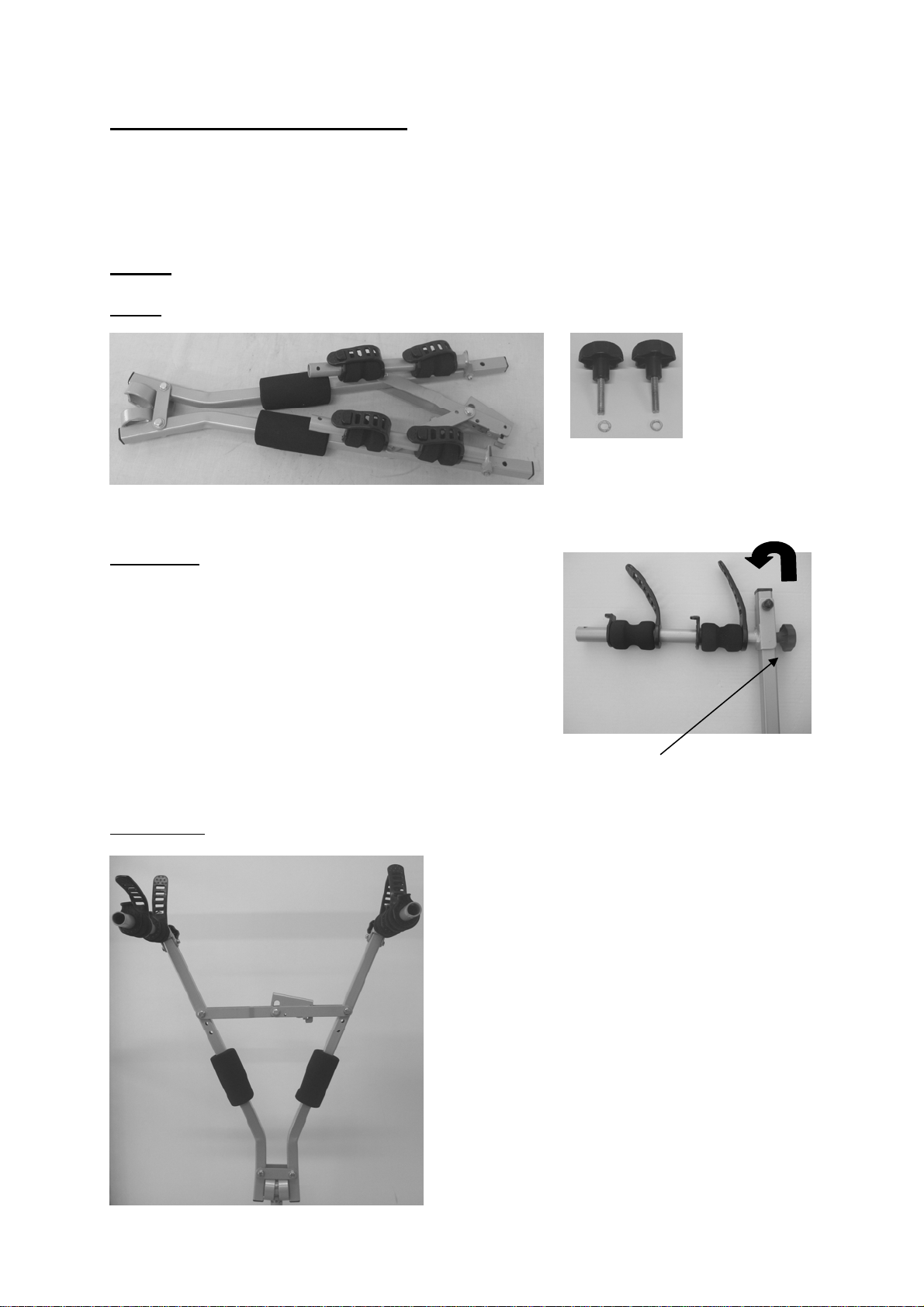

Step 1

Parts:

Assembly:

Unfold the two hinged arms so that they are at

right angles to the base of the carrier. Next,

tighten them with the plastic knobs (M8) that are

also supplied.

Make sure that the plastic knobs are strongly

tightened!

The carrier is now ready for use!

End result:

Plastic knob (M8)

unfold

Step 2

Parts:

Assembly:

The light frame is a loose part of the bike carrier that can be mounted on the far

ends of the unfolded arms. However, it must be assembled first.

Slide the two rear light holders (incl. lights) onto the light holder rail (make sure

that the lamp with an "R" on it is mounted on the right side) and fasten them

with the two plastic knobs.

Loosen and remove the little screws intended for the mounting of the number

plate holder from the light holder rail and fasten the number plate holder to the

rail. The number plate holder has to be level with the lighting.

End result:

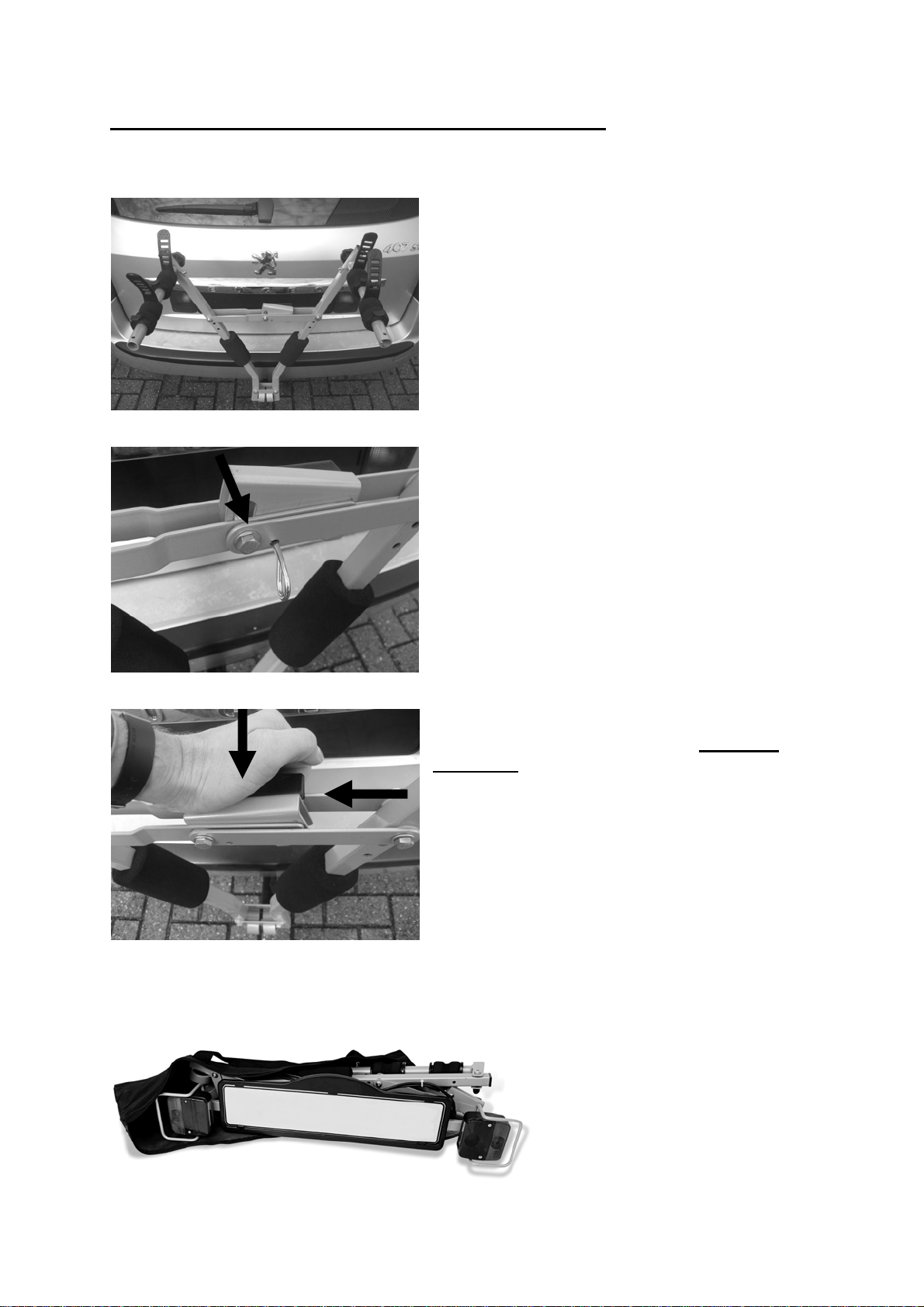

MOUNTING OF THE BIKE CARRIER ON THE CAR

When mounting the bike carrier to the car, it is best that the car is parked

straight, the engine is turned off and the parking brake is activated. Make sure

that the tow ball is undamaged, clean and not greasy!

Put the bike carrier on the tow ball. Make

sure it is optically straight and unfold the

carrier by pushing out the "legs" until more

force is needed (position similar as on the

picture).

Next, press with the flat hand the locking

handle down. Push until this is not possible

anymore (this can cost some force!)

WARNING: Please don’t hold the

locking handle with your complete

hand since this can cause some harm

on your hand!

Loosen the locking handle and the locking

system will make sure the bike carrier will

stay on the hitch ball.

Next, insert the safety pin in the in the

appropriate holes. The carrier is now ready

to carry your bikes!

Make sure that the carrier is the well

secured with the safety pin. The carrier

may not be used when the handle is

not secured with the safety pin.

HOW TO TAKE THE BIKE CARRIER OF THE TOW BAR

When you want to put the carrier away, you follow the mounting instruction in

reverse order:

NOTE: the bike carrier can only be taken

from the tow ball when the lamp holder

frame is not mounted!

(situation as shown on the picture)

To release the bike carrier from the hitch

ball, first take out the safety pin.

Press down the locking handle with the

flat hand and tilt the bike carrier up with

your other hand (or by your fingers) on the

black handle.

WARNING: Because of the high tension

on bike carrier, the locking handle can

be pushed up by a high speed and with

a lot of force!!

Remove the bike carrier from the tow ball and then fold it together (note your

fingers!).

Now the bike carrier can be folded together and be stored.

MOUNTING OF THE BIKES ON THE BIKE CARRIER

NOTE: The number plate and lights can only be mounted after having mounted

the bikes.

The bikes are well protected by several foam rubber accessories. It is possible to

move these foam rubber accessories, to provide optimum protection for your

bike.

1) The frame is protected by the foam rubber on the arms

2) The "legs" of the carrier have two foam rubber rolls that protect the bike

frame on the side

3) Two rectangular foam rubber accessories can be placed in between the bikes

(hanging on the arms).

Mounting of the bikes on the bike carrier: In principal, the frames of the bike are

hanging on the horizontal arms.

Remove all parts from the bikes that could easily be lost (E-

bike batteries, bike pumps, speedometers, baskets, panniers,

bicycle seats etc.) during transport. These parts may become

loose by the increased air resistance and vibration and put

other road users at risk.

The first (and heaviest, max 20kg) bike has

to be placed in the rear foam holders (the

one which are the nearest to the car) and

must be secured with the integrated,

flexible rubber strap.

Next, the front wheel must be fastened with

the supplied straps of ~65cm. This to

protect the wheel from moving/turning.

1 2 3

Place the second bike in opposite direction in the second foam holders and

secure it with the integrated, flexible rubber strap.

Now secure the bikes using the long safety belt (supplied). Run the safety

belt through the bike frame and around the bike carrier mainframe and tighten

firmly.

If the bikes are firmly tight, the lighting can be mounted.

Slide the pre-mounted light frame with number plate into the ends of the arms

(lamps are adjustable, so it should always fit). Secure the light frame with the

two safety pins.

Now connect the electric connector (7 or 13 pin) into socket of the car and check

the lights for a proper operation.

ATTENTION: Driving the bike carrier without light frame (including

license plate) is not allowed!

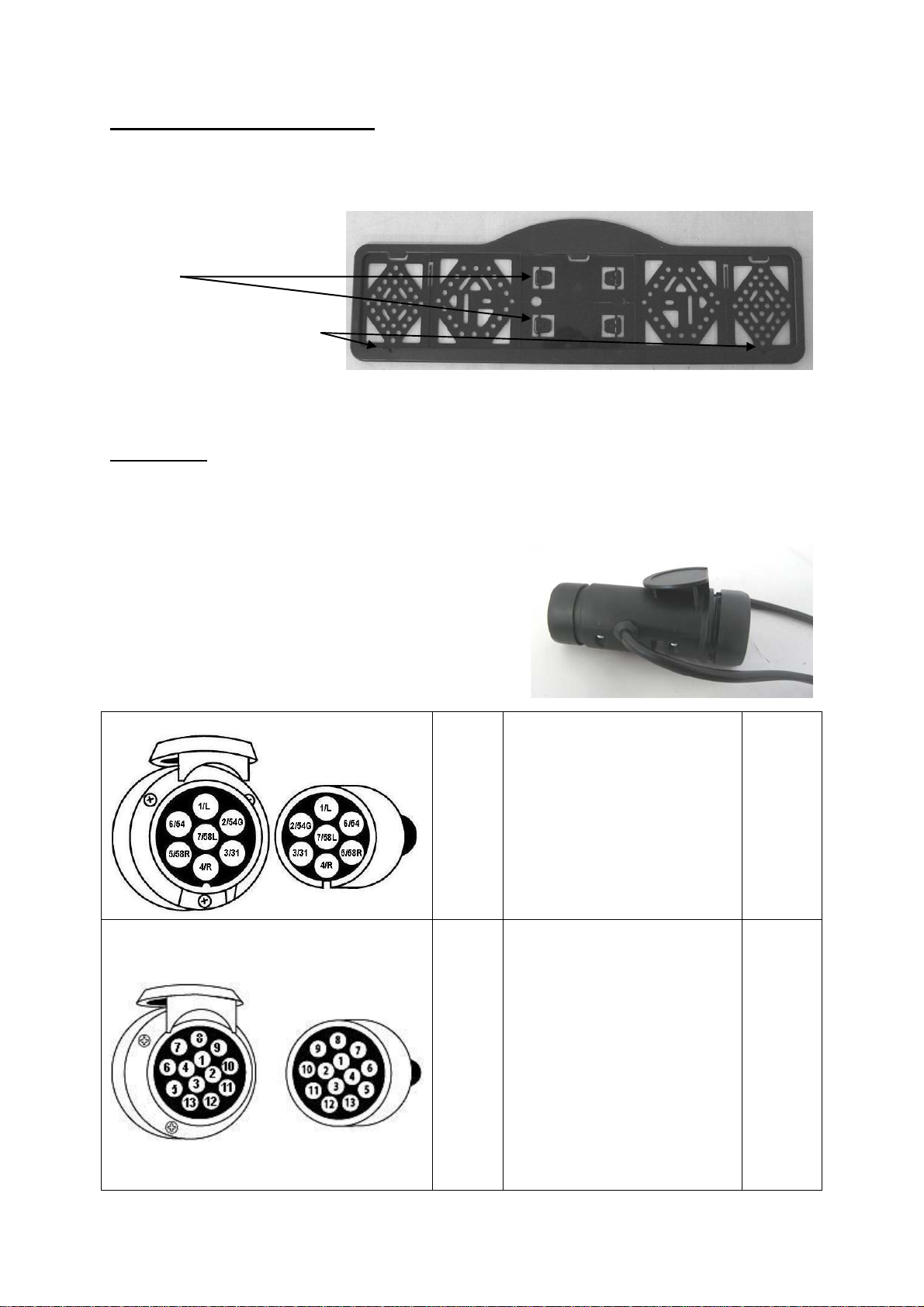

THE LICENSEPLATEHOLDER

The clips (2) to mount the license plate can be pressed out and are in the license

plate holder (see picture).

clips

Inserts for clips

LIGHTING

This bike carrier is equipped with a lighting system. This system can be

connected to the tow bar power socket of your car. Seeing that there are

different kinds of sockets that require different

kinds of plugs, this carrier comes with the

usual 7-pin plug and the 13-pin plug

(Jaegers). As a result, the carrier can be used

with any tow bar!

Both plugs are in one housing. Please cover

the plug you don’t use with the supplied cover.

Universal system 7 pin

1/L

2/54G

3/31

4/R

5/58R

6/54

7/58L

Indicator left

Not used

Ground

Indicator right

Rear light right

Stop lights

Rear light left

yellow

white

green

brown

red

black

Jaegers system 13 pin

(DIN 72.570)

Indicator left

Not used

Ground

Indicator right

Rear light right

Stop lights

Rear light left

Not used

Ground

Not used

yellow

white

green

brown

red

black
