INSTRUCTION MANUAL

MODEL No.: PBR65W-U

PBR65W-E

BOX REFRIGERATOR

1.Name of parts1.Name of parts

PARTS AND FEATURESPARTS AND FEATURES

Cabinet

Wire Shelf

Hinge Cover

Door

Evaporator

Thermostat Knob

Gasket

Adjustable Feet

Ice Box Room Door

Fridge Door Bar

11 Drip tray

THANK YOU FOR PURCHASING THIS PROLINE PRODUCT

This booklet contains the information you will require to install and operate your new

appliance.

It is important and worthwhile spending time to fully read this booklet so you will

understand how to operate the appliance safely and efficiently.

Please keep this booklet in a safe place so that you can refer to it when required.

Safety information

This information is provided in the interest of your safety. Please read the following

carefully before carrying out the installation or use of the appliance.

If you are discarding an old freezer or refrigerator with a lock / catch fitted to the

door, ensure that it is left in a safe condition to prevent the entrapment of young

children when playing.

As old refrigeration equipment may contain CFC’s which will damage the ozone

layer, when disposing of any refrigeration equipment please contact your local waste

disposal department for advice on the correct method of disposal.

This appliance must only be used for its intended purpose i.e. the freezing and storage

of domestic edible foodstuffs and should not be used for any other purpose.

Installation

Position the appliance and allow to stand for two to three hours before it is turned on

for the first time to allow the system to settle. Do not position next to any heat source

e.g. cooker, boiler or in direct sunlight etc.

A clearance of 10 cm must be left between the sides of the appliance and any adjacent

cabinets or walls to allow for adequate air circulation. The appliance is not designed

for recessed installation (“building in”).

Install on a good firm level surface, and any unevenness of the floor should be

corrected prior to installation, slight unevenness can be overcome by adjusting the

front feet.

NOTE: If the appliance is positioned on a carpet, soft floor covering you should re-

adjust the front feet once the appliance has had time to settle.

IMPORTANT SAFETY INFORMATION

This appliance must be used on the electric voltage shown on the rating label on the

rear of this appliance, failure to use the correct voltage will render the guarantee

VOID and may cause damage to the product.

This appliance is intended for domestic use only, any other use may invalidate the

warranty and might be dangerous.

This appliance is intended for indoor use only, do not use outdoors.

Accessible surfaces may get hot during operation, use handles and knobs at all times.

To protect against electric shock, do not immerse cord, plugs, or appliance in water or

other liquid.

Unplug from outlet when not in use and before cleaning. Remove food before

cleaning the appliance.

If the mains lead becomes damaged, it must be replaced by the manufacturer, its

service agent or similarly qualified person with a lead of the same type and rating to

avoid a hazard.

Do not operate the appliance with a damaged cord or plug or after the appliance

malfunctions or has been damaged in any way. Consult the retail store where you

bought the appliance for advice.

Do not insert over sized food as this could cause a hazard.

Do not let cord hang over edge of the surface, or touch hot surfaces.

Do not place appliance on or near hot surfaces, or in direct sunlight.

Extreme caution must be used when moving an appliance.

Always attach a plug to the appliance, then plug into the wall outlet. To disconnect,

turn the switch OFF, then remove the plug from wall outlet.

A short power-supply cord is provided to reduce the risk of a tripping hazard.

The mains plug shall be the main disconnection device and shall be accessible at all

times.

This appliance is not intended for use by persons(including children) with reduced

physical, sensory or mental capabilities, or lack of experience and knowledge, unless

they have been given supervision or instruction concerning use of the appliance by a

person responsible for their safety.

Children should be supervised to ensure that they do not play on the appliance.

ELECTRICAL CONNECTION (UK ONLY)

For your safety please read the following information.

Warning: This appliance must be earthed.

The appliance must be connected to a 220 - 240 volts 50 cycle AC supply by means of a three pin socket, suitably

earthed and should be protected by a 13 amp fuse in the plug.

If the mains lead becomes damaged it must be replaced by the manufacturer, its service agent or a similarly qualified

person with an approved lead of the same type and rating.

The appliance is supplied with a standard 13 amp 3-pin plug fitted with a 13-amp fuse. Should the fuse require

replacement, it must be replaced with a fuse rated at 13 amp and approved to BS1362.

If the mains plug is unsuitable for the socket outlet in your home or is removed for any other reason, then the cut off

plug should be disposed of safely, do not insert the cut off plug into a mains outlet to prevent the hazard of electric

shock. Remove the fuse before disposal.

There is a danger of electric shock if the cut off plug is inserted into any 13-amp socket outlet.

How to wire a 13 amp plug:

Important

The wires in the mains lead on this appliance are colored in accordance with the following code:

Green and Yellow - Earth

Blue – Neutral

Brown – Live

As the colours may not correspond with the markings identifying the terminals in your plug proceed as follows.

The green and yellow wire must be connected to the terminal in the plug which is marked with the letter E or with the

earth symbol or colored green and yellow.

The blue wire must be connected to the terminal marked N.

The brown wire must be connected to the terminal marked L.

You must make sure the mains cord is firmly secured under the cord clamp.

Warnings:

Keep ventilation openings, in the appliance enclosure or in the built in structure, clear

of obstructions.

Do not use mechanical devices or other means to accelerate the defrost process, other

than those recommended by the manufacturer.

Do not damage the refrigerant circuit.

Do not use electrical devices inside the food storage compartments of the appliance,

unless they are of the type recommended by the manufacturer.

Operating your refrigerator

Before plugging in your refrigerator for the first time remove all packing, clean the

refrigerator with warm water and bicarbonate of soda. Wipe dry with a soft cloth.

Plug the refrigerator into the mains power supply ensuring that the voltage is the same

as the rating label and then turn the thermostat control knob that is situated at the right

hand side of the unit to the midway position. The compressor should then start.

Do not operate your refrigerator in a room where the temperature is likely to fall

below 16degrees C (61 degrees F)at night and /or especially in winter, as it is designed

to operate in ambient temperatures between +16to +32 degrees C, at lower

temperatures the refrigerator may not operate, resulting in a reduction in the storage

life of the food.

Setting the temperature control

To control the internal temperature, adjust the thermostat control knob according to

the ambient temperature or purpose of use.

The temperature control knob has 6 settingsfrom the coldest “5” to the warmest “1"

( 0,1,2,3,4,5).

Adjust the temperature control to the setting that best suites your needs(normal

position 4).

Turning the control to the “0” position stops the cooling cycle, but does not turn off

the power to the refrigerator.

If the unit is unplugged, power lost, or turned off, you must wait 5minutes before

restarting the refrigerator. If you attempt to restart before this time delay, the

refrigerator may not start.

To obtain a lower internal temperature turn the thermostat control knob clockwise to a

higher number. To obtain a higher internal temperature turn the thermostat control knob

anciclockwise to a lower number. However, the internal temperature and temperature

control setting is dependent on a number of factors:

1. Varying ambient temperature.

2. The times the appliance doors are opened and how long the doors remain open.

3. The amount and temperature of the food and drink introduced into the appliance.

4. The weather conditions and time of year e.g. summer/winter.

5. The positioning of the appliance and an adequate air circulation to the sides and back

of the cabinet.

Never place hot or warm foods into the cabinet or leave the doors open for longer than

necessary as this will raise the temperature and cause excessive amounts of moisture

thus increasing the amount of ice in the refrigerator/freezer compartment.

Defrosting

When the thermostat control knob is set to a lower number(normally 1.0-3.0), the

evaporator defrosting process is carried out automatically every time the comparessor

stops. The defrost water drops into the drip tray. If you find the drip tray is full of

defrost water, it must be emptied.

Cleaning your refrigerator

Turn the Thermostat control to “OFF” position then remove the mains plug from the

wall socket, open the door and remove all the contents to a cool place remove the

shelf.

Wipe the inside surface with a warm water and bicarbonate of soda solution. The

solution should be about 2 tablespoon of bicarbonate of soda to 2 pints of water.

Wash the shelf and tray with a mild detergent solution.

Wring excess water out of the sponge or cloth when cleaning area of the controls.

Wash the outside cabinet with warm and mild liquid detergent. Rinse well and wipe

dry with a clean soft cloth.

If the plastic parts in the refrigerator remain contaminated for a long time by oil

(animal or vegetable),they will age and possibly crack. The drip tray gets dirty

very easily if it is not cleaned regularly, bad odours will be produced, get into the

habit of cleaning this tray regularly. Make sure you keep the door seal and adjacent

surface clean to maintain a good air tight seal.

1. Take out all the food from the fridge and keep the door open.

2. Turn the thermostat to the off position ( 0 ), unplug the refrigerator from the

mains supply.

3. Position the drip tray under the ice box on the shelf below.

4. After all the ice has melted dry the unit carefully and empty the drip tray.

5. Reinsert the mains plug and set the thermostat to its original setting.

6. Leave to stand until the correct temperature has been reached then introduce your

food.

When the frost/ice layer reaches 3-4 mm thick the refrigerator must be defrosted and

cleaned. Otherwise it may result in lower efficiency and high energy consumption.

The surface of the evaporator ices up when the refrigerator is in normal use and

the thermostat control knob is set to a higher number(normally 3.0-5.0).

Reversing the door

This refrigerator has been built with the door hinges on the right. If you wish to

change the opening direction, follow the instructions below:

1. Remove the upper hinge cover (6) first.

2. Remove the two screws (1) that hold the upper hinge (5) (right side) to the fridge

body. Remove the upper hinge (5).

3. Lift the door and place it on a padded surface to prevent scratching it.

4. Reverse the hole cover plate (7) from the left side to the right.

5. Remove the two screws (8) that hold the lower hinge (2) and remove the lower

hinge (2).

6. Remove the left front foot (4) and transfer it to the right side.

7. Before fitting the lower hinge (2), swap over the hinge pin (9) and the foot (3) to

the other side of the lower hinge (2). Then install the lower hinge (2) onto the left

side of the lower frame with two screws (8).

8. Position the door in place making sure the door seats onto the lower hinge (2).

9. Align the door in the closed position, secure the upper hinge (5) in the top fame on

left side with two screws (1). Remember, do not tighten the two screws (1) until

the top of the door is leveled with the top of the fridge.

10. Install the upper hinge cover (6) on the upper hinge.

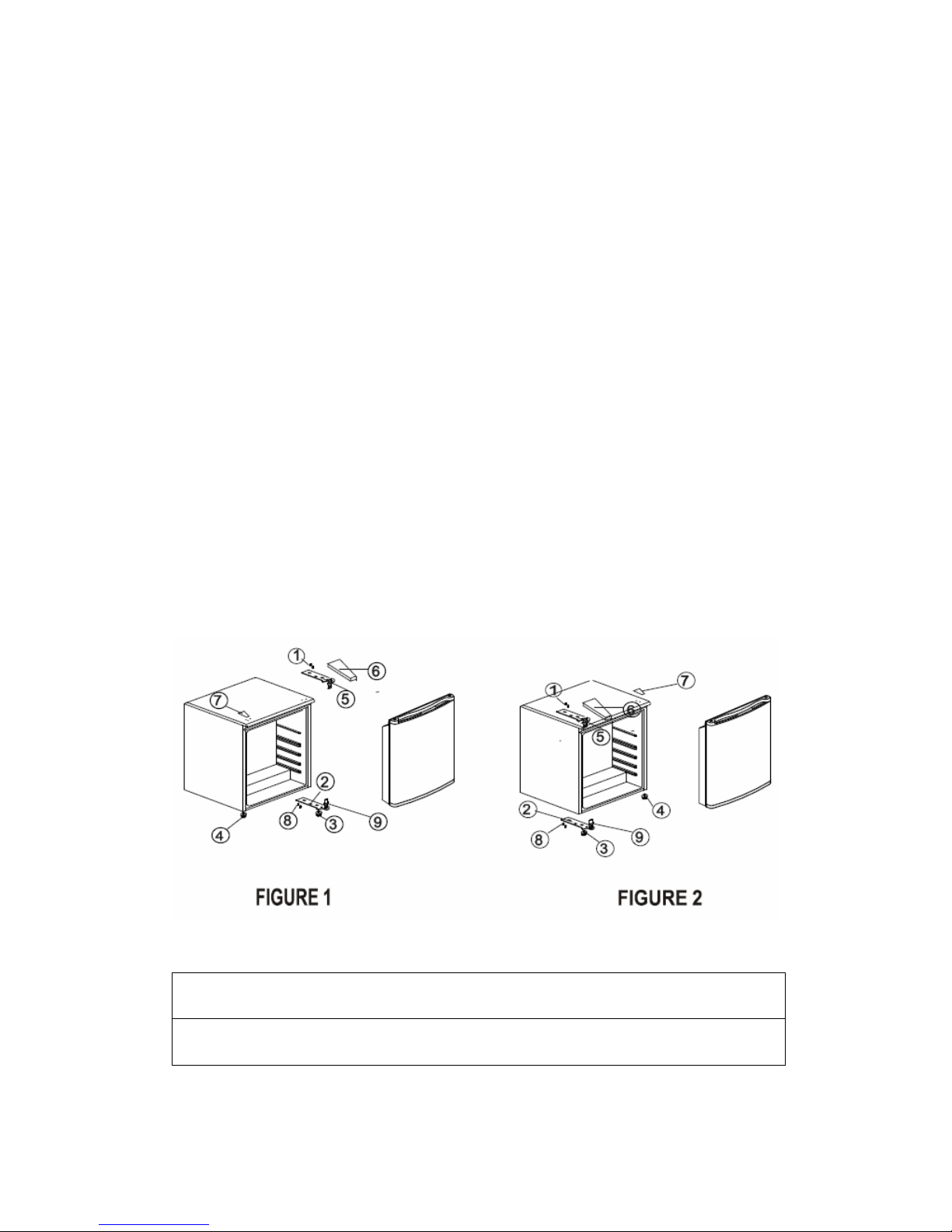

FIGURE 1 - REPRESENTATIVE POSITION OF COMPONENTS PRIOR TO

DOOR REVERSAL.

FIGURE 2 - REPRESENTATIVE POSITION OF COMPONENTS AFTER DOOR

REVERSAL.

Wipe the inner and outer surface of the refrigerator and its accessories with wet cloth.

If they are too dirty, scrub them with neutral detergent, and then clean them with

water and dry them with clean cloth. After this, a small quantity of glass wax is

recommended to polish the refrigerator surface with a flannelette.

1. When the refrigerator does not work

Check if there is a power failure.

Check if the power plug is plugged into the power outlet.

Check that the fuse has not blown.

2. When the refrigerator is cooling excessively

The temperature control dial may be set too high.

If you place foodstuffs containing a lot of moisture directly under the cool air

outlets, they will freeze easily. This does not indicate a malfunction.

3. When the refrigerator is not cooling sufficiently

The food may be packed too tightly together which will block the flow of cool air.

You may have put something hot or a lot of foodstuffs into the refrigerator.

The door may not have been closed properly.

The door gaskets may be damaged.

The refrigerator may not be ventilated.

There may be insufficient clearance between the refrigerator and the surfaces

immediately both sides and above.

The temperature control dial may not be set properly.

4. When condensation form on the outside of the refrigerator.

Condensation may form on the outside when the humidity is high such as during a

wet season. This is the same result as the condensation formed when chilled water

is poured into a glass. If does not, therefore, indicate a failure, wipe dry with a dry

cloth.

5. When you hear a sound like water flowing.

A sound like water flowing is the refrigerant flowing. It does not indicate a

malfunction.

6. When the cabinet’s side panel heats up

The side panel of the cabinet will heat up when the door is opened or closed

frequently, when starting the unit and when the unit operates in summer with high

ambient outside temperature, in such case, do not touch the panel, it results from

the dissipation of the heat from inside the cabinet, and it does not mean the

something is wrong with the refrigerator.

Before calling for service

Please check the following points:

1. The refrigerator is not working

Check the plug is inserted correctly into the wall socket

Check there is power to the wall socket by plugging in another appliance, if the other

appliance works, check the fuse in the appliance plug.

2. The refrigerator is noisy when running

Check the appliance is level and is not in contact with another appliance or kitchen

furniture.

3. The refrigerator does not cool sufficiently.

If the door has been opened too often, or it has been left open for a while it will take

time for the appliance to reach its set temperature.

Check the air flow around the refrigerator has not been reduced due to insufficient

clearance.

NOTE: The following characteristics should not be looked upon as a problem.

A gentle trickling sound caused by refrigerant flowing through the pipe.

Compressor operating at high temperature.

Prolonged off periods

If the refrigerator is not in use for a long period of time, proceed as follows:

Disconnect the refrigerator from the main supply by removing the plug from the

socket.

Clean and dry the inside as instructed under the heading of cleaning the appliance.

Leave the door open to prevent any unpleasant smells from building up while the

appliance is not in use.

If there is a power failure for a short time keep the door closed check the contents of

the refrigerator every so often.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Proline Kühlschrank Handbücher

Proline

Proline PL115ABB Bedienungsanleitung

Proline

Proline PLC246WDSL Bedienungsanleitung

Proline

Proline DD2220-E-1 Bedienungsanleitung

Proline

Proline PL120WD Bedienungsanleitung

Proline

Proline PF120WD Bedienungsanleitung

Proline

Proline PSBS946SL Bedienungsanleitung

Proline

Proline PLC316NFIX Bedienungsanleitung

Proline

Proline PLCD 330 WD SS Bedienungsanleitung

Proline

Proline PF200W Bedienungsanleitung

Proline

Proline TTR200DP Bedienungsanleitung

Proline

Proline PLC234WDSL Bedienungsanleitung

Proline

Proline DD253NFSL Bedienungsanleitung

Proline

Proline UFZ171 Bedienungsanleitung

Proline

Proline PMF70A Bedienungsanleitung

Proline

Proline BRF47 Bedienungsanleitung

Proline

Proline DD132 Bedienungsanleitung

Proline

Proline PF85GWA Bedienungsanleitung

Proline

Proline PF90WA GL Bedienungsanleitung

Proline

Proline PLC2300WH Bedienungsanleitung

Proline

Proline PRI 190-F-2-LED Bedienungsanleitung

Proline

Proline PLC280W-F-1 Bedienungsanleitung

Proline

Proline PLF220A Bedienungsanleitung

Proline

Proline TTR901WH Bedienungsanleitung

Proline

Proline PLC235WH Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
