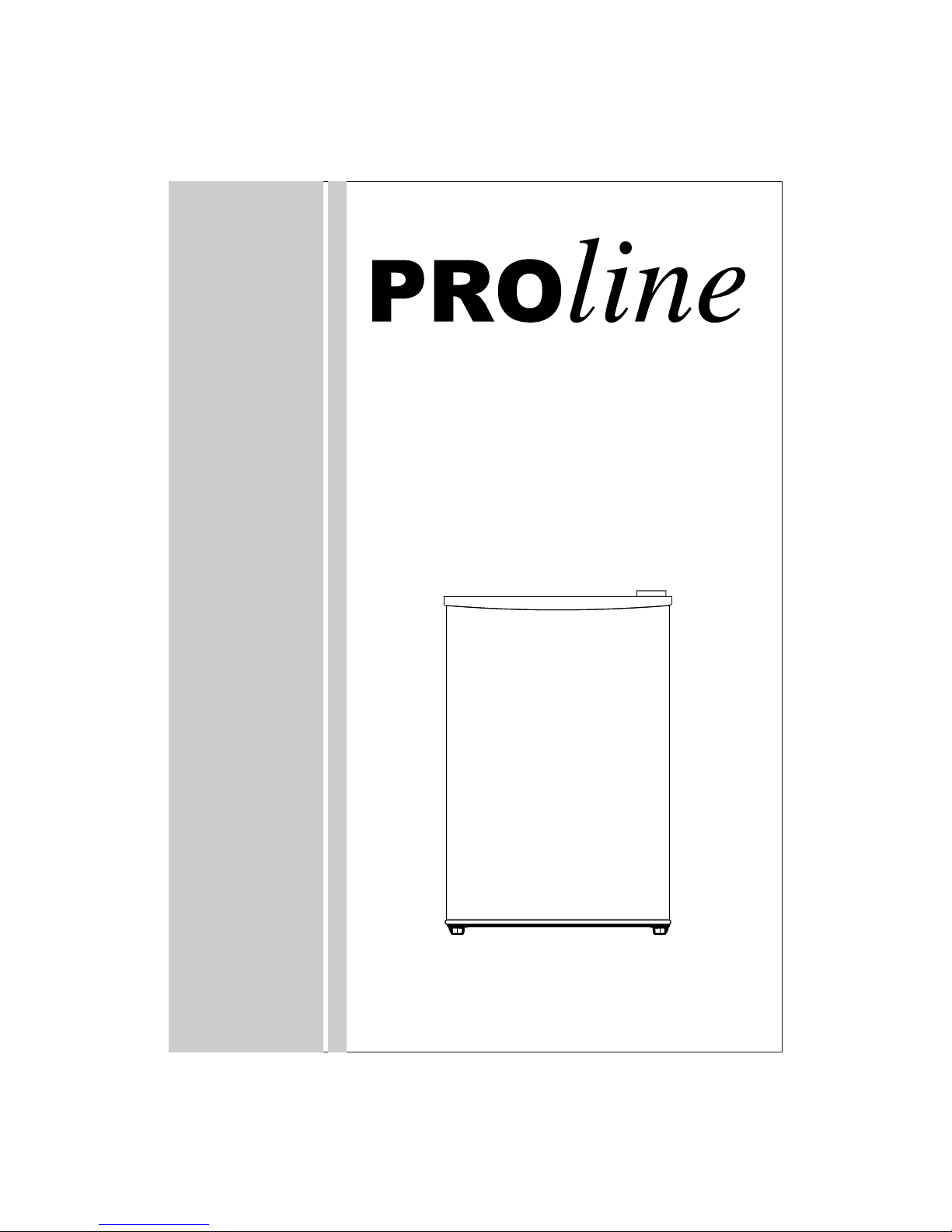

INSTRUCTION MANUAL

MODEL No.: PF120WD

48cm UNDER COUNTER FRIDGE

Please read this instruction manual carefully before operation

Keep these instructions in a safe place for future reference

CONTENTS

Part Identification 1

Safety Information 2

Installation 2

Electrical Connection 3

Operating your refrigerator 4

Setting the Thermostat Control 4

Defrosting 4

Cleaning your refrigerator 5

Reversing the door 6

Maintenance 7

Trouble shooting 8

Do’s and Don’ts 10

Technical data 11

Helpline 12

Disclaimer 12

Name of parts

PARTS AND FEATURES

Ice Box RoomDoor

Cabinet

Drip Tray

Wire Shelf

Leveling Legs

Bottle Racks

Temperature Control Knob

Recessed Handle

Crisper box

12 11 10

Glass cover

Door switch

Compressor(back)

Dear Customer:

Thank you for buying a Proline Refrigerator. To ensure that you get the best results

from your new refrigerator, please take time to read through the simple instructions in

this manual.

Please ensure that the packing material is disposed of in accordance with the current

environmental requirements.

Safety information

This information is provided in the interest of your safety. Please read the following

carefully before carrying out the installation or use of the refrigerator.

If you are discarding an old freezer or refrigerator/chiller with a lock/catch fitted.

Ensure that it is left in a safe condition with the lock/catch broken to prevent the

entrapment of children.

Old refrigerator equipment may contain CFC’s that will damage the ozone layer.

When disposing of any refrigerator equipment please contact your local waste

disposal department for advise on safe disposal.

This refrigerator must be only used for its intended purpose.

If the power cable requires replacement, this must only be undertaken by a suitably

qualified person, as special purpose tools are required.

A clearance of 10cm must be left between the sides of the appliance and any adjacent

cabinets or walls to allow for adequate air circulation. This refrigerator is not designed

for a recessed installation (“building in”)

Install on a good firm level surface, you can turn the front feet to stabalise any minor unevenness.

The refrigerator is heavy, carry the refrigerator by the casing not the door.

For purpose of safety all electrical repairs or maintenance must be carried out by a

qualified electrician or service agent.

Warning the plug must be accessible after the refrigerator is in position

This appliance is for refrigerating food and making ice cubes.

If the supply cord is damaged, it must be replaced by the manufacturer or its service

agent or a similarly qualified person in order to avoid an electrical hazard.

WARNING: This appliance is intended for domestic use only, any other use may

invalidate the warranty and might be dangerous. If you are disposing of an old

appliance with a lock or latch fitted, ensure it is left in a safe condition with the

lock or catch broken or disabled to avoid the entrapment of children when playing.

INSTALLATION:Position the refrigerator and allow to stand for two or three hours

before it is turned on for the first time to allow the system to settle. Do not position

next to any heatsource e.g. cooker, boiler or in direct sunlight etc.

ELECTRICAL CONNECTION

For your safety please read the following information

Warning: This appliance must be earthed.

The appliance must be connected to a 220-240 volts 50 cycle AC supply by

means of a three pin socket, suitably earthed and should be protected by a 13

amp fuse in the plug.

The appliance is supplied with a 13 amp 3 pin plug fitted with a 13 amp fuse.

Should the fuse require replacement, it must be replaced with a fuse rated

at 13 amp and approved to BS1362.

If the mains plug is unsuitable for the socket outlet in your home or is removed

for any other reason, then the cut off plug should be disposed of safely to

prevent the hazard of electric shock, Remove the fuse before disposal.

There is a danger of electric shock if the cut off plug is inserted into any 13

amp socket outlet.

How to wire a 13 amp plug.

Important

The wires in the mains lead on this appliance are coloured in accordance with

the following code:

Green and Yellow - Earth

Blue – Neutral

Brown – Live

As the colours may not correspond with the markings identifying

the terminals in your plug proceed as follows.

The green and yellow wire must be connected to the terminal in the plug

which is marked with the letter E or with the earth symbol or coloured

green and yellow.

The blue wire must be connected to the terminal marked N or coloured black.

The brown wire must be connected to the terminal marked L or coloured red

Make sure the cord is held firmly under the cord clamp.

Operating your refrigerator

Before plugging in your refrigerator for the first time remove all packing, clean the

refrigerator with warm water and bicarbonate of soda. Wipe dry with a soft cloth.

Plug the refrigerator into the mains power supply ensuring that the voltage is the same

as the rating label and then turn the thermostat control knob that is situated at the right

hand side of the unit to the midway position. The compressor should then start.

Do not operate your refrigerator in a room where the temperature is likely to fall

below 16degrees C (61 degrees F)at night and /or especially in winter, as it is designed

to operate in ambient temperatures between +16to +32 degrees C at lower

temperatures the refrigerator may not operate, resulting in a reduction in the storage

life of the food.

Setting the temperature control

To control the internal temperature, adjust the thermostat control knob according to

the ambient temperature or purpose of use.

The temperature control knob has 6 settingsfrom the coldest “5” to the warmest “1".

( 0,1,2,3,4,5).

Adjust the temperature control to the setting that best suites your needs normal

position 3.

Turning the control to the “0” position stops the cooling cycle, but does not turn off

the power to the refrigerator.

If the unit is unplugged, power lost, or turned off, you must wait 10 minutes before

restarting the refrigerator. If you attempt to restart before this time delay, the

refrigerator may not start.

Defrosting

The surface of the evaporator ices up when the refrigerator is in use. When the frost

layer reaches 3-4 mm thick the refrigerator must be defrosted and cleaned.

Otherwise it may result in lower efficiency and high energy consumption.

1. Take out all the food from the fridge and the ice tray and keep the door open.

2. Turn the thermostat to the off position ( 0 ) unplug the refrigerator from the

mains supply.

3. Position the water collection tray under the ice box on the shelf below.

4. After all the ice as melted dry the unit carefully and empty the water collection

tray.

5. Reinsert the mains plug and set the thermostat to its original setting.

6. Leave to stand until the correct temperature as been reached then introduce your

food.

Cleaning your refrigerator

Turn the Thermostat control to “OFF” position then remove the mains plug from the

wall socket, open the door and remove all the contents to a cool place remove the

shelf.

Wipe the inside surface with a warm water and bicarbonate of soda solution. The

solution should be about 2 tablespoon of bicarbonate of soda to 2 pints of water.

Wash the shelf and tray with a mild detergent solution.

Wring excess water out of the sponge or cloth when cleaning area of the controls.

Wash the outside cabinet with warm and mild liquid detergent. Rinse well and wipe

dry with a clean soft cloth.

Replacing The Lamp

1. Turn the thermostat to the off position (0) and disconnect from the mains.

2. Remove and empty if required, the drip tray underneath the ice compartment.

3. The Lamp is located in the back of the thermostat housing, unscrew the lamp

in a clockwise direction untill the lamp comes out of the lamp fitting.

Screw a new 10 Watt (E14 Base) lamp into the lamp fitting in a anti-clockwise

direction until tight.

5. Replace the drip tray and re-connect to the wall outlet.

6. Set the thermostat to your preferred setting and close the door

If the plastic parts in the refrigerator remain contaminated for a long time by oil

(animal or vegetable),they will age and possibly crack. The drain pan gets dirty

very easily if it is not cleaned regularly, bad odours will be produced, get into the

habit of cleaning this pan regularly. Make sure you keep the door seal and adjacent

surface clean to maintain a good air tight seal.

This refrigerator has been built with the door hinges on the right. If you wish

to change the opening direction, follow the ins tructions below:

2. R emove the two s crews (1) tha t hold the upper hinge (5) (right s ide) to the

Fridge body.Remove the upper hinge (5).

3.Lift the door and place it on a padded surface to prevent scratching it.

4. R emove the two s crews (8) that hold the lower hinge(2) and remove

the lower hinge(2).

5. R emove the left front foot (4 ) a nd tra ns fe r it to the right s ide.

6. R everse theholecoverplate(7)from the left side to the right.

7. Before fitting thelower hinge (2), remove the hinge-pin (9) and reverse

the direction of the lower hinge (2). Then install the lower hinge (2) onto

the le ft s ide of the lowe r fra me with two s c rews (8).

9. position the door in place making sure the door seats onto the lower hinge(2)

10.While holding the door in the closed position secure the upper hinge (5) in the

top fra me on left s ide with two s crews (1). Remember,do not tighten

the two s crews (1) until the top of the door is levelled with the top of the fridge.

Changing the reversible door

1. R emove the upper hinge cover (6) first

11. Install the upper hinge cover (6) and the hole cover plate (7) on the upper hinge.

8. Insert the hinge-pin (9) to the lower hinge (2).

Wipe the inner and outer surface of the refrigerator and its accessories with

wet cloth. If they are too dirty, scrub them with neutral detergent, and then

clean them with water and dry them with clean cloth. After this, a small

quantify of glass wax is recommended to polish the refrigerator surface with

a flannelette.

Maintenance

Troubleshooting

1. When the refrigerator does not work.

Check if there is a power failure.

Check if the power plug is plugged into the power outlet.

Check that the fuse has not blown.

2. When the refrigerator is cooling excessively.

The temperature control dial may be set too high.

If you place foodstuffs containing a lot of moisture directly under the cool

air outlets, they will freeze easily. This does not indicate a malfunction.

3. When the refrigerator is not cooling sufficiently.

The food may be packed too tightly together which will block the flow of cool air.

You may have put something hot or a lot of foodstuffs into the refrigerator .

The door may not have been closed properly.

The door gaskets may be damaged.

The refrigerator may not be ventilated.

There may be insufficient clearance between the refrigerator and the surfaces.

The temperature control dial may not be set properly.

4. When condensation form on the outside of the refrigerator.

Condensation may form on the outside when the humidity is high such as during

a wet season. This is the same result as the condensation formed when chilled

water is poured into a glass. It does not, therefore, indicate a failure, wipe dry

with a dry cloth.

5. When you hear a sound like water flowing.

A sound like water flowing is the refrigerant flowing. It does not Indicate a

malfunction.

6. When the cabinet's side panel heats up.

The side panel of the cabinet will heat up when the door is opened or closed

frequently, when starting the unit and when the unit operates in summer with

high ambient outside temperature, In such case, do not touch the panel, it

results from the dissipation of the heat from inside the cabinet, and it does

not mean that something is wrong with the refrigerator.

Inhaltsverzeichnis

Andere Proline Kühlschrank Handbücher

Proline

Proline PLC265WH Bedienungsanleitung

Proline

Proline PLC 282 WH Bedienungsanleitung

Proline

Proline PCI300G-E-2 Bedienungsanleitung

Proline

Proline PLC246WDSL Bedienungsanleitung

Proline

Proline PRI 190-F-2-LED Bedienungsanleitung

Proline

Proline PLCD 330 WD SS Bedienungsanleitung

Proline

Proline UFZ171 Bedienungsanleitung

Proline

Proline TTR901WH Bedienungsanleitung

Proline

Proline DD253NFSL Bedienungsanleitung

Proline

Proline PCI223-F1-LED Bedienungsanleitung

Proline

Proline PLC293NFSL Bedienungsanleitung

Proline

Proline DD229WHA++ Bedienungsanleitung

Proline

Proline TTR91WH Bedienungsanleitung

Proline

Proline DD208WH Bedienungsanleitung

Proline

Proline PLC163WH Bedienungsanleitung

Proline

Proline PLF225A-U Bedienungsanleitung

Proline

Proline DD415 WH Bedienungsanleitung

Proline

Proline PLF220A Bedienungsanleitung

Proline

Proline PLC 242 Bedienungsanleitung

Proline

Proline PC231FFS Bedienungsanleitung

Proline

Proline PBU140LF Bedienungsanleitung

Proline

Proline PLC550FFSL-U Bedienungsanleitung

Proline

Proline PLC235WH Bedienungsanleitung

Proline

Proline PLF238L Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
