PROSTAT® PGAͳ710B AUTOANALYSIS SYSTEM

SecƟon Topic Page

A. System Requirements 4

B. Installing the Autoanalysis Applicaon Soware and Drivers 5

C. Connecng the PGA-710B Autoanalysis System to your computer 6

D. Adjust or Conﬁrm the “zero” reference for the PGA-710B System 8

E. Assembling your Autoanalysis System to the Field Meter and Charge Plate Monitor 8

F. Capture and Analyze Data 9

G. Generang a Detailed Report 11

Table of Contents

manual may be used or reproduced in any manner whatsoever without wrien permission. For informaon contact

Prostat Corporaon, 1072 Tower Lane, Bensenville, IL 60106 USA

Prostat is the registered trademark of Prostat® Corporaon

4Rev. B / March 2017

PGA-710B Autoanalysis System

A. System Requirements

The following hardware and soware is required to run the Autoanalysis Applicaon Soware.

• Microso® Windows® Win7 32-bit, Win7 64-bit, Win8 32-bit, Win8 64-bit, Win10, Server 2003,

Server 2008 or Server 2012.

• 90 MHz Intel Penum-class processor, or an AMD Opteron, AMD Athlon64 or AMD Athlon XP

Processor

• 32 MB of RAM, 96 MB Recommended

• 110 MB of hard disk space required, 40 MB addional hard disk space required for installaon

(150 MB total)

• 800 x 600 or higher-resoluon display with 256 colors

• Microso® Data Access Components 2.6

• Microso® DirectX 9b

• Instrument input limits to ± 2 volts.

Note: Providing greater than ± 2 volts to the PGA-710B Autoanalyzer will void the warranty. For appropri-

ate adapters or cables, please contact Prostat Corporaon or your Prostat Authorized Reseller.

Rev. B / March 2017

PGA-710B Autoanalysis System

B. Installing the Autoanalysis ApplicaƟon SoŌware

NOTE: DO NO connect your PGA-710B Device to your computer or laptop unƟl installaƟon is complete.

NOTE

.NET Framework 4 is required to run the Autoanalysis Applicaon Soware.

If .NET Framework 4 is not currently installed, the Autoanalysis Applicaon Soware

Installaon wizard will prompt you to install from the disk.

Installing the SoŌware

1. Insert the USB Flash Drive into a USB Port of

your computer or laptop.

2. Select Open folder from the dialog box

and double-click ﬁlename “SETUP.html” to

download the soware.

3. Once downloaded, extract the ﬁles to your

Desktop and double-click ﬁlename “Install.

cmd” in the extracted folder.

4. When prompted, enter the Product Key

found on your USB Flash Drive.

NOTE: Mulple instances of installaon will oc-

cur.

Registering the Autoanalysis SoŌware

To get addional support, register your copy of

the Autoanalysis Applicaon Soware.

If you haven’t registered your copy during the

installaon, do the following:

Choose Help > About Prostat Autoanalysis Sys-

tem… and click on the Register buon to be taken

to the electronic registraon form.

Step 1 Step 2

6Rev. B / March 2017

PGA-710B Autoanalysis System

C. ConnecƟng the PGA-710B Autoanalysis System to your computer

Before you start using or connect the PGA-710B, make sure to charge its baery for at least 8 to 14 hours

using the supplied AC/DC converter. Esmated operang baery life is approximately 8 to 10 hours of

connuous operaon without connecon to USB port, or supplied baery charger. The unit charges when

connected to the computer via USB.

The PGA-710B Autoanalyzer connects to an Electrostac Field meter via its analog output lead and to a

computer using a USB cable.

ConnecƟng the USB Cable

Windows will complete installaon of the driv-

ers for your PGA-710B:

1. Connect one end of the supplied USB cable

to the PGA-710B Device USB port.

2. Connect the opposite end of the USB cable

to your computer’s USB port.

CommunicaƟng with the computer

1. Slide the PGA-710B Main Power Switch ON.

2. Press and hold the System On/Sleep buon

brieﬂy.

3. The green “Unit On” LED ﬂashes slowly.

4. The “Connect and Record” LED will ﬂash in-

dicang the PGA-710B and the computer are

communicang with each other.

5. If the drivers have not been installed, you may

need to manually install them. You can install

them from the Drivers folder on the Flash

Drive.

Step 3 Step 4

Rev. B / March 2017

PGA-710B Autoanalysis System

At this point, the “Save and Erase” LED will be ON indicang the PGA-710B Autoanalyzer’s baery is re-

ceiving a charging voltage from the computer’s USB.

NOTE: This charge is not suﬃcient to completely charge the baery during normal op-

eraons. See the Operaons Manual for more details.

D. Adjust or Conﬁrm the “zero” reference for the PGA-710B System

ConnecƟng the Analog Input

1. Insert the supplied reference shunt into the

analog input of the PGA-710B.

2. Launch the soware. On the Start Screen,

select “Start a New Session” and click OK.

CommunicaƟng with the computer

1. Click Start from the Data Recording Control

(green arrow) or press F5 on your keyboard.

The preview cursor will begin to move across the

chart screen.

Step 5 Step 6

8Rev. B / March 2017

PGA-710B Autoanalysis System

E. Assembling your Autoanalysis System to the Field Meter and Charge Plate Monitor

Conﬁrm “Zero” & “Time/Date”

1. Insert shorng shunt into input receptacle.

2. From the Edit Menu, click on Device Con-

trol. Do the following:

a. Click Set Zero

b. Click Set Device Time

c. Click Done

3. Conﬁrm unit at Zero Reference:

a. Click Preview

b. Click Voltage Auto Balance (F11)

c. Shows PGA-710B Zero Reference

ConnecƟng the Field Meter

1. Assemble your professional Prostat PFM-711A

Field Meter and the CPM-720A Charge Plate

Monitor. Aach the Field Meter to a tested

earth ground.

2. Connect the PFM-711A to the PGA-710B using

the provided analog cable.

3. For body voltage measurement, connect a

sensing lead to the Charge Plate and the other

end to a Hand Held Metal Wand.

Step 7 Step 8

Rev. B / March 2017

PGA-710B Autoanalysis System

APPLICATION

The PGA-710B records and converts analog input from a ﬁeld meter instrument to digital

data, then transmits that data to your computer via USB, or stores it for future use.

Anything your ﬁeld meter measures will be transmied via the analog cable to the PGA-

710B, then to the computer where the dynamic measurements are displayed on the

screen.

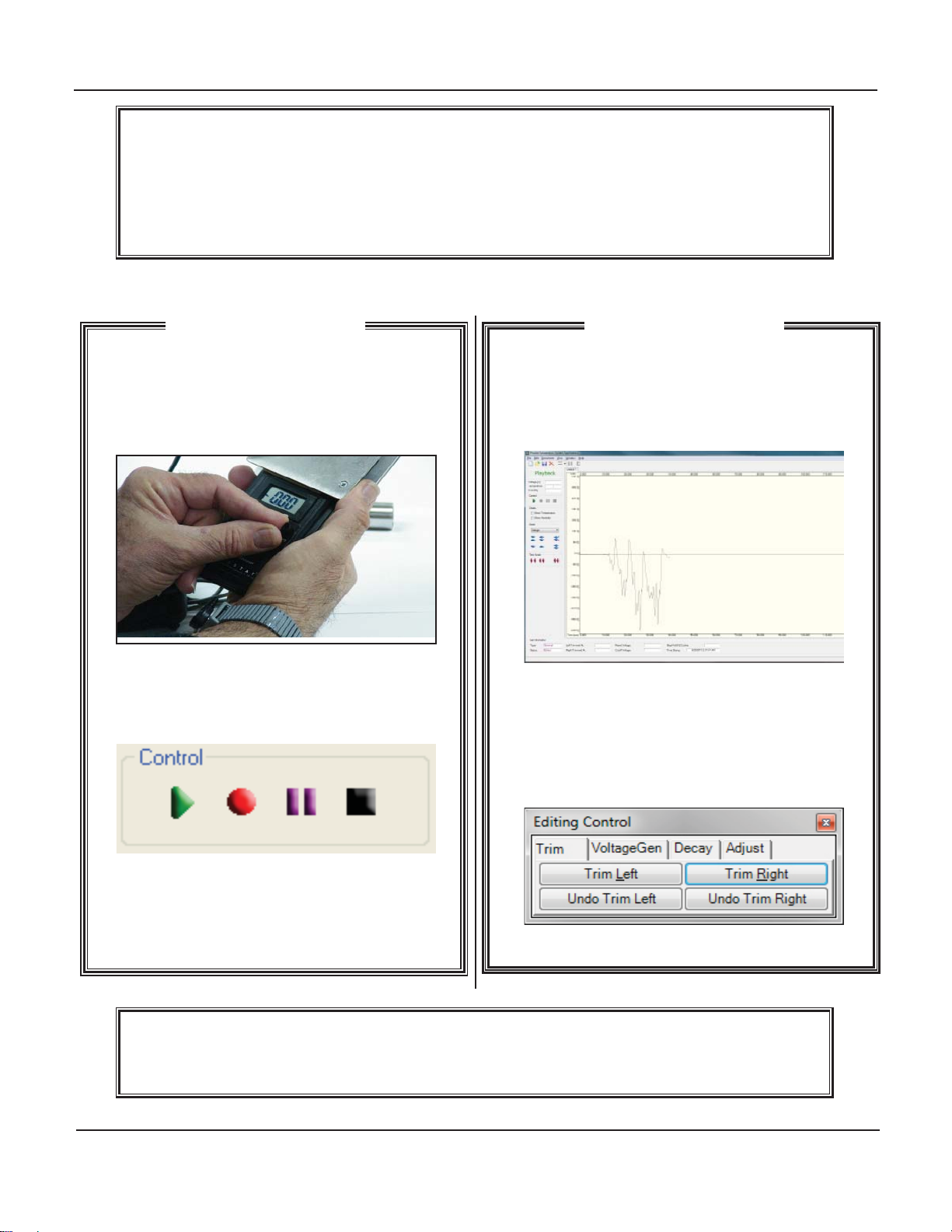

F. Capture and Analyze Data

Preview & Record Data

1. With the subject temporarily grounded, turn

on and zero your ﬁeld meter.

2. Remove the subject from ground, press

Green arrow Preview (F5) to conﬁrm signal

being transmied. Press Red ball Record

(F6) when ready to record data.

3. Once test is completed, press Black box Stop

(F8) to stop recording.

Trimming the Data

1. Assume the following data was recorded

while sing on a chair and then standing .

2. To analyze the data, select Edit > Trimming.

This opens the EdiƟng Control Panel. Use

Trim LeŌand Trim Right to eliminate data not

to be included in the analysis.

NOTE: For details on how to test and analyze Footwear/Flooring combinaon, refer to

the provided “How To Test” manual.

Step 9 Step 10

10 Rev. B / March 2017

PGA-710B Autoanalysis System

Voltage GeneraƟon

1. Trimmed porons of the chart are eliminat-

ed from the analysis

2. Esmate the number of peaks in test, enter

it in Step Cycle window and click Analyze.

Add Minimum or Maximum Data Peaks

1. Click the Adjust buon. This allows addion

or removal of minimum or maximum peaks

from the analysis.

2. To add a Minimum peak, click Add Min and

drag to a low peak on the chart then le-click

your mouse. To add a Maximum, repeat the

process aer clicking Add Max.

3. Click Release to automacally calculate the

Standard DeviaƟon and Average for the Mini-

mum and Maximum data sets. Displayed are

3 lines for the Minimum and Maximum data.

The center line is the Average of the data. The

upper line is the Average + 3x Std Dev. of the

data, and the lower line represents the data’s

Average – 3x Std Dev.

Step 11 Step 12
