PureLink DTE RX Bedienungsanleitung

DTE Owner’s Manual

DVI, RS-232 and IR Extender over

HDBaseT w/POE

PureLinkTM

535 East Crescent Ave

Ramsey, NJ 07446

Tel: 201.488.3232

Fax: 201.621.6118

Website : www.purelinkav.com

E-mail : info@purelinkav.com

For Technical Support, contact us at

: [email protected]

Package Contents

Please make sure all of the following items are included in the package:

1 x Transmitter Module

1 x DTE Receiver Module

1 x Power adapter DC 48V

1 x User Manual

1 x IR Blaster Cable (Peak wavelength 940nm)

1 x IR Receiver cable

4 x Screws

8 x Foot pads

Description

The PureLink DTE is a transmitter and receiver set for long distance extension of DVI

video and embedded audio (if supported) with bi-directional control signals ( RS-232

and IR) over single CAT 5/6/7- type cable. It is designed on HDBaseT technology which

can extend the signals up to 330ft (100m) at 1080p@60Hz or 1920x1200@60Hz

resolution with POE. A compact and low profile enclosure makes the DTE ideal for

extending DTE video, embedded audio (if supported), and bi-directional control signal to

limited space environment such as behind a flat-panel display.

PureLink DTE is HDCP compliant and it enables the reliable, long distance extension of

DVI signals, supporting Deep Color and full 3D and embedded HD lossless audio formats.

In addition, EDID and HDCP communication is being maintained between a source and

display. Also, the DTE includes an RS-232 and IR insertion port, allowing bi-directional

control of an AV device.

Features

Zero loss & Zero noise delivery of digital high definition video and audio signal

using UTP connection, DTE delivers HD signals over CAT5/6/7-type cables

without loss or digital interference maintaining the clarity and colors. Noise

cancellation and error correction logic enhances HD video and audio signals over

long distance.

Compact and Robust enclosure design allows for discreet installation behind a

flat-panel display.

Designed based on HDBaseT Technology, supporting support Deep Color and

full 3D support over a single low cost CATx interface with up to 330ft (100m) at

PureLink by Dtrovision

1080p or 1920x1200 resolution.

Controls signals including bi-directional RS-232 and IR function.

Bi-Directional RS232 interface –commands and data can flow in both directions

via RS232, allowing status requests and control of the destination unit.

Max. Data Rate- 10.2 Gbps.

HDCP (High-bandwidth Digital Content Protection) Support.

DVI verion 1.0 support

LED signal indicator

Product application note

Figure 1 –Schematic Connection Diagram of DTE Tx/Rx

Product Specification

Transmitter

PureLink by Dtrovision

Model

DTE Tx

Input type

DVI, 1 port

RS232, 1 port (bi-direction)

Output type

CATx (HDBaseT), 1 port

IR, 1 port

Supporting Display

Resolutions

VGA ~ WUXGA (up to 1920 x 1200 @ 60Hz),

480i ~ 1080p

Max. Distance

1920x1200 @ 60Hz or

1080p @60Hz: 330ft (100m)

Connector Type

DC Power Jack

DVI Female

RJ-45

Serial

Conformations

DVI version 1.0 With HDCP

Power Rating

DC 48V, 1.05A

Dimension (WxDxH)

5.90’’ x 3.15’’ x 1.38’’ (150 x 80 x 35 mm)

Weight

0.73 lbs (0.33 kg)

Receiver

PureLink by Dtrovision

Model

DTE Rx

Input type

CATx (HDBaseT), 1 port

IR, 1 port

Output type

DVI, 1 port

RS232, 1 port (bi-direction)

Supporting Display

Resolutions

VGA ~ WUXGA (up to 1920 x 1200 @ 60Hz),

480i ~ 1080p

Max. Distance

1920x1200 @ 60Hz or

1080p @60Hz: 330ft (100m)

Connector Type

DC Power Jack

DVI Female

RJ-45

Serial

Conformations

DVI version 1.0 With HDCP

Power Rating

DC 5V , 2A

Dimension (WxDxH)

5.90’’ x 3.15’’ x 1.38’’ (150 x 80 x 35 mm)

Weight

0.73 lbs (0.33 kg)

*Please use CAT6a/CAT7 cable for maximum distance transmission.

PureLink by Dtrovision

Operation and Reliability Specification

1. Operating Environment

Temperature : 32F ~ 131F (0℃~ 55℃)

Humidity : 10% ~ 80%

Altitude : 3,000m Max.

2. Transit Environment

Temperature : -13F ~ 140F (-25℃~ 60℃)

Humidity : 5% ~ 95%

Altitude : 15,000m Max.

3. Storage Environment

Temperature : -4F ~ 185F (-20℃~ 85℃)

Humidity : 5% ~ 95%

Altitude : 3,000m Max.

4. Reliability

MTBF: 90% at over 50,000 hours aging test

In compliance with LCD Monitor reliability test standard

PureLink by Dtrovision

Installation and Connection Instructions

1. Turn off both the video source and the display before connecting any cables.

2. Connect CATx cable between the DTE transmitter and the DTE receiver.

3. Connect DVI cable between the source and the DTE transmitter AND the DTE

receiver and the display.

4. Connect the power supply unit to DTE transmitter and DTE receiver module.

5. Turn on Display.

6. Turn on Video Source.

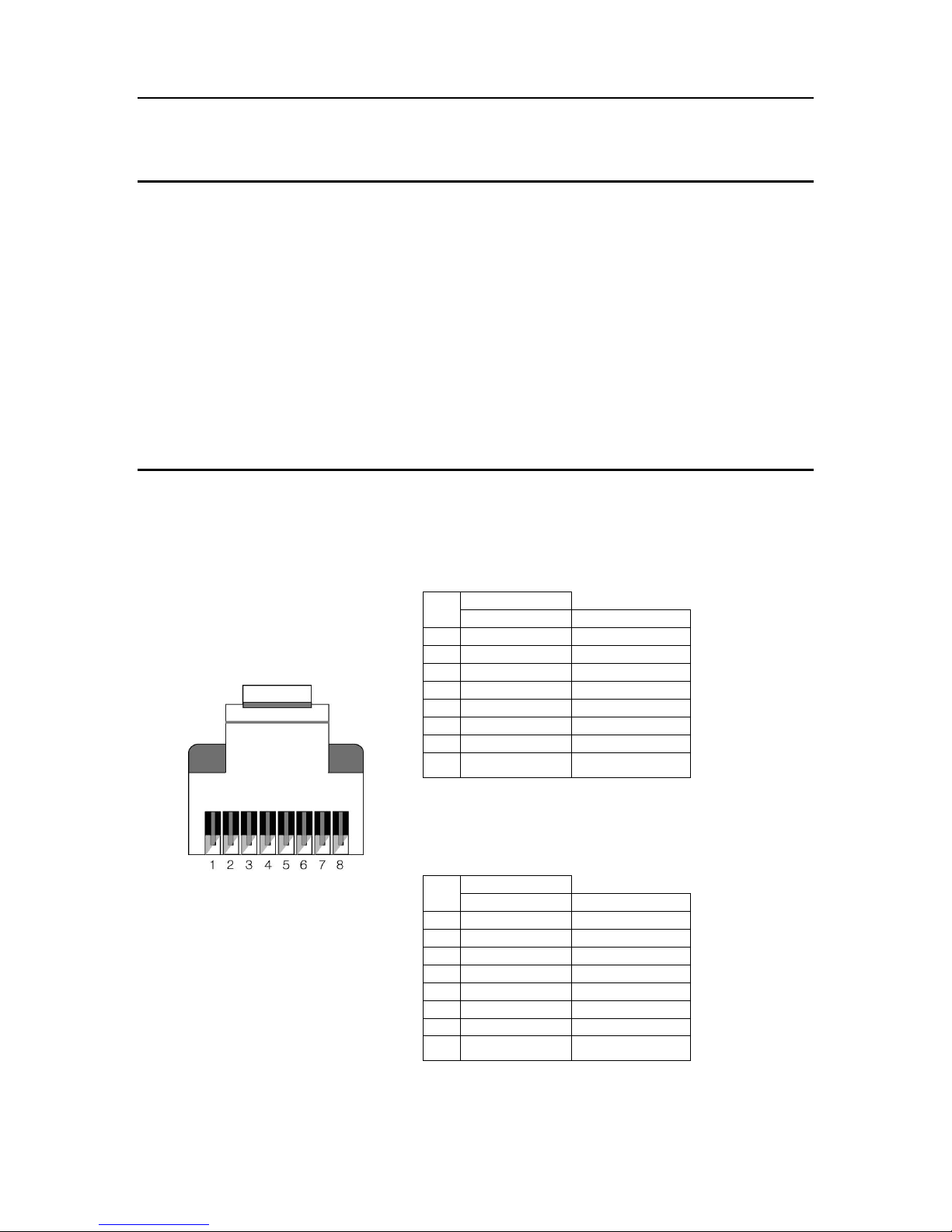

How to terminate CATx cable

DTE was designed to conform to TIA/EIA-568-B standard. Please ensure that each PIN

layout of DTE transmitter and DTE receiver are corresponding with the picture below

before connecting the cable. Please note that CAT5e or above level cable enables to

deliver better video quality and longer distance.

For HDBaseT 

For 10/100Mbps Ethernet 

TIA/EIA-568B

Wire color

Digital RGB

Orange/ White

DATA0 +

Orange

DATA0 -

Green/ White

DATA1

Blue

DATA2 +

Blue/ White

DATA2

Green

DATA1 -

Brown/ White

DATA3

Brown

DATA3 -

TIA/EIA-568B

Wire color

Digital RGB

Orange/ White

RX +

Orange

RX -

Green/ White

TX +

Blue

N/C

Blue/ White

N/C

Green

TX -

Brown/ White

N/C

Brown

N/C

PureLink by Dtrovision

CATx cable

Link cable recommend use high quality CAT5, CAT5e, CAT6, CAT6a, CAT7 UTP / STP or

FTP cable.

Transmission Distance

The maximum transmission distance up to 100meters, use lower resolution won’t

extend longer distance

If connection through the wall socket, the cable length must less 5 meters between DVI

extender and wall jack, as below drawing:

IR Receiver Cable Directions:

Put it into the DTE Rx IR IN port and place the IR receiver cable, so that you can point to

it easily with your IR remote controller

IR Blaster Cable Directions:

Plug IR blaster cable plug into DTE Tx IR OUT port, it sits in front of the device receiver’s

IR sensor, which is located on the front panel.

IR cable pin out

PureLink by Dtrovision

RS-232/Serial pin out

Caution:

The CATx wiring must be away from any elecromagnetic wave equipment, i.e :

mobile phone, microwave, radio, fluorescent lamp, high voltage power lines.

Do not place IR transmitter near from IR receiver to avoid mutual interference

PureLink by Dtrovision

Chapter 3. Additional Information

3.1 Manufacturer’s Warranty (3 Years)

PureLink warrants this DTE HDBaseT extender to be free from defects in

workmanship and materials, under normal use and service, for a period of three (3)

year from the date of purchase from PureLink or its authorized resellers.

If the product does not operate as warranted during the applicable warranty period,

PureLink shall, at its option and expense, execute one of the following as necessary:

1. Repair the defective product or part

2. Deliver to customer and equivalent product or part to replace the defective

item

3. Refund to customer the purchase price paid for the defective product

All products that are replaced become the property of PureLink. Replacement

products may be new or reconditioned. Repaired or replacement products or parts

come with a 90-day warranty or the remainder of the warranty period. PureLink

shall not be responsible for any software, firmware, information, or memory data

loss of contained in, stored on, or integrated with any products returned to PureLink

for repair under warranty.

3.2 Customer Service

Any customer service inquiries can be submitted electronically through the Q&A

form on our website ( www.purelinkav.com ).

For immediate assistance please contact us at (201) 488-3232 to reach our customer

care or tech support team.
