DTS50R/DRS50R
Stand Alone DVI CAT5 Extension System
DVI + Stereo Audio + RS-232 + IR over two CAT5
Owner’s Manual
Dtrovision LLC
9A Bergen Turnpike
Little Ferry, NJ 07643
USA
Tel: +1.201.488.3232
Fax: +1.201.621.6118
Email: support@dtrovision.com
www.dtrovision.com
For order support, please contact your local dealer.
DTS50R/DRS50R Package Contents
Please make sure all of the following items are included in the package;
1) DTS50R/DRS50R x1
2) DC 12V Power Supply Unit with a power cord x1
3) User Manual
DTS50R: DVI CAT5 Transmitter Module
DRS50R: DVI CAT5 Receiver Module
General Specification
• DTS50R/DRS50R is a DVI, stereo audio, RS-232, IR extension system over two CAT5 cables for
long distance up to 165ft.
• Compact & durable design and lower power consumption makes it an ideal solution for connection
for high definition video/audio signal of digital displays such as LCD/Plasma/LED displays and
projectors.
• DTS50R/DRS50R’s unique circuitry design for the best quality of HDTV and its CAT5 connection
enables to minimize electrical noise and EMI free that is ideal for long distance extension of high
definition DVI signal .
• DTS50R: Transmitter module
DRS50R: Receiver module
Model
DTS50R/DRS50R
Input Signal
DVI, 3.5mm Analog Audio, RS-232, IR
Output Signal
DVI, 3.5mm Analog Audio, RS-232, IR
Supporting Display
Resolutions
VGA ~WUXGA(up to 1920 x 1200 @ 60Hz) ,
480i ~ 1080p
Max. Distance
1920x1200 @ 60Hz or at 1080p: 50M(165ft)
1280x1024 @ 60Hz or at 1080i: 60M(200ft)
Connector Type
DC Power Jack
DVI 29 Pin Female
RJ45 * 2 EA
3.5mm Stereo Jack
IR: 4P Phoenix connector
RS-232C: 3P Phoenix connector
Conformations
DDWG DVI 1.0 with HDCP
Power Rating
DC +12V , 8W Max
Dimension
4.3x3.1x1.6(inches) 110x78x40(mm)
Weight
0.81 lbs (0.37Kg)
Operation and Reliability Specification
1. Operating Environment
Temperature: 50F ~ 104F (10℃~ 40℃)
Humidity: 10% ~ 80%
Altitude: 3,000m Max.
2. Transit Environment
Temperature: -13F ~ 140F (-25℃~ 60℃)
Humidity: 5% ~ 95%
Altitude: 15,000m Max.
3. Storage Environment
Temperature: -4F ~ -49F (-20℃~ 45℃)
Humidity: 5% ~ 95%
Altitude: 3,000m Max.
4. Reliability
MTBF: 90% at over 50,000 hours aging test
In compliance with LCD Monitor reliability test standard
Main Features
1. Zero loss & Zero noise delivery of digital high definition video and audio signal using CAT5
conversion technology, DTS50R/DRS50R delivers HD signals over Cat5 cables without
loss or digital interference maintaining the clarity and colors. Noise cancellation and error
correction logic enhances video and audio signals over long distance.
2. Built-in signal repeater to support longer distance between the source and the DTS50R &
DRS50R and the display. This Signal Repeater logic supports up to 50ft copper based
DVI/HDMI cables.
3. Compact and Robust Module Design.
4. Long distance (Up to 200ft at 1080i or lower signal) over cost effective RJ45 (CAT5/e/6)
cables.
5. Full EDID Management
1) Built-in EDID library
Choose one from 14 pre-saved most widely used EDID (Rotary switch)
2) EDID Emulation
Saving/Emulating display’s EDID in the DTS50R transmitter module enhances reliability
and compatibility with various displays.
6. HDCP (High-bandwidth Digital Content Protection) Support.
7. DDWG DVI 1.0
Installation and Connection Instructions
1. Turn off both the video source and the display before connecting any cables.
2. Connect DVI, 3.5mm stereo audio, RS-232 and IR cables between the source and DTS50R
AND between the DRS50R and the display.
3. Cable Connection:
CAT5 Cable: DTS50R/DRS50R was designed to conform to TIA/EIA-568-B Standard.
Please ensure that each PIN layout of DTS50R/DRS50R is corresponding with the picture
below before connecting the cable. Please note that CAT5e or above level cable enables to
deliver better video quality and longer distance.
1. AV PIN MAP 2. CONTROL PIN MAP
Pin
TIA/EIA-568B
Signal
Wire color
Digital RGB
1
Orange/ White
RS-232C_TXD
2
Orange
GND
3
Green/ White
RS-232C_RXD
4
Blue
IR Out
5
Blue/ White
GND
6
Green
GND
7
Brown/ White
IR In
8
Brown
GND
Pin
TIA/EIA-568B
Signal
Wire color
Digital RGB
1
Orange/ White
TMDS Data2+
2
Orange
TMDS Data2-
3
Green/ White
TMDS Data1+
4
Blue
TMDS Data0+
5
Blue/ White
TMDS Data0-
6
Green
TMDS Data1-
7
Brown/ White
TMDS Clock+
8
Brown
TMDS Clock-
4. Connect the power supply unit to both DTS50R AND the DRS50R units.
5. Turn on Display
6. Turn on Video Source
Cable Termination
IR cable
DTS50R/DRS50R supports both 5V and 12V and it can be selected by IR voltage
switch on the side of the unit. Please choose the voltage that IR cable requires.
(Factory default is 5V)
Please refer below for the IR cable termination;
RS-232 cable
Please refer below for the RS-232C cable termination;

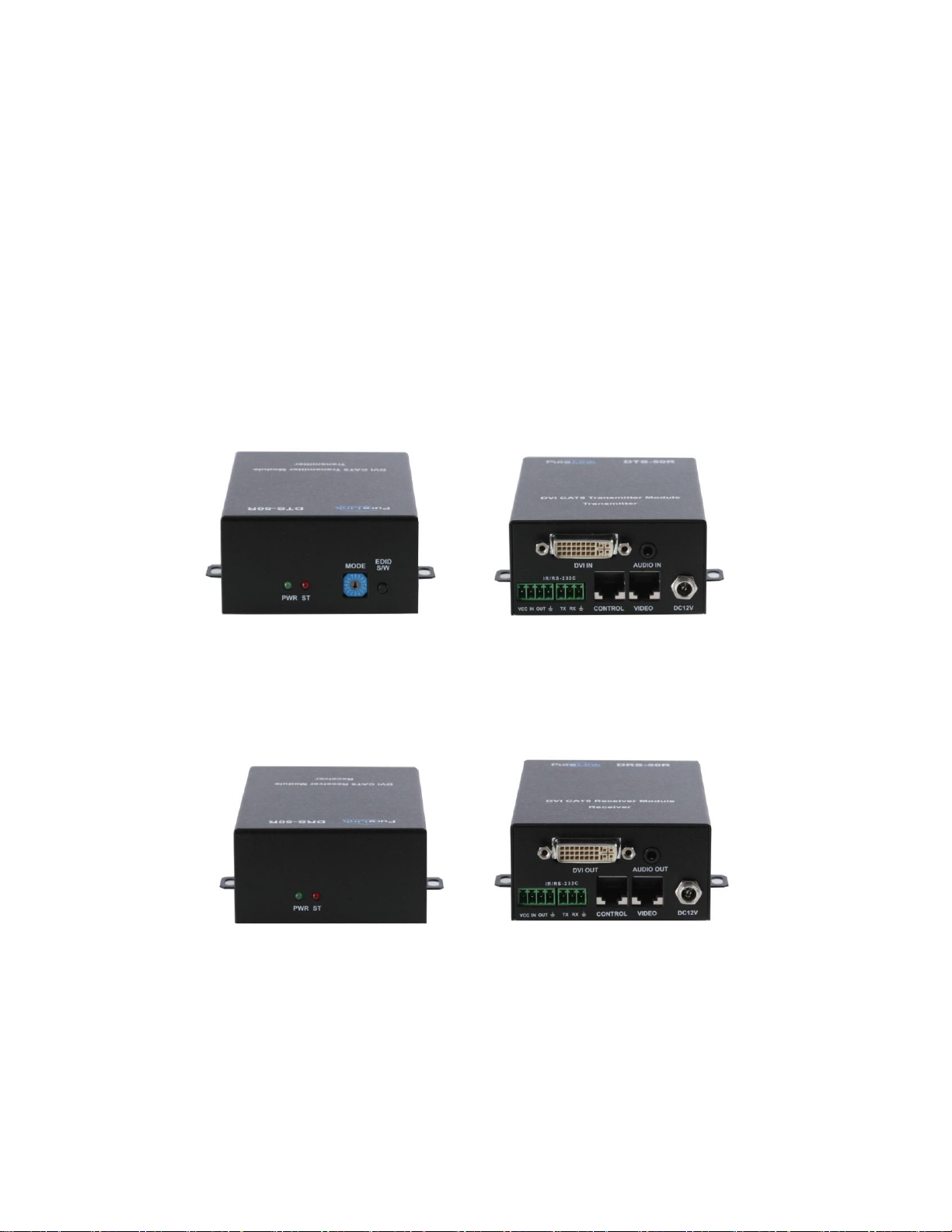

DTS50R/DRS50R Specification
Dimensions: 4.3x3.1x1.6(inches) 110x78x40(mm)
DTS50R: Transmitter Module
DRS50R: Receiver Module
Front Panel:
PWR: Power LED indicator
ST: Status LED indicator
MODE: EDID library rotary switch
EDID S/W: EDID save button
Side Panel:
IR voltage: 5V / 12V select switch
Rear Panel:
DVI IN, OUT: DVI-D Input/output port
Audio IN, OUT: 3.5mm stereo Input/output port
CONTROL, AV: CAT5 connection ports
IR: IR signal Input/output port
RS232C: RS-232 signal Input/output port
DC 12V: Power input port
Operating Instruction
EDID library
: Use MODE rotary switch on the front panel of DTS50R to select EDID to use.
EDID library list;
0- External EDID
1-800x600 60Hz , 2-1024x768 60Hz , 3-1280x768 60Hz ,4-1280x1024 60Hz
5-1360x768 60Hz ,6-1366x768 60Hz , 7-1400x1050 60Hz , 8-1600x900 60Hz
9-1600x1200 60Hz , A-1680x1050 60Hz ,B-1920x1200 60Hz , C-HD1080i 60Hz
D-HD1080p (2CH) , E-HD1080p(Multi)
External EDID;
Connect display device to DTS50R’s DVI port and then press EDID S/W button.
It will copy and save display’s EDID information to DTS50R’s EEPRom.
