PM Series Fiber Optic Extenders

Owner’s Manual

PM Series Fiber Optic Standalone and Wall-plate type Extender

Dtrovision LLC

9A Bergen Turnpike

Little Ferry, NJ 07643

Tel: 201.488.3232

Fax: 201.621.6118

www.purelinkav.com

www.dtrovision.com

For Technical Support, contact us at

support@dtrovision.com

PureLink by Dtrovision

TABLE OF CONTENTS

Chapter 1. Introduction

1.1 Safety Precautions--------------------------------------------------------------------------- 3

1.2 Product Introduction -------------------------------------------------------------------------- 4

1.3 Package Contents ----------------------------------------------------------------------------- 4

Chapter 2. Features and Specifications

2.1 Features ----------------------------------------------------------------------------------------- 5

2.2 Transmitter Specifications ------------------------------------------------------------------ 6

PM-FT101 --------------------------------------------------------------------------------------- 6

PM-FT102 --------------------------------------------------------------------------------------- 8

PM-FT103 --------------------------------------------------------------------------------------- 9

Transmitters Compatibility Chart ----------------------------------------------------------- 12

2.3 Receiver Specifications ---------------------------------------------------------------------- 13

PM-FR101 -------------------------------------------------------------------------------------- 13

PM-FR102 -------------------------------------------------------------------------------------- 14

PM-FR103 -------------------------------------------------------------------------------------- 16

Receivers Compatibility Chart ------------------------------------------------------------- 19

2.4 Operation and Reliability Specification --------------------------------------------------- 20

Chapter 3. Installation and Operating Instruction

3.1Installation --------------------------------------------------------------------------------------- 21

3.2Operating Instruction -------------------------------------------------------------------------- 21

3.3Cable Termination ----------------------------------------------------------------------------- 23

3.4Connector Pin Assignment ------------------------------------------------------------------ 24

Chapter 4. Additional Information

4.1 Warranty ------------------------------------------------------------------------------------------ 26

4.2 FCC/CE Statement --------------------------------------------------------------------------- 27

PureLink by Dtrovision

Chapter 1. Introduction

1.1 Safety Precautions

When using and installing Dtrovision PureLink product, adhere to the following basic safety

precautions.

•Read and understand all instructions before using and installing this product.

•The safety and operating instructions should be retained for future reference.

•Always use the correct external power supply (indicated on the product label) when

operating this unit.

•Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners

or aerosol cleaners. Use a damp cloth for cleaning.

•Mishandling of this product may lead to a fire or explosion hazard.

•Do not place any heavy objects or equipment on top of the product.

•Keep away from wet, magnetic, and flammable surfaces or substances.

•Air vents should be kept clean and unobstructed at all times.

•Any external impact may cause damage to the operation of this unit.

•Be sure this product is properly grounded (earthed) in order to prevent the risk of

electrical shock.

•Turn off and unplug power before adding or removing Input/Output Boards.

•Input/Output Boards may be damaged when they are replaced with power turned on.

•Use surge protectors and/or AC line conditioners when powering this product.

•Only use a fuse(s) with the correct fuse rating in your enclosure.

•Make sure the product is on or attached to a stable surface.

If you experience any malfunctioning of product or have any question as to operation

of the product, please contact our customer service center.

Dtrovision LLC

Tel: 201.488.3232

Email: support@dtrovision.com

PureLink by Dtrovision

1.2Product Introduction

Pure fiber optic cable for video, audio, and control signal

PM series Fiber Optic (2 LC) extension system is designed to transmit video (DVI, HDMI

or VGA), audio (Embedded or analog stereo audio), control (RS232/422 and IR) over a

pure LC to LC fiber optic cable for long distance up to 6,600ft. This optical connection

enables to minimize electrical noise and EMI free that is ideal for long distance extension

of high definition HDMI/DVI or VGAvideo signal, HDMI embedded audio or 3.5mm

stereo analog audio, and control signal.

1.3Package Contents

Please make sure all of the following items are included in the package:

1) One of PM-FT101, FT102, FT103 Transmitter Module or

2) One of PM-FR101, FR102, FR103 Receiver Module

3) 5pin Phoenix Connector for RS-232/422

4) DC 12V Power Supply Unit with a Power Cord

PureLink by Dtrovision

Chapter 2. Features and Specifications

2.1Features

▶ Transmitters directly compatible with PM Fiber Optic Input Board

PM Fiber Optic (2 LC) Transmitters can send signal directly to PM series Matrix

Router's Fiber Optic Input Board, eliminating the need of matching Receiver.

▶ Receivers directly compatible with PM Fiber Optic Output Board

PM Fiber Optic (2 LC) Receivers can receive signal directly from PM series Matrix

Router's Fiber Optic Output Board, eliminating the need of matching Transmitter.

▶ HDMI v1.4, 3D Support

Adopting latest HDMI version 1.4 enables to support 3D, 48-Bit Deep Color, 4K x 2K

resolution and 7.1 Channel Dolby TruHD & DTS MasterHD

▶ Auto-EDID (EDID Library, Emulation)

PureLink's EDID library and emulation features failsafe EDID capture & storage to

provide constant and continuous EDID for source devices.

▶ HDCP Compliant

▶ Various Transmitter and Receiver Choices

There are three different type of transmitters and three different type of receivers to

make today's sophisticated digitalAV environment simple and flexible.

▶ RF6 1RU Rack Mountable Version Available

PM-FT101, PM-FT102, PM-FR101, and PM-FR102 are also available in PureLink's

popular RF6 Rack Mountable Extension Center Modules.

▶ Analog Support (VGA and Component)

On PM-FT102 and PM-FT103 series, there are two video inputs; DVI/HDMI and VGA,

which are selectable via front panel button or serial command when it is connected PM

series Matrix Router. VGA port is designed to take component (YPbPr) signal with

appropriate adapters or cables.

▶ USB Firmware Update

▶ Long Distance Transmission up to 6,600ft (2,000 m)

PureLink by Dtrovision

▶ Plug-N-Play

▶ Resolutions up to WUXGA 1920x1200, HD 1080p @ 60Hz, and 4K2K

▶ Integrated Noise-cancellation and Error-correct Logic for both Input and Output

Ports to prevent any damage caused by Electrical Noise.

2.2Specifications

Transmitters :

PM-FT101 : Standalone type (Loop Through)

Input: HDMI + 3.5mm stereo audio (x1) + RS-232/422

Output: Fiber Optic (2 LC) and HDMI Loop-Through

6,600ft, Compatible with PM-FIS4 input board

Front Connection Ports:

Power S/W: Power On/Off switch

Power LED: Power status indicator

Status LED: Video signal presence indicator

HDMI LED: HDMI signal indicator

EDID save S/W: EDID save button

EDID select S/W: EDID library function selection rotary switch

Firmware: USB firmware update port

PureLink by Dtrovision

Back Connection Ports:

HDMI/DVI In: HDMI/DVI input port

HDMI/DVI Out: HDMI/DVI Loop-thru output port

Audio In: Stereo audio input port

2 LC: Fiber Optic output port

RS-232/422: RS-232/422 communication port

DC In: DC 12V Power port

Model Name PM-FT101 (HDMI version), PM-FT102-D (DVI version)

Input Signal

DVI / HDMI (TMDS)

3.5mm stereo audio

Output Signal Fiber Optical Output ( > -10dbm (after 6,600ft (2km) transmission))

DVI / HDMI (Loop-thru)

Extinction Ratio > 4db (after 6,600ft (2km) transmission)

Data Transmission

Speed 3.4 Gbps/ch, Total 10.2 Gbps Max

Supporting Display

Resolutions

PC: VGA ~ WUXGA

(up to 1920 x 1200 @60Hz)

HDTV: 480i ~ 1080p, 2K4K

Max. Distance Single Mode Fiber: 1920 x 1200 @ 60Hz or at 1080p : 6,600 ft (2km)

Multi Mode Fiber: 1920 x 1200 @ 60Hz or at 1080p : 1,650 ft (500m)

Connector Type

DVI 29P/HDMI 19P Female (x 2)

3.5mm Stereo Jack

2 LC Optical Connector

3P /3.5MM Terminal Block (for Power)

5P /3.5MM Terminal Block (for RS-232/422)

Mini USB (for firmware update)

Conformations DVI 1.0 , HDMI 1.4

HDCP Compliance Yes

Power Rating DC +12V, 4Watts Max

Dimension 6.3' x 4.4' x 1.7' (160 x 112 x 42 mm)

Weight 1.43 lbs (0.65 Kg)

PureLink by Dtrovision

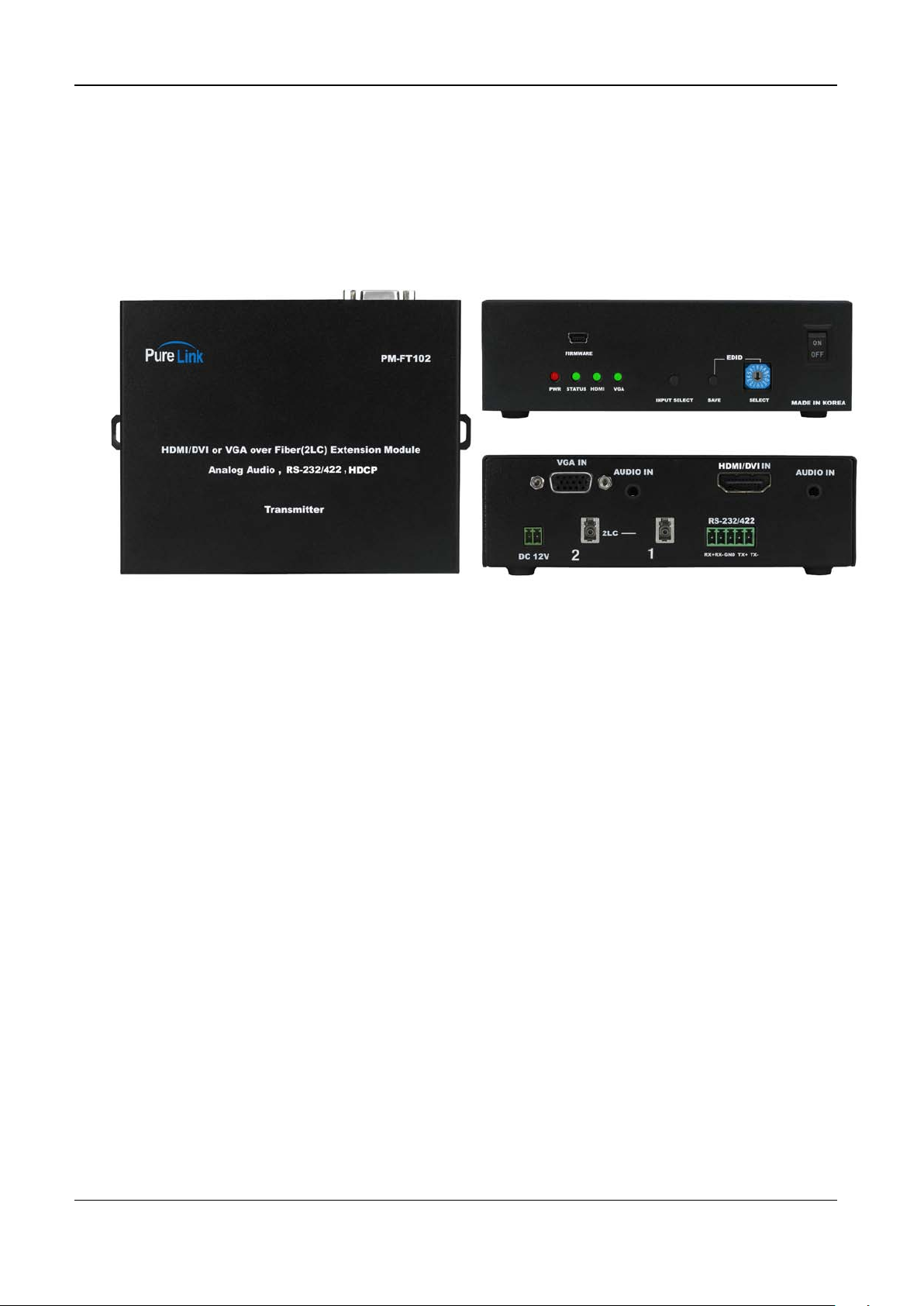

PM-FT102 : Standalone type (2x1 switch)

Input: Selectable HDMI/DVI or VGA + 3.5mm stereo audio (x2) +

RS-232/422

Output: Fiber Optic (2 LC)

6,600ft, Compatible with PM-FIS4 input board

Front Connection Ports:

Power S/W: Power On/Off switch

Power LED: Power status indicator

Status LED: Video signal presence indicator

HDMI LED: HDMI signal indicator

VGA LED: VGA (or component) signal indicator

EDID save S/W: EDID save button

EDID select S/W: EDID library function selection rotary switch

Firmware: USB firmware update port

Back Connection Ports:

HDMI/DVI In: HDMI/DVI input port

VGA In: VGA (or component) input port

Audio In: Stereo audio input port

2 LC: Fiber Optic output port

RS-232/422: RS-232/422 communication port

DC In: DC 12V Power port

PureLink by Dtrovision

Model Name PM-FT102 (HDMI version), PM-FT102-D (DVI version)

Input Signal

DVI / HDMI (TMDS), VGA (supports YPbPr component)

3.5mm stereo audio

Output Signal Fiber Optical Output ( > -10dbm (after 6,600ft (2km) transmission))

Extinction Ratio > 4db (after 6,600ft (2km) transmission)

Data Transmission

Speed 3.4 Gbps/ch, Total 10.2 Gbps Max

Supporting Display

Resolutions

PC: VGA ~ WUXGA

(up to 1920 x 1200 @60Hz)

HDTV: 480i ~ 1080p, 2K4K

Max. Distance Single Mode Fiber: 1920 x 1200 @ 60Hz or at 1080p : 6,600 ft (2km)

Multi Mode Fiber: 1920 x 1200 @ 60Hz or at 1080p : 1,650 ft (500m)

Connector Type

DVI 29P/HDMI 19P Female (x 2)

3.5mm Stereo Jack

2 LC Optical Connector

3P /3.5MM Terminal Block (for Power)

5P /3.5MM Terminal Block (for RS-232/422)

Mini USB (for firmware update)

Conformations DVI 1.0 , HDMI 1.4

HDCP Compliance Yes

Power Rating DC +12V, 4Watts Max

Dimension 6.3' x 4.4' x 1.7' (160 x 112 x 42 mm)

Weight 1.43 lbs (0.65 Kg)

PM-FT103 : Wall plate type (2x1 switch), 2 Gang Decora style, white finish.

Input: Selectable HDMI or VGA + 3.5mm stereo audio (x1) + RS-232

Output: Fiber Optic (2 LC)

6,600ft, Compatible with PM-FIS4 input board

PureLink by Dtrovision

Front Connection Ports:

Power LED: Power status indicator

Status LED: Video signal presence indicator

HDMI LED: HDMI signal indicator

VGA LED: VGA (or component) signal indicator

EDID save S/W: EDID save button

EDID select S/W: EDID library function selection rotary switch

HDMI/DVI In: HDMI/DVI input port

VGA In: VGA (or component) input port

Audio In: Stereo audio input port

RS-232: RS-232 communication port

Back Connection Ports:

2 LC: Fiber Optic Output Port

DC In: DC 12V Power port

Model Name PM-FT103

Input Signal

DVI / HDMI (TMDS), VGA (supports YPbPr component)

3.5mm stereo audio

Output Signal Fiber Optical Output ( > -10dbm (after 6,600ft (2km) transmission))

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere PureLink Extender Handbücher

PureLink

PureLink HOF2 Bedienungsanleitung

PureLink

PureLink DS2200-060 Bedienungsanleitung

PureLink

PureLink FIBERX FX-P350 Bedienungsanleitung

PureLink

PureLink Media Axis MAX-FT101 Bedienungsanleitung

PureLink

PureLink CSW100 Bedienungsanleitung

PureLink

PureLink WHD030-V2 Bedienungsanleitung

PureLink

PureLink PT-E-HD50 Bedienungsanleitung

PureLink

PureLink HWCE TX Bedienungsanleitung

PureLink

PureLink HOF1 Bedienungsanleitung

PureLink

PureLink HCE III Bedienungsanleitung

PureLink

PureLink HE101-U Bedienungsanleitung

PureLink

PureLink DOF4 Bedienungsanleitung

PureLink

PureLink CSW030 Bedienungsanleitung

PureLink

PureLink PT-E-HD10 Bedienungsanleitung

PureLink

PureLink PM Series Bedienungsanleitung

PureLink

PureLink Media Axis HDBaseT MAX-CT101 Bedienungsanleitung

PureLink

PureLink H3C-100-ARC Bedienungsanleitung

PureLink

PureLink HTS50R Bedienungsanleitung

PureLink

PureLink HTE Tx Bedienungsanleitung

PureLink

PureLink HEXA PRO Bedienungsanleitung

PureLink

PureLink DVI Pure Fiber Optic Extender Dual LinkODC Bedienungsanleitung

PureLink

PureLink DVI Pure Fiber Optic Extender Dual LinkODC Bedienungsanleitung

PureLink

PureLink HCE II Bedienungsanleitung

PureLink

PureLink PureMedia 4K Bedienungsanleitung

Beliebte Extender Handbücher anderer Marken

SY HDBT-60T Bedienungsanleitung

Appsys ProAudio

Appsys ProAudio ADX-16 Bedienungsanleitung

Atlona

Atlona RS232 Bedienungsanleitung

IDK

IDK OPF-TH1000-A Bedienungsanleitung

Enable-IT

Enable-IT 824WP Bedienungsanleitung

Worx

Worx Landroid RadioLink WA0864 Technisches Datenblatt

TP-Link

TP-Link TL-WA730RE Bedienungsanleitung

Camplex

Camplex CMX-HDMI-SFPL Bedienungsanleitung

SC&T

SC&T HE03-4K Bedienungsanleitung

Marmitek

Marmitek MegaView70 Bedienungsanleitung

Samsung

Samsung SCS-26UC4 Bedienungsanleitung

Foxun

Foxun SX-GES24 Bedienungsanleitung

MuxLab

MuxLab 500771 Bedienungsanleitung

foxunhd

foxunhd SX-AEX01 Bedienungsanleitung

TERK Technologies

TERK Technologies LFIRX2 Bedienungsanleitung

Devolo

Devolo Audio Extender Handbuch

Edimax

Edimax EW-7438RPn V2 Bedienungsanleitung

Shinybow USA

Shinybow USA SB-6335T5 Bedienungsanleitung
