Pyle PSWLE55 Bedienungsanleitung

TV Size Range: 36 55

Maximum Weight Capacity: 35kg/77lbs

Locked by safety bolt on the bottom

"～ "

Balance adjust system is included

This product was designed to be installed on wood stud walls and solid concrete walls.

Before installing make sure the supporting surface will support the combined load of the

equipment and hardware. Never exceed the Maximum Load Capacity. This product is

intended for indoor use only. Use of this product outdoors could lead to product failure or

personal injury.

CAUTION

-8-

Thank you for choosing our productThank you for choosing our product

This product contains small items that could be a choking hazard if swallowed. Keep

these items away from young children

1.Make sure these instructions are read and completely understood before attempting

installation. If you are unsure of any part of this installation, contact a professional

installer for assistance.

2.The wall or mounting surface must be capable of supporting the combined weight of

the mount and the display; otherwise the structure must be reinforced

3.Safety gear and proper tools must be used. A minimum of two people are required

for this installation. Failure to use safety gear can result in property damage, serious

injury or death.

Warning

Item No.:PSWLE55Item No.:PSWLE55

INSTALLATION GUIDE

www pyleaudio com..

Pyle Audio

1600 63rd st , Brooklyn, NY, 11204

(718)236-8000

-2- -7-

ID Description

1Left bracket

Bubble level

Safety bolt

Qty

Hardware Kit:Hardware Kit:

A-H LI K

Wall plate

2,3

Wall Wall

Square washer

Long bolt

Wall anchor

Long bolt washer

Spacer

M4 mm×16 bolt

M5× mm16 bolt

M6× mm16 bolt

M ×36mm5 bolt

M6×36mm bolt

M ×36mm8 bolt

ID Description

Qty

M8×16mm bolt

A4M4 mm×12 bolt

Right bracket

NOTE: Always use an assistant or mechanical lifting equipment to safely lift

and position heavy equipment.

NOTE:

Part 3-Mounting the flat panel screen

Hook the top of brackets onto the top flange of wall plate(1). Then

swing the screen down. Tighten the safety screw on each bracket to lock

the screen into place.

(2,3)

(4)

Part 3-Mounting the flat panel screen

-6-

F-H

Part 2b-Attaching brackets to screen with recessed back

Center brackets vertically on back of screen. Select the medium(F or G) or

large(H) screws. Attach brackets to screen using four selected screws,four

square washers(I) and four spacers(M) at the top and bottom of each bracket.

Tighten screws firmly. Do not overtighten.

Part 2b-Attaching brackets to screen with recessed back

Square washer(I)

Medium hole for

M5andM6screws

Large hole for

M8 screws

-3-

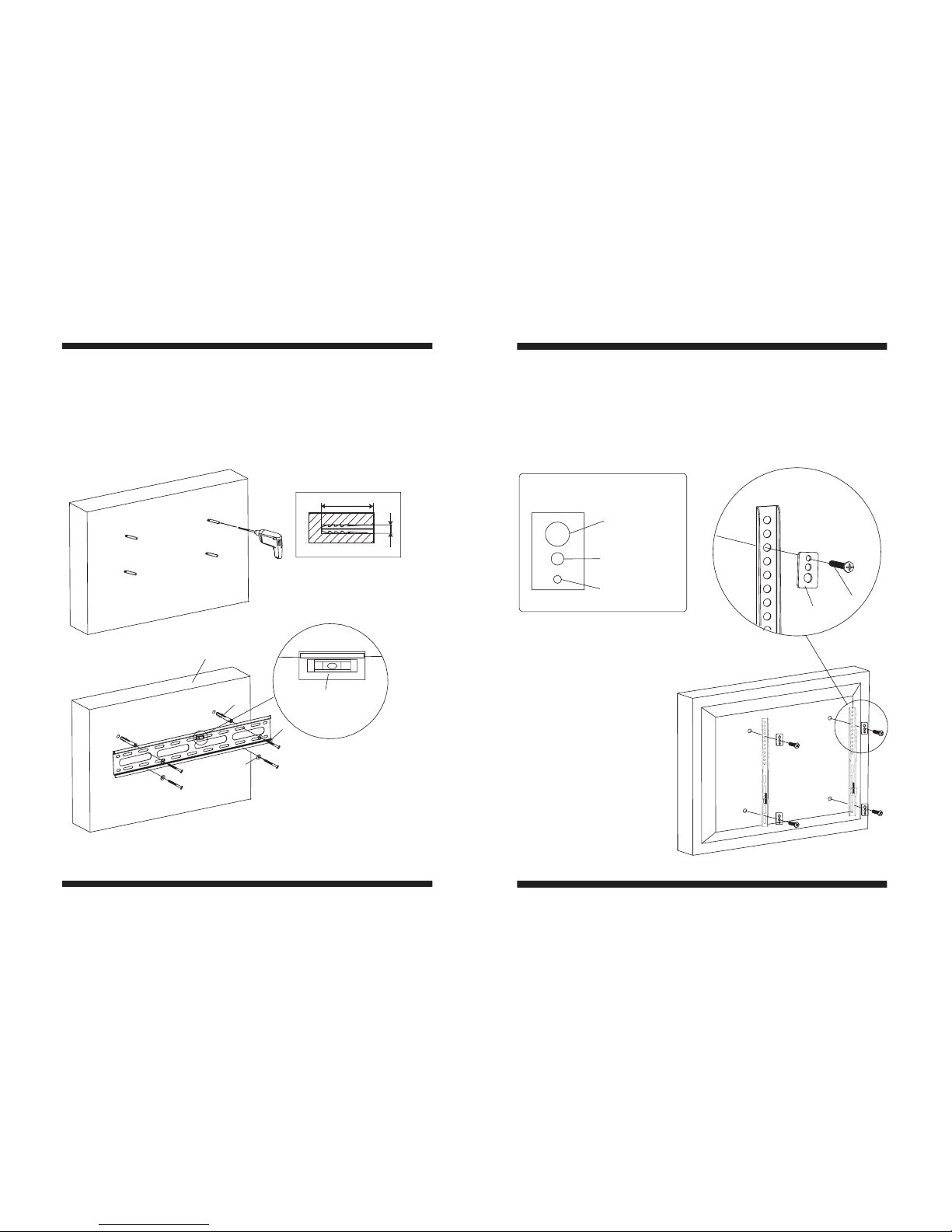

Part 1a-Wood Stud Mounting

Use wall plate as a template, make sure it is level, and mark mounting holes

along the center lines of the wood studs. Drill 3/16

)

)..

””(5mm)dia holes 2

(50mm) deep. Level wall plate and attach to wall with long bolts(J and

washers(L . Tighten screws firmly Do not overtighten

Part 1a-Wood Stud Mounting

Wood stud

Bubble level

2 50mm)”(

Φ3/16 (5mm)”

-5-

Part 2a-Attaching Brackets To Screen With Flat Back

Center brackets vertically on back of screen. Select the small(A or B),medium

(C or D) or large(E) screws. Attach brackets to screen using four selected

screws and four square washers(I) at the top and bottomof each bracket.

Tighten screws firmly. Do not overtighten

Part 2a-Attaching Brackets To Screen With Flat Back

A-E

Square washer(I)

Small hole for

M4 screws

Medium hole for

M5 and M6 screws

Large hole for

M8 screws

-4-

Part 1b-Concrete Wall Mounting

Level wall plate and use it as a template to mark holes. Drill 3/8 (10mm) dia.

holes 2 (50mm) deep. Insert anchors(K) into holes and secure wall plate

with long bolts(J) and washers(L). Tighten screws firmly. Do not overtighten

”

Part 1b-Concrete Wall Mounting

Concrete Wall

2(”50mm)

Φ3/8 (10mm)”

Bubble level
