MD 5850 Installation Manual

Installation Manual

for

MD 5850 MultiReader

This equipment complies with part 15 of the FCC rules. Any changes or

modifications not expressly approved by the manufacturer could void the

user's authority to operate the equipment.

Q-Free®ASA 645-054-1999 rev.4 1 of 20

MD 5850 Installation Manual

Table of Content

1INTRODUCTION ..............................................................................................................4

1.1 Abbreviations..........................................................................................................................4

2MULTIREADER HARDWARE INSTALLATION..........................................................4

2.1 MultiReader Cabinet Installation .........................................................................................4

2.2 Installation site .....................................................................................................................5

2.2.1 Toll plaza superstructure................................................................................................................. 5

2.3 Basic installation ..................................................................................................................5

2.3.1 Mounting height and angle ............................................................................................................. 5

2.4 Square tube from customers construction........................................................ 6

2.4.1 Requirements for using the Uni-bracket ......................................................................................... 6

2.4.2 Fixing the square tube..................................................................................................................... 6

2.4.3 Square tube angles .......................................................................................................................... 6

2.5 Square tube sideways angles.................................................................................................. 6

3MULTIREADER CABLE INTERFACE..........................................................................7

3.1 MultiReader Power Supply and Data Interface ..................................................................7

3.2 Circular Chassis Connector................................................................................................... 7

3.3 Han-Modular Connector .......................................................................................................8

3.4 Han-Modular connector assembly parts ..............................................................................9

3.5 Installation tools (preferred) ...............................................................................................10

4EXTERNAL CABLE INTERFACE................................................................................11

4.1 Cable dimensions.................................................................................................................. 11

4.2 Circular connector ...............................................................................................................11

4.3 Han-Modular connector ...................................................................................................... 12

5MULTIREADER SOFTWARE INSTALLATION.........................................................12

5.1 How to flash the MV162-12 and MVME162P CPU-card through the serial port

(console)............................................................................................................................................12

5.1.1 Loading the software and flashing................................................................................................ 13

5.1.2 Closing up..................................................................................................................................... 14

5.1.3 Make new startup file ................................................................................................................... 15

5.1.4 bootChange................................................................................................................................... 15

5.2 How to flash the MultiReader via Ethernet. ......................................................................15

6TEST WITH APPLICATION SW ...................................................................................16

6.1 PC/ Terminal Connection to MultiReader......................................................................... 16

6.2 PC/ Terminal connection to MultiReader through a TPC ............................................... 16

6.3 Testmode ...............................................................................................................................17

6.4 Format ...................................................................................................................................17

7TEST WITH TEST TAGS AND INSTRUMENTS.........................................................18

7.1 Downlink signal test .............................................................................................................18

7.1.1 Test Tag measurements. ............................................................................................................... 18

7.1.2 Measuring the MultiReader footprint with a test tag. ................................................................... 18

7.1.3 Spectrum Analyser measurement. ................................................................................................ 19

Q-Free®ASA 645-054-1999 rev.4 2 of 20

MD 5850 Installation Manual

7.1.4 The spectrum analyser settings should be:.................................................................................... 19

7.1.5 Measurement of the MultiReader footprint with a Spectrum Analyser. ....................................... 19

7.2 Uplink signal test ..................................................................................................................20

7.2.1 MultiReader without level detection.............................................................................................20

7.2.2 MultiReader with level detection.................................................................................................. 20

8APPENDIX A ...................................................................................................................20

Q-Free®ASA 645-054-1999 rev.4 3 of 20

MD 5850 Installation Manual

1 INTRODUCTION

1.1 Abbreviations

CPU Central Processing Unit

LED Light Emitting Diode

LHC Left Hand Circular.

MR MultiReader

OBU On Board Unit

RF Radio frequency. In this document RF means microwave frequencies in the 5.8 GHz

band.

RX Receiver/Receive signal

TPC Toll Plaza Computer

TX Transmitter/Transmit signal

2 MULTIREADER HARDWARE INSTALLATION

2.1 MultiReader Cabinet Installation

The Q-FREEMultiReader (MD 5850) has two connector options, 10-pin circular and Han-

Modular connector.

Four M8x40 screws at the rear of the cabinet make it easy to design a mechanical interface to

gantries, walls, bridges, etc.

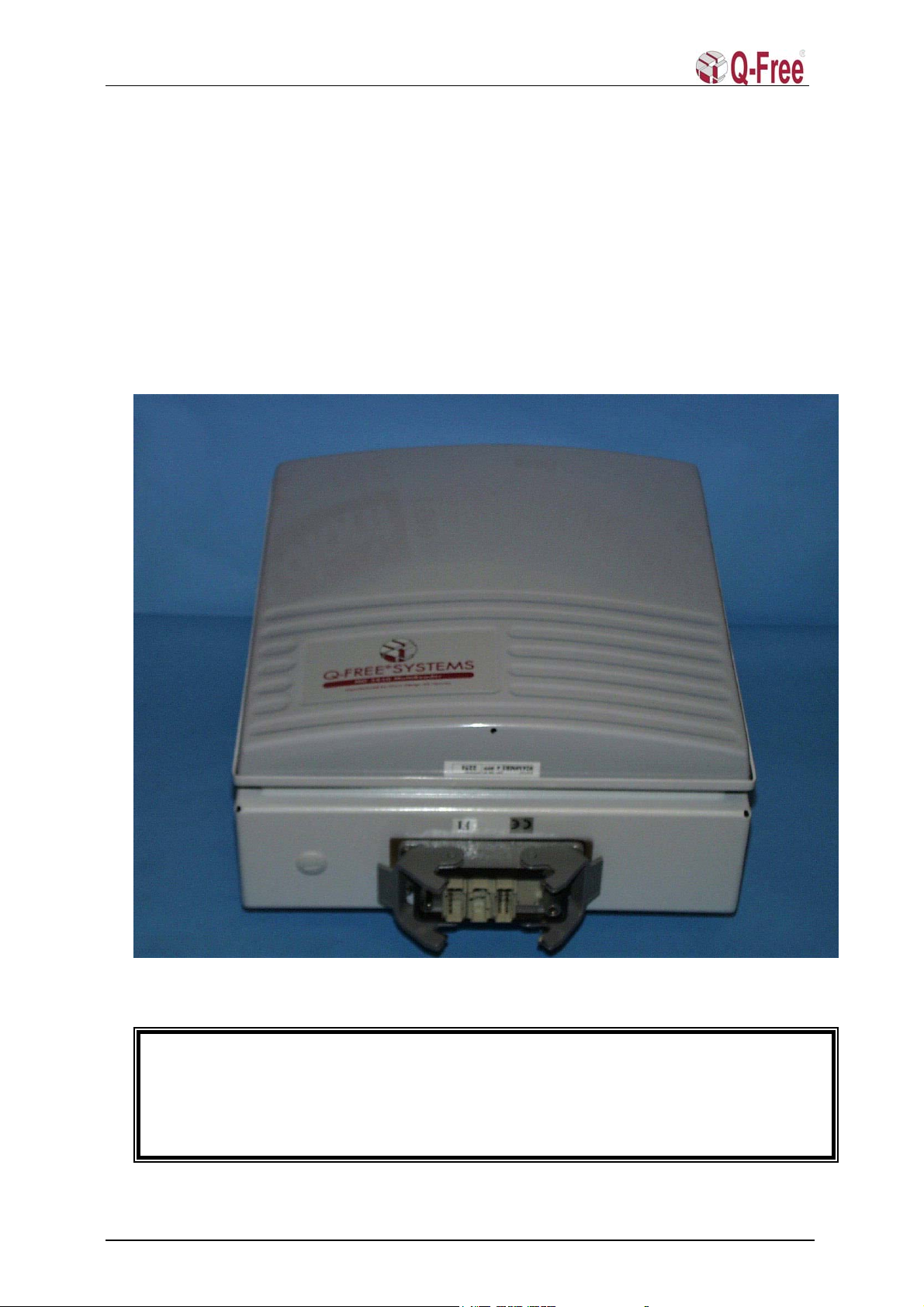

An optional Universal mounting bracket may be delivered as shown in fig.2.1.1.

This chapter is a guide to the mechanical and wiring installation of the MD 5850 MultiReader.

The instructions in this manual are based upon the use of the stainless steel 2-piece universal

bracket made by MD, MD part no. 11000013. This bracket is not included in the MD 5850, and

must be ordered separately.

Heat Protection Shield

Mounting Bracket

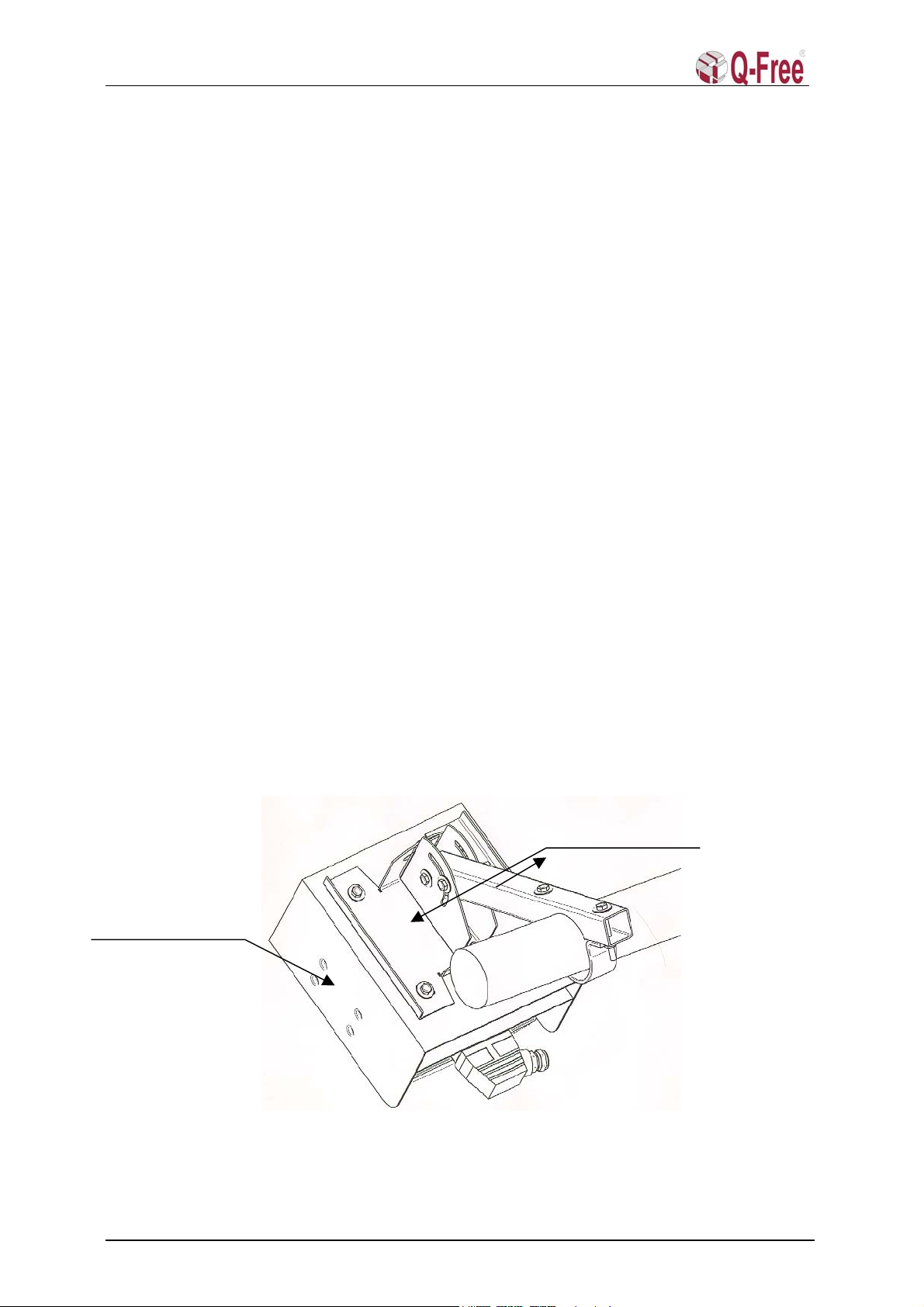

Fig.2.1.1 Optional Universal-Mounting bracket for MD 5850.

Q-Free can on request provide a special designed mounting bracket. The bracket is made of stainless

steal and allows the MultiReader to be adjusted both sideways and vertically for maximum Flexibility.

Q-Free®ASA 645-054-1999 rev.4 4 of 20

MD 5850 Installation Manual

2.2 Installation site

2.2.1Toll plaza superstructure

The normal configuration at toll plaza with separate lanes, is to have the MR installed hanging

from the toll plaza superstructure. Mounting the MR under the superstructure also provides

protection from rain, snow, sun heat radiation etc.

In some cases, a gantry or pole will be more suitable for mounting the MR, but then there is no

protection from, rain, snow, sun heat radiation etc.

2.3 Basic installation

2.3.1Mounting height and angle

The normal mounting height is 5.5 to 6m above the road, and the normal mounting angle is 45°

down from vertical (fig.2.3.1). Optimum performance is obtained when the MultiReader (MR)

is mounted above the middle of the lane.

If the centre of the antenna lobe must correspond with the centre of a magnetic loop, it is

preferred that magnetic loop is installed in a position, which gives a normal MultiReader angle.

In vehicle access control systems with physical barrier where the magnetic loop vehicle

detection and OBU transactions has to be matched, the optimum-mounting angle could be

between 25°and 45°relative to the vertical plane through the MR. It is not recommended to

have a mounting angle (pointing angle) below 25°because then it is possible that overhanging

roof of special vehicles could shadow the tag.

An angle below 45°will reduce the communication zone length. This must be considered when

the vehicles are passing at a high speed.

5.5- 6.0mabove l ane sur f ace

45°

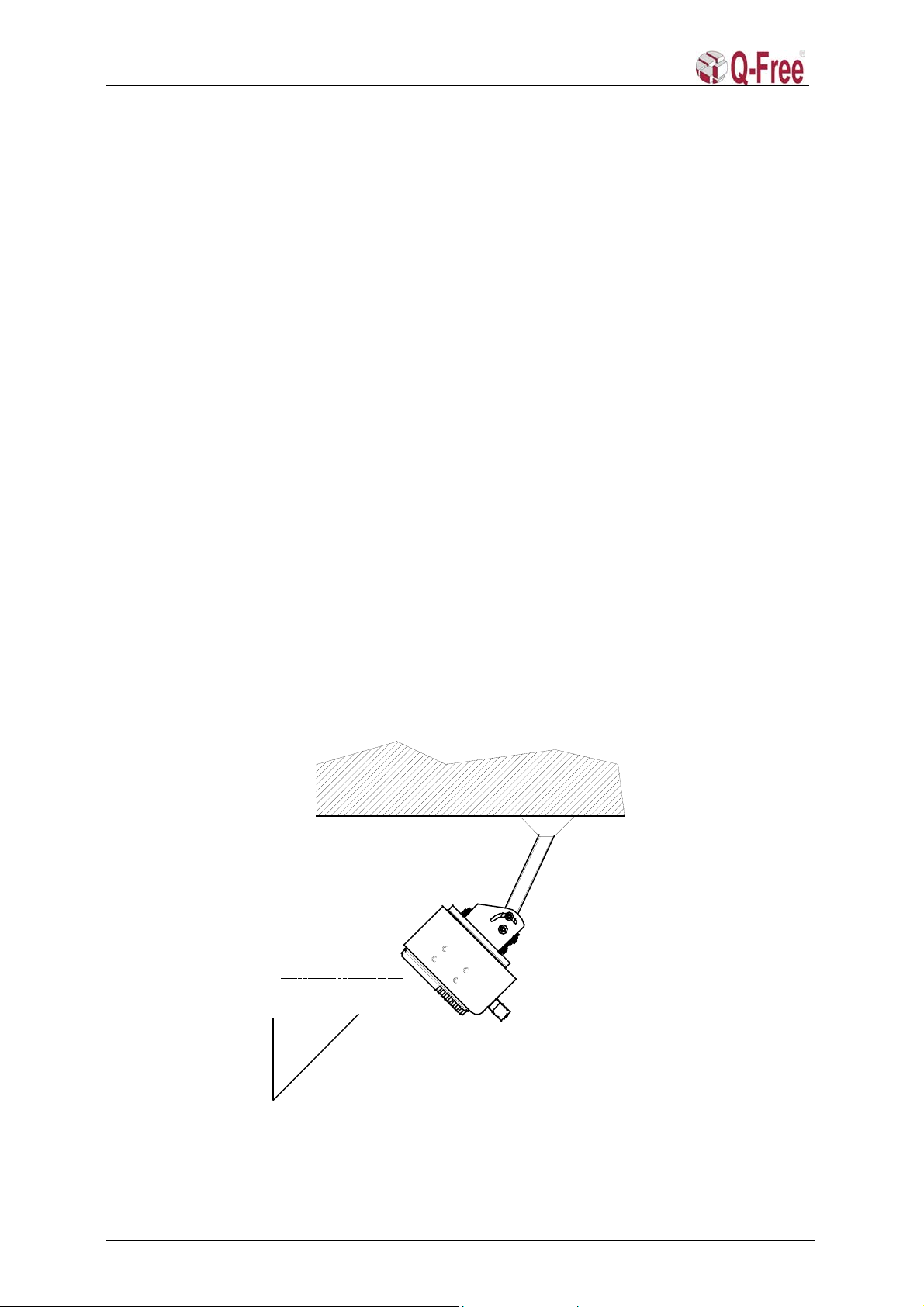

Figure 2.3.1 Side view of MR mounted hanging from concrete superstructure

Q-Free®ASA 645-054-1999 rev.4 5 of 20

MD 5850 Installation Manual

2.4 Square tube from customers construction

2.4.1Requirements for using the Uni-bracket

The bracket accepts 2x2" or 50x50mm square tube. The customer must obtain the square tube

and fix it to the suitable superstructure, gantry or pole. At the end of the square tube, there must

be drilled holes with 11mm diameter for the bolts that fix the Uni-bracket to the tube.

Ø11mm

50mmspaci ng

cl ose t o edge t o avoi d conf l i ct

Figure 2.4.1 Square tube construction

2.4.2Fixing the square tube

The customer should assure that the square tube is rigidly fixed and will not sway or yaw in

wind and will not deflect from original position over time.

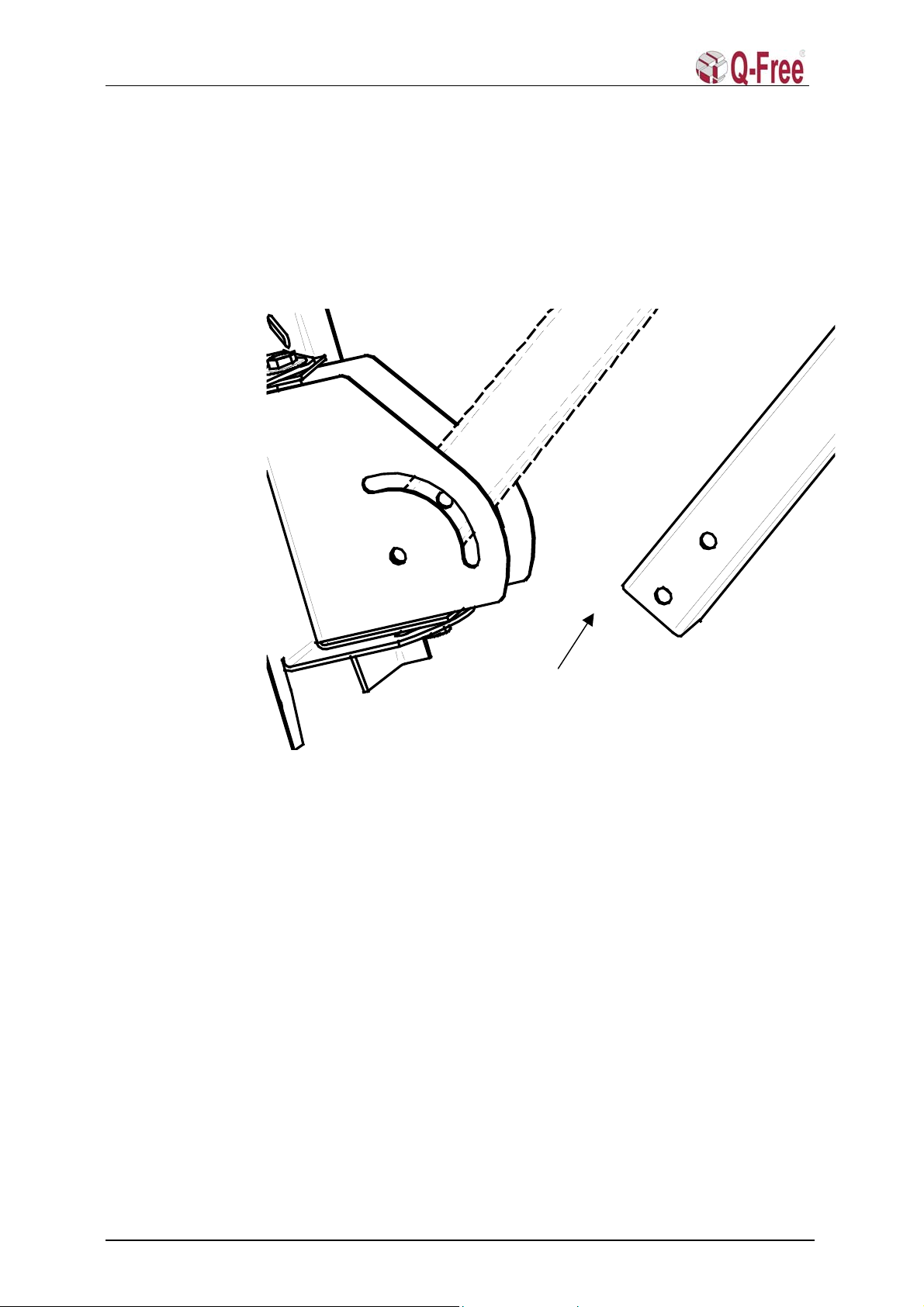

2.4.3Square tube angles

The square tube can be mounted in different angles, from vertical to horizontal in the

longitudinal axis of the lane. The Uni-bracket is fixed to the MR with 4 M8 bolts that are in a

200mm square pattern. The bracket can therefore be inverted on the MR in order to accept

different angles of the square tube.

2.5 Square tube sideways angles

The Uni-bracket also provides for sideways adjustment.

Q-Free®ASA 645-054-1999 rev.4 6 of 20

MD 5850 Installation Manual

Figure 2.5.1 Top view of MR, showing sideways adjusting range

3 MULTIREADER CABLE INTERFACE

3.1 MultiReader Power Supply and Data Interface

The cable interface to the MultiReader is dependent on which option and version that is

delivered. 24VDC, with 48VDC and 12VDC as options can power the MultiReader.

The normal data interface is as follows:

Circular connector:

RS422 (RS232)

Han-Modular connector:

RS422 combined with twisted pair, optical or coaxial Ethernet.

Information on how and where the different signals are located in the interface connectors is

given below (Fig. 3.2.1 and 3.3.1).

3.2 Circular Chassis Connector

Signal configuration for the standard 10 pin circular Chassis Connector with bayonet lock

POWER SUPPLY &

PIN B +VDC

PIN A +VDC

PIN C -VDC

PIN D -VDC

PIN E -RX

PIN F +RX

PIN G -TX

PIN H +TX

PIN I +VDC

PIN J -VDC

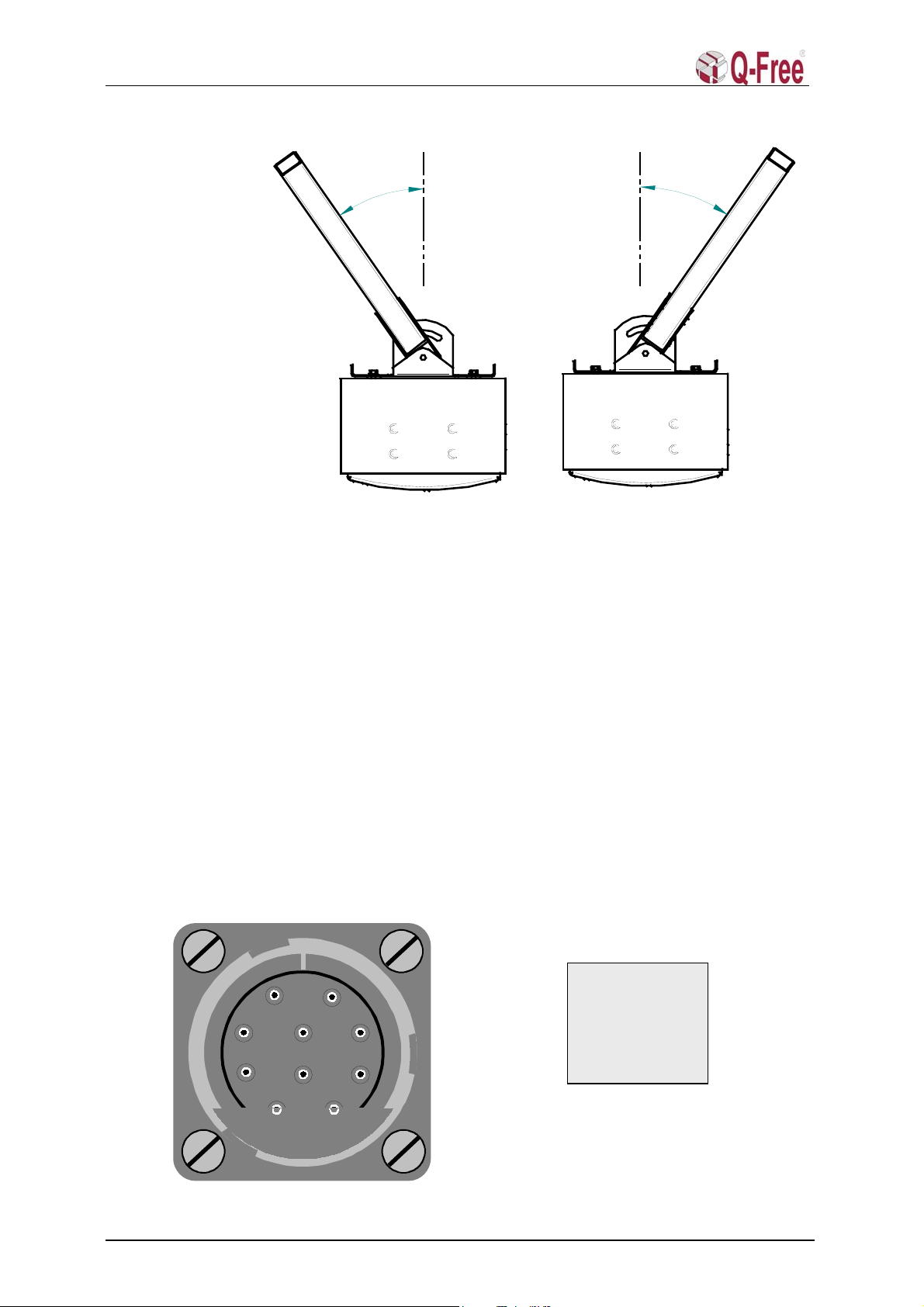

Fig.3.2.1 Circular Chassis Connector pin configuration.

Q-Free®ASA 645-054-1999 rev.4 7 of 20

MD 5850 Installation Manual

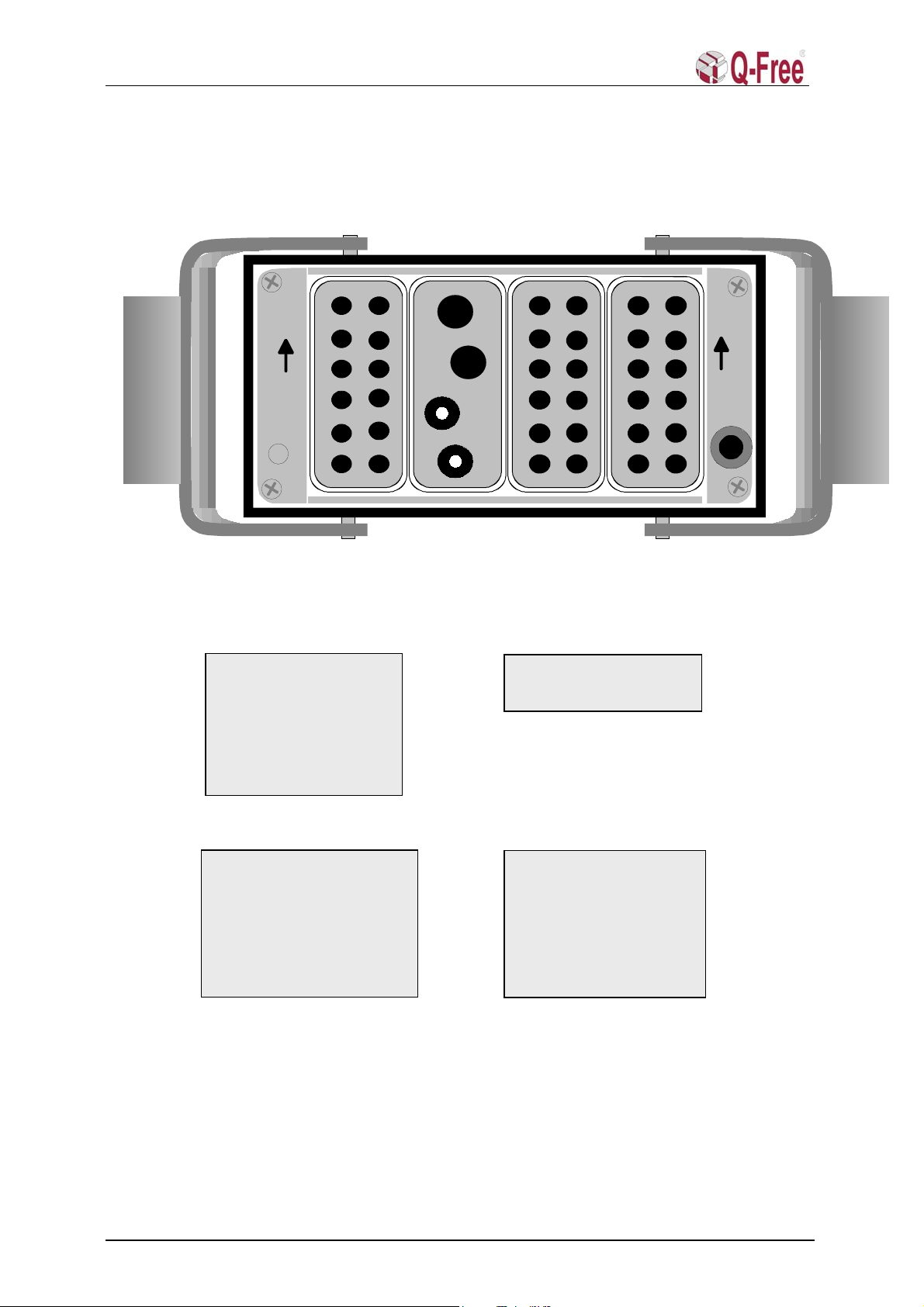

3.3 Han-Modular Connector

POS.b POS.c

POS. d

POS.a

THIS SIDE

TOWARDS MULTIREADER ANTENNA

HAN DD MODULE MALE

HAN MULTICONTACT

MODU LE MALE

FRAME FOR

HOUSING

DUMMY MODUL E

FRONT VIEW

CONTACT MALE

FOR HAN DD ADAPTER

CONTACT MALE

FOR HAN DD ADAPTER

POS.d

HAN DD MODULE MALE

CONTACT MALE

FOR HAN DD ADAPTER

POS. a POWER

PIN 2 +48 VDC Option

PIN 1 +48 VDC Option

PIN 3 +48 VDC Option

PIN 4 +12 VDC Option

PIN 5 +12 VDC Option

PIN 6 +12 VDC Option

PIN 7 +24 VDC Standard

PIN 8 +24 VDC Standard

PIN 9 +24 VDC Standard

PIN 10 - IVDC Standard

PIN 11 - IVDC Standard

PIN 12 - IVDC Standard

POS. b FIBRE OPTIC & COAXIAL Eth.net

PIN 2 RX FIBRE

PIN 1 TX FIBRE

PIN 3 TX/RX COAXIAL 1

PIN 4 TX/RX COAXIAL 2

POS. c RS232/RS422/Eth.net twisted pair

PIN 2 +IETX (Eth.net tw. pair)

PIN 1 +IERX (Eth.net tw. pair)

PIN 3 ITXD (RS232)

PIN 4 +ITX (RS422)

PIN 5 NC

PIN 6 +IRX (RS422)

PIN 7 - IERX (Eth.net tw. pair)

PIN 8 - IETX (Eth.net tw ). pair

PIN 9 IRSGND (RS232)

PIN 10 - ITX (RS422)

PIN 11 IRXD (RS232)

PIN 12 - IRX (RS422)

POS. d PIO Signals

PIN 1 IOA1 VDC signals

PIN 2 IOB1 from/to

PIN 3 IOA2 a PIO board

PIN 4 IOB2 relé switch.

PIN 5 IOA3

PIN 6 IOB3

PIN 7 IOA4

PIN 8 IOB4

PIN 9 IOA5

PIN 10 IOB5

PIN 11 IOA6

PIN 12 IOB6

Fig.3.3.1 Han-Modular Connector pin configuration.

Q-Free®ASA 645-054-1999 rev.4 8 of 20

MD 5850 Installation Manual

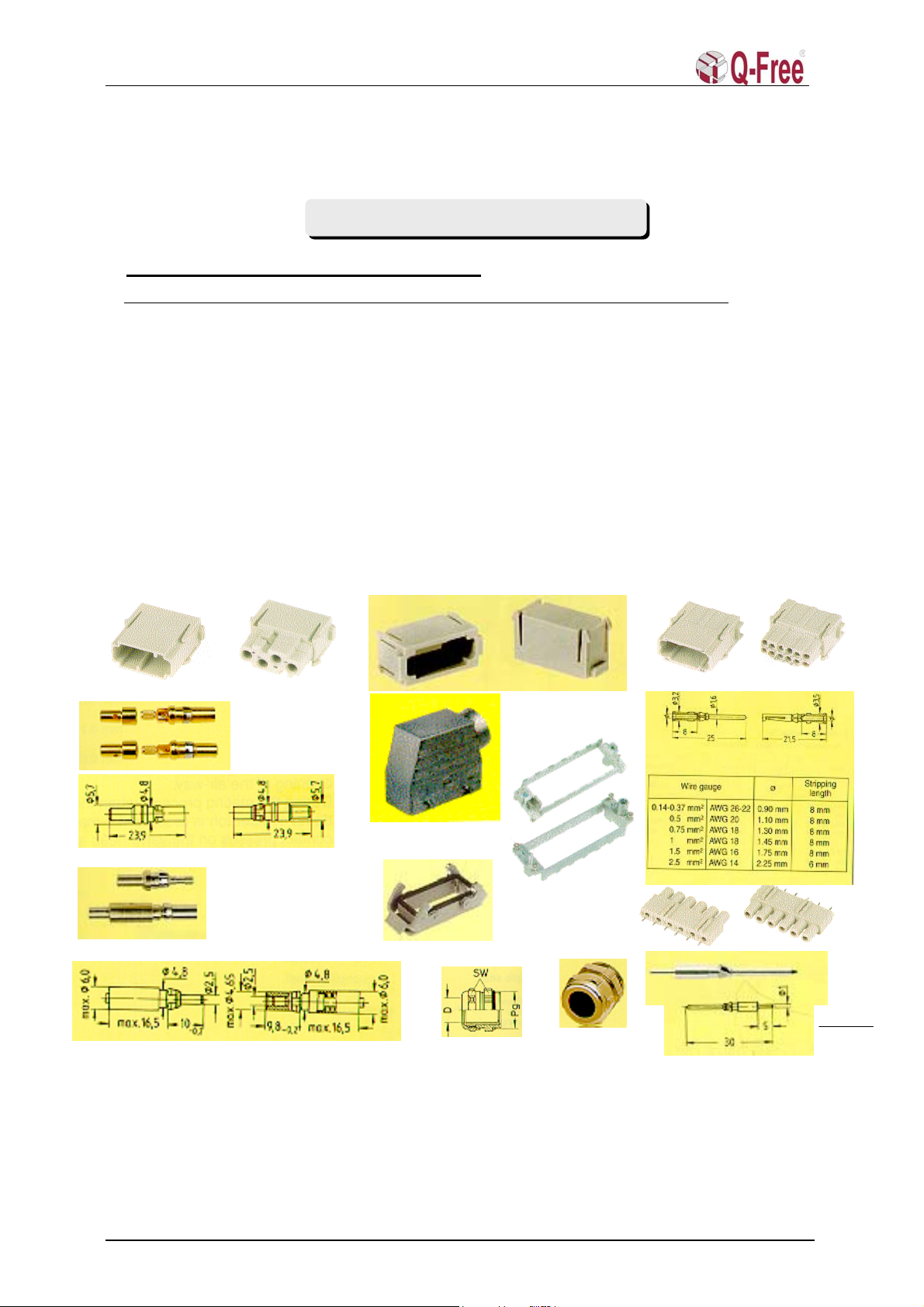

3.4 Han-Modular connector assembly parts

(see Harting Catalogue ”Heavy Duty HanConnectors” and http://www.harting.com/ )

09 14 012 3001 09 14 012 3101

09 15 000 6102 09 15 000 6202

Four module frame

09 14 016 0311

09 14 016 0301

09 30 016 0520

09 14 000 9950

Female 09 14 004 4512Male 09 14 004 4501

Male 09 14 000 6111

Female 09 14 000 6211

Coaxial contacts 50 ohm

Male 20 10 125 4211

Female 20 10 125 4221

Fibre contacts for DIN 41 626 part 3 09 30 016 0301 09 16 000 9905

09 62 000 5008

09 15 000 6191

Identification MD Part No. Harting Part No. Mounting part

Cable Clamp EMC (IP68): 2A1MCC01 09 62 000 5008 Cable

Hood (standard): 2A1MHD01 09 30 016 0520 Cable

Han DD Module Male: 2A1MDD01 09 14 012 3001 Chassis

Han DD Module Female: 2A1MDD02 09 14 012 3101 Cable

Han Multicontact-Module Male 2A1MMM01 09 14 004 4501 Chassis

Han Multicontact-Module Female 2A1MMM02 09 14 004 4512 Cable

Contact Female 0.5mm Silver P. 2A1MS 001 09 15 000 6203 Cable

Contact Female 1.0mm Silver P. 2A1MS 002 09 15 000 6202 Cable

Contact Female 2.5mm Silver P. 2A1MS 003 09 15 000 6206 Cable

Frame for hood: 2A1MFH01 09 14 016 0301 Cable

Frame for Housing: 2A1MFS 01 09 14 016 0311 Chassis

Housing (standard): 2A1MHS 01 09 30 016 0301 Chassis

Contact Male for Han DD PCB adapter 2A1MS 004 09 15 000 6191 Chassis

Dummy module: 2A1MDM01 09 14 000 9950 Cable & Chassis

Han PCB Adapter 2A1MAD01 09 16 000 9905 PCB I/O Filter

FOC male contacts for fibre 2A1MFC01 20 10 125 4211 Cable Exterrnal

FOC female contact for fibre 2A1MFC02 20 10 125 4221 Cable Internal

Harting Connector assembly parts

Connector S

ecifications

Q-Free®ASA 645-054-1999 rev.4 9 of 20

Inhaltsverzeichnis

Andere Q-FREE Zubehör Handbücher

Q-FREE

Q-FREE ITS-950 ParQSense Bedienungsanleitung

Beliebte Zubehör Handbücher anderer Marken

Hillco

Hillco 2810 Bedienungsanleitung

Siemens

Siemens QSA2700D Bedienerhandbuch

Contours

Contours ZY024 Bedienungsanleitung

Saivod

Saivod VS621 Bedienungsanleitung

Virtuox

Virtuox VirtuCLEAN 2.0 Bedienungsanleitung

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Bedienungsanleitung

Z-Wave

Z-Wave HSD-200Z Bedienungsanleitung

turck

turck FMX-IM-2UPLI63FX Bedienungsanleitung

Decagon Devices

Decagon Devices 10HS Bedienungsanleitung

UPPAbaby

UPPAbaby Cup Holder Bedienungsanleitung

Elko

Elko SmartSensor Leakage Wireless Bedienungsanleitung

Grizzly

Grizzly H8371 Bedienungsanleitung

Panasonic

Panasonic HG-T Series Bedienungsanleitung

IFM Electronic

IFM Electronic Efector 250 Series Referenzhandbuch

DigiDesign

DigiDesign 888/24 I/O Bedienungsanleitung

PROZIS

PROZIS QUAY Bedienungsanleitung

patagonia

patagonia PSI Vest Bedienungsanleitung

SFC Energy

SFC Energy EFOY GO! Bedienungsanleitung
