Qazqa Lofty FL Bedienungsanleitung

Lofty FL Black 98300

Lofty FL White 98301

Lofty FL Black Gold 105420

220-240V~

50Hz

E27 Max.60W

Max.Φ60mm

Overall Sizes:

FittinQ B.V.

Smaragdweg 52, 5527 LB Hapert, The Netherlands

www.qazqa.nl

Please study the instruction manual and below information carefully before installing or using this product.

Please keep this user manual for further reference

1. The luminaires may only be installed by authorized and qualified technicians according the valid

regulations for electrical installation.

2. Maintenance of the luminaires is limited to their surfaces. During maintenance no moisture can come

into contact with any areas of the terminal connections or voltage control parts.

3. The electrical supply must be switched off at the outset, preferably by means of a switch in the distribution

box, before any installation, maintenance or repair work is undertaken.

4. Exterior lighting must not be installed during rain.

5. Take account of the minimal separation distance from other objects and the room required around the fitting.

6. If in any doubt, consult a professional, taking local installation requirements into account. Some countries

stipulate that lighting may be installed only by registered installers.

7. Clamping screws in electrical connections must be adequately tightened. This is particularly the case with 12V

low voltage conductors.

8. When replacing a halogen lamp, wait for it to cool, for a minimum of 5 minutes.

9. Clean with a clean, dry cloth or brush, use no solvents or abrasives. Avoid dampness on all electrical

components

10. Take account of all available technical information.

11. Take note of the symbols when connecting wires:

N =Neutral L =Live =Earth

12. Meaning of symbols:

III

220-240V~

50Hz

Max.ø50mm

Gu10

2xMax.50W

IPXX

min. 0,75mm²

8mm

Light Angle

35cm ²

55º

SAFETY INSTRUCTION

0.5m

For indoor use only, where direct contact with water is impossible

Protection Class I: the fitting must be earthed

Protection Class II: the fitting is doubled insulated and does not require earthing

Protection Class III: the fitting is low voltage

Minimum distance from lighted objects (meters)

Only the self-shielded halogen lamp should be used with the luminaire

Strip the wire to the indicated length (mm);different items require different length

Connect using the specified cable; different items require different cables

The type of lamp and maximum size and wattage indicated in each lighting unit must not

be exceed; different items require different kind of light sources with different bulb icons

The armature is designed to work only with the indicated voltage. Different items require

different working voltage.

The luminaire can be used in combination with a dimmer

The reference light angle and light space of the luminaire

This luminaire cannot be disposed together with normal domestic waste in standard

rubbish can, but you have to bring it to a staging area for electrical waste

This icon indicates the level of water-proof and dust-proof

The luminaire can be dimmed by wall switch

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Qazqa Wohnraumbeleuchtung Handbücher

Qazqa

Qazqa Jeana Luxe WL 3 Black Bedienungsanleitung

Qazqa

Qazqa Sixties Marmo FL 5 Bronze Gold Bedienungsanleitung

Qazqa

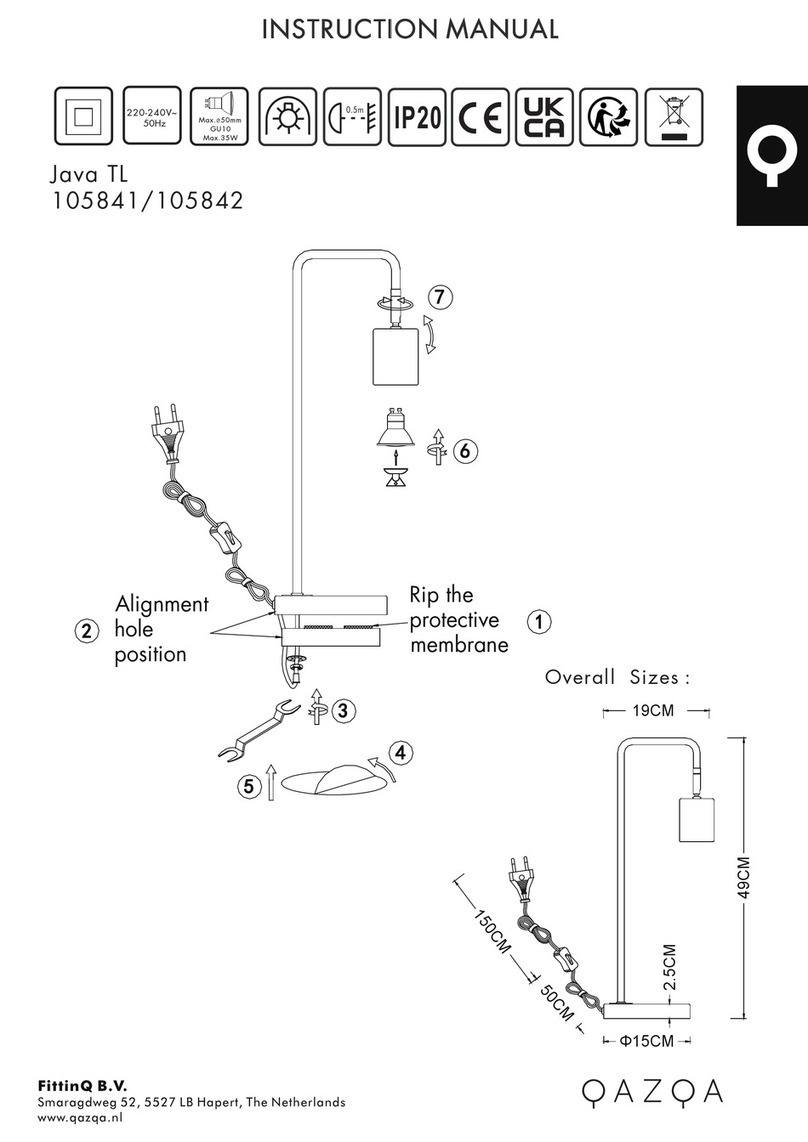

Qazqa Java TL Bedienungsanleitung
