QWHL150(QBK)/QWHL250(QBK)

Thank you for purchasing QLight product. Please read this manual

carefully before installing the product for safe and long use.

▪Employing power LED of high brightness and suitable for a

working place which needs high brightness.

▪Die casting aluminum structure is resistant to vibration,

impact and heat.

▪Direct Mounting and bracket mounting types are available.

▪Conducting stable performance under the environment

where exits lots of cutting oil, dust and metal chips.

▪Material: Body-AL, Bracket-SUS430, Lens-Tempered glass

▪Protection class: IP67

▪

General Specification

Model

Voltage

Current

Weight

Brightness

(Lux)

Color

QWHL150,

QWHL150-

QBK03

DC12V

0.800A

0.93Kg

1,200 Lux

White-W

DC24V

0.533A

QWHL250,

QWHL250-

QBK03

DC12V

1.333A

1.21Kg

1,800 Lux

DC24V

0.800A

(The weight information above is only for QWHL150/QWHL250.)

▪External View Drawing

QWHL150

QWHL150-QBK03

QWHL250

QWHL250-QBK03

OPERATINGMANUAL

POWER LED Work Light

Specification & External View Drawing

www.microlectra.nl [email protected]

The product has a power line, LAPP KABEL CLASSIC 400P 0.75sq X

2C 400mm, coming out from the product.

▪In case of using DC voltage, the product has a bridge circuit inside,

therefore lines can be connected regardless of the polarity (Ref. wire

color).

▪This product was manufactured with the structure for indoor use.

Installing in any direction is okay for indoor use.

▪Mount at a place where exists low vibration, impact, moisture and dust

as long as possible.

▪Refer to below information and drill necessary mounting holes on

profitable part of the product. (Check the PCD from external view

drawing.)

▪QWHL150/QWHL250: Fix the product by using extra mounting bolt

(M4-4EA).

QWHL150

QWHL250

▪If the angle of the body(angle of signal transmission) needs

adjustment, loose the bracket fixing bolt①on side of body and adjust

the angle. (Please refer to structure drawing)

▪QWHL150-QBK03/QWHL250-QBK03: Fix the product by using the

attached mounting bolt(M6-3EA) with the product.

QWHL150-QBK03 / QWHL250-QBK03

▪For left/right side angle adjustment, loose the fixing bolt ①on the

bracket and adjust the angle. (Refer to the product structure drawing)

▪For up/down side angle adjustment, loose the fixing bolt ②on the

bracket and adjust the angle. (Refer to the product structure drawing)

▪The product is designed for an explosion proof, water proof and dust

proof product. When disassembling and assembling the product, please

make sure all the parts are well connected and check the bolts are

completely airtight.

▪If voltage goes seriously higher or lower than the rated voltage, it can

cause the reduction of the life span of the product or cause an operating

problem. Make sure the voltage does not exceed +/-5% of the rated

voltage.

▪Please keep the product from chemical substance such as thinner or

benzene. Lens or body of the product can be damaged, discolored or

deformed by chemicals.

Product Structure

Wiring Instruction

Mounting

www.microlectra.nl [email protected]

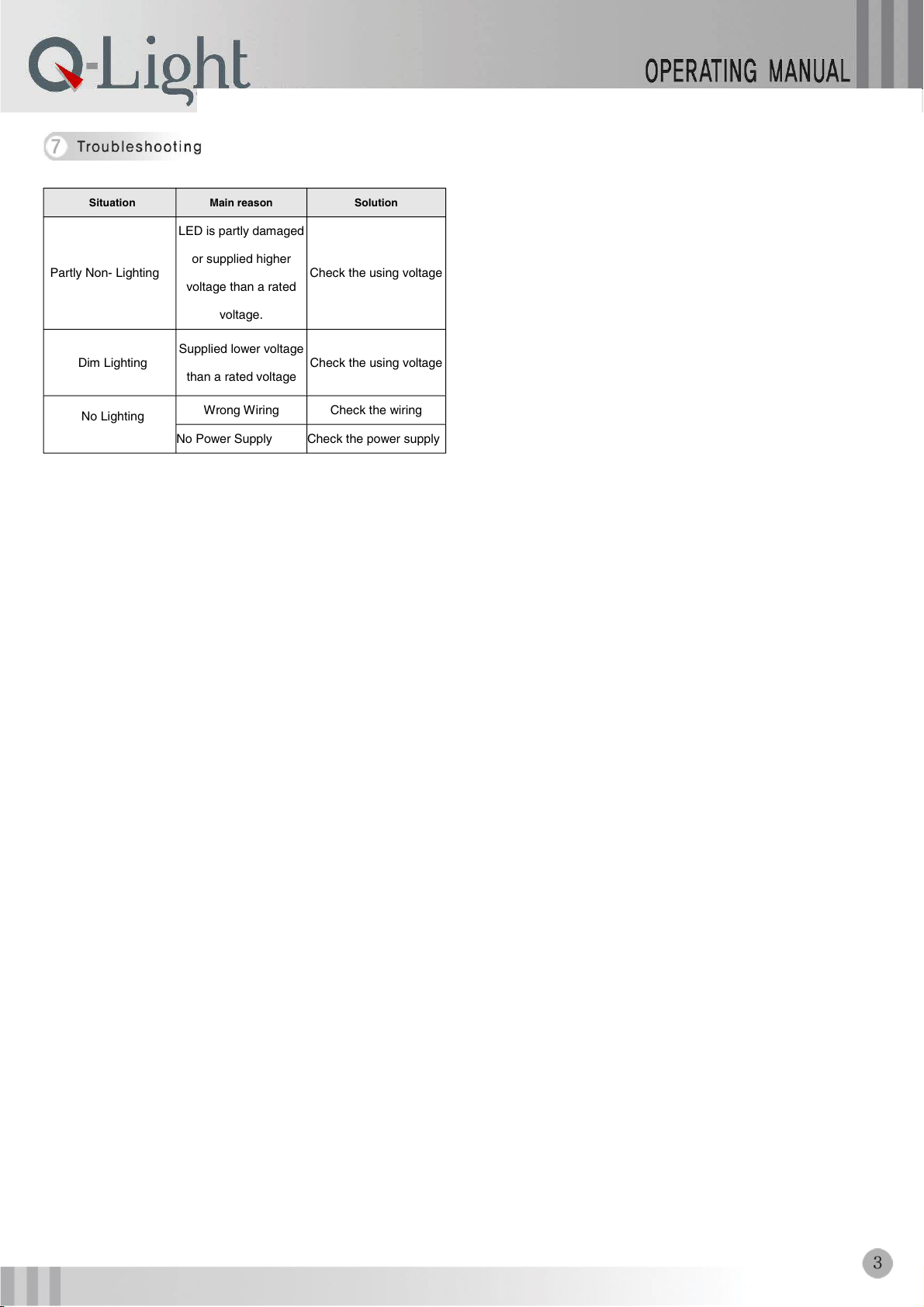

Situation

Main reason

Solution

Partly Non- Lighting

LED is partly damaged

or supplied higher

voltage than a rated

voltage.

Check the using voltage

Dim Lighting

Supplied lower voltage

than a rated voltage

Check the using voltage

No Lighting

Wrong Wiring

Check the wiring

No Power Supply

Check the power supply

www.microlectra.nl [email protected]

Microlectra bv.

Hermanus Boerhaavestraat 6. 3261 ME Oud-Beijerland. Netherlands.

Tel 31(0)186-616290 Fax 31(0)186-610349 www.microlectra.nl [email protected]
