Quoizel CLI9009EK Bedienungsanleitung

- of 2 -1

Mounting Screw

AA Wire Connector

PACKAGE CONTENTS

MOUNTING HARDWARE

SAFETY INFORMATION Released Date: 2022-09-28

Please read and understand this entire manual before attempting to assemble, install or operate the product.

WARNING

• RISK OF ELECTRIC SHOCK - Before beginning installation, turn oﬀ electricity at the circuit breaker box or the main fuse box.

• RISK OF FIRE - Use bulbs speciﬁed by the markings and/or labels on the ﬁxture.

CAUTION

• For your safety, read instructions completely before beginning installation.

• If in doubt about electrical installation, consult a licensed electrician.

• Turn oﬀ electricity to ﬁxture before replacing the bulb(s).

TOOLS REQUIRED

CARE AND MAINTENANCE

INSTALLATION GUIDE FOR CLI9009EK

• Wipe clean using soft, dry cloth or static duster. Always avoid using harsh chemicals and abrasives to clean ﬁxture as they may damage

the ﬁnish.

If you need further assistance call Quoizel Customer Care at 1-800-645-3184 (9:00am - 5:00pm EST), or visit us on-line at

www.quoizel.com.

AFixture Body

x 1

BCage with

Shade

x 1

Socket Collar

(Pre-assembled

on Fixture Body)

x 1

Lock Ball

(Pre-assembled

on Cage)

- of 2 -2

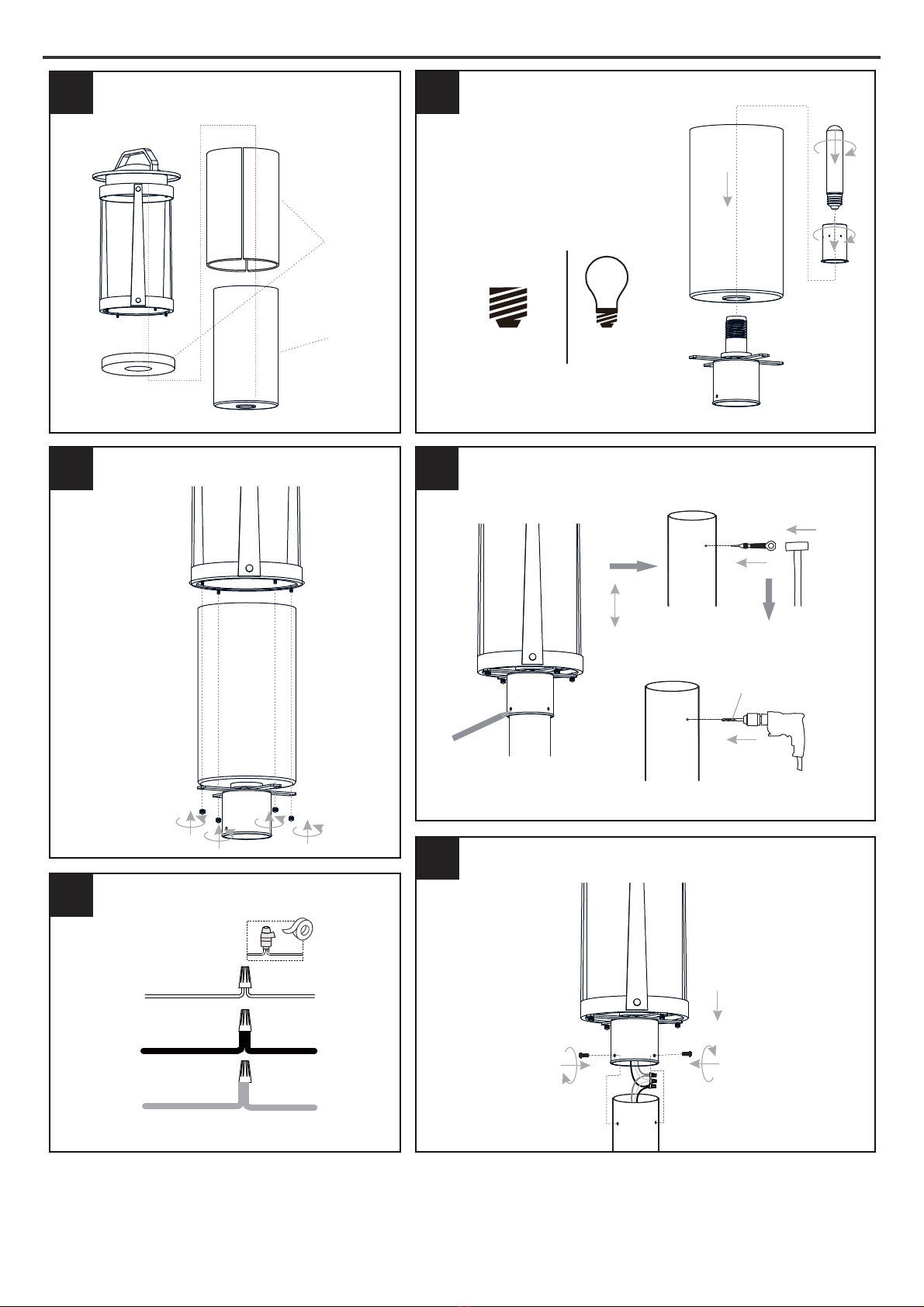

INSTALLATION

Drill Mounting Hole Locations on Post

Post

1/16” Drill Bit

Install Shade and Bulb

Install Cage

Wiring

White wire from supply White from ﬁxture

Black (or red) wire from supply Black from ﬁxture

Ground wire from supply Ground wire from ﬁxture

Install Fixture Body

Your installation is now complete! Restore electricity and save this sheet for future reference.

BULB BASE TYPE

Medium (E26)

BULB TYPE

TYPE A

100W

MAX

Install correct bulb referring to ﬁxturethe

markings and/or labels for maximum

wattage.

Recommended Bulb

Type (not included):

Remove Packing Material and Glass

Shade from Cage with Shade

Packing

Material

Glass

Shade
