Quoizel SFD8409IB Montageanleitung
Part Description Quantity
A Crossbar 1pc.
2 pcs.
2 pcs.
2 pcs.
B
C
D
E
F
Hex Nut
Lock Washer

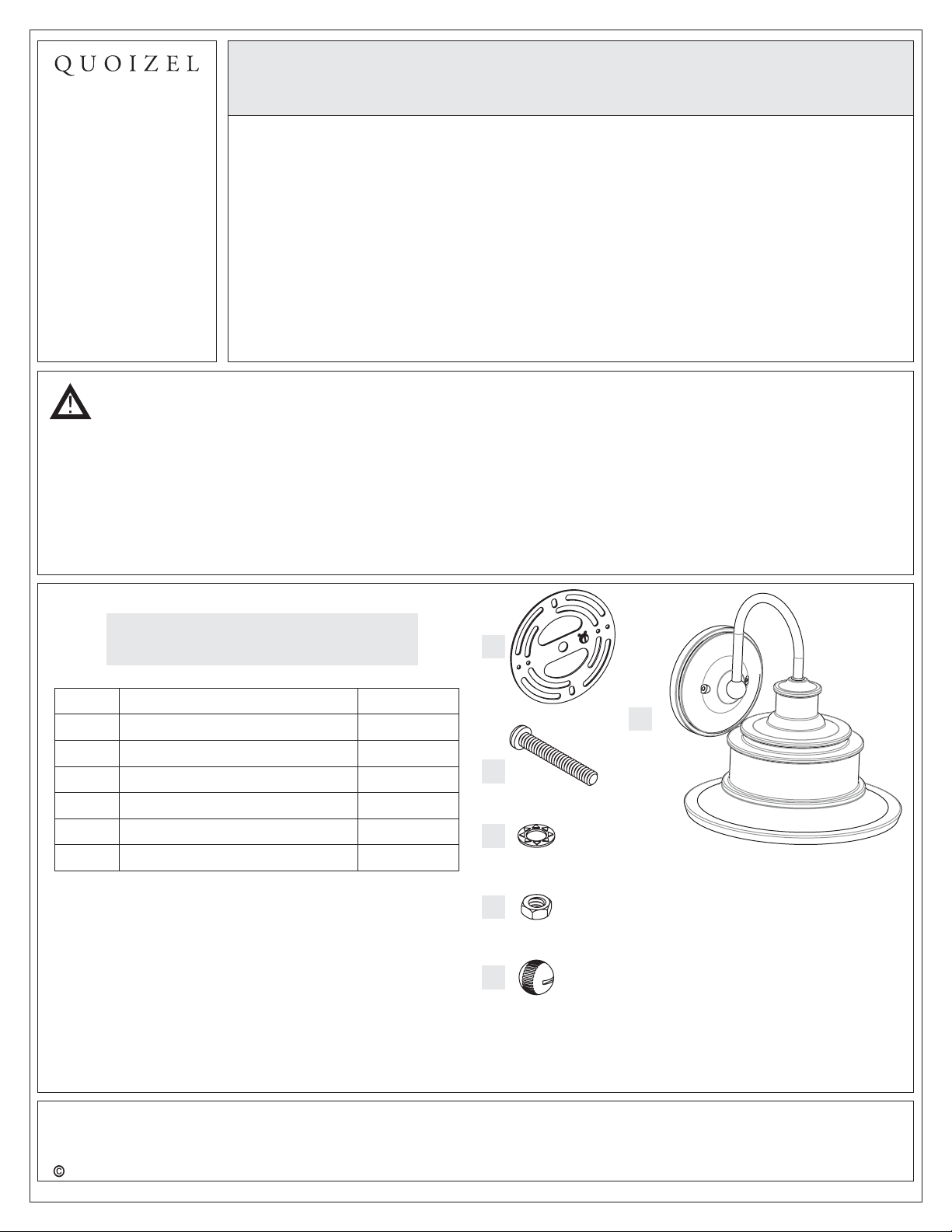

Package Contents
Quoizel, Inc.
6 Corporate Parkway
Goose Creek, SC
29445
Customer Service
Phone 631.273.2700
Fax 631.231.7102
www.quoizel.com
Warnings and Cautions
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing
the fixture. We strongly recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool
before removal. Do not subject glass parts to any shock while in operation or shattering may result.
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com
2013 QuoizelInc.
A
B
C
D
E
Mounting Screw
Assembly Instruction Sheet #IS-SFD8409IB
For Style SFD8409IB
1of5
ToolsRequired:Flatheadscrewdriver, Phillips screwdriver,pliers,wirecutters,wire
strippers,electricaltape,safetyglasses.
EstimatedAssemblyTime:20-30 minutes
Preparation:Identifyandinspectallpartsbeforebeginninginstallation.Checkpackage
contentlistanddiagramsbelowtobesureallpartsarepresent.Ifanypartsaremissing
ordamaged,donotattempttoassemble,install,oroperatethefixture.Contactcustomer
serviceforreplacementparts.
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
,.
..
F
1pc.
2 pcs.
Lock Ball
Fixture Body
BulbRecommended: (1)MediumBase100WMaximum
July2013
SFD8409IB
1
2
PART NUMBER

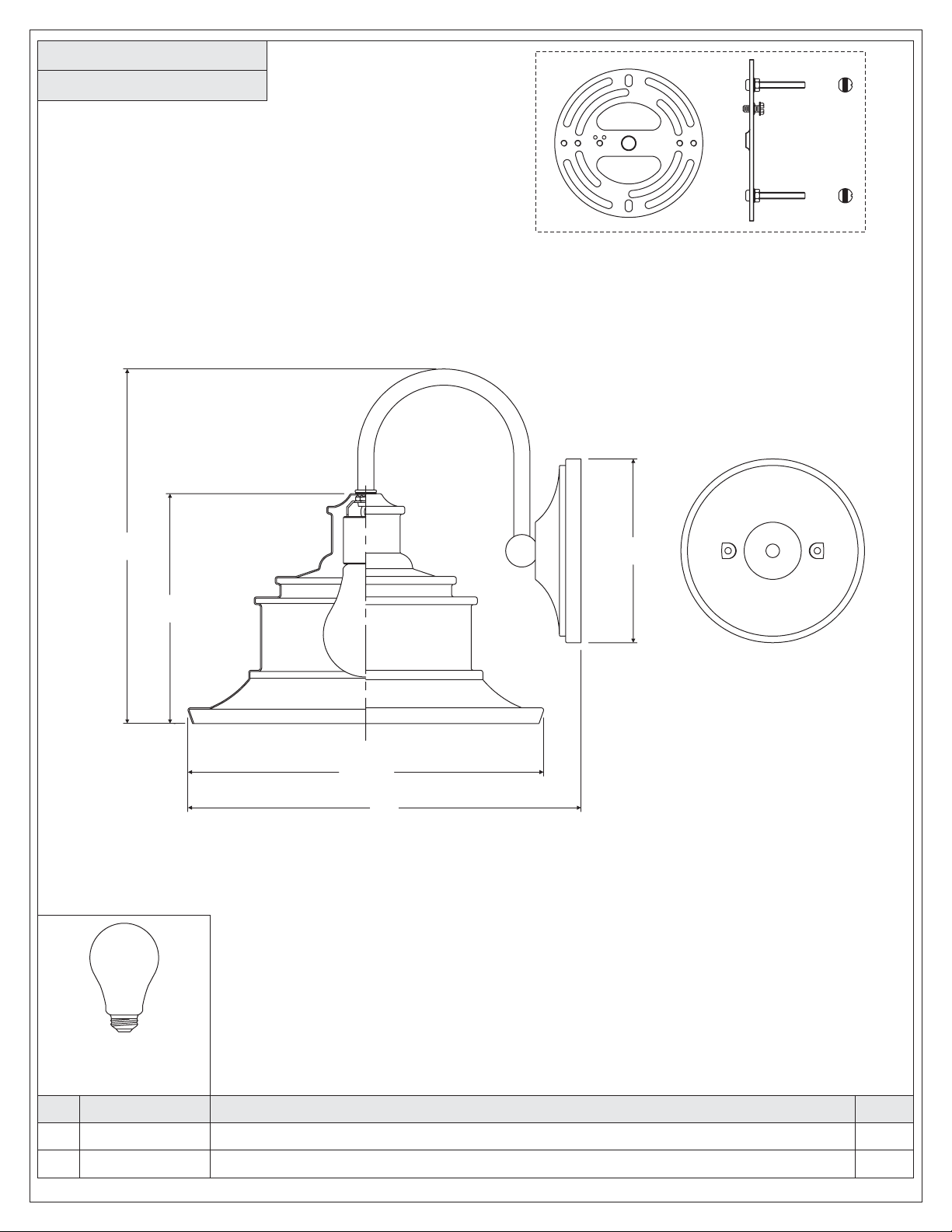

NOTE: ALL DIMENSIONS ARE ROUNDED UP TO THE NEAREST 1/2"
REPLACEMENT PART DESCRIPTION REQ.
NO.
2of5
FINISH: IMPERIAL BRONZE
GND
2.4mm
13Ga
QUOIZEL R
(1)100W
Medium Base Bulb
(Not Supplied)
6”
9”
9”Dia.
10”
5.5”Dia.
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com
2013 QuoizelInc.
3of5
STEP 2 -Attach Crossbar to Outlet Box
A. Attach the Crossbar (A) to Outlet Box and secure by
threading Outlet Box Screws (not supplied) into the
Mounting Holes on the Outlet Box. Tighten until snug.
Crossbar
Outlet
Box
Outlet Box
Screw
Mounting
Hole
Figure 2
Assembly Instruction Sheet #IS-SFD8409IB
For Style SFD8409IB
Figure 1
Crossbar
Mounting
Screw
Lock Washer
Hex Nut
Backplate
STEP 1 -Attach Mounting Screws, Lock
Washers and Hex Nuts to Crossbar
A. Line up a set of holes on the Crossbar (A) and Holes on
the Backplate of the Fixture Body (F).
B. Thread Mounting Screws (B) into the holes on the
Crossbar (A), pass Lock Washers (C) and thread Hex
Nut (D) onto the Mounting Screws (B). Hand tighten
until snug.
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
,.
..
Fixture
Body
July2013
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com
2013 QuoizelInc.
4of5
Assembly Instruction Sheet #IS-SFD8409IB
For Style SFD8409IB
STEP 3 Make Wire Connections-
A. Use standard wire connectors to make all wire
connections. (Connectors are not included with fixture.)
Strip and prepare wire ends according to instructions
supplied with connectors.
B. Connect White Supply Wire from the Outlet Box to White
Wire from fixture.
C. Connect Black (or Red) Supply Wire from the Outlet Box
to Black Wire from fixture.
D. Connect Ground Wire from the Outlet Box to Ground
Wire from fixture.
E. Twist connectors until wires are tightly joined together.
F. Wrap each connection with approved electrical tape and
carefully stuff all the connected wires into the Outlet Box.
Figure 4
White wire from supply White wire from fixture
Black wire from supply
(or Red)
Black wire from fixture
Ground wire from supply Ground wire from fixture
Figure 5
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
,.
..
Figure 3
STEP 4 Attach Fixture Body to Mounting
Screw
-
A. Place the backplate of Fixture Body (F) over the
Mounting Screws (B). Place caulk (not included) into
threads of Mounting Balls (E) and thread them onto the
Mounting Screws (B). Hand tighten until snug.
Mounting Screw
Lock Ball
Backplate
Fixture Body
July2013
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com
2013 QuoizelInc.
5of5
Assembly Instruction Sheet #IS-SFD8409IB
For Style SFD8409IB
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
,.
..
STEP 5 -Install Bulb
A. This fixture uses standard bulb with a standard screw
base. Maximum 100 watts.
B. Insert bulb and screw properly into place.
Figure 6
Bulb
Socket
July2013
STEP 6 Apply Silicone Sealer to Backplate-
A. Make sure exterior wall surface and fixture backplate
are free of dirt before applying caulk. Using exterior
grade caulk, start on one side of fixture backplate and
follow contour, where the fixture backplate meets the
exterior wall surface upward. Proceed to caulk over top
of backplate and down other side. Do not caulk bottom
of fixture backplate to ensure proper moisture
drainage.
Your fixture is now assembled and ready to use.
Enjoy!
Exterior
Grade Caulk
Outdoor Fixture
Backplate
Exterior Wall Surface
Figure 7
Exterior
Grade Caulk
